USER MANUAL KH 2270 E-BENCH

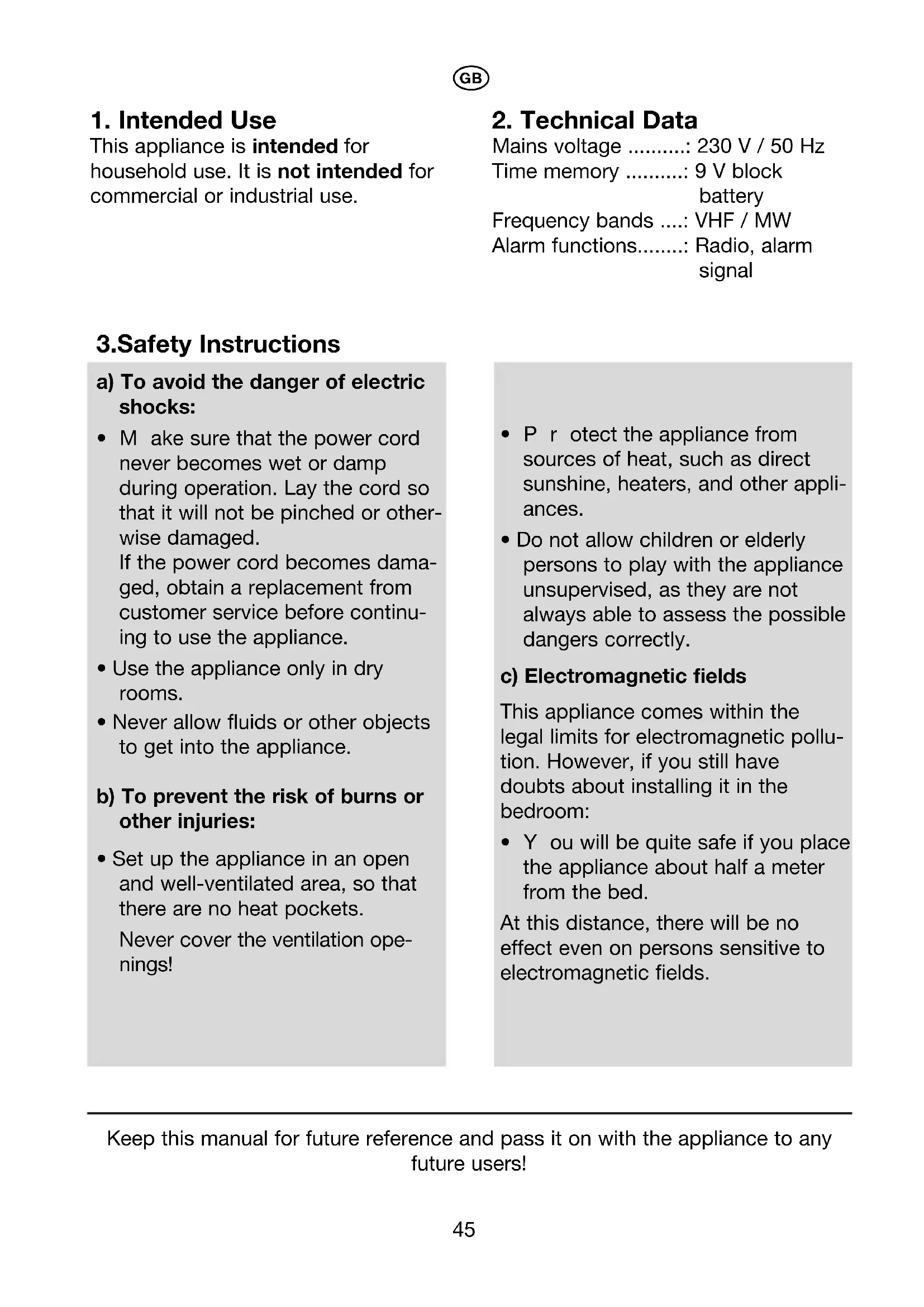

This appliance is intended for household use. It is not intended for commercial or industrial use.

Mains voltage ..........: 230 V / 50 Hz Time memory ..........: 9 V block battery Frequency bands ....: VHF / MW Alarm functions........: Radio, alarm signal Keep this manual for future reference and pass it on with the appliance to any future users! 3.Safety Instructions a) To avoid the danger of electric shocks:

• Make sure that the power cord never becomes wet or damp during operation. Lay the cord so that it will not be pinched or other- wise damaged. If the power cord becomes dama- ged, obtain a replacement from customer service before continu- ing to use the appliance.

• Use the appliance only in dry rooms.

• Never allow fluids or other objects to get into the appliance. b) To prevent the risk of burns or other injuries:

• Set up the appliance in an open and well-ventilated area, so that there are no heat pockets. Never cover the ventilation ope- nings!

• Protect the appliance from sources of heat, such as direct sunshine, heaters, and other appli- ances.

• Do not allow children or elderly persons to play with the appliance unsupervised, as they are not always able to assess the possible dangers correctly. c) Electromagnetic fields This appliance comes within the legal limits for electromagnetic pollu- tion. However, if you still have doubts about installing it in the bedroom:

• You will be quite safe if you place the appliance about half a meter from the bed. At this distance, there will be no effect even on persons sensitive to electromagnetic fields. IB_Content_SNOOZE.qxd 14.06.2004 14:51 Uhr Seite 4546

Move the sliding switch to the ON position. Turn the volume control VOL to the centre position. Select the frequency band with the AM / FM sliding switch. Select the desired station with the TUNING control.

8. Switching on the alarm

If the clock and alarm time are set correctly, as described above: Set the sliding switch to the AUTO position. The alarm is now swit- ched on. This is confirmed by a dot at the bottom left of the display. You will be awakened by the radio if ... the volume control VOL is set to a level high enough to awaken you. You will be awakened by the alarm signal if ... the volume control VOL is turned quietly until it switches off with an audible click, and goes into the BUZZ setting.

9. Switching off the alarm

Press the SNOOZE button and the alarm will sound again after 9 minutes. Move the sliding switch to the OFF positioin, to switch off the alarm altogether.

4. Connecting the appliance

Before oeprating the appliance, make sure that it is in perfect condition. Do not use it otherwise. ➪ Open the battery compartment at the back or underneath, and insert a 9V battery pack. ➪ Insert the power plug into the power socket. Choose a power socket that is accessible at any time, so that you can pull out the plug from the socket quickly if there is a fault.

5. Setting the clock

If you are setting up the appliance for the first time after inserting a new battery: Press and hold the TIME button and: Press the HOUR button to set the hour. Press the MINUTE button to set the minutes.

Before disposing of the appliance,... ➪ Take out the batteries, as descri- bed at point 4. Old batteries should not be disposed of with the household waste: ➪ Return old batteries to your dealer, or take them to an appropriate disposal point. ➪ Protect the environment! Take the appliance to a recycling point for electronic equipment.

If you would like to listen to the radio for a while before going to sleep and would like the radio to switch off by itself: Move the sliding switch to the AUTO position, and ... press the SLEEP button. The radio will remain on for 59 min. You can shorten the time remaining till switch-off time by ... pressing and holding the SLEEP button then pressing the MINUTE button to set the remai- ning time.

11. Cleaning and Care

Warning: Danger of electric shock!

Before cleaning the appliance: ➪ Disconnect the power plug from the power socket. ➪ Never open the casing. There are no operating controls inside. ➪ Clean the appliance using a clean dry cloth only. ➪ Do not use cleaning agents or sol- vents. These can damage the pla- stic surfaces. IB_Content_SNOOZE.qxd 14.06.2004 14:51 Uhr Seite 47
