Product type	Portable clothes dryer
Brand	Xsquo
Model	SECAMATIC TURBO
Maximum capacity	10 kg
Nominal power	700 W
Nominal voltage	220-240 V / 60 Hz
Timer	0 to 180 minutes
Drying method	Static drying (without rotating drum)
Heating element	PTC (positive temperature coefficient)
Functions	Clothes dryer, towel dryer, heated room, cloakroom
Installation	Simple assembly with tubes and feet, foldable
Maintenance	Clean with a damp cloth
Safety	Overheat protection, automatic shutdown, do not obstruct air inlets/outlets
Warranty	2 years against manufacturing defects
Reference	9202

Frequently Asked Questions - SECAMATIC TURBO Xsquo

How to install the SECAMATIC TURBO clothes dryer?

Insert the three feet into the motor holes, adjust the tubes by turning clockwise, then place the cover. Hang the clothes on the line and close the cover, ensuring not to obstruct the air outlets.

What is the maximum loading capacity?

The maximum capacity is 10 kg. Do not exceed this weight for effective drying.

How to set the drying time?

Turn the timer knob to the desired position: 30, 60, 90, 120, 150 or 180 minutes. For continuous operation, turn the dial continuously.

What to do if the drying time is too long?

Check that the clothes are not too heavy or excessive, that they have been well spun (minimum spin speed of 800 rpm), and that the cover is properly closed to prevent air leaks.

Why does the machine stop suddenly?

This may be due to an obstruction of the air inlet or outlet by clothes or another object. The device has overheat protection and shuts down automatically. Let it cool down and clear the air passages.

What to do if the power indicator does not light up?

First check that there is no power outage or that the socket is not defective. Also ensure that the plug is properly connected.

How to clean the clothes dryer?

Clean the device with a damp cloth. Do not use liquids and do not immerse the device in water.

Where to place the SECAMATIC TURBO?

Place it on a flat, water-resistant surface, at least 1.5 m from any water or fire source. Avoid parquet or wooden floors.

What types of clothes can be dried?

This device is designed to dry hand-washed or machine-washed clothes, spun at least 800 rpm. Make sure the clothes can withstand a temperature above 75 °C.

What does the warranty cover?

The 2-year warranty covers manufacturing defects. It does not cover damage due to misuse, contact with water, short circuits, or power outages. Contact customer service at [e-mail].

USER MANUAL SECAMATIC TURBO Xsquo

14 Safety Instructions
15 Features and parts
16 Installation
18 Disassembling
19 Operation Instruction
20 Troubleshooting
21 Technical Data

INDEX

N° PROBLEM A PROBLEM POSIBLE CAUSA

Congratulations for purchasing Secamatic Turbo Clothes dryer. This guide explains how to use and safely maintain your SECAMATIC TURBO. Please read carefully and keep this leaflet for future queries.

SAFETYWARNINGS

• Secamatic Turbo is designed exclusively for home use.
• Place your Secamatic Turbo on a flat waterproof surface.

IMPORTANT! Do not place on wood or parquet floors.

• Whenever this machine is being using or not, make sure to keep it at least 1.5 metres away from water or fire source. Clean it with damp cloth instead of water rinsing.
• Make sure the power supplying socket is with earth contact.
• Never touch the metal parts on the wind-outlet to avoid getting burn.
• Wind-outlet and entry should keep good ventilation. Not cover.
• The inlet and oulet air holds should maintain good ventilation.
• Keep children and disabilities away from this machine when it is working.
• When using, please make sure clothes have already been spin-dried by washing machine or screw-dried by hands, to reduce water dews dropping down to make floor damp. Less water also ensures improving electricity isolate status, and shortens clothes drying period to save energy.
• Please note that the drying time is reduced when clothes are drained.
• This appliance is intended only for drying textiles washed in water. Clothes to be dried should be able to endure 70 degree above, total weight maximum 10 Kgs.
• It is normal that appears water on the base during the process of drying very wet clothes.
• Do not operate the appliance if the cord or plug is damaged.
• This machine is no suitable for repairing by non-professionals.

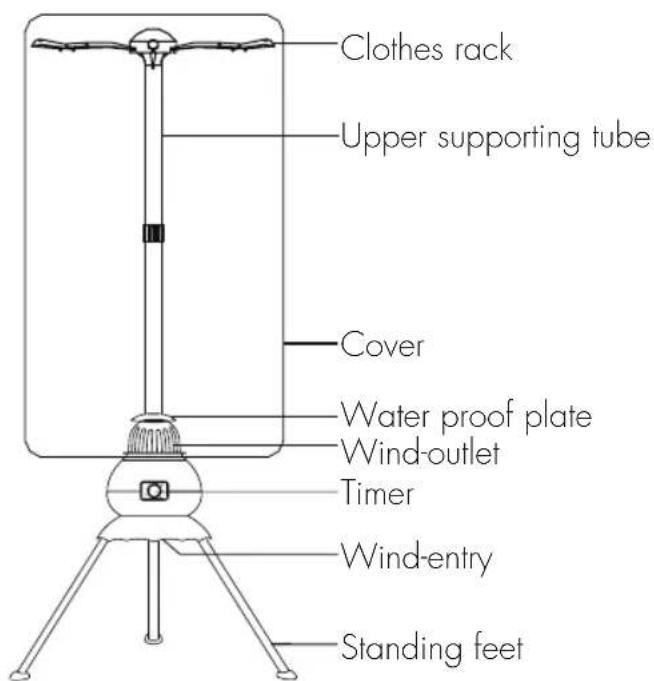

FEATURES AND PARTS

• The static drying method is different from traditional clothes drying way, and avoids clothes friction, goffer or damage.
• PTC heating-element ensures maximum safety. Double heating-protection.
• Avoid re-pollution: clothes isolated from outside space, exempt from dust and insects contacts, eliminate bacilli by high temperature.
• Multi function in one: clothes dryer, room warmer and clothes bureau.
• When the timer is on, the device starts, and helps to eliminate odors and purify the air.
• Energy saving: saves energy compared with traditional similar appliance.
• High efficiency: it takes 1-3 hour to dry up clothes.
• Convenient to carry: small, light, easy disassembly and flexible to carry for travel.

ENGLISH

INSTALLATION

The Secamatic Turbo doesn't require much time for installation. In a few minutes, you will have it ready to dry your clothes.

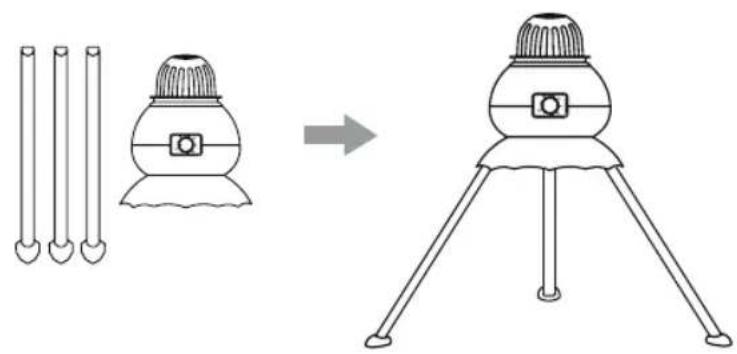

1. • Insert 3 pcs of standing feet into correspond holes at the bottom of the motor unit.

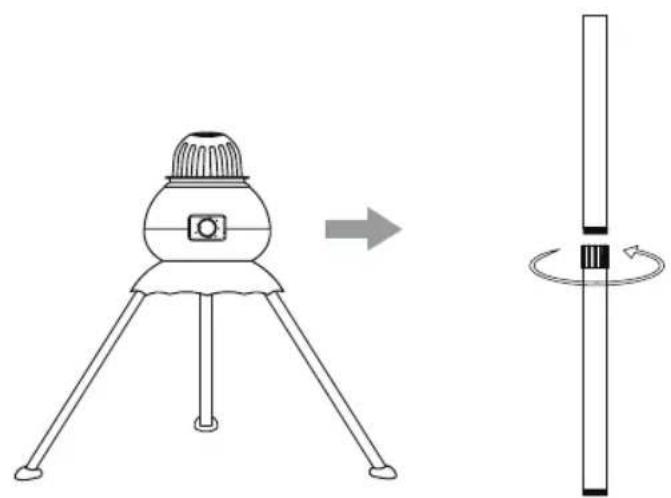

2.- Adjust the tubes rotate in clockwise direction to reach the proper position.

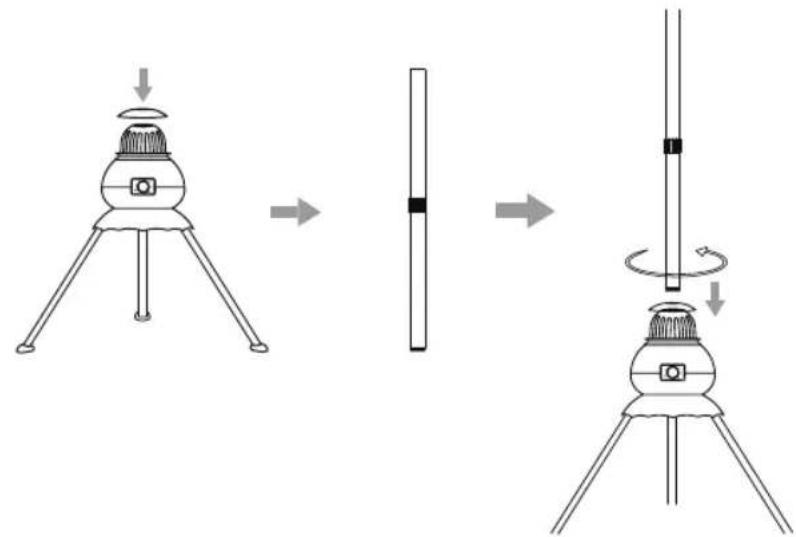

3.- Fit the connector onto the upper supporting tube and lower supporting tube, screw it clockwise until reach position. Fit the water-proof plate onto the lower supporting tube, screw it to ensure reaching position.

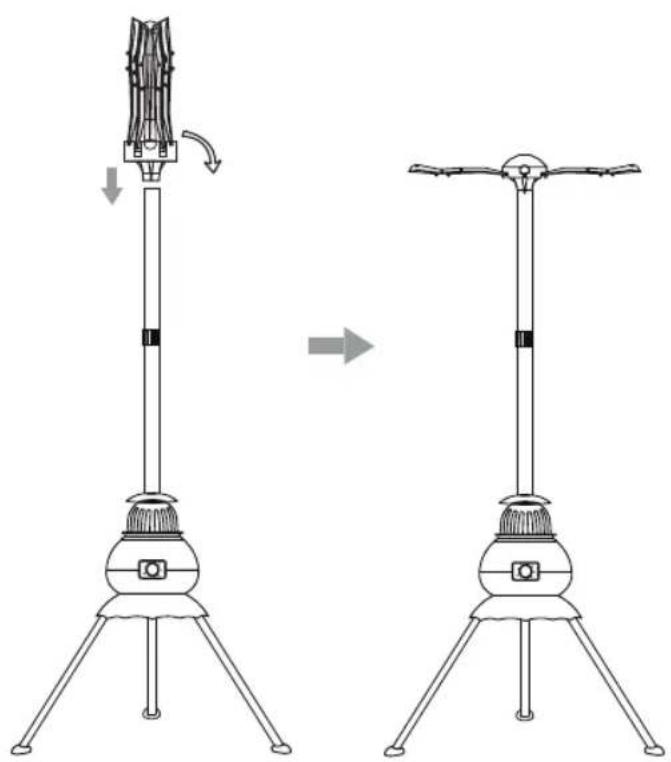

4.- Insert the hanger groupware into the upper supporting tube, then put down the aluminum hangers to the level position. Afterwards, extend the hangers.

ENGLISH

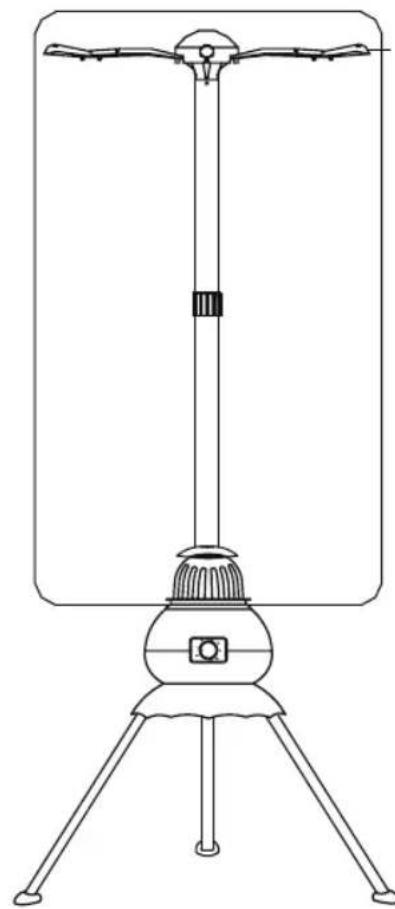

5.- Hang clothes into the clothes racks average, put on the cover and close it. Be careful not to obstruct the wind-out clothing. Accumulated heat may cause damage to the device.

DISASSEMBLING

To disassemble this machine, just follow the above installation steps 1-5 on the opposite way.

1. Insert the power plug into power socket that should be with earth contact.
2. Rotate the switch, machine starts working, and power indicator will illuminate.

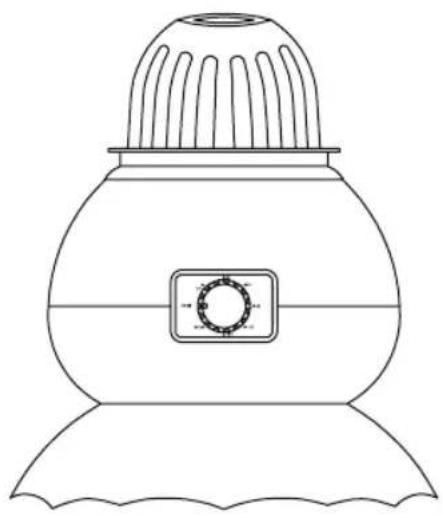

1. Rotate the switch to ON position and set time for drying clothes. (30, 60, 90, 120, 150 or 180 minutes)
2. Power off position at the middle of the motor unit.
3. When the drying process is over you can switch off the machine with the power switch located in the front middle of the motor unit.

TROUBLE SHOOTING

NUMBER PROBLEM POSSIBLE CAUSE
1. Drying	time too long (>180min)	1. Clothes are too thick 2. Clothes are not spin- dried by washing machine or screw-dried by hand 3. Cover isn't properly closed
2. Machine	suddenly stops	1. Wind-entry or outlet blocked by clothes or other objects 2. The machine starts up the protection program
3. Power	switch doesn't illuminate Machine doesn't work	1. Power cut 2. Power damaged 3. Plug damaged

TECHNICAL SPECIFICATIONS

Product: Secamatic Turbo - Clothes dryer

Reference: 9202

Volt.: 220V~240V / 60Hz

Power: 700W.

Max. capacity: 10Kg

Settings for drying cycles: 0 180 ~min .

IPX1 CE

TECHNICAL SERVICE AND WARRANTY

The manufacturer warrants this product against manufacturing defects for a period of two years from the date of purchase. This warranty does not cover any damage caused by improper use, that were not properly followed the instructions of this manual or if the defects have arisen as a result of contact with water, short circuits or power failures. Keep this manual. It will be required to obtain warranty service. Within the warranty period, the manufacturer will repair defects in the product by manufacturing flaws and may choose to repair or replace the product. This option does not extend the warranty period and will not be entitled to claim an increase of the period of coverage. Delivery costs of product warranty shall be paid by the buyer.

[e-mail]

Import: Grafimac SL • CIF: B-80113848 • Ap. Correos 1066, Suc.1.28224

Pozuelo de Alarcón. Madrid (Espana). Made in R.P.C. Designed in Europe

www.xsqo.es
