This hand-held turbobrush conforms to current safety requirements. Improper use can, however, lead to personal injury and damage.

To avoid the risk of accidents and damage to the turbobrush, please read these instructions carefully before using it for the first time. They contain important information on its safety, operation and maintenance.

Keep these instructions in a safe place and ensure new users are familiar with the content. Pass them on to any future owner.

Always disconnect the vacuum cleaner from the mains supply when you have finished using it, before changing over accessories, as well as for maintenance work and cleaning. Switch off at the wall socket and unplug it.

Correct application

This hand-held turbobrush must only be used for vacuuming dry surfaces. Do not use on people or animals.

Any other use, modification or alteration to the brush is not permitted.

The hand-held turbobrush can only be used by people with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, if they are supervised whilst using it or have been shown how to use it in a safe way and understand the hazards involved.

Safety with children

Children under 8 years of age must be kept away from the vacuum cleaner and the hand-held turbobrush unless they are constantly supervised.
Children aged eight years and older may only use the vacuum cleaner and the hand-held turbobrush if they have been shown how to use them in a safe way and understand the hazards involved.
This appliance is not a toy! To prevent the risk of injury do not let children play with the vacuum cleaner or with the hand-held turbobrush.
Children may only carry out cleaning and maintenance of the vacuum cleaner and hand-held turbobrush under adult supervision.

Technical safety

▶ Check the hand-held turbobrush for any visible signs of damage before use. Do not use if damaged.
Do not let the hand-held turbobrush get wet. If it needs cleaning only do so with a dry cloth or slightly damp cloth.

Correct use

Do not touch the roller of the hand-held turbobrush while it is rotating.
Do not use the hand-held turbobrush at head height.
Keep the hand-held turbobrush away from curtains, clothing etc.
Do not use the hand-held turbobrush to vacuum any hard surfaces, such as furniture fronts, wooden and stone flooring etc.

Do not vacuum up any inflammable or combustible matter or gases and do not vacuum in areas where such substances are stored.
Do not vacuum any surface where there is a danger of it being sucked up or becoming entangled in the roller.
Do not vacuum up any water, liquid or damp dirt. Wait until any freshly cleaned or shampooed carpets or floor coverings are completely dry before vacuuming.
Do not vacuum up ashes or coal, whether glowing or apparently extinguished.

Miele cannot be held liable for damage caused by incorrect use or operation or by non-compliance with these Warning and Safety instructions.

Before using the hand-held turbobrush it is essential to read and observe the Warning and Safety instructions in the Operating instructions for your vacuum cleaner.

Recommended use

(see illustration on page 2)

The hand-held turbobrush is intended for vacuuming upholstery, mattresses, car seats, carpeted stairs etc. The rotating roller brush is ideal for removing hair and fluff.

It is important to observe the flooring manufacturer's cleaning and care instructions.

Attaching the hand-held turbobrush

■ Attach the hand-held turbobrush to the hand-piece or the suction tube, as required.

You can also remove the hand-piece from the suction hose and then attach the turbobrush directly to the suction hose.

■ To do this insert the suction hose into the end of the turbobrush so that it clicks into position.
■ Press the release buttons on the suction hose when you want to separate the hand-held turbobrush from the suction hose.

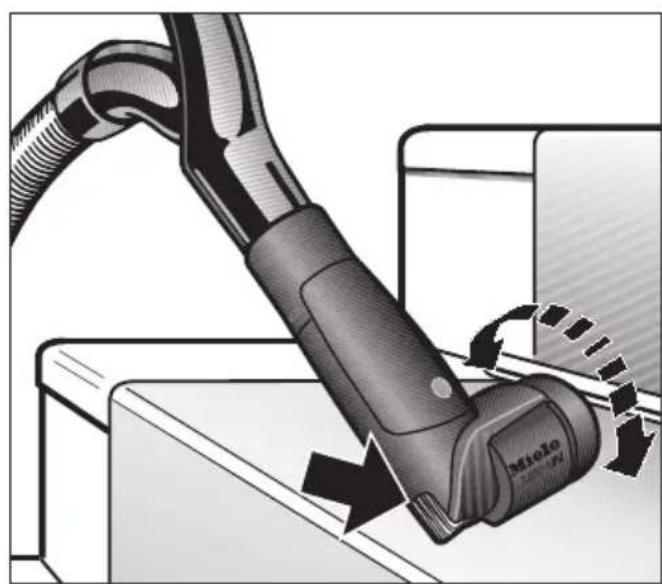

Using the hand-held turbobrush

■ To achieve the best results, pass the hand-held turbobrush slowly backwards and forwards over the surface you are cleaning, using a medium setting.

The brush rotates enabling excellent cleaning into corners. It also has ribs on the sides for removing stubborn soiling (see illustration on page 2).

Maintenance and care of the hand-held turbobrush

(see illustration on page 2)

△! Always disconnect the vacuum cleaner from the electrical supply for maintenance work and for cleaning. Switch off at the wall socket and withdraw the plug.

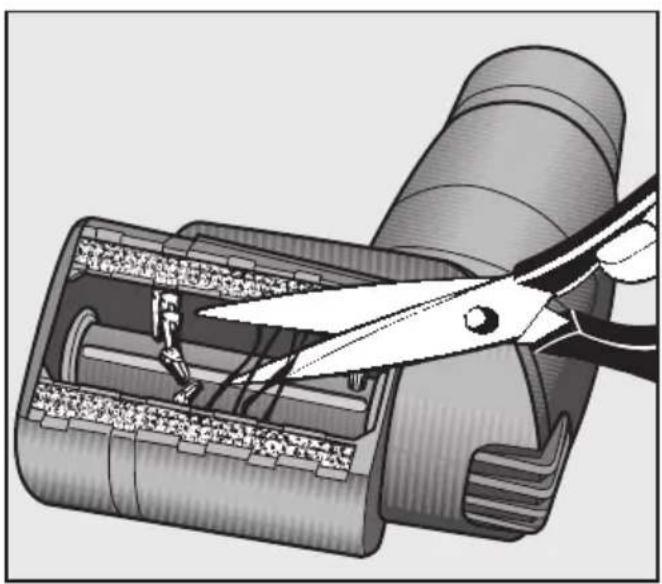

Removing threads and hairs

- Cut any threads or hairs that have become entangled in the roller with a pair of scissors. There is a groove along the roller to help you.

Then run the vacuum cleaner to vacuum up the bits.

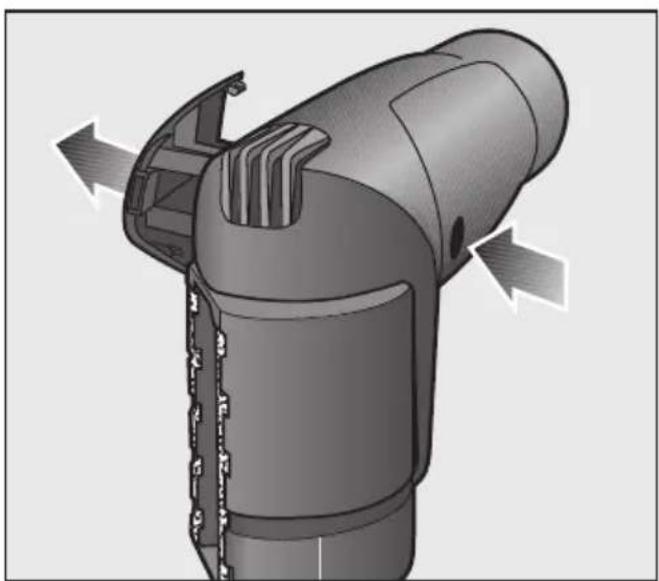

For more obstinate tangles or blockages inside the hand-held turbobrush, the cover can be opened. Any large particles inside it can then be easily removed.

■ Press the release button and remove the cover.
■ Remove any soiling from the cavity and from the roller brush.
■ Replace the cover.

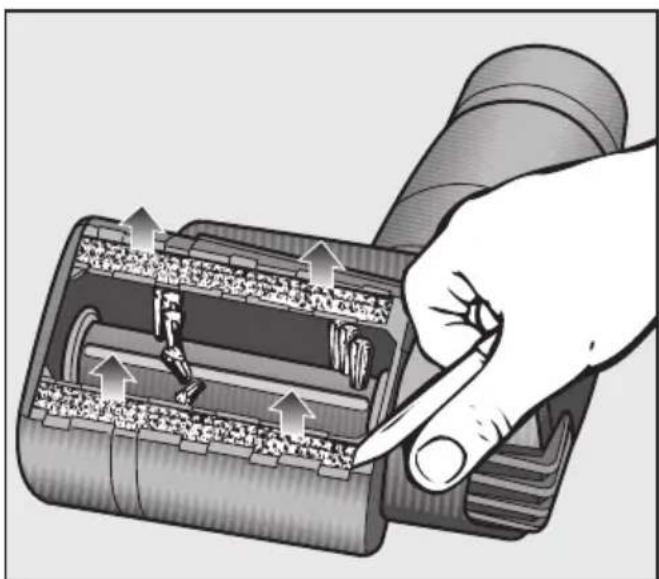

Changing the threads lifters

Check the thread lifters on the suction inlet from time to time and replace them if the pile has worn down.

■ Using a knife or similar object lever the thread lifters out of their holders. See positions marked red at the sides.
■ Fit new thread lifters.

When using an electrical appliance, always observe basic safety precautions, including the following:

READ THESE INSTRUCTIONS COMPLETELY BEFORE USING THIS ACCESSORY FOR THE FIRST TIME.

KEEP THESE OPERATING INSTRUCTIONS FOR FUTURE REFERENCE

The Miele Turbobrush complies with all legal current safety requirements. Improper use can, cause both both personal injury and property damage.

Before using the hand-held Turbobrush, read the Operating Instructions carefully. This will protect you and others and prevent damage to the hand-held Turbobrush.

Keep these instructions in a safe place for future reference.

Intended use

The hand-held Turbobrush must only be used for household purposes to vacuum and brush dry surfaces.
Do not use on people or animals.
▶ Any other use, modification or alteration of the hand-held Turbo-brush is not allowed.
▶ Persons which lack physical, sensory or mental abilities or experience with the machine should not use it without supervision or instruction by a responsible person.

Child safety

Keep children at a distance when using the vacuum cleaner and the hand-held Turbobrush. Do not allow the vacuum cleaner and hand-held Turbobrush to be used as a toy.

Technical safety

Before using the hand-held Turbobrush, check for visible damage. Do not operate a damaged appliance.
▶ Turn the vacuum cleaner off after each use, and before any cleaning or maintenance. Unplug the power plug from the electrical outlet.
Do not let the hand-held Turbobrush get wet. Clean with a dry or slightly damp cloth.

Correct use

▶ Never touch the roller brush while it is rotating. Risk of injury!
Keep hair, loose clothing, fingers and all parts of the body away from any openings or moving parts.
Do not vacuum hard surfaces with the hand-held Turbobrush, such as furniture doors, wood and stone flooring.
Do not use the vacuum to pick up flammable or combustible liquids, such as gasoline, or use it in areas where fumes may be present.
Do not vacuum any surfaces where there is a danger of items being sucked up or becoming entangled in the roller brush.
Do not vacuum up any liquids or damp dirt. Wait until any freshly cleaned or shampooed carpets or floor coverings are completely dry before vacuuming.
Do not use the Hand-held Turbobrush to vacuum anything that may damage the rollers. Nails, safety pins, buttons, etc. should not be vacuumed.
Do not pick up items that are burning or smoking, such as cigarettes, matches, or hot ashes.

SAVE THESE INSTRUCTIONS

When using the hand-held Turbo-brush follow the Important Safety Instructions in the Operating Manual of your vacuum cleaner.

Recommended use

(see illustration on page 2)

The hand-held Turbobrush is intended for vacuuming upholstered furniture, mattresses, car seats, carpeted stairs, etc. The rotation of the roller brush intensifies the pick-up of hairs and lint.

It is important to observe the cleaning and care instructions of the manufacturer of the surface to be vacuumed.

Installing the handheld Turbo-brush

■ Fit the hand-held Turbobrush on the suction wand or on the handpiece, depending on what is the most convenient for you for the type of vacuuming you will be doing.

You can also attach the hand-held Turbobrush to the suction hose separate from the handpiece.

■ To do this, fit the suction hose into the hand-held Turbobrush and turn it until it clicks firmly into place.

■ When you want to separate the components, press the release button on the suction hose.

Using the hand-held Turbo-brush

■ For best results, use a medium suction power setting and pass the hand-held Turbobrush slowly back and forth over the surface to be vacuumed.

The rotating brush head can be adjusted to the optimal angle. Use the ribs on the side of the hand-held Turbobrush to aid in the removal of stubborn dirt.

Maintenance and care

(see illustrations on page 2)

△! Always turn the vacuum cleaner off and remove the plug from the electrical outlet before cleaning or servicing the hand-held Turbobrush.

Removing threads and hairs

■ With a pair of scissors, cut any threads or hairs that have become entangled on the roller brush. To guide the scissors, move along the guide track in the roller.
■ Then run the vacuum cleaner to vacuum up the pieces.

For more obstinate dirt or blockages inside the hand-held Turbobrush, the cover can be opened. Any large particles inside it can then be easily removed.

■ Press the release button and remove the service flap opposite it.
■ Remove any dirt adhering to the inside of the casing and from the roller brush.
■ Put the service flap back on.

Changing the thread collector

Replace the thread catcher located at the suction hole of the hand-held Turbobrush when the pile is worn.

■ With a knife, for example, lift the thread catcher out of the slots at the red markings on the side.
■ Insert the new thread catcher.
