Product type	Built-in oven
Brand	Junker
Model	JB33UK50
Power supply	220-240 V / 50-60 Hz
Lighting power	40 W, E14, resistant to 300 °C
Cooking modes	Forced convection, Natural convection, Pizza setting, Air grill, Large area grill, Small area grill, Bottom heat, Defrosting, Lighting
Number of cooking levels	4 shelf heights
Included accessories	Aluminium baking tray, Grill grid, Enamelled drip tray
Clock functions	Timer, Cooking duration, End time, Pre-programmed operation
Interior coating type	Self-cleaning surfaces (rough enamel)
Removable door	Yes, with removable panes for cleaning
Child safety	Can be used by children aged 8+ under supervision
Maintenance	Manual cleaning of enamel surfaces, windows with glass cleaner
Spare parts available	Bulb (E14, 40 W, 300 °C), Door seal, Optional accessories
Repairability	Junker after-sales service, repairs by authorised professional
Energy class	Not specified

Frequently Asked Questions - JB33UK50 Junker

How to set the time on the Junker JB33UK50 oven?

Press the clock function button ◀ briefly until the symbols ◇ and ⚙ light up. Turn the rotary selector to set the current time. The setting is automatically confirmed after 3 seconds.

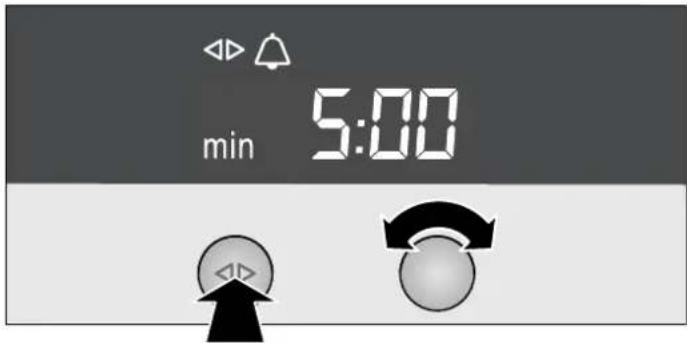

How to use the timer?

Press the ◀ button repeatedly until the symbols ◇ and ⬆ light up. Set the duration with the rotary selector (e.g. 5:00 minutes). The timer starts and an audible signal sounds at the end.

What are the available cooking modes?

The modes are: Forced convection, Natural convection, Pizza setting, Air grill, Large area grill, Small area grill, Bottom heat, Defrosting and Lighting.

How to clean the self-cleaning surfaces of the oven?

Do not use oven cleaner or abrasive products. Splashes are absorbed and disintegrated by heat. Clean with a soft sponge and soapy water if necessary.

How to remove the oven door for cleaning?

Open the door fully, then open the locking levers on the left and right. Close the door until it stops, then remove it by lifting. To put it back, insert the hinges into the fittings, open the door and close the levers.

What to do if the display flashes '0:00'?

This means the power supply has been interrupted. Set the time again following the time setting procedure.

Which bulb to use to replace the oven light?

Use a bulb of type E14, 220-240 V, 40 W, resistant to temperatures up to 300 °C. Available from the after-sales service or specialist store.

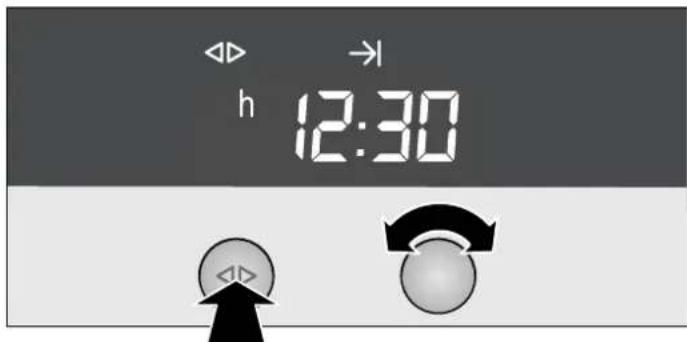

How to program an automatic shut-off?

Set the cooking mode and temperature. Press ◀ until l→l lights up, then set the cooking duration. The appliance switches off automatically at the end of the time.

Why does smoke come out during roasting?

This may be due to fat burning on the grill heating element. Continue cooking until the fat is completely consumed. Also check that the grill grid and drip tray are correctly positioned.

Which accessories can I order as options?

Accessories such as the enamelled baking tray, the drip pan with insert grid, the pizza pan, the steam cooking system and the telescopic rails are available from the after-sales service.

USER MANUAL JB33UK50 Junker

Interior view of a room with numbered walls and a central circular pattern (no text or symbols)

Sonderzubehör

Diagram showing a mechanical device with a lever mechanism and a separate view of its open panel (no text or symbols present)

Simple line drawing of a cabinet or rack with a flat panel and a blank display (no text or symbols)

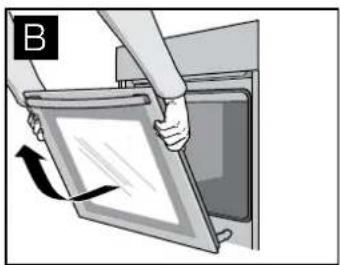

Person opening a door panel with an arrow indicating rotation (no text or symbols)

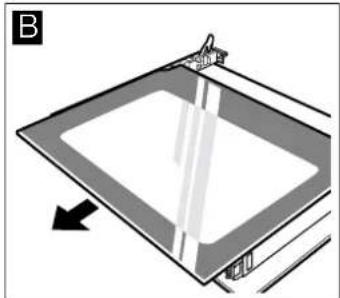

Gerätetür einhängen

Mechanical assembly diagram showing a lever mechanism with a downward arrow indicating motion (no text or symbols present)

Mechanical component diagram showing a lever mechanism with an arrow indicating rotation (no text or symbols present)

Technical diagram showing mechanical assembly with arrows indicating motion or force direction (no text or symbols)

Diagram of a tilted rectangular frame with an arrow indicating direction, no text or symbols present

Mechanical assembly diagram showing a bracket with mounting holes and a directional arrow (no text or symbols)

Reinigen

Diagram of a mechanical assembly with a tool inserted into a bracket and a directional arrow indicating motion (no text or symbols present)

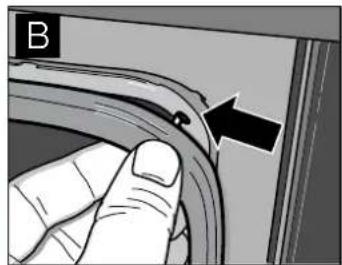

Türscheibe einbauen

Illustration of a hand using a tool to cut or mark a dark object on a flat surface (no text or symbols)

Diagram of a multi-tiered rack or shelf with an arrow indicating rotation, no text or symbols present

Diagram of a ladder with a bracket and an arrow indicating direction (no text or symbols)

Technical diagram showing electrical connections with labeled components and warning symbols

Simple line drawing of a mechanical component with a rotating arrow (no text or symbols)

Diagram of a room with a square frame and four arrows indicating direction (no text or symbols)

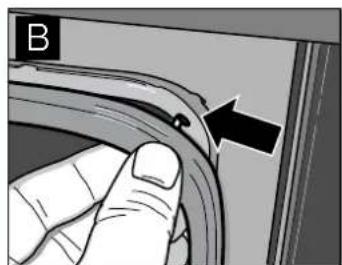

Close-up of a finger pressing a curved mechanical component with an arrow indicating direction (no text or symbols)

Interior view of a microwave oven with two cylindrical dish units on the side (no text or symbols visible)

Interior view of an oven with two panes on shelves (no text or symbols visible)

Grillen Einschubhöhe Betriebsart Temperatur in			°C	Grilldauer in Minuten
Toast (Universalpfanne + Rost) 3 + 4		[IMAGE]	275*	1 - 2
Beefsteaks, 12 Stück (Universalpfanne + Rost)	3 + 4	[IMAGE]	275	20 - 25**

Interior view of a room with numbered walls and a central circular vent (no text or symbols)

Accessoire spécial

Illustration of a medical device with a black arrow indicating a directional change (no text or symbols present)

Illustration of a wall-mounted device with a screen and a label 'A' (no text or symbols on the device itself)

Illustration of a hand inserting a device into a cabinet (no text or symbols visible)

Mechanical lever mechanism diagram showing a sliding contact with a black arrow indicating motion (no text or symbols)

Mechanical component diagram showing a lever mechanism with an arrow indicating motion (no text or symbols present)

Technical diagram showing mechanical assembly with arrows indicating direction (no text or symbols)

Diagram of a tilted rectangular frame with a vertical line and arrow indicating direction (no text or symbols)

Technical diagram of a mechanical assembly with an upward arrow indicating motion (no text or symbols present)

Nettoyage

Diagram of a mechanical assembly with arrows indicating direction (no text or symbols)

Illustration of a hand using a tool to cut a dark object on a flat surface (no text or symbols)

Diagram of a mechanical assembly with a bracket and directional arrow (no text or symbols)

Technical line drawing of a ladder-like structure with an arrow pointing to a component (no text or symbols present)

Technical diagram showing electrical connections with labeled components and warning symbols

Simple line drawing of a mechanical component with a rotating arrow (no text or symbols)

Diagram showing a rectangular frame with four arrows pointing inward, labeled 'A' in the top-left corner (no text or symbols on the frame itself)

Close-up of a finger pressing a curved mechanical component with an arrow indicating motion (no text or symbols)

Interior view of a microwave oven with two circular tanks and cooling fans (no text or symbols visible)

Interior view of an oven with two tiered dish units on shelves (no text or symbols visible)

Interior view of a room with numbered walls and a central circular pattern (no text or symbols)

Extra toebehoren

<=> |=>| h 1:30

Diagram showing a mechanical device with a lever mechanism and a separate view of its base panel (no text or symbols present)

Simple line drawing of a folded paper or panel with a label 'A' in the top-left corner (no text or symbols on the diagram itself)

Illustration of a person opening a tablet device with an arrow indicating rotation (no text or symbols present)

Apparaatdeur inbrengen

Mechanical assembly diagram showing a lever mechanism with a downward arrow indicating motion (no text or symbols present)

Mechanical component diagram showing a lever mechanism with an arrow indicating motion (no text or symbols present)

Technical diagram showing mechanical assembly with arrows indicating motion or force direction (no text or symbols present)

Diagram of a square frame with a vertical line and arrow indicating direction (no text or symbols)

Mechanical assembly diagram showing a bracket with an upward arrow indicating motion (no text or symbols present)

Reinigen

Diagram of a mechanical assembly with a tool interacting with a bracket (no text or symbols visible)

Deurruit inbrengen

Illustration of a hand using a tool to cut or mark a dark rectangular object on a textured surface (no text or symbols)

Diagram of a wall-mounted rack with directional arrows indicating movement (no text or symbols)

Diagram of a ladder-like structure with an arrow pointing to a component, no text or symbols present

Diagram showing electrical connections with labeled components and warning symbols

Simple line drawing of a mechanical component with a rotating arrow (no text or symbols)

Diagram showing a rectangular frame with four arrows pointing inward, no text or symbols present

Close-up of a finger pressing a curved mechanical component with an arrow indicating direction (no text or symbols)

Diagram of a two-cylinder storage unit with labeled panel A (no text or symbols on the diagram itself)

Interior view of an oven with two panes on the roof (no text or symbols visible)

Important safety information .... 54
Energy and environment tips 56
Your new appliance 56
Your accessories 57
Before using the appliance for the first time.... 58
Operating the appliance.... 58
Electronic clock 59
Baking....61

Roasting....63
Grilling 64
Defrosting....66
Yoghurt 66
Cleaning and care....66
Faults and repairs.... 69
Test dishes 70

⚠️ Important safety information

Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction manual and installation instructions for future use or for subsequent owners.

This appliance is only intended to be fully fitted in a kitchen. Observe the special installation instructions.

Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport.

Only a licensed professional may connect appliances without plugs. Damage caused by incorrect connection is not covered under warranty.

This appliance is intended for domestic use only. The appliance must only be used for the preparation of food and drink. The appliance must be supervised during operation. Only use this appliance indoors.

This appliance is intended for use up to a maximum height of 2000 metres above sea level.

This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capabilities or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsible for their safety how to use the appliance safely and have understood the associated hazards.

Children must not play with, on, or around the appliance. Children must not clean the appliance or carry out general maintenance unless they are at least 8 years old and are being supervised.

Keep children below the age of 8 years old at a safe distance from the appliance and power cable.

Always slide accessories into the cooking compartment correctly. See "Description of accessories in the instruction manual.

Risk of fire!

• Combustible items stored in the cooking compartment may catch fire. Never store combustible items in the cooking compartment. Never open the appliance door if there is smoke inside. Switch off the appliance and unplug it from the mains or switch off the circuit breaker in the fuse box.
• A draught is created when the appliance door is opened. Greaseproof paper may come into contact with the heating element and catch fire. Do not place greaseproof paper loosely over accessories during preheating. Always weight down the greaseproof paper with a dish or a baking tin. Only cover the surface required with greaseproof paper. Greaseproof paper must not protrude over the accessories.

Risk of burns!

■ The appliance becomes very hot. Never touch the interior surfaces of the cooking compartment or the heating elements. Always allow the appliance to cool down. Keep children at a safe distance.

■ Accessories and ovenware become very hot. Always use oven gloves to remove accessories or ovenware from the cooking compartment.

■ Alcoholic vapours may catch fire in the hot cooking compartment. Never prepare food containing large quantities of drinks with a high alcohol content. Only use small quantities of drinks with a high alcohol content. Open the appliance door with care.

Risk of scalding!

■ The accessible parts become hot during operation. Never touch the hot parts. Keep children at a safe distance.
- When you open the appliance door, hot steam may escape. Open the appliance door with care. Keep children at a safe distance.
■ Water in a hot cooking compartment may create hot steam. Never pour water into the hot cooking compartment.

Risk of injury!

Scratched glass in the appliance door may develop into a crack. Do not use a glass scraper, sharp or abrasive cleaning aids or detergents.

Risk of electric shock!

• Incorrect repairs are dangerous. Repairs may only be carried out by one of our trained after-sales engineers. If the appliance is faulty, unplug the mains plug or switch off the fuse in the fuse box. Contact the after-sales service.
  ■ The cable insulation on electrical appliances may melt when touching hot parts of the appliance. Never bring electrical appliance cables into contact with hot parts of the appliance.
• Do not use any high-pressure cleaners or steam cleaners, which can result in an electric shock.
• When replacing the cooking compartment bulb, the bulb socket contacts are live. Before replacing the bulb, unplug the appliance from the mains or switch off the circuit breaker in the fuse box.
• A defective appliance may cause electric shock. Never switch on a defective appliance. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service.

Causes of damage

Caution!

■ Accessories, foil, greaseproof paper or ovenware on the cooking compartment floor: do not place accessories on the cooking compartment floor. Do not cover the cooking compartment floor with any sort of foil or greaseproof paper. Do not place ovenware on the cooking compartment floor if a temperature of over 50 °C has been set. This will cause heat to accumulate. The baking and roasting times will no longer be correct and the enamel will be damaged.
■ Water in a hot cooking compartment: do not pour water into the cooking compartment when it is hot. This will cause steam. The temperature change can cause damage to the enamel.
■ Moist food: do not store moist food in the cooking compartment when it is closed for prolonged periods This will damage the enamel.
- Fruit juice: when baking particularly juicy fruit pies, do not pack the baking tray too generously. Fruit juice dripping from the baking tray leaves stains that cannot be removed. If possible, use the deeper universal pan.
■ Cooling with the appliance door open: only allow the cooking compartment to cool when it is closed. Even if the appliance door is only open a little, front panels of adjacent units could be damaged over time.
■ Very dirty door seal: If the door seal is very dirty, the appliance door will no longer close properly when the appliance is in use. The fronts of adjacent units could be damaged. Always keep the door seal clean.
■ Appliance door as a seat, shelf or worktop: Do not sit on the appliance door, or place or hang anything on it. Do not place any cookware or accessories on the appliance door.

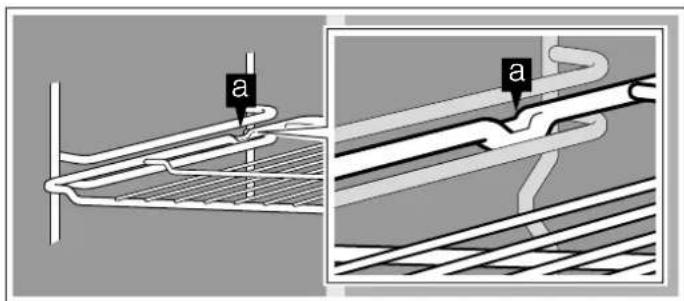

- Inserting accessories: depending on the appliance model, accessories can scratch the door panel when closing the appliance door. Always insert the accessories into the cooking compartment as far as they will go.
- Carrying the appliance: do not carry or hold the appliance by the door handle. The door handle cannot support the weight of the appliance and could break.

Energy and environment tips

Here you can find tips on how to save energy when baking and roasting and how to dispose of your appliance properly.

Saving energy

Only preheat the oven if this is specified in the recipe or in the operating instruction tables.

Use dark, black lacquered or enamelled baking tins. They absorb the heat particularly well.

Open the appliance door as little as possible during cooking, baking or roasting.

It is best to bake several cakes one after the other. The cooking compartment is still warm. This may reduce the baking time for the second cake.

For longer cooking times, you can switch the oven off 10 minutes before the end of the cooking time and use the residual heat to finish cooking.

Environmentally-friendly disposal

Dispose of packaging in an environmentally-friendly manner.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Your new appliance

In this section, you will find information about the appliance and the operating modes.

Control panel

Press the retractable control knob to pop it in or out.

12:45 1 3 4 5 6 2 2 80 120 270 240 160 200

Control element Use

Oven

1 Operating mode selector Selects operating mode (see section: Operating the appliance)
5 Temperature selector Selects a temperature
6 ↓	Temperature selector indicator lamp	The indicator light lights up when the appliance is heating up and during any subsequent heating

Electronic clock

2 Clock display The clock or clock function is displayed

3 ◀▶ Clock function button Selects the clock function (see section: Electronic clock)

4 Rotary selector Makes settings within a clock function

Operating modes

Operating mode Application

	2D-Hot air For baking and roasting on one or two levels
	Top/bottom heating For baking and roasting on one level. Especially suitable for cakes with moist toppings (e.g. cheesecake)
	Pizza setting For frozen convenience products and for meals that require a lot of heat from underneath (see section: Baking)
	All-round grilling For poultry and larger pieces of meat
	Full-surface grill For flat, small items for grilling (e.g. steaks, sausages)
	Centre-area grill For small amounts of flat, small items for grilling (e.g. steaks, bread)
	Bottom heating For food and baked goods which should form a crust or require more browning on the underside. Switch on bottom heating at the end of the baking time for a brief period only
	Defrost setting For gentle defrosting of pieces of meat, bread and delicate pastries (e.g. cream gateau)
	Oven lighting Provides assistance when maintaining and cleaning the cooking compartment

Your accessories

In this section, you will find information about the accessories, the right way to insert them into the cooking compartment, the shelf positions and the optional accessories.

Accessories

The following accessories are supplied with your appliance:

Aluminium baking tray

for baking tray bakes and small baked products

Wire rack

for baking in baking tins, roasting in roasting dishes and grilling

Universal pan, enamelled

for baking moist cakes, roasting, grilling and collecting drops of liquid during cooking

Note: The baking tray and universal pan may become distorted if subjected to significant temperature differences (e.g. with frozen foods in the hot cooking compartment).

Inserting accessories

The accessories are equipped with a locking function. The locking function prevents the accessories from tilting when they are pulled out. The accessories must be inserted into the cooking compartment correctly for the tilt protection to work properly.

When inserting the wire rack, check

■ that the lug (a) is pointing downwards
■ that the lug (a) is in the rear part of the wire rack

a a

When inserting the baking tray or the universal pan, check

■ that the lug (a) is in the rear part of the of the accessory
■ that the sloping edge of the accessory faces towards the appliance door when it is inserted

a a

Shelf positions

The cooking compartment has four shelf positions. The shelf positions are counted from the bottom up.

When baking and roasting with ☑ 2D-Hot air, do not use shelf position 2. This will adversely affect air circulation and your baking and roasting results will not be as good.

Interior view of a room with numbered walls and a central circular pattern (no text or symbols)

Optional accessories

You can purchase optional accessories from the after-sales service or specialist retailers.

Accessories Order no.

Baking tray, aluminium JZ 1332 X0

Baking tray, enamelled JZ 1342 X0

Universal pan with wire insert JZ 1242 X1

Wire insert for roasting and grilling, to be used in the universal pan 740766

Baking and roasting wire rack JZ 1432 X1

Pizza tray JZ 1352 X0

System steamer JZ 1282 X3

Telescopic shelf x3 JZ 1742 X2

Telescopic shelf with full extension x4 JZ 1755 X2

Before using the appliance for the first time

Set the clock and clean your appliance before first use.

Setting the clock

Note: When you press the ◀ clock function button, you have 3 seconds to set the clock using the rotary selector. Should this have been insufficient for you, you can amend the clock time later.

0:00 flashes in the clock display.

1. Briefly press the ◀ clock function button to go to the setting mode. The ◀ and ⏱ symbols light up. 12:00 appears in the clock display.

2. Set the current time using the rotary selector. Your setting is accepted after 3 seconds.

Changing the clock

To subsequently change the time, press the ◀clock function button repeatedly until the ◀ and ⏱ symbols light up again. Change the time with the rotary selector.

12:30

Cleaning the appliance

Clean your appliance before using it for the first time.

1. Remove accessories and any remaining packaging from the cooking compartment.
2. Clean the accessories and cooking compartment with hot soapy water (see section: Cleaning and care).
3. Heat with ☐ Top/bottom heat at 240°C for 60 minutes.
4. Afterwards, wipe the cooled cooking compartment with hot, soapy water.
5. Clean the outside of the appliance with a soft, damp cloth and soapy water.

Operating the appliance

In this section, you will find out how to switch your appliance on and off, and how to select an operating mode and temperature.

Switching on the appliance

1. Turn the operating mode selector until the desired operating mode is selected.
2. Turn the temperature selector until the desired temperature is selected.
   The ⚡ indicator light lights up while the appliance is heating up and during any subsequent heating.

Switching off the appliance

1. Turn the operating mode selector back to the O position.
2. Turn the temperature selector back to the ● position.
   After the appliance is switched off, the cooling fan may continue to run.

Electronic clock

In this section, you can read about

■ how to set the timer
■ how to switch your appliance off automatically (cooking time and end of operation)
■ how to switch your appliance on and off automatically (preset operation)
■ how to set the time

Clock display

h min 12:35 Clock function button Rotary selector

Clock function Use

⚠️	Minute minder You can use the minute minder as an egg timer or a kitchen timer. The appliance does not switch on or off automatically
I→I	Cooking time The appliances switches off automatically after a cooking time setting has elapsed (e.g. 1:30 hours)
→I	End of operation	The appliance switches off automatically at a set time (e.g. 12:30 o'clock)
	Preset operation The appliance switches on and off automatically. Cooking time and end of operation have been combined.
💡	Clock Setting the clock

Notes

■ Between the times 22:00 and 5:59 the clock display is dimmed if you do not make any settings in that period or no clock function is activated.
■ When you set a clock function, the time interval increases when you set higher values (e.g. cooking time up to 1:00h to the minute, using 1:00h to the nearest 5 minutes).
For the △ minute minder, I→I cooking time, →I end of operation and preselection mode clock functions, a signal sounds when the settings have elapsed and the △ or →I symbol flashes. To cancel the audible signal before it ends, press the ◀clock function button.
- Briefly press the ◀ clock function button to select a clock function. You then have 3 seconds to set the selected clock function. After this time, the setting mode is exited automatically.

Switching the clock display on and off

1. Press and hold the ◀clock function button for 6 seconds. The clock display switches off. If a clock function is active, the associated symbol remains lit.
2. Press the ◀clock function button briefly. The clock display switches on.

Timer

1. Press the ◀clock function button repeatedly until the ◀ and 🔒 symbols light up.
2. Set the duration using the rotary selector (e.g. 5:00 minutes). The setting is applied automatically. Then the clock is displayed again and the minute minder starts counting down.

min 5:00

Cooking time

Automatic switch-off after a cooking time setting has elapsed.

1. Set the operating mode and temperature. The appliance heats up.
2. Press the ◀clock function button repeatedly until the ◀and I→I symbols light up.
3. Set the cooking time with the rotary selector (e.g. 1:30 hours).
   The setting is applied automatically. The time is then displayed again and the set cooking time counts down.

<=> |=>| h 1:30

Once the cooking time has elapsed, the appliance switches off automatically.

1. Turn the operating mode and temperature selector back to the O position.
2. Press the ◀ clock function button to exit the clock function.

End of operation

Automatic switch-off at a set time.

1. Set the operating mode and temperature. The appliance heats up.
2. Press the ◀clock function button repeatedly until the ◀ and → symbols light up.
3. Set the end of operation using the rotary selector (e.g. 12:30 o'clock). The setting is applied automatically. The clock is then displayed again.

h 12:30

The appliance switches off automatically at the time set for the end of operation.

1. Turn the operating mode and temperature selector back to the O position.
2. Press the ◀ clock function button to exit the clock function.

Preset operation

The appliance switches on automatically, then switches off automatically at the time preselected for the end of operation. To set this function, combine the cooking time and end of operation clock functions.

Bear in mind that food which spoils easily should not be left in the cooking compartment for too long.

1. Set the operating mode and temperature. The appliance heats up.
2. Press the ◀clock function button repeatedly until the ◀and I→I symbols light up.

3. Set the cooking time with the rotary selector (e.g. 1:30 hours). The setting is applied automatically.

4. Press the ◀clock function button repeatedly until the ◀and → symbols light up.

5. Set the end of operation using the rotary selector (e.g. 12:30 o'clock). The appliance switches off and waits until the appropriate time to switch on (11:00 in the example). The appliance switches off automatically at the time set for the end of operation (12:30).

6. Turn the operating mode and temperature selector back to the O position.

7. Press the ◀ clock function button to exit the clock function.

Setting the clock

You can only change the clock when no other clock function is active.

1. Press the ◀ clock function button repeatedly until the ◀ and ⚙ symbols light up.
2. Set the clock using the rotary selector. The setting is applied automatically.

12:30

Checking, correcting or deleting settings

1. To check your settings, press the ◀ clock function button repeatedly until the corresponding symbol lights up.
2. If necessary, you can correct your setting using the rotary selector.
3. If you wish to cancel your setting, turn the rotary selector anti-clockwise to the original value.

Baking

Do not use shelf height 2 when baking with the ☑ 2D-Hot air operating mode. The air circulation would be impaired and this will have a negative effect on your baking.

Baking accessories

Baking tins

Use dark-coloured metal baking tins. Tinplate and glass dishes increase the baking time required and the cake will not brown evenly. If you wish to bake using tinplate tins and ☐ Top/bottom heat, you should use shelf height 1.

Always place a loaf tin diagonally and a round baking tin in the centre of the wire rack.

Baking trays

We recommend that you only use original baking trays, as these have been optimally designed for the cooking compartment and the operating modes.

Always carefully push the baking trays in as far as they will go. Make sure that the sloping edge of the baking tray is facing the appliance door.

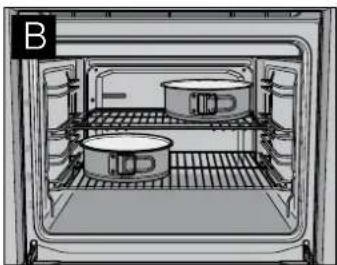

Baking on two levels

When baking on two levels, you should preferably use baking trays and put them in at the same time.

Bear in mind that your items may brown at different rates on each level. The items on the top level will brown most quickly and can be taken out earlier.

Baking table for basic doughs/cake mixtures

The information in the table is a guideline and applies to both aluminium baking trays and dark-coloured baking tins. The values may vary depending on the type and amount of dough/mixture and on the baking tin.

The values for bread dough apply to both dough placed on a tray and dough placed in a loaf tin.

We recommend that you set the lower of the specified temperatures the first time. This will generally allow more even browning.

If you are baking with your own recipe, use similar recipes in the table as a guide.

Observe the notes in the table about preheating.

Basic dough Shelf posi-	2D-Hot air Top/bottom heating
	tion	Tempera-ture in °C	Baking time in minutes	Shelf posi-tion	Tempera-ture in °C
Sponge mixture
Tray bakes with topping 1 150 - 160 30 - 40 1 180 - 190
	1 + 3 150 - 160 35 - 45 --
Springform cake tin/loaf tin 1 150 - 160 55 - 70 2 160 - 170
Shortcrust pastry
Tray bake with dry topping, e.g. crumble 1 160 - 170 45 - 55 1 190 - 200
	1 + 3 160 - 170 60 - 70 --
Tray bake with moist topping, e.g. egg custard 1 160 - 170 70 - 80 1 190 - 200
Springform cake tin, e.g. sponge base cheesecake 1 160 - 180 50 - 90 2 170 - 180
Flan tin	1	160 - 170*	25 - 35	2	170 - 180*
Sponge mixture
Swiss roll	1	180 - 190*	10 - 15	1	200 - 210*
Sponge (6 eggs)	1	150 - 160	25 - 40	2	160 - 170
Sponge (3 eggs)	1	150 - 160*	25 - 35	2	160 - 170*
Yeast dough
Tray bake with dry topping, e.g. crumble 1 160 - 180 45 - 55 1 180 - 200
	1 + 3 170 - 180 50 - 60 --
Savarin/plaited loaf (500 g)	1	160 - 170	35 - 45	1	180 - 190
Springform cake tin	1	160 - 170	30 - 40	2	160 - 170
Ring cake tin	1	160 - 170	35 - 45	2	170 - 180
* Preheat oven

Small baked products	2D-Hot air Top/bottom heating
	Shelf position	Temperature in °C	Baking time in minutes	Shelf position	Temperature in °C
Yeast dough	1 160 - 170 15 - 25 2 180 - 190
	1 + 3 160 - 170 20 - 30 --
Meringue mixture	1	80	130 - 150	2	80
	1 + 3	80	150 - 170	--

* Preheat oven

Small baked products	2D-Hot air Top/bottom heating
	Shelf position	Temperature in °C	Baking time in minutes	Shelf position	Temperature in °C
Puff pastry/choux pastry	1	190 - 210*	20 - 30	1	200 - 220*
	1 + 3	190 - 210*	25 - 35 --
Sponge mixture, e.g. muffins 1	150 - 160*	25 - 35	170 - 180*
	1 + 3	150 - 160*	30 - 40 --
Shortcrust pastry, e.g. butter biscuits	1	140 - 150*	15 - 20	2	150 - 160*
	1 + 3	130 - 140*	20 - 25 --

* Preheat oven

Bread/bread rolls Shelf posi-	2D-Hot air			Top/bottom heating
	tion	Tempera-ture in °C	Baking time in minutes	Shelf posi-tion	Tempera-ture in °C
Bread rolls 1 220* 15 - 25 1 240*
Flatbread 1 220* 15 - 25 1 240*
Bread dough 750 - 1000 g
Final baking	1 220* 35 - 40 2 220*
Bread dough 1000 - 1250 g
Initial baking	1 220* 10 - 15 2 240*
Final baking	1	180	40 - 45	2	200
Bread dough 1250 - 1500 g
Initial baking	1 220* 10 - 15 2 240*
Final baking	1	180	40 - 50	2	200

* Preheat oven

Baking table for dishes and pre-prepared frozen meals

Circotherm intensive ☐ is particularly suitable for freshly prepared dishes that require a lot of heat from underneath and for frozen convenience products.

Note the following points:

■ Line the baking tray with greaseproof paper
■ Spread chips out in a single layer
■ Turn frozen potato products half way through the baking time
■ Only season frozen potato products after they have finished baking

■ Leave a little space between pieces of dough when baking bread rolls. Do not place too many on one baking tray
- Observe the manufacturer's instructions.

The values in the table are guidelines and apply to enamelled baking trays. The values may vary depending on the type and amount of dough/mixture and on the baking tin.

We recommend that you set the lower of the specified temperatures the first time. A lower temperature will generally provide more even browning.

The information in the table applies to putting food in a cold oven.

With ☐ Circotherm intensive, you cannot bake on two levels.

Dishes	2D-Hot air			Pizza setting
	Shelf position	Temperature in °C	Baking time in minutes	Shelf position	Temperature in °C
Pizza, fresh	1	180 - 190	20 - 30	1	190 - 210*
	1 + 3	170 - 180	30 - 40 --
Savoury flan	1	190 - 200*	15 - 25	1	210 - 230*
Quiche	1	170 - 180	45 - 55	1	180 - 200*
Tart	1 190 - 200*	30 - 45	1 200 - 220*
Swiss flan	1	170 - 190*	45 - 60	1	170 - 190
Potato gratin made from raw potatoes	1	180 - 190	60 - 70	1	170 - 180
Strudel, frozen	1	180 - 200	35 - 45	1	180 - 200
Pizza, frozen	1	180 - 200	15 - 25	1	200 - 220
	1 + 3	170 - 190	20 - 30 --
Potato products, frozen
Chips	1	190 - 210	15 - 25	1	200 - 220
	1 + 3	170 - 190	25 - 35 --
Croquettes/Rösti	1	180 - 200	25 - 35	1	200 - 220

* Preheat oven

Dishes	2D-Hot air Pizza setting
	Shelf position	Temperature in °C	Baking time in minutes	Shelf position	Temperature in °C
Baked goods
Bread rolls, frozen 1 180 - 200 5 - 15 1 170 - 190*
Part-baked rolls, frozen 1 180 - 200 10 - 20 1 170 - 190*
Part-baked rolls 1 180 - 200 5 - 15 1 170 - 190*

* Preheat oven

Tips and tricks

The cake is too light in colour Check the shelf height and the recommended bakeware. Place the baking tin on the wire rack and not on the baking tray. Increase the baking time or the temperature.
The cake is too dark Check the shelf height. Shorten the baking time or reduce the temperature.
The cake is unevenly browned in the baking tin	Check the shelf height and the temperature. Do not place the baking tin directly in front of the air outlets in the back wall of the cooking compartment. Check for the correct position of the baking tin on the wire rack.
The cake is unevenly browned on the baking tray	Check the shelf height and the temperature. When baking small items, make sure that they are the same size and thickness.
The cake is too dry Shorten the baking time and increase the temperature slightly.
The cake is too moist in the centre Reduce the temperature. Note: Higher temperatures do not mean shorter baking times (cooked on the outside, but not on the inside). Increase the baking time and allow the cake dough to prove longer. Add less liquid to the mixture.
The cake collapses when you take it out of the oven	Add less liquid to the mixture. Increase the baking time or reduce the temperature.
The specified baking time is not correct	For small items, check the amount on the baking tray. The items must not be touching each other.
Frozen products are not browned evenly after baking	If frozen products are unevenly browned when prebaked, then uneven browning is to be expected after baking.
Frozen products are not browned, not crispy or the specified time is not correct	Remove ice from frozen products before baking them. Do not use heavily frosted frozen products.

Roasting

There is a risk of injury if you use roasting dishes that are not heat-resistant!

Only use roasting dishes that are marked as being suitable for use in the oven.

When roasting with ✝ 2D-Hot air, do not use shelf position 2. The air circulation would be impaired and this will have a negative effect on your roast.

Open roasting

For open roasting, a roasting dish without a lid is used.

Add liquid to the roasting dish if required. During roasting, the liquid in the roasting dish will evaporate. If necessary, carefully add more hot liquid.

When you are roasting using ☐ Top/bottom heat, turn the roast approximately half to two thirds of the way through the roasting time.

Roasting in the universal pan

Juices escape from the roasting meat and are collected in the universal pan. You can use these juices as the basis for a tasty gravy.

You can also cook side dishes (e.g. vegetables) at the same time as roasting meat in the universal pan.

For smaller joints, you can use a smaller roasting dish instead of the universal pan. Place this directly on the wire rack.

Roasting with a lid

Roasting dishes with lids are used for this kind of roasting. This method is particularly suitable for pot roasts.

Roasting table

The roasting time and temperature depend on the size, height, type and quality of the item.

As a general rule: the larger the item, the lower the temperature and the longer the roasting time.

The information in the table is a guideline, and relates to items cooked without a lid. The values may vary depending on the type and quantity of the meat/fish and on the roasting dish.

You should set the lower of the specified temperatures the first time. This will generally allow more even browning.

At the end of the roasting time, switch the oven off and leave the roast to rest for approximately 10 minutes in the cooking compartment with the door closed. The recommended rest time is not included in the given roasting times.

The information in the table is for food placed in a cold oven and for meat/fish taken directly from the refrigerator.

Roast Shelf posi-	2D-Hot air Top/bottom heating
	tion	Tempera-ture in °C	Roasting time in minutes	Shelf posi-tion	Tempera-ture in °C
Meat loaf (made from 500 g meat) 1 170 - 180 60 - 70 2 200 - 210
Fish, whole (300 g) 1 160 - 170 30 - 40 3 180 - 200
Fish, whole (700 g)	1	160 - 170	40 - 50	2	180 - 200
Pork
Fillet, medium (400 g) 1 170 - 180 30 - 45 3 200 - 220
Roast with rind (1.5 kg) 1 160 - 170 120 - 150 2 190 - 210
Joint, marbled, without rind, e.g. neck (1.5 kg)	1	160 - 170	100 - 130	2	190 - 210
Joint, lean (1 kg)	1	170 - 180	80 - 100	2	200 - 220
Smoked pork	1 160 - 180 60 - 80 2 190 - 210
Beef
Fillet, medium (1 kg)	1	180 - 190	40 - 60	2	200 - 220
Sirloin, medium (1.5 kg)	1 180 - 190 30 - 45 2 200 - 220
Pot roast (1.5 kg)*	1	170 - 180	120 - 150	2	200 - 220
Veal
Joint/breast of veal (1.5 kg)	1	160 - 170	90 - 120	2	180 - 200
Knuckle	1 160 - 170 100 - 130 2 190 - 210
Poultry (not stuffed)
Chicken, whole (1 kg)	1 170 - 180 60 - 70 2 200 - 220
Duck, whole (2 - 3 kg)	1	160 - 170	90 - 120	2	190 - 210
Goose, whole (3 - 4 kg)	1	150 - 160	130 - 180	2**	180 - 200

* Roast pot roasts in ovenware with a lid
** Use shelf position 1 for tall items

Tips and tricks

Crust too thick and/or roast too dry	Check the shelf height. Reduce temperature or roasting time.
Crust too thin	Increase the temperature or switch on the grill briefly at the end of the roasting time.
The meat is not cooked right through	Remove any accessories that are not required from the cooking compartment. Increase the roasting time. Check the core temperature of the roast using a meat thermometer.
Steam in the cooking compartment is condensing on the appliance door	The steam dries during the course of the cooking. If there is an excessive volume of steam, you can carefully open the door briefly to dissipate the steam more quickly.

Grilling

Caution!

Material damage due to effect of heat: The temperature generated in the cooking compartment is very high. Keep the appliance door closed when using the grill. Never grill with the appliance door open.

For grilling, always use the wire rack and universal pan. Insert the wire rack at the shelf position indicated in the grilling table. To prevent the oven from becoming dirty, insert the universal pan one level lower. Always place the food to be grilled in the centre of the wire rack

Note: Always use the universal pan in the standard position (not the other way up).

If you are grilling more than one piece of meat, make sure that they are the same sort of meat and that they are of similar thickness and weight.

All-round grilling

All-round grilling is particularly suitable for grilling poultry and meat so that it is crispy all round (e.g. roast pork with crackling).

Turn the items after half to two-thirds of the grilling time.

Pierce duck and goose skin under the wings and legs to allow the fat to escape.

Depending on the food you are cooking, the cooking compartment may become more than usually dirty when you cook food on the wire rack using all-round grilling. You should therefore clean the cooking compartment after every use so that the dirt does not burn on.

The information in the table is a guideline, and applies to the enamelled universal pan with wire rack. The values may vary depending on the type and amount of food to be grilled.

You should set the lower of the specified temperatures the first time. This will generally allow more even browning.

At the end of the cooking time, switch the grill off and leave the food to stand for approximately 10 minutes in the cooking compartment with the door closed. The recommended rest time is not included in the grilling times specified.

The values are for food placed in a cold oven and for meat taken directly from the refrigerator.

Grilled food Shelf position Temperature in °C Grilling time in minutes
Sirloin, medium 2 220 - 240 40 - 50
Leg of lamb, boned, medium 2 170 - 190 120 - 150
Pork
Joint of pork with rind 2 170 - 190 140 - 160
Pork knuckle 2 180 - 200 120 - 150
Poultry (not stuffed)
Chicken halves, 1 - 2 halves 2 210 - 230 40 - 50
Chicken, whole, 1 - 2 chickens 2 200 - 220 60 - 80
Duck, whole, 2 - 3 kg 2 180 - 200	90 - 120
Goose, whole, 3 - 4 kg	2 150 - 170 130 - 160
Full-size grillFor grilling large quantities of flat items, use the full-surface grill.For grilling small quantities of flat items, use the centre-area grill. Place the food to be grilled in the centre of the wire rack. You will save energy by using the full-size grill.	Brush the items to be grilled with a little oil according to taste.Turn the grilling items half to two-thirds of the way through the grilling time.The information in the table is only a guideline. The values may vary depending on the type and amount of items to be grilled. They apply to meat placed into a cold oven straight from the refrigerator.

Grilled food	Shelf position	Temperature in °C	Grilling time in minutes	Notes
Sausages	4	250	10 - 14	Lightly score skins
Vegetables	4	270	15 - 20
Toast with topping	3	220	10 - 15	The shelf position should be adapted to the height of the topping
Pork
Fillet steaks, medium-sized (3 cm thick)	4	270	12 - 15
Steak, well-done (2 cm thick)	4	270	15 - 20
Beef
Fillet steaks (3 - 4 cm thick)	4	270	15 - 20	Grilling times can be increased or reduced, depending on how well cooked the food should be
Tournedos	4	270	12 - 15
Lamb
Fillets	4	270	8 - 12	Grilling times can be increased or reduced, depending on how well cooked the food should be
Chops	4	270	10 - 15
Poultry
Chicken legs	3	250	25 - 30	Pricking the skin can prevent blistering during grilling
Small chicken portions	3	250	25 - 30
Fish
Steaks	4	220	15 - 20	The pieces should be of equal thickness
Chops	4	220	15 - 20
Whole fish	3	220	20 - 25

Defrosting

In this section, you will learn how to defrost using ✝ 2D-Hot air or the ✝ Defrost setting.

Defrosting with 2D-Hot air

Use the ☑ 2D-Hot air operating mode to defrost and cook frozen products.

Observe the following points for preserving:

■ Frozen products that have been defrosted (meat in particular) require shorter cooking times than fresh products
■ The cooking time for frozen meat increases by the defrosting time
■ Always defrost frozen poultry before cooking so that you can remove the giblets
■ Cook frozen fish at the same temperatures as fresh fish
- You can place large quantities of ready made frozen vegetables in aluminium dishes in the cooking compartment at the same time
■ Use shelf height 1 when defrosting on one level, and shelf heights 1 + 3 when using two levels
- Observe the instructions on the packaging when using frozen foods

Frozen meals Tempera-

ture in °C

Defrosting time in minutes

Raw frozen products/ foods 50 30 - 90

Bread/Bread rolls (750 - 1,500 g) 50 30 - 60

Dry, frozen tray bakes 60 45 - 60

Moist, frozen tray bakes 50 50 - 70

Defrost

Using defrost setting ☐ you can defrost delicate pastries particularly well (e.g. cream cakes).

1. Switch on the ☐ Defrost operating mode.
2. Defrost the frozen food for 25-45 minutes, depending on type and size.
3. Remove the frozen food from the cooking compartment and let it thaw for 30 - 45 minutes.

With small quantities (pieces), the defrosting time is shortened to 15-20 minutes and the extended defrosting time is shortened to 10-15 minutes.

Yoghurt

You can also use the appliance to make home-made yoghurt:. The heat from the 🏠 oven lighting is used for this.

1. Remove accessories and hook-in racks, telescopic shelves or separate fitting systems.

2. Heat 1 litre of long-life milk (3.5 % fat) or fresh pasteurised milk to 40 °C or
   Bring 1 litre of fresh milk to the boil once and allow to cool down to 40 °C.

3. Add 150 g of set yoghurt to the heated milk, stir in and fill the jars or bowls evenly. Do not pour more than 200 ml into any single container.

4. Cover the filled containers with a suitable lid or cling film.
5. Preheat the oven with the ☐ full-surface grill for 15 minutes at 100 °C.
6. Then set the operating mode selector to 📁 oven lighting.
7. Evenly space the containers over the cooking compartment floor, then close the appliance door.
8. Switch off the oven lighting after 8 hours and place the containers in the refrigerator for at least 12 hours.

Cleaning and care

Risk of short circuit!

Do not use high-pressure cleaners or steam jet cleaners to clean your appliance.

Caution!

Surface damage due to incorrect cleaning: Do not use any

■ harsh or abrasive cleaning agents
■ cleaning agents that contain alcohol
■ abrasive cleaning aids such as steel wool or scourers.

Observe the specifications in the tables.

Note: Highly recommended cleaning and care products can be purchased through our after-sales service. Observe the manufacturer's instructions.

Cleaning the appliance exterior

To ensure that the different surfaces are not damaged by using the wrong cleaning agent, pay attention to the information in the table.

Wash new sponge cloths thoroughly before use.

Appliance part/sur- Cleaning agent/aid face

Stainless steel surfaces

Apply washing-up liquid with a soft, damp cloth or chamois; dry with a soft cloth. Use cleaners for brushed stainless steel finishes if very dirty.

Control panel Hot soapy water:

Clean with a dish cloth and dry with a soft cloth. Do not use glass cleaners or glass scrapers.

Door panels Apply glass cleaner or detergent with a soft, damp cloth or chamois leather; dry with a soft cloth.

The inner door panel of the appliance door has a coating which can have the effect of a light-coloured film.

Cleaning the cooking compartment

Caution!

Risk of damaging the surface. Do not clean the appliance while still warm, even if using oven cleaners specially intended for this purpose.

Notes

■ Due to its technical properties, the enamel may exhibit colour variations. However, this has no effect on the function.
■ The edges of thin trays may be rough. Anti-corrosion protection is still guaranteed, however.

Appliance part Cleaning agent/aid
Enamel surfaces(smooth surface)	Apply washing-up liquid or vinegar solution with a soft, damp cloth or chamois; dry with a soft cloth. Soften baked-on food residues with a damp cloth and detergent. Leave the cooking compartment open to dry after cleaning.We recommend using oven cleaner if the oven is very dirty. Observe the manufacturer's instructions when cleaning with an oven cleaner.
Self-cleaning surfaces(rough surface)	Please see the notes in section: Self-cleaning surfaces
Door seal Hot soapy water
Hook-in racks Hot soapy water:Soak and clean with a dish cloth or brush.
Accessories Soak in hot soapy water. Clean with a brush and sponge or wash in the dish-washer.

Keeping the appliance clean

Clean the cooking compartment every time it is used, since dirt will be burnt on next time the oven heats up and will thus become hard to remove. Always remove flecks of limescale, grease, starch and albumin (e.g. egg white) immediately.

Where possible, use the ✦ 2D-Hot air operating mode. This operating mode causes less soiling.

Self-cleaning surfaces

The back panels and side panels of the cooking compartment are coated with self-cleaning enamel. This coating absorbs and disintegrates splashes from baking and roasting while the oven is in operation.

Large splashes only disappear after the oven has been used several times.

Discolouration on the self-cleaning surfaces does not affect the self-cleaning function.

Caution!

Damage to surfaces on self-cleaning areas due to applying oven cleaner. Never clean the self-cleaning surfaces with oven cleaner.

If oven cleaner accidentally gets onto self-cleaning surfaces, remove it immediately with a sponge and plenty of water.

Caution!

Damage to surfaces on self-cleaning areas due to the use of abrasive and acidic cleaning agents and aids.

Do not use cleaning agents containing abrasive substances or acids.

Do not use abrasive cleaning aids such as steel wool or scourers.

Removing and fitting the appliance door

You can remove the appliance door to clean it more thoroughly.

Risk of injury!

The hinges of the appliance door may snap shut with great force. Always open the hinge locking lever fully when removing the appliance door and close it fully after refitting. Do not reach into the hinge.

Risk of injury!

If the appliance door has only been unhinged on one side, do not reach into the hinge. The hinge can snap back with great force. Call the after-sales service.

Removing the appliance door

1. Open the appliance door fully.
2. Open the locking levers on the left and right-hand side fully.

Diagram showing a device with a lock mechanism and directional arrow (no text or symbols)

The hinges are secured and cannot snap closed.

1. Close the appliance door until resistance becomes noticeable (figure A).
2. With both hands, grip the door on the left and right-hand side, close the door a little more and pull it out (figure B).

Simple line drawing of a wall-mounted device with a screen and panel (no text or symbols)

Person installing or adjusting a tablet device with an arrow indicating rotation (no text or symbols present)

Fitting the appliance door

1. Insert the hinges in the left and right-hand holders (figure C). The notch on both hinges must engage.
2. Open the appliance door fully.
3. Close the locking levers on the left and right-hand side fully (figure D).

Mechanical assembly diagram showing a lever mechanism with a downward arrow indicating motion (no text or symbols present)

Mechanical component diagram showing a lever mechanism with an arrow indicating motion (no text or symbols present)

The appliance door is secured and can no longer be removed.

1. Close the appliance door.

Cleaning the door panels

To facilitate cleaning, you can remove the inner door panels from the appliance door.

Risk of injury!

The components inside the appliance door may have sharp edges. Take care not to cut yourself. Wear protective gloves.

Risk of injury!

The appliance must not be used again until the door panels and appliance door have been correctly fitted.

Removing the door panel

Note: Before removing, make a note of which way round the door panel is fitted, so that it is not refitted the wrong way round.

1. Unhook the appliance door and lay it on a soft, clean surface with the front side facing downwards (see section: Removing and installing the appliance door).

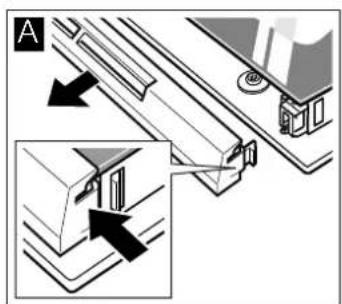

2. Pull off the cover at the top of the appliance door. Press in the tabs on the left and right using your fingers (fig.A).
3. Lift the door panel slightly and pull it out (Fig. B).

Technical diagram showing mechanical assembly with arrows indicating direction (no text or symbols)

Diagram of a tilted rectangular frame with a vertical line and arrow indicating direction (no text or symbols)

Removing the intermediate panel

Lift the intermediate panel slightly and pull it out towards you.

Technical diagram of a mechanical assembly with an upward arrow indicating motion (no text or symbols present)

Cleaning

Clean the door panel with glass cleaner and a soft cloth.

Risk of injury!

Scratched glass in the appliance door may develop into a crack. Do not use a glass scraper, sharp or abrasive cleaning aids or detergents.

Fitting the intermediate panel

Note: During installation, make sure that the lettering "top right" is upside down at the bottom left.

Insert the intermediate panel towards the back as far as it will go.

Diagram of a mechanical assembly with arrows indicating direction (no text or symbols)

Fitting the door panel

1. Insert the door panel at an angle towards the back into both brackets as far as it will go. The smooth surface must face outwards.

Illustration of a hand using a tool to mark a surface area with a black arrow indicating direction (no text or symbols)

1. Put the cover back in place and press on it until it clicks in place.

2. Refit the appliance door.

Cleaning the hook-in racks

You can remove the hook-in racks for easier cleaning.

⚠️ Risk of burning due to hot components in the cooking compartment!

Wait until the cooking compartment has cooled down.

1. Push the hook-in rack upwards at the front and unhook to the side (figure A).
2. Pull the hook-in rack forwards at the rear and unhook to the side (figure B).

Diagram of a mechanical device with a lever mechanism and labeled section A (no text or symbols beyond label)

Diagram of a ladder-like structure with an arrow pointing to a component, labeled 'B' (no text or symbols on the diagram itself)

1. Clean the hook-in rack with washing-up liquid and a sponge or brush.
2. Align the hook-in rack with the indentation (a) facing downwards, so that the shelf heights match.

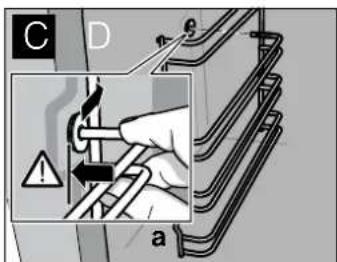

3. Insert the hook-in rack at the rear as far as it will go and push to the rear (figure C).
4. Insert the hook-in rack at the front as far as it will go and push downwards (figure D).

C D e a

Technical diagram showing electrical connections with labeled components and warning symbols

Faults and repairs

In the event of a fault, check the tips in the following table before calling the after-sales service.

Risk of electric shock!

■ Work on the appliance electronics may only be performed by a specialist.
■ Always disconnect the appliance from the power supply when work is carried out on the electronics. Switch off the circuit breaker or remove the fuse from your household fuse box.

Problem Possible cause Remedial action
Electrical operation is faulty (e.g. indicator lamps no longer light up)	Fuse defective Check fuses in the fuse box and replace if necessary
Liquid or runny dough runs to one side Appliance not installed level Check the appliance installation (see the Installation instructions)
0:00 flashes in the clock display	There was a power cut Reset the time of day (see section: Electronic clock)
Electronically controlled functions are mal-functioning	Energy surges (e.g. lightning strike) Reset the function concerned
Smoke is generated during roasting or grilling	Fat is burning on the grill element Continue grilling or roasting until the fat on the grill element is burnt away
	Wire rack or universal pan inserted incor-rectly	Check the shelf heights (see section: Roasting or grilling)
High levels of condensation are generated in the cooking compartment	Normal occurrence (e.g. when baking cakes with very moist toppings or roasting a large joint)	Open the appliance door briefly from time to time during operation
Enamelled accessories have matt, light-coloured marks	Normal occurrence caused by dripping meat or fruit juices	Not possible
Door panels are misted up Normal occurrence caused by tempera-ture differences		Heat the appliance up to 100 °C and then switch off again after 5 minutes

Replacing the oven light bulb

Replace faulty oven light bulbs.

You can obtain replacement light bulbs from customer service or specialist retailers: E14, 220 - 240 V, 40 W, heat resistant to 300 °C. Only use these oven light bulbs.

Risk of electric shock!

Disconnect the appliance from the power supply. Switch off the circuit breaker or remove the fuse from the household fuse box.

1. Place a tea towel in the cold cooking compartment to prevent damage.
2. Turn the glass cover anticlockwise and remove it.

Simple line drawing of a mechanical component with a rotating arrow (no text or symbols)

1. Replace the oven light bulb with a bulb of the same type.
2. Screw on the glass cover again.
3. Remove the tea towel and switch on the circuit breaker.

Note: If the glass cover cannot be unscrewed: use rubber gloves to turn it. You can order a special removal tool through the after-sales service (order no. 613634)

Changing the door seal

If the door seal is defective, it must be replaced. Replacement seals for your appliance can be obtained from the after-sales service.

The door seal is attached in four places (figure A). When replacing it, disconnect and attach the hooks at all four points (figure B).

Diagram of a room with a rectangular frame and four arrows indicating direction (no text or symbols)

Close-up of a finger pressing a curved mechanical component with an arrow indicating motion (no text or symbols)

Check again to ensure that the seal is seated correctly in the corners in particular.

After-sales service

In the event of faults and repairs that you cannot rectify yourself, please use our after-sales service.

You can find the addresses in the after-sales service directory.

Note: You will be charged for calling the after-sales service regarding an operating error.

When contacting the after-sales service, please specify the E-number and FD number.

You can find these on the rating plate behind the appliance door on the left-hand bottom edge.

E no. FD no.

Test dishes

Test dishes tested to standard EN 50304/EN 60350 (2009)

and IEC 60350. Please note the information in the tables about preheating.

Baking Shelf posi-	tion	Operating mode	Temperature in °C	Baking time in minutes
Piped cookies 2		☐	160 - 170* 20 - 25
	1	☒	140 - 150* 15 - 25
	1 + 3	☒	140 - 150* 20 - 30
Small cakes (20 per tray) 2		☐	160 - 170** 20 - 30
	1	☒	150 - 160** 20 - 30
	1 + 3	☒	140 - 150** 30 - 40
Hot water sponge cake 2		☐	160 - 170* 25 - 35
	1	☒	150 - 160* 25 - 35
Double crust apple pie (tinplate tins next to one another, fig. A)	1	☒	160 - 170 65 - 75
Double crust apple pie (black tins placed diagonally across from each other, fig. B)	1 + 3	☒	170 - 180 60 - 70

* Preheat oven
** Preheat for 10 minutes

Interior view of a microwave oven with two cylindrical dish units on the side (no text or symbols visible)

Interior view of a microwave oven with two panes on the roof (no text or symbols visible)

Grilling Shelf position Operating mode Temperature		in °C	Grilling time in minutes
Toast (universal pan + wire rack) 3 + 4	""	275* 1 - 2
Beef steaks, x 12 (universal pan + wire rack) 3 + 4	""	275	20 - 25**

* Preheat for 10 minutes
** Turn after 23 of the time

9000797541

BSH Hausgeräte GmbH

Carl-Wery-Straße 34

81739 München

GERMANY

(950224)
