USER MANUAL PEE6040XXK Zoppas

Safety information	10
Safety instructions	11
Product description	12
Daily use	13
Helpful hints and tips	13

Care and cleaning	13
Troubleshooting	14
Installation	14
Technical information	15
Environment concerns	16

Subject to change without notice.

Safety information

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.

Children and vulnerable people safety

Warning! Risk of suffocation, injury or permanent disability.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised by an adult or a person who is responsible for their safety.
• Do not let children play with the appliance.
• Keep all packaging away from children.
• Keep children and pets away from the appliance when it operates or when it cools down. Accessible parts are hot.
• If the appliance has a child safety device, we recommend that you activate it.
• Cleaning and user maintenance shall not be made by children without supervision.

General Safety

• The appliance and its accessible parts become hot during use. Do not touch the heating elements.
• Do not operate the appliance by means of an external timer or separate remote-control system.

• Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.

• Never try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

• Do not store items on the cooking surfaces.
• Do not use a steam cleaner to clean the appliance.
• Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.

Safety instructions

Installation

Warning! Only a qualified person must install this appliance.

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Obey the installation instruction supplied with the appliance.
• Keep the minimum distance from the other appliances and units.
• Always be careful when you move the appliance because it is heavy. Always wear safety gloves.
• Seal the cut surfaces with a sealant to prevent moisture to cause swelling.
• Protect the bottom of the appliance from steam and moisture.
• Do not install the appliance adjacent to a door or under a window. This prevents hot cookware to fall from the appliance when the door or the window is opened.
• If the appliance is installed above drawers make sure that the space, between the bottom of the appliance and the upper drawer, is sufficient for air circulation.
• The bottom of the appliance can get hot. Make sure to install a non-combustile separation panel under the appliance to prevent access to the bottom.

Electrical connection

Warning! Risk of fire and electrical shock.

• All electrical connections should be made by a qualified electrician.

• Before connecting the hob to an oven and before every wiring make sure the main terminals of both appliances are not live.

• Make sure the appliance is installed correctly. Loose and incorrect plug and socket can make the terminal become too hot.

• Make sure that a shock protection is installed.
• Do not let the electricity bonds touch the appliance or hot cookware, when you connect the appliance to the near sockets.
• Do not let the electricity bonds tangle.
• Use a strain relief clamp on cable.
• Use the correct mains cable.
• Make sure not to cause damage to the mains plug and to the mains cable. Contact the Service or an electrician to change a damaged mains cable.
• The electrical installation must have an isolation device which lets you disconnect the appliance from the mains at all poles. The isolation device must have a contact opening width of minimum 3 mm.
• Use only correct isolation devices: line protecting cutouts, fuses (screw type fuses removed from the holder), earth leakage trips and contactors.

Use

Warning! Risk of injury, burns or electric shock.

• Remove all the packaging, labelling and protective film (if applicable) before first use.
• Use this appliance in a household environment
• Do not change the specification of this appliance.
• Do not let the appliance stay unattended during operation.
• Do not operate the appliance with wet hands or when it has contact with water.

• Do not put cutlery or saucepan lids on the cooking zones. They can become hot.

• Set the cooking zone to "off" after use.

• Do not use the appliance as a work or as a storage surface.
• When you place food into hot oil, it may splash.

Warning! Risk of fire or explosion.

• Fats and oil when heated can release flammable vapours. Keep flames or heated objects away from fats and oils when you cook with them.
• The vapours that very hot oil releases can cause spontaneous combustion.
• Used oil, that can contain food remnants, can cause fire at a lower temperature than oil used for the first time.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

Warning! Risk of damage to the appliance.

• Do not keep hot cookware on the control panel.
• Do not let cookware to boil dry.
• Be careful not to let objects or cookware fall on the appliance. The surface can be damaged.

• Do not activate the cooking zones with empty cookware or without cookware.

• Do not put aluminium foil on the appliance.

• Do not let acid liquids, for example vinegar, lemon juice or limescale remover, touch the hob. This can cause matt patches.

Care and Cleaning

Warning! Risk of damage to the appliance.

• Clean regularly the appliance to prevent the deterioration of the surface material.
• Do not use water spray and steam to clean the appliance.
• Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.

Disposal

Warning! Risk of injury or suffocation.

• Contact your municipal authority for information on how to discard the appliance correctly.
• Disconnect the appliance from the mains supply.
• Cut off the mains cable and discard it.

Product description

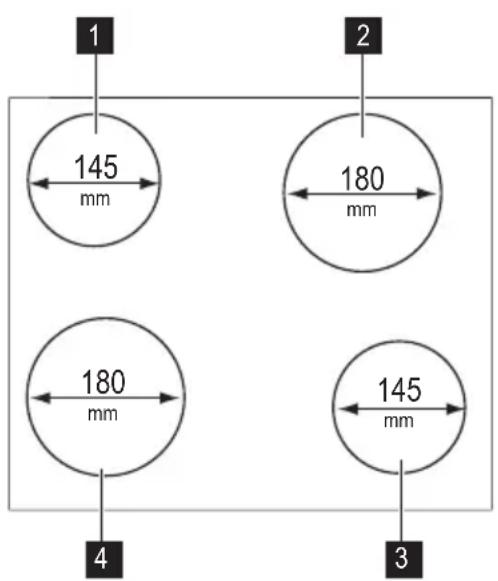

General overview

Cooking zone

Cooking zone

Cooking zone

Cooking zone

Warning! The risk of burns from residual heat!

Warning! Refer to the Safety chapters.

You operate the hob with the knobs of the oven. The Daily Use chapter for the oven tells how to operate the hob.

When a cooking zone operates, it hums for a short time. This is typical of all ceramic glass cooking and does not show that the appliance operates directly.

Helpful hints and tips

Cookware

• The bottom of the cookware must be as thick and flat as possible.

Energy saving

How to save energy

Care and cleaning

Important! The risk of burns from residual heat! Let the appliance become sufficiently cool.

Clean the appliance after each use. Always use cookware with clean bottom.

Scratches or dark stains on the surface cause no effect on how the appliance operates.

To remove the dirt:

1. Use the cleaning powder or the cleaning pad.
2. Clean the appliance with a moist cloth and some detergent.
3. Heat the hotplate to a low temperature and let it to dry.
4. To keep the hotplates in good shape, regularly rub in a sewing machine oil. Polish off the oil with absorbent paper.

Before first use

Put cookware containing water on each cooking zone, set the maximum position and operate the appliance for 10 min. This is to burn off the residue in the appliance. After that, operate the appliance at minimum position for 20 min. During this period, an odour and smoke can occur. This is normal. Make sure that the airflow is sufficient.

• If it is possible, always put the lids on the cookware.
• Put cookware on a cooking zone before you start it.
• Stop the cooking zones before the end of the cooking time to use residual heat.
• The bottom of pans and cooking zones must have the same dimension.

Important! For stainless steel edges of the hob use the cleaning agent for stainless steel.

The stainless steel edge of the plate can change the colour as a result of the high temperature.

The stainless steel can become dirty if the temperature is too high. Because of this do not cook with the stone pots, earthenware pans or cast iron plates. Do not use the aluminium foil to prevent damage to the top during operation.

The Stainless steel parts wash with water, and then dry with a soft cloth.

Problem Possible cause Remedy
You cannot activate the appliance or operate it.	Activate the appliance again and set	the heat setting in less than 10 seconds.
Problem with the house electrical system.	Examine the fuse in the electrical system of the house in the fuse box. If the fuses blow again and again, speak to qualified electrician.

If you tried the above solutions and cannot repair the problem, speak to your dealer or the customer service. Give the data from the rating plate, three digit letter code for the glass ceramic (it is in the corner of the glass surface) and an error message that comes on. Make sure, you operated the appliance correctly. If not the servicing by a customer service technician or dealer

will not be free of charge, also during the warranty period. The instructions about the customer service and conditions of guarantee are in the guarantee booklet.

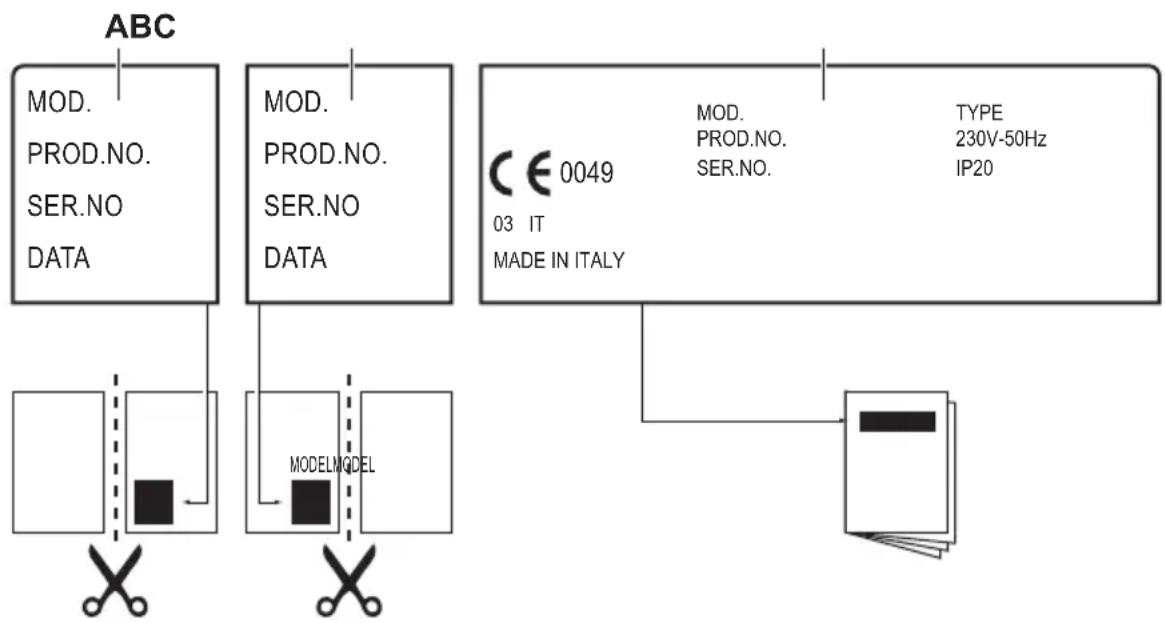

Labels supplied with the accessories bag

Stick the adhesive labels as indicated below:

A) Stick it on Guarantee Card and send this part (if applicable)
B) Stick it on Guarantee Card and keep this part (if applicable)

C) Stick it on instruction booklet

Installation

Warning! Refer to the Safety chapters.

Before the installation

Before the installation of the appliance, record the information below from the rating plate. The rating plate is on the bottom of the appliance casing.

• Model

• PNC

• Serial number ....... Built-in appliances

• Only use the built-in appliances after you assemble the appliance into correct built-in units and work surfaces that align to the standards.

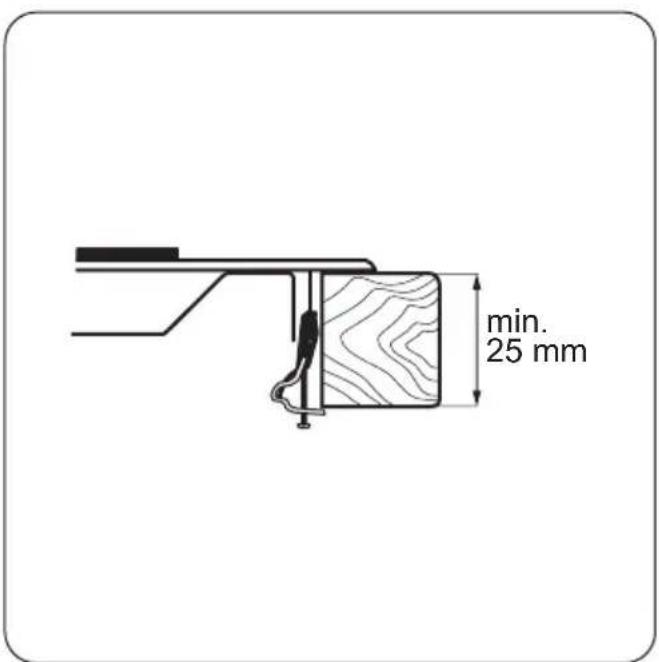

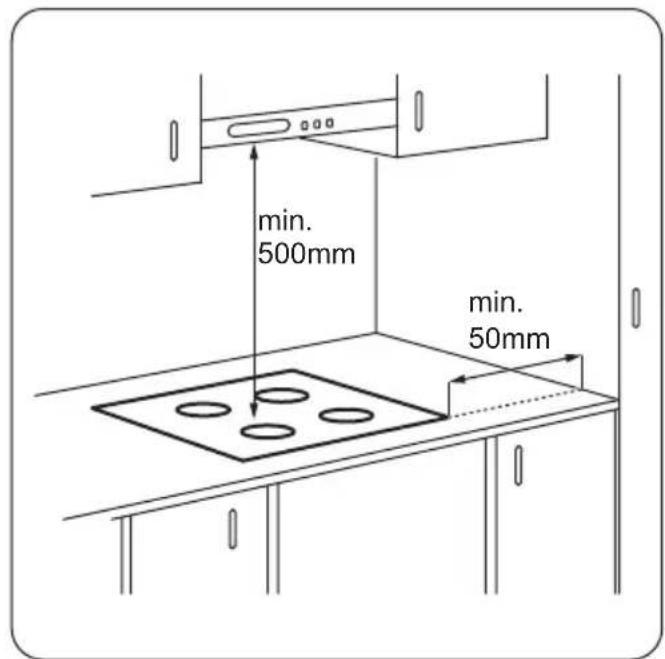

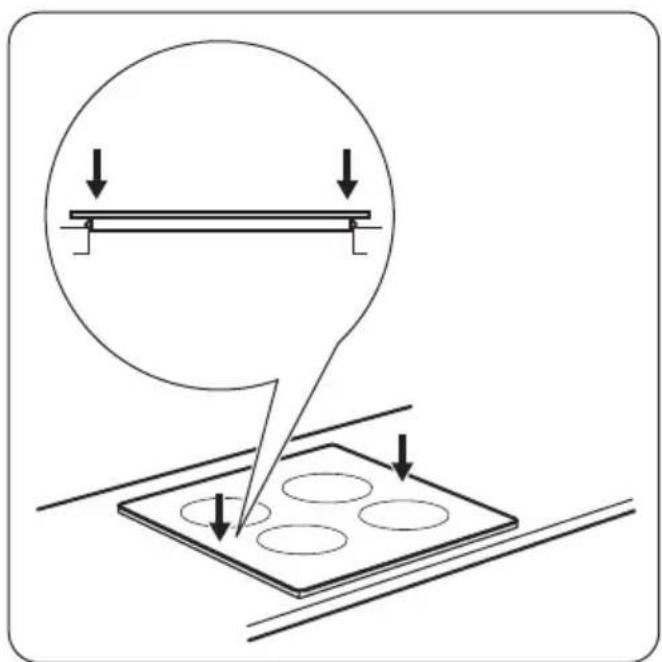

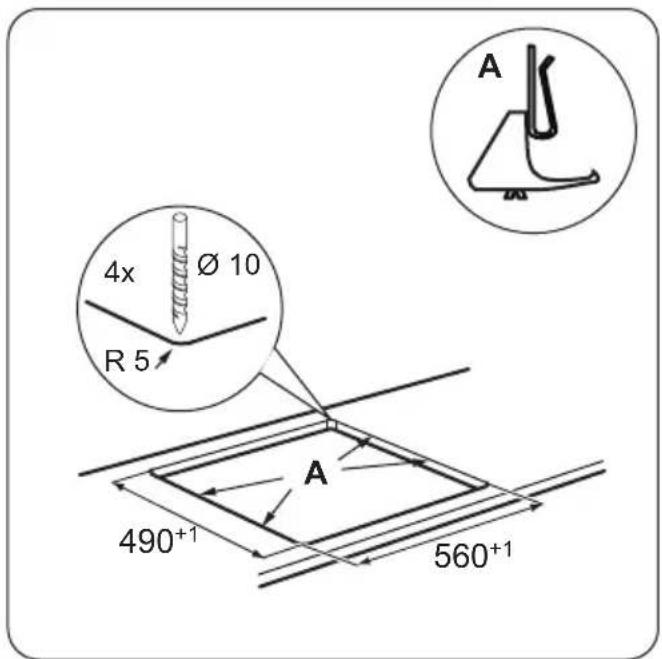

Assembly

Technical information

Cooking zones power

Cooking zone Nominal Power (Max	heat setting) [W]
Right rear —180 mm 2000 W
Right front — 145 mm 1500 W
Left rear — 145 mm 1500 W
Left front — 180 mm 2000 W

Environment concerns

Recycle the materials with the symbol Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with the symbol 区 with the household waste. Return the product to your local recycling facility or contact your municipal office.

Packaging material

The packaging materials are friendly to the environment and can be recycled. The plastic components are identified by marking: >PE<, >PS< , etc. Discard the packaging materials as household waste at the waste disposal facilities in your municipality.
