USER MANUAL EDH 97980 W ELECTROLUX

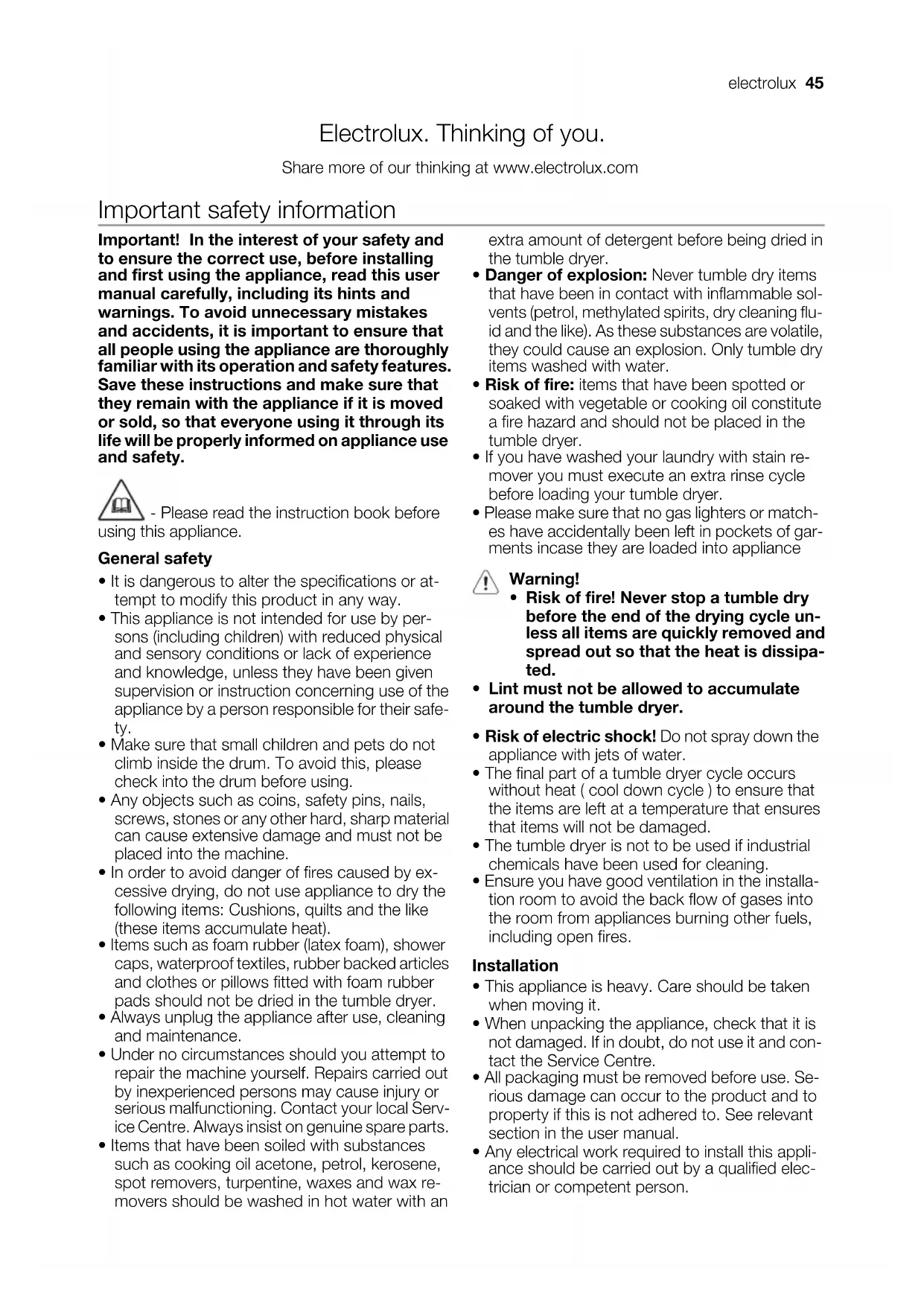

• It is dangerous to alter the specifications or at- tempt to modify this product in any way.

• This appliance is not intended for use by per- sons (including children) with reduced physical and sensory conditions or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safe- ty.

• Make sure that small children and pets do not climb inside the drum. To avoid this, please check into the drum before using.

• Any objects such as coins, safety pins, nails, screws, stones or any other hard, sharp material can cause extensive damage and must not be placed into the machine.

• In order to avoid danger of fires caused by ex- cessive drying, do not use appliance to dry the following items: Cushions, quilts and the like (these items accumulate heat).

• Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.

• Always unplug the appliance after use, cleaning and maintenance.

• Under no circumstances should you attempt to repair the machine yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Serv- ice Centre. Always insist on genuine spare parts.

• Items that have been soiled with substances such as cooking oil acetone, petrol, kerosene, spot removers, turpentine, waxes and wax re- movers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.

• Danger of explosion: Never tumble dry items that have been in contact with inflammable sol- vents (petrol, methylated spirits, dry cleaning flu- id and the like). As these substances are volatile, they could cause an explosion. Only tumble dry items washed with water.

• Risk of fire: items that have been spotted or soaked with vegetable or cooking oil constitute a fire hazard and should not be placed in the tumble dryer.

• If you have washed your laundry with stain re- mover you must execute an extra rinse cycle before loading your tumble dryer.

• Please make sure that no gas lighters or match- es have accidentally been left in pockets of gar- ments incase they are loaded into appliance Warning!

• Risk of fire! Never stop a tumble dry before the end of the drying cycle un- less all items are quickly removed and spread out so that the heat is dissipa- ted.

Lint must not be allowed to accumulate around the tumble dryer.

• Risk of electric shock! Do not spray down the appliance with jets of water.

• The final part of a tumble dryer cycle occurs without heat ( cool down cycle ) to ensure that the items are left at a temperature that ensures that items will not be damaged.

• The tumble dryer is not to be used if industrial chemicals have been used for cleaning.

• Ensure you have good ventilation in the installa- tion room to avoid the back flow of gases into the room from appliances burning other fuels, including open fires. Installation

• This appliance is heavy. Care should be taken when moving it.

• When unpacking the appliance, check that it is not damaged. If in doubt, do not use it and con- tact the Service Centre.

• All packaging must be removed before use. Se- rious damage can occur to the product and to property if this is not adhered to. See relevant section in the user manual.

• Any electrical work required to install this appli- ance should be carried out by a qualified elec- trician or competent person. electrolux 45• If the machine is situated on a carpeted floor, please adjust the feet in order to allow air to cir- culate freely under the appliance.

• After having installed the appliance, check that it is not pressing or standing on its electrical supply cable.

• If the tumble dryer is placed on top of a washing machine, it is compulsory to use the stacking kit (optional accessory). Use

• This appliance is designed for domestic use. It must not be used for purposes other than those for which it was designed.

• Only wash fabrics which are designed to be ma- chine dried. Follow the instructions on each gar- ment label.

• Do not dry unwashed items in the tumble dryer.

• Do not overload the appliance. See the relevant section in the user manual.

• Clothes which are dripping wet should not be placed in the dryer.

• Garments which have been in contact with vol- atile petroleum products should not be machine dried. If volatile cleaning fluids are used, care should be taken to ensure that the fluid is re- moved from the garment before placing in the machine.

• Never pull the power supply cable to remove the plug from the socket; always take hold of the plug itself.

• Never use the tumble dryer if the power supply cable, the control panel, the working surface or the base are damaged so that the inside of the tumble dryer is accessible.

• Fabric softeners, or similar products should be used as specified by the fabric softener instruc- tions.

• Caution - hot surface : Do not touch the door light cover surface when the light is switched on. (Only dryers equipped with internal drum light) Child safety

• This machine is not intended for use by young children or infirm persons without supervision.

• Children often do not recognise the hazards as- sociated with electrical appliances. Children should be supervised to ensure that they do not play with the appliance. Warning!

• Danger of suffocation! The packaging components (e.g. plastic film, polystyrene) can be dangerous to children - Keep them out of children’s reach.

• Keep all detergents in a safe place out of chil- dren’s reach.

• Make sure that children or pets do not climb in- side the drum. Environment The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product. Environmental tips

• In the dryer, laundry becomes fluffy and soft. Fabric softeners are not therefore needed when washing.

• Your dryer will function most economically if you: – Always keep the ventilation slots on the base of the dryer unobstructed; – Use the loading volumes specified in the pro- gramme overview; – Ensure you have good ventilation in the in- stallation room; – Clean the micro-fine filter and fine strainer af- ter each drying cycle; – Spin the laundry well before drying. Energy consumption depends on spinning speed set in washing machine. Higher spin- ning speed - lower energy consumption. Environmental information The packaging materials are environmentally friendly and can be recycled. The plastic compo- nents are identified by markings, e.g. >PE<, >PS<, etc. Please dispose of the packaging materials in the appropriate container at the community waste disposal facilities. Important! The heat pump of your dryer contains a closed refrigerant circuit filled with a refrigerant which is free from fluoro-chloro-hydrocarbons. The refrigerant circuit in the heat pump must not be damaged. 46 electroluxWarning! When a unit is no longer being used:

• Pull the plug out of the socket.

• Cut off the cable and plug and dispose of them.

• Dispose of the door catch. This prevents chil- dren from trapping themselves inside and en- dangering their lives. Installation Transporting the appliance Important! Only tip the appliance on its left side to transport (see illustration), if it cannot be transported in an upright position. Warning! If the appliance was not transported in an upright position, leave it to stand for 12 hours before connecting it to the electricity supply and using it for the first time, so that the oil can flow back to the compressor. Otherwise the compressor could be damaged. Appliance positioning

• It is recommended that, for your convenience, the machine is positioned close to your washing machine.

• The tumble dryer must be installed in a clean place, where dirt does not build up.

• Air must be able to circulate freely all round the appliance. Do not obstruct the front ventilation grille or the air intake grilles at the back of the machine.

• To keep vibration and noise to a minimum when the dryer is in use, it should be placed on a firm, level surface.

• Once in its permanent operating position, check that the dryer is absolutely level with the aid of a spirit level. If it is not, raise or lower the feet until it is.

• The feet must never be removed. Do not restrict the floor clearance through deeppile carpets, strips of wood or similar. This might cause heat built-up which would interfere with the operation of the appliance. Important!

• The hot air emitted by the tumble dryer can reach temperatures of up to 60°C. The appli- ance must therefore not be installed on floors which are not resistant to high temperatures.

• When operating the tumble dryer, the room tem- perature must not be lower than +5°C and high- er than +35°C, as it may affect the performance of the appliance.

• Should the appliance be moved, it must be transported vertically.

• The appliance must not be installed behind the lockable door, a sliding door a door with a hinge on the opposite side to that of the appliance in such a way that a full opening of the dryer is re- stricted. Removing transport safety packaging Caution! Before use all parts of the transport packaging must be removed.

1. Open loading door

2. Pull off adhesive strips from inside machine on

from the machine. Electrical connection Details on mains voltage, type of current and the fuses required should be taken from the type plate. The type plate is fitted near the loading aperture (see “Product description” chapter). Warning! The manufacturer declines any responsibility for damage or injury through failure to comply with the above safety precautions. Should the appliance power supply cable need to be replaced, this must be carried out by our Serv- ice Center. Warning! The power supply cable must be accessible after installing the machine. Door reversal To make it easier to load or unload the laundry, the door can be reversed. Warning! The door must only be reversed by an authorised service engineer. electrolux 47Please contact your local Service Force Centre. The engineer will carry out the door reversal at your cost. Special accessories

stack kit Available from your Service Force Centre or your specialist dealer These intermediate installation kits can be used to arrange the dryer and an washing machine (60 cm wide, front loaded) as a space-saving washer/dryer stack. The washing machine is at the bottom and the dryer is at the top. Read carefully the instructions supplied with the kit.

• drain kit Available from your Service Force Centre or your specialist dealer Installation kit for direct draining of condensate into a basin, siphon, gully, etc. The condensate tank then no longer has to be drained, it must however remain in its intended position in the machine. Read carefully the instructions supplied with the kit.

• pedestal with the drawer Available from your Service Force Centre or your specialist dealer To situate the dryer in optimal high and have some additional space to store (e.g. laundry). Read carefully the instructions supplied with the kit. Product description

1 Control panel 2 Water reservoir 3 Drum light 4 Fine fluff filters 5 Fluff filters 6 Loading door (reversible) 7 Push button for base door opening 8 Course fluff filters 9 Rating plate 10 Fluff filter 11 Ventilation grille 12 Heat exchanger door 13 Adjustable feet Control panel Control panel

Warning lights: Condenser , Filters , Full tank 10 Départ Différé (Delay) button Display 48 electroluxSYMBOL DESCRIPTION Wool/Silk not selectable Wool or Silk programme se- lection mode Wool programme selection Silk programme selection Minimal dryness level Medium dryness level Maximal dryness level Auto dryness level SYMBOL DESCRIPTION Time to end (time of time pro- gramm, time of start delay) Cycle performans, auto dry- ness detection Long anti-crase guard Child lock Alarm Delay start Drying phase Cooling phase Anticrease guard phase Error, wrong selection Before first use Warning! If the appliance was not transported in an upright position, leave it to stand for 12 hours before connecting it to the electricity supply and using it for the first time, so that the oil can flow back to the compressor. Otherwise the compressor could be damaged. In order to remove any residues which may have been produced during production, wipe the dryer drum with a damp cloth or carry out a brief drying cycle (30 min.) with damp cloths in the machine.

2. Press the Minuterie (Time) button repeatedly

until appears in the display.

3. Press the Départ/Pause (Start/Pause) button.

At the beginning of the drying cycle (3-5 min.) you may experience a slightly higher sound level. This is caused by the start of the compressor and it is completely normal for compressor pow- ered appliances such as fridge, freezers etc. Programme chart Programme max. load (dry clothes) Application/properties Options Care label Cottons electrolux 49Programme max. load (dry clothes) Application/properties Options Care label Extra 7 kg Thorough drying of thick or multi- layered fabrics, e.g. terry towelling items, bathrobes. Séchage (Dryness), Anti-frois- sage (Long An- ti-crease), Alarme (Buzzer), Départ Différé (Delay) Strong 7 kg Thorough drying of thick fabrics, e.g. terry towelling items, towels. Séchage (Dryness), Anti-frois- sage (Long An- ti-crease), Alarme (Buzzer), Départ Différé (Delay) Cup- board 7 kg Thorough drying of fabrics of even thicknesses, e.g. terry towelling items, knitwear, towels. Séchage (Dryness), Anti-frois- sage (Long An- ti-crease), Alarme (Buzzer), Départ Différé (Delay) Damp 7 kg For thin fabrics which are also to be ironed, e.g. knit- wear, cotton shirts. Séchage (Dryness), Anti-frois- sage (Long An- ti-crease), Alarme (Buzzer), Départ Différé (Delay) 50 electroluxProgramme max. load (dry clothes) Application/properties Options Care label Iron 7 kg For thin fabrics which are also to be ironed, e.g. knit- wear, cotton shirts. Séchage (Dryness), Anti-frois- sage (Long An- ti-crease), Alarme (Buzzer), Départ Différé (Delay) Synthetics Extra 3 kg Thorough drying of thick or multi-layered fabrics, e.g. pullovers, bedding, table linen. Séchage (Dryness), Anti-frois- sage (Long An- ti-crease), Alarme (Buzzer), Départ Différé (Delay) Cup- board 3 kg For thin fabrics which are not ironed, e.g. easy care shirts, table linen, baby clothes, socks, lingerie with bones or wires. Séchage (Dryness), Anti-frois- sage (Long An- ti-crease), Alarme (Buzzer), Départ Différé (Delay) Iron 3 kg For thin fabrics which are also to be ironed, e.g. knit- wear, cotton shirts. Séchage (Dryness), Anti-frois- sage (Long An- ti-crease), Alarme (Buzzer), Départ Différé (Delay) Special electrolux 51Programme max. load (dry clothes) Application/properties Options Care label Time 7 kg For further drying of individual items of laundry. (Séchage (Dryness) (Séchage (Dryness)) function not available) Anti-frois- sage (Long An- ti-crease), Alarme (Buzzer), Minuterie (Time), Départ Différé (Delay) Mix 3 kg For drying cotton and synthetic fabrics, uses low temperature. Séchage (Dryness), Anti-frois- sage (Long An- ti-crease), Alarme (Buzzer),, Départ Différé (Delay) Easy 1 kg (or 5 shirt

Special program with anti-crease mechanism for easy care fabrics such shirts and blouses; for mini- mum ironing effort. The results depends on the type of fabric and its finish. Place fabrics in the dryer straight after spinning; once dried, immediately re- move fabrics and place on a clothes hanger. Séchage (Dryness), Anti-frois- sage (Long An- ti-crease), Alarme (Buzzer),, Départ Différé (Delay) Jeans 7 kg For leisure clothing, such as jeans, sweat-shirts, etc., of different material thicknesses (e.g. at the neck, cuffs and seams). Séchage (Dryness), Anti-frois- sage (Long An- ti-crease), Alarme (Buzzer),, Départ Différé (Delay) 52 electroluxProgramme max. load (dry clothes) Application/properties Options Care label Wool 1 kg For drying woollen fabrics after they have been washed, using warm air at minimum mechanical load (Follow section “Sorting and preparing washing”). Recommendation: Remove fabrics immediately after drying, as no anti-crease programme follows. Laine/ Soie (Wool/ Silk), Séchage (Dryness), Alarme (Buzzer), Départ Différé (Delay) Silk 1 kg For drying silk using warm air and gentle movement. Laine/ Soie (Wool/ Silk), Séchage (Dryness), Anti-frois- sage (Long An- ti-crease), Alarme (Buzzer), Départ Différé (Delay) Cooling 1 kg Special programme, lasting around 10 minutes, for refreshing or gently cleaning textiles with commer- cially available dry cleaning sets. (Only use those products which are declared as suitable for the drier by the manufacturer; please observe the manufac- turer’s instructions for use.) Alarme (Buzzer) Daily use Sorting laundry

• Sort by fabric type:

Cotton/linen for programmes in Cottons programme group. – Mixtures and synthetics for programmes in Synthetics programme group.

• Sort by care label: The care labels mean: Drying in the tumble dryer possible in principle Drying at normal temperature Drying at reduced temperature Drying in the tumble dryer not possible Important! Do not place in the appliance any wet laundry which is not specified on the care label as being suitable for tumble-drying. This appliance can be used for all wet laundry items which are labelled as suitable for tumble- drying.

• Do not dry new, coloured textiles together with light-coloured laundry items. Textile colours may bleed.

• Do not dry cotton jersey and knitwear with the Extra programme. Items may shrink!

• Wool and wool-like textiles can be dried using the Wool programme. Before the drying cycle spin the woollen textiles as well as possible (max. 1200 rpm). Only dry woollen textiles to- gether of similar or the same material, colour and electrolux 53weight. Please dry heavy laundry items made of wool separately. Preparing laundry

• To avoid laundry becoming tangled: close zips, button up duvet covers and tie loose ties or rib- bons (e.g. of aprons).

• Empty pockets. Remove metal items (paper clips, safety pins, etc).

• Turn items with double-layered fabrics inside out (e.g. with cotton-lined anoraks, the cotton layer should be outermost). These fabrics will then dry better. Important! Do not overload the appliance. Observe max. loading volume of 7 kg. Switching machine on Turn the programme selector to any programme. The machine switches on. When the loading door is open, the internal lamp illuminates the drum. Operating Drying options Laine/Soie (Wool/Silk) type of laundry (only with Laine/Soie (Wool/ Silk) programme): - Wool - Silk Séchage (Dryness) increases the dryness of the dried laundry ade- quately to the selected level: - maximum - medium - minimum - inactive with some programmes this option helps to achieve satisfying result of drying Anti-froissage (Long Anti-crease) prolongs anti-crease phase to 90 min., helps to keep laundry free from creases after drying; laundry can be removed at any time Alarme (Buzzer) audible confirmation of:

• anti-crease phase start and end

• error Minuterie (Time) allows to set individual time of drying from mini- mum 20 min. to maximum of 3 hours (in 10 min. steps - press the button repeatedly until the de- sired programme duration is shown in the dis- play, e.g. - for a programme of 1 hour and 20 minutes ); active with suitable pro- gramme Départ Différé (Delay) allows to delay the start of a drying programme from minimum of 30 min. to maximum of 20 hours

1. select the drying programme and additional

peatedly until the desired delay start is shown on the display, e.g. H if the programme has to start after time of 12 hours

3. to activate the delay timer, press the Départ/

Pause (Start/Pause) button - time to start elapses on the display Setting child lock The child lock can be set to prevent a programme being accidentally started or a programme in op- eration being accidentally changed. The child lock function locks all buttons and the programme se- lector. The child lock can be activated or deacti- vated by holding down the Alarme (Buzzer) and 54 electroluxMinuterie (Time) buttons simultaneously for 5 sec- onds. The symbol on the display means that the child lock is active. Any changes of drying parameters require child lock deactivation. The child lock cannot be deactivated in the last phase of the drying cycle. Starting the programme Press the Départ/Pause (Start/Pause) button. The programme starts. The programme progress is shown by elapsing dry time on the LCD. Changing programme To change a programme which has been selected by mistake once the programme has started, first turn the programme selector to off and then reset the programme. The programme can no longer be changed directly once the programme has started. If nevertheless there is an attempt to change the programme on the programme knob, the pro- gramme progress display and the maintenance in- dicators flash. If an option button (excluding the Alarme (Buzzer) button) is pressed, appears on the display. The drying programme is not how- ever affected by this (laundry protection). Drying cycle complete / removing laundry Once the drying cycle is complete, the display shows the anti-crease icon and flashing as well as warning lamps: filter and full tank . If the Alarme (Buzzer) button has been pressed, an acoustic signal sounds intermittently for about one minute. The drying cycles are automatically followed by an anti-crease phase which lasts around 30 minutes. The drum rotates at intervals during this phase. This keeps the laundry loose and free of creases. The laundry can be removed at any time during the anti-crease phase. (The laundry should be taken out towards the end of the anti- crease phase at the latest to prevent creases from forming.)

2. Before removing the laundry, remove fluff from

the micro-fine filter. It is best to use a damp hand for this purpose. (See “Maintenance and cleaning” chapter.)

Turn the programme selector to off . Important! After each drying cycle: - Clean the micro-fine filter and fine filter - Drain the condensed water container (See chapter “Maintenance and cleaning ”.)

Cleaning and maintenance Cleaning fluff filters The filters collect all the fluff which accumulates during drying. To ensure that the dryer works per- fectly, the fluff filters (fine filters and fluff filters) must be cleaned after each drying cycle. Caution! Never operate the dryer without fluff filters or with damaged or blocked fluff filters.

electrolux 55Clean the door seal Wipe the door seal with a damp cloth immediately after the drying cycle has finished. Emptying the water reservoir Empty the water reservoir after every drying cycle. Warning! The condensed water is not suitable for drinking or for preparing foodstuffs. If the programme has been interrupted as a result of the water reservoir being full: Press the Start/Pause button to continue the drying cy- cle. Cleaning heat exchanger filter Important!

• Never operate the dryer without the fluff filters.

• Clogged filters cause higher energy consump- tion (drying cycle elongation) and dryer damage.

• A dirty heat pump can only be cleaned up by means of a costly process.

• As necessary, approx. once every 6 months, re- move the fluff from the heat exchanger using the sponge supplied. When doing this, please use rubber gloves (picture 7). Cleaning the drum Caution! Do not use abrasives or steel wool to clean the drum. Lime in the water or cleaning agents may form a barely visible lining on the inside of the drum. The degree to which the laundry has been dried is then no longer detected reliably. The laun- dry is damper than expected when removed from the appliance. Use a standard domestic cleaner (e.g. vinegar- based cleaner) to wipe down the inside of the drum and drum ribs. Clean control panel and housing Caution! Do not use furniture cleaners or aggressive cleaning agents to clean the machine. 56 electroluxUse a damp cloth to wipe down the control panel and housing. What to do if ... Troubleshooting by yourself Problem

Possible cause Remedy Dryer does not work. Dryer not connected to mains supply. Plug in at mains socket. Check fuse in fuse box (domestic installation). Loading door opened. Close loading door The START PAUSE button not pressed. Press the START PAUSE button. Unsatisfactory drying results. Incorrect programme set. Set suitable programme.

Fluff filters clogged. Clean fluff filters.

Heat exchanger clogged. Clean heat exchanger.

Max. loading exceeded. Respect max. loading volume. Covered ventilation grill. Uncover ventilation grill in base area. Residue inside the drum. Clean the drum inside. High water hardness. Set suitable water hardness

Loading door does not close Filters not locked in place. Install fine filter and/or snap course filter into place. Err ( Error ) on the LCD.

Attempt to change parameters after start of the programme. Turn the dryer off and on. Set requested parameters. No drum light Programme selector in OFF position. Turn it to DRUM LIGHT (if available) or to any programme. Defective light bulb. Replace light bulb (see next section). Abnormally elapsing time on the LCD

Time to end is calculated on the basis of: type, volume and dampness of laundry. Automatic process; this is not a machine fault. Programme inactive Full water reservoir. Empty water reservoir

Fluff filters clogged. Clean fluff filters. To high loading volume. Respect max. loading volume. Laundry insufficiently spun. Spun adequately the laundry. Particularly high room temperature - no machine fault. Lower the room temperature if possible.

1) In case of error message on the LCD (e.g. E51 - only dryers with the LCD): Switch the dryer off and

3) see Care and cleaning chapter

4) see Machine settings chapter

5) only dryers with the LCD

6) Note: After around 5 hours the drying cycle ends automatically (see Drying cycle complete section).

electrolux 57Changing the bulb for interior lighting Only use a special bulb which is designed specially for dryers. The special bulb can be obtained from your local service centre. Important! When the appliance is switched on, the interior lighting switches itself off after 4 minutes when the door is open. Warning! Do not use standard bulbs! These develop too much heat and may damage the machine! Before replacing the bulb, disconnect the mains plug; with a permanent connection: fully unscrew or deactivate the fuse.

1. Unscrew cover above the bulb (this can be

found directly behind the loading aperture, at the top; refer to “Description of machine” sec- tion.)

2. Replace defective bulb.

3. Screw cover back down.

Check the correct positioning of o-ring gasket be- fore screwing back the door light cover. Do not operate the dryer when missing o-ring gasket on door light cover. Warning! For safety reasons, the cover must be screwed down tightly. If this is not done, the dryer must not be operated. Technical specifications Height x width x depth 85 x 60 x 58 cm Drum volume 108 l Depth with loading door open 109 cm Height can be adjusted by 1.5 cm Weight when empty approx. 56 kg Loading volume (depends on programme)

max. 7 kg Voltage 230 V Required fuse 6 A Total power 1050 W Energy efficiency class A Energy consumption (7 kg of cotton, pre-drained at 1000 rpm)

Average annual energy consumption 126.2 kWh Use Domestic Permissible ambient temperature + 5°C to + 35°C Consumption values The consumption values have been established under standard conditions. They may deviate when the machine is operated in domestic circumstances. Programme Energy consumption in kWh / average drying time in min.

1.9/ 135 (7 kg load pre-drained at 1000 rpm)

1.7 (7 kg load pre-drained at 1200 rpm)

1.65 (7 kg load pre-drained at 1400 rpm)

1.42 (7 kg load pre-drained at 1800 rpm)

1.4/ 106 (7 kg load pre-drained at 1000 rpm)

0.59/ 48 (3 kg load pre-drained at 1200 rpm)

1) different loading volume data may be needed in some countries as a result of different measuring

2) in accordance to EN 61121

3) hints for test institutes: cycle has to be checked in accordance to EN 61121

58 electroluxMachine settings Setting Implementation Buzzer permanent on/off The alarm is by default always off. To set permanent alarm on (off):

1. Turn the programme selector to any programme.

2. Press simultaneously the Séchage (Dryness) and Anti-froissage (Long

Anti-crease) buttons and hold down for approx. 5 seconds. Water hardness

Pause (Start/Pause) buttons and hold down for approx. 5 seconds.

4. To memorize setting press simultaneously the Anti-froissage (Long Anti-

crease) and Départ/Pause (Start/Pause) buttons or turn knob to off position

1) Water contains, a variable quantity of limestone and mineral salts of which quantities vary according
