USER MANUAL Brunch CG346 ROWENTA

Rowenta coffee maker with clear glass and black body, no visible text or symbols on device body

FR EN DE NL ES PT IT EL TR DA NO SV FI AR FA KO

Labeled diagram of a coffee maker with parts numbered A through J, illustrating the internal structure and components.

Line drawing of a coffee maker pouring liquid from a kettle into a stand (no text or symbols)

fig.1

1x4

fig.2

Diagram showing a hand pouring liquid into a container with two arrows labeled 1 and 2 indicating flow direction.

fig.7

Illustration of a hand pouring liquid into a container with arrows indicating direction (no text or symbols)

fig.8a

Illustration of a hand pouring liquid into a bucket with an arrow indicating direction (no text or symbols)

fig.4

Illustration of a hand holding a cup with an upward arrow, no text or symbols present

fig.8bfig.9

Illustration of a hand using a tool to lift a cup on a base, with no text or symbols present.

[Non-Text]

Illustration of a hand using a tool to press or adjust a component, with no visible text or symbols.

fig.5

水 中 人 水

fig.6

Illustration of a hand using a tool to clean or wash a surface, with no text or symbols present.

fig.10

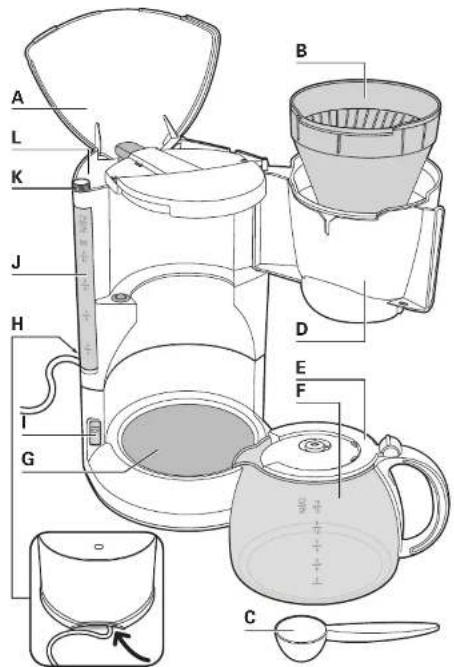

DESCRIPTION DE L'APPAREIL

A Water tank lid
B Removable filter holder with an anti-drip system
C Measuring spoon
D Swivel filter-holder
E Jug lid
F Jug with measuring marks: number of cups/quantity of water

G Warming plate
H Cord storage (at the back)
I On/off illuminated switch
J Water level indicator
K Adjustment knob for coffee measuring guide (depending on model)
L Water tank

SAFETY INSTRUCTIONS

• Check that the supply voltage corresponds to that shown on the appliance's rating plate.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should not be allowed to play with the appliance.
• A household appliance must not be used if the power supply cord of the appliance shows visible signs of damage, if the appliance has fallen or if it leaks. In this case, send the coffee-maker to an authorised Rowenta Service Centre (see list of addresses enclosed).
• Do not let the supply cord rest on or hang down over corners, sharp edges or hot objects. Use the cord storage.
• Disconnect the appliance if problems occur during filtering, before each cleaning or servicing and after use.
• Do not pour hot water or other

liquids into the water tank.

• Never open the filter-holder while the coffee is flowing.
• Do not place or use the appliance on or near hot surfaces.
• Reheat your coffee in the jug only in a microwave oven.
• Do not immerse the appliance in water.
• Entrust the repair of household appliances only to specialists. It is dangerous to try to repair an appliance yourself and will invalidate the guarantee.
• A defective power supply cord should be replaced only by an authorised Rowenta Service Centre.
• Rowenta accepts no liability for damage caused by improper use or operation of the appliance.
• When the appliance has reached the end of its useful life it must be disposed of in an appropriate manner.
• For your safety, this appliance complies with applicable standards and regulations:
• Low Voltage Directive
• Electromagnetic Compatibility
• Environment
• Materials in contact with food

- Your appliance has been designed for domestic indoor use only. It is not designed to be used in the following cases, which are not covered by the guarantee:

• In staff kitchenettes, shops, offices and other professional environments
• In farms
• By customers in hotels, motels and other residential environments
• In environments such as bed and breakfast.

• After starting your coffee-maker, never put your hand on the warming plate when you remove the jug from the coffee-maker.

During operation, this plate is very hot and can cause burns.

- This product has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.

USING FOR THE FIRST TIME

- Run the coffee-maker twice by adding as much water as possible, without ground coffee. Wait about 5 minutes between each operation.

- Spare Rowenta jugs are available from a service centre for all models.

MAKING COFFEE

Follow the illustrations 1 to 6.

- Model with coffee measuring guide: you can get just the right amount of ground coffee to suit your taste (weak or strong coffee). Turn the adjustment knob: the quantity of coffee corresponds to the water level.

Pour the number of measuring spoonfuls of coffee into the filter.

• Model without coffee measuring guide:
  see drawing (illustration 3).
• As soon as the coffee is made, press the switch: the light will go off.

CLEANING AND MAINTENANCE

Caution!

Do not put hard objects, like metallic or ceramic tea infusers, in the jug as they could damage the inside.

- Disconnect the coffee-maker and leave it to cool.

Follow the illustrations 8 to 11.

• Clean the coffee-maker with a soft, moist cloth.
• Clean the inside of the jug only with a soft brush and rinse with fresh water.
• You can remove the inner filter-holder (illustration 8a, 8b depending on model).

This filter-holder is dishwasher safe.

- Do not immerse the coffee-maker in water.

DESCALING

- Descaling frequency depends on the hardness of your water and how often you use your coffee-maker.

If you notice the brew cycle has slowed it is generally time to descale the machine.

Depending on the water hardness, you must descale after every 40 to 120 cycles, i.e. once a month to once every 3 months.

• If you use descaling powder or liquid, follow the instructions provided by the manufacturer on the packet.
• If you use white vinegar (available from hardware stores):

- Mix 2 cupfuls of vinegar with 2 cupfuls of water.

• Pour the cold descaling solution into the tank; do not forget to place the jug and start the coffee-maker.
• Stop the appliance once half the solution has run through and leave for about an hour. Start the coffee-maker again and let the rest of the solution run through.
• After descaling, the appliance must be operated at east 2 or 3 times with fresh water to rinse.

The guarantee does not cover coffee-makers with excessive scale build-up.

TROUBLESHOOTING GUIDE

Problem	Possible cause	Solution
- The on/off light fails to come on.	- Appliance is not correctly plugged in.	- Plug in properly.
- The coffee takes a long time to brew.- Increased noise when brewing	- Coffee-maker lined with scale.	- Descale the coffee-maker.

Subject to modification

END-OF-LIFE ELECTRICAL OR ELECTRONIC PRODUCTS

Think of the environment!

Your appliance contains valuable materials which can be recovered or recycled.

Leave it a local civic waste collection point.
