USER MANUAL ZK 150 KICKER

• Zune device Dock—Compatible with all Zune devices.
• Powerful 20-Watt Integrated Amplifier—Digital Signal Processing delivers rich, full-range audio performance
  Enhanced Bass Response—tuned-port speaker enclosure
• Easy Set-up—simple front control panel with push-n-turn navigation knob
• Dual Alarm—wake to Zune device, Radio, or Alarm
• Ten Display Brightness Levels
  1/8" (3.5mm) Headphone Jack
• 24-Hour Time and Alarm Back-up—settings are saved when power is removed
• Auxiliary Input—listen to other portable media players or computers
  12 Radio Presets
• 5-120 Minute Sleep Timer—fall asleep to Zune device, Radio, or Aux-in
  12 or 24 Hour Time Display

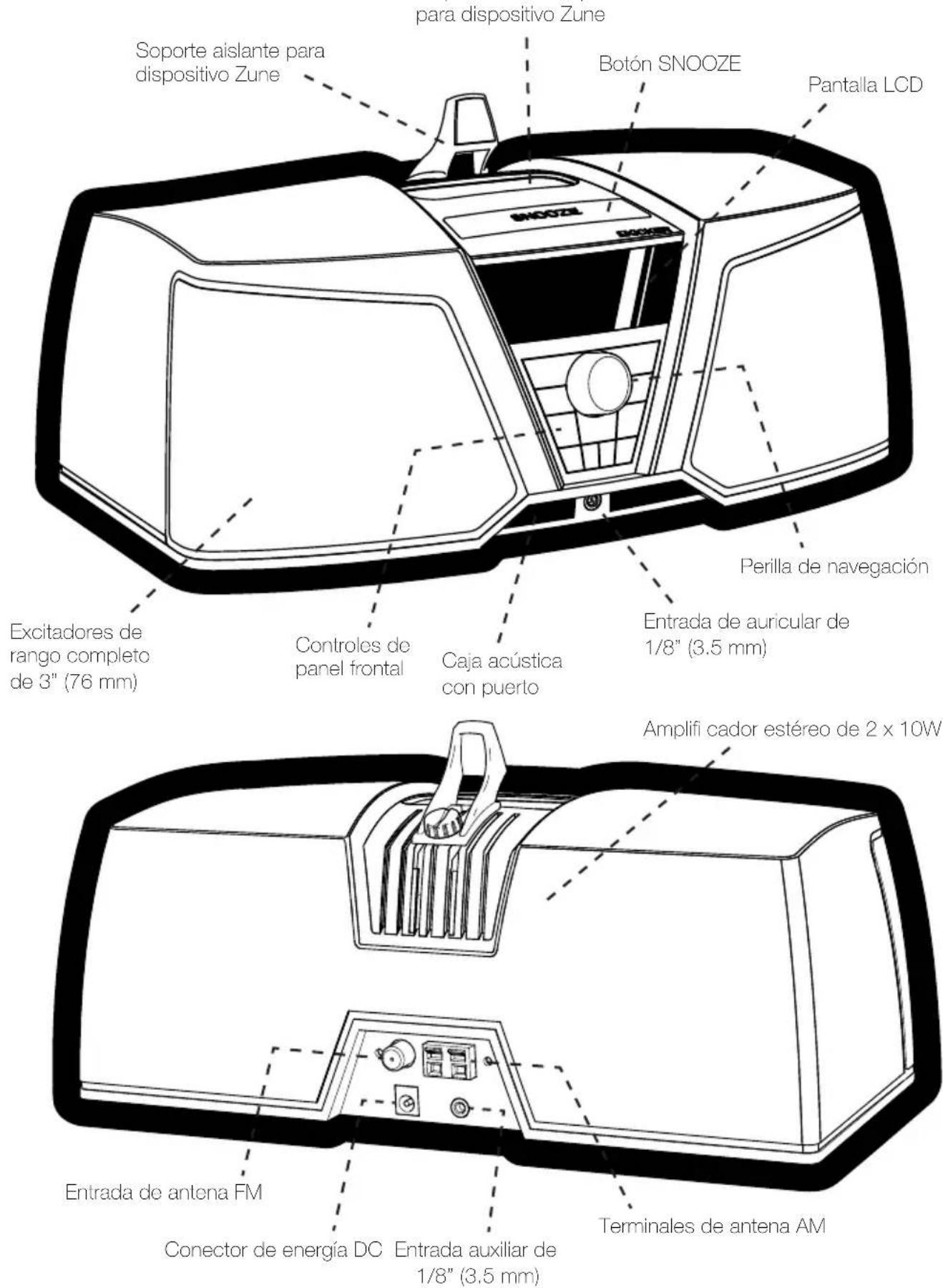

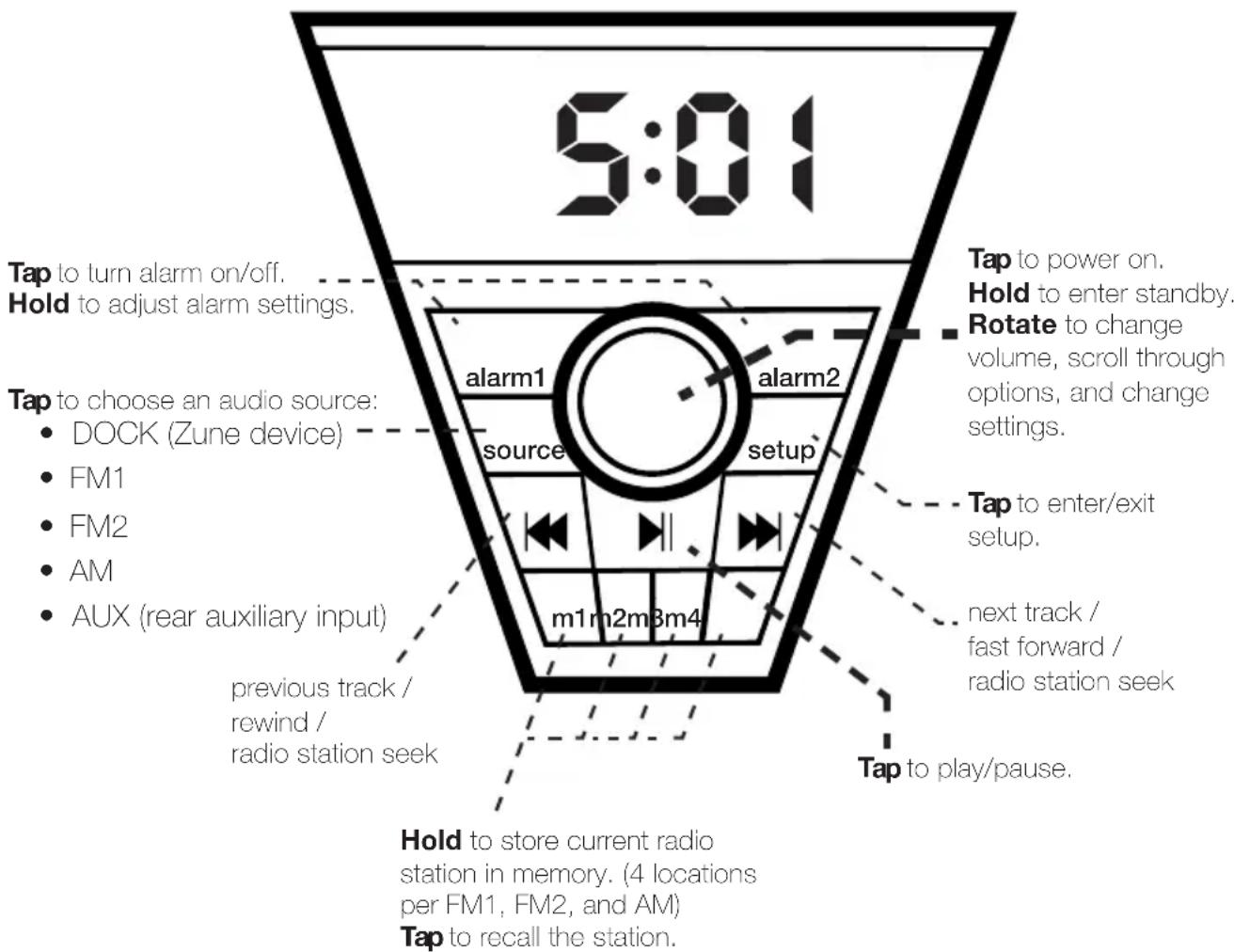

FRONT PANEL CONTROLS

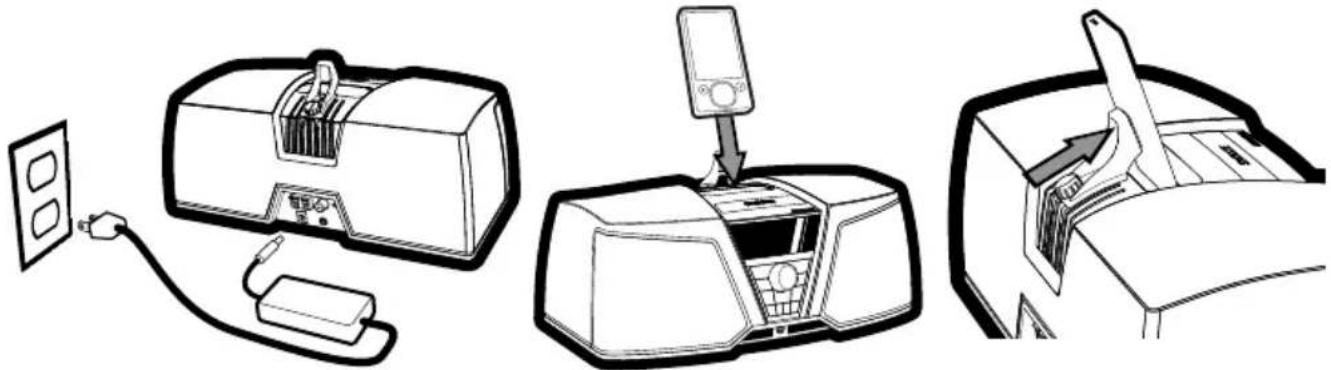

QUICKSTART | Playing your Zune device

1. plug in power adapter & attach Zune device isolation bracket
2. insert Zune Device
3. adjust Zune device isolation bracket

4. tum on ZK150

6. press play enjoy.5. select tunes

QUICKSTART | Setting the time

1. press setup 2. scroll to TIME 3. press navigation knob

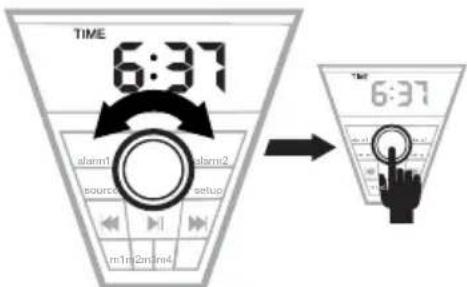

4. adjust time, then press navigation knob to save

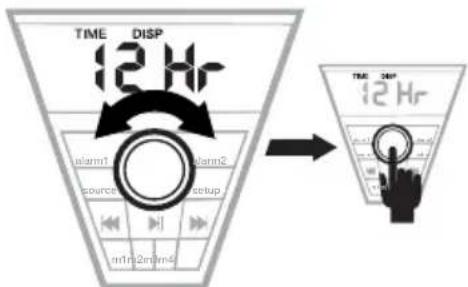

5. choose time format, then press navigation knob to save

1. hold alarm1 or alarm2 button

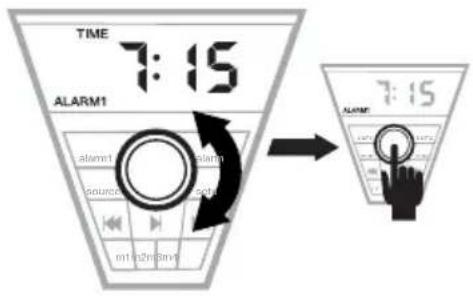

2. adjust alarm time, then press navigation knob to save

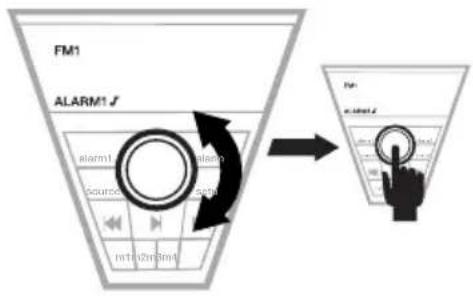

3. select an alarm source, then press navigation knob to save

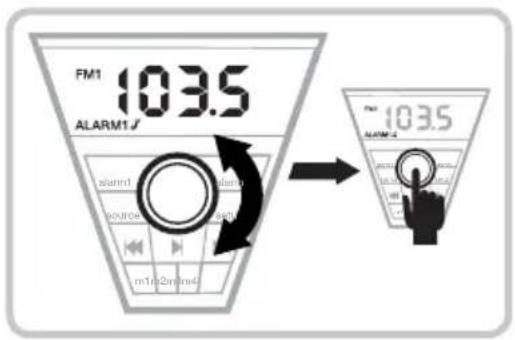

OPTIONAL: if you selected a radio alarm source, choose a radio station, then press the navigation knob to save

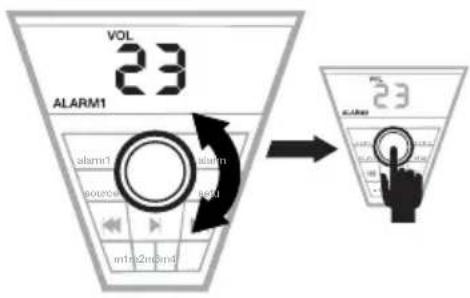

4. adjust alarm volume, then press navigation knob to save

SELECTING AN AUDIO SOURCE

Repeatedly tap source button to scroll through listening modes:

• Zune Dock
  EM1
  FM2
  AM
• Auxiliary Input (on rear of unit)

USING YOUR ZUNE DEVICE WITH THE ZK150

• Insert your Zune device into the ZK150 dock before turning on the ZK150.
• Installing the included isolation bracket will provide a more secure fit for your Zune device and reduce vibration.
• Tap the SNOOZE button to mute/unmute.

USING THE ALARMS

• Tap the alarm1 or alarm2 button to turn each alarm on and off.
• Use the quickstart on page 5 for instructions on how to set an alarm.
• You can set the alarm source to DOCK, FM1, FM2, AM, or buzzer.
• When an alarm goes off, hit the SNOOZE button to silence the alarm for 9 minutes.
• Before setting the alarm, play music on your Zune device and press pause.
• Turn off your Zune device's wireless sync function if the alarm source is set to DOCK.

USING THE RADIO

To improve FM/AM radio reception, connect the included FM antenna to the coaxial jack on the rear of the ZK150 and/or the included AM Loop antenna to the AM terminals on the rear of the ZK150. You may need to experiment with antenna angle/position for optimal reception.

• Source to FM1, FM2, or AM (see page 5 for instructions).
• Tap the navigation knob to display radio station; rotate the knob to adjust radio frequency.
• Use the and buttons to seek to the next strongest station.
• Store the current station in memory by holding any of the m1-m4 buttons.
• Recall a stored station by tapping the m1-m4 memory button to which it is assigned.
• Tap the SNOOZE button to mute/unmute.

Setting the Radio Region

1. Press setup then source within one second.
2. Rotate the navigation knob to select between Region 1 and 2.
3. Press the navigation knob to save.

Region 1: All countries except North America and the Caribbean

Region 2: North America (USA & Canada) and the Caribbean

CHANGING SETTINGS

Tap the setup button to enter setup mode. You can tap the setup button again to exit setup mode, discarding any unsaved changes.

• Rotate the navigation knob to scroll through settings while in setup mode.
• Select a setting to edit by pressing the navigation knob.
• Edit the setting by rotating the navigation knob.
• Save the setting by pressing the navigation knob.
• Settings appear in the following order:

DISPLAY

Adjusts the display brightness.

SLEEP

Choose length of play time for the sleep timer from 5-120 minutes. The sleep timer is activated once you save a value other than zero. Once activated, the sleep timer plays audio for the period of time you selected then puts the ZK150 into standby.

TREBLE

Boost or cut treble.

BASS

Boost or cut bass.

TIME

Adjust the time with the navigation knob. Press the knob to save and advance to TIME FORMAT.

TIME

FORMAT

Choose between 12-hour and 24-hour time formats.

TROUBLESHOOTING

No sound:

1. make sure the ZK150 is connected to a power outlet that is known to work.
2. make sure the ZK150 is turned on and not in standby (tap the navigation knob).
3. make sure the ZK150 is set to the proper audio source (see page 5).
4. try turning the navigation knob clockwise to increase volume.
5. if using the auxiliary input, make sure the connected device is playing and turned up.
6. try re-docking your Zune device.
7. the ZK150 may be muted; try tapping the SNOOZE button.
8. try unplugging/re-plugging the power.

No radio reception:

1. make sure the proper radio region is selected (see page 6).
2. connect an antenna and try different angles, positions, and placements within your home/building.

No display/Dim display:

1. make sure the ZK150 is connected to a power outlet.
2. make sure the ZK150 is turned on and not in standby (tap the navigation knob).
3. increase the display brightness (see previous section).
4. try unplugging/re-plugging the power.

The DOCK icon flashes continuously: This means your Zune device has failed to authenticate.

Remove your Zune device, wait 5 seconds, then re-dock your Zune device.

IMPORTANT SAFETY INSTRUCTIONS

Read and follow all the instructions listed in this manual. Follow all safety and procedural recommendations to prevent damage to your self, your KICKER product, or your portable media device.

The ZK150 should not be used near water or in an environment where exposure to liquids is possible. This includes but is not exclusive to areas where splashing, dripping, leaks, spills, and exposure to rain can occur.

Liquid containers should not be placed on or near the ZK150.

The ZK150 should not be cleaned with liquid cleaners. Use only a dry cloth to clean the ZK150.

Only use the ZK150 in areas with adequate open ventilation allowing at least 4" of space on all sides of the ZK150. Do not set the ZK150 on any surface or cover the ZK150 with any object that could impede the airflow to and from the ZK150.

The ZK150 should not be placed near any source of heat. This includes but is not limited to stoves, radiators, heating elements, electronic heat sources, and areas where excessive solar heat can be generated. Do not install the ZK150 near any fl ame or place any fl ammable objects near the device.

The power outlet used to provide power to the ZK150 should be accessible at all times. The polarized 2-prong electrical plug has a wide blade and narrow blade that should fit into the corresponding wide and narrow receiving connections of your electrical outlet. Do not force the plug into the outlet. If the plug provided with the unit does not fit, consult with an electrician to upgrade the electrical outlet accordingly.

The power cord should be situated in a way that protects it from being pinched, walked on, tripped over, or accidentally pulled from the electrical outlet or the electrical input on the ZK150. Do not run the cable through doorways or underneath objects that could damage the wire or tear the insulating material surrounding the wire.

Only use the manufacturer supplied power supply with the ZK150.

We recommend using a surge protector/power conditioner and unplugging the ZK150 during any electrical storms or situations that could cause voltage fluctuations in the electrical system.

HOME LIMITED WARRANTY

KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of ONE (1) YEAR from date of original purchase with the original receipt from an Authorized KICKER Dealer. Should service be necessary under this warranty for any reason due to manufacturing defect or malfunction during the warranty period, KICKER will repair or replace (at its discretion) the defective merchandise with equivalent merchandise at no charge. Warranty replacements may have cosmetic scratches and blemishes. Discontinued products may be replaced with more current equivalent products.

This warranty is valid only for the original purchaser and is not extended to owners of the product subsequent to the original purchaser. Any applicable implied warranties are limited in duration to a period of the express warranty as provided herein beginning with the date of the original purchase at retail, and no warranties, whether express or implied, shall apply to this product thereafter. Some states do not allow limitations on implied warranties; therefore these exclusions may not apply to you. This warranty gives you specific legal rights; however you may have other rights that vary from state to state.

WHAT TO DO IF YOU NEED WARRANTY OR SERVICE:

Defective merchandise should be returned to your local Authorized KICKER Dealer for warranty service. Assistance in locating an Authorized Dealer can be found at www.kicker.com or by contacting KICKER directly.

If it becomes necessary for you to return defective merchandise directly to Stillwater Designs (KICKER), call the KICKER Customer Service Department at [phone] for a Return Merchandise Authorization (RMA) number. Package all defective items in the original container or in a package that will prevent shipping damage, and return to:

Stillwater Designs, 3100 North Husband, Stillwater, OK 74075

The RMA number must be clearly marked on the outside of the package. Include a copy of the original receipt with the purchase date clearly visible, and a "proof-of-purchase" statement listing your name and return shipping address, the Dealer's name and invoice number, and product purchased. Warranty expiration on items without proof-of-purchase will be determined from the type of sale and manufacturing date code. Freight must be prepaid; items sent freight-collect, or COD, will be refused.

WHAT IS NOT COVERED?

This warranty is valid only if the product is used for the purpose for which it was designed. It does not cover:

o Damage due to improper use.
o Damage due to improper installation of components or audio/video devices.
o Subsequent damage to other components or audio/video devices.
o Damage caused by exposure to moisture, excessive heat, chemical cleaners, and/or UV radiation.
o Damage through negligence, misuse, food, fire, earthquake, accident, or abuse. Repeated returns for the same damage may be considered abuse.
o Items previously repaired or modifi ed by any unauthorized repair facility or person.
o Return shipping on non-defective items.
o Products with tampered or missing barcode labels.
o Products returned without a Return Merchandise Authorization (RMA) number.
o Freight Damage.
o The cost of shipping product to KICKER.
o Service performed by anyone other than KICKER.

HOW LONG WILL IT TAKE?

KICKER strives to maintain a goal of 48-hour service for all electronics (speakers, crossovers, speaker docks, etc.) returns. Delays may be incurred if lack of replacement inventory or parts is encountered. Failure to follow these steps may void your warranty. Any questions can be directed to the KICKER Customer Service Department at [phone]. Contact your International KICKER dealer or distributor concerning specific procedures for your country's warranty policies.

Note: All specifications and performance figures are subject to change. Please visit www.kicker.com for the most current information. Please allow two weeks of break-in time for the speakers to reach optimum performance.
