USER MANUAL WT1282 VESTEL

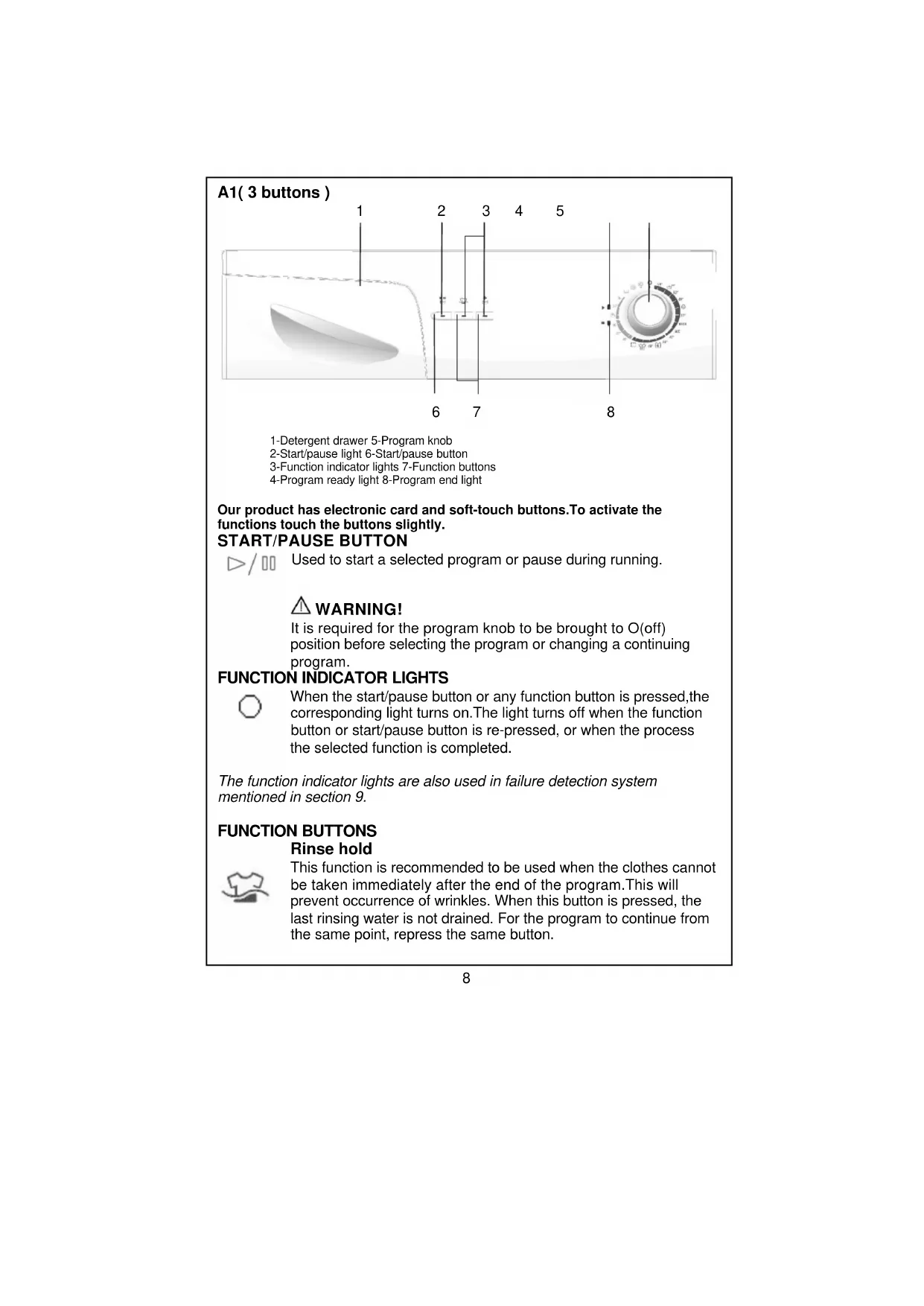

Used to start a selected program or pause during running. WARNING! It is required for the program knob to be brought to O(off) position before selecting the program or changing a continuing program.

FUNCTION INDICATOR LIGHTS

When the start/pause button or any function button is pressed,the corresponding light turns on.The light turns off when the function button or start/pause button is re-pressed, or when the process the selected function is completed. The function indicator lights are also used in failure detection system mentioned in section 9. FUNCTION BUTTONS Rinse hold This function is recommended to be used when the clothes cannot be taken immediately after the end of the program.This will prevent occurrence of wrinkles. When this button is pressed, the last rinsing water is not drained. For the program to continue from the same point, repress the same button. 8If you do not want your sensitive clothes to be spinned or you want them to be spinned sensitively, turn the program knob to O (off) position. Bring the program knob on one of the draining or spinning programs you desire and press the start/pause button. If the program you have selected is a drain program, your machine will draining the water inside.If you have selected a spinning program, your machine will perform a spinning operation and then end the program. Extra rinse You can have one more rinsing done in addition to the rinses which your machine has made in all washing programs by using this function. No spin This program is recommended to be used for your sensitive clothes on which no spinning should be done. By pressing this function button, you can cancel the spinning process which is included in the program. Soak Using this function will ensure better cleaning by leaving your clothes in water with detergent for a certain period of time before your machine takes in the initial water and starts washing. This function is recommended to be used for very dirty clothes. Easy ironing By using this function, you can ensure your clothes to come out less wrinkled after the washing. Plus water By using this function, you can enable your machine to take in some more water than the amount in the normal washing operation. This will decrease the friction that occurs between your clothes.This function is recommended to be used for your sensitive clothes or for the ones you desire to be rinsed really well. Spin speed reduce By using this function, you can reduce your spinning cycle speed from 1200 cycles to 800 cycles, from 1000 cycles to 600 cycles, or from 800 cycles to 500 cycles depending on the model you’ve chosen. 9WARNING! Functions vary depending on the model you have chosen.If you forgot to use additional function and your machine starts to wash push the additional function button if the indicator light is on. Additional function will be activated.If the indicator light is not on,additional function will not be activated. SPIN SPEED SELECTOR (Valid for A3 models) By the spin speed selector knob, you can make the adjustment of speed for the process of spinning your clothes.The speed adjustment interval is between O (No spin) and the maximum spinning speed of your machine. NOTE: Do the spinning process of your sensitive and delicate clothes in the most appropriate mode. PROGRAM KNOB With the program knob, you can select the program with which you desire to wash your clothes. You can adjust the program selection process by turning the program knob in both directions. You must be careful that the adjustment sign of the program knob is exactly on the program you want to select. When you bring the program knob to O(off) position, while your machine is running, your program will remain incomplete.

10SECTION 7:PRACTICAL INFORMATION

Alcoholic beverages: The stain point, should first be washed with cold water, than should be wiped with glycerine and water and be rinsed with water mixed with vinegar. Shoe Polish: The stain should be slightly scratched without ruining the cloth, rubbed with detergent and rinsed. In case it is not eliminated, it should be rubbed with 1 unit of pure alcohol (96 degrees) mixed in 2 units of water and then washed with lukewarm water. Tea and coffee: Stretch the stained area of your cloth on the top of a container and pour water as hot as the type of your cloth can endure on it. If the type of your cloth is suitable,wash it with lye. Chocolate and cocoa: By leaving your clothes in cold water and rubbing with soap or detergent, wash it in the highest temperature that the type of your cloth can endure. If there is still a stain of oil left, wipe with oxygenated water (in proportion of 3%). Tomato paste:After scraping the dried pieces without ruining the cloth, leave in cold water for about 30 minutes and wash by rubbing with detergent. Meat broth-egg: Eliminate the dried stain residues and wipe with a sponge or soft cloth wetted in cold water. Rub with detergent and wash with diluted lye. Grease and oil stains: First wipe the residues. Rub the stain with detergent and then wash with lukewarm soapy water. Mustard: First apply glycerine to the stained area. Rub with detergent and then wash. If the stain still does not disappear, wipe with alcohol (On synthetic and coloured cloth, a mixture of 1 unit alcohol, 2 units water should be used) Blood stain: Lay your clothes in cold water for 30 minutes. If the stain still does not disappear, lay in mixture of water and ammonia (3 table-spoons of ammonia in 4 liters of water)for 30 minutes. Cream, ice-cream and milk: Lay your clothes in cold water and rub the stained area with detergent. If the stain has still not disappeared, apply lye on the fabric of your clothes in proper proportion.(Do not use lye on coloured clothes.)

20FAILURE PROBABLE CAUSE

METHODS OF ELIMINATION It is unplugged. Insert the plug into the socket. Your fuse is defected. Change your fuse. The electric power is off. Check the electric power. Start/pause button has not been pressed. Press the start/pause button. The program knob is in O(off) status. Bring the program knob on the desired status. Your machine does not operate. The door is not shut properly. Shut the door properly. You should hear the click. Water tap is closed. Open water tap. The water inlet hose may be bent. Check the water inlet hose. The water inlet hose is obstructed. Clean the filters of water inlet hose. (*) The valve inlet filter is obstructed. Clean the valve inlet filters. (*) Your machine does not receive water. The door is not shut properly. Shut the door properly. You should hear the click. The drain hose is obstructed or bent. Check the drain hose. The pump filter is obstructed. Clean the pump filter.

Your machine is not draining water. The clothes are not placed inside the machine in a well- balanced manner. Spread the clothes inside the machine in an orderly and well- balanced manner. The feet of your machine are not adjusted. Adjust the feet. (**) Your machine is vibrating. Transportation screws are not removed. Remove transportation screws. (**) (*)See the section concerning the maintenance and cleaning of your machine. (**)See the section concerning installations your machine.

22FAILURE PROBABLE CAUSE

METHODS OF ELIMINATION There is a small amount of clothes in the device. It does not prevent operation of the machine. Excessive amount of clothes are filled in the machine or the clothes are not placed in a well-balanced manner. Do not exceed the recommended quantity of clothes and spread your clothes in the machine in a well- balanced manner. Your machine is vibrating. Your machine touches a ripid object. Prevent your machine’s leaning on a tough place . Too much detergent has been used. Press the start/pause button.In order to stop the foam,dilute one table-spoon of softener in half liter of water and pour it in the detergent drawer.Press the start/pause button after 5-10 minutes.Arrange the amount of the detergent properly in the next washing process. Excessive foam in the detergent drawer. Wrong detergent has been used. Use only the detergents produced for full automatic machines. Your laundry too dirty for the program you have selected. Select a suitable program. (see Table-1) The washing result is bad. The amount of detergent used is not sufficient. Use more detergent according to the detergent.

23FAILURE PROBABLE CAUSE

METHODS OF ELIMINATION Clothes exceeding the maximum capacity has been filled in your machine. Put the clothes in your machine in a manner not to exceed its maximum capacity. Your water may be hard. Use the amount of detergent according to the declaration of the detergent producer. The washing result is not good. Distribution of the clothes in your machine is not well- balanced. Spread the clothes inside the machine in an orderly and well- balanced manner . The water is drained from the machine as soon as it is filled. The end of the water drain hose is in a position too low according to the machine. Place the water drain hose in an appropriate height.(**) No water is seen in the drum during washing. No failure. The water is at the lower part of the drum.

There are residues of detergent on the clothes. The pieces of some detergents which do not dissolve in water may stick to your clothes as white stains. By calibrating your machine for “Rinsing” program,make an additional rinsing or eliminate the stains After drying with the help of a brush. There are gray stains on the clothes. These stains may be caused by oil,cream or ointment . In the next washing operation, use the maximum detergent amount declared by the detergent producer. (**) See the section concerning instalations your machine.

24FAILURE PROBABLE CAUSE

METHODS OF ELIMINATION The spining process is not done or starts with delay . No failure. The unbalanced load control may works in that way. The unbalanced load control system will try to distribute your clothes in a homogenous manner. After your clothes are distributed, passage to spining process will be realized.In the next washing process,place your clothes into the machine in a well- balanced manner.

SECTION 9: AUTOMATIC FAILURE DETECTION SYSTEM

Your machine is equipped with systems which will both take the necessary precautions and warn you in case of any failure by controlling it self constantly during the washing processes. FAILURE CODE FAILURE INDICATOR PROBABLE FAILURE THE PROCESS

Err 01 The start/pause light blinks. The door is not shut properly. Shut the door properly so that you hear the click. If the problem persists, turn off the machine unplug and apply to the nearest authorized service immediately. 25FAILURE CODE FAILURE INDICATOR PROBABLE FAILURE THE PROCESS

Err 02 The program ready light blinks. The water level in your machine is below heater. The pressure of your water supply may be low or locking. Turn on the tap to the end.Water may be cut, check it.If the problem is still continuing,your machine will automatically stop after a while.Unplug your machine, turn off the tap and apply to the nearest authorized service. Err 03 The start/pause light and program ready light blinks . The pump has failed or the pump filter is obstructed. Clean the pump filter.If the problem persists,apply to the nearest authorized service.(*) (*) See the section regarding the maintenance and cleaning of your machine. 26FAILURE CODE FAILURE INDICATOR PROBABLE FAILURE THE PROCESS

Err 05 The start/pause light and program end light blink. The heater of your machine or the heat sensor has failed. Shut down your machine and unplug. Turn off your tap and apply to the nearest authorized service. Err 06 The program ready light and program end light blink. The motor has failed. Shut down your machine and unplug. Turn off the tap and apply to the nearest authorized service. Err 07 The program start/pause light, ready light and program end light stays on permanently. Configuration error. Shut down your machine and unplug. Turn off the tap and apply to the nearest authorized service. Err 08 The start/pause light,program ready light and program end light blink. The motor has failed. Shut down your machine and unplug. Turn off the tap and apply to the nearest authorized service. Err 09 The program ready light and program end light stays on permanently. The network voltage is too high or too low. If the network voltage is lower than 150V or higher than 260V, your machine will automatically stop. When the network voltage is recovered, your machine will continue its operation.

27SECTION 10: INTERNATIONAL W

ASHING SIGNS Washing temparature. Do not wash (hand wash) Lukewarm iron. Medium hot iron. Hot iron. Do not iron. Do not tumble dry. Hang to dry. Drip dry. Dry flat. Do not bleach. Handy to bleach. All of these are dry cleaning symbols. The letters are to instruct the cleaner what type of solvent to be used. Garments bearing these symbols should not be washed in your machine unless the label says otherwise.
