USER MANUAL T20001BD Rockford Fosgate

Installation & Operation

Congratulations on your purchase of the world's finest brand of car audio amplifiers. At Rockford Fosgate we are fanatics about musical reproduction at its best, and we are pleased you chose our product. Through years of engineering expertise, hand craftsmanship and critical testing procedures, we have created a wide range of products that reproduce music with all the clarity and richness you deserve.

For maximum performance we recommend you have your new Rockford Fosgate product installed by an Authorized Rockford Fosgate Dealer, as we provide specialized training through Rockford Technical Training Institute (RTTI). Please read your warranty and retain your receipt and original carton for possible future use.

Great product and competent installations are only a piece of the puzzle when it comes to your system. Make sure that your installer is using 100% authentic installation accessories from Connecting Punch in your installation. Connecting Punch has everything from RCA cables and speaker wire to Power line and battery connectors. Insist on it! After all, your new system deserves nothing but the best.

To add the finishing touch to your new Rockford Fosgate image order your Rockford accessories, which include everything from T-shirts to jackets and hats.

To get a free brochure on Rockford Fosgate products and Rockford accessories, visit our web site at: www.rockfordfosgate.com or, in the U.S. call 1-800-669-9899 or FAX [phone]. For all other countries, call +001-480-967-3565 or FAX [phone].

PRACTICE SAFE SOUND™

Continuous exposure to sound pressure levels over 100dB may cause permanent hearing loss. High powered auto sound systems may produce sound pressure levels well over 130dB. Use common sense and practice safe sound.

If, after reading your manual, you still have questions regarding this product, we recommend that you see your Rockford Fosgate dealer. If you need further assistance, you can call us direct at 1-800-669-9899. Be sure to have your serial number, model number and date of purchase available when you call.

The serial number can be found on the outside of the box. Please record it in the space provided below as your permanent record. This will serve as verification of your factory warranty and may become useful in recovering your unit if it is ever stolen.

Serial Number: ____

Model Number: ____

TABLE OF CONTENTS

Introduction....2

Safety Instructions .... 3

Design Features 4-5

Installation 5-9

Installation Considerations .... 5

Mounting Locations....6

Battery and Charging .... 7

Wiring the System....7

Operation 9-12

Para-Punch Remote Bass 9

Adjusting Gain 10

Adjusting Crossover Frequency ..... 10

Infrasonic Filter 10

Mode Switch 10

Phase Switch 12

Troubleshooting....13

Specifications....14

Limited Warranty Information ..... 15

GETTING STARTED

Welcome to Rockford Fosgate! This manual is designed to provide information for the owner, salesperson and installer. For those of you who want quick information on how to install this product, please turn to the Installation Section of this manual. Other information can be located by using the Table of Contents. We, at Rockford Fosgate, have worked very hard to make sure all the information in this manual is current. But, as we are constantly finding new ways to improve our product, this information is subject to change without notice.

SAFETY INSTRUCTIONS

WARNING

This symbol with “WARNING” is intended to alert the user to the presence of important instructions. Failure to heed the instructions will result in severe injury or death.

CAUTION

This symbol with “CAUTION” is intended to alert the user to the presence of important instructions. Failure to heed the instructions can result in injury or unit damage.

WARNING: RISK OF ELECTRIC SHOCK. Use extreme caution when handling or making speaker connections. The voltage at the speaker terminals can cause injury or death. Read and understand the instructions in this manual before making any connections.

CAUTION: To prevent injury and damage to the unit, please read and follow the instructions in this manual. We want you to enjoy this system, not get a headache.

CAUTION If you feel unsure about installing this system yourself, have it installed by a qualified Rockford Fosgate technician.

CAUTION Before installation, disconnect the battery negative (-) terminal to prevent damage to the unit, fire and/or possible injury.

CONTENTS OF CARTON

Either a Model T10001 bd, T20001 bd, T30001 bd, or T40001 bd Power Mono Amplifier Installation & Operation Manual

Mounting Hardware Kit Para-Punch Remote Bass Kit with Cord

The hardware kit included with each amplifier contains the mounting hardware necessary to secure the amplifier to the vehicle.

5 1 2 3 4 GROUND B+ 5 15 16 176 7 8 9 10 T10003 ipd T20001 bd T30001 bd T40001 bd 5 6 7 8 9 1 0 1 1 16 172 1 3

1. Power LED (Top of unit) – This Blue LED illuminates when the unit is turned on.
2. Thermal LED (Top of unit) – This Red LED illuminates if the amplifier reaches the third stage of thermal protection. The amplifier will shut down to cool if this occurs.
3. Protect LED (Top of unit) – This Yellow LED illuminates if a short circuit or too low of an impedance is detected at the speaker connections. The amplifier will automatically shut down if this occurs.
4. Fuses – These ANL fuses are easily accessible in case of failure. Always replace fuses with same type and rating. See Specifications for fuse ratings.
5. 3-Stage Convection Cooling – The 3-stage thermal design consists of a 3-speed variable fan, integrated PCB plenum and focused mass heat distribution utilizing a highly efficient cast aluminum heatsink. This superior design keeps the amplifiers internal components cool, maximizes the amplifier potential, reduces distortion and increases efficiency.
6. Speaker Terminals – The heavy duty, nickel-plated clamp wire connectors (+ and -) will accept wire sizes from 8 AWG to 18 AWG.

WARNING: RISK OF ELECTRIC SHOCK. Use extreme caution when handling or making speaker connections. The voltage at the speaker terminals can cause injury or death. Always ensure the amplifier is off or disconnected from power prior to making any type of speaker connection.

1. Remote Bass – The Para-Punch Remote Bass connection is made with a RJ-45 cable and can be installed in a variety of ways for easy control access. One control is used to boost low frequency information to overcome road noise and put the bass in your face. This Bass control is a narrow band adjustment variable from 0dB to +18dB with a Gyrator based Punch EQ that eliminates frequency shift with boost. The other control is used for adjusting center frequency variable from 35Hz to 70Hz.
2. Infrasonic Filter – A 28Hz High Pass filter designed to prevent frequencies below the audio range from being applied to the subwoofer from the amplifier. Consequently improving subwoofer performance and power handling, particularly in vented enclosures.
3. Gain Control – The input gain control is preset to match the output of most source units. It can be adjusted to match output levels from a variety of source units.
4. Variable Crossover – Is a built-in 24dB/octave Butterworth filter with a crossover point variable from 32Hz to 250Hz. The crossover is set to Low-Pass (LP).
5. Mode Switch – Used to set the amplifier between single, for single amplifier use, and Master or Slave for when connecting multiple bd amplifiers together. The first amplifier in the series being set as Master and the subsequent amplifiers being set as Slave. This allows one gain, crossover, infrasonic filter and bass boost setting for all slaved amplifiers.
6. Phase Switch - Used when bridging two bd amplifiers together using a bd Sync cable to phase one amplifier 180^ from the other when driving a common load.
7. bd Sync Connection – These amplifiers have a 6 pin mini DIN connector: When operating two amplifiers together in a bridged mode, a bd Sync cable must be used. This will allow the two independent frequency carrier generators in each unit to be synchronized.
8. RCA Input Jacks – The industry standard RCA jacks provide an easy connection for signal level input. They are nickel-plated to resist the signal degradation caused by corrosion.
9. RCA Pass-Thru Jacks – The Pass-Thru provides a convenient source for daisy-chaining an additional amplifier without running an extra set of RCA cables from the front of the vehicle to the rear amplifier location.
10. Remote Terminal – This heavy duty, platinum-plated wire connector will accept wire sizes from 12 AWG to 24 AWG. This terminal is used to remotely turn-on and turn-off the amplifier when +12V DC is applied.
11. Power Terminals – The power and ground connectors on the amplifier are platinum-plated and will accommodate up to I/O AWG wire maximizing the input current capability of the amplifier.

INSTALLATION

INSTALLATION CONSIDERATIONS

The following is a list of tools needed for installation:

Volt/Ohm Meter

Wire strippers

Wire crimpers

Wire cutters

2 Phillips screwdriver

Battery post wrench

Hand held drill w/assorted bits

1/8" diameter heatshrink tubing

Assorted connectors

Adequate Length—Red Power Wire

Adequate Length—Remote Turn-on Wire

Adequate Length—Black Grounding Wire

This section focuses on some of the vehicle considerations for installing your new amplifier.

Pre-planning your system layout and best wiring routes will save installation time. When deciding on the layout of your new system, be sure that each component will be easily accessible for making adjustments.

CAUTION: If you feel unsure about installing this system yourself, have it installed by a qualified technician.

CAUTION: Before installation, disconnect the battery negative (-) terminal to prevent damage to the unit, fire and/or possible injury.

Before beginning any installation, follow these simple rules:

I. Be sure to carefully read and understand the instructions before attempting to install the unit.
2. For safety, disconnect the negative lead from the battery prior to beginning the installation.
3. For easier assembly, we suggest you run all wires prior to mounting your unit in place.
4. Route all of the RCA cables close together and away from any high current wires.
5. Use high quality connectors for a reliable installation and to minimize signal or power loss.
6. Think before you drill! Be careful not to cut or drill into gas tanks, fuel lines, brake or hydraulic lines, vacuum lines or electrical wiring when working on any vehicle.
7. Never run wires underneath the vehicle. Running the wires inside the vehicle provides the best protection.
8. Avoid running wires over or through sharp edges. Use rubber or plastic grommets to protect any wires routed through metal, especially the firewall.
9. ALWAYS protect the battery and electrical system from damage with proper fusing. Install the appropriate fuse holder and fuse on the +12V power wire within 18" (45.7 cm) of the battery terminal.
10. When grounding to the chassis of the vehicle, scrape all paint from the metal to ensure a good, clean ground connection. Grounding connections should be as short as possible and always be connected to metal that is welded to the main body, or chassis, of the vehicle.

MOUNTING LOCATIONS

Engine Compartment

Never mount this unit in the engine compartment. Mounting the unit in the engine compartment will void your warranty.

Trunk Mounting

Mounting the amplifier vertically will provide adequate cooling of the amplifier.

Mounting the amplifier on the floor of the trunk will provide the best cooling of the amplifier.

Mounting the amplifier upside down to the rear deck of the trunk will not provide proper cooling and will severely affect the performance of the amplifier and is strongly not recommended.

Passenger Compartment Mounting

Mounting the amplifier in the passenger compartment will work as long as you provide a sufficient amount of air for the amplifier to cool itself. If you are going to mount the amplifier under the seat of the vehicle, you must have at least 1" (2.54cm) of air gap around the amplifier's heatsink.

Mounting the amplifier with less than 1" (2.54cm) of air gap around the amplifier's heatsink in the passenger compartment will not provide proper cooling and will severely affect the performance of the amplifier and is strongly not recommended.

BATTERY AND CHARGING

Amplifiers will put an increased load on the vehicle's battery and charging system. We recommend checking your alternator and battery condition to ensure that the electrical system has enough capacity to handle the increased load of your stereo system. Stock electrical systems which are in good condition should be able to handle the extra load of any Power Series amplifier without problems, although battery and alternator life can be reduced slightly. To maximize the performance of your amplifier, we suggest the use of a heavy duty battery and an energy storage capacitor.

WIRING THE SYSTEM

CAUTION: If you do not feel comfortable with wiring your new unit, please see your local Authorized Rockford Fosgate Dealer for installation.

CAUTION: Before installation, disconnect the battery negative (-) terminal to prevent damage to the unit, fire and/or possible injury.

CAUTION: Avoid running power wires near the low level input cables, antenna, power leads, sensitive equipment or harnesses. The power wires carry substantial current and could induce noise into the audio system.

1. Plan the wire routing. Keep RCA cables close together but isolated from the amplifier's power cables and any high power auto accessories, especially electric motors. This is done to prevent coupling the noise from radiated electrical fields into the audio signal. When feeding the wires through the firewall or any metal barrier, protect them with plastic or rubber grommets to prevent short circuits. Leave the wires long at this point to adjust for a precise fit at a later time.

2. Prepare the RED wire (power cable) for attachment to the amplifier by stripping 5/8" of insulation from the end of the wire. Insert the bared wire into the B+ terminal and tighten the set screw to secure the cable in place.

NOTE: The B+ cable MUST be fused 18" or less from the vehicle's battery. Install the fuseholder under the hood and ensure connections are water tight.

1. Trim the RED wire (power cable) within 18" of the battery and splice in a inline fuse holder. See Specifications for the rating of the fuse to be used. DO NOT install the fuse at this time.

2. Strip 1/2" from the battery end of the power cable and crimp a large ring terminal to the cable. Use the ring terminal to connect to the battery positive terminal.

3. Prepare the BLACK wire (Ground cable) for attachment to the amplifier by stripping 5/8" of insulation from the end of the wire. Insert the bare wire into the GROUND terminal and tighten the set screw to secure the cable in place. Prepare the chassis ground by scraping any paint from the metal surface and thoroughly clean the area of all dirt and grease. Strip the other end of the wire and attach a ring connector. Fasten the cable to the chassis using a non-anodized screw and a star washer.

NOTE: Keep the length of the BLACK wire (Ground) as short as possible. Always less than 30"(76.2cm).

1. Prepare the Remote turn-on wire for attachment to the amplifier by stripping 5/8" of insulation from the end of the wire. Insert the bared wire into the REMOTE terminal and tighten the set screw to secure the wire in place. Connect the other end of the Remote wire to a switched 12 volt positive source. The switched voltage is usually taken from the source unit's remote amp on lead. If the source unit does not have this output available, the recommended solution is to wire a mechanical switch in line with a 12 volt source to activate the amplifier.

2. Securely mount the amplifier to the vehicle or amp rack. Be careful not to mount the amplifier on cardboard or plastic panels. Doing so may enable the screws to pull out from the panel due to road vibration or sudden vehicle stops.

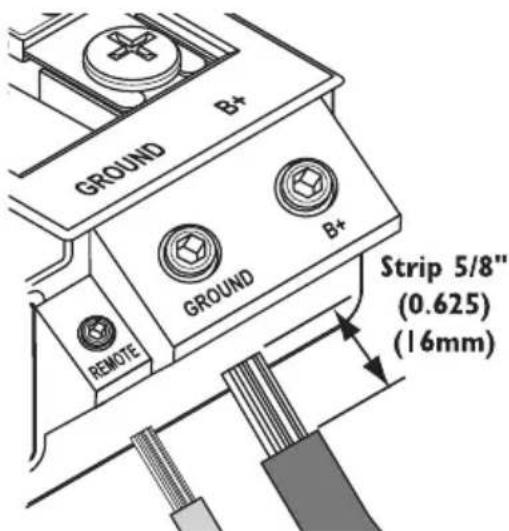

GROUND B+ GROUND B+ REMOTE Strip 5/8" (0.625) (16mm)

1. Connect from source signal by plugging the RCA cables into the input jacks at the amplifier.

CAUTION: Always ensure power is off or disconnected at the amplifier before connecting RCA cables. Failure to do so may cause injury, damage to the amplifier and/or connected components.

1. Connect the speakers. Strip the speaker wires 1/2" and insert into the speaker terminal and tighten the set screw to secure into place. Be sure to maintain proper speaker polarity. DO NOT chassis ground any of the speaker leads as unstable operation may result.

WARNING: RISK OF ELECTRIC SHOCK. Use extreme caution when handling or making speaker connections. The voltage at the speaker terminals can cause injury or death. Always ensure the amplifier is off or disconnected from power prior to making any type of speaker connection.

1. Perform a final check of the completed system wiring to ensure that all connections are accurate. Check all power and ground connections for frayed wires and loose connections which could cause problems. Install inline fuse near battery connection.

NOTE: Follow the diagrams for proper signal polarity.

CAUTION: These amplifiers are not recommended for impedance loads below 1 Ω or 2 per bridged (strapped) amplifier pairs .

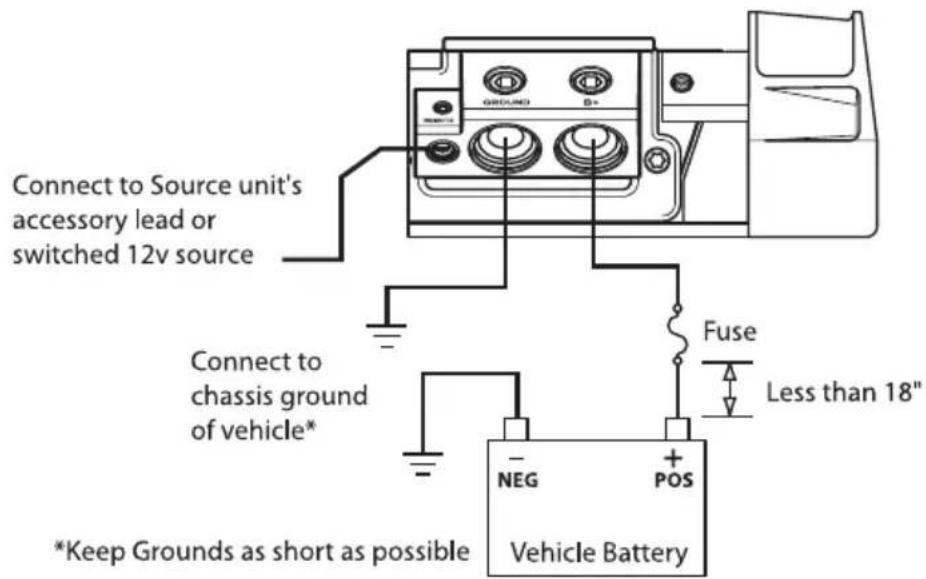

Power Connection

Connect to Source unit's accessory lead or switched 12v source Connect to chassis ground of vehicle* *Keep Grounds as short as possible Fuse Less than 18" - NEG + Vehicle Battery

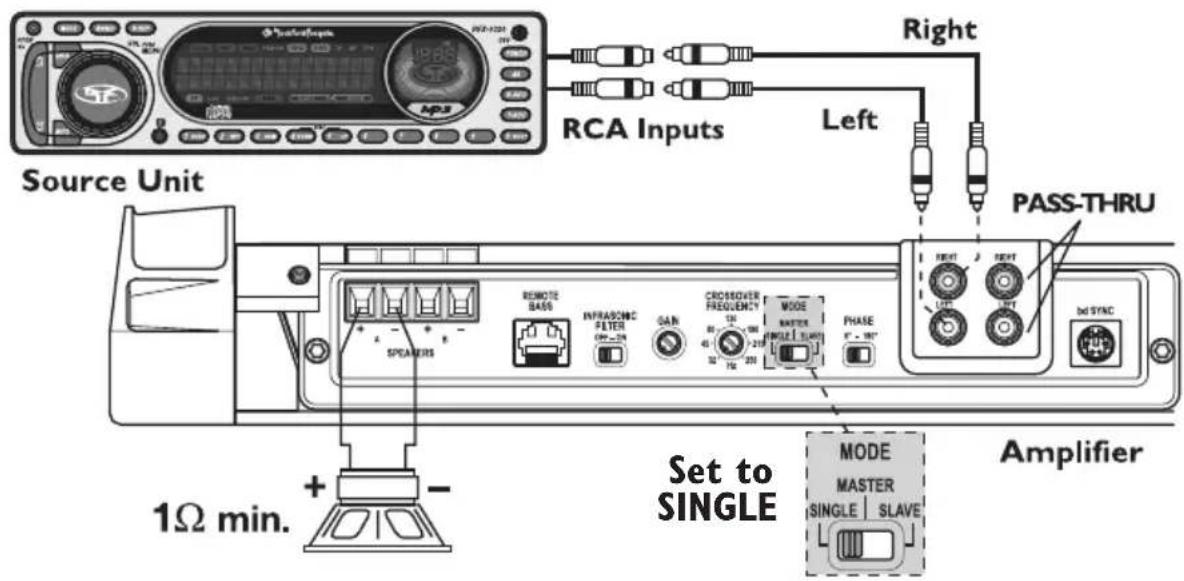

Single Amplifier Wiring

Source Unit RCA Inputs Right Left PASS-THRU 1Ω min. + - Set to SINGLE Amplifier MODE MASTER SINGLE | SLAVE

PARA-PUNCH REMOTE BASS

Mounting and installation

I. Find a location that gives easy access to the remote.

NOTE: You can mount this unit in a variety of ways. Remove the back housing by using a small flat screwdriver in the slotted hole at the back. The housing can be installed with the mounting tab up or down, or left off for in panel installation.

1. Route the cable for the remote and connect to the amplifier.

Outside Panel Install

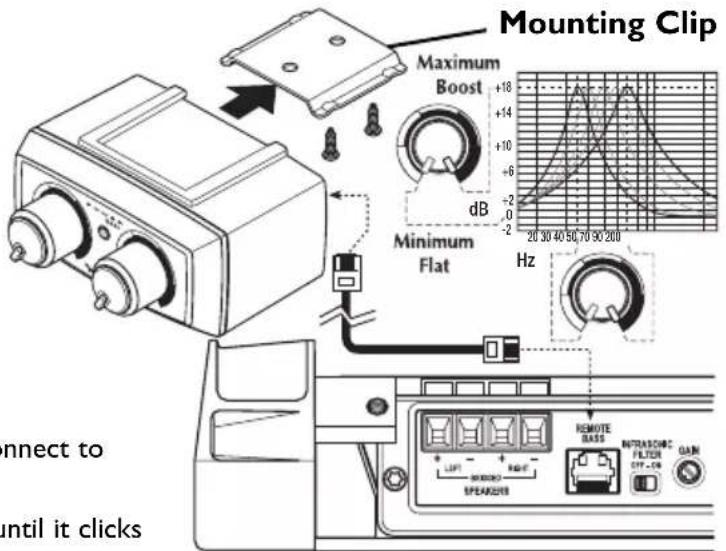

1. Using the screws supplied, install the mounting clip.

2. Slip the remote onto the mounting clip until it snaps into place.

3. Connect the cable to the remote.

Panel Install

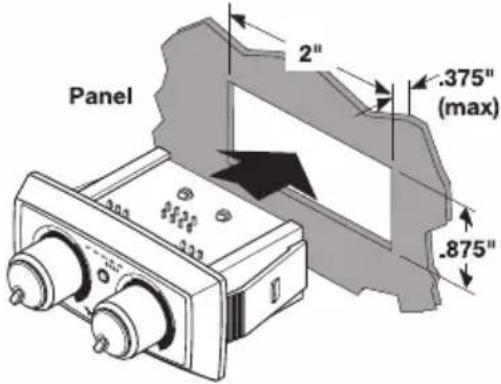

1. Cut out a 2"x 7/8" hole in the panel, with a maximum panel thickness of 3/8". Ensure there is enough room within the panel area for connection.

2. Route the cable through the hole and connect to the remote.

3. Press the remote into the panel cutout until it clicks in place.

Operation

1. Left Knob-Bass Boost Control: Turn clockwise to boost amplifier bass frequencies.

CAUTION: Overexcursion and subsequent damage may occur at high levels of boost

1. Right Knob-Center Frequency Control: Turn clockwise to select the center frequency desired (35Hz-70Hz).

Mounting Clip Maximum Boost dB Minimum Flat Hz Connect to until it clicks +18 +14 [phone] 90 200 +1 +2 +3 +4 +5 +6 +7 +8 +9 +10 +11 +12 +13 +14 +15 +16 +17 +18 +19 +20 +21 +22 +23 +24 +25 +26 +27 +28 +29 +30 +31 +32 +33 +34 +35 +36 +37 +38 +39 +40 +41 +42 +43 +44 +45 +46 +47 +48 +49 +50 +51 +52 +53 +54 +55 +56 +57 +58 +59 +60 +61 +62 +63 +64 +65 +66 +67 +68 +69 +70 +71 +72 +73 +74 +75 +76 +77 +78 +79 +80

Panel 2" .375" (max) .875"

ADJUSTING GAIN

To adjust the gain setting, turn the amplifier gains all the way down (counter-clockwise). Turn the source unit volume up until distortion is audible and then turn it down a bit until the distortion is inaudible. This will be about all the way up on most source units. Next, increase the amplifier gain setting until adequate volume is achieved. Rockford Fosgate source units do not distort, so the volume can be used at maximum setting.

NOTE: Best signal to noise and dynamic range are realized with the gain at minimum. Most users find adequate gain and volume is achieved at about halfway in the adjustment range.

CAUTION: Avoid setting the amplifier gain very high as noise and distortion will increase significantly.

NOTE: For a more in depth setting procedure, contact Rockford Technical Support.

The crossover frequency can be adjusted between 32-250Hz. The crossover is set to LP (Low Pass) operation only.

Turn the crossover adjustment knob all the way down. With the system playing, turn the crossover adjustment knob up slowly until the desired crossover point is achieved.

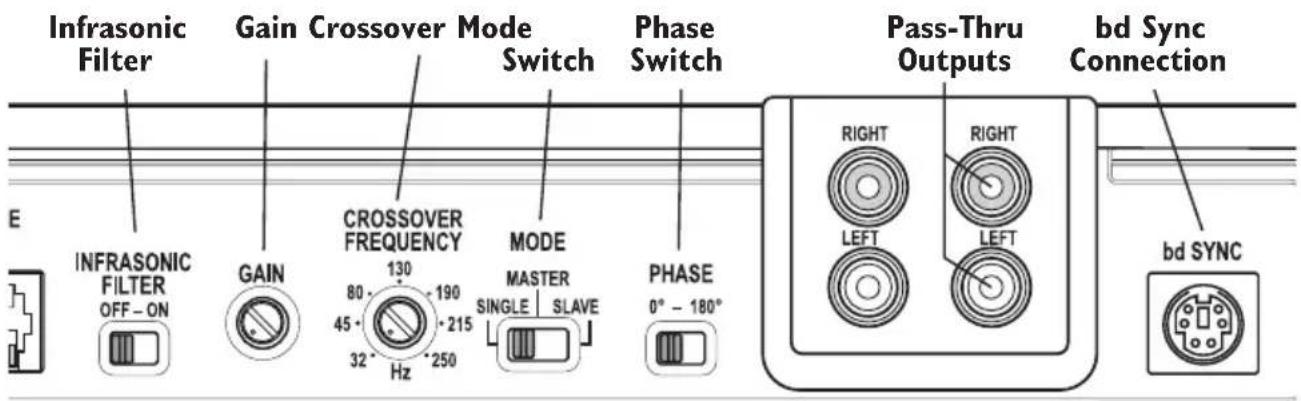

Infrasonic Filter Gain Crossover Mode Switch Phase Switch Pass-Thru Outputs bd Sync Connection E INFRASONIC FILTER OFF-ON GAIN CROSSOVER FREQUENCY 130 190 MODE MASTER SINGLE SLAVE PHASE 0° - 180° RIGHT RIGHT LEFT LEFT bd SYNC

INFRASONIC FILTER

Placing the switch to "ON" engages a 28Hz infrasonic filter limiting the amount of low frequency information going to the woofer. Set this to your personal preference while listening to the system one way, then the other.

NOTE: We recommend using the infrasonic filter when using vented enclosures with this amplifier.

MODE SWITCH

Used to set the amplifier between single ,for single amplifier use, and Master or Slave for when connecting multiple bd amplifiers together.

The first amplifier in the series being set as Master and the subsequent amplifiers being set as Slave. This allows one gain, crossover, infrasonic filter and bass boost setting for all slaved amplifiers.

The gain on the subsequent (Slave) amplifiers can be used for fine-tuning.

A maximum of 100 bd amplifiers can be connected together using this method.

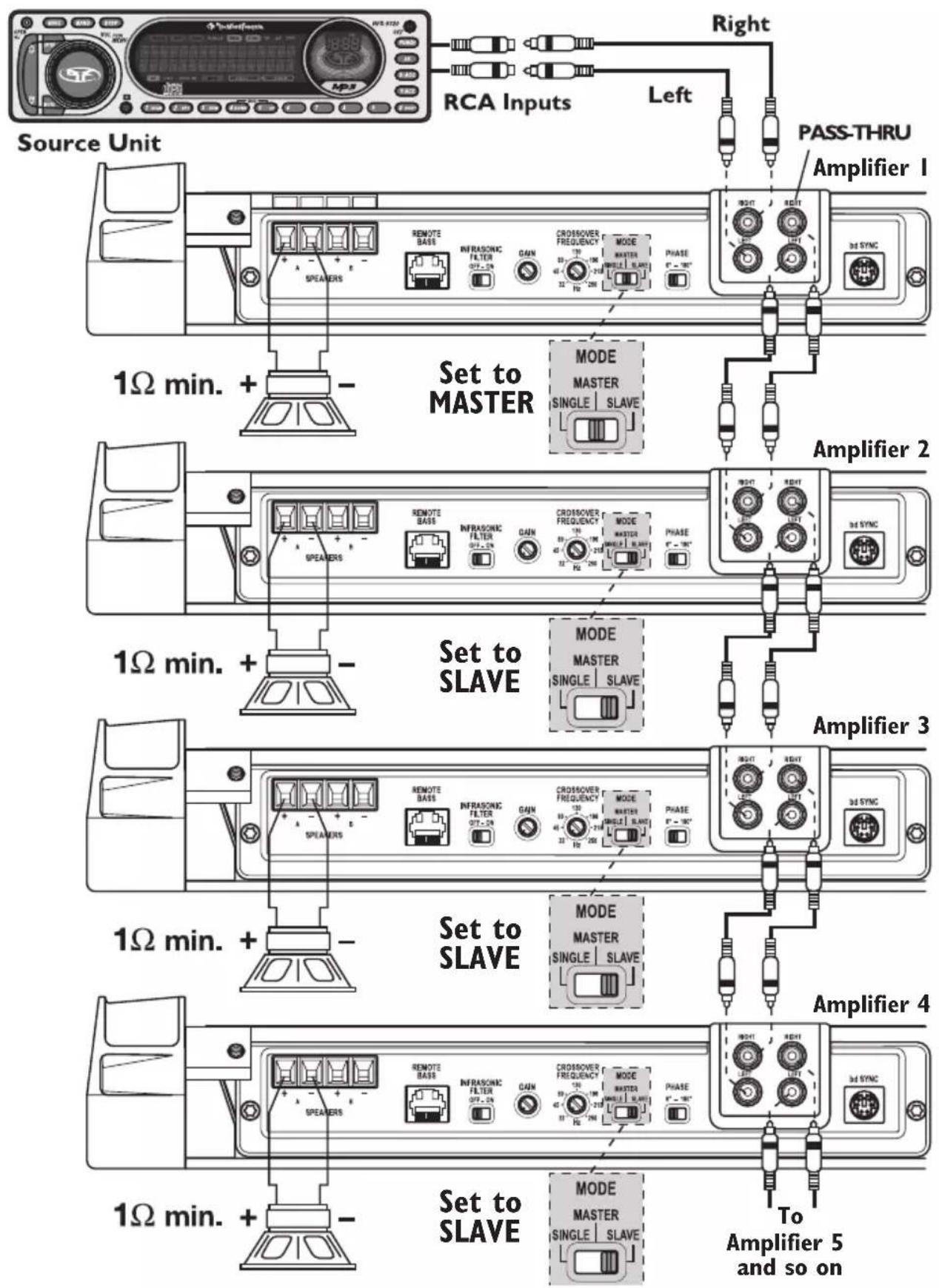

Multiple Amplifier Wiring

Source Unit RCA Inputs Right Left PASS-THRU Amplifier 1 1Ω min. + - Set to MASTER MODE MASTER SINGLE SLAVE Amplifier 2 1Ω min. + - Set to SLAVE MODE MASTER SINGLE SLAVE Amplifier 3 1Ω min. + - Set to SLAVE MODE MASTER SINGLE SLAVE Amplifier 4 1Ω min. + - Set to SLAVE MODE MASTER SINGLE SLAVE To Amplifier 5 and so on

NOTE: Only the controls on the first (Master) amplifier need to be set. The gain on the subsequent (Slave) amplifiers can be used for fine-tuning.

PHASE SWITCH

Used when bridging two bd amplifiers together using a bd Sync cable to phase one amplifier 180° from the other when driving a common load.

The bd Sync cable must be used to allow the two independent frequency carrier generators in each unit to be synchronized.

bd Sync Wiring

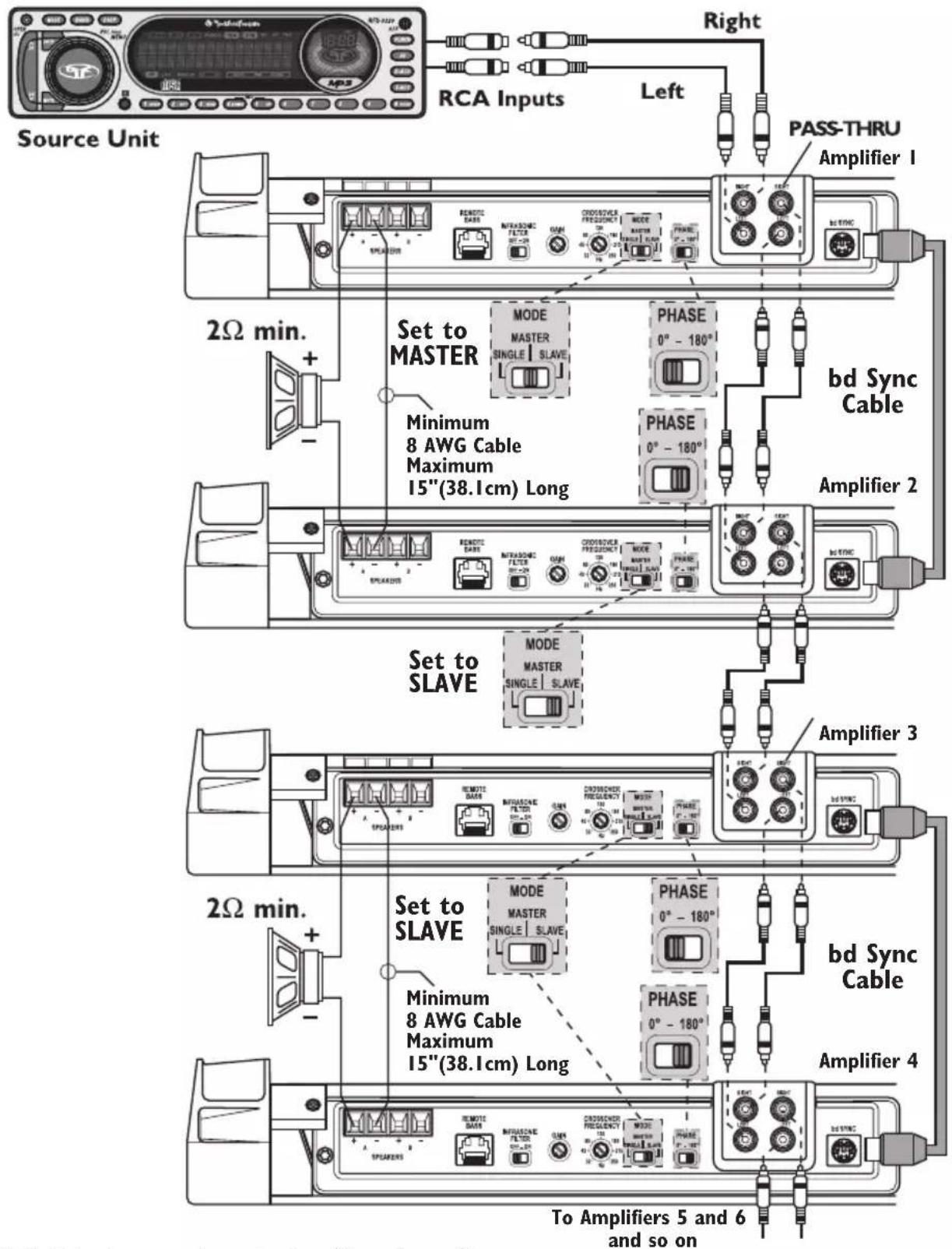

Source Unit RCA Inputs Right Left PASS-THRU Amplifier 1 2Ω min. Set to MASTER MODE MASTER SINGLE | SLAVE PHASE 0° - 180° bd Sync Cable Minimum 8 AWG Cable Maximum 15"(38.1cm) Long PHASE 0° - 180° Amplifier 2 Set to SLAVE MODE MASTER SINGLE | SLAVE Amplifier 3 2Ω min. Set to SLAVE MODE MASTER SINGLE | SLAVE PHASE 0° - 180° bd Sync Cable Minimum 8 AWG Cable Maximum 15"(38.1cm) Long PHASE 0° - 180° Amplifier 4 To Amplifiers 5 and 6 and so on

NOTE: Only the controls on the first (Master) amplifier need to be set. The gain on the subsequent (Slave) amplifiers can be used for fine-tuning.

NOTE: If you are having problems after installation follow the Troubleshooting procedures below.

Procedure I: Check Amplifier for proper connections.

Verify that POWER light is on. If POWER light is on skip to Step 3, if not continue.

I. Check in-line fuse on battery positive cable. Replace if necessary.
2. Check fuse(s) on amplifier. Replace if necessary.
3. Verify that Ground connection is connected to clean metal on the vehicle's chassis. Repair/replace if necessary.
4. Verify there is 10.5 - 15.5 Volts present at the positive battery and remote turn-on cable. Verify quality connections for both cables at amplifier, stereo, and battery/fuseholder. Repair/replace if necessary.

Procedure 2: Protect or Thermal light is on.

1. If the Protect light is on, this is a sign of a possible short in the speaker connections. Check for proper speaker connections and use an ohm meter to check for possible shorts in the speaker wiring. Too low of a speaker impedance may also cause Protect to light.
2. If the Thermal light is on, this is usually a sign of driving the amplifier at very high power levels without adequate airflow around the amplifier. Shut off the system and allow to cool. Check for proper speaker impedance, rewire if needed. Low battery voltage may also cause Thermal to light. Check that the vehicle charging system is maintaining proper voltage. If the previous items do not solve the problem, a fault may be in the amplifier, call customer service for support.

Procedure 3: Check Amplifier for audio output.

I. Verify good RCA input connections at stereo and amplifier. Check entire length of cables for kinks, splices, etc. Test RCA inputs for AC volts with stereo on. Repair/replace if necessary.
2. Disconnect RCA input from amplifier. Connect RCA input from test stereo directly to amplifier input.

Procedure 4: Check Amplifier if you experience Turn-on Pop.

I. Disconnect input signal to amplifier and turn amplifier on and off.
2. If the noise is eliminated, connect the REMOTE lead of amplifier to source unit with a delay turn-on module.

OR

I. Use a different 12 Volt source for REMOTE lead of amplifier (i.e. battery direct).
2. If the noise is eliminated, use a relay to isolate the amplifier from noisy turn-on output.

Procedure 5: Check Amplifier if you experience excess Engine Noise.

I. Route all signal carrying wires (RCA, Speaker cables) away from power and ground wires.

OR

1. Bypass any and all electrical components between the stereo and the amplifier(s). Connect stereo directly to input of amplifier. If noise goes away the unit being bypassed is the cause of the noise.

OR

1. Remove existing ground wires for all electrical components. Reground wires to different locations. Verify that grounding location is clean, shiny metal free of paint, rust etc.

OR

1. Add secondary ground cable from negative battery terminal to the chassis metal or engine block of vehicle.

OR

1. Have alternator and battery load tested by your mechanic. Verify good working order of vehicle electrical system including distributor, spark plugs, spark plug wires, voltage regulator etc.

MODEL- POWER TI000I bd T2000I bd T3000I bd T4000I bd
Continuous Power Rating (RMS) - Measured at 14.4 Battery Volts

4 Load Per Channel 500 Watts x | 750 Watts x | 1000 Watts x | 1500 Watts x |
2 Load Per Channel 750 Watts x | 1500 Watts x | 2000 Watts x | 3000 Watts x |
1 Load Per Channel 1000 Watts x | 2000 Watts x | 3000 Watts x | 4000 Watts x |
Dimensions: Height 2.6" (6.60cm) 2.6" (6.60cm) 2.6" (6.60cm)
Width	12.8" (32.51cm)	12.8" (32.51cm)	12.8" (32.51cm)	12.8" (32.51cm)
Length	18" (45.72cm)	23" (58.42cm)	33" (83.82cm)	33" (83.82cm)
Amplifier Fuse Rating (Amp/Type)	(1) 150A / ANL (1)	250A / ANL (1) 300A	ANL (2) 300A / ANL	(Stacked)
Battery Fuse Rating (Amp) External (Not Supplied)	150A	250A	300A	600A

Signal-to-Noise Ratio	>80dB A-weighted @ 2Vrms
Crossover Slope	24dB/octave Butterworth
Crossover Frequency	variable from 32Hz to 250Hz
Frequency Response	20Hz to 250Hz -3dB
Slew Rate	30 Volts/μS
IM Distortion (IHF)	<0.05%
Signal Voltage Adjustment Range	Variable from 150mV to 4V (RCA Input)
Protection	Short circuit protection shut downs the amplifier in case of very low impedance or shorted speaker wires. Thermal switch shuts down the amplifier in case of overheating.
Equalization (Variable Punch Bass)	Variable from 0dB to +18dB @ variable 35 to 70Hz
Input Impedance	10k ohms
Infrasonic Filter	Selectable 12dB/Octave, -3dB @ 28Hz

These specifications are Amplifier Power Standard CEA-2006 Compliant

Rockford Corporation offers a limited warranty on Rockford Fosgate products on the following terms:

Length of Warranty

Source Units, Speakers, Signal Processors and PUNCH Amplifiers – 1 Year

POWER Amplifiers – 2 Years Type RF Amplifiers – 3 Years

Any Factory Refurbished Product – 90 days (receipt required)

What is Covered

This warranty applies only to Rockford Fosgate products sold to consumers by Authorized Rockford Fosgate Dealers in the United States of America or its possessions. Product purchased by consumers from an Authorized Rockford Fosgate Dealer in another country are covered only by that country's Distributor and not by Rockford Corporation.

Who is Covered

This warranty covers only the original purchaser of Rockford product purchased from an Authorized Rockford Fosgate Dealer in the United States. In order to receive service, the purchaser must provide Rockford with a copy of the receipt stating the customer name, dealer name, product purchased and date of purchase.

Products found to be defective during the warranty period will be repaired or replaced (with a product deemed to be equivalent) at Rockford's discretion.

What is Not Covered

I. Damage caused by accident, abuse, improper operations, water, theft, shipping
2. Any cost or expense related to the removal or reinstallation of product
3. Service performed by anyone other than Rockford or an Authorized Rockford Fosgate Service Center
4. Any product which has had the serial number defaced, altered, or removed
5. Subsequent damage to other components
6. Any product purchased outside the U.S.
7. Any product not purchased from an Authorized Rockford Fosgate Dealer

Limit on Implied Warranties

Any implied warranties including warranties of fitness for use and merchantability are limited in duration to the period of the express warranty set forth above. Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for Rockford Fosgate any other liability in connection with the sale of the product.

How to Obtain Service

Contact the Authorized Rockford Fosgate Dealer you purchased this product from.

If you need further assistance, call 1-800-669-9899 for Rockford Customer Service. You must obtain an RA# (Return Authorization number) to return any product to Rockford Fosgate. You are responsible for shipment of product to Rockford.

EU Warranty

This product meets the current EU warranty requirements, see your Authorized dealer for details.

Ship to: Electronics

Rockford Corporation

Warranty Repair Department

2055 E. 5th Street

Tempe,AZ 85281

RA#:

Ship to: Speakers

Rockford Acoustic Design

Speaker Returns

3056 Walker Ridge Dr. Suite G.

Walker, MI 49544

RA#:

Cher client,

Panel 2" .375" (max) .875"

RÉGLAGE DU GAIN

Rockford Corporation

Warranty Repair Department

2055 E. 5th Street

Tempe,AZ 85281

RA#:

Rockford Acoustic Design

Speaker Returns

3056 Walker Ridge Dr. Suite G.

Walker, MI 49544

RA#:

Estimado cliente,

Para-Punch Remote Bass 9

Ajuste de ganancia....10

PARA-PUNCH REMOTE BASS

Panel 2" .375" (max) .875"

AJUSTE DE GANANCIA

Rockford Corporation

Warranty Repair Department

2055 E. 5th Street

Tempe,AZ 85281

RA#:

Enviar a: Speakers

Rockford Acoustic Design

Speaker Returns

3056 Walker Ridge Dr. Suite G.

Walker, MI 49544

RA#:

Panel 2" .375" (max) .875"

Rockford Corporation

Warranty Repair Department

2055 E. 5th Street

Tempe,AZ 85281

RA#:

Senden an: Speakers

Rockford Acoustic Design

Speaker Returns

3056 Walker Ridge Dr. Suite G.

Walker, MI 49544

RA#:

Egregio cliente,

Panel 2" .375" (max) .875"

REGOLAZIONE DEL GUADAGNO

Rockford Corporation

Warranty Repair Department

2055 E. 5th Street

Tempe,AZ 85281

RA#:

Spedire a: Speakers

Rockford Acoustic Design

Speaker Returns

3056 Walker Ridge Dr. Suite G.

Walker, MI 49544

RA#:

Rockford Fosgate®

Installation assistance available at:

RFTECH

www.rockfordfosgate.com/rftech

Amplifier Power Standard CEA CEA-2006 Compliant

Rockford Fosgate

Rockford Corporation

546 South Rockford Drive

Tempe, Arizona 85281 U.S.A.

In U.S.A., [phone]

In Europe, Fax [phone]

In Japan, Fax [phone]

www.rockfordfosgate.com
