USER MANUAL 65UF7769 LG

Safety and Reference

LED TV*

* LG LED TV applies LCD screen with LED backlights.

Please read this manual carefully before operating your set and retain it for future reference.

www.lg.com

P/NO: MFL68931014(1509-REV02)

Printed in Korea

ENGLISH

Do not place the TV and/or remote control in the following environments:

cation exposed to direct sunlight

• An area with high hu

produce heat

exposed to steam or oil

Otherwise, this may result in fire, electric shock, malfunction or product deformation.

Do not place the product where it might be exposed to dust. This may cause a fire hazard.

Mains Plug is the TV connecting/disconnecting device to AC mains electric supply. This plug must remain readily attached and operable when TV is in use.

If a part of the photoelectricity will be up it made, but still usually if the dust paint is used or covered with dust, dry the power plug completely or wipe dust off. You may be electrocured due to excess moisture.

Make sure to connect Mains cable to compliant AC mains socket with Grounded earth pin. (Except for devices which are not grounded on earth.) Otherwise possibility you may be electrocuted or injured.

Ensure the power cord does not come into contact with hot objects such as a heater. This may cause a fire or an electric shock hazard.

Do not place a heavy object, or the product itself on power cables. Otherwise, this may result in fire or electric shock.

Bend antenna cable between inside and outside building to prevent rain from flowing in. This may cause water damaged inside the Product and could give an electric shock.

Do not plug too many electrical devices into a single multiple electrical outlet. Otherwise, this may result in fire due to over-heating.

Do not drop the product or let it fall over when connecting external devices. Otherwise, this may result in injury or damage to the product.

Keep the anti-moisture packing material or vinyl packing out of the reach of children. Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the patient to vomit and visit the nearest hospital. Additionally, vinyl packing can cause suffocation. Keep it out of the reach of children.

Do not let your children climb or cling onto the TV. Otherwise, the TV may fall over, which may cause serious injury.

Dispose of used batteries carefully to ensure that a small child does not consume them. Please seek Doctor- Medical Attention immediately if child consumes batteries.

Do not insert any metal objects/conductors (like a metal chopstick/cutlery/screwdriver) between power cable plug and input Wall Socket while it is connected to the input terminal on the wall. Additionally, do not touch the power cable right after plugging into the wall input terminal. You may be electrocuted. (Depending on model)

Do not drop metallic objects such as coins, hair pins, chopsticks or wire into the product, or inflammable objects such as paper and matches. Children must pay particular attention. Electrical shock, fire or injury can occur. If a foreign object is dropped into the product, unplug the power cord and contact the service centre.

Rescue, open air, and the product, in such with the fill-in-end substance (thinner or benzene). Fire or electric shock accident can occur.

Do not allow any impact, shock or any objects to fall into the unit, and do not drop anything onto the screen. You may be injured on the product can be damaged.

Never touch this product or antenna during a thunder or lighting storm. You may be electrocuted.

Never touch the wall outlet when there is leakage of gas, open the windows and ventilate. It may cause a fire or a burn by a spark.

Unplug the TV from AC mains wall socket if you do not intend to use the TV for a long period of time. Accumulated dust can cause fire hazard and insulation deterioration can cause electric leakage/shock/fire.

Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

Do not install this product on a wall if it could be exposed to oil or oil mist. This may damage the product and cause it to fall.

If water enters or comes into contact with TV, AC adapter or power cord please disconnect the power cord and contact service centre immediately. Otherwise, this may result in electric shock or fire.

Only use an authorized AC adapter and power cord approved by LG Electronics. Otherwise, this may result in fire, electric shock, malfunction or product deformation.

Never Disassemble the AC adapter or power cord. This may result in fire or electric shock.

CAUTION

Install the product where no radio wave occurs.

There should be enough distance between an outside antenna and power lines to keep the former from touching the latter even when the antenna falls. This may cause an electric shock.

Do not install the product on places such as unstable shelves or inclined surfaces. Also avoid places where there is vibration or where the product cannot be fully supported. Otherwise, the product may fall or flip over, which may cause injury or damage to the product.

If you install the TV on a stand, you need to take actions to prevent the product from overturning. Otherwise, the product may fall over, which may cause injury.

If you intend to mount the product to a wall, attach VESA standard mounting interface (optional parts) to the back of the product. When you install the set to use the wall mounting bracket (optional parts), fix it carefully so as not to drop.

Only use the attachments / accessories specified by the manufacturer.

When installing the antenna, consult with a qualified service technician. If not installed by a qualified technician, this may create a fire hazard or an electric shock hazard.

We recommend that you maintain a distance of at least 2 to 7 times the diagonal screen size when watching TV. If you watch TV for a long period of time, this may cause blurred vision.

Only use the specified type of battery. This could cause damage to the remote control.

Do not mix new batteries with old batteries. This may cause the batteries to overheat and leak.

Batteries should not be exposed to excessive heat. For example, keep away from direct Sunlight, open fireplace and electric heaters.

Do not place non-rechargeable batteries in charging device.

Make sure there are no objects between the remote control and its sensor.

Signal from Remote Control can be interrupted due to external/internal lighting eg Sunlight, fluorescent lighting. If this occurs turn off lighting or darken viewing area.

When connecting external devices such as video game consoles, make sure the connecting cables are long enough. Otherwise, the product may fall over, which may cause injury or damage the product.

Do not turn the product On/Off by plugging-in or unplugging the power plug to the wall outlet. (Do not use the power plug for switch.) It may cause mechanical failure or could give an electric shock.

Please follow the installation instructions below to prevent the product from overheating.

than 10 cm.

- Do not install the product in a place with no ventilat bookshelf or in a cupboard).

locked

Otherwise, this may result in fire.

Take care not to touch the ventilation openings when watching the TV for long periods as the ventilation openings may become hot. This does not affect the operation or performance of the product.

Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer.

Prevent dust collecting on the power plug pins or outlet. This may cause a fire hazard.

Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.

Do not press strongly upon the panel with a hand or sharp object such as nail, pencil or pen, or make a scratch on it, as it may cause damage to screen.

When cleaning the product and its components, unplug the power first and wipe it with a soft cloth. Applying excessive force may cause scratches or discolouration. Do not spray with water or wipe with a wet cloth. Never use glass cleaner, car or industrial shiner, abrasives or wax, benzene, alcohol etc., which can damage the product and its panel. Otherwise, this may result in fire, electric shock or product damage (Deformation, corrosion or breakage).

As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if you turn off this unit by SWITCH.

When unplugging the cable, grab the plug and unplug it, by pulling at the plug.

Don't pull at the cord to unplug the power cord from the power board, as this could be hazardous.

When moving the product, make sure you turn the power off first. Then, unplug the power cables, antenna cables and all connecting cables. The TV set or power cord may be damaged, which may create a fire hazard or cause electric shock.

When moving or unpacking the product, work in pains because the product is heavy. Otherwise, this may result in injury.

Contact the service centre once a year to clean the internal parts of the product.

Accumulated dust can cause mechanical failure.

Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

If the product feels cold to the touch, there may be a small "flicker" when it is turned on. This is normal, there is nothing wrong with product.

The panel is a high technology display product with resolution of two million to six million pixels. You may see tiny black dots and/or brightly coloured dots (red, blue or green) at a size of 1 ppm on the panel. This does not indicate a malfunction and does not affect the performance and reliability of the product.

This phenomenon also occurs in third-party products and is not subject to exchange or refund.

You may find different brightness and color of the panel depending on your viewing position(left/right/top/down).

This phenomenon occurs due to the characteristic of the panel. It is not related with the product performance, and it is not malfunction.

Three grayscale close-up images showing a cylindrical object with internal features, no visible text or symbols.

Displaying a still image (e.g., broadcasting channel logo, on-screen menu, scene from a video game) for a prolonged time may cause damage to the screen, resulting in retention of the image, which is known as image sticking. The warranty does not cover the product for image sticking.

Avoid displaying a fixed image on your television's screen for a prolonged period (2 or more hours for LCD, 1 or more hours for Plasma). Also, if you watch the TV at a ratio of 4:3 for a long time, image sticking may occur on the borders of the panel.

This phenomenon also occurs in third-party products and is not subject to exchange or refund.

Generated Sound

"Cracking" noise: A cracking noise that occurs when watching or turning off the TV is generated by plastic thermal contraction due to temperature and humidity. This noise is common for products where thermal deformation is required. Electrical circuit humming/panel buzzing:

A low level noise is generated from a high-speed switching circuit, which supplies a large amount of current to operate a product. It varies depending on the product.

This generated sound does not affect the performance and reliability of the product.

Do not use high voltage electrical goods near the TV (e.g. electric mosquito-swatter). This may result in product malfunction.

Viewing 3D imaging (Only 3D models)

CAUTION

Viewing Environment

- Maintain a distance of at least twice the screen diagonal length when watching 3D contents. If you feel discomfort in viewing 3D contents, move further away from the TV.

Viewing Age

• Usage/ Viewing 3D contents for children under the age of 6 are prohibited.
• Children under the age of 10 may overreact and become overly excited because their vision is in development (for example: trying to touch the screen or trying to jump into it). Special monitoring and extra attention is required for children watching 3D contents.
• Children have greater binocular disparity of 3D presentations than adults because the distance between the eyes is shorter than that of adults. Therefore they will perceive more stereoscopic depth compared to adults for the same 3D image.
• Teenagers under the age of 19 may react with sensitivity due to stimulation from light in 3D contents. Advise them to refrain from watching 3D contents for a long time when they are tired.
• The elderly may perceive less 3D effect compared to the young. Do not sit closer to the TV than the recommended distance.

Cautions when using the 3D glasses

view 3D videos properly.

protective goggles.

distortion.

temperatures. It will cause deformation.

soft, clean piece of cloth when wiping the lenses. Do not scratch the lenses of the 3D glasses with sharp objects or clean/wipe them with chemicals.

Preparing

^* A ≤ 10 mm

*B ≤ 18 mm

ea fied

or a connection error may occur. (Recommended HDMI Cable Types)

• High-Speed HDMV™ cable (3 m or less)
• High-Speed HDMV™ cable with Ethernet (3 m or less)

CAUTION

- Do not

life span.

covered by the warranty.

must not be removed.

down on a cushioned table or flat surface to protect the screen from scratches.

securely. (If they are not fastened securely enough, the TV may tilt forward after being installed.) Do not use too much force and over tighten the screws; otherwise screw may be damaged and not tighten correctly.

may damage the product. (Only UF84**)

Separate purchase

Separate purchase items can be changed or modified for quality improvement without any notification. Contact your dealer to buy these items. These devices only work with certain models. The model name or design may be changed depending on the upgrade of product functions, manufacturer's circumstances or policies.

(Depending on model)

AG-F*** Cinema 3D Glasses	AN-MR600 Magic Remote	AG-F***DP Dual Play Glasses
AN-VCS50 Smart camera LG Audio Device		AN-WF500 Wi-Fi/Bluetooth Dongle

* Some models require Wi-Fi/Bluetooth Dongle for using Magic Remote or LG Audio Device.

* Supporting device of Wi-Fi/Bluetooth Dongle is a different in accordance with model.

Maintenance

Cleaning your TV

Clean your TV regularly to keep the best performance and to extend the product lifespan.

all other cables first.

disconnect the power cord from the wall outlet to prevent possible damage from lightning or power surges.

Screen, frame, cabinet and stand

To remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth.

To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild detergent. Then wipe immediately with a dry cloth.

to the screen.

sharp object, as this may result in scratches and image distortions.

result in fire, electric shock, or malfunction.

Power cord

Remove the accumulated dust or dirt on the power cord regularly.

Using the joystick button

(Image shown may differ from your TV.)

You can simply operate the TV functions, pressing or moving the joystick button up, down, left or right.

- Hold the top and bottom of the TV frame firmly. Make sure not to hold the transparent part, speaker, or speaker grill area.

Diagram illustrating a device with hand positioning and corresponding close-ups of the screen, plus a separate view of the screen.

- When transporting the TV, do not expose the TV to jolts or excessive vibration.

on its side or tilt towards the left or right.

chassis as it may damage screen.

joystick button.

Illustration of a cable being inserted into a device (no text or symbols visible)

Basic functions

	Power On	When the TV is turned off, place your finger on the joystick button and press it once and release it.
	Power Off	When the TV is turned on, place your finger on the joystick button and press it once for a few seconds and release it. All running apps will close, and any recording in progress will stop.
	Volume Control	If you place your finger over the joystick button and move it left or right, you can adjust the volume level you want.
	Programmes Control	If you place your finger over the joystick button and move it up or down, you can scrolls through the saved programmes you want.

CAUTION

n at al

to the screen.

holders may break, and injuries and damage to the TV may occur.

Using the kensington security system

(This feature is not available for all models.)

	Turns the power off.
	Clears on-screen displays and returns to TV viewing.
	Changes the input source.

The Kensington security system connector is located at the rear of the TV. For more information of installation and using, refer to the manual provided with the Kensington security system or visit http://www.kensington.com. Connect the Kensington security system cable between the TV and a table.

!

Illustration of a computer monitor connected to a cable with two magnified insets showing mechanical components (no text or symbols)

Securing the TV to a wall

(This feature is not available for all models.)

10 cm 10 cm 10 cm 10 cm 10 cm

Diagram showing a device with two circular components and magnified views of internal components, likely illustrating a mechanical or electrical setup.

2 Connect the power cord to a wall outlet.

CAUTION

is may

fire or other damage.

CAUTION

CAUTION

p n TV.

Otherwise electric shock may occur.

performing the stand attachment in reverse.

result in severe injury. Use an authorised LG wall mount and contact the local dealer or qualified personnel.

and void your warranty.

damages or injuries by misuse or using an improper accessory are not covered by the warranty.

10 cm 10 cm 10 cm 10 cm

Make sure to use screws and wall mount bracket that meet the VESA standard. Standard dimensions for the wall mount kits are described in the following table.

Separate purchase(Wall mounting bracket)

Model	43UF64**43UF68**40/43UF77**	49UF64**49/55UF68**49/55UF77**50UF83**49/55UF84**
VESA (mm) (A x B)	200 x 200	300 x 300
Standard screw	M6	M6
Number of screws	4	4
Wall mount bracket	LSW240BMSW240	LSW350BMSW240
Model	65UF68**60/65UF77**58UF83**	70/79UF77**
VESA (mm) (A x B)	300 x 300	600 x 400
Standard screw	M6	M8
Number of screws	4	4
Wall mount bracket	LSW350B	LSW640B

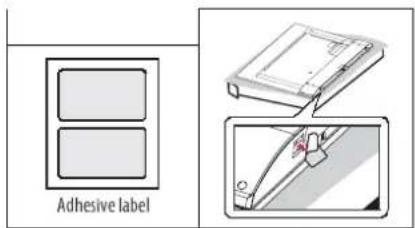

Adhesive label

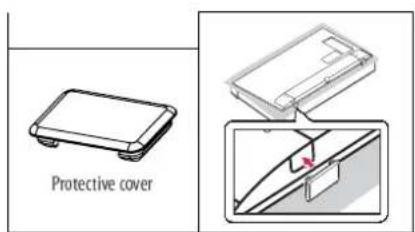

Protective cover

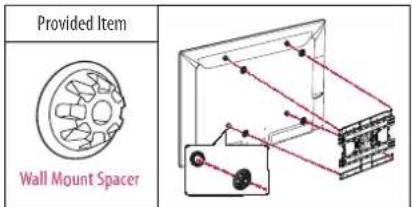

- When attaching a wall mounting bracket to the TV, insert the wall mount spacers into the TV wall mount holes to adjust the vertical angle of the TV. (Only when the item of the following form is provided)

Provided Item Wall Mount Spacer

- Depending on the shape of the stand, use a flat tool to remove the stand cover as illustrated below. (e.g., a flat screwdriver) (Only when the item of the following form is provided)

Flat tool

Connections (notifications)

Connect various external devices to the TV and switch input modes to select an external device. For more information of external device's connection, refer to the manual provided with each device.

Available external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices.

Current input mode\Output Type	AV1 (TV Out ^1 )
Digital TV	Digital TV
Analogue TV, AV	Analogue TV
Component
HDMI

1 TV Out : Outputs Analogue TV or Digital TV signals.

can be output through the SCART cable. (Only 3D models)

cannot be output through the SCART cable.

CI module connection

(Depending on model)

View the encrypted (pay) services in digital TV mode.

right direction. If the module is not inserted properly, this can cause damage to the TV and the PCMCIA card slot.

connected, please contact to the Terrestrial/Cable/Satellite Service Operator.

USB connection

Some USB Hubs may not work. If a USB device connected using a USB Hub is not detected, connect it to the USB port on the TV directly.

Other connections

Connect your TV to external devices. For the best picture and audio quality, connect the external device and the TV with the HDMI cable. Some separate cable is not provided.

Picture - HDMI ULTRA HD Deep

Colour

- On : Support 4K @ 50/60 Hz (4:4:4, 4:2:2, 4:2:0) - Off : Support 4K @ 50/60 Hz (4:2:0)

If the device connected to Input Port also supports ULTRA HD Deep Colour, your picture may be clearer. However, if the device doesn't support it, it may not work properly. In that case, connect the device to a different HDMI port or change the TV's HDMI ULTRA HD Deep Colour setting to Off.

(This feature is available on certain models which are supported ULTRA HD Deep Colour only.)

CAUTION

may da

control.

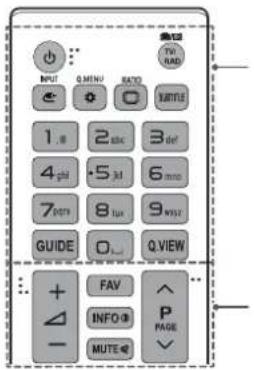

Make sure to point the remote control toward the remote control sensor on the TV.

INPUT Q.MENU RATIO 1 2 abc 3 abc 4 phi +5 kl 6 mm 7 diff 8 fun 9 visit GUIDE Q VIEW + FAV INFO P PAGE - MUTE

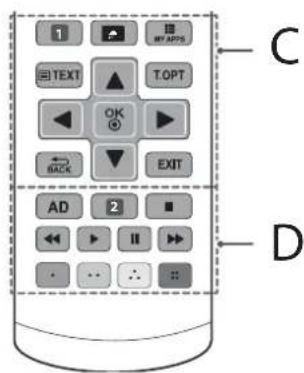

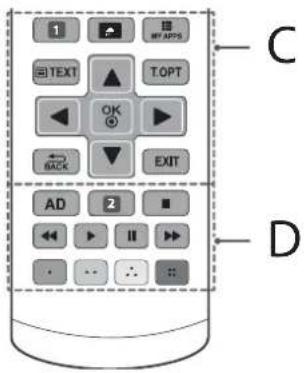

1 KEY APPS TEXT TOPT OK BACK EXIT AD 2 II D

A

(Power) Turns the TV on or off

TV/RAD Selects Radio, TV and DTV programme.

INPUT Changes the input source.

Q.MENU / ⚙ (Q. Settings) Accesses the Quick Settings.

RATIO Resizes an image.

SUBTITLE Recalls your preferred subtitle in digital mode.

Number buttons Enters numbers.

GUIDE Shows programme guide.

☐(Space) Opens an empty space on the screen keyboard.

Q.VIEW Returns to the previously viewed programme.

B

FAV Accesses your favourite programme list.

INFO 📄 Views the information of the current programme and screen.

MUTE Mutes all sounds.

+Δ-Adjusts the volume level.

^P∨ Scrolls through the saved programmes.

^PAGEves to the previous or next screen.

1 APP/ Selects the MHP TV menu source. (Depending on model)

1 RECENTShows the previous history. (Depending on model)

(HOME) Accesses the Home menu.

MY APPS Shows the list of Apps.

Teletext buttons (☑) TEXT, T.OPT These buttons are used for teletext.

Navigation buttons (up/down/left/right) Scrolls through menus or options.

OK Selects menus or options and confirms your input.

→BACK Returns to the previous level.

EXIT Clears on-screen displays and returns to TV viewing.

D

AD By pressing the AD button, audio descriptions function will be enabled.

2 LIST Accesses the saved programme list. (Depending on model)

2 Starts to record and displays record menu.

(Only Time MachineReady supported model) (Depending on model)

Control buttons (■, ▶, 11, ◀, ▶ Controls the Premium contents, Time Machine ^Ready or SmartShare menus or the SIMPLINK compatible devices (USB or SIMPLINK or Time Machine ^Ready ).

Coloured buttons These access special functions in some menus.

(●: Red, □: Green, ◦: Yellow, □: Blue)

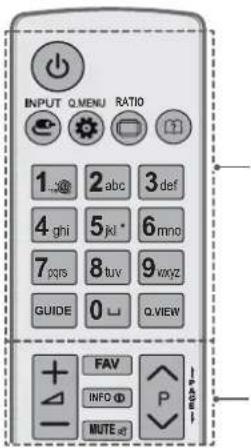

INPUT Q.MENU RATIO 1...2 abc 3 def 4 ghi 5 jki 6 mno 7 pqrs 8 tuv 9 wxyz GUIDE 0 □ Q.VIEW + FAV INFO Ⓒ P MUTE

A

(Power) Turns the TV on or off.

INPUT Changes the input source.

Q.MENU / Ⓧ(Q. Settings) Accesses the Quick Settings

☐RATIO Resizes an image.

? (User Guide) Sees user-guide.

Number buttons Enters numbers.

☐(Space) Opens an empty space on the screen keyboard.

GUIDE Shows programme guide.

Q.VIEW Returns to the previously viewed programme.

B

+△-Adjusts the volume level

FAV Accesses your favourite programme list

INFO① Views the information of the current programme and screen.

MUTE Mutes all sounds.

^P▼ Scrolls through the saved programmes.

PAGE 15 to the previous on next screen

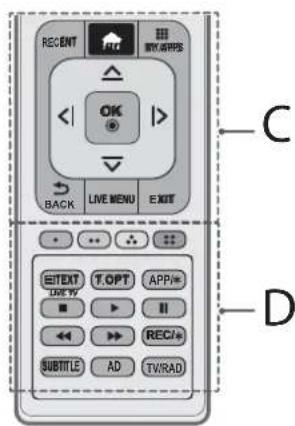

RECENT OK E LIVE MENU EXIT BACK E TEXT T.OPT APP# ■ ■ ■ ■ RECI# SUBTITLE AD TV/RAD C D

C

RECENT Shows the previous history.

(HOME) Accesses the Home menu.

MY APPS Shows the list of Apps.

Navigation buttons (up/down/left/right) Scrolls through menus or options.

OK Selects menus or options and confirms your input.

→ BACK Returns to the previous level.

LIVE MENU Shows the list of Recommended, Programmes, Search and Recorded. (Depending on model)

EXIT Clears on-screen displays and returns to TV viewing.

D

Coloured buttons These access special functions in some menus.

(●: Red, ▼: Green, ◀: Yellow, ◴: Blue)

Teletext buttons ☑ TEXT, T.OPT These buttons are used for teletext.

APP/* Selects the MHP TV menu source. (Depending on model) LIVE TV Returns to LIVE TV.

Control buttons (■, ▶, Ⅱ, ◀, ▶) Controls the Premium contents, Time Machine ^Ready or SmartShare menus or the SIMPLINK compatible devices (USB or SIMPLINK or Time Machine ^Ready ).

REC/*Starts to record and displays record menu. (Only Time Machine ^2 supported model) (Depending on model)

SUBTITLE Recalls your preferred subtitle in digitalmode.

AD By Pressing AD button, audio descriptions function will be enabled.

TV/RAD Selects Radio, TV and DTV programme.

B

A PSc rolls through the saved programmes.

(MUTE) Mutes all sounds.

* By Pressing and holding the % button, video/audio descriptions function will be enabled. (Depending on model!)

(HOME) Accesses the Home menu.

(BACK) Returns to the previous screen.

EXIT Clears on-screen displays and returns to Last Input viewing.

CAUTION

Do not control.

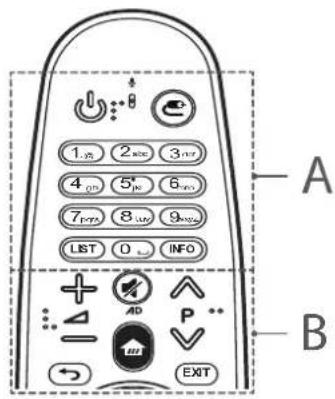

1.0 2.0 3.0 4.0 5.0 6.0 7.0 8.0 9.0 LIST 0 ... INFO AD P EXIT

A

(POWER) Turns the TV on or off.

(INPUT) Changes the input source.

* Pressing and holding the ⬆ button displays all the lists of external inputs.

Number buttons Enters numbers.

LIST Accesses the saved programmes list.

INFO Views the information of the current programmes and screen.

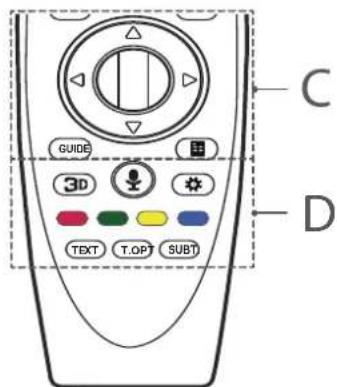

C GUIDE 3D TEXT T.OPT SUBT D

C

① Wheel (OK) Press the center of the Wheel button to select a menu. You can change programmes by using the Wheel button.

△▽ Press the up, down, left or right button to scroll the menu. If you press △▼buttonsb while the pointer is in use, the pointer will disappear from the screen and Magic Remote will operate like a general remote control. To display the pointer on the screen again, shake Magic Remote to the left and right.

GUIDE Shows programme guide.

Screen Remote) Displays the Screen Remote.

* Accesses the Universal Control Menu. (Depending on model)

3D Used for viewing 3D video. (Only 3D models)

12 (Voice recognition)

(Depending on model)

Network connection is required to use the voice recognition function.

1 Press the voice recognition button.

2 Speak when the voice display window appears on the TV screen.

slowly.

characteristics (voice, pronunciation, intonation, and speed) and the environment (noise and TV volume).

(Q. Settings) Accesses the Quick Settings.

* Pressing and holding the ⚙ button displays the Advanced menu.

Coloured buttons These access special functions in some menus.

Teletext buttons (TEXTs) are used for teletext.

SUBT. Recalls your preferred subtitle in digital mode.

Registering magic remote

How to register the magic remote

To use the Magic Remote, first pair it with your TV.

1 Put batteries into the Magic Remote and turn the TV on.
2 Point the Magic Remote at your TV and press the Wheel (OK) on the remote control.
* If the TV fails to register the Magic Remote, try again after turning the TV off and back on.

How to deregister the magic remote

Press the (BACK) and (HOME) buttons at the same time, for five seconds, to unpair the Magic Remote with your TV.
* Pressing and holding the EXIT button will let you cancel and re-register Magic Remote at once.

How to use magic remote

- Shake the Magic Remote slightly to the right and left or press

(HOME) (INPUT), 3D buttons to make the pointer appear on the screen.

(In some TV models, the pointer will appear when you turn the Wheel (OK) button.)

i ime o

Magic Remote is placed on a flat surface, then the pointer will disappear.

you

by moving it to the edge of the screen.

due to the additional features.

Precautions to take when using the magic remote

You may experience communication failures when using the device outside the coverage area or if there are obstacles within the coverage area.

accessories.

Devices such as a microwave oven and wireless LAN operate in the same frequency band (2.4 GHz) as the Magic Remote. This may cause communication failures.

is within 1 meter of the TV.

Your wireless router should be more than 1 m away from the TV.

Troubleshooting

Cannot control the TV with the remote control.

control.

⊕

to⊕to-

No image display and no sound is produced.

Open source software notice information

To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product, please visit http://opensource.lge.com.

In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to [e-mail]. This offer is valid for three (3) years from the date on which you purchased the product.

products.

The TV turns off suddenly.

interrupted.

Automatic Standby(Depending on model) / Sleep

Timer / Timer Power Off is activated in the TIMERS settings.

sign the TV

automatically after 15 minutes of inactivity.

When connecting to the PC (HDMI), 'No signal' or 'Invalid Format' is displayed.

External control device setup

To obtain the external control device setup information, please visit www.lg.com.

specification

- Because band channel used by the country could be different, the user can not change or adjust the operating frequency and this product is set for the regional frequency table.

distance 20 cm between the device and your body. And this phrase is for the general statement for consideration of user environment.

C€0197①

(Only UF68**, UF77**, UF83**, UF84**)

Wireless module (LGSBW41) specification
Wireless LAN		Bluetooth
Standard IE	EE 802.11a/b/g/n Standard		Bluetooth Version 4.0
Frequency Range	2400 to 2483.5 MHz5150 to 5250 MHz5725 to 5850 MHz (for Non EU)	Frequency Range	2400 to 2483.5 MHz
Output Power (Max.)	802.11a: 13 dBm802.11b: 15 dBm802.11g: 14 dBm802.11n - 2.4 GHz: 16 dBm802.11n - 5 GHz: 16 dBm	Output Power (Max.)	10 dBm or Lower

(Only UF64**)

Wireless LAN module (TWFM-B006D) specification
Standard	IEEE 802.11a/b/g/n
Frequency Range	2400 to 2483.5 MHz5150 to 250 MHz$725 to 5850 MHz (for Non EU)
Output Power (Max.)	802.11a: 11 dBm802.11b: 14 dBm802.11g: 10.5 dBm802.11n - 2.4 GHz: 11 dBm802.11n - 5 GHz: 12.5 dBm

LG

Life's Good

BENUTZERHANDBUCH

Three grayscale images showing a cylindrical object with internal features, no visible text or symbols.

Illustration of a cable being inserted into a device (no text or symbols visible)

Diagram illustrating a hand gesture with magnified views of the screen and corresponding foot positions, likely for instructional or technical purposes.

Illustration of a computer monitor connected to a cable with two magnified insets showing a satellite and a cable (no text or symbols present)

Diagram showing a mechanical or electrical component with two circular insets labeled 'A' and 'B', likely illustrating a schematic or schematic.

VORSICHT

Technical diagram showing a mechanical assembly with a bracket and a close-up view of a component (no text or symbols)

Pure mechanical assembly diagram without any text, numbers, or symbols

1.5 2.5 3.5 4.5 5.5 6.5 7.5 8.5 9.5 LIST 0 ... INFO AD P** EXIT

A

GUIDE 3D TEXT T.OPT SMBT C D

C

Three grayscale close-up images of a cylindrical object with internal striations, no visible text or symbols.

Diagram illustrating a hand holding a device with corresponding three-down illustrations showing different finger positions.

Illustration of a cable being inserted into a screen, showing the cable being inserted (no text or symbols present)

Fonctions de base

Illustration of a computer monitor connected to a cable with two magnified insets showing a device and cable (no text or symbols present)

Diagram showing electrical connections with labeled components and wiring diagrams

10 cm 10 cm 10 cm 10 cm 10 cm

Diagram showing a device with a handle and a separate panel view (no text or symbols)

Pure technical diagram of a mechanical assembly with no visible text, numbers, or symbols

C GUIDE 3D TEXT T:OPT SUBT D

FRANÇAIS

C

Three grayscale close-up images showing a cylindrical object with internal vertical lines, possibly a lens or aperture (no text or symbols visible)

Quando Immaq

ITALIANO

AG-F***	AN-MR600	AG-F***DPOcchia
AN-VC550Videocamera		AN-WF500ngle Wi-Fi/

Illustration of a computer monitor with a close-up of its cable being inserted (no text or symbols visible)

Funzioni di base

Diagram illustrating a device with labeled hand positions and corresponding action buttons for viewing or adjustment.

Illustration of a computer monitor connected to a cable with two magnified insets showing a satellite and a hook (no text or symbols present)

Line drawing of a modern TV setup with a monitor and overhead cabinet (no text or symbols)

ti i modelli.) 0.25 0

ATTENZIONE

elevisore

ATTENZIONE

visore.

Montaggio a parete

ATTENZIONE

ma di s o installar

10 m 1

ITALIANO

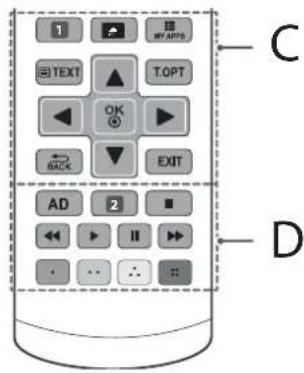

I MY APPS TEXT T.OPT OK EXIT AD 2 II D

A

A

TV/RAD Consente selezio

INPUT

Q.MENU/

Im

RATIO

SUBTITLE

GUIDE

L

Q.VIEW

B

FAV

INFO

MUTE Consente

+Δ-Consente

^P∨Consente

^PAGE∨

0

Consente

alle

1 APP/

1 RECENT

图

(CASA) Consente

MY APPS

delle a

Tasti teletext ☑ TEXT, T.OPT Questi

di na

OK

5

EXIT

la visua

D

AD

2

LIST Consente

2

Consente i avviar

odello T

INPUT Q.MENU RATIO 1..@ 2.abc 3 def 4ghi 5jkl* 6mino 7pqjs 8tuv 9xyz GUIDE 0 □ Q.VIEW FAV INFO @ P MUTE

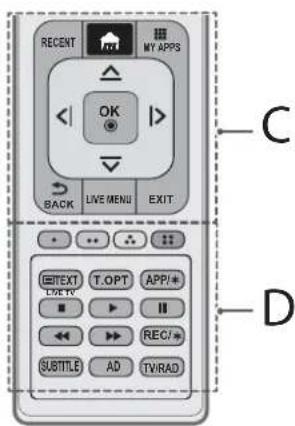

RECENT MY APPS OK BACK LIVE MENU EXIT C D

A

A INPUT Consente modifica Q.MENU / ⚙ 0 Consente alle Im RATIO ?

C
RECENT
(CASA) Consente
LIVE MENU Consente programm modello)

MY APPS

ulsanti

OK

BACK Consente

EXIT

ITALIANO

L
GUIDE Mostr mma. Q.VIEW Consente preceden

D

REC/*
SUBTITLE
AD
TV/RAD

GUIDE 3D TEXT T.OPT SUBT. C D

C

① e e △▽◀▽ △▽◀ te R

A

GUIDE Mostr

D

Three grayscale images showing a cylindrical object with internal features, possibly a mechanical part or component, with no visible text or symbols.

Diagram illustrating a device with hand gestures and corresponding action buttons, showing progressive movement from left to right.

Illustration of a cable being inserted into a screen, showing the cable being inserted (no text or symbols present)

Funciones básicas

Illustration of a computer monitor with two magnified insets showing a mechanical component (no text or symbols present)

Diagram showing a mechanical or electrical component with two circular insets highlighting internal components, likely illustrating a system or connection.

ESPAÑOL

INPUT Q.MENU RATIO TWI 1. 2 abc 3 def 4 phi 5 phi 6 mm 7 diff 8 fun 9 vis GUIDE Q VIEW FAV INFO P PAGE MUTE

1 MY APPS TEXT TOPT OK BACK EXIT AD 2 II D

A

GUIDE 3D TEXT T.OPT SUBT C D

C

MANUAL DE INSTRUÇÕES

Three grayscale close-up images showing a cylindrical object with internal features, no visible text or symbols.

Diagram illustrating finger positioning and movement of a device, with labeled X and Y positions for each step.

Illustration of a cable being inserted into a screen, showing the cable being inserted (no text or symbols present)

Funções básicas

Illustration of a person using a computer with a magnified inset showing a device (no text or symbols present)

Diagram showing a mechanical or electrical setup with two circular components and magnified views of a device with labeled parts.

GUIDE 3D TEXT T.OPT SUBT C D

C

Three grayscale images showing a cylindrical object with internal striations, enclosed in a rectangular frame (no text or symbols visible)

Diagram illustrating hand positioning and movement of a device, with labeled icons for correct/incorrect handling.

Illustration of a cable being inserted into a screen, showing the cable being inserted (no text or symbols present)

Basisfuncties

Illustration of a computer monitor connected to a cable with two magnified insets showing internal components (no text or symbols)

Diagram showing mechanical assembly with labeled components and directional arrows indicating motion or force directions

Diagram showing a device with a handle and a close-up view of its internal structure (no text or symbols)

Pure mechanical assembly diagram without any text, numbers, or symbols

GUIDE 3D TEXT T.OPT SUBT C D

C

Three grayscale images showing a cylindrical object with internal features, possibly a mechanical part or component, with no visible text or symbols.

Illustration of a cable being inserted into a screen (no text or symbols present)

Diagram illustrating a hand gesture with labeled X and Y symbols, showing how to change the screen area.

Illustration of a computer monitor connected to a cable with two magnified insets showing mechanical components (no text or symbols)

10.0k 10.0k 10.0k 10.0k

Diagram showing mechanical assembly with labeled components and directional arrows, including a magnified inset of a component with radius measurement.

INPUT Q.MENU RATIO 1.8 2 sec 3 def 4 ghi ·5 jkl 6 sec 7 qpm 8 lon 9 envt GUIDE O... Q.VIEW FAV INFO® P PAGE MUTE

1 MY APPS TEXT T.OPT OK BACK EXIT AD 2 II D

A

Three grayscale close-up images showing a rectangular object with internal markings, no visible text or symbols.

Diagram illustrating a folding or positioning process with labeled steps and corresponding icons for each step.

Illustration of a cable being inserted into a screen (no text or symbols present)

Osnovne funkcije

Illustration of a person using a computer with a magnified inset showing a device (no text or symbols present)

Diagram showing electrical connections with labeled components and red circles highlighting specific points of connection

C GUIDE 3D TEXT T.OPT SUBT D

C

① Kolesce (OK) Pritisnite sredino kolesca, da izberete meni. Med programi lahko preklapljate s kolescem.

△▽ (navzgor/navzdol/levo/desno) Pritisnite gumb za navzgor, navzdol, levo ali desno za pomikanje pomeniju. Če gumbe △ ▽ pritisneter/ko upor aldjate kazalac, kladnjic, nji izgine z zaslona in daljinski upravljalnik Magic deluje kot običajen upravljalnik. Za ponoven prikaz kazalca na zaslonu stresite daljinski upravljalnik Magic levo in desno.

GUIDE Prikaz sporeda kanalov ali programov.

CI Module (W x H x D)		100.0 mm x 55.0 mm x 5.0 mm
Environment condition	Operating Temperature	0 °C to 40 °C
	Operating Humidity	Less than 80 %
	Storage Temperature	-20 °C to 60 °C
	Storage Humidity	Less than 85 %

	Digital TV	Analogue TV
Television system	DVB-T/T2*	PAL/SECAM B/G/V/D/K, SECAM L/L'
	DVB-C
	DVB-S*/S2*
Programme coverage	VHF, UHF, C-Band*, Ku-Band*	VHF: E2 to E12UHF : E21 to E69CATV: S1 to S20HYPER: S21 to S47
Maximum number of storable programmes	6,000	1,500
External antenna impedance	75 Ω

* Only DVB-T2/C/S/S2 support models.

Regulatory

LG Recycling Policy (Only EU)

LG Electronics offers a customized e-waste take-back & recycling service that meets local needs and requirements in the countries where e-waste regulations are in place, and also provides product and packaging take-back & recycling service voluntarily in some countries. LG Electronics evaluates products' recyclability at the design step using LG's recyclability evaluation tool, with the goal of improving recyclability where practicable. Through these activities, LG seeks to contribute to conserving natural resources and protecting the environment.

For more information about the LG Recycling Policy, please visit our global site at http://www.lg.com/global/sustainability/environment/take-back-recycling

Energy Saving

Energy efficiency cuts energy consumption and thus saves money by reducing electricity bills. The following indications allow to reduce power consumption when the television is not being watched:

television is not being used for a long time, e.g. when on holiday,

Isolator (Only Sweden, Norway)

a connection to protective earthing - and to a cable distribution system using coaxial cable, may in some circumstances create a fire hazard. Connection to a cable distribution system has therefore to be provided through a device providing electrical isolation below a certain frequency range (galvanic isolator, see EN 60728-11) ^4

Better for the environment...

igh Energy Efficiency

- Reduc

... better for you.

EU Ecolabel : PL/22/004

LGE announced the 'LG Declaration for a Cleaner Environment' in 1994, and this ideal has served as a Guiding managerial principle ever since. The Declaration is a foundation that has allowed us to undertake Environmentally friendly activities in careful consideration of economic, environmental, and social aspects. We promote activities for environmental preservation, and we specifically develop our products to embrace the Concept of environment-friendly through whole process from getting raw materials, production, transportation, usage and end-of-life. These environmental characteristics are endorsed by the award of the European Commission as approval of the product environmental status for energy saving. Facilities for recycling and a host of other features.

The full list of criteria and more information on the eco label can be found at the web-site address: http://www.ecolabel.eu

Restriction of Hazardous Substances (Only Ukraine)

electrical and electronic equipment.

Packing Information (Only Russia, Kazakhstan, Belarus)

Русский

Record the model number and serial number of the TV. Refer to the label on the back cover and quote this information to your dealer when requiring any service.

MODEL

SERIAL

DVB

Digital Video

Broadcasting

Please contact LG First.

If you have any inquiries or comments, please contact LG customer information centre.

LG Customer Information Centre
Country	LG Service	Country	LG Service
Österreich	0810 144 131	Nederland	0900 543 5454
België 015 200	00 255 Norge 800	187 40
Luxembourg	0032 15 200255 Polska 801 54	54 54
България	07001 54 54 Portugal 808 78 54	54 54
Česká Rep.	810 555 810 România 031 228	8542
Danmark 8068	5758 Slovensko 0850 111 154
Suomi 0800 0 54 54 España 96	3 05 05 00
France	3220 dites LG ou tapez 5 Sverige	0770 54 54 54
Deutschland	01806 11 54 11(0,20€ pro Annuf aus dem Festnetez der DTAG Mobilfunk max. 0,60€ pro Annuf.)	Schweiz	0848 543 543
Еллάδα	801 11 200 900,210 4800 564	United Kingdom	0344 847 5454
		Россия	8 800 200 7676
Magyarország	06 40 54 54 54	Eesti	800 9990
Éire	01 686 9454	Украина	0 800 303 000
Italia	199600099	Казахстан	8 8000 805 805,2255(GSM)
Беларусь	8 820 0071 1111
Latvija 8020	0201	Узбекистан	8 800 120 2222
Lietuva	880008081	Кыргызстан	0-800-805-8050
Türkiye	444 6 543	Slovenija	080 543 543
