USER MANUAL Favorit 65002 U AEG-ELECTROLUX

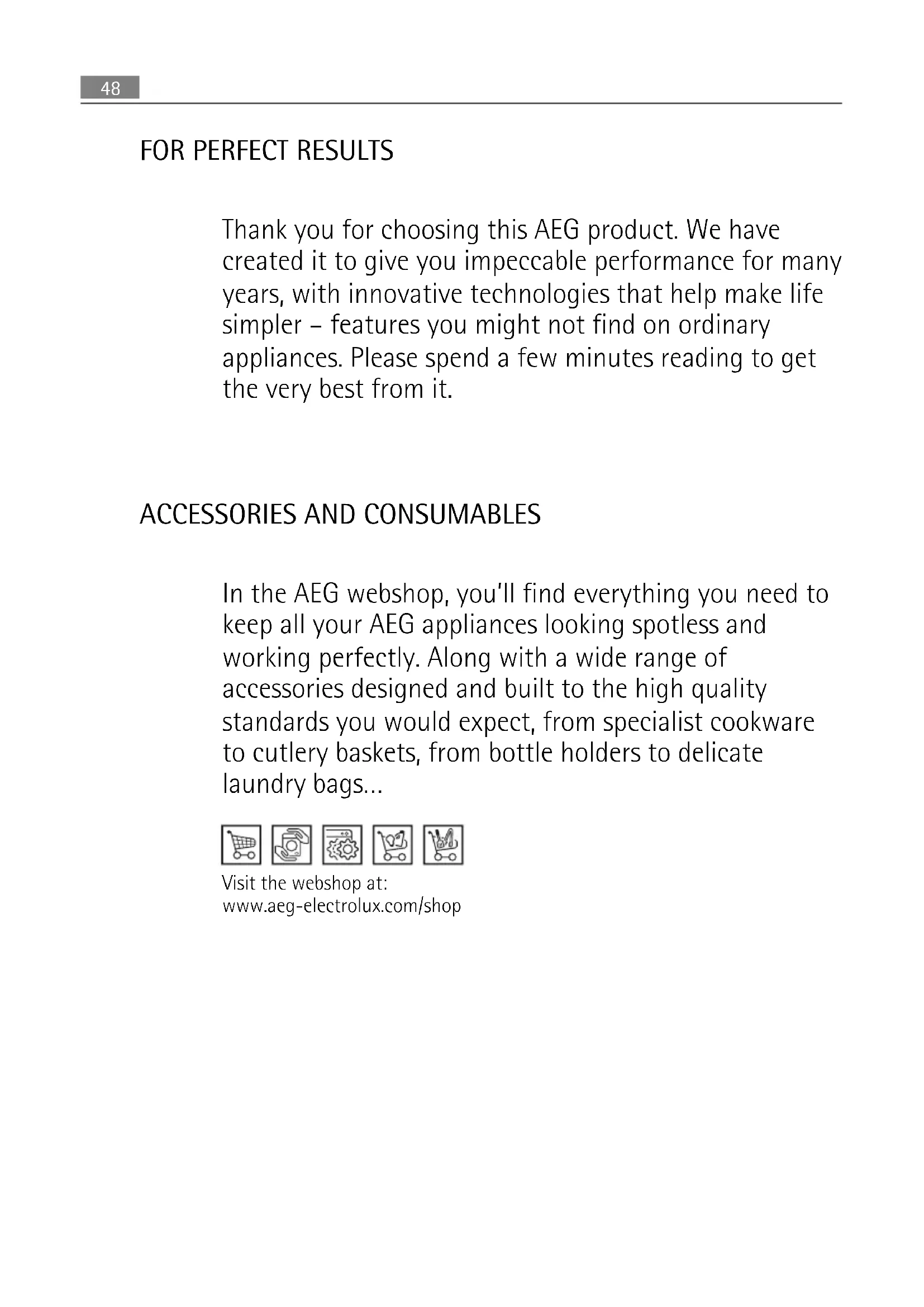

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

ACCESSORIES AND CONSUMABLES

In the AEG webshop, you’ll find everything you need to keep all your AEG appliances looking spotless and working perfectly. Along with a wide range of accessories designed and built to the high quality standards you would expect, from specialist cookware to cutlery baskets, from bottle holders to delicate laundry bags… Visit the webshop at: www.aeg-electrolux.com/shop 48CONTENTS 50 Safety information 53 Product description 54 Control panel 56 Use of the appliance 57 Setting the water softener 58 Use of dishwasher salt 59 Use of detergent and rinse aid 60 Multitab function 60 Loading cutlery and dishes 61 Washing programmes 62 Select and start a washing programme 64 Care and cleaning 65 What to do if… 67 Technical data 68 Environment concerns The following symbols are used in this user manual: Important information concerning your personal safety and information on how to avoid damaging the appliance. General information and tips Environmental information Subject to change without notice Contents 49SAFETY INFORMATION Before the installation and use, read this manual carefully:

• For your safety and the safety of your property.

• To help the environment.

• For the correct operation of the appliance. Always keep these instructions with the appliance also if you move or give it to a differ- ent person. The manufacturer is not responsible if an incorrect installation and use causes damage. Children and vulnerable persons safety

• Do not let persons, children included, with reduced physical sensory, reduced mental functions or lack of experience and knowledge to use the appliance. They must have supervision or instruction for the operation of the appliance by a person who is respon- sible for their safety.

• Keep all packaging away from children. There is the risk of suffocation or injury.

• Keep all detergents in a safe area. Do not let the children touch the detergents.

• Keep children and pets away from the appliance when the door is open. General safety

• Do not change the specifications of this appliance. There is the risk of injury and dam- age to the appliance.

• Obey the safety instructions from the detergent manufacturer to prevent burns to eyes, mouth and throat.

• Do not drink the water from the appliance. Particles of detergent can stay in your ap- pliance.

• Do not keep the appliance door open without supervision. This to prevent injury and to fall on an open door.

• Do not sit or stand on the open door. Use

• The appliance is only for domestic use. Do not use the appliance for other uses to pre- vent injury to persons and damage to property.

• Only use the appliance to clean accessories that are applicable for dishwashers.

• Do not put flammable products or items that are wet with flammable products in, near or on the appliance. Risk of explosion or fire.

• Put the knives and all items with sharp points in the cutlery basket with their points down. If not, put in a horizontal position in the upper basket or in the knife basket. (Not all models have the knife basket).

• Use only specified products for dishwashers (detergent, salt, rinse aid).

• Types of salt that are not specified for dishwashers can cause damage to the water softener.

• Fill the appliance with salt before you start a washing programme. Remaining salt in the appliance can cause corrosion or make a hole in the bottom of the appliance.

Safety information• Do not fill the rinse aid dispenser with other products than the rinse aid, (dishwasher cleaning agent, liquid detergent). This can cause damage to the appliance.

• Make sure that the spray arms can move freely before you start a washing programme.

• The appliance can release hot steam if you open the door while a washing programme operates. There is a risk of skin burns.

• Do not remove the dishes from the appliance until the washing programme is completed. Care and cleaning

• Before you clean the appliance, deactivate it and disconnect the mains plug from the mains socket.

• Do not use flammable products or products that can cause corrosion.

• Do not use the appliance without the filters. Make sure that the installation of the filters is correct. An incorrect installation causes unsatisfactory washing results and damage to the appliance.

• Do not use spray water or steam to clean the appliance. Risk of electrical shock and damage to the appliance. Installation

• Make sure that the appliance is not damaged. Do not install or connect a damaged appliance, contact the supplier.

• Remove all packaging before you install and use the appliance.

• Only a qualified person must do the electrical connection, the plumbing and the instal- lation of the appliance. This to prevent the risks of structural damage or injury.

• Make sure that the mains plug is disconnected from the mains socket during installation.

• Do not drill into the sides of the appliance to prevent damage to hydraulic compo- nents and electrical components.

Important! Obey the instructions in the template supplied with the appliance: – To install the appliance. – To assemble the door panel. – To connect to the water supply and drain.

• Make sure that the appliance is installed below and adjacent to safe structures. Frost precautions

• Do not install the appliance where the temperature is less than 0 °C.

• The manufacturer is not responsible for frost damage. Water connection

• Use new hoses to connect the appliance to the water supply. Do not use used hoses.

• Do not connect the appliance to new pipes or pipes not used for a long time. Let the water flow for some minutes, then connect the inlet hose.

• Make sure not to squash or cause damage to the water hoses when you install the appliance.

• Make sure that the water couplings are tight to prevent a water leakage.

• The first time you use the appliance, make sure that the hoses do not have water leaks. Safety information 51• The water inlet hose has a safety valve and a double sheath with an inner mains cable. There is pressure in the water inlet hose only when the water flows. If there is a leak in the water inlet hose, the safety valve interrupts the flow of water. – Be careful when you connect the water inlet hose: – Do not put the water inlet hose or the safety valve in water. – If the water inlet hose or the safety valve are damaged, immediately disconnect the mains plug from the mains socket. – Contact the service centre to replace the water inlet hose with safety valve. WARNING! Dangerous voltage. Electrical connection

• The appliance must be earthed.

• Make sure that the electrical information on the rating plate agrees with the power supply.

• Always use a correctly installed shockproof socket.

• Do not use multiple plugs and extension cables. There is a risk of fire.

• Do not replace or change the mains cable. Contact the service centre.

• Make sure not to squash or cause damage to the mains plug and cable behind the appliance.

• Make sure that there is access to the mains plug after the installation.

• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug. Service centre

• Only a qualified person can repair or work on the appliance. Contact the service centre.

• Use only original spare parts. To discard the appliance

• To prevent the risk of injury or damage: – Disconnect the mains plug from the mains socket. – Cut off the mains cable and discard it.

Safety information– Remove the door catch. This prevents children or pets to be closed in the appliance. There is a risk of suffocation. – Discard the appliance at the local waste disposal centre. WARNING! The dishwasher detergents are dangerous and can cause corrosion !

• If an accident occurs with these detergents, contact immediately a physician.

• If the detergent gets into the mouth, contact immediately a physician.

• If the detergent gets into the eyes, contact immediately a physician and clean the eyes with water.

• Keep dishwasher detergents in a safe area and out of children touch.

• Do not keep the appliance door open when there is detergent in the detergent dispenser.

• Fill the detergent dispenser only before you start a washing programme. PRODUCT DESCRIPTION

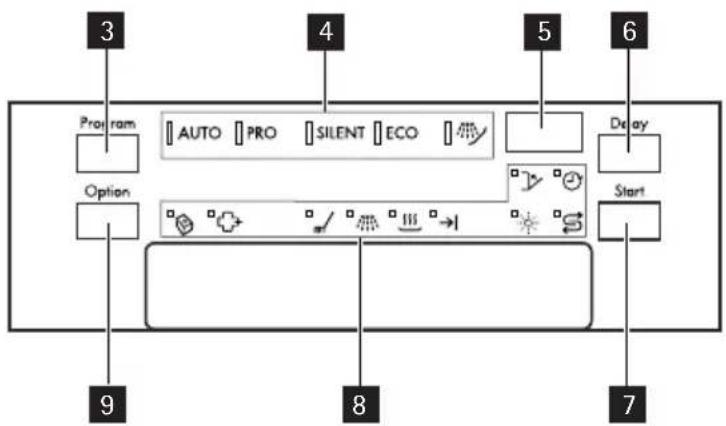

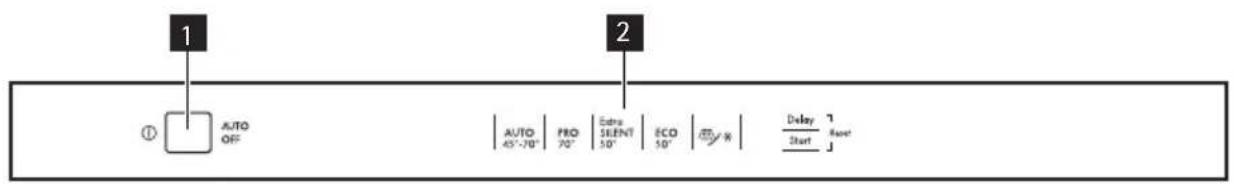

1 On/off button 2 Programme guide 3 Program button 4 Programme indicators 5 Display 6 Delay button 7 Start button 8 Indicators 9 Option button Indicators Multitab indicator. It comes on when you activate the function. Extra-Hygiene indicator. It comes on when you activate the function. Washing phase indicator. It comes on when the washing phase operates. Rinsing phase indicator. It comes on when the rinsing phases operate. Drying phase indicator. It comes on when the drying phase operates. End indicator. It comes on when the washing programme is completed. Rinse aid indicator. It comes on when it is necessary to fill the rinse aid dis- penser.

Salt indicator. It comes on when it is necessary to fill the salt container.

After you fill the container, the salt indicator can stay on for some hours. This does not have an unwanted effect on the operation of the appliance. Delay indicator. It comes on when you activate the delay start.

Control panelIndicators Door indicator. It comes on when the door is open or not closed correctly.

1) When the salt container and/or the rinse aid dispenser are empty, the related indicators do not come on

while a washing programme operates. On/off button Press this button to activate or deactivate the appliance. After ten minutes from the end of the washing programme, the AUTO OFF function auto- matically deactivates the appliance. This helps to decrease energy consumption. Programme guide This guide helps you in the selection of the washing programme. Program button Press this button again and again until the indicator of the washing programme comes on. Refer to 'Washing programmes'. Display The display shows:

• The electronic adjustment of the level of the water softener

• The activation and deactivation of the rinse aid dispenser (only with the multitab func- tion on)

• The washing programme time

• The remaining time to the end of the washing programme

• The end of a washing programme (the display shows a zero)

• The delay start time

• The alarm codes. Delay button Press this button again and again to delay the start of the washing programme from 1 to 24 hours. Start button Press this button to start:

• The washing programme

• The countdown of the delay start. Option button Press this button to set the functions. When a function is activated, the related indicator comes on. Option button Multitab Extra-Hygiene Press one time ACTIVATED DEACTIVATED Press two times DEACTIVATED ACTIVATED Control panel 55Option button Multitab Extra-Hygiene Press three times ACTIVATED ACTIVATED Press four times DEACTIVATED DEACTIVATED Functions Multitab If you use the combi detergent tablets ('3 in 1', '4 in 1', '5 in 1'), use the multitab func- tion. Refer to 'Multitab function'. Extra-Hygiene This function gives better results for the hygiene. During the rinsing phase, the tempera- ture stays at 70°C for 10 to 14 minutes. Setting mode The appliance must be in setting mode for these operations:

• To set and start a washing programme.

• To set and start a delay start.

• To adjust electronically the level of the water softener.

• To deactivate or activate the rinse aid dispenser (only with the multitab function on). Activate the appliance. The appliance is in setting mode when:

• All the programme indicators come on.

• The display shows two horizontal status bars. Activate the appliance. The appliance is not in setting mode when:

• Only one programme indicator comes on.

• The display shows the time of the washing programme or of the delay start. – It is necessary to cancel the programme or the delay start to go back to the setting mode. Refer to 'Select and start a washing programme'.

USE OF THE APPLIANCE

1. Be sure that the set level of the water softener agrees with the water hardness in

your area. If not, adjust the water softener.

2. Fill the salt container with dishwasher salt.

3. Fill the rinse aid dispenser with rinse aid.

4. Load cutlery and dishes into the appliance.

5. Set the correct washing programme for the type of load and soil.

6. Fill the detergent dispenser with the correct quantity of detergent.

Use of the applianceSETTING THE WATER SOFTENER The water softener removes minerals and salts from the water supply. These minerals and salts can cause damage to the appliance. Adjust the level of the water softener if this does not agree with the water hardness in your area. Contact your local water authority to know the water hardness in your area. Water hardness Water hardness ad- justment German degrees (°dH) French degrees (TH°) mmol/l Clarke de- grees manually elec- troni- cally

2) Do not use salt at this level.

You must adjust the water softener manually and electronically. Manual adjustment Turn the water hardness dial to the position 1 or 2 (refer to the table). Electronic adjustment

1. Activate the appliance.

2. Make sure that the appliance is in setting mode.

Setting the water softener

573. Press and hold the Delay button and the Start button at the same time until the pro-

5. Press the Program button,

• The programme indicators PRO and SILENT go off.

• The programme indicator AUTO continues to flash.

• The display shows the setting of the water softener (example: = level 5).

6. Press the Program button again and again to change the setting.

7. Deactivate the appliance to confirm.

If the water softener is set electronically to the level 1, the salt indicator stays off.

1. Turn the cap counterclockwise and open

2. Fill the salt container with 1 litre of wa-

ter (only for the first time you fill with salt).

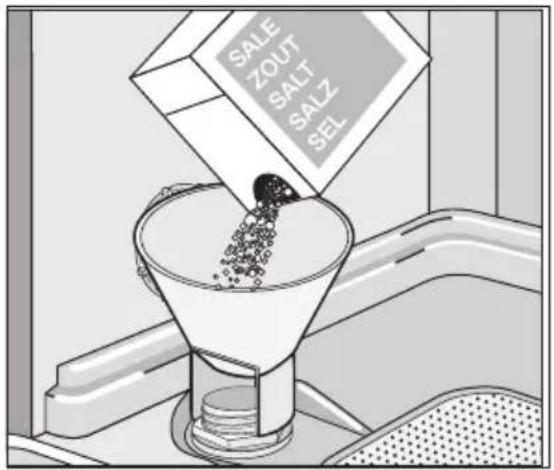

3. Use the funnel to fill the salt container

4. Remove the salt around the opening of

5. Turn the cap clockwise to close the salt

container. It is correct that water comes out from the salt container when you fill it with salt.

Use of dishwasher saltUSE OF DETERGENT AND RINSE AID

Use of detergent To help the environment, do not use more than the correct quantity of detergent. Obey the instructions on the detergent packaging. How to fill the detergent dispenser:

Press the release button

of the detergent dispenser.

Put the detergent in the dispenser

3. If the washing programme has a prewash phase, put a small quantity of detergent

on the inner part of the appliance door.

If you use the detergent tablets, put the tablet in the detergent dispenser

5. Close the detergent dispenser. Press the lid until it locks into position.

Use long washing programmes when you use the detergent tablets. These cannot fully dissolve with short washing programmes and can decrease the washing results. Use of rinse aid Rinse aid makes it possible to dry the dishes without streaks and stains. The rinse aid dispenser automatically adds rinse aid during the last rinsing phase. Do these steps to fill the rinse aid dispenser:

Press the release button

of the rinse aid dispenser.

with rinse aid. The mark 'max' shows the maximum level.

3. Remove the spilled rinse aid with an absorbent cloth to prevent too much foam dur-

ing the washing programme.

4. Close the rinse aid dispenser. Press the lid until it locks into position.

Adjust the rinse aid dosage Factory set: position 3. Use of detergent and rinse aid 59You can set the rinse aid dosage between position 1 (lowest dosage) and position 4 (high- est dosage). Turn the rinse aid selector

to increase or decrease the dosage. MULTITAB FUNCTION The multitab function is for combi detergent tablets. These tablets contain agents as detergent, rinse aid and dishwasher salt. Some types of tablets can contain other agents. Be sure that these tablets are applicable for the water hardness in your area (refer to the instructions on the packaging of the products). The multitab function deactivates the flow of rinse aid and salt. The multitab function deactivates the indicators of salt and rinse aid. The programme duration can increase if you use the multitab function. Activate or deactivate the multitab function before the start of a washing programme. You cannot activate or deactivate the function when a washing programme operates. Before the start of a washing programme, always make sure that the multitab function is on. To deactivate the multitab function and use separately detergent, salt and rinse aid

1. Press the Option button until the multitab indicator goes off. The function is deacti-

3. Adjust the water hardness to the highest level.

4. Start a washing programme without dishes.

5. When the washing programme is completed, adjust the water softener to the water

hardness in your area.

6. Adjust the quantity of rinse aid.

LOADING CUTLERY AND DISHES

Refer to the leaflet 'Examples of ProClean loads'. Hints and tips

• Do not put in the appliance items that can absorb water (sponges, household cloths).

• Remove the remaining food from the items.

• Make soft the remaining burned food on the items.

• Put hollow items (cups, glasses and pans) with the opening down.

• Make sure that water does not collect in containers or in bowls.

• Make sure that cutlery and dishes do not bond together.

• Make sure that the glasses do not touch other glasses.

• Put small items in the cutlery basket.

Multitab function• Mix the spoons with other cutlery to prevent them to bond together.

• When you put the items in the baskets, make sure that the water can touch all surfaces.

• Put light items in the upper basket. Make sure that the items do not move.

• Water droplets can collect on plastic items and non-stick pans. WASHING PROGRAMMES Programme Type of soil Type of load Programme de- scription Extra-Hygiene function

All Crockery, cutlery, pots and pans Prewash Wash 45 °C or 70

Rinses Dry Yes, with effect Heavy soil Crockery, cutlery, pots and pans Prewash Wash 70 °C Rinses Dry Yes, without ef- fect

Normal soil Crockery and cutlery Prewash Wash 50 °C Rinses Dry Yes, without ef- fect

Normal soil Crockery and cutlery Prewash Wash 50 °C Rinses Dry Yes, with effect Use this programme to quickly rinse the dishes. This prevents the remaining food to bond on the dishes and bad odours to come out from the appliance. Do not use detergent with this pro- gramme. Rinse Yes, without ef- fect

1) The appliance senses the type of soil and the quantity of items in the baskets. It automatically adjusts the

temperature and quantity of the water, the energy consumption and the programme time.

2) This is the most silent washing programme. The pump works at a very low speed to decrease the level of

noise. Because of the low speed, the programme time is long.

3) This is the standard programme for test institutes. With this programme you have the most efficient use of

water and energy consumption for crockery and cutlery with normal soil. Refer to the supplied leaflet for test information. Consumption values Programme

1) The display shows the programme time.

The water pressure and temperature, the variations of the mains supply and the quantity of dishes can change the consumption values.

SELECT AND START A WASHING PROGRAMME

Starting the washing programme without delay start

1. Close the appliance door.

2. Activate the appliance.

3. Make sure that the appliance is in setting mode.

4. Set the washing programme.

• The related programme indicator comes on.

• The programme time flashes in the display.

• The phase indicators of the set washing programme come on.

5. If necessary, set the extra-hygiene function.

• The selection of the function must always occur after the set of the washing pro- gramme.

6. Press the Start button, the washing programme starts automatically.

• The phase indicators go off but the indicator of the phase in operation stays on. Starting the washing programme with delay start

1. Close the appliance door.

2. Activate the appliance.

3. Make sure that the appliance is in setting mode.

4. Set the washing programme and functions.

5. Press the Delay button again and again until the display shows the time of the delay

• The time of the delay start flashes in the display.

• The delay indicator is on.

6. Press the Start button, the countdown starts automatically.

• The delay start time flashes no more in the display.

• The phase indicators of the set washing programme go off.

• When the countdown is completed, the washing programme starts automatically. – The indicator of the phase in operation is on.

Select and start a washing programmeThe opening of the appliance door stops the countdown. When you close the door, the countdown continues from the point of interruption. Cancelling the delay start The countdown is not operating

• The phase indicators come on.

2. Press the Start button to start the washing programme.

The countdown is operating

• The phase indicators come on.

• The washing programme starts automatically. Interruption of a washing programme

• Open the appliance door. – The washing programme stops.

• Close the appliance door. – The washing programme continues from the point of interruption. Cancelling the washing programme If the washing programme has not started, you can change the selection. To change the selection while the washing programme operates, it is necessary to cancel the programme.

• At the same time press and hold the Delay button and the Start button until: – All the programme indicators come on. – The display shows two horizontal status bars. Make sure that there is detergent in the detergent dispenser before you start a new wash- ing programme. End of the washing programme When the washing programme is completed, the display shows a zero and the end indi- cator is on.

1. Deactivate the appliance.

2. Open the appliance door.

3. For better drying results, keep the appliance door ajar for some minutes.

Remove the items from the baskets

• Let the dishes become cold before you remove them from the appliance. Hot dishes can be easily damaged.

• First remove the items from the lower basket, then from the upper basket. Select and start a washing programme 63• There can be water on the sides and on the door of the appliance. Stainless steel be- comes cool more quickly than the dishes.

To remove and clean the filters Dirty filters decrease the washing results. Although the maintenance is very low with these filters, make a check at intervals and if necessary, clean them.

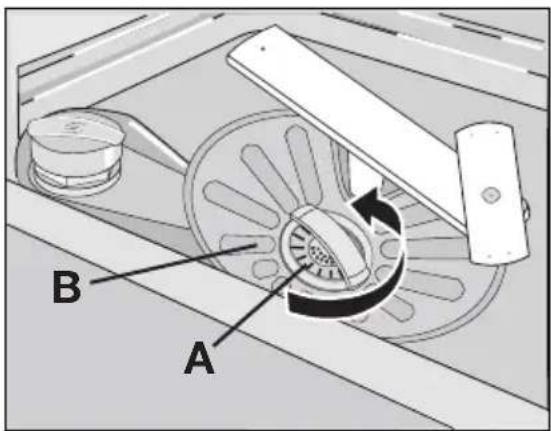

1. Turn the filter (A) counterclockwise and

remove it out from filter (B).

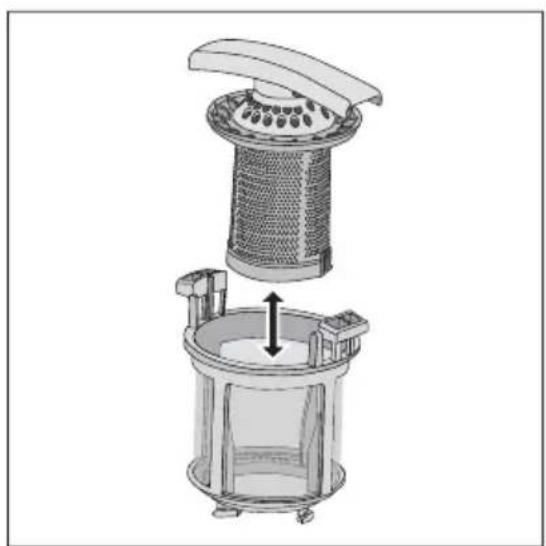

2. Filter (A) has two parts. To disassemble

the filter, pull them apart.

3. Fully clean the parts with water.

4. Put the two parts of the filter (A) togeth-

er and push. Make sure that they assem- ble correctly in each other.

5. Remove the filter (B).

6. Fully clean the filter (B) with water.

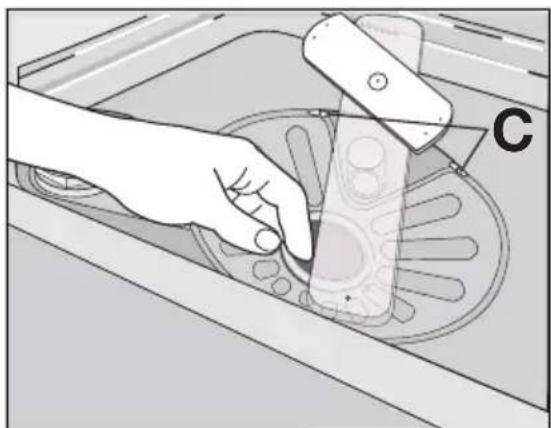

7. Put the filter (B) to its initial position.

Make sure that it assembles correctly in the two guides (C).

8. Put the filter (A) into position in filter

(B). Turn the filter (A) clockwise until it locks.

Care and cleaningTo clean the spray arms Do not remove the spray arms. If the holes in the spray arms become clogged, remove remaining parts of soil with a thin pointed object. To clean the external surfaces Clean the external surfaces of the appliance and control panel with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads or solvents (acetone).

The start of the appliance does not occur or it stops during operation. First try to find a solution to the problem (refer to the table). If not, contact the service centre. With some malfunctions, the display shows an alarm code:

- The appliance does not fill with water

- The appliance does not drain the water

- The anti-flood device is on. WARNING! Deactivate the appliance before you do the checks. Malfunction Possible cause Possible solution The appliance does not fill with water. The water tap is blocked or there is limescale on it. Clean the water tap. The water pressure is too low. Contact your local water au- thority. The water tap is closed. Open the water tap. The filter in the water inlet hose is blocked. Clean the filter. The connection of the water in- let hose is not correct. Make sure that the connection is correct. The water inlet hose is dam- aged. Make sure that the water inlet hose has no damages. The appliance does not drain the water. There is a blockage in the sink spigot. Clean the sink spigot. The connection of the water drain hose is not correct. Make sure that the connection is correct. The water drain hose is dam- aged. Make sure that the water drain hose has no damages. The anti-flood device is on. Close the water tap and con- tact the service centre. What to do if… 65Malfunction Possible cause Possible solution The start of the washing pro- gramme does not occur. The appliance door is open. The door indicator is on. Close the appliance door. You did not press the Start touchpad or button. Press the Start touchpad or button. The mains plug is not connec- ted in the mains socket. Connect the mains plug. The fuse in the fuse box is dam- aged. Replace the fuse. The delay start is set. • Cancel the delay start.

• When the countdown is completed, the washing pro- gramme starts automatical- ly. After the check, activate the appliance. The programme continues from the point of inter- ruption. If the malfunction occurs again, contact the service centre. If the display shows other alarm codes, contact the service centre. The necessary information for the service centre is on the rating plate. Record this information: – Model (MOD.) ........................................................ – Product number (PNC) .......................................... – Serial number (S.N.) .............................................. The washing results and drying results are not satisfactory Problem Possible cause Possible solution The dishes are not clean. The washing programme was not applicable for the type of load and soil. Make sure that the washing programme is applicable for the type of load and soil. You did not put the items cor- rectly in the baskets, water did not touch all surfaces. Put the items correctly in the baskets. The spray arms could not turn freely. Incorrect position of the items in the baskets. Make sure that an incorrect po- sition of the items do not cause the blockage of the spray arms. The filters are dirty or not as- sembled and installed correct- ly. Make sure that the filters are clean and correctly assembled and installed. The quantity of detergent was not sufficient or missing. Make sure that the quantity of detergent is sufficient. Limescale particles on the dishes. The salt container is empty. Fill the salt container with dish- washer salt.

What to do if…Problem Possible cause Possible solution Incorrect level of the water softener adjustment. Adjust the water softener with the correct level. The salt container cap is not closed correctly. Make sure that the salt con- tainer cap is closed correctly. There are streaks, whitish stains, or a bluish layer on glasses and dishes. The rinse aid quantity is too high. Decrease the rinse aid quantity. Dry water drop stains on glasses and dishes. The rinse aid quantity is too low. Increase the rinse aid quantity. The detergent can be the cause. Use a different brand of deter- gent. The dishes are wet. The washing programme was without a drying phase or with a decreased drying phase. For better drying results, keep the door ajar for some minutes. The dishes are wet and matt. The rinse aid dispenser is emp- ty. Fill the rinse aid dispenser with rinse aid. The multitab function is on (this function automatically deactivates the rinse aid dis- penser). Activate the rinse aid dispenser. Activating the rinse aid dispenser

1. Activate the appliance.

2. Make sure that the appliance is in setting mode.

3. Press and hold button Delay and button Start at the same time until the programme

• The programme indicators AUTO and SILENT go off.

• The programme indicator PRO continues to flash.

• The display shows the setting of the rinse aid dispenser. The rinse aid dispenser is off. The rinse aid dispenser is on.

6. Press button Option to change the setting.

7. Deactivate the appliance to confirm.

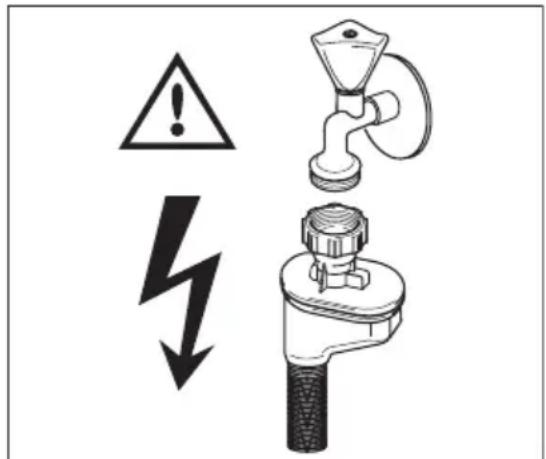

1) Connect the water inlet hose to a water tap with a 3/4'' thread.

The rating plate on the inner edge of the appliance door shows the electrical connection data. If the hot water comes from alternative sources of energy, (e.g. solar panels, photovoltaic panels and aeolian), use a hot water supply to decrease energy consumption. ENVIRONMENT CONCERNS The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product. Recycle the materials with the symbol . Put the packaging in applicable containers to recycle it.

FONCTION "TOUT EN 1"
