USER MANUAL Millenia CT 2 Paradigm

The Ocial Sound of YOU SHIFTSERIES

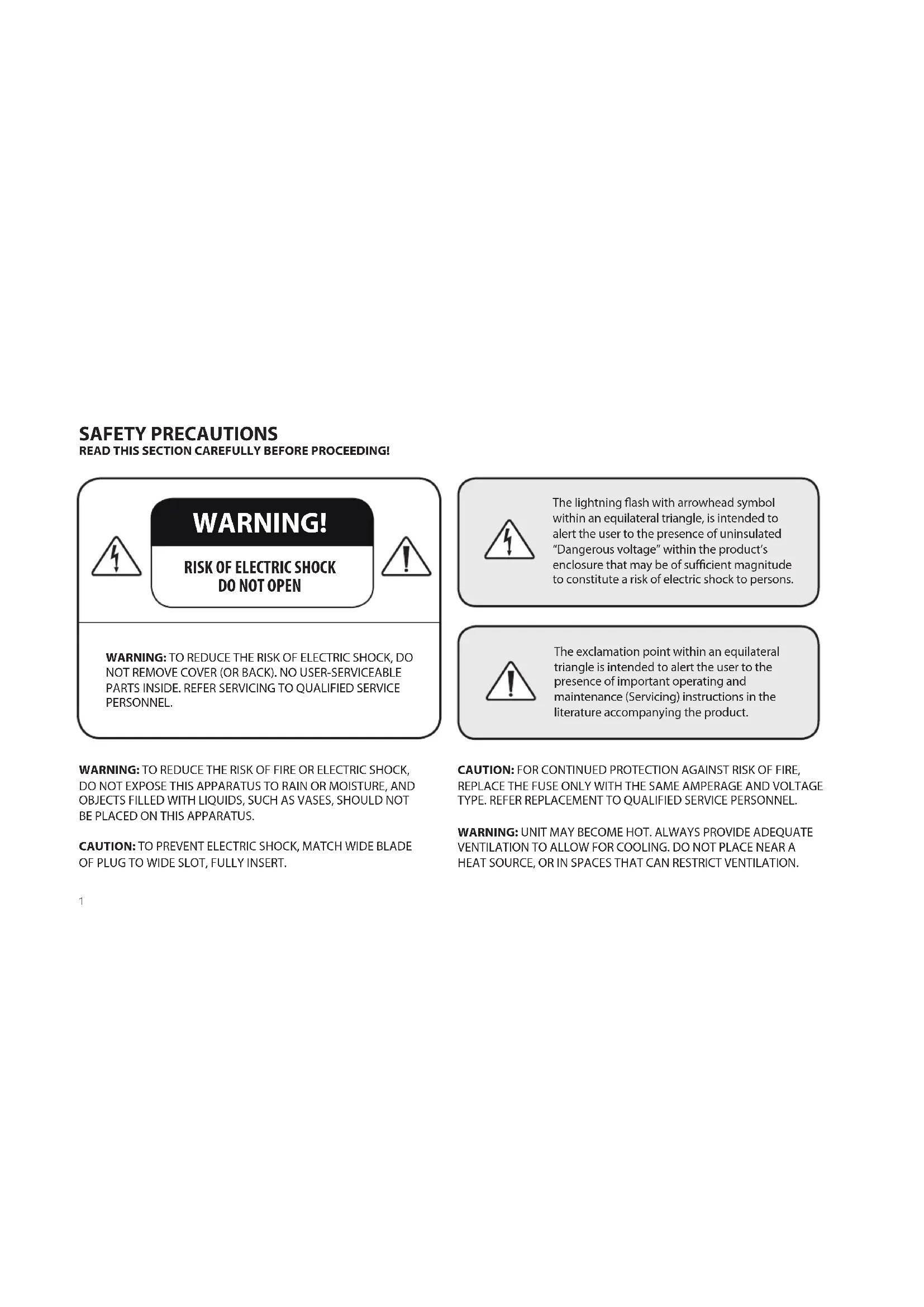

The lightning flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated “Dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (Servicing) instructions in the literature accompanying the product.

WARNING: UNIT MAY BECOME HOT. ALWAYS PROVIDE ADEQUATE

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry a cloth.

7. Do not block any ventilation openings. Install in accordance

with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat

registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-

type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched,

particularly at plugs, convenience receptacles and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or

table specified by the manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination, to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused

for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is

required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. Use the mains plug to disconnect the apparatus from the mains

SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE”

17. “DO NOT EXPOSE THIS EQUIPMENT TO DRIPPING OR SPLASHING

AND ENSURE THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS

VASES, ARE PLACED ON THE EQUIPMENT.”

18. “THE MAINS PLUG OF THE POWER SUPPLY CORD SHALL REMAIN

READILY OPERABLE.”3 SERIAL NUMBER The serial number for your Millenia CT is located on the rear of the subwoofer. We suggest you record the following information here in the manual in the event that you need to contact Paradigm about your system: Serial Number: _________________________________________________ Retail Outlet or Website where Product was Purchased: _________________________________________________ Retail Outlet Phone Number: _________________________________________________ Purchase Date: _________________________________________________ For warranty purposes you must retain your sales receipt and this Owners Manual for warranty to be valid.4 ABOUT PARADIGM In the early 1980s Paradigm was just an idea in the minds of a couple of twenty-somethings who loved music. Unlike today, there was no 225,000 square-foot factory, no 36,000-cu.-ft. on-site anechoic measurement chamber, just a desire to make really really good sounding speakers and sell them at a down to earth price. Today Paradigm speakers are sold on six continents. We’ve been voted the #1 speaker brand 22 times* and fans scour the web to buy used versions of our original speakers. That should tell you something about the quality of our products. For more information visit www.paradigm.com. Your Millenia CT is a high-end design loaded with superior technology. In other words … it’s got loads of very cool stuff you won’t find in any other compact audio system. For those who salivate over technical details, we’ve included Tech Specs section in the back of this manual to give you the skinny on why your system sounds so good! The difference the Millenia CT will make to your music, movies and gaming can’t be put into words, but you’ll hear it and you’ll feel it. It’s an experience that takes you beyond two little speakers and a subwoofer to a place where you’re absolutely lost in the experience. It’s the Paradigm Difference. We guarantee you won’t be able to keep that difference a secret. And we hope you don’t. Spread the word. Talk about your Paradigms. BRAG about them. Play them and let others listen. We’re all different and our sound should reflect that. Some of us like music, others love movies, others are gaming enthusiasts and others enjoy all of that. No matter who you are, or where you live, what you like, or what you do, we want to be The Official Sound of You

Read this manual and follow all instructions. If you still have questions visit the Q&A page on our website at www.paradigm.com *Rated #1 Best Price/Value. Inside Track Dealer Survey. An annual independent nationwide survey of consumer electronics specialist retailers and custom installers. Your new speakers may be wall mounted, brackets not supplied. See retail outlet or contact Paradigm for more information.

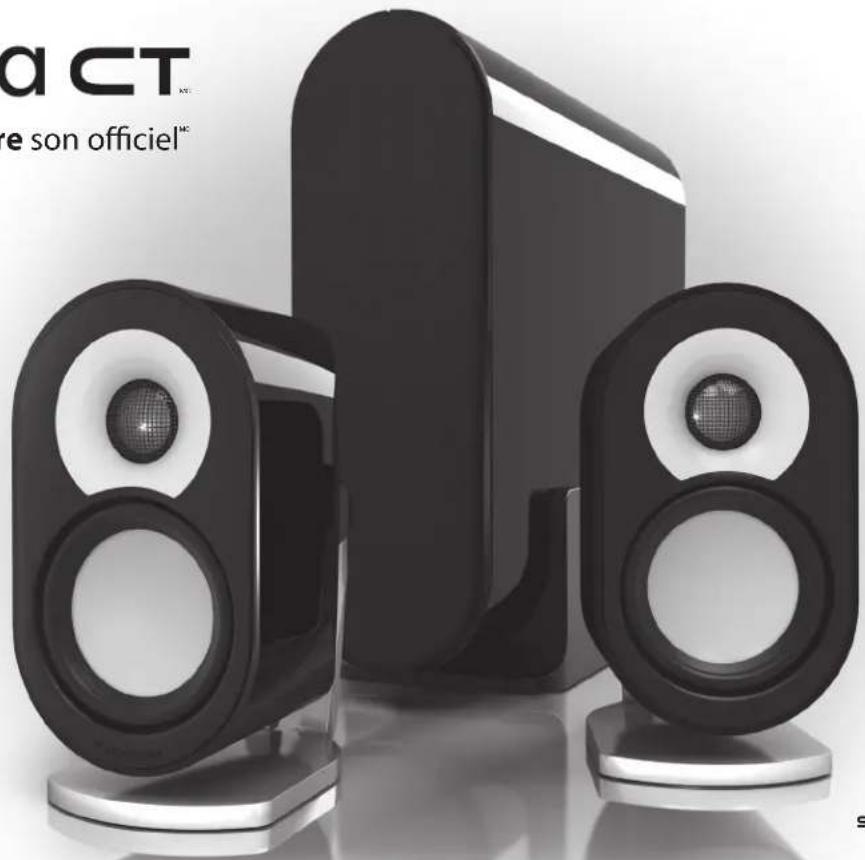

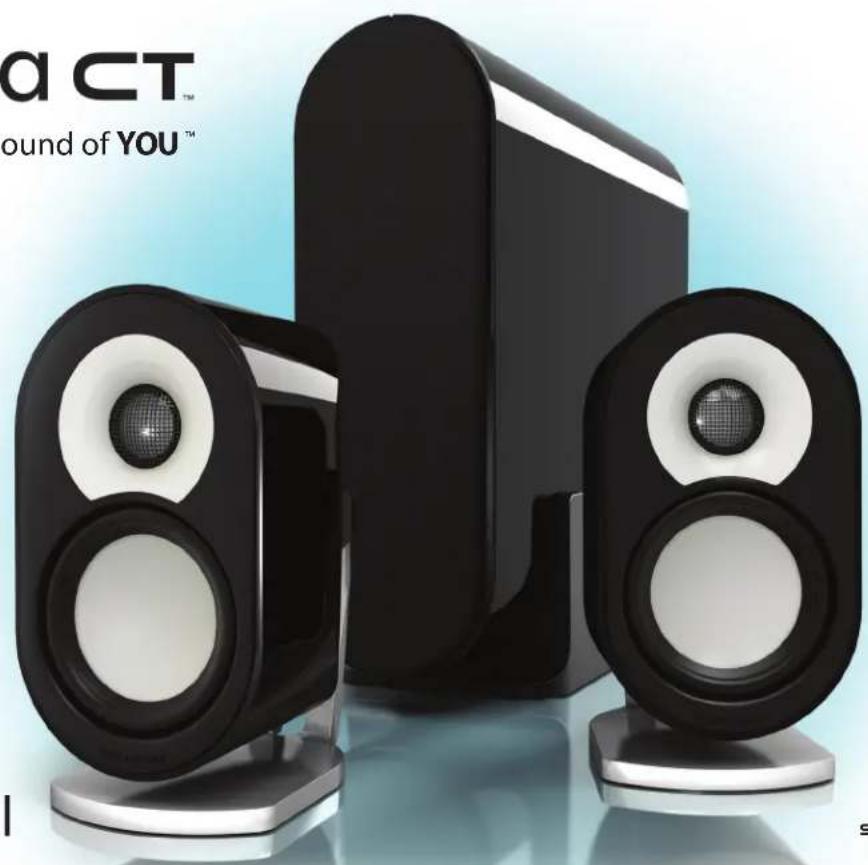

ABOUT YOUR MILLENIA CT

WALL MOUNTING5 HOOK UP REMOTE CONTROL CAUTION: To avoid damaging the equipment, DO NOT plug in subwoofer or speakers until all components have been connected. RECOMMENDATION: Paradigm recommends using a safety-agency approved surge protector to prevent damage to equipment from voltage variations and power spikes. The Remote Control requires one (1) 3-volt CR2025 lithium battery (included). The Remote Control turns the power on and off and controls audio volume.

IMPORTANT: Your system cannot be operated without the remote control. If you lose the remote control you will have to contact Paradigm directly at 905-696-2868 to purchase a new one. Loss of Remote Control is not covered under warranty. Press Power button to turn system on and off. Select Analog or Digital Input. Press and hold for increased volume. Press and hold for decreased volume. Press Mute to silence the system. Press Mute again to restore sound. When the system is muted the green LED flashes until audio is restored. Refer to the Set-Up Guide included with your system for detailed connection instructions.6 TECHNICAL SPECIFICATIONS Millenia CT Speakers Design 2-driver, 2-way sealed enclosures with integrated baffle and chassis. Low-diffraction grilles maximize imaging and ensure smooth dispersion. Crossover 3rd-order electro-acoustic at 2.4 kHz High-Frequency Driver 25-mm (1 in) S-PAL™ satin-anodized pure-aluminum dome Bass / Midrange Driver 102-mm (4 in) S-PAL™ satin-anodized pure-aluminum cone Low-Frequency Extension* 80 Hz (DIN) Frequency Response On-Axis ±2 dB 140 Hz – 20 kHz 30° Off-Axis ±2 dB 140 Hz – 18 kHz Sensitivity – Room / Anechoic 88 dB / 85 dB Suitable Amplifier Power Range 15 – 100 Watts Maximum Input Power

50 Watts Impedance Compatible with 8 ohms H x W x D (including stand) 7-3/4 in x 4-1/2 in x 5-3/4 in / 19.7 cm x 11.5 cm x 14.6 cm Weight (unpacked, including stand / hardware) 5.0 lb / 2.27 kg each Finish Black Gloss Accessories (included) Tabletop / shelf stands † With typical program source, provided the amplifier clips no more than 10% of the time.7 Millenia CT Powered Subwoofer Subwoofer Design Single driver, bass reflex design, dual high-velocity low-turbulence resistive ports, built-in 3-channel amplifier Amplifier Design: High-current, Discrete Output Built-in 3-channel amplifier feeds subwoofer and 2 satellite speakers: Total System Power: 80 Watts RMS Sustained / 240 Watts Dynamic Peak Amplifier Features Auto-On / Standby, soft clipping Bass Driver 210-mm (8 in) reinforced polymer-composite cone, 38-mm (1-1/2 in) voice-coil Low-Frequency Extension* 28 Hz (DIN) Subwoofer Cut-Off Frequency 150 Hz fixed Input Optical digital; 3.5-mm auxiliary analog H x W x D (cradle adds 5/8 in / 1.59 cm to height)** 15-3/4 in x 5 in x 14 in / 40.0 cm x 12.7 cm x 35.6 cm Weight (unpacked, stand adds 0.6 lb / .26 kg) 12.5 lb / 5.7 kg Finish Black Gloss *DIN 45 500. Indicates -3 dB in a typical listening room. **Bumper pads add 1 in / 2.5 cm to height in horizontal position. TECHNICAL SPECIFICATIONS (cont’d …)8 LIMITED WARRANTY Paradigm® speakers covered in this manual are warranted to be and remain free of manufacturing and/or material defects for a period of one (1) year from the date of original purchase. For the Paradigm® subwoofer covered in this manual, all parts including the amplifier are warranted to be and remain free of manufacturing and/or material defects for a period of one (1) year. Within the time periods specified, repair, replacement or adjustment of parts for manufacturing and/or material defects will be free of charge to the original owner. Thermal Or Mechanical Abuse/Misuse Is Not Covered Under Warranty. Limitations:

• Warrantydoesnotapplyiftheproductisusedinprofessionalorcommercialapplications. Warranty is Void if:

• Theproducthasbeenabused(intentionallyoraccidentally);

• Theproducthasbeenusedinconjunctionwithunsuitableorfaultyequipment;

• Theserialnumberhasbeenremovedordefaced. Owner Responsibilities:

• Providenormal/reasonableoperatingcareandmaintenance;

• Provideorpayfortransportationchargesforproducttoservicefacility;

• Provideproofofpurchase(yoursalesreceiptgivenattimeofpurchasemustberetainedforproof-of-purchasedate).9 LIMITED WARRANTY (cont’d …) Should servicing be required, contact us using the information below, to arrange, bring in or ship prepaid, any defective unit. Visit our website, www.paradigm.com for more information. Paradigm Electronics Inc. reserves the right to improve the design of any product without assuming any obligation to modify any product previously manufactured. This warranty is in lieu of all other warranties expressed or implied, of merchantability, fitness for any particular purpose and may not be extended or enlarged by anyone. In no event shall Paradigm Electronics Inc., their agents or representatives be responsible for any incidental or consequential damages. Some jurisdictions do not allow limitation of incidental or consequential damages, so this exclusion may not apply to you. Retain this manual and your sales receipt for proof of warranty term and proof of purchase. For additional product support, call Paradigm at 905-696-2868 or email service@paradigm.comNOTESNOTESSHIFTSERIES
