USER MANUAL SUG30 TECHNICS

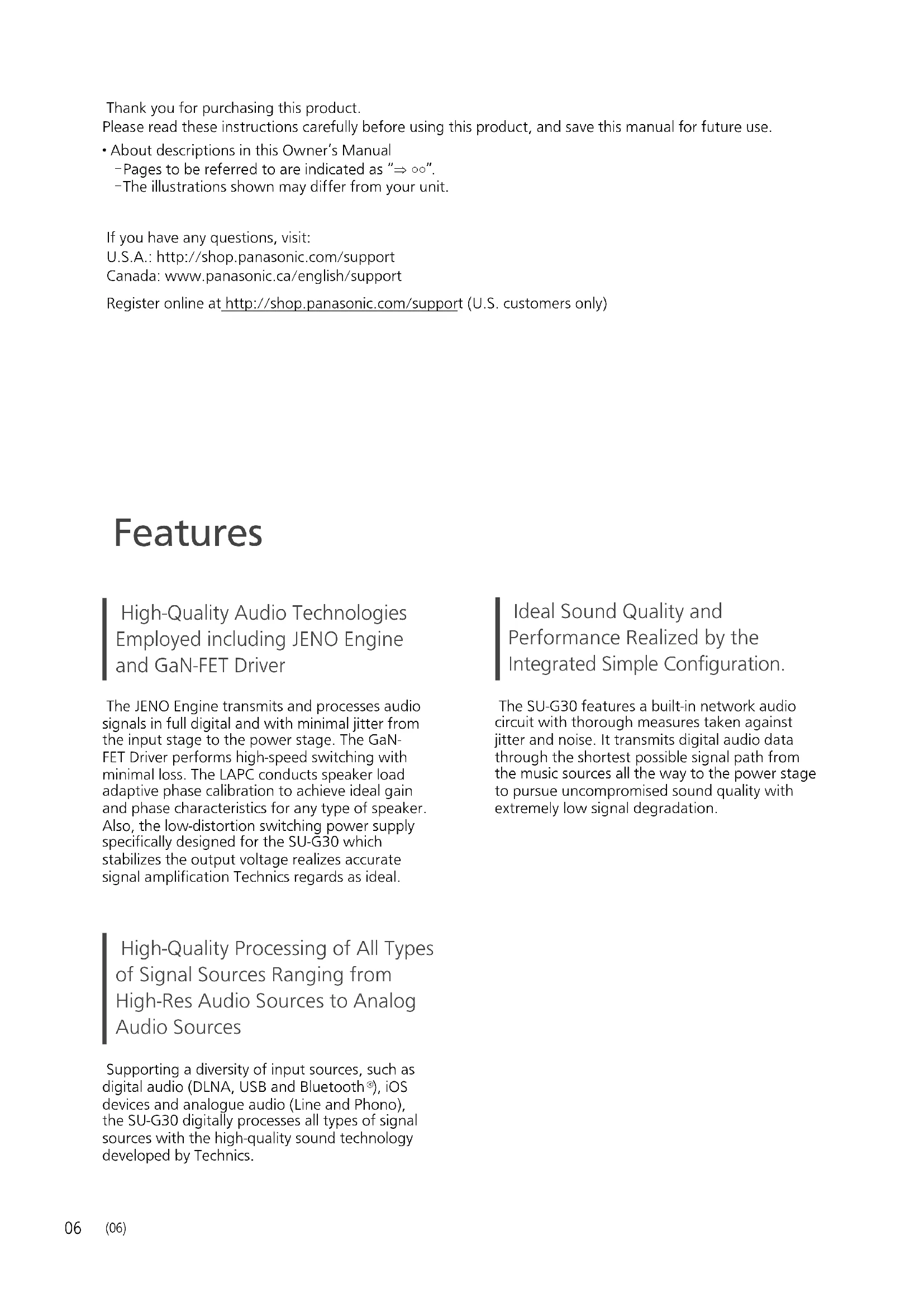

• About descriptions in this Owner’s Manual - Pages to be referred to are indicated as “ ○○”. - The illustrations shown may differ from your unit. If you have any questions, visit: U.S.A.: http://shop.panasonic.com/support Canada: www.panasonic.ca/english/support Register online at http://shop.panasonic.com/support (U.S. customers only) High-Quality Audio Technologies Employed including JENO Engine and GaN-FET Driver The JENO Engine transmits and processes audio signals in full digital and with minimal jitter from the input stage to the power stage. The GaN- FET Driver performs high-speed switching with minimal loss. The LAPC conducts speaker load adaptive phase calibration to achieve ideal gain and phase characteristics for any type of speaker. Also, the low-distortion switching power supply specifically designed for the SU-G30 which stabilizes the output voltage realizes accurate signal amplification Technics regards as ideal. High-Quality Processing of All Types of Signal Sources Ranging from High-Res Audio Sources to Analog Audio Sources Supporting a diversity of input sources, such as digital audio (DLNA, USB and Bluetooth

), iOS devices and analogue audio (Line and Phono), the SU-G30 digitally processes all types of signal sources with the high-quality sound technology developed by Technics. Ideal Sound Quality and Performance Realized by the Integrated Simple Configuration. The SU-G30 features a built-in network audio circuit with thorough measures taken against jitter and noise. It transmits digital audio data through the shortest possible signal path from the music sources all the way to the power stage to pursue uncompromised sound quality with extremely low signal degradation. Features (06)English

Table of contents IMPORTANT SAFETY INSTRUCTIONS

Please carefully read the “IMPORTANT SAFETY INSTRUCTIONS” of this manual before use. Installation 11 Installation Control reference guide 12 Main unit, Remote control Connections 16 Speaker connection, AC power supply cord connection, Network settings Operations 24 Playing back connected devices Settings 38 Other settings, Using output correction function (LAPC) Troubleshooting 42 Before requesting service, read the troubleshooting. Others 47 Playable media, Specifications, etc. Accessories AC power supply cord (1) K2CG3YY00191 Remote control (1) N2QAYA000115 Batteries for remote control (2)

(ONLY FOR CANADA) The enclosed Canadian French label sheet corresponds to the English display on the unit.

• Product numbers provided in this Owner’s Manual are correct as of December 2015.

• These may be subject to change.

• Do not use AC power supply cord with other equipment. (07)08 Licenses The Wi-Fi CERTIFIED™ Logo is a certification mark of Wi-Fi Alliance

The Wi-Fi Protected Setup™ Identifier mark is a certification mark of Wi-Fi Alliance

” is a registered trademark of Wi-Fi Alliance

“Wi-Fi Protected Setup™”, “WPA™”, and “WPA2™” are trademarks of Wi-Fi Alliance

“Made for iPod”, “Made for iPhone”, and “Made for iPad” mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, iPhone, or iPad may affect wireless performance. AirPlay, iPad, iPhone, iPod, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. iPad Air and iPad mini are trademarks of Apple Inc. Google Play and Android are trademarks of Google Inc. Windows is a trademark or a registered trademark of Microsoft Corporation in the United States and other countries. Mac and OS X are trademarks of Apple Inc., registered in the U.S. and other countries. The Bluetooth

word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Panasonic Corporation is under license. Other trademarks and trade names are those of their respective owners. aptX

software is copyright CSR plc or its group companies. All rights reserved. The aptX

mark and the aptX logo are trademarks of CSR plc or one of its group companies and may be registered in one or more jurisdictions. DLNA, the DLNA Logo and DLNA CERTIFIED are trademarks, service marks, or certification marks of the Digital Living Network Alliance. MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson. Windows Media and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. This product is protected by certain intellectual property rights of Microsoft Corporation and third parties. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary and third parties. FLAC Decoder Copyright (C) 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009 Josh Coalson Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: - Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. - Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. - Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

“AS IS” AND ANY EXPRESS OR IMPLIED

WARRANTIES, INCLUDING, BUT NOT

(INCLUDING, BUT NOT LIMITED TO,

OR TORT (INCLUDING NEGLIGENCE OR

OTHERWISE) ARISING IN ANY WAY OUT

OF THE USE OF THIS SOFTWARE, EVEN IF

ADVISED OF THE POSSIBILITY OF SUCH

DAMAGE. The Spotify software is subject to third party licenses found here: www.spotify.com/connect/third-party-licenses (08)English

Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable safety instructions listed below. Keep these operating instructions handy for future reference. 1 Read these instructions. 2 Keep these instructions. 3 Heed all warnings. 4 Follow all instructions. 5 Do not use this apparatus near water. 6 Clean only with dry cloth. 7 Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8 Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9 Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding- type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10 Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11 Only use attachments/accessories specified by the manufacturer. 12 Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over. 13 Unplug this apparatus during lightning storms or when unused for long periods of time. 14 Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. Warning Unit

• To reduce the risk of fire, electric shock or product damage, - Do not expose this unit to rain, moisture, dripping or splashing. - Do not place objects filled with liquids, such as vases, on this unit. - Use only the recommended accessories. - Do not remove covers. - Do not repair this unit by yourself. Refer servicing to qualified service personnel. - Do not let metal objects fall inside this unit. - Do not place heavy items on this unit. AC power supply cord

• The power plug is the disconnecting device. Install this unit so that the power plug can be unplugged from the socket outlet immediately.

• Ensure the earth pin on the power plug is securely connected to prevent electrical shock. - An apparatus with CLASS I construction shall be connected to a power socket outlet with a protective earthing connection. Caution Unit

• Do not place sources of naked flames, such as lighted candles, on this unit.

• This unit may receive radio interference caused by mobile telephones during use. If such interference occurs, please increase separation between this unit and the mobile telephone.

• Do not touch the top surface of this unit. This unit becomes hot while it is on. Placement

• Place this unit on an even surface.

• To reduce the risk of fire, electric shock or product damage, - Do not install or place this unit in a bookcase, built- in cabinet or in another confined space. Ensure this unit is well ventilated. - Do not obstruct this unit’s ventilation openings with newspapers, tablecloths, curtains, and similar items. - Do not expose this unit to direct sunlight, high temperatures, high humidity, and excessive vibration.

• Ensure that the placement location is sturdy enough to accommodate the weight of this unit ( 49).

• Keep your speakers at least 10 mm (

”) away from the system for proper ventilation.

• Do not lift or carry this unit by holding the knobs or antenna. Doing so may cause this unit to fall, resulting in personal injury or malfunction of this unit. Battery

• Danger of explosion if battery is incorrectly replaced. Replace only with the type recommended by the manufacturer.

• Mishandling of batteries can cause electrolyte leakage and may cause a fire. - Remove the battery if you do not intend to use the remote control for a long period of time. Store in a cool, dark place. - Do not heat or expose to flame. - Do not leave the battery(ies) in a car exposed to direct sunlight for a long period of time with doors and windows closed. - Do not take apart or short circuit. - Do not recharge alkaline or manganese batteries. - Do not use batteries if the covering has been peeled off. - Do not mix old and new batteries or different types at the same time.

• When disposing of the batteries, please contact your local authorities or dealer and ask for the correct method of disposal. (09)10

SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. Conforms to UL STD 60065. Certified to CAN/CSA STD C22.2 No.60065. Product Identification Marking is located on the rear panel of the unit. THE FOLLOWING APPLIES IN THE U.S.A. AND CANADA. This device complies with Part 15 of FCC Rules and RSS-Gen of IC Rules. Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device.

IC: 216A-SUG30 This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that is deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated keeping the radiator at least 20 cm (7

”) or more away from person’s body (excluding extremities: hands, wrists, feet and ankles). This device is restricted to indoor use due to its operation in the 5.15 to 5.25 GHz frequency range. The WLAN feature of this product shall exclusively be used inside buildings. THE FOLLOWING APPLIES ONLY IN THE U.S.A. FCC Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, follow the attached installation instructions and use only shielded interface cables when connecting to peripheral devices. Any unauthorized changes or modifications to this equipment would void the user’s authority to operate this device. Declaration of Conformity Trade Name: Technics Model No.: SU-G30 Responsible Party: Panasonic Corporation of North America Two Riverfront Plaza, Newark, NJ 07102-5490 Support Contact: http://www.panasonic.com/contactinfo SU-G30 THE FOLLOWING APPLIES ONLY IN CANADA. CAN ICES-3(B)/NMB-3(B) Information on Disposal in other Countries outside the European Union This symbol is only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal. (10)11 English IMPORTANT SAFETY INSTRUCTIONS / Installation Installation

• Turn off all equipment before connection and read the appropriate operating instructions. Unit care

• Pull out the AC power supply cord from the outlet before maintenance. Clean this unit with a soft cloth.

• When dirt is heavy, wring a wet cloth tightly to wipe the dirt, and then wipe it with a soft cloth.

• Do not use solvents including benzine, thinner, alcohol, kitchen detergent, a chemical wiper, etc. This might cause the exterior case to be deformed or the coating to come off. To dispose or transfer this unit

• This unit may contain private information. Before disposing of or transferring this unit, perform the following to delete the data, including personal or secret information.

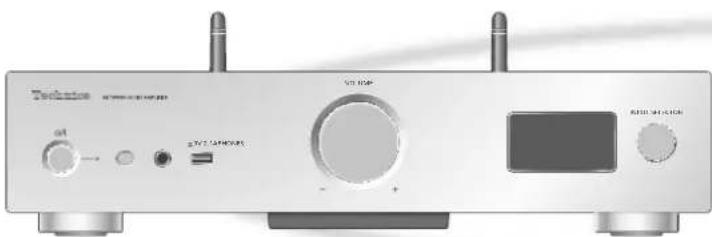

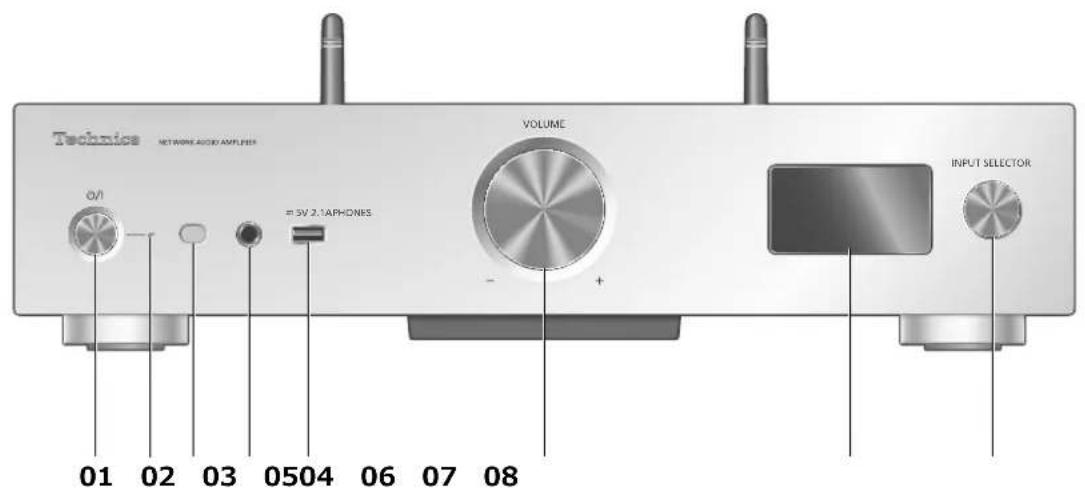

• Press to switch the unit from on to standby mode or vice versa. In standby mode, the unit is still consuming a small amount of power. 02 Power indicator

• Blue: The unit is on.

• Red: The unit is in standby mode with the following status. - Network standby function is available. ( 39) - Charging an iPhone/iPad/iPod ( 31)

• Off: The unit is in standby mode with no function available. 03 Remote control signal sensor

• Distance: Within approx. 7 m (23 ft) directly in front

• Angle: Approx. 30° left and right 04 Headphones jack

• When a plug is connected, the speakers do not output sound.

• Excessive sound pressure from earphones and headphones can cause hearing loss.

• Listening at full volume for long periods may damage the user’s ears. 05 USB-A terminal ( DC 5 V 2.1 A)

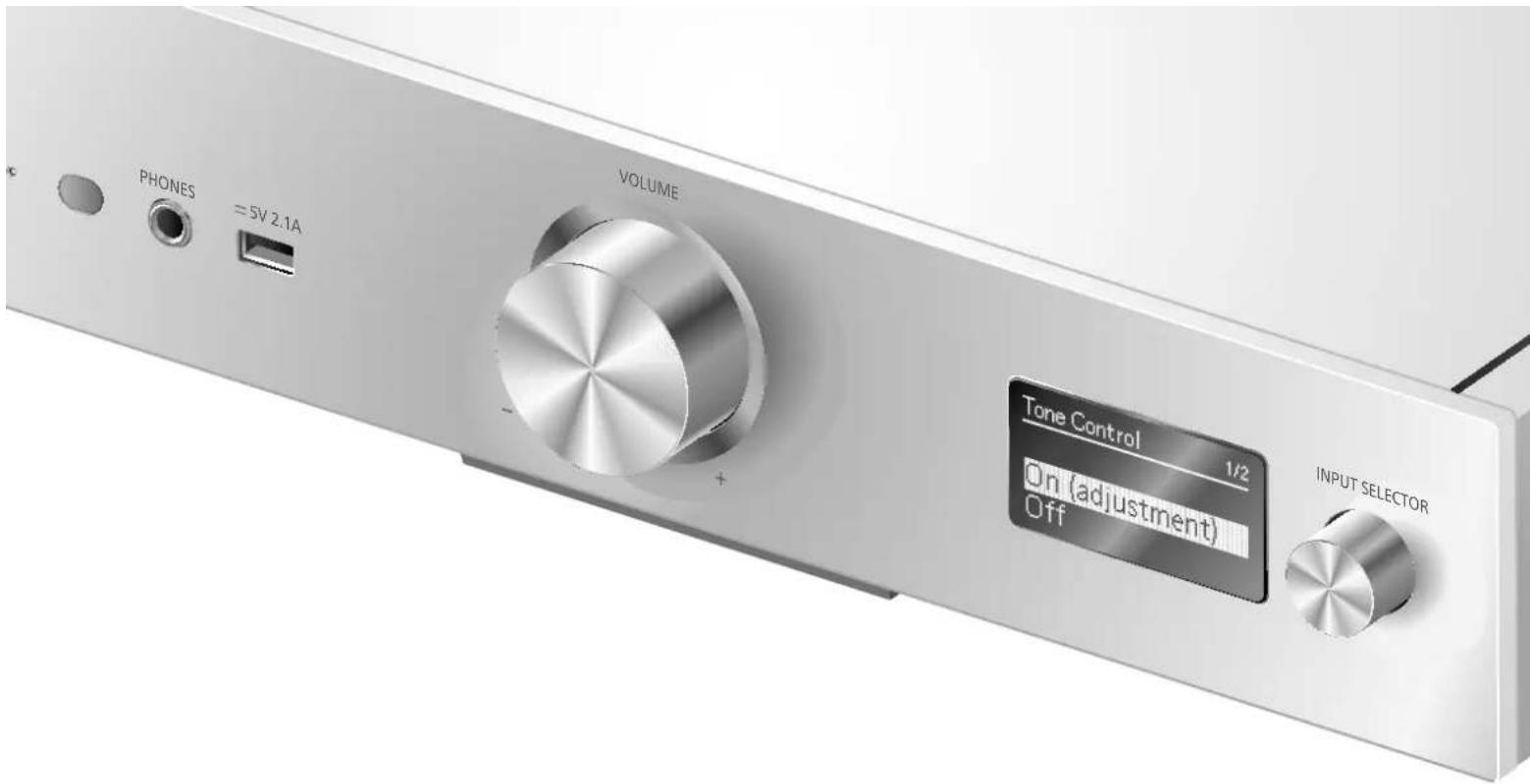

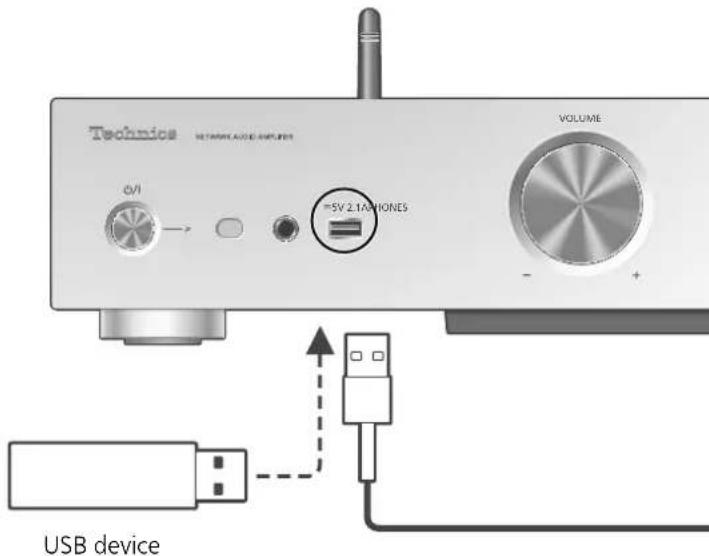

• Port for iPhone/iPad/iPod and USB devices ( 30, 31) 06 Volume knob

• -- dB (min), -99.0 dB to 0 dB (max)

• When this unit is muted, if you turn the knob, the muting will be cancelled. 07 Display

• Input source, playback status, etc. are displayed. For details, visit: www.technics.com/support/ 08 Input selector knob

• Turn this knob clockwise or anticlockwise to switch the input source. 09 Analog audio input terminals (PHONO) ( 36)

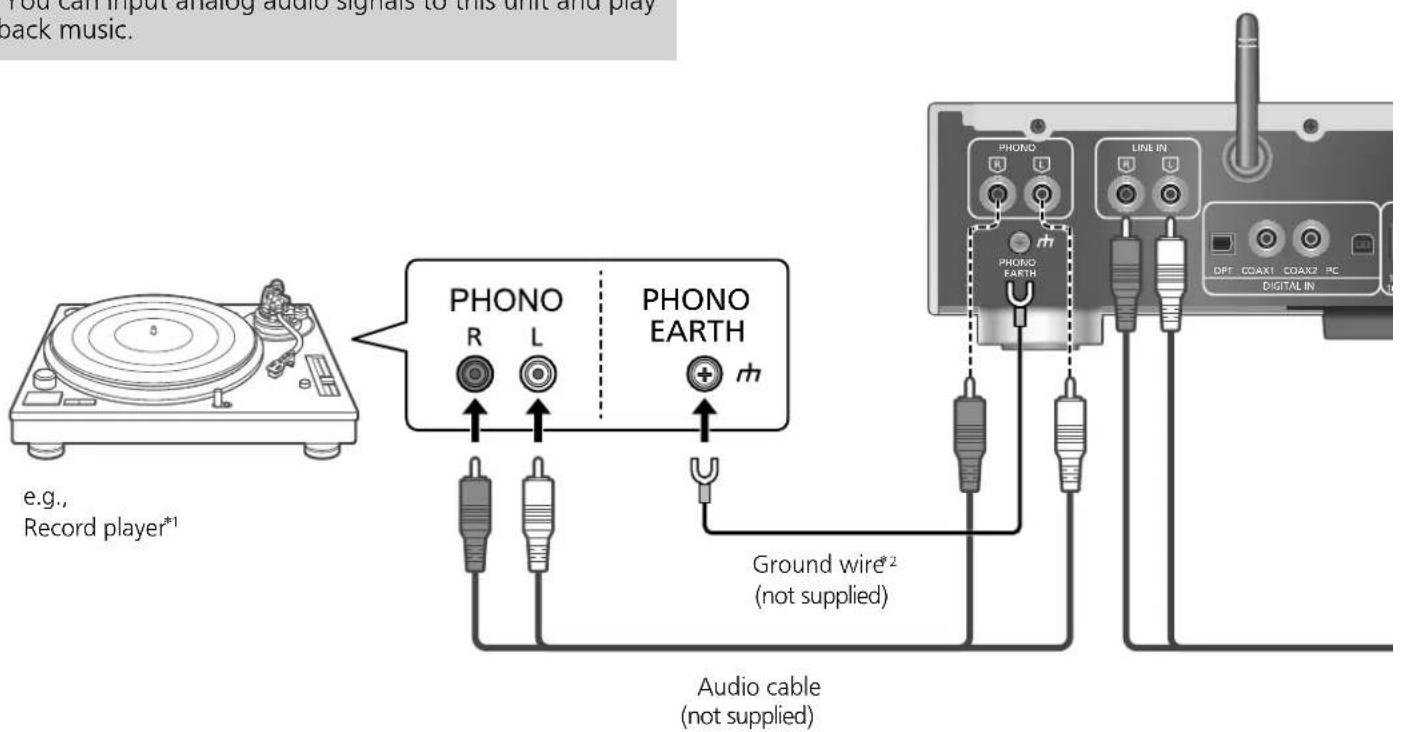

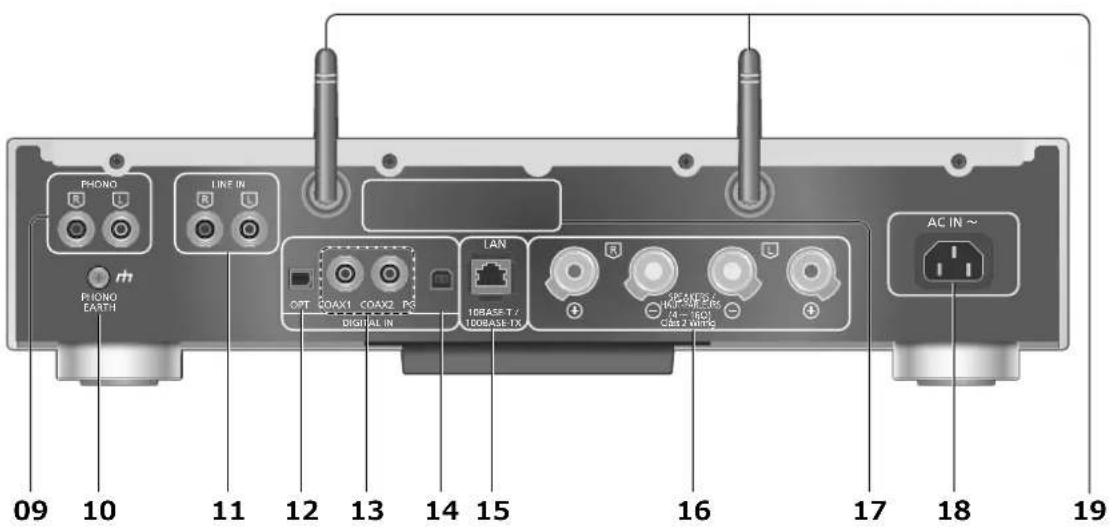

• MM cartridges are supported. 10 PHONO EARTH terminal ( 36)

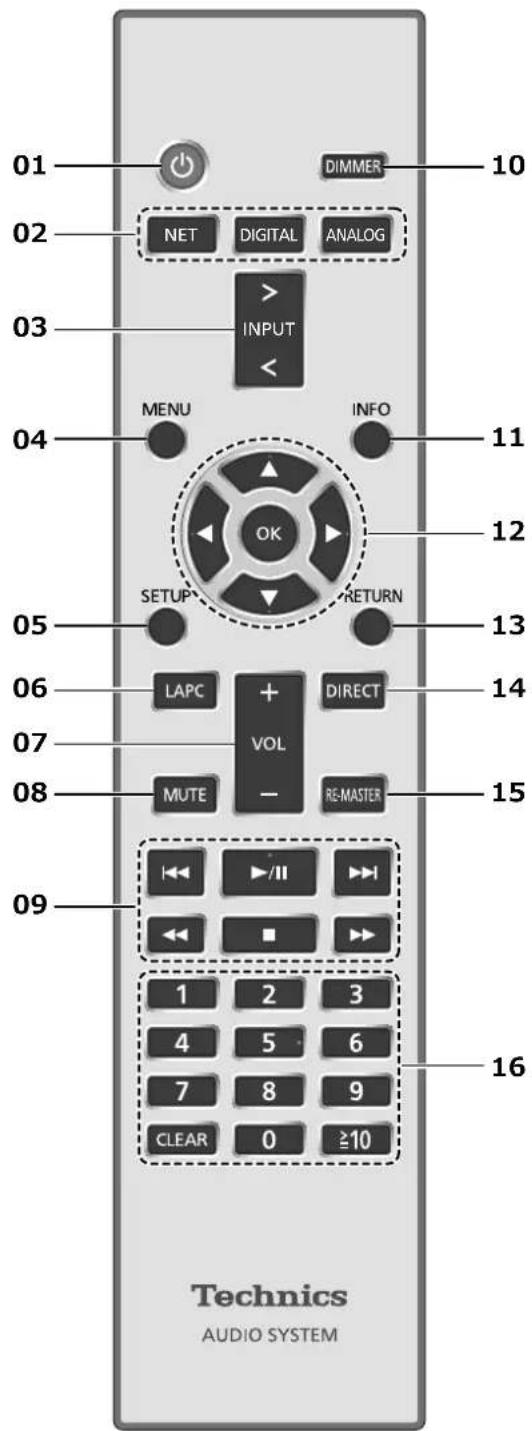

Using the remote control

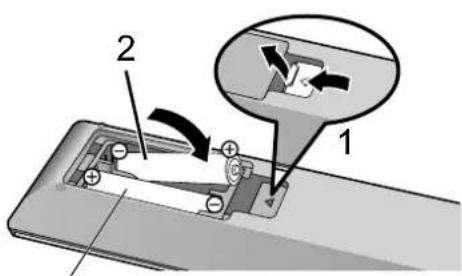

(Alkaline or manganese batteries) Note

• Insert the battery so the terminals ( and ) match those in the remote control.

• Point it at the remote control signal sensor on this unit. ( 12)

• Keep the batteries out of reach of children to prevent swallowing. (14)15 English Control reference guide Remote control code When other equipment responds to the supplied remote control, change the remote control code.

• The factory default is “Mode 1”. 1 Press [SETUP]. 2 Press [ ], [ ] to select “Remote Control” and then press [OK].

• The current remote control code of this unit is displayed. 3 When “Set Mode 1/2” is displayed, set the remote control code of the remote control. To set “Mode 1”: Press and hold [OK] and [1] for at least 4 seconds. To set “Mode 2”: Press and hold [OK] and [2] for at least 4 seconds. 4 Point the remote control at this unit, and press and hold [OK] for at least 4 seconds.

• When the remote control code is changed, the new code will appear on the display for a few seconds. ■ When “Remote 1” or “Remote 2” is displayed When “Remote 1” or “Remote 2” is displayed, the remote control codes of this unit and remote control are different. Perform step 3 above. (15) 01 [ ]: Standby/on switch

• Press to switch the unit from on to standby mode or vice versa. In standby mode, the unit is still consuming a small amount of power. 02 [NET]/[DIGITAL]/[ANALOG]: Select the device to be operated ( 24, 30, 31, 32, 33, 34, 35, 36) 03 [>INPUT<]: Switch the input source 04 [MENU]: Enter menu ( 24, 25, 28, 30, 32, 33) 05 [SETUP]: Enter setup menu ( 38) 06 [LAPC]: Measure the output signal of the amplifier and correct its output ( 41) 07 [+VOL-]: Adjust the volume

• -- dB (min), -99.0 dB to 0 dB (max) 08 [MUTE]: Mute the sound

• Press [MUTE] again to cancel. “MUTE” is also cancelled when you adjust the volume or when you turn the unit to standby. 09 Basic playback control buttons 10 [DIMMER]: Adjust the brightness of the display, etc.

• When the display is turned off, it will light up only when you operate this unit. Before the display turns off again, “Display Off” will be displayed for a few seconds.

• Press repeatedly to switch the brightness. 11 [INFO]: View content information

• Press this button to display the track, artist, and album names, file type, sampling frequency, and other information. (The information varies depending on the input source.) 12 [ ], [ ], [ ], [ ]/[OK]: Selection/OK 13 [RETURN]: Return to the previous display 14 [DIRECT]: Turn on/off Direct mode 15 [RE-MASTER]: Turn on/off Re-master 16 Numeric buttons, etc.

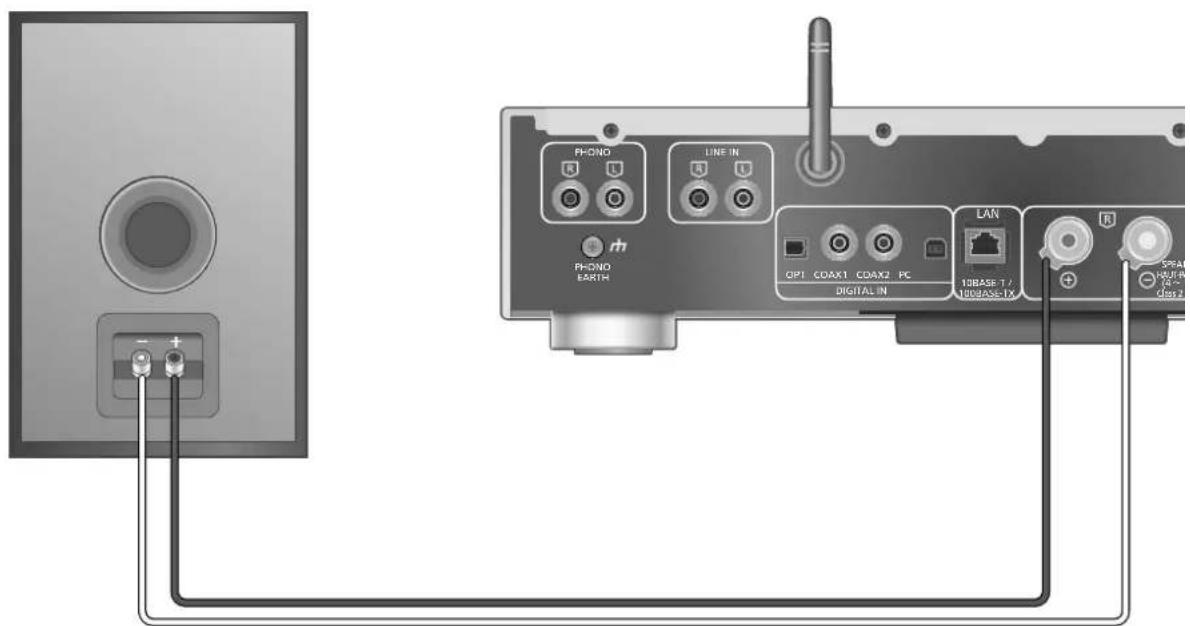

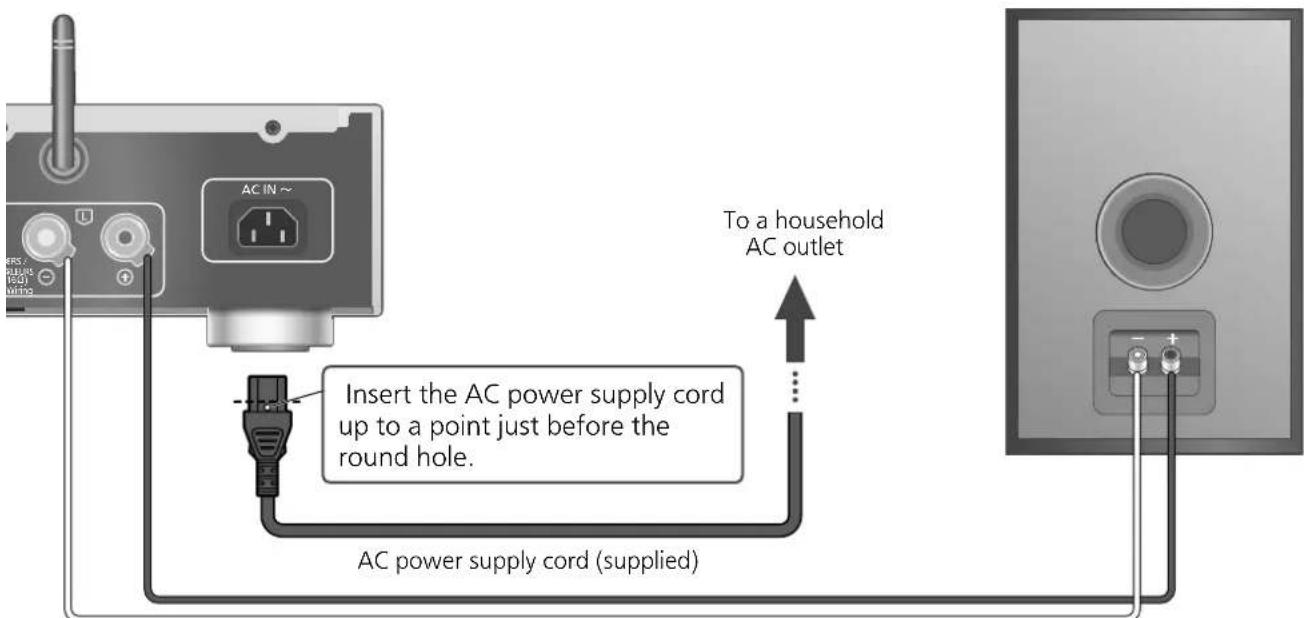

• [CLEAR]: Clear the entered value.16 Connections Speakers/AC power supply cord

• Use only the supplied AC power supply cord.

• Do not connect the AC power supply cord until all other connections are complete.

• Insert the plugs of the cables to be connected all the way in.

• Do not bend cables at sharp angles.

• To optimize the audio output, you can measure the amplifier output signal and correct its output when it is connected to the speakers. ( 41) (16) Speaker cable (not supplied) Speaker connection 1 Turn the knobs to loosen them, and insert the core wires into the holes.

2 Tighten the knobs.

• When the connections are completed, pull the speaker cables lightly to check that they are connected firmly.

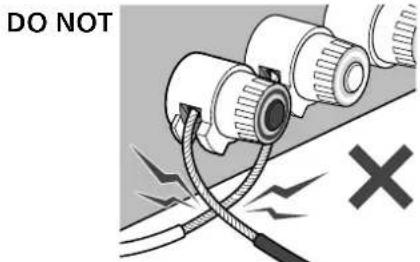

• Be careful not to cross (short-circuit) or reverse the polarity of the speaker wires as doing so may damage the amplifier. DO NOT

• Wire the polarity (+/-) of the terminals correctly. Not doing so may adversely affect stereo effects or cause malfunction.

• For details, refer to the operating instructions of the speakers.17 English Connections ACIN〜

RLEURS 16Ω) Wiring (17) AC power supply cord connection Connect only after all other connections are completed.

) setting may start when this unit is turned on. If you stop the Wi-Fi setting, select “Off” in “Wi-Fi Setup” screen. Select “On” to keep the Wi-Fi setting. ( 19) Note

• This unit consumes a small amount of AC power ( 49) even when the unit is in standby mode. Remove the plug from the main electrical outlet if you will not be using the unit for an extended period of time. Place the unit so the plug can be easily removed. Speaker cable (not supplied) AC power supply cord (supplied) To a household AC outlet Insert the AC power supply cord up to a point just before the round hole. Output correction function (LAPC) You can make the optimum adjustment according to your own speakers.

• When you select “Off” in “Wi-Fi Setup”, you can set LAPC function ( 41).

• When you select “On” in “Wi-Fi Setup”, set the wireless LAN connection first, and you can set LAPC function ( 41).18 Connections Network settings You can stream music from an iOS device (iPhone/iPad/iPod), an Android™ device or a PC (Mac/ Windows) to this unit by using the AirPlay or DLNA feature. ( 24, 28) To use these features, this unit must join the same network as the AirPlay compatible device or the DLNA compatible device. This system can be connected to a router using a LAN cable or built-in Wi-Fi

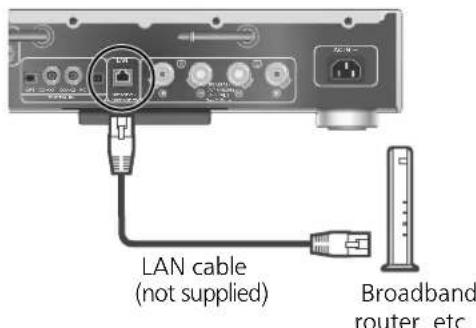

For a stable connection to the network, a wired LAN connection is recommended. Note

• If you try to change the network settings immediately after turning on this unit, it may take some time until the network setup screen is displayed.

• If “Firmware update is available” is displayed after the network connection is set up, the firmware for this unit is available. - Refer to “Firmware updates” ( 40) for details on update. - For the update information, refer to the following website. www.technics.com/support/firmware/ Wired LAN connection LAN DIGITALIN10BASE-T/100BASE-TXACIN〜OPT COAX1 COAX2 PCSPEAKERS/HAUT-PARLEURS(4〜16Ω)Class2Wiring Broadband router, etc. LAN cable (not supplied) 1 Disconnect the AC power supply cord. 2 Connect this unit to a broadband router, etc. using a LAN cable. 3 Connect the AC power supply cord to this unit, and press [ ]. ( 17)

• When the connection is established, “ ” is displayed. Note

• While the AC power supply cord is disconnected, the LAN cable must be connected or disconnected.

• Use category 7 or above straight LAN cables (STP) when connecting to peripheral devices.

• Inserting any cable other than a LAN cable in the LAN port can damage the unit.

• If the LAN cable is disconnected, the network- related settings return to default. Make the settings again.

• When a LAN cable is connected, the Wi-Fi function may be disabled. (18) 5V2.1APHONES VOLUME INPUTSELECTOR19 English Connections Wireless LAN connection ■ Preparation Disconnect the AC power supply cord. Disconnect the LAN cable. Place this unit as close to the wireless router as possible. Point up the antenna on the rear of this unit as shown in the figure. LAN

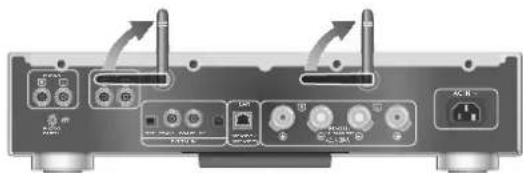

• Do not perform the following: - Applying too much force to the antenna - Carrying this unit by holding the antenna

• The setting will be cancelled after the set time limit. In that case, try the setting again.

• To cancel this setting in the middle, press [ ] or turn the unit to standby mode. ■ Settings for the first time 1 Press [ ] to turn this unit on.

• “Wi-Fi Setup” is displayed. 2 Press [ ], [ ] to select “On” and then press [OK].

• “WAC Mode for iOS” automatically starts.

(For “WAC Mode for iOS”) Proceed to step 2 of “Using the WAC (Wireless Accessory Configuration)” ( 20). (For other network setting method) Choose a network setting method. Note

• When this unit is switched to standby mode and turned on before the Wi-Fi setting is complete, “Wi-Fi Setup” is displayed. Perform the Wi-Fi setting or select “Off”. ■ Choose a network setting method Are you using an iPod touch/iPhone/iPad?

Does your wireless network router support WPS (Wi-Fi Protected Setup™)?

Are you using an Android device?

Yes Using “Technics Music App” ( 22)

• When “Wi-Fi” screen is displayed, press [OK]. 3 Press [ ], [ ] to select “On” and then press [OK]. (The wireless LAN function is enabled.) 4 Choose a network setting method. (19)20 Connections Network settings (Continued) Using the WAC (Wireless Accessory Configuration) “WAC Mode for iOS” You can send its Wi-Fi configuration to this system using an iPhone/iPad/iPod touch.

• Supported device: iPhone/iPad/iPod touch (iOS version 7.0 or later), or Mac (OS X 10.9 or later, with AirPort Utility 6.3.1. or later)

• The following explanations are based on an iPhone.

• Make sure your iPhone is connected to your home wireless network beforehand. 1 Press [ ], [ ] on the remote control to select “WAC Mode for iOS” and then press [OK].

• “Setting” is displayed. 2 Go to Wi-Fi settings on your iPhone. 3 Select “Technics SU-G30

under the “SET UP NEW AIRPLAY SPEAKER...” on your iPhone.

” stands for a character that is unique to each set. 4 The “AirPlay Setup” screen appears on your iPhone.

• This system will be displayed as “Technics SU-G30

”. To change the name, enter a new name to replace the existing one. You can also do the renaming after the network connection is set up. ( 23)

• You can set a password for this system under “SPEAKER PASSWORD”. (You will need this password if you make network settings by internet browser next time.) 5 Select “Next” to apply the settings.

• “Linking” is displayed.

• When the connection is established, “Success” is displayed. - “Fail” may be displayed if the connection was not complete. Try this method again from [SETUP] menu. If “Fail” is still displayed, try other methods ( 19). 6 Press [OK] on the remote control to exit the setting.

• “ ” is displayed. Using the WPS button “WPS Push” If your wireless router supports WPS, you can set up a connection by pressing the WPS button.

• A compatible wireless router may have the WPS identifier mark. 1 Press [ ], [ ] on the remote control to select “WPS Push” and then press [OK].

• “WPS” is displayed. Complete step 2 within 2 minutes. 2 After “WPS” is displayed, press the WPS button on the wireless router.

• “Linking” is displayed.

• When the connection is established, “Success” is displayed. - “Fail” may be displayed if the connection was not complete. Try this method again from [SETUP] menu. If “Fail” is still displayed, try other methods ( 19). 3 Press [OK] on the remote control to exit the setting.

• “ ” is displayed. (20)21 English Connections Using iPhone/iPad/iPod “With iPod” With this method you will share the wireless network settings of your iPod/iPhone/iPad with this system.

• Supported device: iPhone/iPad/iPod touch (iOS version 5.0 or later)

• The following explanations are based on an iPhone.

• Make sure your iPhone is connected to your home wireless network beforehand. 5V2.1APHONES VOLU

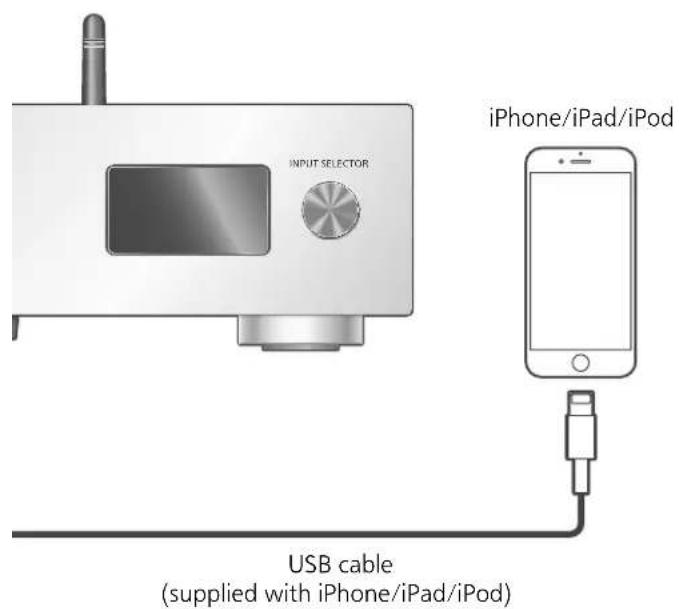

USB cable (supplied with iPhone/iPad/iPod) 1 Connect the iPhone to this unit with the USB cable.

• Use the USB cable supplied with iPhone/ iPad/iPod.

• Unlock your iPhone before connecting. 2 Press [ ], [ ] on the remote control to select “With iPod” and then press [OK].

• “Connecting Wi-Fi” is displayed. 3 Allow the iPhone to share the wireless network settings.

• When the connection is established, “Success” is displayed. - “Fail” may be displayed if the connection was not complete. Try this method again from [SETUP] menu. If “Fail” is still displayed, try other methods ( 19). 4 Press [OK] on the remote control to exit the setting.

• “ ” is displayed. Using the WPS PIN code “WPS PIN” If your wireless router supports WPS, you can set up a connection by entering the WPS PIN code.

• For details on how to enter the PIN code, refer to the operating instructions of the wireless router. 1 Press [ ], [ ] on the remote control to select “WPS PIN” and then press [OK].

• The PIN code is displayed. Complete step 2 within 2 minutes. 2 Enter the PIN code into the wireless router from PC, etc.

• “Linking” is displayed.

• When the connection is established, “Success” is displayed. - “Fail” may be displayed if the connection was not complete. Try this method again from [SETUP] menu. If “Fail” is still displayed, try other methods ( 19). 3 Press [OK] on the remote control to exit the setting.

• “ ” is displayed. Note

• Depending on a router, other connected devices may temporarily lose their connection.

• For details, refer to the operating instructions of the wireless router. (21)22 Connections Network settings (Continued) Using an internet browser “Setup from Browser” You can access this unit’s network settings from the internet browser on iOS device (iOS version

6.1.6 or earlier), Android device, PC, etc.

• The following explanations are based on an Android device. 1 Press [ ], [ ] on the remote control to select “Setup from Browser” and then press [OK].

• “Setting” is displayed. 2 Go to Wi-Fi settings on your compatible device and select “00 Setup

” to connect to this system.

” stands for a character that is unique to each set. 3 Start the internet browser and type “http://192.168.1.12/” into the URL address field and display the page.

• Examples of internet browsers - iOS device/Mac: Safari - Android device: Google Chrome™ - PC: Windows Internet Explorer 4 Select “Search wireless network”. 5 Select your home wireless network name (Network name (SSID)) and type the password for this network. 6 Select “JOIN” to apply the settings.

• “Linking” is displayed.

• When the connection is established, “Success” is displayed. - “Fail” may be displayed if the connection was not complete. Try this method again from [SETUP] menu. If “Fail” is still displayed, try other methods ( 19).

• Depending on the device, the connection complete screen may not be displayed. 7 Make sure to connect your compatible device back to your home wireless network. 8 Press [OK] on the remote control to exit the setting.

“ ” is displayed. Note

Enable JavaScript and Cookies in your browser settings. Using “Technics Music App” “Setup from Browser” If you install the dedicated app “Technics Music App” (free of charge) on your Android device, you can set up a connection using the application.

• If you’re using an Android device, download the app at Google Play™.

• Check the password for your home wireless network.

• Make sure your Android device is connected to your home wireless network beforehand. 1 Press [ ], [ ] on the remote control to select “Setup from Browser” and then press [OK].

• “Setting” is displayed. 2 Start “Technics Music App” on the Android device.

Select “ ” and go to Wi-Fi settings. 4 Enter the password for your home wireless network. 5 Select “Next” to apply the settings.

• “Linking” is displayed.

• When the connection is established, “Success” is displayed. - “Fail” may be displayed if the connection was not complete. Try this method again from [SETUP] menu. If “Fail” is still displayed, try other methods ( 19).

• Depending on the device, the connection complete screen may not be displayed. 6 Make sure to connect your compatible device back to your home wireless network. 7 Press [OK] on the remote control to exit the setting.

• “ ” is displayed. (22)23 English Connections This unit’s name on the network “Friendly Name” You can change this unit’s name on the network (e.g. “Room 1” or “Living Room” etc.). 1 Press [SETUP]. 2 Press [ ], [ ] repeatedly to select “Network” and then press [OK]. 3 Press [ ], [ ] repeatedly to select “Friendly Name” and then press [OK].

• The current name of this unit is displayed. Press [OK] to edit. 4 Press [ ], [ ], [ ], [ ] to input the friendly name.

• Only ASCII characters can be used.

• “A” can be added when you press the

] at the time of the last letter of the Friendly Name is selected.

• Press [CLEAR] to delete a letter.

• Press [ 10] to insert a letter “A”.

• Default name is “Technics SU-G30

” stands for a digit that is unique to each set. 5 Press [OK] to apply the settings. 6 Press [RETURN] repeatedly to exit the settings. To check the MAC address of this unit “MAC Address” 1 Press [SETUP]. 2 Press [ ], [ ] repeatedly to select “Network” and then press [OK]. 3 Press [ ], [ ] repeatedly to select “MAC Address” and then press [OK].

• The MAC address of this unit is displayed. To make network-related settings You can set specific IP address, subnet mask, default gateway, primary DNS, etc. (If your network requires specific settings, disable DHCP.)

• Do not play back music while changing these settings. 1 Press [SETUP]. 2 Press [ ], [ ] repeatedly to select “Network” and then press [OK]. 3 Select and input the details. 4 Press [OK] to apply the settings. 5 Press [RETURN] repeatedly to exit the settings. 6 Press [ ] to switch the unit to standby.

• Wait until “Please Wait” disappears. 7 Perform the network setting. ( 18) (23)24 Operations Playing back music files on the DLNA server 5V2.1APHONESVOLUMEINPUTSELECTOR (24) You can share music files stored in the DLNA Certified media server (PC, Network Attached Storage, etc.) connected to your home network, and enjoy the contents with this unit. ■ Preparation

• Complete the network settings. ( 18)

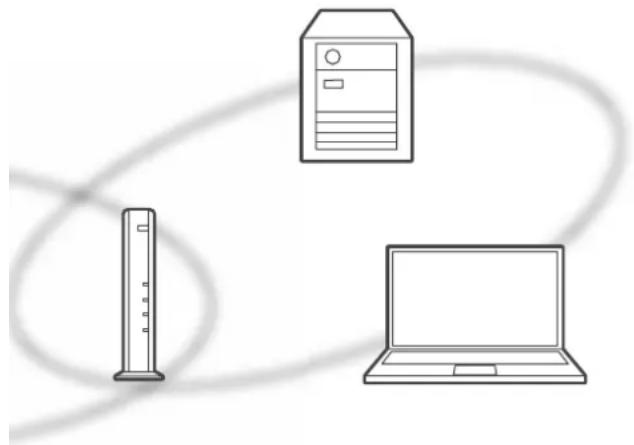

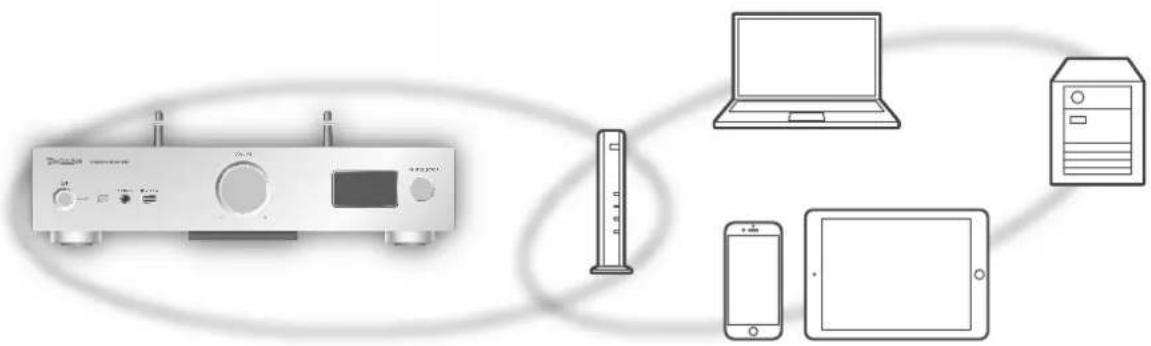

• Connect the device to be used to the same network as this unit.

Player - Add the contents and folder to the libraries of the Windows Media

Player 11 or 12, or a smartphone, etc. - Playlist of Windows Media

Player can play back only the contents that are stored in the libraries. - To use Windows Media

Player for streaming, you need to configure it in advance. Playing back content stored on the DLNA server by controlling it from this unit 1 Press [NET] to select “DMP”.

• The server selection screen will be displayed.

• You can also select the input source by turning the input selector knob on the unit. 2 Press [ ], [ ] to select a DLNA server on the network, and then press [OK].

• The folder/content selection screen will be displayed. Repeat this step to make further selections.

• Folders/content may be displayed in different order from the order on the server, depending on its specifications. 3 Press [ ], [ ] to select an item and then press [OK]. Note

• The connected server and its contents may not be displayed properly depending on its condition. (e.g. soon after adding the contents to the server, etc.) Please try again later. For details, refer to the operating instructions of the device. Operations during playback Stop Pause

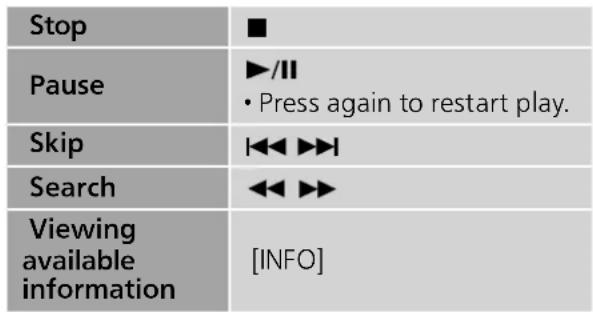

• Press again to restart play. Skip Search Viewing available information [INFO] Repeat playback “Repeat” 1 Press [MENU]. 2 Press [ ], [ ] repeatedly to select “Repeat” and then press [OK]. 3 Press [ ], [ ] to select an item and then press [OK]. 1-Track: Only plays the selected track. (“1 ” is displayed.) All: All tracks are repeated. (“ ” is displayed.)

• Setting is available even when the input source is switched to “USB” ( 30).25 English Operations (25) Playing back content stored on the DLNA server by controlling it from a DMC By controlling a DMC (Digital Media Controller) compatible device, you can play back music stored on the DLNA server on this unit (DMR- Digital Media Renderer). 1 Press [ ] to turn this unit on. 2 Operate the DMC compatible device and connect to this unit.

• The device name of this unit will be displayed as “Technics SU-G30

• For details on how to use DMC compatible devices, refer to the operating instructions of the devices or the software. Note

• When you operate DMC, playback of other audio sources will stop and DLNA output will have priority.

• Depending on the contents and the connected equipment, operations or playback may not be possible.

• This unit does not guarantee connection with all DMC applications. Use the dedicated app “Technics Music App”.

” stands for a digit that is unique to each set.

2: The device name can be changed from “This unit’s name on the network”. ( 23) Random repeat playback “Random” 1 Press [MENU]. 2 Press [ ], [ ] repeatedly to select “Random” and then press [OK]. 3 Press [ ], [ ] to select “On” and then press [OK].

• All tracks in the folder are repeated randomly. (“RND” and “ ” are displayed.)

• During random playback, you cannot skip to the previous track.

• During random playback, tracks may be played more than once.

• Setting is available even when the input source is switched to “USB” ( 30). Operations using the dedicated app “Technics Music App” If you install the dedicated app “Technics Music App” (free of charge) on your tablet/ smartphone, you can control this unit using a wide variety of functions. For details, visit: www.technics.com/support/26 Operations Playing back Internet Radio (vTuner) 5V2.1APHONESVOLUMEINPUTSELECTOR Internet Radio is an audio broadcasting service transmitted via the Internet. vTuner is a free online content service to listen to the many Internet Radio stations over the world. ■ Preparation

• Complete the network settings. ( 18) - Make sure that the network is connected to the Internet. 1 Press [>INPUT<] repeatedly to select “Internet Radio”.

• When “Internet Radio” is selected as the source, this unit will automatically try and connect to the last selected Internet Radio station.

• You can also select the input source by turning the input selector knob on the unit. 2 Press [ ], [ ] to select a station and then press [OK].

• The buffering status is displayed as %. ( stands for a number.)

• Repeat this step to make further selections according to the genre, region, etc.

• Press [RETURN] to return to the previous screen.

• The Internet Radio stations, genre, region, etc. on this unit are edited and managed by vTuner.

• The podcasts on the list of vTuner can also be played back.

• The station that does not broadcast cannot be played back. (It will be skipped or return to the list.) Note

• The Internet Radio service may be suspended or be otherwise unavailable without notice.

• Internet Radio may not be played back properly depending on the network condition. Operations during playback Stop (Returns to the list.) Pause

• Press again to restart play. (While playing back the podcasts) Skip Viewing available information [INFO] Adding a station to favorite list “Add Favourites” 1 Press [ ], [ ] to select a station to add and then press [OK]. 2 Press [MENU]. 3 Press [ ], [ ] repeatedly to select “Add Favourites” and then press [OK].

• “Added” is displayed after registering.

• You can register up to 50 stations with this unit. If a 51st station is added, “Favourites Full” is displayed. Delete the stations from the favorite list. ( 27)

• You cannot add the already registered station. (“Already Exists” is displayed.) (26)27 English Operations Calling up the favorite list “Call Favourites” 1 Press [MENU]. 2 Press [ ], [ ] repeatedly to select “Call Favourites” and then press [OK]. 3 Press [ ], [ ] to select “On” and then press [OK].

• If no station is registered to the favorite list, “Empty” is displayed. Add a station to the list. ( 26) Deleting the favorite station “Delete Favourites” 1 Press [MENU]. 2 Press [ ], [ ] repeatedly to select “Delete Favourites” and then press [OK]. 3 Press [ ], [ ] to select a station to delete from the favorite list. 4 Press [ ], [ ] to select “Yes” and then press [OK].

• “Deleted” is displayed after deleting.

• “Empty” is displayed if no station is registered to the favorite list. Operations using the dedicated app “Technics Music App” If you install the dedicated app “Technics Music App” (free of charge) on your tablet/ smartphone, you can control this unit and edit the station list with the vTuner function. Download and install the app from the website below. www.technics.com/support/ Creating the Internet Radio station list with PC 1 Press [>INPUT<] repeatedly to select “Internet Radio”.

• You can also select the input source by turning the input selector knob on the unit. 2 Check the MAC address of this unit. ( 23) 3 Use your PC to access the vTuner website. www.technics.com/radio/

• You can select the language on the website. 4 Follow the on-screen instructions and enter the necessary information for registration. 5 Search by category (genre, region, language, etc.) or edit the list. ■ Playback of the stations listed by your PC You can play back the stations listed by your PC separately from the favorite list of this unit. 1 Press [>INPUT<] repeatedly to select “Internet Radio”.

• You can also select the input source by turning the input selector knob on the unit. 2 Press [ ], [ ] repeatedly to select “technics.com/radio/” and then press [OK].

• Before disposing of or transferring this unit, delete the personal information on the website. (27)28 Operations Using AirPlay 5V2.1APHONESVOLUMEINPUTSELECTOR You can play back music stored on iOS device, etc. using AirPlay.

• AirPlay works with iPhone, iPad, and iPod touch with iOS 4.3.3 or later, Mac with OS X Mountain Lion or later, and PC with iTunes 10.2.2 or later. ■ Preparation

• Complete the network settings. ( 18)

• Connect the iOS device or PC to the same network as this unit.

(iOS device) Start the “Music” (or iPod) app. (PC) Start “iTunes”. 2 Select “Technics SU-G30

1, 2 from the AirPlay icon . 3 Start play.

• Check the volume settings before starting the playback.

• When AirPlay is used for the first time, the volume may be output at the maximum setting.

• The playback will start with a slight delay.

” stands for a digit that is unique to each set.

2: The device name can be changed from “This unit’s name on the network”. ( 23) Operations during playback Stop Pause

• Press again to restart play. Skip Note

• Playback of other audio sources will stop and AirPlay output will have priority.

• Volume changes on the iOS device or iTunes will apply to this unit. (Refer to the iTunes Help for the required settings in iTunes.)

• With some iOS and iTunes versions, it may not be possible to restart the AirPlay playback if the selector is changed or the unit is turned to standby mode, during the AirPlay playback. In this case, select a different device from the AirPlay icon of the Music app or iTunes and then re-select this unit as the output speakers.

• AirPlay will not work when playing back videos on iTunes. Repeat playback “Repeat” 1 Press [MENU]. 2 Press [ ], [ ] repeatedly to select “Repeat” and then press [OK]. 3 Press [ ], [ ] to set, and press [OK].

• Refer to the connected device to verify the selected setting.

• You can also set on the connected iOS device/ PC. Random repeat playback “Shuffle” 1 Press [MENU]. 2 Press [ ], [ ] repeatedly to select “Shuffle” and then press [OK]. 3 Press [ ], [ ] to set, and press [OK].

• Refer to the connected device to verify the selected setting.

• You can also set on the connected iOS device/ PC. (28)29 English Operations5V2.1APHONESVOLUMEINPUTSELECTOR (29) This unit is compatible with the online music service (Spotify). ■ Preparation

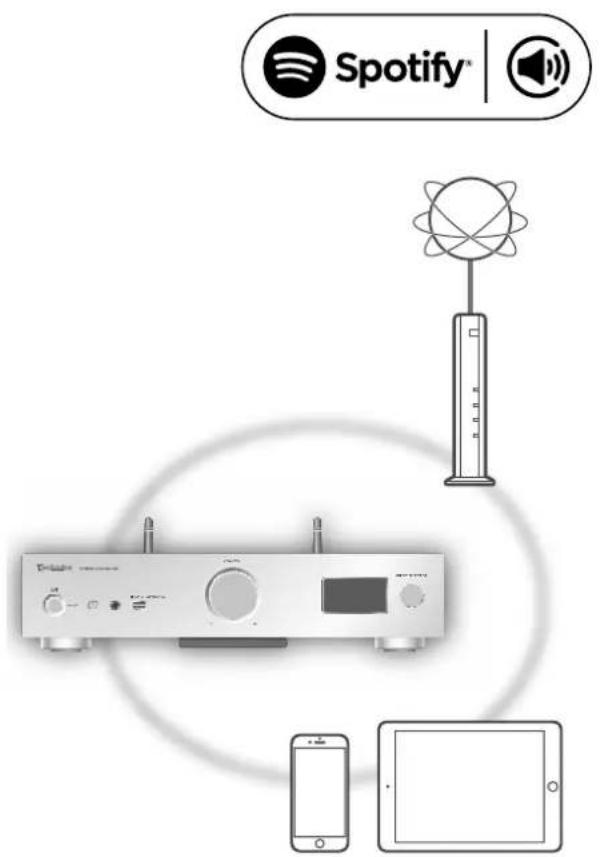

• You will need Spotify Premium. For details, visit the following website. www.spotify.com/connect/

• Complete the network settings. ( 18) - Make sure that the network is connected to the Internet.

• Connect the device to be used to the same network as this unit. 1 Start the Spotify app on your device, and select a song to play back. 2 Select the square image of the song’s cover art in the bottom left of the playback screen.

4 Select this unit as the output speakers. Note

• The device name of this unit will be displayed as “Technics SU-G30

• Registration/subscription is required.

• Services, icons, and specifications are subject to change.

” stands for a digit that is unique to each set.

2: The device name can be changed from “This unit’s name on the network”. ( 23) Using Spotify30 Operations Using USB device 5V2.1APHONESVOLUME (30) 1 Connect a USB device to the unit. 2 Press [DIGITAL] repeatedly to select “USB”.

• The folder/content selection screen will be displayed.

• You can also select the input source by turning the input selector knob on the unit. 3 Press [ ], [ ] to select an item and then press [OK].

• Repeat this step to make further selections.

• Press [RETURN] to return to the previous folder. Operations during playback Stop Pause

• Press again to restart play. Skip Search Viewing available information [INFO]

• This operation may not be available for some formats. Repeat playback “Repeat” 1 Press [MENU]. 2 Press [ ], [ ] repeatedly to select “Repeat” and then press [OK]. 3 Press [ ], [ ] to select an item and then press [OK]. 1-Track: Only plays the selected track. (“1 ” is displayed.) All: All tracks in the folder are repeated.

• Setting is available even when the input source is switched to “DMP” ( 24). Random repeat playback “Random” 1 Press [MENU]. 2 Press [ ], [ ] repeatedly to select “Random” and then press [OK]. 3 Press [ ], [ ] to select “On” and then press [OK].

• All tracks in the folder are repeated randomly. (“RND” and “ ” are displayed.)

• During random playback, you cannot skip to the previous track.

• During random playback, tracks may be played more than once.

• Setting is available even when the input source is switched to “DMP” ( 25). Connect a USB device to the unit, and you can play back music stored on the USB device.

• Refer to “USB” ( 47) for information about the USB device this unit can play back. USB device31 English Using iPhone/iPad/iPod OperationsINPUTSELECTOR (31) 1 Connect an iPhone/iPad/iPod to the unit. 2 Press [DIGITAL] repeatedly to select “USB”.

• The display will automatically change to “iPod_Port” when a compatible iPhone/iPad/ iPod is connected to the USB-A terminal.

• You can also select the input source by turning the input selector knob on the unit. 3 Start playback on the iPhone/iPad/ iPod. Operations during playback Stop Pause

• Press again to restart play. Skip Search

• For “Repeat” and “Shuffle”. ( 28) Note

• Compatibility depends on the software version. Update your iPhone/iPad/iPod to the latest software before using it with this unit.

• Operation results may vary depending on the iPhone/iPad/iPod models or the iOS version. Charging an iPhone/iPad/iPod During unit on, charging starts when an iPhone/ iPad/iPod is connected to this unit.

• To continue charging from the USB cable connection during standby mode, make sure the iPhone/iPad/iPod has started charging before turning the unit to standby mode.

• Check the iPhone/iPad/iPod to see if the battery is fully charged. Once fully charged, remove the iPhone/iPad/iPod. Note

• When this unit is in standby mode, “iPod Charging” is displayed and the power indicator lights red.

• Charging stops when the battery is fully charged. The battery will deplete naturally.

• When charging an iPhone/iPad/iPod whose battery is depleted, do not turn this unit to standby mode until the iPhone/iPad/iPod becomes operational. Connect an iPhone/iPad/iPod to the unit using USB cable

, and you can play back music stored on iPhone/ iPad/iPod or charge iPhone/iPad/iPod.

• Refer to “iPhone/iPad/iPod” ( 47) for information about the iOS device this unit can play back.

: Use the USB cable supplied with iPhone/iPad/iPod. USB cable (supplied with iPhone/iPad/iPod) iPhone/iPad/iPod32 Operations Using Bluetooth

5V2.1APHONESVOLUMEINPUTSELECTOR (32) You can listen to the sound from the Bluetooth

audio device from this unit wirelessly.

• Refer to the operating instructions of the Bluetooth

device for details. ■ Pairing a Bluetooth

• Turn on the Bluetooth

feature of the device and place the device near this unit.

device is already connected, disconnect it. ( 33) 1 Press [DIGITAL] repeatedly to select “Bluetooth”.

• You can also select the input source by turning the input selector knob on the unit. 2 Press [MENU]. 3 Press [ ], [ ] repeatedly to select “Pairing” and then press [OK]. 4 Press [ ], [ ] to select “Yes” and then press [OK].

• “Pairing” is displayed, and this unit waits for registering. 5 Select “SU-G30” from the Bluetooth

• The name of the connected device is indicated on the display.

• MAC address may be displayed before “SU- G30” appears. (e.g. 6C:5A:B5:B3:1D:0F) Note

• If prompted for the passkey, input “0000”.

• You can register up to 8 devices with this unit. If a 9th device is paired, the device that has not been used the longest will be replaced. ■ Listening to music stored on a Bluetooth

device 1 Press [DIGITAL] repeatedly to select “Bluetooth”.

• “Ready” is indicated on the display.

• You can also select the input source by turning the input selector knob on the unit. 2 Select “SU-G30” from the Bluetooth

• The name of the connected device is indicated on the display. 3 Start playback on the Bluetooth

• This unit can only be connected to one device at a time.33 English Operations Operations during playback Stop Pause

• Press again to restart play. Skip Search Note

• To use this unit’s remote control with a Bluetooth

device must support AVRCP (Audio Video Remote Control Profile). Depending on the status of the device, some controls may not work.

• When enjoying video contents with this function, the video and audio output may not be synchronized. Disconnecting a Bluetooth

device 1 Press [MENU]. 2 Press [ ], [ ] repeatedly to select “Disconnect?” and then press [OK]. 3 Press [ ], [ ] to select “Yes” and then press [OK]. Note

device will be disconnected if a different audio source is selected. Bluetooth

transmission mode You can change the transmission mode to prioritize transmission quality or sound quality. 1 Press [DIGITAL] repeatedly to select “Bluetooth”.

• You can also select the input source by turning the input selector knob on the unit.

device is already connected, disconnect it. 2 Press [MENU]. 3 Press [ ], [ ] repeatedly to select “Link Mode” and then press [OK]. 4 Press [ ], [ ] to select the mode and then press [OK]. Mode1: Emphasis on connectivity Mode2: Emphasis on sound quality (default) Note

• Select “Mode1” if the sound is interrupted. (33) Bluetooth

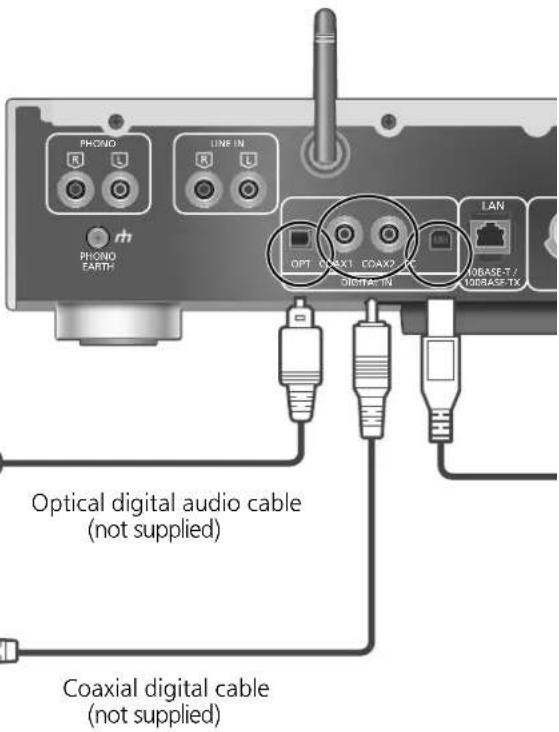

(34) You can input digital audio signals to this unit and play back music. Optical digital audio cable (not supplied) CD player, etc. Coaxial digital cable (not supplied) Using coaxial digital cable 1 Disconnect the AC power supply cord. 2 Connect this unit and a CD player etc. 3 Connect the AC power supply cord to this unit. ( 17) 4 Press [ ] to turn this unit on. 5 Press [DIGITAL] repeatedly to select “COAX1” or “COAX2”.

• You can also select the input source by turning the input selector knob on the unit. 6 Start playback on the connected device. Note

• The digital audio input terminals of this unit can only detect linear PCM signals. For details, refer to the operating instructions of the device. - Sampling frequency: Coaxial digital input 32/44.1/48/88.2/96/176.4/192 kHz Optical digital input 32/44.1/48/88.2/96 kHz - Number of quantization bits: 16/24 bit Using optical digital audio cable 1 Disconnect the AC power supply cord. 2 Connect this unit and a CD player etc. 3 Connect the AC power supply cord to this unit. ( 17) 4 Press [ ] to turn this unit on. 5 Press [DIGITAL] repeatedly to select “OPT”.

• You can also select the input source by turning the input selector knob on the unit. 6 Start playback on the connected device.35 English Operations Using PC, etc. SPEAKERS/HAUT-PARLEURS(4〜16Ω)Class2WiringACIN〜 ■ Preparation Connecting to a PC

• Before connecting to a PC, follow the steps below.

• Refer to the following for the recommend OS versions for your PC (as of December 2015): - Windows 7, Windows 8, Windows 8.1, Windows 10 - OS X 10.7, 10.8, 10.9, 10.10, 10.11 Download and install the dedicated USB driver to the PC. (Only for Windows OS)

• Download and install the driver from the website below. www.technics.com/support/ Download and install the dedicated app “Technics Audio Player” (free of charge) on your PC.

• Download and install the app from the website below. www.technics.com/support/ 1 Disconnect the AC power supply cord. 2 Connect this unit and a PC, etc. 3 Connect the AC power supply cord to this unit. ( 17) 4 Press [ ] to turn this unit on. 5 Press [DIGITAL] repeatedly to select “PC”.

• You can also select the input source by turning the input selector knob on the unit. 6 Start playback using the dedicated app “Technics Audio Player” on the connected PC. Note

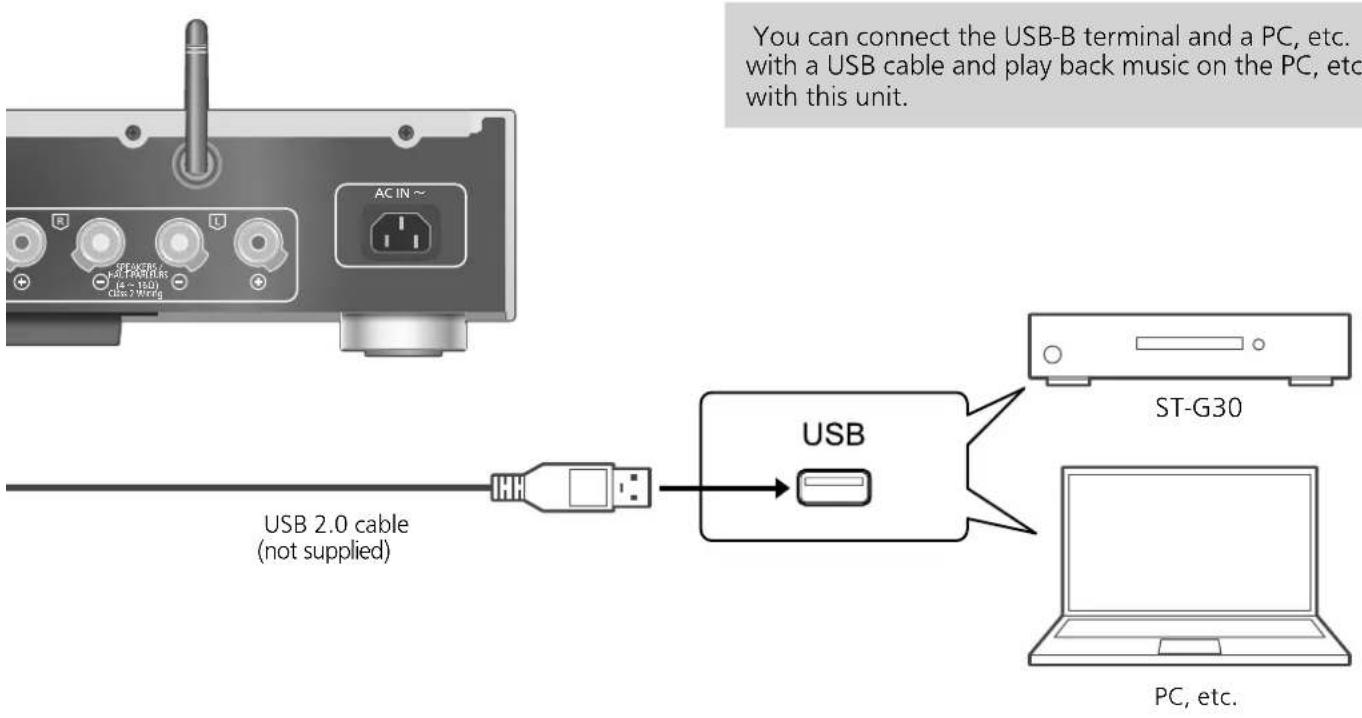

• About supported format, refer to “File format” ( 51) (35) You can connect the USB-B terminal and a PC, etc. with a USB cable and play back music on the PC, etc. with this unit. PC, etc. USB 2.0 cable (not supplied) ST-G3036 Operations Using analog audio output device DIGITALIN

PHONO EARTH (36) Using analog digital audio cable 1 Disconnect the AC power supply cord. 2 Connect this unit and a record player, etc. 3 Connect the AC power supply cord to this unit. ( 17) 4 Press [ ] to turn this unit on. 5 Press [ANALOG] repeatedly to select “LINE” or “PHONO”.

• You can also select the input source by turning the input selector knob on the unit. 6 Start playback on the connected device. You can input analog audio signals to this unit and play back music. Audio cable (not supplied) Ground wire

(not supplied) e.g., Record player

1: When connecting to a record player with a built-in PHONO equalizer, connect its cable to the analog audio input terminals (LINE IN).

2: When connecting a record player with a ground wire, connect the ground wire to the PHONO EARTH terminal of this unit.37 English Operations LAN 0BASE-T/

• The factory default is “Off”. 1 Press [SETUP]. 2 Press [ ], [ ] repeatedly to select “Attenuator (LINE)” or “Attenuator (PHONO)” and then press [OK]. 3 Press [ ], [ ] to select “On” and then press [OK].38 Settings Sound adjustment, Other settings 1 Press [SETUP]. 2 Press [ ], [ ] repeatedly to select the menu and then press [OK]. 3 Press [ ], [ ], [ ], [ ] to set, and press [OK]. Language setting “Language” Select “English” or “Français” for the display.

• The factory default is “English”. Adjusting Bass/Middle/Treble “Tone Control” You can adjust the tone of this unit. Each tonal range (Bass/Middle/Treble) can be adjusted.

• To enable this function, select “On (adjustment)”.

• Each level can be adjusted between “- 10” and “+ 10”.

• “TONE” is displayed after setting. Sleep timer “SLEEP” The sleep timer can turn the unit to standby mode after a set time. (30 minutes/60 minutes/90 minutes/120 minutes/Off) Auto off function “AUTO OFF” This unit is designed to conserve its power consumption and save energy. The unit has been left unused for about 20 minutes and will enter standby mode within a minute. Press any button to cancel it.

• The factory default is “Off”. Note

• The auto off function works unless you turn it off, even if you turn this unit to standby mode and on. The sound effects and other settings can be set up. (38)INPUTSELECTOR VOLUME 5V2.1A PHONES

English Settings Network settings “Network” Network standby “Network Standby” This unit can turn on automatically from standby mode when this unit is selected as the Spotify/ AirPlay/DLNA player.

• The factory default is “Auto”. Auto: Enables the network standby function when the network connection is available. On: Always enables the network standby function. Note

• If this function is set to “On” or “Auto”, the standby power consumption will increase.

• Power indicator lights red when the network standby function is available. Wireless LAN setting “Wi-Fi” The wireless LAN function can be enabled or disabled.

• The factory default is “Off”. Wi-Fi signal strength “Signal Level” To check the Wi-Fi signal strength where this system is located.

• It is recommended to have a signal strength of “3”. Change the position or angle of your wireless router or this system if the indicator is “2” or “1” and see if the connection improves.

• If “0” is displayed, this system cannot establish a link with the wireless router. Changing the character encoding “E Asian Character” You can change the character encoding of track names, artist names and other information when they are not displayed as they should be. Type 1(⽇本): Priority is given to Japanese. (default) Type 2(简体字): Priority is given to Chinese (Simplified). Checking the firmware version “F/W Version” The version of the installed firmware is displayed. (39)40 Settings Sound adjustment, Other settings (Continued) Firmware updates “F/W Update” Occasionally, Panasonic may release updated firmware for this unit that may add or improve the way a feature operates. These updates are available free of charge.

• For the update information, refer to the following website. www.technics.com/support/firmware/ Downloading takes approx. 10 minutes. Do not disconnect the AC power supply cord or turn this unit to standby while updating.

• The progress is displayed as “Updating

• During the update process, no other operations can be performed.

• If there are no updates, “Firmware is Up To Date” is displayed. (No need to update it.)

• Updating the firmware may reset the settings. Update via Internet ■ Preparation

• Connect this unit to the network. ( 18) - Make sure that the network is connected to the Internet. 1 Press [SETUP]. 2 Press [ ], [ ] repeatedly to select “F/W Update” and then press [OK]. 3 Press [ ], [ ] to select “Internet” and then press [OK]. 4 Press [ ], [ ] to select “Yes” and then press [OK].

• The progress is displayed as “Updating %” while updating. ( stands for a number.)

• When the update has finished successfully, “Success” is displayed. 5 Disconnect the AC power supply cord and reconnect it after 3 minutes. Note

• Downloading may take longer or may not work properly depending on the connection environment. Update via USB flash memory ■ Preparation

• Download the latest firmware on the USB flash memory. For details, refer to the following website. www.technics.com/support/firmware/ 1 Connect the USB flash memory with new firmware. 2 Press [SETUP]. 3 Press [ ], [ ] repeatedly to select “F/W Update” and then press [OK]. 4 Press [ ], [ ] to select “USB” and then press [OK]. 5 Press [ ], [ ] to select “Yes” and then press [OK].

• The progress is displayed as “Updating %” while updating. ( stands for a number.)

• When the update has finished successfully, “Success” is displayed. 6 Disconnect the AC power supply cord and reconnect it after 3 minutes. Note

• Downloading may take longer depending on the USB flash memory. Sound adjustment The following sound effects can be added to the audio output. Listening to more natural-sounding audio (Re-master) Re-mastering expands the playback band and achieves a higher bit depth to reproduce natural and expansive sound close to original music.

• The factory default is “Off”. Press [RE-MASTER] to select “On”/“Off”. Direct mode When this mode is set to on, the audio signal is output directly without performing various processing circuits.

• The factory default is “Off”. Press [DIRECT] to select “On”/“Off”. (40)41 English Settings Using output correction function (LAPC) (41) Measuring the output signal of the amplifier and correcting its output (LAPC) ■ Preparation

• Disconnect the headphones. Test tone emitted during measurement To ensure the measurement accuracy, the speakers output a test tone at regular intervals. (For approximately 2 minutes) It is not possible to change the volume of the audio being output while the measurement is in progress. 1 Press [ ] to turn this unit on. 2 Press and hold [LAPC] until “LAPC Measuring” is displayed. This unit will start measuring the output signal of the amplifier. Check that a test tone is output from both the left and right speakers. When the measurement is complete, amplifier output correction will be automatically turned on.

• If you press [LAPC] while the measurement is in progress, it will be cancelled.

• If you connect headphones during amplifier signal measurement or amplifier output correction, it will be cancelled. ■ Turning on/off the output correction function Press [LAPC] to select “On”/“Off”.

• “On”/“Off” is displayed. Note

• Depending on the type of the connected speakers, the effect of the output correction function may be minimal.

• The corrected output remains in effect until you measure the output signal again. When you use other speakers, redo the measurement. You can make the optimum adjustment according to your own speakers.42 Troubleshooting

(42) Heat buildup of this unit This unit becomes warm when the volume is high. This is not a malfunction. Do you have the latest firmware installed? Panasonic is constantly improving the unit’s firmware to ensure that our customers are enjoying the latest technology. ( 40) To return all settings to the factory defaults When the following situations occur, reset the memory:

• There is no response when buttons are pressed.

• You want to clear and reset the memory contents. 1 Press [SETUP]. 2 Press [ ], [ ] repeatedly to select “Initialization” and then press [OK]. 3 Press [ ], [ ] to select “Yes” and then press [OK].

• All the settings are set back to the factory defaults. It is necessary to set the memory items again. 4 Press [ ], [ ] to select “Yes” and then press [OK] again. General The unit does not work. Operations are not done properly.

• One of the unit’s safety devices may have been activated. Press [ ] on the unit to switch the unit to standby.

] on the unit for at least 5 seconds. The unit is forcibly switched to standby. Alternatively, disconnect the AC power supply cord, wait for at least 3 minutes, then reconnect it. Press [ ] on the unit to switch on. If the unit still cannot be operated, consult the dealer. A “humming” sound can be heard during playback.

• An AC power supply cord or fluorescent light is near the cables. Keep other appliances and cords away from the cables of this unit.

• A strong magnetic field near a TV or other device may adversely affect the audio quality. Keep this unit away from such devices.

• The speakers may output noise when a device nearby is emitting powerful radio waves, such as when a mobile phone is on a call. No sound.

• Check the volume of this unit.

• Check connections to speakers and other equipment. After checking the connections, measure the output signal of the amplifier. ( 41)

• Check to see if the correct input source is selected.

• Insert the plugs of the cables to be connected all the way in.

• Playback of multi-channel content is not supported.

• The digital audio input terminals of this unit can only detect linear PCM signals. For details, refer to the operating instructions of the device. Playback does not start.

• Depending on your environment or connected devices, it may take some time.

• Check to see if the format of the file is supported. About supported format, refer to “File format”. ( 51) Before requesting service, make the following checks. If you are uncertain about some of the check points, or if the solutions indicated in the following guide does not resolve the issue, then consult your dealer for instructions.43 English Troubleshooting The unit turns to standby mode automatically.

• Is the auto off function turned on? ( 38)

• This unit incorporates a protection circuit to prevent damage caused by heat buildup. When you use this unit at a high volume level for a long period of time, it may turn off automatically. Wait for this unit to cool down before turning on this unit again. (For approximately 3 minutes) The sound is interrupted.

• Depending on your environment, the audio may be interrupted during playback. Check the operating instructions of the connected device and the connection to the device. The settings are reset to the factory defaults.

• Updating the firmware may reset the settings. USB The USB drive or its contents cannot be read.

• The USB drive format or its contents is/are not compatible with the unit. ( 47) No response when [ ] is pressed.

• Disconnect the USB device and then reconnect it. Alternatively, turn the unit to standby and on again. Slow operation of the USB flash drive.

• Large file size or high memory USB flash drive takes longer time to read.

• It may take some time if there are a lot of files or folders on it. iPhone/iPad/iPod Cannot operate.

• Select “USB” as the input source. ( 31)

• Check that the iPhone/iPad/iPod is connected properly. ( 31)

• The battery of the iPhone/iPad/iPod is depleted. Charge the iPhone/iPad/iPod, and then operate again. ( 31)

• Connect the iPhone/iPad/iPod again or try to restart the iPhone/iPad/iPod. iPhone/iPad/iPod does not charge.

• Only when unit is ON will charging begin from USB cable connection.

• Make sure the unit is turned on when you start charging. - When charging an iPhone/iPad/iPod whose battery is depleted, do not turn this unit to standby mode until the iPhone/iPad/iPod becomes operational. Bluetooth

Pairing cannot be completed.

device condition. The device cannot be connected.

• The pairing of the device was unsuccessful or the registration has been replaced. Try re- pairing the device. ( 32)

• This unit might be connected to a different device. Disconnect the other device and try re- pairing the device. The device is connected, but audio cannot be heard through this unit.

• For some built-in Bluetooth

devices, you have to set the audio output to “SU-G30” manually. Read the operating instructions for the device for details. The sound is interrupted.

• The device is out of the 10 m (33 ft) communication range. Bring the Bluetooth

device closer to this system.

• Remove any obstacle between this system and the device.

• Other devices that use the 2.4 GHz frequency band (wireless router, microwaves, cordless phones, etc.) are interfering. Bring the Bluetooth

device closer to this system and distance it from the other devices.

• Select “Mode1” for stable communication. ( 33) (43)44 Troubleshooting

The PC does not recognize this unit.

• Check your operating environment. ( 35)

• Restart the PC, turn this unit to standby and on, and then reconnect the USB cable.

• Use another USB port of the connected PC.

• Install the dedicated USB driver if using a PC with Windows. Network Cannot connect to the network.

• Confirm the network connection and settings. ( 18)

• If the network is set to be invisible, make the network visible while you set up the network for this unit or make a wired LAN connection.

• This system’s Wi-Fi security supports WPA2™. Your wireless router must therefore be WPA2™ compatible. For details on the security supported by your router and how to change the settings, please refer to the operating instructions or contact your internet service provider.

• Make sure that the multicast function on the wireless router is enabled.

• Depending on the router, WPS button may not work. Try another connection method. ( 18)

• The wireless LAN environment or radio interference in your area may cause connection problem. In this case, try another connection method. If the problem persists, make a wired LAN connection. ( 18)

• While the AC power supply cord is disconnected, the LAN cable must be connected or disconnected. Cannot select this system as the output speakers.

• Make sure that the devices are connected to the same network as this system.

• Reconnect the devices to the network.

• Turn the wireless router off and then on.

• Turn this unit to standby and on, and then select this system as the output speakers again. Playback does not start. The sound is interrupted.

• Try to place the speakers further away from this unit.

• If using the 2.4 GHz band on the wireless router, simultaneous use with other 2.4 GHz devices, such as microwaves, cordless telephones, etc., may result in connection interruptions. Increase the distance between this unit and these devices. - If your wireless router supports 5 GHz band, try using the 5 GHz band. To change to the 5 GHz band, redo the network settings using an internet browser ( 22). On the step 5, make sure to select your network name (SSID) for the 5 GHz band.

• Do not place this system inside a metal cabinet, for it might block the Wi-Fi signal.

• If the playback stops, check the playback status on the device.

• Place this system closer to the wireless router.

• Check the Wi-Fi signal strength using “Signal Level” and adjust location of this unit and the wireless router. ( 39)

• If several wireless devices are simultaneously using the same wireless network as this unit, try turning off the other devices or reducing their wireless network usage.

• Reconnect the devices to the network.

• Turn the wireless router off and then on.

• With some iOS and iTunes versions, it may not be possible to restart the AirPlay playback if the selector is changed or this unit is in standby mode, during the AirPlay playback. In this case, select a different device from the AirPlay icon of the Music App or iTunes and then re-select this system as the output speakers. ( 28)

• If the above solutions do not solve the problem, make a wired LAN connection for all connected DLNA compatible devices which have LAN terminal (this unit, Network Attached Storage, DLNA server, etc.). The DLNA server and its contents are not displayed.

• The connected DLNA server and its contents may not be displayed properly depending on its condition (e.g. soon after adding the contents to the server, etc.). Try again later. For details, refer to the operating instructions of the DLNA server. Cannot find music files stored on the PC.

• When you play back music files over a network, those that are not registered to its network server are not displayed. For details, refer to the operating instructions for your server.45 English Troubleshooting vTuner/Spotify Playback does not start. The sound is interrupted.

• The station that does not broadcast cannot be played back. (It will be skipped or return to the list.)

• Internet Radio may not be played back properly depending on the network condition.

• Depending on the internet connection environment, the sound may be interrupted or it may take some time to play back.

• Internet Radio is an audio broadcasting service transmitted via the Internet. Depending on the broadcaster or condition of the transmitting, the sound quality may vary. Cannot display the information properly.

• Track names, station names, etc. which are managed by vTuner/Spotify may not be displayed properly. Remote control The remote control does not work properly.

• The batteries are depleted or inserted incorrectly. ( 14)

• To avoid interference, please do not put any objects in front of signal sensor. ( 12)

• Change the remote control code if other products react to this remote control. ( 15) Messages

• The selected file cannot be played back.

• Select the playable file. - About supported format, refer to “File format” ( 51) AUTO OFF

• The unit has been left unused for about 20 minutes and will shut down within a minute. Press any button to cancel it. Checking Device

• The unit is checking the connected iPhone/ iPad/iPod or a USB device. After this display has disappeared, start operating. Connect to Network

• Connect this unit to the network and then wait for the start of the Firmware Update via Internet. ( 40) Connect USB Device

• Download the latest firmware on the USB flash memory and connect it. ( 40) Download Fail

• The firmware download has failed. Press any button to exit. Please try again later.

• The server cannot be found. Press any button to exit. Make sure that the network is connected to the internet. Empty

• The selected folder is empty. Move tracks into the folder and retry the operation.

• The server is not found on the network. Check to see if the server is connected to the same network as this unit, and retry the connection to this unit. ( 18)

• No Internet Radio station is registered to the favorite list. Add a station to the list. ( 26) Error

• Incorrect operation is performed. Read the instructions and try again. Fail

• Network connection is not complete. Try the setting again. ( 18) Firmware update is available

• The firmware (free of charge) for this unit is available. Press [OK]. Press [ ], [ ] to select “Yes” and then press [OK].

• The progress is displayed as “Updating

while updating. ( stands for a number.)

• Do not disconnect the AC power supply cord or turn this unit to standby while updating. ( 40)

• When the update has finished successfully, “Success” is displayed. Disconnect the AC power supply cord and reconnect it after 3 minutes.

• For the update information, refer to the following website. www.technics.com/support/firmware/

• There is a problem with this unit. - Is the volume extremely high? If so, lower the volume. - Is this unit placed in an extremely hot place? If so, move this unit to a cooler place and wait a few moments and then try to turn it on again. If the problem persists, write down the displayed number, disconnect the AC power supply cord and consult your dealer. (45)46 Troubleshooting

• The firmware on the USB flash memory cannot be found.

• Download the latest firmware on the USB flash memory and try again. ( 40) No Device

• No USB device is connected.

• Connect the USB device to be played. ( 30) No Network Available

• This unit is not connected to the network.

• Check the network connection. ( 18) Not Measured

• Measuring the output signal has not been done yet.

• Measure the output signal. ( 41) Not Valid

• The function you have tried to use is not available with the current settings. Check the steps and settings. Please Wait

• This is displayed, for example, when this unit is turned to standby/on. (For up to approx. 1 minute and 30 seconds) “Remote ” (“ ” stands for a number.)

• The remote control and this unit are using different codes. Change the code on the remote control. ( 15) Remote Mode

• Basic playback control buttons on the remote control are not available. (While playing back music stored on the DLNA server with this unit (DMR), etc.)

• Use the connected device for basic playback control. Searching

• The unit is checking the DLNA server on the network. Signal Overflow

• The audio from the analog audio input terminals in use is distorted. Select “Attenuator (LINE)” or “Attenuator (PHONO)” according to the selected analogue audio input, and change the setting of the attenuator to “On”. ( 37) Unlocked

• “PC”, “COAX1”, “COAX2” or “OPT” is selected, but no device is connected. Check the connection with the device. ( 34, 35)

• The sampling frequency components, etc. of the audio signals are not input correctly. - About supported format, refer to “File format” ( 51) USB Over Current Error

• The iPhone/iPad/iPod or USB device is drawing too much power. Disconnect the iPhone/iPad/ iPod or USB device and turn the unit to standby and on again. Wi-Fi Setup

• Select “On” and press [OK] to enter the network setting. ( 19) - To exit the network setting, select “Off” and press [OK]. Hub Device Not Supported/Not Supported/ Device Not Recognized/ USB Device Not Supported

• You have connected an iPhone/iPad/iPod or USB device that is not supported. - If the iPhone/iPad/iPod is compatible, turn it on and connect it correctly.

• The format of the file on the iPhone/iPad/iPod or USB device is not supported. - About supported format, refer to “File format” ( 51)47 English Troubleshooting / Others USB

• This unit does not guarantee connection with all USB devices.

• FAT16 and FAT32 file systems are supported.

• This unit supports USB 2.0 high speed.

• USB devices may not be recognized by this unit when connected using the following: - a USB hub - a USB extension cable

• It is not possible to use USB card reader/writers.

• This unit cannot record music to a USB device.

• Not all files on the USB device may be read if there are some files not supported.

• About supported format, refer to “File format” ( 51) iPhone/iPad/iPod

• Please be aware that Panasonic accepts no responsibility for the loss of data and/or information.

• Compatible iPhone/iPad/iPod (as of June 2015) iPhone 6 Plus / iPhone 6 / iPhone 5s / iPhone 5c / iPhone 5 / iPhone 4s / iPad Air 2 / iPad Air / iPad (3rd and 4th generation) / iPad 2 / iPad mini 3 / iPad mini 2 / iPad mini / iPod touch (5th generation) / iPod nano (7th generation) Note

• Do not connect the following models to the port: - iPod classic, iPod [4th (color display), and 5th (video) generation], iPod nano (1st generation) Unexpected behavior may occur. (47) Others Playable media48 Others About Bluetooth

(48) Panasonic bears no responsibility for data and/or information that is compromised during a wireless transmission. Frequency band used

• This system uses the 2.4 GHz frequency band. Certification of this device

• This system conforms to frequency restrictions and has received certification based on frequency laws. Thus, a wireless permit is not necessary.

• The actions below are punishable by law in some countries: - Taking apart or modifying the system. - Removing specification indications. Restrictions of use

• Wireless transmission and/or usage with all Bluetooth

equipped devices is not guaranteed.

• All devices must conform to standards set by Bluetooth SIG, Inc.

• Depending on the specifications and settings of a device, it can fail to connect or some operations can be different.

• This system supports Bluetooth

security features. But depending on the operating environment and/or settings, this security is possibly not sufficient. Transmit data wirelessly to this system with caution.

• This system cannot transmit data to a Bluetooth

device. Range of use

• Use this device at a maximum range of 10 m (33 ft). The range can decrease depending on the environment, obstacles or interference. Interference from other devices

• This system may not function properly and troubles such as noise and sound jumps may arise due to radio wave interference if this system is located too close to other Bluetooth

devices or the devices that use the 2.4 GHz band.

• This system may not function properly if radio waves from a nearby broadcasting station, etc. is too strong. Intended usage

• This system is for normal, general use only.

• Do not use this system near an equipment or in an environment that is sensitive to radio frequency interference (example: airports, hospitals, laboratories, etc.).49 English Others ■ GENERAL Power supply AC 120 V, 60 Hz Power consumption 96 W Power consumption in standby mode (Network Standby Off)

Approx. 0.3 W Power consumption in standby mode (Network Standby On)

Mass Approx. 11.5 kg (25.4 lbs) Operating temperature range 0 °C to +40 °C (+32 °F to +104 °F) Operating humidity range 35 % to 80 % RH (no condensation)

system specification Bluetooth

Ver. 3.0 Wireless equipment classification Class 2 (2.5 mW) Supported profiles A2DP, AVRCP Supported codec aptX

Low Latency, AAC, SBC Frequency band 2.4 GHz band FH-SS Operating distance Approx. 10 m (33 ft) Line of sight

: Prospective communication distance Measurement environment: Temperature 25 °C (77 °F)/ Height 1.0 m (3.3 ft) Measure in “Mode1” (49) Specifications50 Others Specifications (Continued) (50) ■ TERMINALS SECTION Headphones Jack Stereo, 6.3 mm (

USB FRONT USB Type A Connector Support Memory Capacity 2 TB (max) Maximum number of folders (albums)

Maximum number of files (songs)

File system FAT16, FAT32 USB port power DC OUT 5 V 2.1 A (max)

5 GHz (36, 38, 40, 44, 46, 48, 149, 151, 153, 157, 159, 161, 165 ch) Security WPA2™, Mixed mode WPA2™/WPA™ Encryption Type TKIP / AES Authentication type PSK WEP (64 bit/128 bit) WPS version Version 2.051 English Others ■ File format This unit supports the following file formats.

• This unit does not support the playback of copy-protected music files.

• Playback of all files in formats supported by this unit is not guaranteed.

• Playback of a file in a format not supported by this unit may cause choppy audio or noise. In such cases, check to see if this unit supports the file format.

• This unit does not support VBR (Variable Bit Rate) playback.

• Some of the connected devices (servers) may be capable of converting files in formats not supported by this unit and output them. For details, refer to the operating instructions for your server.

• File information (sampling frequency, etc.) shown by this unit and playback software may differ from each other. USB-A File format Extension Sampling frequency Bit rate / Number of quantization bits MP3 .mp3 32/44.1/48 kHz 16 to 320 kbps AAC .m4a/.aac 32/44.1/48/88.2/96 kHz 16 to 320 kbps WMA .wma 32/44.1/48 kHz 16 to 320 kbps WAV .wav 32/44.1/48/88.2/96/176.4/192 kHz 16/24 bit FLAC .flac 32/44.1/48/88.2/96/176.4/192 kHz 16/24 bit AIFF .aiff 32/44.1/48/88.2/96/176.4/192 kHz 16/24 bit ALAC .m4a 32/44.1/48/88.2/96/176.4/192 kHz 16/24 bit DSD .dff/.dsf 2.8224 MHz/5.6448 MHz PC (USB-B)

1: If you download and install the dedicated app, you can play back files in wide-ranging formats. ( 35) For details, refer to the operating instructions of the app.

2: Whether or not each music file can be played back over your network is determined by the network server even if the format of the file is listed above. For example, if you are using Windows Media Player 11, not all music files on the PC are playable. You can play back only those added to the library of Windows Media Player 11. Note

• Specifications are subject to change without notice.

• Mass and dimensions are approximate. (51)52 Others Limited Warranty (ONLY FOR U.S.A.) (52) Technics Products – Limited Warranty Limited Warranty Coverage (For USA Only) If your product does not work properly because of a defect in materials or workmanship, Panasonic Corporation of North America (referred to as “the warrantor”) will, for the length of the period indicated on the chart below, which starts with the date of original purchase (“warranty period”), at its option either (a) repair your product with new or refurbished parts, (b) replace it with a new or a refurbished equivalent value product, or (c) refund your purchase price. The decision to repair, replace or refund will be made by the warrantor. Product or Part Name Parts Labor Technics Network Audio Amplifier 3 (three) years 3 (three) years Technics Music Server Technics CD Stereo System Technics Turntable System During the “Labor” warranty period there will be no charge for labor. During the “Parts” warranty period, there will be no charge for parts. This Limited Warranty excludes both parts and labor for non-rechargeable batteries, antennas, and cosmetic parts (cabinet). This warranty only applies to products purchased and serviced in the United States. This warranty is extended only to the original purchaser of a new product which was not sold “as is”. Mail-In Service--Online Repair Request Online Repair Request To submit a new repair request and for quick repair status visit our Web Site at http://shop.panasonic.com/support When shipping the unit, carefully pack, include all supplied accessories listed in the Owner’s Manual, and send it prepaid, adequately insured and packed well in a carton box. When shipping Lithium Ion batteries please visit our Web Site at http://shop.panasonic.com/support as Panasonic is committed to providing the most up to date information. Include a letter detailing the complaint, a return address and provide a daytime phone number where you can be reached. A valid registered receipt is required under the Limited Warranty. IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD, THE PURCHASER WILL BE REQUIRED TO FURNISH A SALES RECEIPT/PROOF OF PURCHASE INDICATING DATE OF PURCHASE, AMOUNT PAID AND PLACE OF PURCHASE. CUSTOMER WILL BE CHARGED FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT SUCH PROOF OF PURCHASE. Limited Warranty Limits and Exclusions This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by the warrantor, or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, introduction of sand, humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the product, or service by anyone other than a Factory Service Center or other Authorized Servicer, or damage that is attributable to acts of God. THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER “LIMITED WARRANTY COVERAGE”. THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. (As examples, this excludes damages for lost time, travel to and from the servicer, loss of or damage to media or images, data or other memory or recorded content. The items listed are not exclusive, but for illustration only.) ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY. Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state. If a problem with this product develops during or after the warranty period, you may contact your dealer or Service Center. If the problem is not handled to your satisfaction, then write to: Consumer Affairs Department Panasonic Corporation of North America 661 Independence Pkwy Chesapeake, VA 23320 PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR RESPONSIBILITY. for all your Technics gear Go to http://shop.panasonic.com/support Get everything you need to get the most out of your Technics products Accessories & Parts for your Camera, Phone, A/V products, TV, Computers & Networking, Personal Care, Home Appliances, Headphones, Batteries, Backup Chargers & more… Customer Services Directory For Product Information, Operating Assistance, Parts, Owner’s Manuals, Dealer and Service info go to http://shop.panasonic.com/support For the hearing or speech impaired TTY: 1- 877-833-8855 As of December 2015 The model number and serial number of this product can be found on either the back or the bottom of the unit. Please note them in the space provided below and keep for future reference. MODEL NUMBER SU-G30 SERIAL NUMBER

TELEPHONE NUMBER53 English Others Panasonic Canada Inc. 5770 Ambler Drive, Mississauga, Ontario L4W 2T3

TECHNICS PRODUCT – LIMITED WARRANTY

Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship under normal use and for a period as stated below from the date of original purchase agrees to, at its option either (a) repair your product with new or refurbished parts, (b) replace it with a new or a refurbished equivalent value product, or (c) refund your purchase price. The decision to repair, replace or refund will be made by Panasonic Canada Inc. Technics Network Audio Amplifier 3 (three) years parts and labour Technics Music Server 3 (three) years parts and labour Technics CD Stereo System 3 (three) years parts and labour Technics Turntable System 3 (three) years parts and labour This warranty is given only to the original purchaser, or the person for whom it was purchased as a gift, of a Technics brand product mentioned above sold by an authorized Panasonic dealer in Canada and purchased and used in Canada, which product was not sold “as is”, and which product was delivered to you in new condition in the original packaging. IN ORDER TO BE ELIGIBLE TO RECEIVE WARRANTY SERVICE HEREUNDER, A PURCHASE RECEIPT OR OTHER PROOF OF DATE OF ORIGINAL PURCHASE, SHOWING AMOUNT PAID AND PLACE OF PURCHASE IS REQUIRED

LIMITATIONS AND EXCLUSIONS

This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by Panasonic Canada Inc., or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, introduction of sand, humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the product, or service by anyone other than an Authorized Servicer, or damage that is attributable to acts of God. Dry cell batteries are also excluded from coverage under this warranty. THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT OR ARISING OUT OF ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY. (As examples, this warranty excludes damages for lost time, travel to and from the Authorized Servicer, loss of or damage to media or images, data or other memory or recorded content. This list of items is not exhaustive, but for illustration only.) In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or the exclusion of implied warranties, so the above limitations and exclusions may not be applicable. This warranty gives you specific legal rights and you may have other rights which vary depending on your province or territory. WARRANTY SERVICE For product operation, repairs and information assistance, please visit our Support page on: www.panasonic.ca/english/support IF YOU SHIP THE PRODUCT TO A SERVICENTRE Carefully pack and send prepaid, adequately insured and preferably in the original carton. Include details of the defect claimed, and proof of date of original purchase. (53) Limited Warranty (ONLY FOR CANADA)06 Nous vous remercions d’avoir arrêté votre choix sur cet appareil. Il est recommandé de lire attentivement ce manuel avant d’utiliser l’appareil et de le conserver pour consultation ultérieure.
