USER MANUAL XL6060 BROTHER

ANSCHLIESSEN AN DAS STROMNETZ

ACHTUNG

"BEWAAR DEZE INSTRUCTIES"

If this machine is fitted with a 3 pin non-rewireable BS plug then please read the following.

IMPORTANT (in the United Kingdom)

Main supply (AC 230/240V\~, 50Hz)

DO NOT cut off the main plug from equipment. If the plug fitted is not suitable for the power point in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or consult your dealer.

BE SURE to replace the fuse only with an identical approved type, as originally fitted and to replace the fuse cover.

If none the less the main plug is cut off be sure to remove the fuse and dispose of the plug immediately, to avoid a possible shock hazard by inadvertent connection to the main supply.

IMPORTANT (in the other countries)

If the available socket outlet is not suitable for the plug supplied with this equipment, it should be cut off and an appropriate three pin plug fitted. With alternative plugs an approved fuse must be fitted in the plug.

NOTE: The plug severed from the main leads must be destroyed as a plug with bared flexible cords is hazardous if engaged in a live socket outlet. In the event of replacing the plug fuse, use a fuse approved by ASTA to BS 1362, i.e. carrying the mark, rating as marked on plug.

Always replace the fuse cover. Never use plugs with the fuse cover omitted.

WARNING: DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH THE LETTER 'E', BY THE EARTH SYMBOL OR COLOURED GREEN OR YELLOW.

The wires in this main lead are coloured in accordance with the following code:

Blue Neutral

Brown Live

As the colours of the wiring in the main lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured blue must be connected to the terminal which is marked with the letter 'N' or coloured black or blue.

The wire which is coloured brown must be connected to the terminal which is marked with the letter 'L' or coloured red or brown.

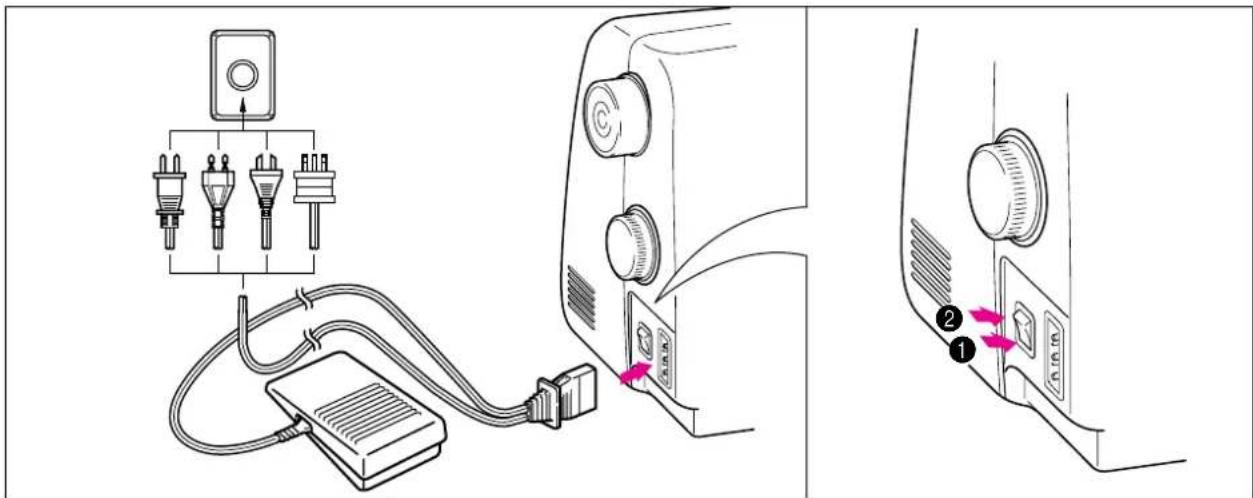

Connecting Plugs and Main Power / Sewing Light Switch

Diagram showing cable connection to a device with labeled components and directional arrows indicating connection points.

1. Connect the three-prong plug into the machine.
2. Connect the electrical supply plug into a wall outlet.

- When leaving the machine unattended, the main switch of the machine should be switched off or the plug must be removed from the socket outlet.

Turn on or off the switch for the main power and sew-light.

①Turn on
②Turn off

- When servicing the machine, or when removing covers or changing bulbs, the machine or the electrical set must unplugged.

HEFTEN UND APPLIZIEREN

Patchwork (Assemblage) 52

KNOOPSGATEN EN KNOPEN

Een knoopsgat maken

TOEBEHOREN EN APPLICATIONS

Technical diagram of a sewing machine with numbered parts for identification

Technical diagram of a sewing machine with numbered parts for identification

Line drawing of a cable with a plug and connector, labeled with number 17 (no text or symbols on the diagram itself)

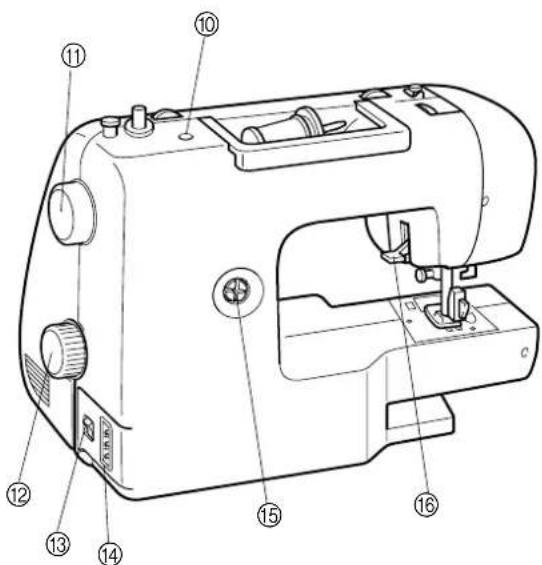

HAUPTBESTANDTEILE

①SPULER (Seite 28)

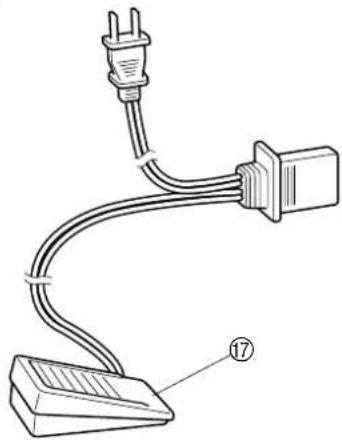

⑰VOETPEDAAL (Pagina 8)

(XL-6060, XL-6061, XL-6062, XL-6063, XL-6050, XL-6051, XL-6052, XL-6053)

X59369-251

(XL-6040, XL-6041, XL-6042, XL-6043)

3D rendered image of a pink mechanical component with no visible text or symbols

⑥130012-054 ⑦130013-054

⑧X59476-051 ⑨130920-051

Illustration of a pink pen-like tool with black bands (no text or symbols)

⑩X55467-051 ⑪X54243-001

⑬X53984-054⑫XA3442-151

①SA107

XA8319-002

②SA129

X81021-002

③SA125

X80980-002

ZUBEHÖR

XL-6060, XL-6061, XL-6062, XL-6063, XL-6050, XL-6051, XL-6052,

XL-6053, XL-6040, XL-6041, XL-6042, XL-6043.

Diagram showing connections between a device with three plug-in switches and a power adapter, including a labeled connector.

Diagram showing a car air intake switch with labeled parts and directional arrows indicating flow or movement.

Diagram showing foot pressing a pink foot on a purple foot, with a red arrow indicating the press direction and a numbered label (①) pointing to the foot.

Fußanlasser

Diagram showing four types of boat hull designs with cross and circle symbols indicating different orientations or orientations.

Diagram showing a hand holding a tool with labeled parts ① and ②, indicating a measurement or alignment step.

Diagram illustrating a mechanical assembly with labeled parts and directional arrows indicating motion or movement.

Technical diagram showing mechanical assembly with numbered components and directional arrows, including a magnified inset of the final component.

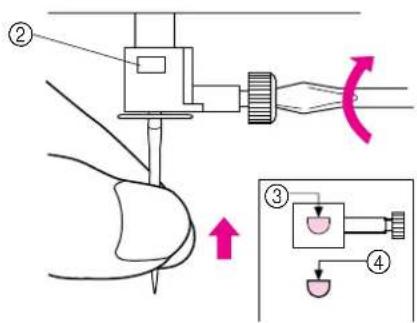

Diagram of a screwdriver tool with a drill bit and pink motion arrows indicating movement (no text or symbols)

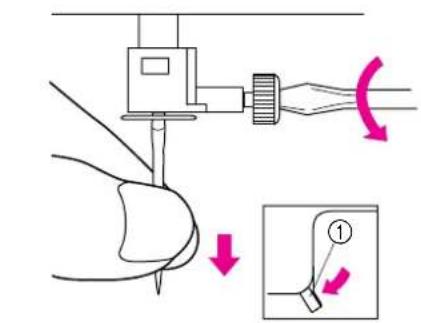

Nadel prüfen

Two-step illustration of a sewing machine needle being adjusted, showing the process from base to top (no text or symbols)

Nähfuß wechseln

VORSICHT

Diagram of a sewing machine's base panel with a pink fabric cover, showing no text or symbols

Plateau

Technical diagram of a sewing machine handle with numbered parts and rotation indicator

③ 4 3 2 1 ③ SS

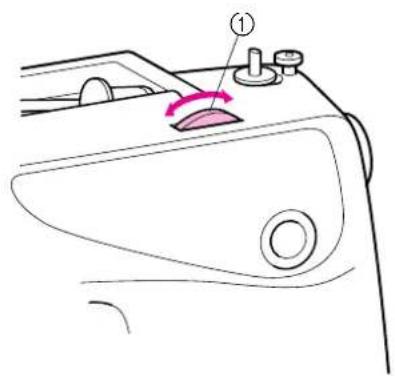

VERSCHIEDENE REGLER

Stichmuster-Einstellrad

VORSICHT

(Modell XL-6060, XL-6061, XL-6062, XL-6063, XL-6050, XL-6051, XL-6052, XL-6053)

NOTIZEN:

(Model XL-6060, XL-6061, XL-6062, XL-6063, XL-6050, XL-6051, XL-6052, XL-6053)

OPMERKING:

(Model XL-6050, XL-6051, XL-6052, XL-6053)

PATROON STEEK		INGESTELDEBREEDTEIN HANDLEIDING [mm (inch)]	AANBEVOLEN PAGINA INLENGTE [mm (inch)] HANDLEIDING
	AUTOMATISCH KNOOPSGAT 5 F-1,5IN 1 STAPPEN (3/16) (1/64-1/16)		56
	RECHTE STEEK(Links) (1/16-3/16)	—	1-4
	RECHTE STEEK(Midden) (1/16-3/16)	—	1-4
	ZIGZAGSTEEK	1,5 F-4(1/16) (1/64-3/16)
	ZIGZAGSTEEK	3,5 F-4(1/8) (1/64-3/16)
	ZIGZAGSTEEK	5 F-4(3/16) (1/64-3/16)
	BLINDE ZOOMSTEEK	3 F-2(1/8) (1/64-1/16)
	SCHELP-RIJGSTEEK	5 F-3(3/16) (1/64-1/8)
	ELASTISCHE STEEK	5 F-2,5(3/16) (1/64-3/32)
	BLINDZOOM STRETCHSTEEK	4 F-1,5(3/16) (1/64-1/16)
	SCHELPSTEEK	5 F-1,5(3/16) (1/64-1/16)
	DOBBELE ACTIESTEEKRIMPELSTEEK 49VERBINDINGSSTEEK	5 F-3(3/16) (1/64-1/8)
	DRIEVOUDIGE STRETCHSTEEK(Links) 2,5 (3/32)	—	SS Vast
	DRIEVOUDIGE STRETCHSTEEK(Midden) 2,5 (3/32)	—	SS Vast
	DRIEVOUDIGE 1,5ZIGZAGSTEEK	(1/16)	SS Vast2,5 (3/32)
	DRIEVOUDIGE 3,5ZIGZAGSTEEK	(1/8)	SS Vast2,5 (3/32)
	DRIEVOUDIGEZIGZAGSTEEK	5(3/16)	SS Vast2,5 (3/32)
	ELASTISCHE OVERLOCK	3(1/8)	SS Vast2,5 (3/32)
	ELASTISCHE OVERLOCK	5(3/16)	SS Vast2,5 (3/32)
	TAKSTEEK	5(3/16)	SS Vast2,5 (3/32)
	KAMSTEEK	4(3/16)	SS Vast2,5 (3/32)
	DECORATIEVE STEEK	5(3/16)	SS Vast2,5 (3/32)
	FAGOTSTEEK	5(3/16)	SS Vast2,5 (3/32)
	DECORATIEVE STEEK	5(3/16)	SS Vast2,5 (3/32)
	DECORATIEVE ZOOMSTEEK	5(3/16)	SS Vast2,5 (3/32)

AANBEVOLEN STEEKLENGTEN

(Model XL-6040, XL-6041, XL-6042, XL-6043)

PATROON STEEK		INGESTELDEBREEDTEIN HANDLEIDING [mm (inch)]	AANBEVOLEN PAGIN LENGTHE [mm (inch)] HANDLEIDING	NA IN
	AUTOMATISCH KNOOPSGAT 5 F-1,5IN 4 STAPPEN (3/16) (1/64-1/16)			58
	RECHTE STEEK(Links) (1/16-3/16)	—	1-4	42, 66, 67
	RECHTE STEEK(Midden) (1/16-3/16)	—	1-4	42, 66, 67
	ZIGZAGSTEEK	1,5 F-4(1/16) (1/64-3/16)		45, 64, 68, 70
	ZIGZAGSTEEK	3,5 F-4(1/8) (1/64-3/16)		45, 64, 68, 70
	ZIGZAGSTEEK	5 F-4(3/16) (1/64-3/16)		45, 64, 68, 70
	BLINDE ZOOMSTEEK	3 F-2(1/8) (1/64-1/16)		46
	SCHELP-RIJGSTEEK	5 F-3(3/16) (1/64-1/8)		47
	ELASTISCHE STEEK	5 F-2,5(3/16) (1/64-3/32)		48
	DRIEVOUDIGE STRETCHSTEEK(Links) 2,5 (3/32)	—	SS Vast	42
	DRIEVOUDIGE STRETCHSTEEK(Midden) 2,5 (3/32)	—	SS Vast	42
	DRIEVOUDIGE 1,5ZIGZAGSTEEK	(1/16)	SS Vast2,5 (3/32)	54
	DRIEVOUDIGE 3,5ZIGZAGSTEEK	(1/8)	SS Vast2,5 (3/32)	54
	DRIEVOUDIGEZIGZAGSTEEK	5(3/16)	SS Vast2,5 (3/32)	54
	SCHUINE OVERLOCK	3(1/8)	SS Vast2,5 (3/32)	53
	ELASTISCHE OVERLOCK	5(3/16)	SS Vast2,5 (3/32)	53
	TAKSTEEK	5(3/16)	SS Vast2,5 (3/32)	54

Diagram of a washing machine handle with labeled component (①) and directional arrow indicating motion or movement.

Diagram of a washing machine handle with labeled component (①) and directional arrow indicating rotation or adjustment.

Diagram illustrating a mechanical or structural system with numbered components and directional arrows, including spring symbols.

Line drawing of a hand operating a sewing machine with a pink tool on the handle (no text or symbols)

Diagram showing sewing process with labeled parts and directional arrow indicating movement

Umbau auf Freiarm

Line drawing of a sewing machine's handle and socket (no text or symbols)

ENFILAGE DE LA MACHINE

Technical diagram illustrating four-step mechanical assembly steps with labeled components and directional arrows

①

②

Diagram showing a hand pressing a component into a pink plastic container with a numbered label (①) and directional arrow.

②

Diagram of hands operating a device with a circular component and directional arrow (no text or symbols)

Diagram of a mechanical component with a highlighted circular area and tool, no text or symbols present

Diagram showing a hand using a tool to adjust a device with labeled parts and directional arrows

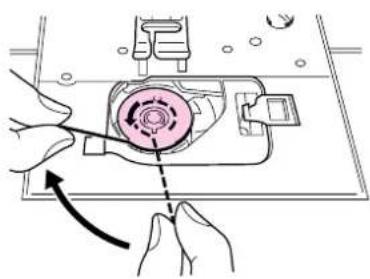

Unterfadenführung

▲ VORSICHT

Technical diagram of a sewing machine with numbered parts and motion indicator arrows

Technical diagram showing mechanical assembly with labeled components and directional arrows indicating motion or movement.

Pure mechanical diagram showing a shaft and housing with a pink arrow indicating direction (no text or symbols)

Pure mechanical diagram showing a shaft and nut assembly with a pink arrow indicating direction (no text or symbols)

Diagram showing a mechanical or structural component with arrows indicating motion or force direction, labeled with number ②.

Technical line drawing of a sewing machine needle and base (no text or symbols)

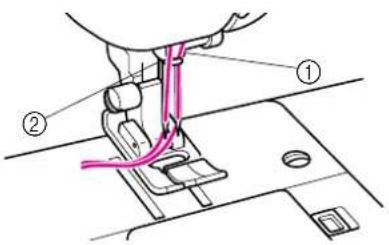

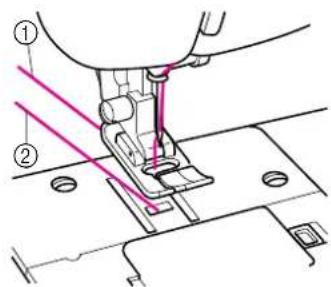

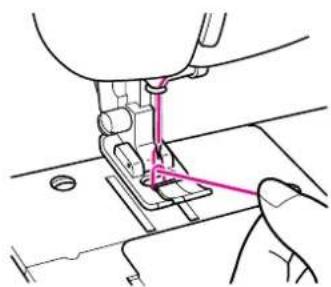

Oberfadenführung

Technical diagram of a sewing machine with numbered parts and pink motion arrows indicating movement or force

Line drawing of a sewing machine with hands operating the base (no text or symbols)

Line drawing of a sewing machine needle stitching a component (no text or symbols)

Technical diagram of a sewing machine with numbered parts and measurement lines

Diagram of a cylindrical mechanical component with internal dashed lines and dimension arrows (no text or symbols)

B

Technical diagram showing sewing process with labeled parts ① and ②, likely for garment or sewing instruction.

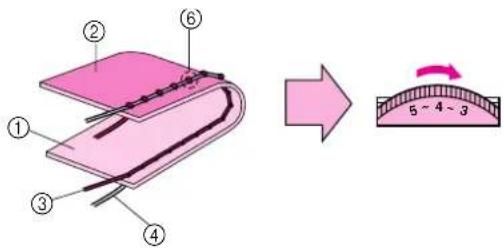

MISE EN PLACE DE L'AIGUILLE JUMELEE

Diagram illustrating a mechanical assembly process with numbered components and a scale reading showing 5-4-3 units.

B

Diagram illustrating a mechanical assembly process with numbered components and a curved scale labeled 5-4-3.

C

Diagram of a layered electronic component with numbered parts labeled ① to ④

Tension des fils

Line drawing of a sewing machine needle and foot (no text or symbols)

Point droit

Technical line drawing of a sewing machine needle and foot (no text or symbols)

Line drawing of a sewing machine needle and foot (no text or symbols)

POUR MODIFIER LE SENS DE LA COUTURE

Diagram showing a hand holding a car seatbelt with a pink line indicating the angle of change, labeled with number ①.

POUR RETIRER LE TISSU DE LA MACHINE

1. Arrêter la machine.

Line drawing of a sewing machine needle stitching on a pair of hands (no text or symbols)

Two vertical spring symbols with dashed lines indicating measurement or alignment (no text or labels)

Zickzackstich

Line drawing of a sewing machine needle stitching on a hand (no text or symbols)

Blindsaumstich

Line drawing of a sewing machine needle stitching fabric (no text or symbols)

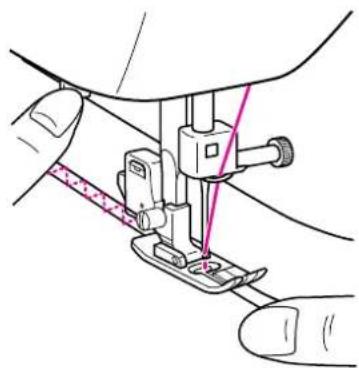

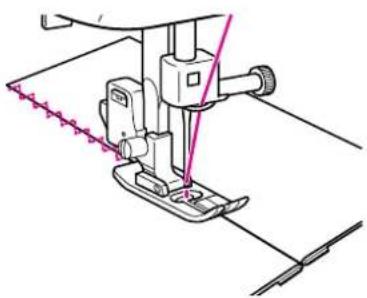

Point picot

Pure geometric L-shape diagram with no text, numbers, or symbols

B

Line drawing of a sewing machine needle stitching on a garment (no text or symbols)

C

Line drawing of a sewing machine needle stitching a thread (no text or symbols)

Point élastique

STOF AAN ELKAAR NAAIEN

Line drawing of a sewing machine needle stitching fabric, with a pink wavy line indicating fabric stroke (no text or symbols)

Feston

Two-step illustration of a sewing machine needle stitching on fabric, showing thread and stitching details (no text or symbols)

Points décoratifs

Patchwork (Assemblage)

Line drawing of a sewing machine needle and base (no text or symbols)

B

Illustration of a hand pressing down on a pink fabric with serrated edge (no text or symbols)

C

Line drawing of a sewing machine needle and foot (no text or symbols)

Overlock élastique

Simple line drawing of scissors cutting a curved blade with pink zigzag pattern (no text or symbols)

Illustration of hands holding a pink fabric with dotted lines indicating seam allowance (no text or symbols)

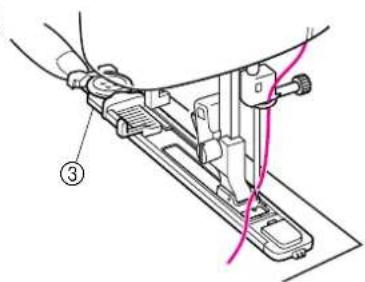

Point plume

Technical diagram of a mechanical device with labeled components and directional arrows

B

Technical line drawing of a sewing machine needle and base (no text or symbols)

C

Technical diagram showing mechanical assembly with labeled parts and a cross mark indicating a specific component.

D

Two-step diagram showing hand positioning and cable termination on a mechanical device (no text or symbols)

(Modell XL-6060, XL-6061, XL-6062, XL-6063, XL-6050, XL-6051, XL-6052, XL-6053)

(Model XL-6060, XL-6061, XL-6062, XL-6063, XL-6050, XL-6051, XL-6052, XL-6053)

Technical diagram showing labeled components of a mechanical device with dimensions and parts numbered 1 to 6.

Illustration of a hand holding a pen with a pink clip, no text or symbols present

(Modèle XL-6060, XL-6061, XL-6062, XL-6063, XL-6050, XL-6051, XL-6052, XL-6053, XL-6040, XL-6041, XL6042, XL-6043)

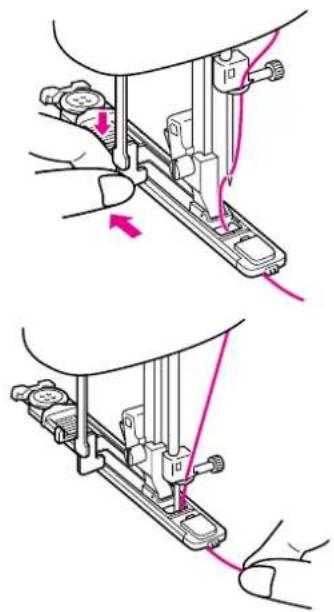

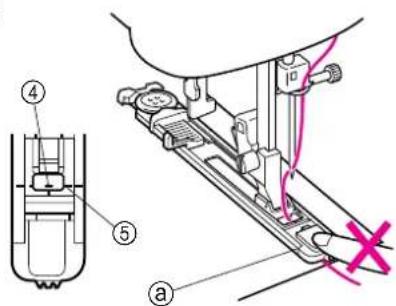

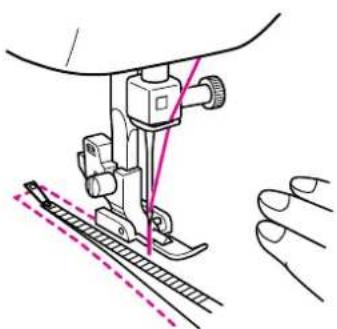

COMMENT ARRETER LA COUTURE ET OUVRIR LA BOU- TONNIERE

Technical diagram of a mechanical device with numbered components labeled ①, ②, and ③.

B

Illustration of a sewing machine needle stitching a pair of fabric, with no text or symbols present.

Illustration of two hands holding a pink background with a dashed pink line crossing through the center (no text or symbols)

Diagram showing hands inserting a device into a device with arrows indicating direction (no text or symbols)

B

Line drawing of a sewing machine needle stitching a grid-patterned surface (no text or symbols)

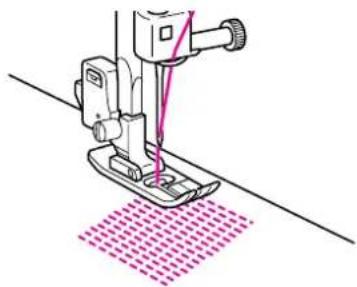

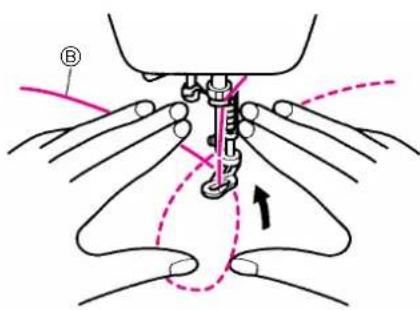

Stopfen

Illustration of a sewing machine needle stitching a pink fabric (no text or symbols)

Pink tulip-shaped graphic with dotted outline (no text or symbols)

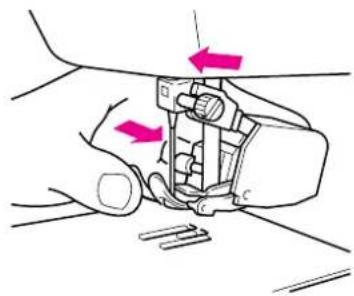

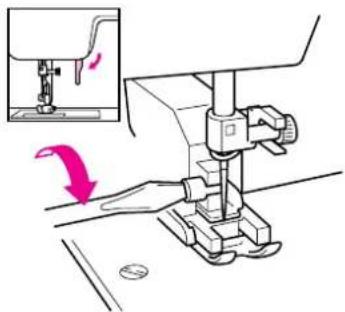

Applizieren

Technical diagram showing two-step sewing process with pink annotation lines and measurement markings

Aloca

Alice

Line drawing of hands operating a sewing machine with a pink circular mark on the needle (no text or symbols)

Illustration of a medical procedure with a needle inserted into a pink flower-shaped object (no text or symbols)

Technical diagram of a mechanical device with labeled parts ① and ②

Diagram of a sewing machine needle insertion mechanism, showing angle and measurement (no text or symbols)

B

Illustration of a hand holding a mechanical device with directional arrows indicating movement (no text or symbols)

C

Diagram of a sewing machine needle stitching, showing base and workpiece movement (no text or symbols)

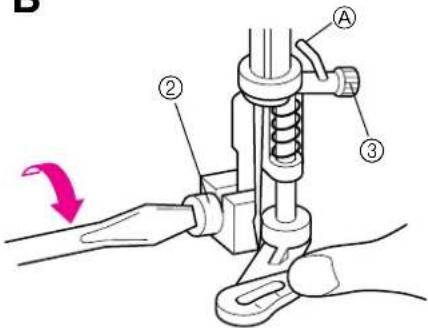

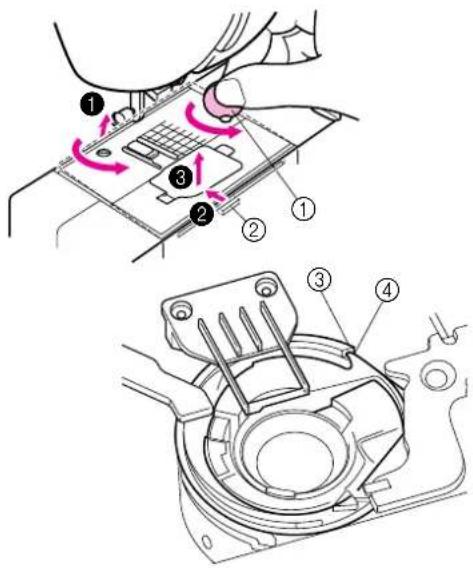

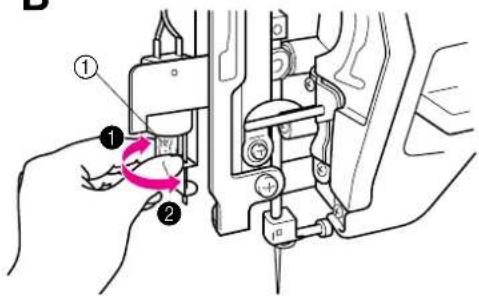

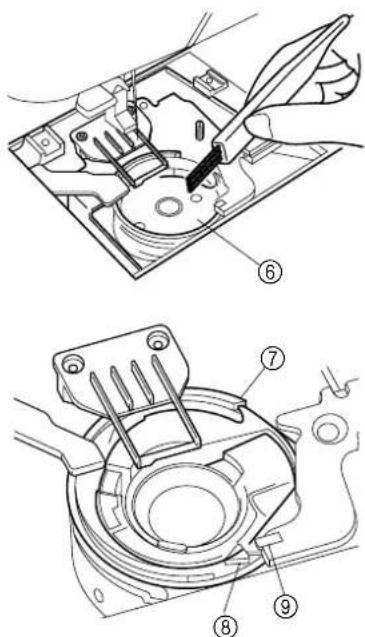

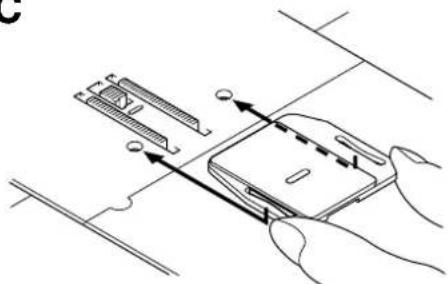

OPTIONALES ZUBEHÖR

Diagram showing a mechanical device with a rotation arrow and labeled component ①

B

Diagram of a mechanical device with labeled parts and directional arrow indicating motion

C

Diagram of hands holding a smartphone with directional arrows indicating movement or force (no text or symbols present)

D

Diagram illustrating a sewing or sewing process with labeled point B and directional arrows indicating movement

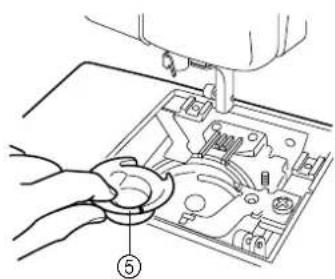

OPTIONALES ZUBEHÖR

Technical diagram showing a structural assembly with labeled components 6 and 7, likely for engineering or architectural drawing.

OPTIONALES ZUBEHÖR

Simple line drawing of a mechanical device with a screw and directional arrows indicating motion (no text or symbols)

B

Technical diagram showing mechanical assembly with numbered components and a highlighted rotation arrow

C

Technical line drawing of a mechanical device with a screw and lever, no text or symbols present

Line drawing of a sewing machine needle stitching a garment, with no text or symbols present

B

Technical diagram showing mechanical assembly steps with numbered components and directional arrows indicating motion

C

Illustration of a sewing machine needle stitching an electronic component (no text or symbols visible)

D

Technical diagram showing mechanical assembly steps with numbered components

Reinigung

VORSICHT

Line drawing of a sewing machine with a separate 3D block nearby (no text or symbols)

Simple line drawing of an open cardboard box (no text or symbols)

Maschine verpacken

Patchwork (Assemblage) 52

Pied quilting 1/4" 4,76
