Product type	Cordless phone (additional handset)
Brand	Panasonic
Model	KXTGA651EXF
Compatibility	Bases of series KX-TG6501/KX-TG6511/KX-TG6521/KX-TG6531/KX-TG6551/KX-TG6561
Power supply	AC adapter PQLV219CE (supplied)
Batteries	2 Ni-MH AAA rechargeable batteries (HHR-55AAAB or N4DHYYY00005)
Initial charging time	Approximately 7 hours
Main functions	Directory, call lists, answering machine (depending on base), language selection
Maintenance and cleaning	Soft damp cloth, no benzene or thinner
Safety	Use only the supplied adapter, do not expose to moisture
Spare parts and repairability	Rechargeable batteries, AC adapter (ref. PQLV219CE)
General information	Use in several European countries; consumer service 08 92 35 05 05 (€0.34/min)

Frequently Asked Questions - KXTGA651EXF PANASONIC

How to register the handset to the base?

Make sure the handset is turned on. On the handset, pick up and press the ✗️ key. On the base, press the ••• key for about 5 seconds until you hear the registration tone. Then place the handset on the base and wait for the confirmation tone.

How to change the display language?

Press #110 from the handset. Use the ▼ and ▲ keys to select the desired language, then press OK and finally ✗○.

What type of batteries to use?

Use only Ni-MH rechargeable batteries size AAA (R03) supplied or replacement recommended by Panasonic. Do not use alkaline, manganese, or Ni-Cd batteries.

How long does it take to charge the batteries for the first time?

Leave the handset on the charger for approximately 7 hours before first use.

The handset displays 'Wait 1 minute'. What to do?

This message appears if the handset is not registered to the base. Follow the registration procedure described in the manual.

Can I use this handset with another Panasonic base?

This handset is compatible only with bases of series KX-TG6501/KX-TG6511/KX-TG6521/KX-TG6531/KX-TG6551/KX-TG6561.

How to maintain the device?

Clean the outer surface with a soft damp cloth. Do not use benzene, thinner, or abrasive powder.

What to do if the handset does not ring during a call?

Check that the handset is registered and the ringer volume is not turned off. Refer to the base manual to adjust the ringer settings.

How to erase personal information before disposing of the device?

Before discarding, transferring, or returning the product, erase stored information such as the directory and caller list via the handset settings.

Where to find the declaration of conformity?

The declaration of conformity is available for download at http://www.doc.panasonic.de.

USER MANUAL KXTGA651EXF PANASONIC

Panasonic®

Installation Manual

Bedienungsanleitung

Additional Digital Cordless Handset

Contents/Inhalt/Table des matières/Inhoud/Innehåll/ Innholdsfortegnelse/Sisällysluettelo/Índice/Περιεχόμενα/ Indholdsfortegnelse/Contenido/Índice/İçindekiler

English 4

Deutsch 9

Français....14

Nederlands.... 19

Svenska....24

Norsk 29

Suomi 34

Portuguese.... 39

Greek...... 44

Danish....49

Spanish 54

Italian....59

Turkish....64

3

TGA651EX(ex).book Page 4 Tuesday, September 21, 2010 4:17 PM

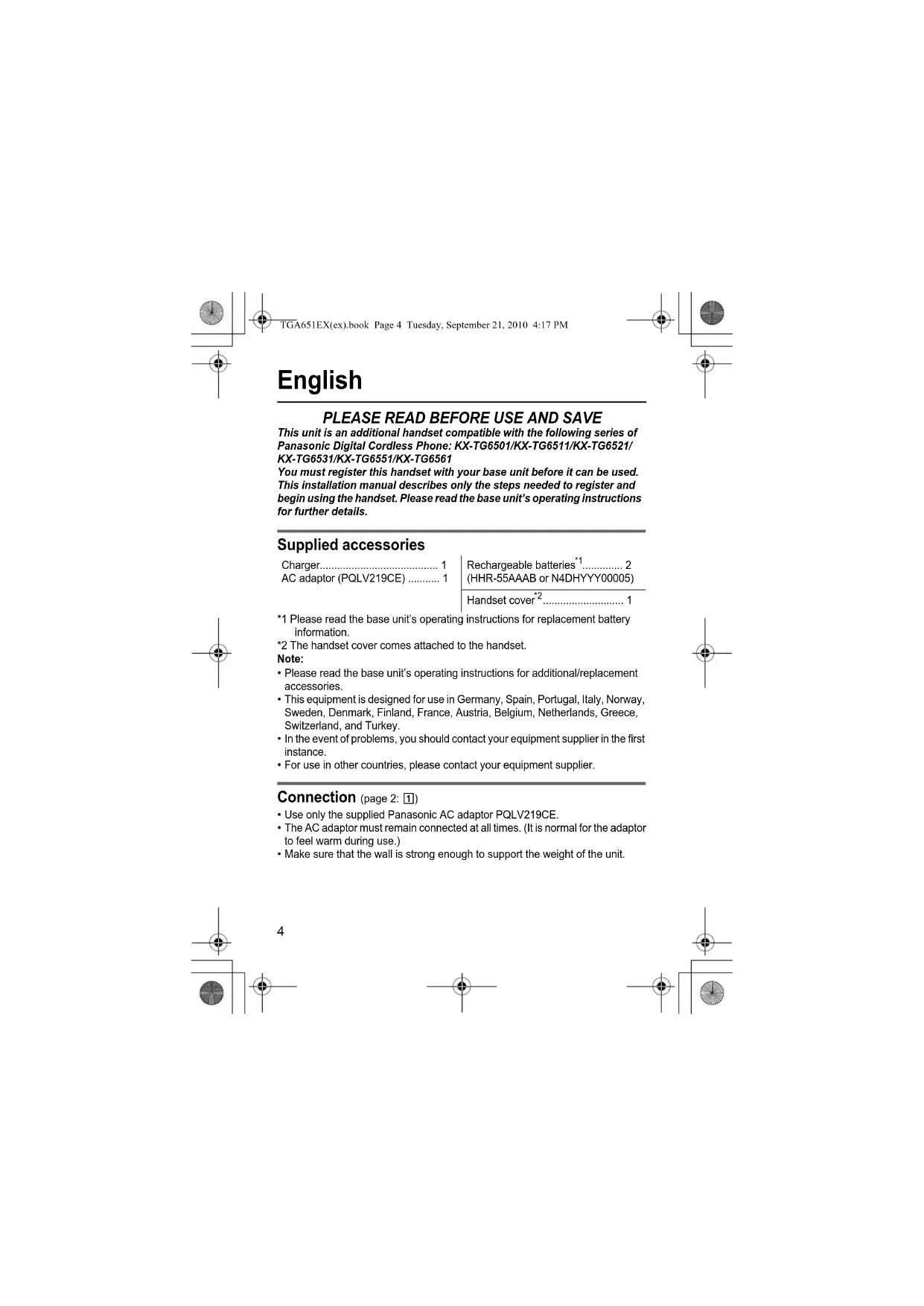

English

PLEASE READ BEFORE USE AND SAVE

This unit is an additional handset compatible with the following series of Panasonic Digital Cordless Phone: KX-TG6501/KX-TG6511/KX-TG6521/KX-TG6531/KX-TG6551/KX-TG6561

You must register this handset with your base unit before it can be used. This installation manual describes only the steps needed to register and begin using the handset. Please read the base unit's operating instructions for further details.

Supplied accessories

Charger....1 AC adaptor (PQLV219CE)....1

Rechargeable batteries ¹ ..... 2 (HHR-55AAAB or N4DHYYY00005)

Handset cover ² 1

*1 Please read the base unit's operating instructions for replacement battery information. *2 The handset cover comes attached to the handset.

Note:

• Please read the base unit's operating instructions for additional/replacement accessories.
• This equipment is designed for use in Germany, Spain, Portugal, Italy, Norway, Sweden, Denmark, Finland, France, Austria, Belgium, Netherlands, Greece, Switzerland, and Turkey.
• In the event of problems, you should contact your equipment supplier in the first instance.
• For use in other countries, please contact your equipment supplier.

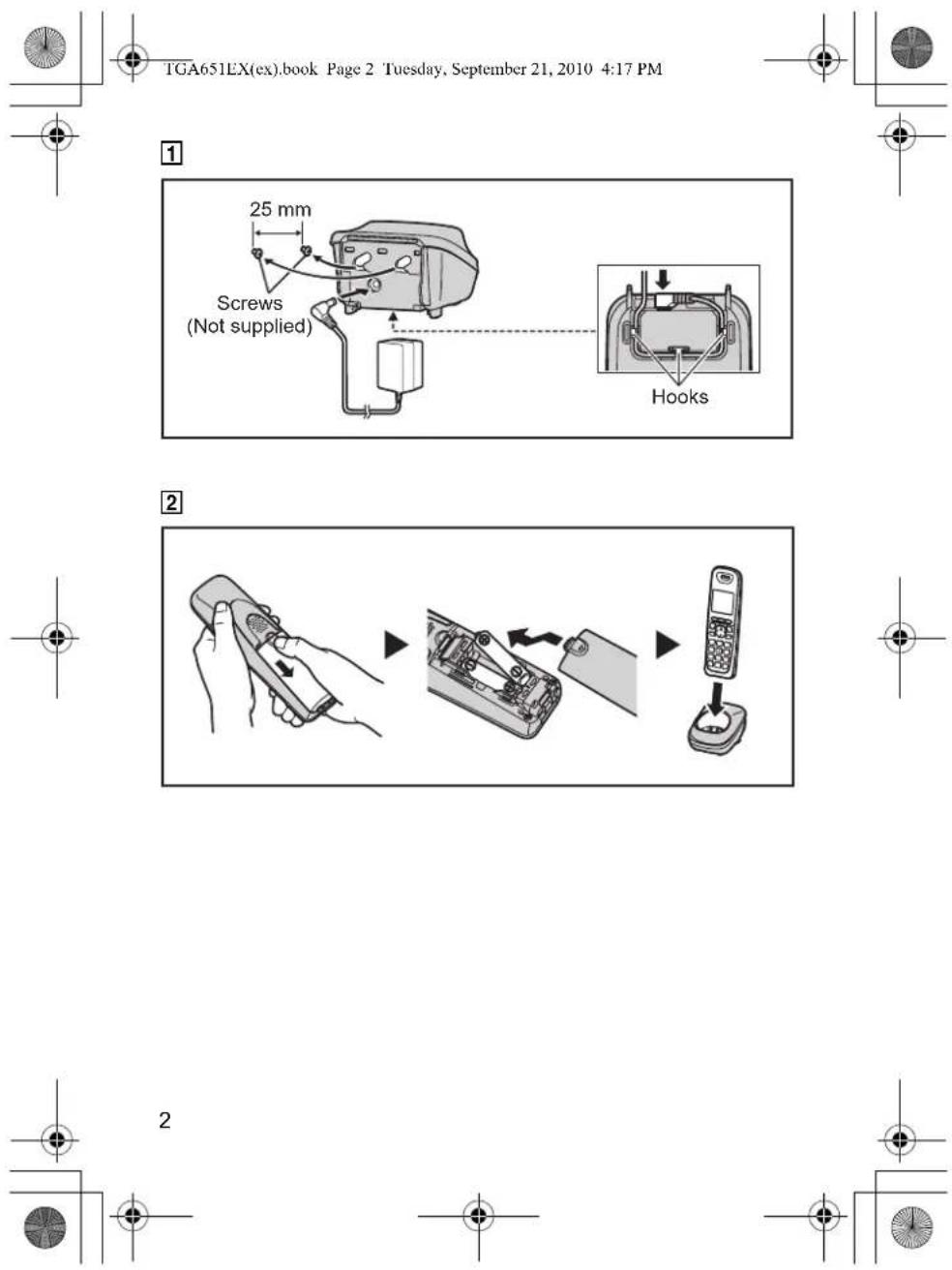

Connection (page 2: 1)

• Use only the supplied Panasonic AC adaptor PQLV219CE.
• The AC adaptor must remain connected at all times. (It is normal for the adaptor to feel warm during use.)
• Make sure that the wall is strong enough to support the weight of the unit.

4

Battery installation/Battery charge (page 2: 2)

When the language selection is displayed after installing the batteries for the first time, you can select your desired language.

[▼]/[▲]: Select your desired language. → OK → [✗○]

Important:

• Use the supplied rechargeable batteries. For replacement, we recommend using the Panasonic rechargeable batteries noted in the base unit's operating instructions.
• Wipe the battery ends (⊕, ⊖) with a dry cloth.
• Avoid touching the battery ends (⊕, ⊖) or the unit contacts.
• Confirm correct polarities (⊕, ⊖). • USE ONLY Ni-MH batteries AAA (R03) size.
• Do NOT use Alkaline/Manganese/Ni-Cd batteries.

Place the handset on the charger for about 7 hours before initial use.

Note:

• The handset display may show "Please wait for 1 minute." when the handset is placed on the charger if it is not registered to the base unit.
• If the batteries are fully charged, but the operating time seems to be shorter, clean the battery ends (⊕, ⊖) and the charge contacts with a dry cloth and charge again.

Registering the handset to the base unit

Ensure that the handset is switched on. If it is not on, press and hold [✗] for few seconds to turn the handset on.

1 Handset:

Lift the handset and press [→].

2 Base unit:

Proceed with the operation for your model.

■ KX-TG6501/KX-TG6511

Press and hold [•••] for about 5 seconds. (No registration tone)

■ KX-TG6521/KX-TG6531/KX-TG6551/KX-TG6561

Press and hold [•••] for about 5 seconds, until the registration tone sounds.

- If all registered handsets start ringing, press the same button to stop. Then repeat this step.

5

3 Handset:

Place the handset on the base unit.

- Continue the operation even when the handset display shows "Please wait for 1 minute.".

4 With the handset still on the base unit, wait until a confirmation tone sounds and Y is displayed.

Note:

• If an error tone sounds, or if Y is displayed, register the handset according to the base unit's operating instructions.
• The KX-TG6501/KX-TG6511/KX-TG6551 does not feature an answering system.
• Answering system features are available only when this handset is registered to the KX-TG6521/KX-TG6531/KX-TG6561.

For your safety

To prevent severe injury and loss of life/property, read this section carefully before using the product to ensure proper and safe operation of your product.

WARNING

Power connection

• Completely insert the AC adaptor/power plug into the power outlet. Failure to do so may cause electric shock and/or excessive heat resulting in a fire.
• Regularly remove any dust, etc. from the AC adaptor/power plug by pulling it from the power outlet, then wiping with a dry cloth. Accumulated dust may cause an insulation defect from moisture, etc. resulting in a fire.
• Unplug the product from power outlets if it emits smoke, an abnormal smell, or makes an unusual noise. These conditions can cause fire or electric shock. Confirm that smoke has stopped emitting and contact an authorised service centre.

Installation

• To prevent the risk of fire or electrical shock, do not expose the product to rain or any type of moisture.
• Do not place or use this product near automatically controlled devices such as automatic doors and fire alarms. Radio waves emitted from this product may cause such devices to malfunction resulting in an accident.

CAUTION

Installation and location

- The AC adaptor is used as the main disconnect device. Ensure that the AC outlet is installed near the product and is easily accessible.

6

TGA651EX(ex).book Page 7 Tuesday, September 21, 2010 4:17 PM

Battery

• We recommend using the supplied batteries or additional/replacement batteries noted in the base unit's operating instructions for replacement battery information. USE ONLY rechargeable NI-MH batteries AAA (R03) size
• Do not mix old and new batteries.
• Do not open or mutilate the batteries. Released electrolyte from the batteries is corrosive and may cause burns or injury to the eyes or skin. The electrolyte is toxic and may be harmful if swallowed.
• Exercise care when handling the batteries. Do not allow conductive materials such as rings, bracelets, or keys to touch the batteries, otherwise a short circuit may cause the batteries and/or the conductive material to overheat and cause burns.
• Charge the batteries provided with or identified for use with this product only, in accordance with the instructions and limitations specified in this manual.
• Only use a compatible base unit (or charger) to charge the batteries. Do not tamper with the base unit (or charger). Failure to follow these instructions may cause the batteries to swell or explode.

Other information

• Operating the product near electrical appliances may cause interference. Move away from the electrical appliances.
• Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for possible special disposal instructions.

Routine care

• Wipe the outer surface of the product with a soft moist cloth.
• Do not use benzine, thinner, or any abrasive powder.

Notice for product disposal, transfer, or return

- This product can store your private/confidential information. To protect your privacy/confidentiality, we recommend that you erase information such as phonebook or caller list entries from the memory before you dispose of, transfer, or return the product.

7

TGA651EX(ex).book Page 8 Tuesday, September 21, 2010 4:17 PM

Information for Users on Collection and Disposal of Old Equipment and used Batteries

These symbols (①, ②, ③) on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national

legislation and the Directives 2002/96/EC and 2006/66/EC.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union

These symbols (①, ②, ③) are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

Note for the battery symbol

This symbol (②) might be used in combination with a chemical symbol (③). In this case it complies with the requirement set by the Directive for the chemical involved.

8

German

10

1 Handset:

■ KX-TG6501/KX-TG6511

■ KX-TG6521/KX-TG6531/KX-TG6551/KX-TG6561

Installation

French

PLEASE READ THIS DOCUMENT BEFORE USE AND KEEP IT

■ KX-TG6501/KX-TG6511

■ KX-TG6521/KX-TG6531/KX-TG6551/KX-TG6561

WARNING

17

18

Dutch

READ THE MANUAL BEFORE USE AND KEEP IT

Installing batteries/Charging batteries (page 2: 2)

2 Base unit:

■ KX-TG6501/KX-TG6511

■ KX-TG6521/KX-TG6531/KX-TG6551/KX-TG6561

Installation

23

Swedish

READ THE INFORMATION BEFORE USING THE UNITS AND SAVE IT FOR FUTURE USE

24

Install/charge the battery (page 2: 2)

■ KX-TG6501/KX-TG6511

25

■ KX-TG6521/KX-TG6531/KX-TG6551/KX-TG6561

Battery

27

Norwegian

READ BEFORE USE AND KEEP

Connection (page 2: 1)

29

Install/charge battery (page 2: 2)

■ KX-TG6521/KX-TG6531/KX-TG6551/KX-TG6561

3 Handset:

Finnish

READ THE INSTRUCTIONS BEFORE USE AND KEEP THEM

■ KX-TG6501/KX-TG6511

3 Handset:

Portuguese

■ KX-TG6501/KX-TG6511

■ KX-TG6521/KX-TG6531/KX-TG6551/KX-TG6561

CAUTION

42

43

Greek

44

1 Handset:

■KX-TG6501/KX-TG6511

■KX-TG6521/KX-TG6531/KX-TG6551/KX-TG6561

Routine care

Danish

READ BEFORE USE AND KEEP FOR LATER USE

■ KX-TG6501/KX-TG6511

Hold [•••] down for approx. 5 seconds. (No registration tone)

50

■ KX-TG6521/KX-TG6531/KX-TG6551/KX-TG6561

[•••] down for approx. 5 seconds until the registration tone sounds.

51

Batteries

53

Spanish

■ KX-TG6501/KX-TG6511

57

Italian

READ BEFORE USE AND KEEP

59

■ KX-TG6501/KX-TG6511

■ KX-TG6521/KX-TG6531/KX-TG6551/KX-TG6561

61

WARNING

62

63

Turkish

PLEASE READ BEFORE USE AND KEEP

64

65

■ KX-TG6501/KX-TG6511

■ KX-TG6521/KX-TG6531/KX-TG6551/KX-TG6561

68

Declaration of Conformity:

- Panasonic System Networks Co., Ltd. declares that this equipment is in compliance with the essential requirements and other relevant provisions of Radio & Telecommunications Terminal Equipment (R&TTE) Directive 1999/5/EC. Declarations of Conformity for the relevant Panasonic products described in this manual are available for download by visiting: http://www.doc.panasonic.de

69

Declaration of Conformity:

Declaration of Conformity

Panasonic

Panasonic System Networks Co., Ltd.

1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-6531 Japan

Declaration of Conformity

Document No. PCTP-100079-02

017066

(Issuer's name & address)

Panasonic System Networks Co., Ltd.

Hakata-ku, Fukuoka, Japan

(Object of the declaration)

(Product) Digital Enhanced Cordless Telephone

(Trade Name): Panasonic

(Model Nr.) Base unit - KX-TG6511E, KX-TG6512E, KX-TG6513E, KX-TG6521E

KX-TG6522E, KX-TG6523E, KX-TG6524E, KX-TG6511G, KX-TG6512G, KX-TG6521G

KX-TG6522G, KX-TG6523G, KX-TG6524G, KX-TG6511SP, KX-TG6512SP, KX-TG6521SP,

KX-TG6511JT, KX-TG6512JT, KX-TG6521JT, KX-TG6511NE, KX-TG6512NE, KX-TG6513NE,

KX-TG6511FX, KX-TG6512FX, KX-TG6521FX, KX-TG6511FR, KX-TG6512FR, KX-TG6521FR,

KX-TG6522FR, KX-TG6523FR, KX-TG6511TR, KX-TG6511PD, KX-TG6512PD, KX-TG6521PD,

KX-TG6502NL, KX-TG6511NL, KX-TG6512NL, KX-TG6513NL, KX-TG6521NL, KX-TG6522NL,

KX-TG6523NL, KX-TG6532NL, KX-TG6511AR, KX-TG6521AR, KX-TG6522AR, KX-TG6511HG

KX-TG6512HG, KX-TG6521HG, KX-TG6511GR, KX-TG6512GR, KX-TG6521GR, KX-TG6511BL

KX-TG6512BL, KX-TG6513BL, KX-TG6521BL, KX-TG6511SL, KX-TG6512IR

Handset - KX-TGA651E, KX-TGA650E, KX-TGA651EX, KX-TGA650EX, KX-TGA651FX,

KX-TGA650FX

AC Adaptor - POLV219E, POLV219CE

Charger Unit - PNLC1010

(Country of Origin): China

The object of the declaration described above is in conformity with the requirements of the

following EU legislations and harmonized standards:

(Council Directive)

1999/5/EC

Council recommendation

1999/519/EC

(Harmonized Standards)

EN 00050-1

EN 301 489

EN 50365:2

(Council Directive)

2009/125/EC

Implementing Me

E.P Directive:

The last two digits

er in which the

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated placeholder underscores where none should exist in the GT. Hence, the OCR result is inconsistent with the Ground Truth.

-

Authorised Representative In File

Authorised Representation

Panasonic Marketing Europe GmbH

Winsomring 15, 32525 Hamburg, Germany

1. January 1, 2017

(Signature)

(Printed name)

(Data)

Hans-Joachim Habeck

04 June 2010

72

Panasonic

1-62, 4-chome, Minoshime, Hakata-ku, Fukuoka 812-8531 Japan

Declaration of Conformity

Document No: PCTP-100079-02

Hakata-ku, Fukuoka, Japan

(Subject of Declaration)

(Model No.) Main unit -KX-TG6511E,KX-TG6512E,KX-TG6513E,KX-TG6521E.

(Model No.) Base unit - KX-TG6511E, KX-TG6512E, KX-TG6513E, KX-TG6521E.

KX-TG6522E, KX-TG6523E, KX-TG6524E, KX-TG6511G, KX-TG6512G, KX-TG6521G,

KX-TG6522G, KX-TG6523G, KX-TG6524G, KX-TG6511SP, KX-TG6512SP, KX-TG6521SP,

KX-TG6511FA,KX-TG6512FA,KX-TG6521FA,KX-TG6511FR,KX-TG6512FR,KX-TG6521FR.

KX-TG651FFA, KX-TG6512FA, KX-TG6521FA, KX-TG6511FR, KX-TG6512FR, KX-TG6521FR.

KX-TG8522FR, KX-TG8523FR, KX-TG8511TR, KX-TG8511FL, KX-TG8512FL, KX-TG8521FD, KX-TG8502NI, KX-TG8511NI, KX-TG8512NI, KX-TG8513NI, KX-TG8521NI, KX-TG8522NI.

KX-TG6523NL, KX-TG6532NL, KX-TG6511AR, KX-TG6521AR, KX-TG6522AR, KX-TG6511HG,

KX-TG6512HG, KX-TG6521HG, KX-TG6511GR, KX-TG6512GR, KX-TG6521GR, KX-TG6511BL

KX-TG6512BL, KX-TG6513BL, KX-TG6521BL, KX-TG6511SL, KX-TG6512TR

Handset - KX-TGA651E, KX-TGA650E, KX-TGA651EX, KX-TGA650EX, KX-TGA651FX,

KX-TGA650EX

AC adapter - PQLV219E, PQLV219CE

Sales department/Vertrieb/Organisation Commerciale/Klantenservice/Försäljning/Importør/Maahantuonti/Departamento Comercial/Τμήμα Πωλήσεων/Salgskontor/Departamento de ventas/Ufficio Vendite/Satış Bölümü

■ Austria

Panasonic Austria

Laxenburgerstrasse 252, 1230 Wien

www.panasonic.at

Information hotline number:

0810-10 18 00

Branch of Panasonic Nordic AB

Sinimäentie 8 B

02630 Espoo

http://www.panasonic.fi

■ France

Panasonic France SAS

1-3 avenue François Mitterrand

93218 Saint-Denis La Plaine

Cedex France

TGA651EX(ex).book Page 75 Tuesday, September 21, 2010 4:17 PM

■ Greece

INTERTECH S.A

Panafax: 210.9648.588

e-mail: [e-mail]

Branch

Northern Greece

Panafax: 2310.968.083

e-mail: [e-mail]

www.panasonic.gr

Italian

Panasonic Italia S.p.a.

E-Care Repair Services

Fruitweg 34

2321 DH Leiden

Tel: [phone]

Fax: [phone]

Homepage: www.panasonic.nl

E-mail: [e-mail]

Customer service phone number:

073-6402 802

■ Norway

Panasonic Norge

Branch of Panasonic Nordic AB

Karihaugsveien 89

N-1086 Oslo

http://www.panasonic.no

75

TGA651EX(ex).book Page 76 Tuesday, September 21, 2010 4:17 PM

■ Portugal

Prosonic S.A.

Service Centre & Support

Littauerboden 1

CH-6014 Luzern

Support - Hotline

0900 809 809 (CHF 2.15/min.)

www.panasonic.ch

Switzerland

After-sales service:

John Lay Electronics AG

Service Centre & Support

Littauerboden 1

CH-6014 Lucerne

Support - Hotline

0900 809 809 (CHF 2.15/min.)

www.panasonic.ch

Switzerland

Customer service:

John Lay Electronics AG

Service Centre & Support

Littauerboden 1

CH-6014 Lucerna

Support - Hotline

0900 809 809 (CHF 2.15/min.)

www.panasonic.ch

76

TGA651EX(ex).book Page 77 Tuesday, September 21, 2010 4:17 PM

■ Sweden

Panasonic Nordic AB

TGA651EX(ex).book Page 78 Tuesday, September 21, 2010 4:17 PM

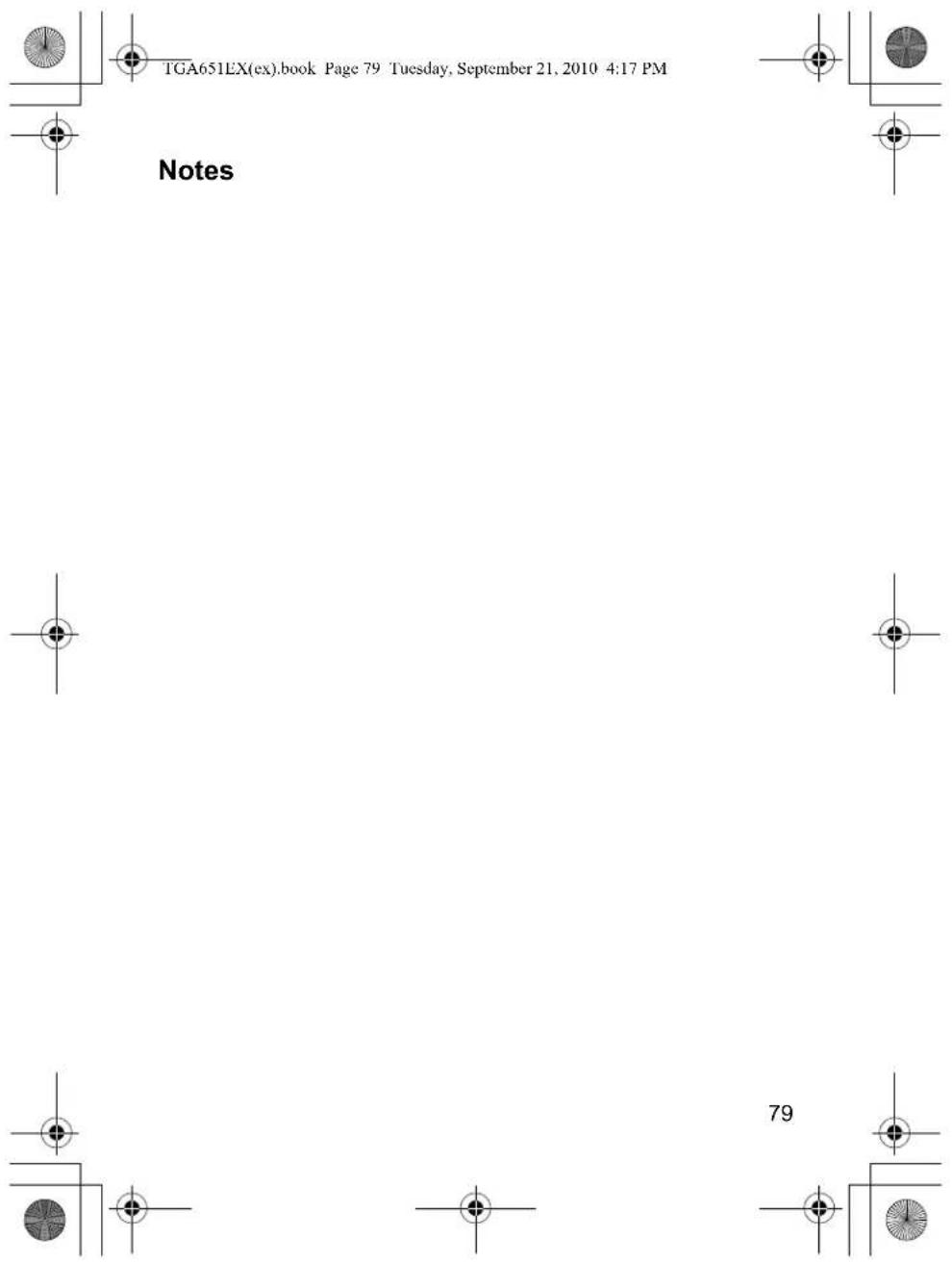

TGA651EX(ex).book Page 79 Tuesday, September 21, 2010 4:17 PM

C€0470

Manufacturer/Producer/Manufacturer/Manufacturer/Manufacturer

Panasonic System Networks Co., Ltd.

1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531, Japan

© Panasonic System Networks Co., Ltd. 2009

PNQX2503XA DC1209DC2090 (A)
