USER MANUAL HW80B1286F HAIER

R A B EDC F IHG J K L M N O A T

The standard 60 °C and 40 °C cotton programmes are suitable to clean normally soiled cotton laundry and they are the most efficient

programmes in terms of combined energy and water consumptions for washing that type of cotton laundry;The actual water temperature may differ from the declared cycle temperature; Power consumption of the

Power consumption of the

x x 850 650 595 53%/51% ／

Press and hold 2seconds

to set door unlocked

SoakTABLE OF CONTENTS LEGEND For your safety, any instructions in this manual with this "Warning" sign must be followed strictly.

WASHING METHODS> 12

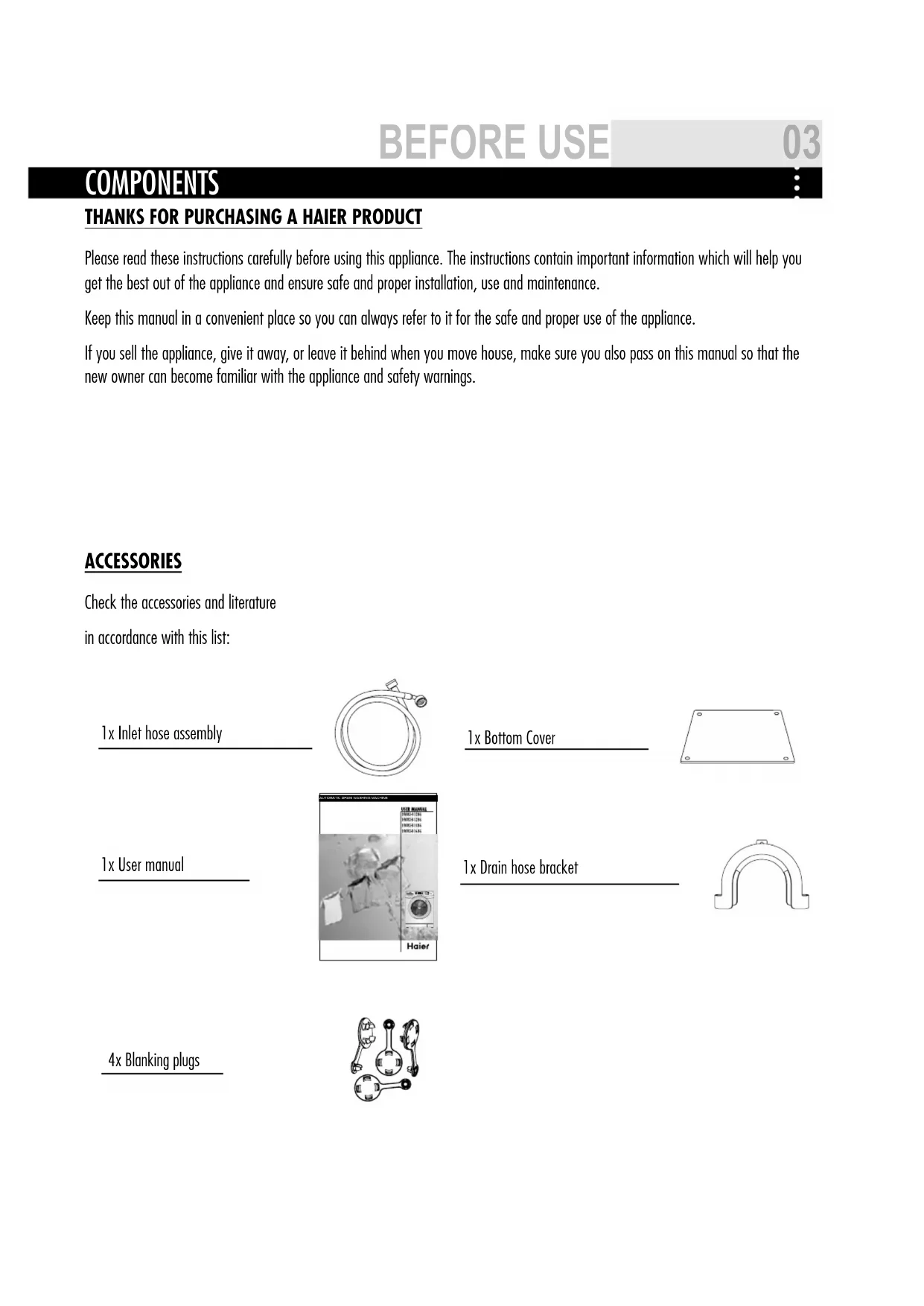

COMPONENTS THANKS FOR PURCHASING A HAIER PRODUCT Please read these instructions carefully before using this appliance. The instructions contain important information which will help you

get the best out of the appliance and ensure safe and proper installation, use and maintenance.

Keep this manual in a convenient place so you can always refer to it for the safe and proper use of the appliance.

If you sell the appliance, give it away, or leave it behind when you move house, make sure you also pass on this manual so that the

new owner can become familiar with the appliance and safety warnings.

ACCESSORIES Check the accessories and literature

in accordance with this list: AUTOMATIC DRUM WASHING MACHINEDelayPowerHeavySport washQuick Spin

Wash Rinse Spin Temp.Speed Auto

Detergent distribution drawer

PREPARING THE MACHINE Remove all the packing materials to prevent unsteadiness, including the polystyrene base. Upon

opening the package, water drops may be seen on the plastic bag and the porthole. This is normal

phenomenon resulting from water tests in the factory.

DESCRIPTION This diagram may be slightly different from the layout of the washing machine you have just

purchased due to technical improvements.

PREPARATION Drain hose

Transportation bolts05

BEF O RE US E SAFETY INSTRUCTIONS DO ...

... Make sure that the transport bolt are removed.

... Use a separate earthed socket for the power supply.

... Make sure that the plug is accessible.

... Hold the plug and not the electric cable when

unplugging the power supply.

... Make sure that the fuses in the power circuit are rated

... Keep away from heat sources and direct sun light to

prevent plastic and rubber components from aging.

... Make sure that the power cord is not caught under or

in the appliance and avoid damage to the power cable.

... Check that hose joints and connections are fi rm and no

water can leak. If joints are loose or there is leakage, turn off the

water supply and refi x. Do not use the washing machine until the

hoses are properly fi xed.

... Pull up zips and fi x loose threads to prevent the items

from being entangled. If necessary, put small items into a net bag

... Turn off the machine after each wash program and

switch it off at the mains to save electricity and for safety. Wipe

clean the lower part of the porthole.

... Keep the door slightly open when the washing machine

is not in use to prevent formation of odours.

... Let the power cord be replaced by the manufacturer, his

service agent or other accordingly qualifi ed persons, in case it is

... Ensure that the appliance is not used by persons

with reduced physical, sensory or mental capabilities, lack of

experience and knowledge without supervision or instruction by a

person responsible for their safety.

... Supervise children to ensure that they do not play with

... Use any fl ammable sprays in close vicinity to the

... Remove or insert the plug in the presence of fl ammable

... Allow children or infi rm persons to play with the appliance

or packing materials.

... Install the appliance outdoors in a damp place, or in an

area which may be prone to water leaks such as under or near a

sink unit. In the event of a water leak allow the machine to dry

... Place the washing machine directly on a carpet, or close

to a wall or furniture.

... Touch the washer door during the washing process - it

...Place heavy objects or sources of heat or damp on top

... Hot wash foam rubber or sponge-like materials.

... Open the detergent distribution drawer during the wash

... Force the washer door open. The door is fi tted with a

self-lock device and will open shortly after the washing procedure

... Open the washer door if the water level is visibly over

... Cover the washing machine with plastic cover so that

inside dampness cannot be kept in.

BEFORE SWITCHING THE APPLIANCE ON FOR THE FIRST TIME DURING DAILY USE OF THE APPLIANCE06

BEF O RE U SE DISMANTLE THE TRANSPORTATION BOLTS The transportation bolts are designed for clamping anti-vibration components

inside of the washing machine during the transportation process.

Remove the back cover.1.

Remove the four bolts on the rear side and take out the synthetic 2.

stabilisers from within the machine.

Replace the back cover.3.

Fill the holes left by the bolts with blanking plugs.4.

1.When you replace the back cover,the convexity must face

to outside, and you have to insert the back cover from the

two gaps as shown in fig.5.

2.Keep the transportation bolts and synthetic stabilisers

in a safe place for later use.

ADJUSTING THE WASHING MACHINE There are adjustable feet under the bottom of the washing machine. Before use, they should be

adjusted so that the machine is level. This will minimise vibrations and thus noise during use. It will also

reduce wear and tear. We recommend using a spirit level to level the appliance.The floor should be as

stable and flat as possible.

1. Connect the nut on the inlet hose to the connector on the water

2. Apply inlet hose to a water tap with cold, fresh water.

Note: Use the hose-set supplied with the appliance. Old

hose-sets should not be reused.

1. Use the drain hose bracket to keep the end of the drain hose retained

and prevent the outfl ow of water. Don't extend the length of the drain

hose; if an extended hose is required, please consult a serviceman.

2. The height of the drainage outlet must be 80-100 cm. Fix the drain

hose to the clip at the back of the washing machine to prevent it from

Note: The drain hose should not be submerged in water

and should be securely fixed and leak-free. If the drain hose is placed on the ground or if the pipe is at a

height of less than 80cm, the washing machine will continuously drain while being filled (self-siphoning).

CONNECTING TO THE POWER SUPPLY Before connecting to the power supply, check:

¬ The socket is adequate for the maximum power of the washing machine

(For safety, fuses in the power circuit should be rated for no less than 15A).

¬ The voltage should meet the requirement.

¬ The power outlet should be capable of accepting the washing machine plug.

¬ Connect the machine to an earthed socket outlet.08

BEFORE US E OPE R A TIONAL FUNCTIONS A A CONTROL PANEL A P

_ Press the “Temp.” button to select heating temperature (--,15,20,30,40,50,60,70,80,90). The maximum

allowable heating temperature varies with programs.

Note:“--” in the temperature display indicates non-heated washing.

Press this button to switch on the washing machine. Press it again to switch it off.Press On

Off button gently for

unction could be used under the programmes cotton/Synthetic/Mix. A

washing temperature rinse times s

in time and choose some additional

function such as Intense

Rinse hold according as her need or habit

been setting under cotton; 2 stands

or the programme having been setting under synthetic; 3 stands

ne of these Cotton/Synthetic/Mix, then press “Memo” ,the corresponding programme having been saved will be called out,

orm this programme. Also, the setting programme can be used many times until the user

R A B EDC F IHG J K L M N O09

BEF O RE USE F Display

_Display washing time, remaining time, times of rinsing, spinning time, temperature setting value, speed setting

value, child lock state, door lock state, washing progress and alarm message, etc.

Press the “Wash” button to set washing time. Press and hold this button to change the time continuously. Click this

button up until the end.

Note: This function is not applicable to “ Spin/Drain ” process

Press the “Rinse” button to select the times of rinsing and the maximum allowable times of rinsing is 8.

Press the “Spin” button to select spinning time. The maximum allowable spinning time varies with programs.

_Open the drawer, three compartments can be seen:

Compartment 1: Prewash detergent

Compartment 2: Detergent for programs 1 to 11.

Compartment 3: Softener, conditioning agent, perfume, etc.

Press "Strong wash" button to increase the washing time during the main washing stage of

selected program.(This feature is applicable for dirty clothes ) The illuminated icon indicates the “strong wash”

function is selected. This additional function applies to “cotton”, “memory”, “synthetic” ,“Silent” “heavy”and

“Sport wash” programs only. This button is effective before starting a program.

Press the “Delay” button and the illuminated icon indicates that the “delay” function is selected. The delay time

(0.5-24h) increases by 30 minutes each press of “Delay” button. The time will change continuously if you press

and hold this button until you release it. The delay time is the end time of washing. For example, 6:00 means the

washing ends after 6 hours (the delay time must be longer than the program’s running time). The “Delay” function

is not available for “Spin” and “Self-clean” programs.

Note:The delay time must be longer than the program time;otherwise,the washing machine

will start the wash program directly.

Press the “Pre-wash” button to select or cancel the prewash program. The prewash program can be selected

for washing heavily soiled clothes. Press the “Prewash” button, the “Pre-wash” icon will illuminate. Press the

“Pre-wash” again, the prewash function will be cancelled and the “Pre-wash” icon will go out. When selecting the

prewash function, add a proper amount of detergent into the prewash box, otherwise do not add any detergent

into the prewash box. This additional function applies to “cotton”, “memory”, “synthetic” and “Sport wash”

Press "Rinse Hold " button to startup/shutdown the crease-resistant and soak function. When the process runs to the last

rinse, the washing machine is not going to drain, clothes will be soaked in water, and the soak icon flashes, the remain

time not decreasing. If you need to continue the process, you can press "

Rinse Hold "button or “start /pause”button,

then the icon will be off to cancel this function, and the washing machine continue to work. This feature and the

"End Delay"button can not be chose at the same time. Also this feature is only effective in the “cotton”,

“synthetic”, , “Delicate”, “Sport 25‘ ”, “Jeans” process.

_ Press the “Start/pause” button, the washer will start and the indicator light remains on. If this button is pressed

when the washer is in operation, the washer will pause and the indicator light will flash.

The recommendation on the type of detergents is suitable for the various washing temperatures,

please refer to the manual of detergent.2

1 Detergent compartment for prewash mode

2 Detergent compartment

3 Compartment for softener and

2 ¬ Wool - - to 40 °C 30°C Cotton or synthetic

5 ¬ Synthetic - - to 60 °C Chemical fiber

Cotton or synthetic11

The standard 60 °C and 40 °C cotton programmes are suitable to clean normally soiled cotton laundry and they are the most efficient

programmes in terms of combined energy and water consumptions for washing that type of cotton laundry;The actual water temperature may differ from the declared cycle temperature; Power consumption of the

Power consumption of the

x x 850 650 595 53%/51% ／

APPLIAN C EU S IN G THE WASHING METHODS POWER SUPPLY Connect the washing machine to the power supply (220V to 240V~/50Hz).

WATER CONNECTION Turn on the tap. The water must be clean and clear.

Note: Before use, check for leakage in the joints between the tap and the inlet hose

by turning on the tap.

PREPARING THE LAUNDRY

¬ Sort out clothes according to fabric (cotton, synthetics, wool or silk) and to how dirty they are.

¬ Separate white clothes from coloured ones. Wash them fi rst by hand to check if they fade or run.

¬ Empty pockets (keys, coins, etc.) and remove the harder decorative objects (e.g. brooches).

Attention: Small parts (like buttons, etc) may lead to repair work which user has to

pay by themselves and can cause damage in the machine.

¬ Garments without hems, underwear, fi nely woven textile such as fi ne curtains are to be put into wash

bag (it is better not to wash them in a washing machine).

¬ Close zippers and hooks, make sure the buttons are sewn on tightly and place small items such as

socks, belts, bras, etc. in the wash bag.

Unfold large pieces of fabric such as bed sheets, bedspreads, etc.

¬ Turn shirts inside out.

This washing machine is for domestic use only. If the machine is use for commercial purpose the guarantee

will not be valid anymore.Do not use it for purposes other than that for which it was designed. Follow the

instructions given on the label of each garment and wash only machine-washable garments.

USING THE APPLIANCE LOADING THE MACHINE Open the washer door, put in the laundry piece by piece. Close the door tightly.

¬ When first using the washing machine, let it run unloaded for one program to prevent the laundry

from being tainted by oil or dirty water from the washing machine. Before washing you should run the

machine without laundry, but with detergent, with 60°C programm.

¬ Do not overload the washing machine.

SELECTING DETERGENT The washing efficiency and the performance is determined by the quality of detergent used. Special

non-foaming detergent produces good washing results. Use specific detergents for synthetic and woollen

goods. Do not use dry cleaning agents such as trichloroethylene and similar products.

Note: Do not add more detergent than needed; otherwise, it may cause the situations as following and wash-

ing machine malfunction impacting washing machine’s life.

1.Due to the increasing foam, the rinse time will be longer than normal;

2.The foam may overflow from the detergent drawer because of the increasing pressure of the foam;

3.It may remain foam without cleaning out after the final spinning cycle.

1.Clean the detergent drawer once a week.

2.When using the prewashing program, please add half of the rating dosage.

3.Please follow the dosage recommendation on the powder or liquid detergent package.

ADDING DETERGENT Slide out the detergent drawer and put the required detergent and softening agent into the corresponding

compartments. Push back the drawer gently. (Refer to the instructions on the drawer)

¬ For prewashing program, detergent should be added to both compartments 1 and 2.

For other programs, do not add detergent to compartment 1.

¬ Use liquid detergent according to the instructions on its package. Do not use liquid detergent if the pre-

wash mode or "Start delay" is selected.

¬ Do not overuse softener; otherwise, it will damage the artificial fibers.

SELECTING PROGRAM To get the best washing results, an appropriate washing program should be

selected according to the laundry type. Please turn the program knob to

select the right program.

SELECTING FUNCTIONAL Select the required options. (Refer to the "Control panel" pages 08 and 09)

M R Delay Power HeavySport washQuick Spin

Wash Rinse Spin Temp .Speed Auto

Wool SyntheticMemoryCottonStart/Pause Press and hold 2seconds

to set door unlocked DelicateSilentSelf-cleanStrongwashPre-wash Soak14

APPLIAN C EU S IN G THE SETTING WASHING TEMPERATURE Press and hold down the temperature button until the desired temperature is selected .

SETTING SPIN SPEED Press and hold down the speed button until the desired speed is selected.See "Opera-

tional functions" on the "Control panel" pages (08 and 09) for selecting temperature

and spin speed. It is advisable to select the recommended value.

WASHING Press the Start/Pause button. The washing machine will operate according to the

preset programs. The washing machine will stop operation automatically when a

washing cycle ends. The "End" sign will appear on the display. Open the washer door

and take out the laundry.

AFTER WASHING Turn off the water supply and unplug the power cord. Open the washer door to prevent formation of

moisture and odours. Let the door open while not used.

TIPS FOR SAVING ENERGY Collect clothes for one full wash load.1.

Avoid overloading the washing machine.2.

Prewash only heavily soiled clothes.3.

Reduce the amount of detergent or choose standard or delicate wash programs for slightly soiled clothes.4.

Choose a proper washing temperature. Modern detergents can wash with very good result already in lower 5.

temperature than 60°C. Only use higher temperature than 60°C for heavily soiled laundry.

Follow the dosage recommendation on the detergent package to avoid using too much detergent.6.

Self-clean StrongwashPre-wash Soak15

US IN G THE APPLIANCE Bed sheet (single) Cotton Approximately 800g

Blanket Wool Approximately 3000g

Blended fabric clothes / Approximately 800g

Jackets Cotton Approximately 800g

Jeans / Approximately 800g

Overalls Cotton Approximately 950g

Ladies Pyjamas / Approximately 200g

Shirts / Approximately 300g

Socks Blended fabrics Approximately 50g

T-Shirts Cotton Approximately 300g

Underwear Blended fabrics Approximately 70g

LOAD REFERENCE CARE CHART Resistant material

Bleachable in cold water

Iron at 200 °C Iron at 150 °C Iron at 100 °C Don't iron

Dry cleaning with any solvent

Dry cleaning with pericloride

Dry cleaning with aviation fuel

Dry on clothes hanger

Tumble dry, normal heat

Tumble dry, reduced heat

MAI N T EN A N C E CLEANING & CARE AFTER WASHING Turn off the water supply and pull out electricity plug after each wash.

Open the washer door to prevent formation of moisture and odours. If

the washing machine is left idle for a long period, drain the water in

the machine and replace the drain hose.

CLEANING THE DETERGENT DRAWER Clean the detergent distribution drawer regularly.

Swing out the drawer, flush it clean with water and then replace it.

CLEANING THE MACHINE Unplug the machine during cleaning and maintenance. Use a soft cloth

dampened with soap liquid to clean the machine case and rubber components. Do not use organic chemicals or corrosive solvents.

CLEANING THE FILTER Clean the filter once a month:

1. Open the bottom cover.

2.Remove the filter by turning counterclockwise.

3.Flush the filter clean with running water.

4.Replace the filter by turning clockwise and

1.The filter must be in place, or it may lead to leakage.

2.Place a container under the drain pump filter, to collect

any excess water that may come out of the drain pump

when the filter is removed.

MAINTENANCE WATER INLET VALVE AND INLET VALVE FILTER To prevent blockage to the water supply by ingress of foreign substances, clean the water inlet valve and

inlet valve filter regularly.

MOVING THE MACHINE If the machine is to be moved to a distant location, replace the transportation bolts removed before installation to prevent damage as

Remove the back cover.1.

Remove the blanking plugs.2.

Insert the synthetic stabilisers and the transportation bolts.3.

Tighten the bolts with a spanner.4.

Replace the back cover.5.

LONG PERIODS OF DISUSE If the washing machine is left idle for a long period, pull out the electrical plug and turn off the water supply. Open the washer door to

prevent formation of moisture and odours. Let the door open while not used.

M AINTENAN C E DISPLAY CODES DISPLAY CODES AND SPECIAL FUNCTIONS

¬ Control panel lock function: Press the "Delay" and the "Start/Pause" buttons simultaneously for 3 seconds after starting a program.

It can no longer be changed by operating buttons or knobs. To unlock press the "Delay" and "Start/Pause" buttons again for 3

¬ Power-off memory function: In case of abrupt power failure or the need to cut off the power during a program cycle, the present

settings will be saved and the preset operation will resume when the power is on again.

¬ To cancel a program

Press the "Start/Pause" button, then switch off the power and the program is automatically cancelled. Turn the program selector

again to choose another program.

Note: During the spin process, if too much foam is inspected, in order to protect the motor, the washing machine will eliminate the

foam automatically; the motor will stop and the drain pump will drain the water continuously for 90 seconds. If it happens more than

3 times, the motor will stop until the end of cycle without spinning.

CODES CAUSES SOLUTIONS Err1 ¬ Door is not properly shut. _ Shut the door properlyˈand then press the Start/Pause button.

Err2 ¬ Drainage error, water not emptied within 6

_ Clean the filter and check the drain hose for blockage. If error

still exists, please contact the maintenance personnel.

Err3 ¬ Temperature sensor not properly connected or

_ Contact the maintenance personnel.

¬ Heater error (Appears at the end of a cycle).

_ Contact the maintenance personnel.

Err5 ¬Water level not met in 8 minutes.

¬The height of the drain hose is below 80 cm.

¬ The drain hose is in water.

.lamronsierusserpretawdna,nodenrutsipattahterusekaM_

If problem still exists, please contact the maintenance personnel.

_ Install drain hose within 80-100 cm of height.

_ Make sure the drain hose is not in water.

Err7 ¬ Motor error. _ Contact the maintenance personnel.

Err8 ¬ Water exceeds protective level. _ Contact the maintenance personnel.

End ¬ End of wash cycle.

1:25 ¬The remaining time is 1 hour 25 minutes.

19:30 ¬Status information:Preset time for delayed operation.

UNb After the last rinsing cycle finishes,spinning fails completely due to unbalance of the laundry.

EuAr ¬ The PBC and the motor cant’t communicate. _ Contact the maintenance personnel.

Er10 _ Contact the maintenance personnel.

¬ The signal of Water level sensor is wrong.1

MAINTENAN C E TROUBLESHOOTING TROUBLESHOOTING The following circumstances do not constitute problems. Do not contact the Service Center until the problem has been confi rmed.

PROBLEM CAUSES SOLUTIONS Washing machine fails to

¬ Poor connection to the power supply.

¬ The washer door is not properly closed.

¬ Machine has not been switched on.

_ Check connection to the power supply.

_ Check the power supply.

_ Close the washer door properly.

_ Make sure the machine is switched on.

Washing machine cannot be

¬ The "Start/Pause" button is not pressed.

¬ Water tap is not turned on.

¬ Water pressure is less than 0,03 Mpa.

¬ The inlet hose is kinked.

¬ Water supply failure.

¬ The program knob is not properly set.

¬ The washer door is not properly closed.

¬ The inlet hose fi lter is blocked.

_ press the "Start/Pause" button.

_ Turn on the water tap.

_ Check water pressure.

_ Check the inlet hose.

_ Ensure the water supply.

_ Set the program knob properly.

_ Close the washer door properly.

_ Unblock the inlet hose fi lter.

Machine is draining while

¬ The height of the drain hose is below 80 cm.

¬ The drain hose is in water.

_ Install drain hose within 80-100 cm of height.

_ Make sure the drain hose is not in water.

Drainage failure. ¬ Drain hose is blocked.

¬ Drain hose end is higher than 100 cm above

¬ The fi lter is blocked.

_ Unblock the drain hose.

_ Make sure the drain hose end is lower than

100 cm above fl oor level.

_ Unblock the fi lter.

Strong vibration while

¬ Not all transportation bolts have been removed.

¬ Washing machine is located on an uneven

surface or is not level.

¬ Machine load is over Max load.

_ Remove all transportation bolts.

_ Make sure the washing machine is on

an even surface and levelled.

_ Reduce amount of laundry in the drum.

Operation stops before

completing wash cycle.

¬ Water or electricity failure. _ Check the power supply.

Operation stops for a period

¬ Washing machine gives an error message.

¬ Washing machine is in soaking cycle?

_ Check display codes.

_ Press the rinse hood button or the Start/pause

button again to cancel it.

Excessive foam in the

drum, which is spilled to the

distribution drawer.

¬ The detergent is not a low-foaming type or for

¬ Excessive use of detergent.

_ Check if your detergent is appropriate.

_ Reduce amount of detergent in the distribution

Automatic adjustment of the

¬ The washing program duration will be adjusted _ This is normal and doesn't affect the

Spinning fails ¬ Unbalance of the laundry _ Add clothes or run a spinning program again.2
