USER MANUAL DO211S DOMO

Ihrem Kassenbon in das Geschäft zurückbringen, in dem Sie es gekauft haben.

WARRANTY This appliance has a two year warranty period. During this period the manufacturer is

responsible for any failures that are the direct result of construction failure. When these

failures occur the appliance will be repaired or replaced if necessary. The warranty will

not be valid when the damage to the appliance is caused by wrong use, not following the

instructions or repairs executed by a third party. The guarantee is issued with the original

till receipt. All parts, which are subject to wear, are excluded from the warranty.

LINEA 2000 - Dompel 9 2200 Herentals Belgium - Tel 014/21.71.91 - Fax : 014/21.54.63DO211S

If your device breaks down within the 2-year warranty period, you can return the device

together with your receipt to the shop where you purchased it.

CONDICIONES DE GARANTÍA Este aparato tiene un término de garantía de 2 años, desde la fecha de la compra.

RECYCLING INFORMATION This symbol on the product or on its packaging indicates that this product may not

be treated as household waste. Instead it must be brought

to the applicable collection point for recycling of electrical

and electronic equipment. By ensuring this product is

disposed of correctly, you will help prevent potential negative

consequences for the environment and human health, which

could otherwise be caused by inappropriate waste handling of

this product. For more detailed information about recycling

of this product, please contact your local city ofce, your

household waste disposal service or the shop where you

purchased the product.

The packaging is recyclable. Please treat package

bekommen, wo Domo-Gerät verkauft werden.

From now on, accessories and parts of Domo appliances can also be ordered online

from the Domo webshop*:

http://webshop.domo-elektro.be

You can reach the webshop through the Domo website as well: www.domo-elektro.be.

The accessories and parts can also still be obtained at the store where you bought the

* Only in Belgium, the Netherlands, Luxemburg, France and Germany.

If the power supply cord is damaged, it must be replaced

by the manufacturer, its service agent or a similarly

qualied person in order to avoid a hazard.

Cuando el cordón de al alimentación está dañado,

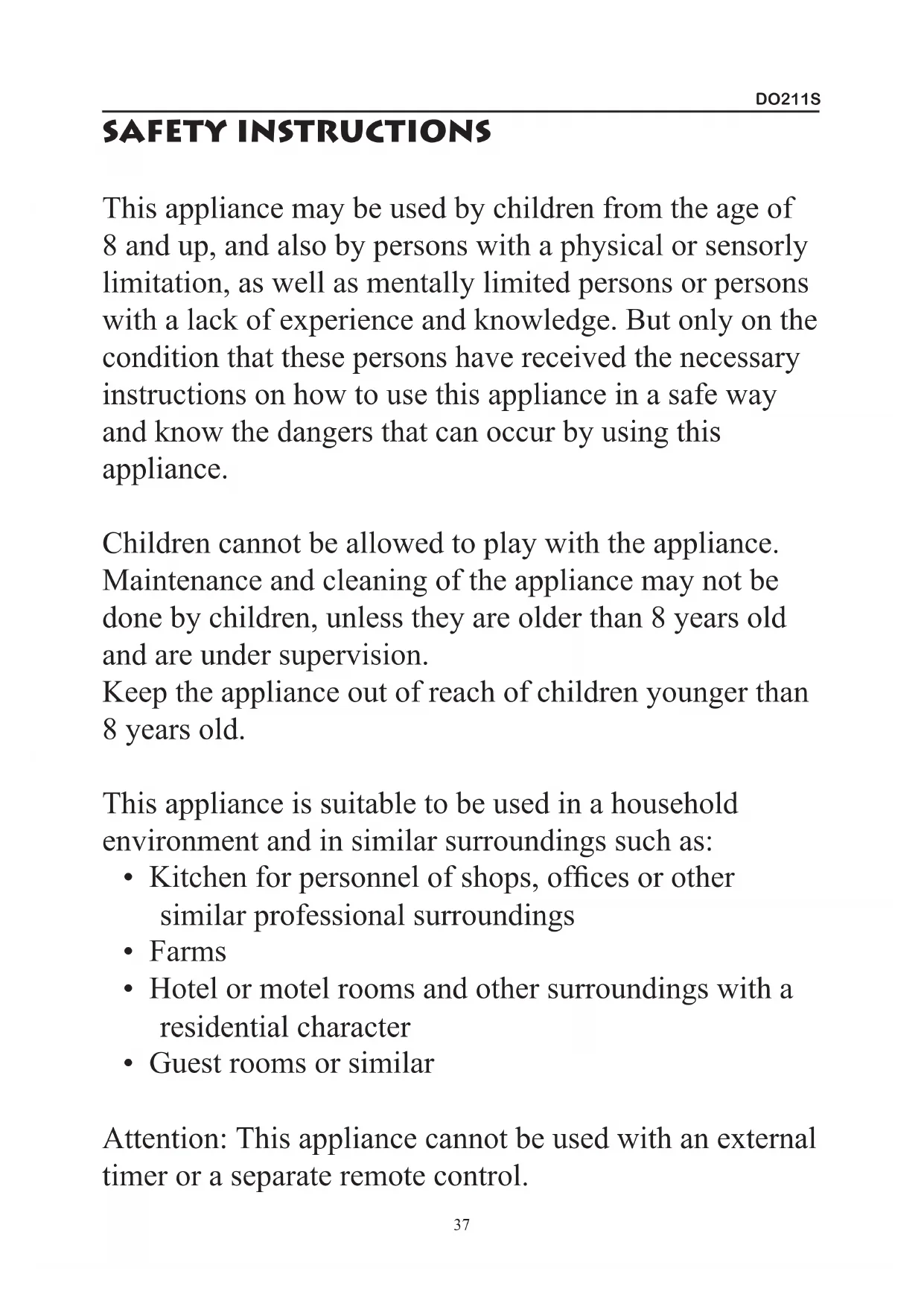

SAFETY INSTRUCTIONS This appliance may be used by children from the age of

8 and up, and also by persons with a physical or sensorly

limitation, as well as mentally limited persons or persons

with a lack of experience and knowledge. But only on the

condition that these persons have received the necessary

instructions on how to use this appliance in a safe way

and know the dangers that can occur by using this

Children cannot be allowed to play with the appliance.

Maintenance and cleaning of the appliance may not be

done by children, unless they are older than 8 years old

and are under supervision.

Keep the appliance out of reach of children younger than

This appliance is suitable to be used in a household

environment and in similar surroundings such as:

• Kitchen for personnel of shops, ofces or other

similar professional surroundings

• Hotel or motel rooms and other surroundings with a

residential character

• Guest rooms or similar

Attention: This appliance cannot be used with an external

timer or a separate remote control.DO211S

When using an electrical appliance, basic safety

precautions should alWays be observed, including the

• Do not charge this unit outdoors.

• Do not use outdoors or on wet surfaces.

• Use only as described in this manual. Only

use attachments that are recommended by the

• Do not use with damaged cord or plug. Do not use

the hand vac if it has been dropped, damaged, left

outdoors, or dropped in water. In that case, return it to

the nearest service center for examination, repair or

• Do not abuse the charger cord. Never carry the charger

or base by the cord or yank to disconnect from an

outlet. Instead grasp the charger itself and pull to

disconnect.Keep the charger cord away from heated

• This product includes rechargeable Nickel–Metal

Hydride (NiMH) batteries. Batteries must be recycled

or disposed of properly. Do not incinerate batteries or

expose to high temperatures, as they may explode.

• Do not handle the plug or the appliance with wet

• Do not put any strange objects into the openings of the

appliance. Do not use with any opening blocked. Keep

the appliance free of dust, lint, hair and anything that

may reduce the air ow.DO211S

• Keep hair, loose clothing, ngers, and all other body

parts away from openings and moving parts.

• The adaptor must be removed from the socket outlet

before cleaning or maintenance of the appliance.

• Always turn off the appliance when replacing the

• Do not pick up anything that is burning or smoking,

such as cigarettes, matches, or hot ashes.

• Do not remove any parts or accessories when the

appliance is operating.

• Be very careful when cleaning stairs.

• Do not use to pick up ammable or combustible

liquids, such as gasoline, or in areas where they may

• Read and follow all labels, operational instructions

• Do not use the charger with an extension cord. Plug in

the charger directly into an electrical outlet. Only use

the charger in a standard electrical outlet.

• Do not use the hand vacuum without the dust

• Store the hand vac indoors. Store immediately after

use to prevent accidents.

• Under extreme conditions, leakage from the battery

cells can occur. If the liquid - which is a 20-35%

solution of potassium hydroxide - gets on the skin,

wash immediately with soap and water or neutralize

with a mild acid such as lemon juice or vinegar. If the

liquid gets into the eyes, ush them immediately withDO211S

clean water for a minimum of 10 minutes and seek

• Use only on dry, indoor surfaces.

• Do not use for any purposes other than described in

• Do not attempt to use the charger with any other

product or attempt to charge this product with another

charger. Only use the charger supplied with this

• The appliance must be disconnected from the supply

when removing the battery.

SAVE THESE INSTRUCTIONS PARTS

6. Main unit (motor)

13. Hole for charging pin

BEFORE USE This cordless vacuum is powered by rechargeable batteries. Before using the vacuum,

charge the vacuum cleaner for a minimum of 20 hours.

Ensure that the on/off switch is in the “off” position before charging.

Peak performance may only be realized after the unit has been charged and discharged

for two or three times. To maintain peak performances of your cordless hand vac, it

is recommended that the unit be fully discharged, then completely recharged at least

Charging your hand vac

Store the vacuum cleaner in the charging base when not in use so that it is always

charged and ready to use.

1. Place the charging base near an electrical power outlet.

2. Put the charging pin of the adapter into the hole at the top of the charging base

and fasten it by turning.

3. Plug the charger into a wall outlet.

4. Make sure that the on/off switch is switched off.

5. Place the unit into the charging base. The charging indicator light will light up in

green to indicate that the vacuum cleaner is properly positioned in the charging

base and that the unit is being charged. When the charging cycle is completed,

the light will shut off. However, this does not mean that you have to wait until the

appliance is fully charged before using it. After the rst three times you can just

remove the appliance from the charging base whenever you need it.

ASSEMBLY The dust lter must always be in place in the hand vac when operating the

1. To open the dust container, push the dust container release button and remove the

2. Verify that the dust lter is inside, then re-attach the dust container to the hand

3. To attach the crevice tool or the dust brush to the hand vacuum, push the

attachment into the suction hole in the front of the dust container. To attach the

motorized brush, make sure that the 2 pins of the brush piece slide into the slots in

USING THE CORDLESS HAND VAC

1. Remove the hand vac from the charging base

2. To start the unit, push the on/off switch to the front, to the “on” position. To stop

the hand vac, slide the on/off switch to the back, to the “off” position.

3. A crevice tool is provided for cleaning narrow, hard to reach places. A dust brush

is provided for cleaning upholstery, furniture, etc.DO211S

USING THE MOTORIZED BRUSH

1. Remove the power plug from the electrical outlet.

2. Remove the vacuum cleaner from the charging base.

3. Make sure that the on/off switch is switched off.

4. Firmly insert the motorized brush into the air-intake nozzle of the dust container,

ensuring that the contact pins are engaged in the connector slots of the unit.

5. Please note that this motorized brush is for vacuuming short pile carpets and rugs.

WARNING: Do not touch the motorized brush while it is in motion.

CHANGING AND CLEANING THE DUST FILTER To achieve the best performance, empty the dust container and clean the dust

lter after each use.

1. To remove the dust container, press down the dust container release button and

pull off the dust container.

2. Pull out the dust lter.

3. Remove the dust from the dust container.

4. Rinse the dust lter in cold water, and then wait until it dries completely before

placing it back into the dust container. Do not use a washing machine to clean

the dust lter. Do not use a hair dryer to dry it. Air dry only.

5. Carefully place the dust lter back into the dust container. Never operate the

vacuum cleaner without the dust lter in place.

6. Attach the dust container to the cordless vacuum.

It is recommended that the dust lter be replaced every three months to ensure peak

performance of the unit.

• The suction hole must be open and free of any obstructions at all times.

Otherwise, the motor will overheat and could become damaged.

• Never use ordinary batteries for replacement, as these may leak and damage your

BATTERY PACK REPLACEMENT (14,4V)

The cordless hand vacuum is powered by Ni-Mh batteries, that must be recycled

when the replaceable battery or leaking battery or battery pack has reached its end of

life. Please make sure that you deliver the battery to the battery collection system in

your country for recycling. The battery must be recycled or disposed of properly at

the end of its service life according to the local laws and regulations.

If uncertain as to how to remove the battery pack, we suggest you take your hand

vacuum to a reputable small appliance service technician to have this service

Do not attempt to replace the batteries used in this product with any other type of

battery. The battery pack is replaceable, however care should be taken when doing so.

Follow these steps when replacement is required:

1. Always remove the charging adaptor from the unit before removing the battery.

2. Remove the single screw securing the battery compartment cover located on the

3. Remove the cover of the battery compartment. Never open the battery

compartment except to change the battery.

4. Carefully lift out the battery pack and disconnect the terminals.

5. Connect the terminals to the new battery pack.

6. Tuck the wiring inside the battery compartment so that the wiring does not

interfere with the battery compartment cover when it is replaced.

7. Re-install the battery pack and close the battery compartment cover with the

• Only use the hand vac with the battery pack supplied with the unit. Also, never

use ordinary batteries for replacement, as these may leak and damage your

vacuum cleaner. Only use battery packs sold by your vendor.

• Never use the unit without the battery compartment cover in place.

• Any other servicing should be performed by an authorized service representative.

• Do not attempt to remove the battery pack from the unit to charge it.

• Never throw the battery pack or unit into a re or incinerate it.

1. Make sure that the wall area for the charging base to be mounted is free from any

hidden electrical wires, water pipes and gas lines.

2. Select an appropriate place close to a wall power outlet.

3. Do not mount near direct sunlight, near a heat source or outdoors.

4. Carefully measure and mark the location of where the holes should be drilled,

according to the placement of the 2 mounting holes in the charging base. Then

drill holes and screw the charging base onto the wall.DO211S

TROUBLESHOOTING GUIDE The hand vac does not work:

Possible causes Possible solutions

The batteries are discharged Charge the appliance

Dead battery Replace the battery

Contacts between the unit and the charging

No power in electrical outlet supplying

Check the fuse or the breaker. Replace the

fuse if necessary/reset the breaker.

The motorized brush does not work:

Possible causes Possible solutions

The 2 metal pins of the motorized brush are

not in contact with the vacuum cleaner.

Firmly insert the motorized brush into the

air-intake nozzle. This will connect the

motorized nozzle to the unit power supply.

Motorized brush is clogged up Remove all lint, hair, etc. from the motorized

The hand vacuum will not pick up any dust:

Possible causes Possible solutions

Dust container is full. Empty dust container.

Dust lter needs cleaning or replacement Remove dust lter and check for objects in

air nozzle and remove.

Unit needs recharging. Charge unit.

There is dust escaping from the hand vacuum:

Possible causes Possible solutions

Dust container is full. Empty dust container.

Dust lter is not installed correctly. Review dust lter installation instructions.

Puncture/hole in dust lter. Replace dust lter.DO211S
