USER MANUAL DO7285S DOMO

Ihrem Kassenbon in das Geschäft zurückbringen, in dem Sie es gekauft haben.

WARRANTY This appliance has a two year warranty period. During this period the manufacturer is

responsible for any failures that are the direct result of construction failure. When these

failures occur the appliance will be repaired or replaced if necessary. The warranty will

not be valid when the damage to the appliance is caused by wrong use, not following the

instructions or repairs executed by a third party. The guarantee is issued with the original

till receipt. All parts, which are subject to wear, are excluded from the warranty.DO7285S LINEA 2000 - Dompel 9 - 2200 Herentals Belgium - Tel 014/21.71.91 - Fax : 014/21.54.63

If your device breaks down within the 2-year warranty period, you can return the device

together with your receipt to the shop where you purchased it.

CONDICIONES DE GARANTÍA Este aparato tiene un término de garantía de 2 años, desde la fecha de la compra.

RECYCLING INFORMATION This symbol on the product or on its packaging indicates that this product may not

be treated as household waste. Instead it must be brought to the applicable collection

point for recycling of electrical and electronic equipment. By ensuring this product is

disposed of correctly, you will help prevent potential negative consequences for the

environment and human health, which could otherwise be caused by inappropriate

waste handling of this product. For more detailed information about recycling of this

product, please contact your local city ofce, your household waste disposal service or

the shop where you purchased the product. The packaging is

recyclable. Please treat the packaging ecologically.

INFORMACIÓN DE RECICLAJE El símbolo en el producto o el embalaje indica que este

accessories and parts

From now on, accessories and parts of Domo appliances can also be ordered online from the

http://webshop.domo-elektro.be

You can reach the webshop through the Domo website as well: www.domo-elektro.be. The

accessories and parts can also still be obtained at the store where you bought the appliance.

Nyní je možné nakupovat originální příslušenství i náhradní díly online přes internetový

* Only in Belgium, the Netherlands, Luxemburg, France and Germany.

geschulten Person ersetzt werden, um Unfälle zu verhindern.

If the power supply cord is damaged, it must be replaced by

the manufacturer, its service agent or a similarly qualied

person in order to avoid a hazard.

Cuando el cable de alimentación está dañado, tiene que ser

stofzak of de lters.

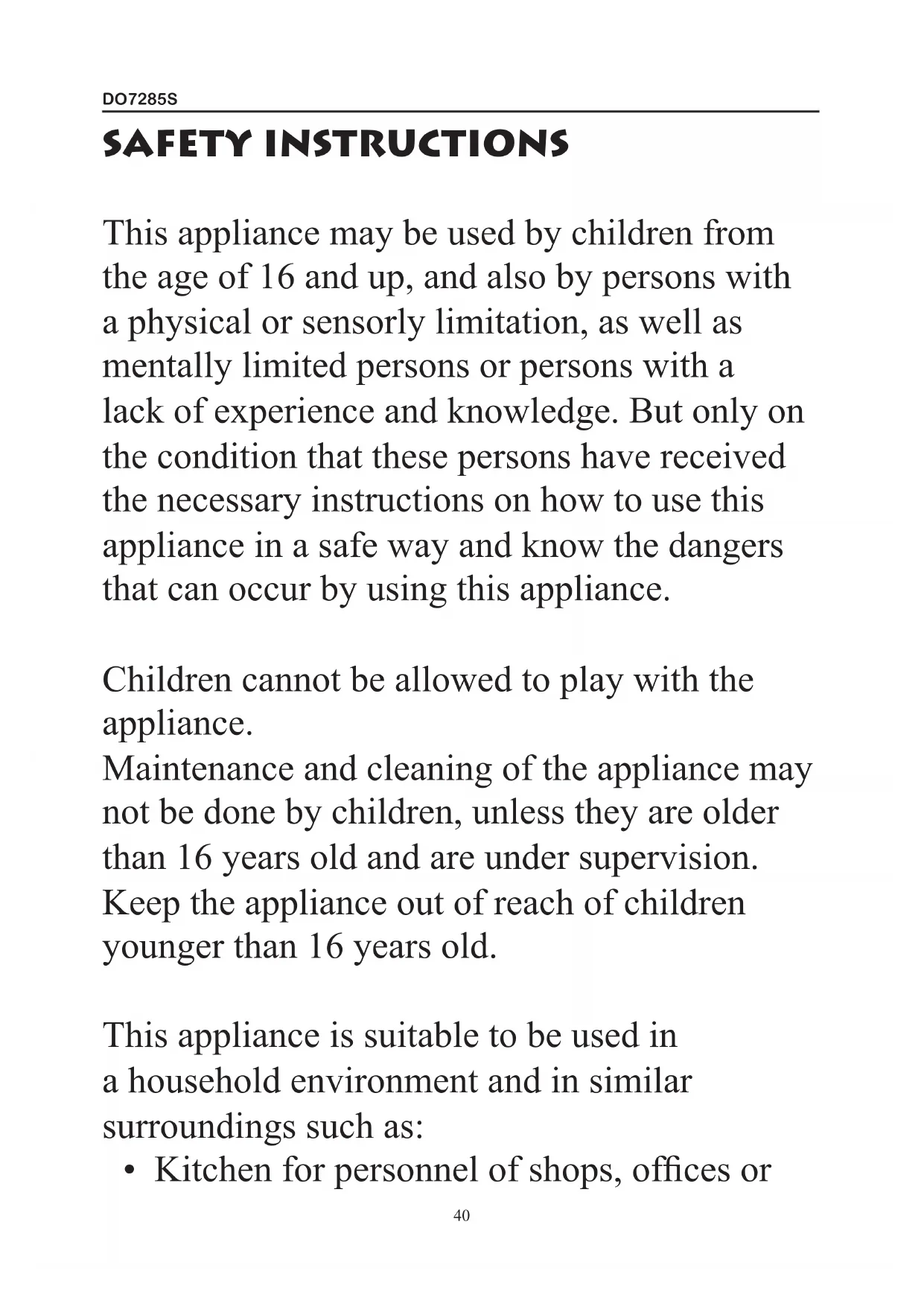

SAFETY INSTRUCTIONS This appliance may be used by children from

the age of 16 and up, and also by persons with

a physical or sensorly limitation, as well as

mentally limited persons or persons with a

lack of experience and knowledge. But only on

the condition that these persons have received

the necessary instructions on how to use this

appliance in a safe way and know the dangers

that can occur by using this appliance.

Children cannot be allowed to play with the

Maintenance and cleaning of the appliance may

not be done by children, unless they are older

than 16 years old and are under supervision.

Keep the appliance out of reach of children

younger than 16 years old.

This appliance is suitable to be used in

a household environment and in similar

surroundings such as:

• Kitchen for personnel of shops, ofces orDO7285S

other similar professional surroundings

• Hotel or motel rooms and other

surroundings with a residential character

• Guest rooms or similar

Attention: This appliance cannot be used with

an external timer or a separate remote control.

• Read all instructions before use.

• Before use, check if the voltage stated on the

appliance corresponds with the voltage of the

power net at your home.

• Do not let the cord hang on a hot surface or

on the edge of a table or counter top.

• Never use the appliance when the cord or

plug is damaged, after malfunction or when

the appliance itself is damaged. In that case,

take the appliance to the nearest qualied

service center for check-up and repair.

• Close supervision is necessary when the

appliance is used near or by children.

• The use of accessories that are not

recommended or sold by the manufacturer

can cause re, electrical shock or injuries.DO7285S

• Unplug the appliance when it is not in use,

before assembling or disassembling any parts

and before cleaning the appliance. Put all

buttons and knobs into the ‘off’ position and

unplug the appliance by grasping the plug.

Never unplug by pulling the cord.

• Do not leave a working appliance unattended.

• Never place this appliance near a gas stove

or electrical stove or in a place where it may

come into contact with a warm appliance.

• Do not use the appliance outdoors.

• Only use the appliance for its intended use.

• Always use the appliance on a steady, dry

• Only use the appliance for domestic use. The

manufacturer can not be held responsible for

accidents that result from improper use of the

appliance or not following the instructions

described in this manual.

• All repairs should be carried out by the

manufacturer or its aftersales service.

• Never immerse the appliance, the cord or the

plug in water or any other liquid.

• Make sure that children do not touch the cordDO7285S

• Keep the cord away from sharp edges and

hot parts or other heat sources.

• Before use, remove all packaging materials

and any promotional stickers.

1. To prevent the risk of electrocution, do not use the vacuum cleaner outdoors or

2. Only use the vacuum cleaner as described in this instruction booklet. Only use

accessories recommended by the manufacturer.

3. Do not use the appliance when the plug or cord is damaged, when the vacuum

cleaner malfunctions, when it has been dropped, has been damaged, has been left

outside or has been dropped in water. In that case, take your vacuum cleaner to a

service center for a check-up and/or repair.

4. Do not pull the cord. Do not use the cord as a handle. Do not jam the cord

between a door or do not pull it around corners or sharp edges. Do not run the

vacuum cleaner over the cord. Keep the cord away from hot surfaces.

5. Do not touch the plug or the vacuum cleaner when you have wet hands.

6. Do not put any objects in the openings of the vacuum cleaner. Do not use the

appliance when an opening is blocked.

7. Keep hair, loose clothing, ngers and other body parts away from openings of the

vacuum cleaner and from moving parts.

8. Be extra careful when cleaning stairs.

9. Never use the vacuum cleaner to pick up any combustible or inammable liquids

like gasoline, or do not use the appliance in places where such substances might

10. Remove large and sharp objects from the oor before vacuuming it to prevent

11. Hold the plug while rewinding the cord onto the cord reel. Do not let the plug

whip back and forth during rewinding.

12. Unplug the appliance before connecting the hose.

13. Do not pick up any burning or smoking objects, like cigarettes, matches or hot

14. Do not use the vacuum cleaner without dust bag and/or lter.

15. Always connect the appliance to an earthed socket.

SAVE THESE INSTRUCTIONSDO7285S

2. Button to pull out or retract brushes

3. Slide button to set length of tube

6. Connection for hose

8. Handle lid dust bag compartment

9. Full dust bag indicator

10. Button for automatic cord rewinding

11. Button to set the suction power

13. HEPA lter under the grid

14. Additional suction power control

ASSEMBLY Always unplug the vacuum cleaner before (dis)assembling any parts.

Assembly: Put the connection ring at the end of the hose

into the hose connection in the vacuum cleaner and turn to

the right so that it is locked into place.

Disassembly: Unplug the vacuum cleaner. Turn the

connection ring at the end of the hose to the left and remove

from the hose connection.

1. Put the handle of the hose into the telescopic tube.

2. Set the telescopic tube to the desired length. To do this, push the slide button

forward and pull out the bottom part of the tube to make it longer. Release the

slide button and let the tube snap into place.

3. Attach the oor nozzle to the telescopic tube by rmly sliding the tube into the

1. Crevice nozzle: for hard to reach areas

like radiators, crevices, corners, in between

2. Dust brush: for furniture, shelves,...

3. Parquet brush: for parquet oors and other

1. Unwind the cord to a substantial length and plug in the vacuum cleaner. The

yellow label on the cord indicates the maximum length of the cord, that should

2. To turn the vacuum cleaner on and off, press the foot pedal with the symbol.

3. To set the suction power, slide the suction power button to the left or right in

between the MIN and MAX indicators. For delicate materials it is best to use the

minimum power level, a medium power is recommended for matresses, furniture

and carpets and the maximum power level should be

used for tiles, wood and other hard oors.

4. When you want to clean hard oors, make sure that

the brushes in the oor nozzle are down. (A)

5. When you want to clean carpet, make sure that the

brushes in the oor nozzle are retracted. (B)

6. When you have nished vacuuming, unplug the

vacuum cleaner and automatically rewind the cord

by pressing the foot pedal with the symbol. Make sure that the plug does

not whip back and forth while rewinding the cord, by guiding the cord with your

hand. This to prevent possible damage.

MAINTENANCE Check the hose, dust bag and lters regularly. Empty the hose when it is clogged,

replace the dust bag when it is full and clean the lters when they are dirty.

When the dust bag is full, the indicator on top of the appliance will turn red.

Disposable dust bags and lters

The dust bag and the motor lter play a very important roll in the efciency of the

vacuum cleaner. The purpose of the dust bag is to capture dirt, but at the same time

the lter needs to be porous enough to allow air to pass through. If the bag or motor

lter get clogged, no air can pass through the cleaner and no cleaning can take place

regardless of how powerful the unit is.

To keep the cleaner operating at maximum efciency, change the dust bag

frequently and clean the lter when needed. Some ne particles can restrict the

air ow very quickly and will decrease the performance even before the bag appears

to be full. For that reason, the bag and lter may need to be changed more often

when vacuuming carpet fresheners or cleaners, powder, plaster dust or similar ne

Replacing the dust bag and cleaning the motor lter

Be sure to turn off and unplug the vacuum cleaner before replacing the dust bag or

cleaning the lter. Never vacuum without the dust bag or

1. Turn off and unplug the vacuum cleaner.

2. Remove the hose from the hose connection and open

the dust bag compartment by pushing the handle

upwards and lifting the lid.

3. Slide the dust bag out of the frame and remove the dust

bag from the dust bag compartment.

4. If at this point you want to clean the motor lter,

take out the lter by sliding it upwards. Clean the

lter by rinsing it under warm water. Let the lter air

dry completely before reinstalling it. Reinstall the

lter before placing the dust bag into the dust bag

5. Slide a new dust bag (3 l) in the dust bag frame.

6. Close the dust bag compartment and push the lid back

into place. The spring on the dust bag frame will make

sure that the opening of the dust bag is pushed into the

right position when closing the lid.

Cleaning the air lter or HEPA lter

The exhaust air lter or HEPA lter cleans the air a nal time before it leaves the

vacuum cleaner. This lter and the grid that covers the lter should be cleaned

regularly. You can clean the lter as follows:

1. Turn off and unplug the vacuum cleaner. Always pull the

plug itself, never pull the cord.

2. Open the grid that covers the lter by pushing the clip

up. The lter is visible when the grid is removed.

3. Take out the lter.

4. Rinse the lter under cold water and let it air dry

5. Put the lter back into place or replace the lter by a

new one. Make sure that the lter is placed properly.

6. Seal with the grid. Make sure that the grid clicks into

• Always use the vacuum cleaner with the lters in place. If not, this can lead to

loss of power or damage to the motor.

• Remove the plug from the socket before cleaning the lters.

• Do not place the lters in the dishwasher.

• Do not use a hair dryer to dry the lters.

STORAGE The vacuum cleaner can be easily stored:

• Rewind the cord by pressing the foot pedal with the

• Push the telescopic tube together. Push the slide button

forward and push the top part of the tube down to make

it shorter. Release the slide button and let the tube snap

• Place the appliance upright, at the bottom there is an

attachment in which you can slide the oor nozzle.
