USER MANUAL IWD 1008 ET BLOMBERG

Please read this manual first!

Dear Customer,

We hope that your product, which has been produced in modern plants and checked under the most meticulous quality control procedures, will provide you an effective service.

For this, we recommend you to carefully read the entire manual of your product before using it and keep it at hand for future references.

This manual

• Will help you use your appliance in a fast and safe way.
• Read the manual before installing and operating your product.
• Follow the instructions, especially those for safety.
• Keep the manual in an easily accessible place as you may need it later.
• Besides, read also the other documents provided with your product.

Please note that this manual may be valid for other models as well.

Symbols and their descriptions

This instruction manual contains the following symbols:

i Important information or useful usage tips.

⚠ Warning against dangerous conditions for life and property.

⚠ Warning against electric voltage.

This product is supplied with the selective sorting symbol for waste electrical and electronic equipment (WEEE).

This means that this product must be handled pursuant to European Directive 2002/96/EC in order to be recycled or dismantled to minimise its impact on the environment. For further information, please contact your local or regional authorities.

Electronic products not included in the selective sorting process are potentially dangerous for the environment and human health due to the presence of hazardous substances.

CONTENTS

1 Your Refrigerator 3

1 Your Refrigerator 4

2 Important Safety Warnings 5

Intended use 5
For products with a water dispenser; .... 7
Child safety 7
HCA Warning 7
Reccomendations for freshfood compartment 8
Things to be done for energy saving ..... 8

3 Installation 9

Points to be considered when re-transporting your refrigerator 9
Before operating your refrigerator ..... 9
Electric connection.... 10
Disposing of the packaging 10
Disposing of your old refrigerator ..... 10
Placing and Installation 10
Floor balance adjustment 11
Adjusting the gap between the upper door 13
Installing Water Filter 14
Connection of the Water Pipe to the Refrigerator 15
Connection of Water Hose to the Jug 17
Connection of the Water Pipe to the Cold Water Mains Line 17
Prior to first use of Ice/Water Dispenser 18

4 Preparation 20

5 Using your refrigerator 21

Setting the fridge compartment temperature 22
Setting the freezer compartment temperature 22
Fresh Freeze Function 22
Quick Cool Function.... 22
Vacation Button 23
Auto Eco Button (Special Economy function) 23
Ioniser 23
Key Lock Button 23
Water Dispenser Illumination 23

Water/Ice Type Selection 23
Ice/Water Dispenser 23
Using the Ice Dispenser 23
Ice Off 24
Using the water spring 25
Spillage Tray 25
Sliding Body Shelves 25
Blue light 26
lon: 26
Egg tray 26
Fresh Freeze Compartment 26
Crisper humidity control sliders..... 26
Recommendations for preservation of frozen food 27
Defrosting 27
Replacing the Interior Light Bulb ..... 27

6 Maintenance and cleaning 29

Protection of plastic surfaces 29
Chill compartment 30
Icebox and Water Dispenser 31
Minibar 32

7 Recommended solutions for the problems 33

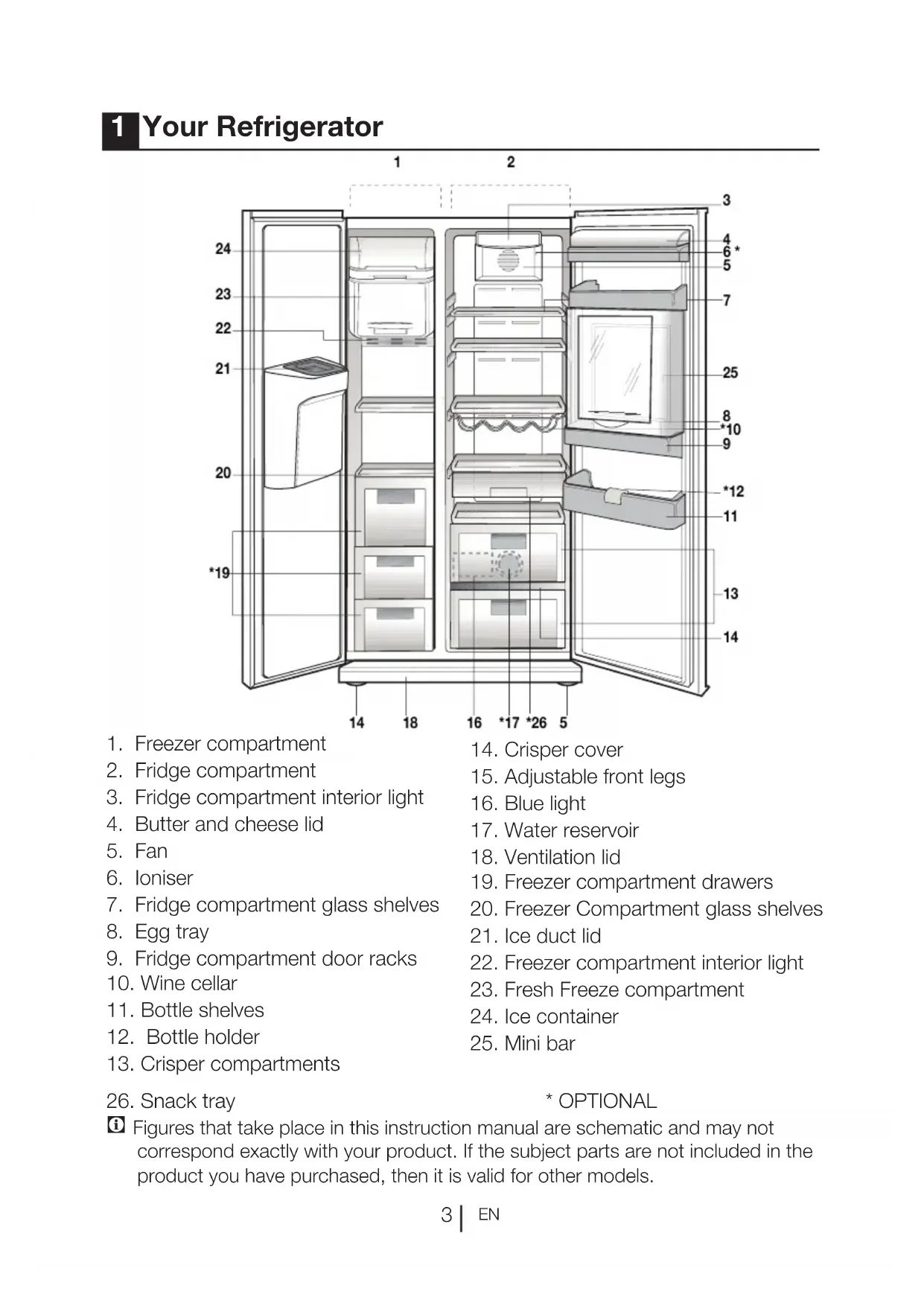

1 Your Refrigerator

1 2 3 4 5 6* 7 25 8 *10 9 *12 11 13 14 16 *17 *26 5 14 18 20 21 22 23 24

1. Freezer compartment
2. Fridge compartment
3. Fridge compartment interior light
4. Butter and cheese lid
5. Fan
6. Ioniser
7. Fridge compartment glass shelves
8. Egg tray
9. Fridge compartment door racks
10. Wine cellar
11. Bottle shelves
12. Bottle holder

13. Crisper compartments

14. Crisper cover

15. Adjustable front legs
16. Blue light
17. Water reservoir
18. Ventilation lid
19. Freezer compartment drawers
20. Freezer Compartment glass shelves
21. Ice duct lid
22. Freezer compartment interior light
23. Fresh Freeze compartment
24. Ice container

25. Mini bar

26. Snack tray

* OPTIONAL

i Figures that take place in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models.

1 Your Refrigerator

1 2 3 *4 6 5 7 24 23 22 21 8 *10 9 20 *12 11 13 14 *19 14 18 17 *16 26 5

1. Freezer compartment

2. Fridge compartment

3. Fridge compartment interior light

4. Butter and cheese lid

5. Fan

6. Ioniser

7. Fridge compartment glass shelves

8. Egg tray

9. Fridge compartment door racks

10. Wine cellar

11. Bottle shelves

12. Bottle holder

13. Crisper compartments

14. Crisper cover

15. Adjustable front legs

16. Blue light

17. Water reservoir

18. Ventilation lid

19. Freezer compartment drawers

20. Freezer Compartment glass shelves

21. Ice duct lid

22. Freezer compartment interior light

23. Fresh Freeze compartment

24. Ice container

25. Mini bar

26. Snack tray

\* OPTIONAL

Figures that take place in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models.

2 Important Safety Warnings

Please review the following information.

Failure to observe this information may cause injuries or material damage.

Otherwise, all warranty and reliability commitments will become invalid.

The usage life of the unit you purchased is 10 years. This is the period for keeping the spare parts required for the unit to operate as described.

Intended use

This product is intended to be used

- indoors and in closed areas such as homes;

– in closed working environments such as stores and offices;

– in closed accommodation areas such as farm houses, hotels, pensions.

- This product should not be used outdoors.

General safety

- When you want to dispose/scrap the product, we recommend you to consult the authorized service in order to learn the required information and authorized bodies.

- Consult your authorized service for all your questions and problems related to the refrigerator. Do not intervene or let someone intervene to the refrigerator without notifying the authorised services.

- For products with a freezer compartment; Do not eat cone ice cream and ice cubes immediately after you take them out of the freezer compartment! (This may cause frostbite in your mouth.)

- For products with a freezer compartment; Do not put bottled and

canned liquid beverages in the freezer compartment. Otherwise, these may burst.

- Do not touch frozen food by hand; they may stick to your hand.

- Unplug your refrigerator before cleaning or defrosting.

- Vapor and vaporized cleaning materials should never be used in cleaning and defrosting processes of your refrigerator. In such cases, the vapor may get in contact with the electrical parts and cause short circuit or electric shock.

- Never use the parts on your refrigerator such as the door as a means of support or step.

- Do not use electrical devices inside the refrigerator.

- Do not damage the parts, where the refrigerant is circulating, with drilling or cutting tools. The refrigerant that might blow out when the gas channels of the evaporator, pipe extensions or surface coatings are punctured causes skin irritations and eye injuries.

- Do not cover or block the ventilation holes on your refrigerator with any material.

- Electrical devices must be repaired by only authorised persons. Repairs performed by incompetent persons create a risk for the user.

- In case of any failure or during a maintenance or repair work, disconnect your refrigerator's mains supply by either turning off the relevant fuse or unplugging your appliance.

- Do not pull by the cable when pulling off the plug.

- Place the beverage with higher proofs tightly closed and vertically.

- Never store spray cans containing flammable and explosive substances in the refrigerator.

- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

- This product is not intended to be used by persons with physical, sensory or mental disorders or unlearned or inexperienced people (including children) unless they are attended by a person who will be responsible for their safety or who will instruct them accordingly for use of the product

- Do not operate a damaged refrigerator. Consult with the service agent if you have any concerns.

- Electrical safety of your refrigerator shall be guaranteed only if the earth system in your house complies with standards.

- Exposing the product to rain, snow, sun and wind is dangerous with respect to electrical safety.

- Contact authorized service when there is a power cable damage to avoid danger.

- Never plug the refrigerator into the wall outlet during installation. Otherwise, risk of death or serious injury may arise.

- This refrigerator is intended for only storing food items. It must not be used for any other purpose.

- Label of technical specifications is located on the left wall inside the refrigerator.

- Never connect your refrigerator to electricity-saving systems; they may damage the refrigerator.

- If there is a blue light on the refrigerator, do not look at the blue light with optical tools.

- For manually controlled refrigerators, wait for at least 5 minutes to start the refrigerator after power failure.

- This operation manual should be handed in to the new owner of the product when it is given to others.

- Avoid causing damage on power cable when transporting the refrigerator. Bending cable may cause fire. Never place heavy objects on power cable. Do not touch the plug with wet hands when plugging the product.

Diagram showing a lightning bolt striking down on a wall-mounted device with wiring and plug (no text or symbols)

- Do not plug the refrigerator if the wall outlet is loose.

- Water should not be sprayed directly on inner or outer parts of the product for safety purposes.

- Do not spray substances containing inflammable gases such as propane gas near the refrigerator to avoid fire and explosion risk.

- Never place containers filled with water on top of the refrigerator, otherwise this may cause electric shock or fire.

- Do not overload your refrigerator with excessive amounts of food. If overloaded, the food items may fall down and hurt you and damage refrigerator when you open the door. Never place objects on top of the refrigerator; otherwise, these objects may fall down when you open or close the refrigerator's door.

• As they require a precise temperature, vaccines, heat-sensitive medicine and scientific materials and etc. should not be kept in the refrigerator.
• If not to be used for a long time, refrigerator should be unplugged. A possible problem in power cable may cause fire.
• The plug's tip should be regularly cleaned; otherwise, it may cause fire.
• The plug's tip should be cleaned regularly with a dry cloth; otherwise, it may cause fire.
• Refrigerator may move if adjustable legs are not properly secured on the floor. Properly securing adjustable legs on the floor can prevent the refrigerator to move.
• When carrying the refrigerator, do not hold it from door handle. Otherwise, it may be snapped.
• When you have to place your product next to another refrigerator or freezer, the distance between devices should be at least 8cm. Otherwise, adjacent side walls may be humidified.

For products with a water dispenser;

Pressure of water mains should be minimum 1 bar. Pressure of water mains should be maximum 8 bars.

- Use only potable water.

Child safety

• If the door has a lock, the key should be kept away from reach of children.
• Children must be supervised to prevent them from tampering with the product.

HCA Warning

If your product's cooling system contains R600a:

This gas is flammable. Therefore, pay attention to not damaging the cooling system and piping during usage and transportation. In the event of damage, keep your product away from potential fire sources that can cause the product catch a fire and ventilate the room in which the unit is placed.

Ignore this warning if your product's cooling system contains R134a.

Type of gas used in the product is stated in the type plate which is on the left wall inside the refrigerator.

Never throw the product in fire for disposal.

Things to be done for energy saving

- Do not leave the doors of your refrigerator open for a long time.

- Do not put hot food or drinks in your refrigerator.

- Do not overload your refrigerator so that the air circulation inside of it is not prevented.

- Do not install your refrigerator under direct sunlight or near heat emitting appliances such as ovens, dishwashers or radiators.

- Pay attention to keep your food in closed containers.

- For products with a freezer compartment; You can store maximum amount of food items in the freezer when you remove the shelf or drawer of the freezer. Energy consumption value stated for your refrigerator has been determined by removing freezer shelf or drawer and under maximum load. There is no harm to use a shelf or drawer according to the shapes and size of food to be frozen.

- Thawing frozen food in fridge compartment will both provide energy saving and preserve the food quality.

Recomendations for freshfood compartment \* OPTIONAL

- Please do not let any foodstuff to come to contact with the temperature sensor in freshfood compartment. In order to maintain freshfood compartment at ideal storage temperature, the sensor must not be blocked by fodstuffs.

- Do not place hot foodstuff in your appliance.

food temperature sensor

MILK Juice etc. temperature sensor

3 Installation

i Please remember that the manufacturer shall not be held liable if the information given in the instruction manual is not observed.

Points to be considered when re-transporting your refrigerator

1. Your refrigerator must be emptied and cleaned prior to any transportation.
2. Shelves, accessories, crisper and etc. in your refrigerator must be fastened securely by adhesive tape against any jolt before repackaging.
3. Packaging must be tied with thick tapes and strong ropes and the rules of transportation printed on the package must be followed.

i Always remember...

Every recycled material is an indispensable source for the nature and for our national resources.

If you wish to contribute to recycling the packaging materials, you can get further information from the environmental bodies or local authorities.

Before operating your refrigerator

Before starting to use your refrigerator check the following:

1. Is the interior of the refrigerator dry and can the air circulate freely in the rear of it?

2. Clean the interior of the refrigerator as recommended in the “Maintenance and cleaning” section.

3. Insert the 2 plastic wedges onto the rear ventilation as illustrated in the following figure. Unscrew the existing ones and use the screws given in the same bag of wedges. Plastic wedges will provide the required distance between your refrigerator and the wall in order to allow the air circulation.

Technical diagram of a computer chassis back panel with mounting holes and ventilation slots (no text or labels)

Illustration of a hand using a screwdriver to adjust a component, with an arrow indicating the process (no text or symbols present)

1. Plug the refrigerator into the wall outlet. When the door is open the respective interior light will come on.
2. You will hear a noise as the compressor starts up. The liquid and gases sealed within the refrigeration system may also give rise to noise, even if the compressor is not running and this is quite normal.
3. Front edges of the refrigerator may feel warm. This is normal. These areas are designed to be warm to avoid condensation.

Electric connection

Connect your refrigerator to a grounded socket which is being protected by a fuse with the appropriate capacity.

Important:

The connection must be in compliance with national regulations.
The power cable plug must be easily accessible after installation
The specified voltage must be equal to your mains voltage.
△ Extension cables and multiway plugs must not be used for connection.
A damaged power cable must be replaced by a qualified electrician.
The appliance must not be operated before it is repaired! There is danger of electric shock!

Disposing of the packaging

⚠ The packing materials may be dangerous for children. Keep the

packing materials out of the reach of children or dispose them of by classifying them in accordance with the waste instructions. Do not dispose them of along with the normal household waste.

The packing of your refrigerator is produced from recyclable materials.

Disposing of your old refrigerator

Dispose of your old machine without giving any harm to the environment.

⚠️ You may consult your authorized dealer or waste collection center of your municipality about the disposal of your refrigerator
⚠️ Before disposing of your refrigerator, cut out the electric plug and, if there are any locks on the door, make them inoperable in order to protect children against any danger.

Placing and Installation

Caution: Never plug the refrigerator into the wall outlet during installation.
Otherwise, risk of death or serious injury may arise.
⚠️ If the entrance door of the room where the refrigerator will be installed is not wide enough for the refrigerator to pass through, than call the authorised service to have them remove the doors of your refrigerator and pass it sideways through the door.

1. Install your refrigerator to a place that allows ease of use.
2. Keep your refrigerator away from heat sources, humid places and direct sunlight.
3. There must be appropriate air ventilation around your refrigerator in order to achieve an efficient operation. If the refrigerator is to be placed in a recess in the wall, there must be at least 5 cm distance with the ceiling and at

least 5 cm with the wall.

If the floor is covered with a carpet, your product must be elevated 2.5 cm from the floor.

1. Place your refrigerator on an even floor surface to prevent jolts.
2. Do not keep your refrigerator in ambient temperatures under 10^ C.

Floor balance adjustment

If your refrigerator is unbalanced; You can balance your refrigerator by turning the front legs of it as illustrated in the figure. (See Figure A) The corner where the leg exists is lowered when

Diagram of a mechanical or electrical setup with directional arrows indicating motion, no text or symbols present.

you turn in the direction of black arrow and raised when you turn in the opposite direction. Taking help from someone to slightly lift the refrigerator will facilitate this process.

Door height adjustment

In case there is a problem with the alignment of the doors with respect to each other, they may be re-aligned vertically in the order given below.

4 123 (B)

Ensure that door shelves are empty when adjusting the door height.

1. Remove the lower ventilation cover by

2 (C)

117 cm 154 cm

72 cm 92 cm

unscrewing its screws as shown in the figure below. (See Figure B)

1. Loosen the three screws of the hinges of the lower door, which you wish to escalate, with the help of a screwdriver as shown in the figure below. (Do not remove completely)

(See Figure C)

- If the freezer compartment door is lower than the fridge compartment door, bring them to the same level by turning the turning the elevation screw on the freezer compartment side in the direction of arrow using a M6 Allen wrench as illustrated in Figure D.

- If the freezer compartment door is higher than the fridge compartment door, bring them to the same level by turning the elevation screw on the freezer compartment side in the reverse direction of arrow using a M6 Allen wrench as illustrated in Figure D.

After bringing the doors to the same level by elevating the front part with the aid of the elevation screws, ensure the doors of the refrigerator shall close properly. If the doors do not close properly, this might adversely affect the efficiency of the refrigerator.

Diagram showing a refrigerator with an arrow pointing to a mechanical component, and a magnified inset illustrating the assembly (no text or symbols present)

Adjusting the gap between the upper door

Simple line drawing of a two-panel cabinet with vertical and horizontal arrows indicating measurement or alignment (no text or symbols)

i You can adjust the gap between the fridge compartment doors as illustrated in the figures.

Door shelves should be empty when adjusting the door height.

Technical line drawing of a mechanical component with an upward arrow indicating motion (no text or symbols)

Because of being wires in the hinge cover of the freezer door, switch off the refrigerator power before

Technical line drawing of a mechanical housing or bracket component (no text or symbols)

removing hinge covers and this situation should be made to take care.

Technical line drawing of a mechanical component with mounting holes and internal channels (no text or symbols)

Technical diagram of a mechanical assembly with pressure gauges and a curved arrow indicating rotation (no text or symbols)

Using a screwdriver, remove the screw of upper hinge cover of the door you want to adjust.

Technical line drawing of a mechanical bracket or clamp component (no text or symbols)

i Adjust the door appropriately as you desire by loosing the screws.

i Fix the door you have adjusted by tightening the screws without changing the position of the door.

i Replace the hinge cover and fix with the screw.

Installing Water Filter

(in some models) Installation Requirements

Two different water sources may be connected to the refrigerator for water supply: the mains cold water supply and water in a jug.

A pump should be used for jug water usage.

Line drawing of a gas collection apparatus with a cylindrical tank and a tap, both connected by tubing (no text or symbols)

Check that the parts stated below are supplied with your appliance.

1. Union for connection of the water pipe to the rear of the appliance
2. 3 pieces of pipe clips (In case required to secure the water pipe)

i Note: Since the following parts are not required in use with a jug, they may not be found in the product you purchased.

Diagram showing a screwdriver inserted into a wall with two clamp clips (no text or symbols)

1. 5 meter long water pipe (1/4 inch in diameter)
2. Cold mains water valve with mesh filter (Tap Adapter)
3. Water Filter to be fitted to the bracket inside the fridge compartment.

Technical diagram showing four labeled components of a pressure vessel or pressure regulator assembly, including coiled tubing, connector housing, and cylindrical tank.

FLOW

Water connection to the refrigerator Please follow the instructions below. Connection of the Water Pipe to the Refrigerator

a a b 2 1 c

1. After installing the union onto the water pipe, insert the water pipe to the refrigerator inlet valve by pressing downwards firmly.
2. Fix union as seen in the opposite figure, by squeezing by hand on the refrigerator inlet valve.

(a- Water Pipe, b-Union, c-Valve)

Note 1: You should not need to tighten the union with a tool to achieve water tight assembly. In case of a leak use a spanner or a pair of pliers to tighten the union.

To fit the water filter follow the instructions below referring to figures supplied:

1. Press ice cancel button on the display. (Figure 1)

2. Remove the filter cover in the fridge compartment by pulling it forward. (Figure 2)

3. Take out the water filter by-pass cover by rotating it downwards. (Figure 3-4)

Illustration of a digital water level meter device with control panel (no text or symbols)

⚠ Warning: Make sure that the "Ice off" mode is active before taking out the bypass cover.

Diagram showing a device with a lock mechanism inside a vehicle, with an inset highlighting the lock mechanism.

Line drawing of a vehicle interior with a highlighted internal component (no text or symbols)

Note: It is normal that a few drops of water drip after the cover has been taken out.

1. Remove the lid on top of the water filter to place it as shown in the figure and turn upwards to lock it. (Figure 5)
2. Press ice cancel button on the display again to exit from this mode.

Water filter should be replaced every 6 months. The water filter must be removed as shown in the figure when it is going to be replaced or when it will no longer be used and by-pass cover must be attached. It must be made sure that Ice Off mode is active before taking it out.

⚠ Warning: Water filter cleans some foreign particles in the water. It does not purify water from microorganisms.
⚠ Warning: Ice Off button must always be pressed during replacement of the water filter or installing the by-pass cover.

Technical line drawings of five different mechanical components or parts, including coiled tubing, a connector, a cylindrical device, and a gear-like tool (no text or symbols present)

Connection of Water Hose to the Jug

(in some models)

To connect water to the refrigerator from a jug, a pump is needed. Follow the instructions below after connecting one end of the water pipe coming out of the pump to the refrigerator as described on the previous page.

Diagram illustrating vehicle door lock mechanism with zoomed-in views and directional arrow indicating motion

1. Finish the connection by pushing the other end of the water pipe into the water pipe inlet of the pump as shown in the figure.

2. Put and fix the pump hose into the jug as shown in the figure.

3. After completing the connection, plug in and run the pump.

To provide an efficient operation of the pump, wait for 2-3 minutes after starting the pump.

i Note: You may refer to the user manual of the pump while making the water connection.

Connection of the Water Pipe to the Cold Water Mains Line

(in some models)

If you want to use your refrigerator by connecting it to the cold water mains line,

you will have to connect a standard 1/2" valve connection fitting to the cold water supply in your house. In case this valve is not present or in case you are not sure, consult a qualified plumber.

Line drawing of a hand holding a cable inserted into a mechanical component (no text or symbols)

Technical line drawing of a mechanical component with a coiled cable and mounting bracket (no text or symbols)

Diagram of a medical or electrical device with a bulb, plug, and cable (no text or symbols)

1. Separate the union from the tap adaptor. (Figure A)
2. Install the tap adaptor to 1/2" valve fitting as shown in the figure. (Figure B)
3. After inserting the water pipe to the union, install it to the tap adaptor and insert to the tap as shown in the figure. (Figure C)
4. Tighten the union manually. In case of a leak use a spanner or a pair of pliers to tighten the union.

⚠ Warning: Secure the water pipe to suitable points by means of the pipe clips supplied to avoid any damage or displacement or accidental disconnection.

⚠ Warning: After turning on the water valve, make sure that there is no leakage at both connection points of the water pipe. In case of a leak, turn off the valve immediately and tighten all joints again using a spanner or a pair of pliers.

⚠ Warning: Make sure that standard 1/2" valve fitting fed by cold mains water supply is available and is turned off fully.

Note -1: There is no need to use water filter in case a jug is used.

Note -2: Pump must be used when jug will be used.

Prior to first use of Ice/Water Dispenser

i Water mains pressure must not be below 1 bar.

i Water mains pressure must not be over 8 bars.
i Pumps must be used in case the supply water pressure drops below 1 bar or if a jug is going to be used.

Technical illustration of a mechanical component with a downward arrow indicating force or movement (no text or symbols present)

Diagram of a pipe fitting with a valve and directional arrow, labeled (B), showing no text or symbols beyond the label.

Diagram showing a mechanical assembly with a bolt and connecting rod, no text or symbols present

i Water system of the refrigerator must be connected to the cold water line. It must not be connected to hot water line.
No water may be obtained in the initial startup of the refrigerator. This is caused by the air in the system. To discharge air from the system, press Dispenser latch for periods of 1 minute until water comes from the Dispenser. Water flow may be irregular in the beginning. Irregular water flow will be normalized after the air in the system is discharged.
At the initial startup of the refrigerator approx.12 hours must pass before cold water can be obtained.
i Water mains pressure must be between 1-8 bars for the operation of Ice/Water Dispenser smoothly. For this, check that 1 glass of water (100 cc) can be filled in 10 seconds.
i The first 10 glasses of water should not be consumed.
12 hours must pass to obtain ice from the Ice Dispenser for the first time. If there is not enough ice in the ice dispenser, ice may not be obtained from ice dispenser.
i Approximately the first 30 cubes of ice to be obtained from the Ice Dispenser must not be used.
i Always use the water filter when a jug is not being used.

4 Preparation

Your refrigerator should be installed at least 30 cm away from heat sources such as hobs, ovens, central heater and stoves and at least 5 cm away from electrical ovens and should not be located under direct sunlight.
The ambient temperature of the room where you install your refrigerator should at least be 10^ C. Operating your refrigerator under cooler conditions than this is not recommended with regard to its efficiency.
i Please make sure that the interior of your refrigerator is cleaned thoroughly.
If two refrigerators are to be installed side by side, there should be at least 2 cm distance between them.
When you operate your refrigerator for the first time, please observe the following instructions during the initial six hours.

- The door should not be opened frequently.

- It must be operated empty without any food in it.

- Do not unplug your refrigerator. If a power failure occurs out of your control, please see the warnings in the “Recommended solutions for the problems” section.

i Original packaging and foam materials should be kept for future transportations or moving.

5 Using your refrigerator

12 [phone] 3 4 ION e ION e -88 -24 °C -22 °C -20 °C -18 °C 27 26 25 24 23 22 21 20 19 18 +1- 1 2 3 4 ION e ION e -88 -24 °C -22 °C -20 °C -18 °C

1. Fridge Set button

2. Vacation mode button

3. Quick fridge button

4. Key lock button

5. Ice Off button

6. Water Dispenser Lights

7. Ice / Wate selection button

8. Water Dispenser light button

9. Filter Reset button

10. Auto Eco button

11. Quick freeze button

12. Freezer Set button

13. Economy mode indicator

14. High humidity indicator

15. Quick cool indicator

16. Fridge temperature setting indicator

17. High temperature/error warning indicator

18. Fridge door open indicator

19. Key Lock indicator

20. Vacation mode indicator

21. Water indicator

22. No ice indicator

23. Crash Ice indicator

24. Cube Ice indicator

25. Auto Eco indicator

26. Filter reset indicator

27. Freezer door open indicator

28. Freezer Compartment Temperature Setting indicator

29. Fast Freeze indicator

30. Ioniser indicator

OPTIONAL

FreezerCompartmentAdjustment	FridgeCompartmentAdjustment	Explanations
-15°C 4°C This is the normal recommended setting.
-18,-21 or -24°C 4°C These settings are recommended when the ambient temperature exceeds 30°C.
Fresh Freeze 4°C Use this when you wish to freeze your food or make ice in a short time. Your refrigerator will return to its previous mode when the process is over.
-15°C or colder 2°C If you think that your fridge compartment is not cold enough because of the hot conditions or frequent opening and closing of the door.
-15°C or colder Quick Cool You can use t when your fridge compartment is overloaded or if you wish to cool down your food rapidly.

Setting the fridge compartment temperature

Fridge compartment temperature can be set at one of the following temperatures: 8,6,4 and 2°C

Press the Fridge Set button to change. The temperature will decrease by 2^ C. Every time you press the button, the temperature will go down and then return to the highest setting. Release at the desired temperature and the new set temperature will be stored.

If you think that your food is colder than you desire, you can adjust the temperature setting of fridge compartment to 6 or 8.

Setting the freezer compartment temperature

Freezer temperature can be set at one of the following temperatures: -15 / -18 / -21 / -24 and -24°C

Press the Freezer Set button to change. The temperature will decrease by 2^ C. Every time you press the button, the

temperature will go down and then return to the highest setting. Release at the desired temperature and the new set temperature will be stored.

Fresh Freeze Function

When you press “Fresh Freeze” button, the compressor will run for about 14 hours. Fresh Freeze indicator will glow. To cancel this function press Fresh Freeze button again. Fresh Freeze indicator will turn off and return to its normal settings. Fresh Freeze will cancel itself automatically after about 12 hours if you do not cancel it.

If you want to freeze large amounts of fresh food, press the Fresh Freeze button 14 hours before putting the food into the freezer compartment.

Quick Cool Function

When you press Quick Cool button, the temperature of the compartment will be colder than the adjusted values. This function can be used for food placed in the fridge compartment and required to be cooled down rapidly.

After pressing the Quick Cool button, Quick Cool indicator will glow. To cancel this function press Quick Cool button again. Quick Cool indicator will turn off and return to its normal settings. Quick Cool function will cancel itself automatically in case you do not cancel it.

Vacation Button

In case the fridge compartment will not be used for a long time, the usage of the fridge compartment may be cancelled by pressing on the Vacation Button. By this way, the refrigerator may operate more economically. Press on Vacation Button for 3 seconds to activate this function. When this function is active, the door of the fridge compartment must be kept closed and no food must be left in the fridge compartment.

Auto Eco Button (Special Economy function)

When “Auto Eco” button is pressed, Auto Economy Function will be activated. If the door of the fridge compartment is kept closed for a long time when this function is selected, the fridge compartment will switch to a more economic operation mode to save electricity automatically. When the Auto Eco button is pressed again, this function is deactivated.

Ioniser

The ioniser helps purify the air in the fridge and is carried out automatically

Key Lock Button

The key lock is activated when this button is pressed for 3 seconds and all buttons and the dispenser latch will not work. If you want to deactivate key lock press again for 3 seconds.

Water Dispenser Illumination

When the Light button is pressed, the water dispenser lamp will light up and it will go off when the button is pressed again. This illumination will also light up when the water dispenser latch is pressed, and it will go off a short while after the latch is released.

Water/Ice Type Selection

With Dispenser Selection button, either one of “water”, “ice cube” or “crushed ice” options is selected.

Ice/Water Dispenser

With its three different functions, the dispenser efficiently meets your cold water, cube ice and crushed ice needs without having to open the door of the refrigerator. It is a continuous cold water and ice source without adding water. User friendly control panel provides the following dispensing functions:

Note:

• Water or ice can be dispensed for a maximum of 90 seconds at each use.
• When the freezer door is open, the dispenser will not work.

Ice Cube Crushed Ice Cold Water

Using the Ice Dispenser

i Please note, first ice cubes will not be ready before 12 hours after switching on the appliance.

In case you do not need ice, such as during winter or in case you are on vacation, select the ice off function.

i Ice device produces approximately 110 cubes of ice in 24 hours and this amount may change according to the frequency of opening of doors, refrigerator settings and power outage. Produced ice may be obtained from the dispenser as cube ice or crushed ice.

It is normal to get crushed ice from the dispenser in a longer time than in getting the ice cubes and also flowing of some crushed ice before the ice cubes drop if crushed ice option had been selected before selecting ice cube option.

If the ice dispenser hasn't been used for a long time or after a power cut the ice may form clumps or if the ice has taken on a change in smell or taste then the ice must be disposed of and the icebox cleaned thoroughly.

Warnings

No ice must be added to the ice dispenser compartment. This may adversely affect the ice supply or crushing the ice.
⚠️ It is normal to have a couple of ice cubes stuck together in the icebank.
⚠️ Moving parts such as blades in a housing at the ice outlet of the dispenser must not be touched to avoid injury.
⚠️ Never use sharp objects to break the ice in the icebox. This may cause damage on the icebox.
⚠️ Food stuff should never be placed into the icebox for quick cooling purposes.
⚠ When the icebox is to be removed for any reason, first of all Ice Off Button must be pressed.

Ice Off

To stop ice formation, Ice Off button is pressed. When Ice Off is selected, no water will be taken into the Icematic. However, already existing ice can be taken from the dispenser. To restart ice formation, Ice Off button must be pressed again.

Warning: If you do not use the ice dispenser, do not forget to put ice duct cover into the ring inside of the freezer door. (See. Your Refrigerator section)

FILTER Reset Button:

Water filter should be replaced every six months. Filter reset indicator lits if water filter needs to be changed Press filter Reset Button for 3 seconds to remove filter reset indicator warning.

Using the water spring

Illustration of a hand inserting a card into a digital ATM (no text or symbols visible)

Warnings

It is normal for the first few glasses of water taken from the dispenser to be warm.

In cases where the water dispenser has not been used frequently, sufficient amount of water must be drained from the dispenser to get fresh water.

Spillage Tray

Water drops that drip during use, accumulates in the spillage tray. You can remove spillage tray by pulling it to yourself. You can remove the water with a sponge or a soft cloth.

Hand placing a circular component into a drain drain (no text or symbols visible)

Sliding Body Shelves

Sliding body shelves can be pulled by slightly lifting up from the front and moved back and forth. They come to a stop point when pulled towards front to allow you reach the foods placed at the back of the shelf; when it is pulled after slightly lifting upwards at the second stop point, the body shelf will be released.

The shelf should be held tightly from the bottom as well in order to prevent it from tipping over. The body shelf is placed on the rails at the sides of the refrigerator body by bringing it to one lower or one upper level.

The body shelf should be pushed backwards to seat it completely.

1 2 3 4

Blue light

Foodstuff stored in the crispers that are enlightened with a blue light continue their photosynthesis by means of the wavelength effect of blue light and thus, preserve their freshness and increase their vitamin content.

Line drawing of a mechanical device with open lid and internal compartments (no text or symbols)

lon:

Air is ionized by means of the ionizer system in the fridge compartment air duct. Thanks to this system, air-borne bacteria and particles that cause odor are removed.

Egg tray

• You can install the egg holder to the desired door or body shelf.
• Never store the egg holder in the freezer compartment.

Fresh Freeze Compartment

This compartment freezes your food quickly and preserves their tastes and nutritional values.

Line drawing of a refrigerator interior showing front and rear compartments (no text or symbols)

Crisper humidity control sliders

Using the crisper humidity control sliders Crisper of your refrigerator is designed specially to keep your vegetables fresh without loosing their humidity. Cold air circulates basically around the crisper and the amount of the cold air passing through the crisper is controlled by the sliders on the front side of the crisper cover.

You can adjust the humidity control sliders to a suitable position according to the humidity and cooling condition of your food in the crisper.

If you want your food in the crisper to cool more, open the holes of the humidity control sliders and if you want them to cool less and keep their humidity for a longer time, close the holes.

Line drawing of a printer's door with two arrows indicating left and right motion (no text or symbols)

Recommendations for preservation of frozen food

• Prepacked commercially frozen food should be stored in accordance with the frozen food manufacturer's instructions for a ^* (4 star) frozen food storage compartment.

• To ensure that the high quality achieved by the frozen food manufacturer and the food retailer is maintained, the following should be remembered:

• Put packets in the freezer as quickly as possible after purchase.

• Ensure that contents are labelled and dated.
• Do not exceed "Use By", "Best Before" dates on the packaging.

If there is a power failure do not open the freezer door. Even if the power failure lasts up to the time specified on Type Label (inside left of the refrigerator), frozen food will not be affected. In case the failure lasts longer, the food must be checked and when necessary, must be consumed immediately or must be frozen after cooked.

Defrosting

The fridge and freezer compartments defrost automatically.

Replacing the Interior Light Bulb

Should the light fail to work, proceed as follows:

1. Switch off at the socket outlet and pull out the mains plug.

Remove all shelves and drawers for easy access.

1. Illumination covers in freezer and fridge sections are opened by pressing by hand; first release one side and then the other by pressing on the sides as shown in the figures.
2. First check that the bulb has not worked loose by ensuring that it is screwed securely in the holder.

Reinsert the plug and switch on. If the bulb works, reinstall the light cover by inserting the rear lug and pushing up to locate the front two lugs.

1. If the light still fails to work, switch off at the socket outlet and pull out the mains plug. Replace the bulb with a new 15 watt (max) screw cap E14 (SES) bulb.
2. Carefully dispose of the burnt-out light bulb immediately.

Replacement light bulb can easily be obtained from a good local electrical or DIY store.

Illustration of two hands installing or adjusting a wall-mounted panel inside a cabinet (no text or symbols visible)

Line drawing of a door handle with a vent and lid (no text or symbols)

Hand inserting a plastic bag into a cabinet or rack (no text or symbols visible)

Line drawing of hands installing or adjusting a component on a cabinet (no text or symbols)

Illustration of hands installing or adjusting a component inside a cabinet (no text or symbols visible)

Line drawing of a hand holding a tool near a window (no text or symbols)

Illustration of a hand inserting a plug into a cabinet (no text or symbols visible)

Line drawing of a door with a mounted fixture and ventilation unit (no text or symbols)

6 Maintenance and cleaning

⚠️ Never use gasoline, benzene or similar substances for cleaning purposes.
⚠️ We recommend that you unplug the appliance before cleaning.
i Never use any sharp abrasive instrument, soap, household cleaner, detergent and wax polish for cleaning.
Use lukewarm water to clean the cabinet of your refrigerator and wipe it dry.
Use a damp cloth wrung out in a solution of one teaspoon of bicarbonate of soda to one pint of water to clean the interior and wipe it dry.
⚠️ Make sure that no water enters the lamp housing and other electrical items.
⚠️ If your refrigerator is not going to be used for a long period of time, unplug the power cable, remove all food, clean it and leave the door ajar.
Check door seals regularly to ensure they are clean and free from food particles.
⚠️ To remove door racks, remove all the contents and then simply push the door rack upwards from the base.

Protection of plastic surfaces

Do not put the liquid oils or oil-cooked meals in your refrigerator in unsealed containers as they damage the plastic surfaces of your refrigerator. In case of spilling or smearing oil on the plastic surfaces, clean and rinse the relevant part of the surface at once with warm water.

Chill compartment

You can increase the inner volume of your refrigerator by removing the desired chill compartment. Pull the compartment towards yourself until it is stopped by the stopper. Raise the front part for approximately 1 cm and pull the compartment towards yourself again to remove it completely.

This compartment intended specifically for the storage of highly perishable foodstuffs. You can also use these compartments if you want to store your food at a temperature a few degrees below the fridge compartment.

Line drawing of a multi-level refrigerator with drawers and doors, no text or symbols present

Icebox and Water Dispenser

i Follow the procedure and warnings below to clean the icebox:

A Remove the Icebox by lifting first and then pulling towards yourself as shown in the diagram.
⚠️ Empty the ice in the Icebox if any. To take out the stuck ice, use objects that are not sharp to avoid any damage on the Icebox.
⚠️ Pay attention that the inside of the Icebox is not wet/damp before placing it back to its housing.
⚠️ If you want to get ice from the ice dispenser after placing the Icebox back to its housing and closing the freezer door, exit from Ice Off mode by pressing the Ice Off key again.

⚠ Do not touch moving parts like the knife in the Icebox.

Leave the Water Reservoir empty when you are not going to use for a long time

1. 2.

Minibar

Minibar door provides you extra comfort when using your refrigerator. The door shelf in the refrigerator can be accessed without opening the refrigerator door; thanks to this feature, you can easily pick from the refrigerator the foods and drinks which you frequently consume. Since you do not have to open the refrigerator door frequently, you will have decreased the power consumption of refrigerator.

To open the minibar door, press by your hand on the minibar and pull back to open.

When the door of minibar is open, you may use the inner face of the door as a table on which you may put your bottles and glasses for a short time as shown in the figure.

⚠ Warning: Never do things that may may put pressure on the door such as sitting on, climbing up or hanging to the table and do not place heavy objects on it. This may cause damage on the refrigerator or personal injuries.

⚠ Warning: Never perform cutting on the Minibar door and be careful that the door is not damaged by pointed objects.

Two technical line drawings showing front and side views of a door frame structure (no text or symbols)

Two-panel illustration showing a hand holding a tablet and a close-up of a shelf with bottles (no text or symbols)

Line drawing of a window with two bottles on a shelf, no text or symbols present

Line drawing of a hand using a tool to cut or mark a cross-shaped object on a flat surface (no text or symbols)

7 Recommended solutions for the problems

Please review this list before calling the service. It might save you time and money. This list includes frequent complaints that are not arising from defective workmanship or material usage. Some of the features described here may not exist in your product.

The refrigerator does not operate.

• Is the refrigerator properly plugged in? Insert the plug to the wall socket.• Is the fuse of the socket which your refrigerator is connected to or the main fuse blown out? Check the fuse.

Condensation on the side wall of the fridge compartment (MULTIZONE, COOL CONTROL and FLEXI ZONE).

• Very cold ambient conditions. Frequent opening and closing of the door. Highly humid ambient conditions. Storage of food containing liquid in open containers.Leaving the door ajar. Switching the thermostat to a colder degree.• Decreasing the time the door left open or using it less frequently.• Covering the food stored in open containers with a suitable material.• Wipe the condensation using a dry cloth and check if it persists.

Compressor is not running

• Protective thermic of the compressor will blow out during sudden power failures or plug-out plug-ins as the refrigerant pressure in the cooling system of the refrigerator has not been balanced yet. Your refrigerator will start running approximately after 6 minutes. Please call the service if the refrigerator does not startup at the end of this period.• The fridge is in defrost cycle. This is normal for a full-automatically defrosting refrigerator. Defrosting cycle occurs periodically.• Your refrigerator is not plugged into the socket. Make sure that the plug is properly fit into the socket.• Are the temperature adjustments correctly made?• Power might be cut off.

The fridge is running frequently or for a long time.

• Your new product may be wider than the previous one. This is quite normal. Large refrigerators operate for a longer period of time.
• The ambient room temperature may be high. This is quite normal.
• The refrigerator might have been plugged in recently or might have been loaded with food. Cooling down of the refrigerator completely may last for a couple of hours longer.
• Large amounts of hot food might have been put in the refrigerator recently. Hot food causes longer running of the refrigerator until they reach the safe storage temperature.
• Doors might have been opened frequently or left ajar for a long time. The warm air that has entered into the refrigerator causes the refrigerator to run for longer periods. Open the doors less frequently.
• Freezer or fridge compartment door might have been left ajar. Check if the doors are tightly closed.
• The refrigerator is adjusted to a very low temperature. Adjust the refrigerator temperature to a warmer degree and wait until the temperature is achieved.
• Door seal of the fridge or freezer may be soiled, worn out, broken or not properly seated. Clean or replace the seal. Damaged/broken seal causes the refrigerator to run for a longer period of time in order to maintain the current temperature.
  Freezer temperature is very low while the fridge temperature is sufficient.
• The freezer temperature is adjusted to a very low temperature. Adjust the freezer temperature to a warmer degree and check.
  Fridge temperature is very low while the freezer temperature is sufficient.
• The fridge temperature might have been adjusted to a very low temperature. Adjust the fridge temperature to a warmer degree and check.
  Food kept in the fridge compartment drawers are freezing.
• The fridge temperature might have been adjusted to a very low temperature. Adjust the fridge temperature to a warmer degree and check.
  Temperature in the fridge or freezer is very high.
• The fridge temperature might have been adjusted to a very high degree. Fridge adjustment has an effect on the temperature of the freezer. Change the temperature of the fridge or freezer until the fridge or freezer temperature reaches to a sufficient level.
• Doors might have been opened frequently or left ajar for a long time; open them less frequently.
• Door might have been left ajar; close the door completely.
• Large amount of hot food might have been put in the refrigerator recently. Wait until the fridge or freezer reaches the desired temperature.
• The refrigerator might have been plugged in recently. Cooling down of the refrigerator completely takes time.
  The operation noise increases when the refrigerator is running.
• The operating performance of the refrigerator may change due to the changes in the ambient temperature. It is normal and not a fault.

Vibrations or noise.

The floor is not even or it is weak. The refrigerator rocks when moved slowly. Make sure that the floor is strong enough to carry the refrigerator, and level.The noise may be caused by the items put onto the refrigerator. Items on top of the refrigerator should be removed.

There are noises coming from the refrigerator like liquid spilling or spraying.

Liquid and gas flows happen in accordance with the operating principles of your refrigerator. It is normal and not a fault.

There is a noise like wind blowing.

Fans are used in order to cool the refrigerator. It is normal and not a fault.

Condensation on the inner walls of refrigerator.

Hot and humid weather increases icing and condensation. It is normal and not a fault.Doors might have been left ajar; make sure that the doors are closed fully.Doors might have been opened frequently or left ajar for a long time; open them less frequently.

Humidity occurs on the outside of the refrigerator or between the doors.

There might be humidity in the air; this is quite normal in humid weather. When the humidity is less, condensation will disappear.

Bad odour inside the refrigerator.

Inside of the refrigerator must be cleaned. Clean the inside of the refrigerator with a sponge, lukewarm water or carbonated water.Some containers or package materials might cause the smell. Use a different container or different brand packaging material.

The door is not closing.

Food packages may prevent the door's closing. Replace the packages that are obstructing the door.The refrigerator is not completely upright on the floor and rocking when slightly moved. Adjust the elevation screws.The floor is not level or strong. Make sure that the floor is level and capable to carry the refrigerator.

Crispers are stuck.

The food might be touching the ceiling of the drawer. Rearrange food in the drawer.

Compartiment Ultra Congélation ..... 28

Diagram showing a device with a lightning bolt and cable, no text or symbols present

food temperature sensor

MILK juice etc. temperature sensor

3 Installation

Technical line drawing of a computer chassis panel with mounting holes and ventilation slots (no text or symbols)

Hand holding a screwdriver inserted into a device panel, with an arrow indicating direction (no text or symbols present)

Diagram of a mechanical or electrical component with directional arrows indicating motion, no text or symbols present

(A)

Diagram showing a mechanical assembly with an inset close-up of a gear mechanism, labeled (D), no text or symbols present.

Simple line drawing of a rectangular frame with vertical and horizontal lines, no text or symbols present

Technical line drawing of a mechanical component with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and internal channels (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and internal channels (no text or symbols)

Vis centrale

Technical line drawing of a mechanical bracket or clamp component (no text or symbols)

Diagram of a gas collection apparatus with a cylindrical tank and a tap, both connected by tubing (no text or labels)

Diagram showing a screwdriver inserted into a wall with two clamp clips attached (no text or symbols)

Technical line drawing of a mechanical component with labeled parts (1, 2, 3, 4), no text or symbols present.

FLOW

Illustration of a digital kitchen appliance with a digital display and control panel (no text or symbols)

Diagram showing a car interior with a highlighted vehicle component and directional arrow, likely illustrating vehicle positioning or movement.

Interior view of a vehicle showing a mounted device with a circular head and internal components (no text or symbols visible)

Technical line drawings of five different mechanical components or parts, including coiled tubing, a connector, a cylindrical device, and a gear-like tool (no text or symbols present)

Diagram illustrating a mechanical assembly process with labeled parts and directional arrow indicating motion or force.

Line drawing of a hand inserting a plug into a device component (no text or symbols)

Technical line drawing of a mechanical or electronic component with a black connector and threaded base (no text or symbols)

Diagram of a medical or electrical device with a bulb, plug, and cable (no text or symbols)

Technical illustration of a mechanical component with a downward arrow indicating force or movement (no text or symbols present)

Diagram of a pipe fitting with a valve and directional arrow, labeled (B), showing no text or symbols beyond the label.

Diagram of a mechanical assembly with two components, one showing rotational motion and the other showing a single end (no text or symbols)

Illustration of a hand inserting a card into a digital ATM (no text or symbols visible)

Avertissements

Hand pressing down on a circular component with a drain, no text or symbols visible

Etagères coulissantes

Line drawing of a mechanical device with a lid and frame (no text or symbols)

lon :

Compartiment Ultra Congélation

Line drawing of a refrigerator interior showing front and rear compartments (no text or symbols)

Line drawing of a printer's door with a hand inserting a slot into the cover (no text or symbols)

Illustration of two hands installing or adjusting a wall-mounted panel inside a cabinet (no text or symbols visible)

Line drawing of a door frame with a vent and lid (no text or symbols)

Hand inserting a card into a cabinet with ventilation grilles (no text or symbols visible)

Line drawing of hands installing or adjusting a component on a cabinet (no text or symbols)

Illustration of two hands inserting a component into a cabinet (no text or symbols visible)

Line drawing of hands holding a tool near a window (no text or symbols)

Illustration of a hand inserting a plug into a cabinet (no text or symbols visible)

Line drawing of a door with a vent and a small inset showing a device (no text or symbols)

Line drawing of a refrigerator interior showing front shelves and doors (no text or symbols)

Two technical line drawings showing front and side views of a door frame structure (no text or symbols)

Two-panel illustration showing a hand inserting a card into a device and a shelf with bottles (no text or symbols)

Simple line drawing of a shelf with two bottles and a cylindrical container (no text or symbols)

Diagram showing a hand using a tool to cut or mark a rectangular object on a base, with no visible text or symbols.

Diagram showing a device with a lightning bolt and cable, no text or symbols present

food temperature sensor

MILK juice etc. temperature sensor

3 Installation

Technical line drawing of a computer chassis back panel with mounting holes and ventilation slots (no text or symbols)

Illustration of a hand using a screwdriver to adjust or install a component, with an arrow indicating direction (no text or symbols present)

Diagram of a mechanical or fluid system with directional arrows indicating flow or movement, no text or symbols present.

Diagram showing a mechanical assembly with an inset close-up of a gear mechanism, labeled (D), no text or symbols present.

Simple line drawing of a two-panel cabinet or enclosure with vertical and horizontal arrows indicating measurement or alignment (no text or symbols)

Technical diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

Technical line drawing of a mechanical housing or bracket assembly (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and internal structure (no text or symbols)

Mittelschraube

Technical line drawing of a mechanical bracket or bracket component (no text or symbols)

Diagram of a gas collection apparatus with a cylindrical tank and a tap, showing tubing and fittings (no text or labels)

Diagram showing a screwdriver inserted into a wall with two clamp clips (no text or symbols)

Technical diagram showing four labeled components of a pressure vessel or pressure relief device, including coiled tubing, connector housing, and cylindrical tank.

FLOW

Illustration of a digital water level meter device with control panel (no text or symbols)

an.

Diagram showing a device with a lock and folder, highlighting a component with arrows and a magnified inset of the main component.

Line drawing of a vehicle interior with a highlighted camera module (no text or symbols)

Technical line drawings of five different mechanical components or parts, including coiled tubing, a connector, a cylindrical device, and a spiral component (no text or symbols present)

Diagram of a vehicle interior showing two car seats with a magnified inset of the seat (no text or symbols)

Diagram showing a door with a magnified inset of a showerhead and a directional arrow (no text or symbols)

Line drawing of a hand holding a tool interacting with a mechanical component (no text or symbols)

Technical line drawing of a mechanical or electronic component with a black connector and cable, labeled '1b' (no text or symbols on the diagram itself)

Diagram of a medical or electrical device with a bulb, plug, and cable (no text or symbols)

Technical illustration of a mechanical component with a downward arrow indicating motion or assembly (no text or symbols)

Diagram of a pipe fitting with a valve and directional arrow, labeled (B), showing no text or symbols beyond the label.

Diagram showing a mechanical assembly with a bolt and connecting rod, no text or symbols present

Illustration of a hand inserting a card into a device (no text or symbols visible)

Warnungen

Hand pressing a circular component on a slatted base (no text or symbols visible)

Eierbehälter

Line drawing of a mechanical device with open lid and clamped arms (no text or symbols)

lonen:

Line drawing of a refrigerator interior showing open door, front drawer, and side shelves (no text or symbols)

Line drawing of a printer's door with two arrows indicating left and right motion (no text or symbols)

Illustration of two hands installing or adjusting a wall-mounted panel inside a cabinet (no text or symbols visible)

Line drawing of a door handle with a vent and ventilation grille (no text or symbols)

Hand inserting a plastic bag into a cabinet or rack (no text or symbols visible)

Line drawing of hands installing or adjusting a component on a cabinet (no text or symbols)

Illustration of hands installing or adjusting a component inside a cabinet (no text or symbols visible)

Line drawing of a hand holding a tool near a window frame (no text or symbols)

Illustration of a hand inserting a plug into a cabinet (no text or symbols visible)

Line drawing of a door frame with a mounted fixture and ventilation unit (no text or symbols)

Architectural line drawing of a multi-level refrigerator cabinet with drawers and doors (no text or labels)

Simple geometric diagram with a black top rectangle inside a white square, enclosed in a black border (no text or symbols)

Line drawing of a door with a window and decorative side panels (no text or symbols)

Hand holding a tablet device with an arrow indicating rotation (no text or symbols)

Simple line drawing of a window with two bottles on the side (no text or symbols)

Line drawing of a window with two bottles on top and a small box beside it (no text or symbols)

Line drawing of a hand using a tool to cut or mark a rectangular object on a base, with no visible text or symbols.

Diagram showing a device with a lightning bolt and cable, no text or symbols present

food temperature sensor

MILK juice etc. temperature sensor

3 Installazione

Technical diagram of a computer chassis back panel with mounting holes and ventilation slots (no text or labels)

Hand holding a screwdriver inserted into a device panel, with an arrow indicating direction (no text or symbols present)

Diagram of a mechanical or electrical component with directional arrows indicating motion, no text or symbols present

(A)

Diagram showing a mechanical device connected to a motor, with an inset close-up of the internal components (no text or symbols present)

Simple line drawing of a rectangular frame with vertical and horizontal lines, no text or symbols present.

Technical line drawing of a mechanical component with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and a curved internal structure (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and housing (no text or symbols)

Vite centrale

Technical line drawing of a mechanical bracket or clamp component (no text or symbols)

Diagram of a gas collection apparatus with a cylindrical tank and a tap, showing tubing and components (no text or labels)

Diagram showing a screwdriver inserted into a wall with two clamp clips attached (no text or symbols)

Technical line drawing of a mechanical component with labeled parts (1, 2, 3, 4), no text or symbols present.

FLOW

Illustration of a digital kitchen appliance with a digital display showing 88°C and 4.4°C (no text or symbols on the device itself)

Diagram showing a car interior with a highlighted vehicle seat and a bag, including a magnified inset of the seat.

Interior view of a vehicle showing a mounted device with a circular head and internal components (no text or symbols visible)

Technical diagram showing five labeled parts of a mechanical or industrial component, including coiled tubing, nut, and spray bottle.

Diagram of a vehicle interior showing a vehicle with a highlighted component and surrounding equipment (no text or symbols)

Diagram showing a device with a magnified view of its internal components, including a circular inset of a helmet-like device.

Line drawing of hands connecting a cable to a device component (no text or symbols)

Technical line drawing of a mechanical component with a cable and connector (no text or symbols)

Diagram of a medical or electrical device with a bulb, plug, and cable (no text or symbols)

Technical line drawing of a mechanical component with a downward arrow indicating motion or assembly (no text or symbols)

Diagram of a pipe fitting with a valve and directional arrow, labeled (B), showing no text or symbols beyond the label.

Diagram showing a mechanical assembly with a bolt and connecting rod, no text or symbols present

Illustration of a hand inserting a card into a digital ATM machine (no text or symbols visible)

Avvertenze

Hand pressing a circular component on a slatted base (no text or symbols visible)

Ripiani estraibili

Line drawing of a mechanical device with open lid and side panels (no text or symbols)

Ionizzazione:

Line drawing of a refrigerator interior showing front and rear compartments (no text or symbols)

Line drawing of a printer's door with two arrows indicating left and right motion (no text or symbols)

Illustration of two hands installing or adjusting a wall-mounted panel inside a cabinet (no text or symbols visible)

Line drawing of a door handle and vent with a gridded recess (no text or symbols)

Hand inserting a plastic bag into a cabinet or rack (no text or symbols visible)

Line drawing of hands installing or adjusting a component on a cabinet (no text or symbols)

Illustration of hands installing or adjusting a component inside a cabinet (no text or symbols visible)

Line drawing of a hand holding a tool near a window frame (no text or symbols)

Illustration of a hand inserting a plug into a cabinet (no text or symbols visible)

Line drawing of a door frame with a mounted fixture and ventilation unit (no text or symbols)

Architectural line drawing of a multi-level refrigerator with drawers and doors (no text or labels)

Simple geometric shape: a black rectangle with a horizontal top, centered within a white square frame (no text or symbols)

Line drawing of a door with a rectangular window and side panels (no text or symbols)

Hand holding a tablet device with an arrow indicating rotation (no text or symbols)

Simple line drawing of a window with two bottles on the side (no text or symbols)

Line drawing of a window with two bottles and a small container on a shelf (no text or symbols)

Line drawing of a hand using a tool to clean or inspect a window frame with a cross mark (no text or symbols)

Diagram showing a device with a lightning bolt and cable, no text or symbols present

food temperature sensor

MILK juice etc. temperature sensor

3 Installation

Technical diagram of a computer chassis showing front panel and internal compartments with mounting holes (no text or labels)

Hand holding a screwdriver inserted into a device panel, with an arrow indicating direction (no text or symbols present)

Diagram of a mechanical or electrical setup with directional arrows indicating motion, no text or symbols present.

Diagram showing a mechanical device connected to a motor, with an inset close-up of the internal components (no text or symbols present)

Simple line drawing of a two-panel cabinet or enclosure with vertical and horizontal arrows indicating measurement directions (no text or symbols)

Technical diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

Technical line drawing of a mechanical component with mounting holes and a curved internal structure (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and internal structure (no text or symbols)

Midterskrue

Technical line drawing of a mechanical bracket or clamp component (no text or symbols)

Diagram of a gas collection apparatus with a cylindrical tank and a tap, both connected by tubing (no text or labels)

Diagram showing a screwdriver inserted into a wall with two clamp clips (no text or symbols)

Technical diagram showing four labeled components of a pressure vessel or pressure regulator assembly, including coiled tubing, fittings, and a cylindrical tank.

FLOW

Illustration of a digital water level meter with control panel and display (no text or symbols)

Diagram showing a car interior with a highlighted device component and directional arrow, likely illustrating vehicle or storage system.

Line drawing of a vehicle interior with a highlighted internal component (no text or symbols)

Illustration of five different mechanical components or parts, including coiled tubing, a connector, a pressure vessel, and a gear mechanism (no text or symbols present)

Diagram of a vehicle interior showing two car seats with a magnified inset of the seat (no text or symbols)

Diagram showing a device with a magnified inset of its internal components, no text or symbols present.

i visse modeller)

Line drawing of a hand inserting a plug into a device component (no text or symbols)

Technical line drawing of a mechanical or electronic component with a black connector and a cable, labeled '1b' (no text or symbols on the diagram itself)

Simple line drawing of a pump connected to a cylindrical device with a power outlet, no text or symbols present.

Technical illustration of a mechanical component with a downward arrow indicating motion or assembly (no text or symbols present)

Diagram of a pipe fitting with a valve and directional arrow, labeled (B), showing no text or symbols beyond the label.

Diagram showing a mechanical assembly with two components and directional arrows indicating motion (no text or symbols)

Isterning Knust is Koldt vand

Illustration of a hand inserting a card into a digital ATM (no text or symbols visible)

Advarsler

Hand pressing a circular component on a slatted base (no text or symbols visible)

Glidehylder

Line drawing of a mechanical device with open lid and side panels (no text or symbols)

lon:

Line drawing of a refrigerator interior showing front and rear compartments (no text or symbols)

Diagram of a printer's door with two arrows indicating movement or insertion (no text or symbols present)

Illustration of two hands installing or adjusting a panel inside a cabinet (no text or symbols visible)

Line drawing of a door frame with a vent and side panel (no text or symbols)

Hand inserting a card into a cabinet or rack unit (no text or symbols visible)

Line drawing of hands installing or adjusting a rectangular object on a cabinet (no text or symbols)

Illustration of hands installing or adjusting a component inside a cabinet (no text or symbols visible)

Line drawing of a hand holding a tool near a window frame (no text or symbols)

Illustration of a hand inserting a plug into a server rack (no text or symbols visible)

Line drawing of a door with a vent and a small inset showing a button (no text or symbols)

Line drawing of a refrigerator interior showing three shelves with different storage compartments (no text or symbols)

Is- og vandbeholder

Two technical line drawings showing front and side views of a door frame (no text or symbols)

Illustration showing a hand holding a tablet and a shelf with bottles (no text or symbols)

Line drawing of a cabinet with three bottles on top and a cylindrical container beside it (no text or symbols)

Line drawing of a hand using a tool to cut or mark a rectangular object, with no visible text or symbols.

Diagram showing a device with a lightning bolt and cable, no text or symbols present

food temperature sensor

MILK juice etc. temperature sensor

3 Installatie

Technical line drawing of a computer monitor rear panel with ventilation grilles and mounting holes (no text or symbols)

Illustration of a hand using a screwdriver to adjust or install a component, with an arrow indicating direction (no text or symbols present)

Diagram of a mechanical or electrical component with directional arrows indicating motion, no text or symbols present.

Diagram showing a mechanical assembly with an inset close-up of a gear mechanism, labeled (D), no text or symbols present.

Simple line drawing of a rectangular frame with vertical and horizontal lines, no text or symbols present

Technical line drawing of a mechanical component with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and internal channels (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and internal channels (no text or symbols)

Centrale schroef

Technical line drawing of a mechanical bracket or clamp component (no text or symbols)

Diagram of a gas collection apparatus with a cylindrical tank and two connected tubing (no text or labels)

Diagram showing a screwdriver inserted into a wall with two clamp clips attached (no text or symbols)

Technical line drawing of a mechanical component with labeled parts (1, 2, 3, 4), no text or symbols present.

FLOW

Illustration of a digital kitchen appliance with a digital display and ventilation slots (no text or symbols)

te draaien.

Diagram showing a car interior with a highlighted internal component and directional arrow, likely illustrating vehicle or device placement.

Diagram of a vehicle interior showing a vehicle with a highlighted internal component and a circular inset view (no text or symbols)

Technical line drawings of five different mechanical components or parts, including coiled tubing, a connector, and a cylindrical device (no text or symbols present)

Diagram illustrating vehicle door lock mechanism with zoomed-in views and directional arrow indicating motion

Line drawing of a hand inserting a plug into a device component (no text or symbols)

Technical line drawing of a mechanical component with a coiled cable and mounting bracket (no text or symbols)

Simple line drawing of a medical or electrical device with a bulb, plug, and cable (no text or symbols)

Technical illustration of a mechanical component with a downward arrow indicating motion or assembly (no text or symbols present)

Diagram of a pipe fitting with a valve and directional arrow, labeled (B), showing no text or symbols beyond the label.

Diagram of a mechanical assembly with two components, one connected to a bolt and the other to a connector (no text or symbols present)

Illustration of a hand inserting a small into a digital device into a rectangular frame (no text or symbols)

Waarschuwingen

Hand pressing down on a circular component mounted on a gridded base (no text or symbols visible)

Glijdende schappen

Line drawing of a mechanical device with a lid and base (no text or symbols)

Eierrek

Line drawing of a refrigerator interior showing storage compartments and doorways (no text or symbols)

Vochtregeling van groenteladen

Line drawing of a hand inserting a slot into a printer (no text or symbols)

lon:

Illustration of two hands installing or adjusting a wall-mounted panel inside a cabinet (no text or symbols visible)

Line drawing of a door frame with a vent and handle (no text or symbols)

Hand inserting a plastic bag into a cabinet or rack (no text or symbols visible)

Line drawing of hands installing or adjusting a component on a cabinet (no text or symbols)

Illustration of hands installing a component into a cabinet (no text or symbols visible)

Line drawing of a hand holding a tool near a window frame (no text or symbols)

Illustration of a hand inserting a plug into a cabinet (no text or symbols visible)

Line drawing of a door frame with a mounted fixture and ventilation unit (no text or symbols)

Architectural line drawing of a multi-level refrigerator with drawers and doors (no text or symbols)

IJsbak en waterdispenser

Simple geometric diagram with a black rectangle centered within a white square, enclosed in a black border (no text or symbols)

Simple line drawing of a doorway with vertical bars and a window (no text or symbols)

Hand holding a tablet device with an arrow indicating rotation (no text or symbols)

Simple line drawing of a window with two bottles on the side (no text or symbols)

Line drawing of a window with two bottles and a small cylinder on a shelf (no text or symbols)

Line drawing of a hand using a tool to cut or mark a rectangular object on a wooden base (no text or symbols)

Diagram showing a device with a lightning bolt and cable, no text or symbols present

food temperature sensor

MILK juice etc. temperature sensor

3 Installatie

Technical line drawing of a computer chassis panel with mounting holes and ventilation slots (no text or symbols)

Hand using a screwdriver to adjust or install a component on a device panel (no text or symbols visible)

Diagram of a mechanical or electrical component with directional arrows indicating motion, no text or symbols present.

(A)

Diagram showing a mechanical assembly with an inset close-up of a gear mechanism, labeled (D), no text or symbols present.

Simple line drawing of a vertical structure with two horizontal arrows, mounted on a base (no text or symbols)

Technical line drawing of a mechanical component with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and internal channels (no text or symbols)

Technical line drawing of a mechanical component with multiple cylindrical features and mounting brackets (no text or symbols)

Middenschroef

Technical line drawing of a mechanical bracket or clamp component (no text or symbols)

Diagram of a gas collection apparatus with a cylindrical tank and a tap, showing tubing and components (no text or labels)

Diagram showing a screwdriver inserted into a wall with two clamp clips attached (no text or symbols)

Technical diagram showing four labeled components of a pressure vessel or pressure relief device, including coiled tubing, fittings, and a cylindrical component.

FLOW

Illustration of a digital kitchen appliance with a temperature display and side panel (no text or symbols)

Diagram showing a car interior with a highlighted seatbelt mechanism and directional arrow, likely illustrating vehicle or parking system.

Diagram of a vehicle interior showing a highlighted engine compartment and a mounted device (no text or symbols present)

Technical line drawings of five different mechanical components or parts, including coiled tubing, a connector, and a cylindrical device (no text or symbols present)

Diagram of a vehicle interior showing two car aggressive lifters and a circular vent, with no visible text or symbols.

Diagram showing a device with a magnified inset of its head and internal components, no text or symbols present.

Line drawing of a hand connecting a black connector to a mechanical component (no text or symbols)

Technical line drawing of a mechanical component with a cable and connector (no text or symbols)

Diagram of a medical or electrical device with a bulb, plug, and cable (no text or symbols)

Technical diagram of a mechanical component with a downward arrow indicating force or movement (no text or symbols present)

Diagram of a pipe fitting with a valve and directional arrow, labeled (B), showing no text or symbols beyond the label.

Diagram showing a mechanical assembly with a bolt and connector, no text or symbols present

Illustration of a hand inserting a small into a device into a rectangular frame (no text or symbols)

Waarschuwing

Hand placing a circular component into a drain drain (no text or symbols visible)

Schuifschappen

Line drawing of a mechanical device with open lid and internal compartments (no text or symbols)

lon:

Line drawing of a refrigerator interior showing front and rear compartments (no text or symbols)

Vochtregeling van groenteladen

Line drawing of a printer's door with two arrows indicating left and right motion (no text or symbols)

Line drawing of a refrigerator interior showing front shelves and doors (no text or symbols)

Illustration of two hands installing or adjusting a wall-mounted panel inside a cabinet (no text or symbols visible)

Line drawing of a door frame with a vent and side panel (no text or symbols)

Hand inserting a card into a cabinet or rack unit (no text or symbols visible)

Line drawing of hands installing or adjusting a door panel (no text or symbols)

Illustration of hands installing or adjusting a component inside a cabinet (no text or symbols visible)

Line drawing of a hand holding a tool near a window frame (no text or symbols)

Illustration of a hand inserting a plug into a cabinet (no text or symbols visible)

Line drawing of a door with a mounted device and ventilation slots (no text or symbols)

Two technical line drawings showing front and side views of a door frame structure (no text or symbols)

Two-panel illustration showing a hand holding a tablet and a mirror with bottles (no text or symbols)

Line drawing of a window with two bottles and a small container on a shelf (no text or symbols)

Line drawing of a hand using a tool to cut or mark a dark object on a wooden base (no text or symbols)

Diagram showing a device with wires and plug, no text or symbols present

food temperature sensor

MILK juice etc. temperature sensor

3 Установка

Diagram of a computer chassis back panel with mounting holes and ventilation slots (no text or labels)

Hand holding a screwdriver inserted into a device panel, with an arrow indicating direction (no text or symbols present)

Diagram of a mechanical or electrical setup with directional arrows indicating motion, no text or symbols present.

Diagram showing a mechanical assembly with an inset close-up of a gear mechanism, labeled (D), no text or symbols present.

Simple line drawing of a rectangular frame with vertical and horizontal arrows, no text or symbols present.

Technical line drawing of a mechanical component with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and a curved pipe (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and internal channels (no text or symbols)

Technical line drawing of a mechanical bracket or clamp component (no text or symbols)

Diagram of a gas collection apparatus with a cylindrical tank and a tap, both connected by tubing (no text or labels)

Diagram showing a screwdriver inserted into a wall with two clamp clips attached (no text or symbols)

поставки.

Technical diagram showing four labeled components of a pressure vessel or pressure relief device, including coiled tubing, connector housing, and cylindrical tank.

FLOW

-88℃ > 8 0.55% 100%

Diagram showing a car interior with a highlighted device and directional arrow, likely illustrating vehicle or storage system.

Line drawing of a vehicle interior with a highlighted internal component (no text or symbols)

Illustration of five different mechanical components or parts, including coiled tubing, a valve, and a cylindrical device (no text or symbols present)

Diagram of a vehicle interior showing two car aggressive lifters with a magnified inset (no text or labels)

Diagram showing a device with a magnified view of a device inside a container, highlighting a specific component with an arrow indicating rotation.

Line drawing of a hand inserting a plug into a device component (no text or symbols)

Technical line drawing of a mechanical or electronic component with a black connector and a cable, labeled '1b' (no text or symbols on the diagram itself)

Diagram of a medical or electrical device with a bulb, plug, and cable (no text or symbols)

Technical diagram of a mechanical component with a downward arrow indicating force or movement (no text or symbols present)

Diagram of a pipe fitting with a valve and directional arrow, labeled (B), showing no text or symbols beyond the label.

Diagram showing a mechanical assembly with a bolt and connector, no text or symbols present

Illustration of a hand inserting a small into a device into a rectangular frame (no text or symbols)

Предостережения

Hand pressing down on a circular component with a thermometer, no text or symbols visible

Лоток для яиц

Line drawing of a mechanical device with a lid and frame (no text or symbols)

Ионизация:

Line drawing of a refrigerator interior showing front and rear doors, no text or symbols present

Line drawing of a printer's door with two arrows indicating left and right motion (no text or symbols)

Architectural line drawing of a refrigerator interior showing three shelves and doors (no text or symbols)

Illustration of two hands installing or adjusting a wall-mounted panel inside a cabinet (no text or symbols visible)

Line drawing of a door with a vent and lid, no text or symbols present

Hand inserting a card into a cabinet or rack unit (no text or symbols visible)

Line drawing of hands installing or adjusting a door panel (no text or symbols)

Illustration of hands installing a component on a door panel inside a cabinet (no text or symbols visible)

Line drawing of a hand holding a tool near a window frame (no text or symbols)

Illustration of a hand inserting a plug into a cabinet (no text or symbols visible)

Line drawing of a door with a mounted device and ventilation slots (no text or symbols)

Simple geometric shape: a black rectangle above a white square, enclosed in a black border (no text or symbols)

Line drawing of a door with a window and door frame (no text or symbols)

Hand holding a tablet device with an arrow indicating rotation (no text or symbols)

Simple line drawing of a window with bottles on the wall (no text or symbols)

Line drawing of a window with three bottles and a cylindrical object on the shelf (no text or symbols)

Line drawing of a hand using a tool to cut or mark a rectangular object on a wooden base, with no visible text or symbols.

Diagram showing a lightning bolt striking a component inside a refrigerator (no text or symbols)

food temperature sensor

MILK JUICθ etc. temperature sensor

3 Asennus

Diagram of a computer chassis back panel with ventilation slots and mounting holes (no text or labels)

Illustration of a hand using a screwdriver to adjust or install a component, with an arrow indicating the process (no text or symbols present)

Diagram of a mechanical or electrical component with directional arrows indicating motion, no text or symbols present

(A)

(Katso Kuva C)

Diagram showing a mechanical device connected to a motor, with an inset close-up of the motor assembly (no text or symbols present)

Simple line drawing of a two-panel cabinet or enclosure with vertical and horizontal arrows indicating measurement or alignment (no text or symbols)

Technical line drawing of a mechanical component with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and internal channels (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and internal channels (no text or symbols)

Keskiruuvi

Technical line drawing of a mechanical bracket or clamp component (no text or symbols)

Diagram of a gas collection apparatus with a cylindrical tank and a tap, showing tubing and components (no text or labels)

Diagram showing a screwdriver inserted into a wall with two clamp clips attached (no text or symbols)

Technical diagram showing four labeled components of a pressure vessel or pressure relief device, including coiled tubing, connector housing, and cylindrical tank.

FLOW

Illustration of a digital water meter device with control panel and display screen (no text or symbols)

Diagram showing a car interior with a highlighted storage unit and directional arrow, likely illustrating vehicle or storage system.

Technical line drawings of five different mechanical components or parts, including coiled tubing, a valve, and a cylindrical device (no text or symbols present)

Line drawing of a vehicle interior with a highlighted camera module (no text or symbols)

Diagram of a vehicle interior showing a cylindrical component inserted into a vehicle compartment, with an inset magnified view of the component (no text or symbols present)

Diagram showing a device with a magnified view of its internal components, including a hand insertion step and directional arrow.

Line drawing of a hand inserting a plug into a device component (no text or symbols)

Technical line drawing of a mechanical component with a cable and connector (no text or symbols)

Diagram of a medical or electrical device with a bulb, plug, and cable (no text or symbols)

Technical diagram of a mechanical component with a downward arrow indicating force or movement (no text or symbols present)

Diagram of a pipe fitting with a valve and curved tube, labeled (B), showing no text or symbols.

Diagram showing mechanical assembly with a bolt and connector, no text or symbols present

Illustration of a hand inserting a card into a digital ATM machine (no text or symbols visible)

Varoitukset

Hand pressing down on a circular component mounted on a gridded base (no text or symbols visible)

Kananmunalokero

Line drawing of a mechanical device with a lid and frame (no text or symbols)

Kananmunalokero

Line drawing of a refrigerator interior showing front and rear compartments (no text or symbols)

Line drawing of a printer's door with two arrows indicating left and right motion (no text or symbols)

lon:

Line drawing of a refrigerator interior showing three shelves and four drawers (no text or symbols)

Illustration of two hands installing or adjusting a panel inside a cabinet (no text or symbols visible)

Line drawing of a door frame with a vent and handle (no text or symbols)

Hand inserting a card into a cabinet or rack unit (no text or symbols visible)

Line drawing of hands installing or adjusting a component inside a cabinet (no text or symbols)

Illustration of hands installing or adjusting a component inside a cabinet (no text or symbols visible)

Line drawing of a hand holding a tool near a door panel (no text or symbols)

Illustration of a hand holding a small mechanical component inside a server cabinet (no text or symbols visible)

Line drawing of a door with a vent and door lock, showing no text or symbols

Two technical diagrams showing front and side views of a mechanical or architectural component (no text or symbols present)

Two-panel illustration showing a hand holding a tablet and rotating its screen, alongside a close-up of a shelf with bottles (no text or symbols)

Line drawing of a window with two bottles and a cylindrical container on a shelf (no text or symbols)

Diagram showing a hand using a tool to cut a panel with a cross symbol, no text or labels present

Diagram showing a device with wires and a plug, no text or symbols present

food temperature sensor

MILK JUICE etc. temperature sensor

3 Εγκατάσταση

Diagram of a computer monitor rear panel with ventilation grilles and mounting holes (no text or labels)

Hand holding a screwdriver inserted into a device panel, with an arrow indicating direction (no text or symbols present)

Diagram of a mechanical or electrical component with directional arrows indicating motion, no text or symbols present.

Diagram showing a mechanical assembly with an inset close-up of a component, labeled (D), no text or symbols present.

Simple line drawing of a two-panel cabinet or enclosure with vertical and horizontal arrows indicating measurement directions (no text or symbols)

Technical diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

Technical line drawing of a mechanical component with mounting holes and internal channels (no text or symbols)

Technical line drawing of a mechanical assembly with mounting holes and internal components (no text or symbols)

Technical line drawing of a mechanical bracket or bracket component (no text or symbols)

Diagram of a gas collection apparatus with a cylindrical tank and a tap, both connected by tubing (no text or labels)

Diagram showing a screwdriver inserted into a wall with two clamp clips attached (no text or symbols)

Technical line drawing of a mechanical component with labeled parts (no text or symbols beyond labels)

FLOW

Illustration of a digital kitchen appliance with a temperature display and ventilation slots (no text or symbols)

Diagram showing a device with a highlighted internal component and directional arrow, likely illustrating a mechanical or electrical assembly.

Line drawing of a vehicle interior with a circular inset showing a device component (no text or symbols)

Technical line drawings of five different mechanical components or parts, including coiled tubing, a connector, a pressure vessel, and a gear-like assembly (no text or symbols present)

Diagram of a vehicle interior showing two car seats with a magnified inset of the seat (no text or symbols)

Diagram showing a device with a magnified view of its internal components, including a circular inset of a gear and a directional arrow indicating movement.

Line drawing of a mechanical component with hands holding a tool, no text or symbols present

Technical line drawing of a mechanical or electronic component with a black connector and a cable, labeled '1b' (no text or symbols on the diagram itself)

Diagram of a medical or electrical device with a bulb, plug, and cable (no text or symbols)

Technical diagram of a mechanical component with a downward arrow indicating force or movement (no text or symbols present)

Diagram of a pipe fitting with a valve and directional arrow, labeled (B), showing no text or symbols beyond the label.

Diagram showing a mechanical assembly with a bolt and connector, no text or symbols present

Illustration of a hand inserting a card into a digital ATM (no text or symbols visible)

Προειδοποιήσεις

Hand inserting a circular component into a rack, no text or symbols visible

Line drawing of a mechanical device with a lid and base (no text or symbols)

Ion (loviσμός):

Line drawing of a refrigerator interior showing front and side views (no text or symbols)

Line drawing of a printer's door with two arrows indicating left and right motion (no text or symbols)

Illustration of hands installing or adjusting a ventilation grille inside a cabinet (no text or symbols visible)

Line drawing of a door with a vent and lid, no text or symbols present

Hand inserting a card into a cabinet with ventilation grilles (no text or symbols visible)

Line drawing of hands installing or adjusting a door panel (no text or symbols)

Illustration of hands installing or adjusting a component inside a cabinet (no text or symbols visible)

Line drawing of a hand holding a tool near a window (no text or symbols)

Illustration of a hand inserting a small component into a server rack (no text or symbols visible)

Line drawing of a door frame with ventilation slots and a vent (no text or symbols)

Line drawing of a refrigerator interior showing three shelves with drawers and doors (no text or symbols)

Simple geometric diagram with a black rectangle centered within a white square, enclosed in a black border (no text or symbols)

Line drawing of a room interior with vertical door and window (no text or symbols)

Hand holding a tablet with an arrow indicating rotation (no text or symbols)

Simple line drawing of a window with bottles on the side and a small object inside (no text or symbols)

Line drawing of a window with two bottles and a small box on a shelf (no text or symbols)

Line drawing of a hand using a tool to cut or mark a rectangular object on a flat surface (no text or symbols)

Recycling

Diagram showing a lightning bolt striking a wall-mounted device with wires and a plug, no text or symbols present

food temperature sensor

MILK juice etc. temperature sensor

هشدار HCA

Technical diagram of a computer chassis panel with mounting holes and ventilation slots (no text or labels)

Illustration of a hand using a screwdriver to adjust or install a component, with an arrow indicating the process (no text or symbols present)

Diagram of a mechanical or electrical component with directional arrows indicating motion, no text or symbols present

(A)

Diagram showing a mechanical assembly with an inset close-up of a gear mechanism, labeled (D), no text or symbols present.

Technical line drawing of a mechanical assembly with mounting holes and housing (no text or symbols)

Technical line drawing of a mechanical bracket or clamp component (no text or symbols)

Simple line drawing of a two-panel cabinet or enclosure with vertical and horizontal arrows indicating measurement or alignment (no text or symbols)

Technical diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

Technical line drawing of a mechanical component with mounting holes and internal channels (no text or symbols)

Diagram showing a screwdriver interacting with two mechanical clips on a wall (no text or symbols)

Technical diagram showing four labeled components of a pressure vessel or pressure regulator assembly, including coiled tubing, connector housing, and cylindrical tank.

نصب فيلتر آب

(در برخی از مدلها)

نيازمنديهاي نصب

Diagram of a gas collection apparatus with a cylindrical tank and a tap, showing tubing and components (no text or labels)

Technical line drawings of five different mechanical components or parts, including coiled tubing, a connector, a pressure vessel, and a spiral component (no text or symbols present)

Illustration of a digital water level meter with control panel and indicator lights (no text or symbols)

Diagram showing a car interior with a highlighted seatbelt mechanism and directional arrow indicating movement or change.

Line drawing of a vehicle interior showing a mounted device with a circular head and two rectangular buttons, enclosed in a circle (no text or symbols)

Line drawing of a hand holding a tool interacting with a mechanical component (no text or symbols)

Technical line drawing of a mechanical component with a coiled cable and labeled part 1b (no text or symbols on the diagram itself)

Simple line drawing of a medical or electrical device with a bulb, plug, and cable (no text or symbols)

Diagram of a vehicle interior showing two car seats with a magnified inset of the seat (no text or symbols)

Diagram showing a device with a magnified view of a device inside a container, highlighting a directional arrow.

Technical illustration of a mechanical component with a downward arrow indicating force or movement (no text or symbols present)

Diagram of a pipe fitting with a valve and curved pipe, labeled (B), showing no text or symbols.

Diagram showing a mechanical assembly with a bolt and connecting rod, no text or symbols present

Illustration of a hand inserting a card into a digital ATM machine (no text or symbols visible)

اخطارها

Hand pressing down on a circular component with a scale, no visible text or symbols

Line drawing of a printer's door with two arrows indicating left and right motion (no text or symbols)

روشنایی آبی

Line drawing of a mechanical device with a transparent lid and internal compartments (no text or symbols)

:يون

Line drawing of an open refrigerator with drawer and side shelves (no text or symbols)

Illustration of two hands installing or adjusting a panel inside a cabinet (no text or symbols visible)

Line drawing of a door with a vent and lid, no text or symbols present

Hand inserting a card into a cabinet or rack unit (no text or symbols visible)

Line drawing of hands installing or adjusting a door panel (no text or symbols)

Illustration of hands installing or adjusting a device panel inside a cabinet (no text or symbols visible)

Line drawing of a hand holding a tool near a window frame (no text or symbols)

Illustration of a hand inserting a plug into a cabinet (no text or symbols visible)

Line drawing of a door with a mounted device and ventilation slots (no text or symbols)

حقاظت سطوح پلاستيکی

Line drawing of a refrigerator interior showing three shelves and four drawers (no text or symbols)

در تو در

Two technical line drawings showing front and side views of a door frame structure (no text or symbols)

Two-panel illustration showing a hand holding a tablet and a shelf with bottles and a small container (no text or symbols)

Line drawing of a window with two bottles and a cylindrical object on a shelf (no text or symbols)

Line drawing of a hand using a tool to cut or mark a rectangular object on a wooden base (no text or symbols)

Diagram showing a device with wires and a plug, no text or symbols present

food temperature sensor

MILK juice etc. temperature sensor

3 Uzstādīšana

Diagram of a computer monitor rear panel with ventilation grilles and mounting holes (no text or labels)

Hand holding a screwdriver inserted into a device panel, with an arrow indicating direction (no text or symbols present)

Diagram of a mechanical or electrical component with directional arrows indicating motion, no text or symbols present

(A)

117 cm 154 cm

4 123

(B)

72 cm 92 cm

Technical diagram showing a mechanical assembly with an inset close-up of a component detail (no text or symbols present)

Simple line drawing of a two-panel cabinet or enclosure with vertical and horizontal arrows indicating measurement or alignment (no text or symbols)

Technical diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

Technical line drawing of a mechanical component with mounting holes and internal channels (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and internal structure (no text or symbols)

Technical line drawing of a mechanical bracket or clamp component (no text or symbols)

Diagram of a gas collection apparatus with a cylindrical tank and a tap, both connected by tubing (no text or labels)

Diagram showing a screwdriver inserted into a wall with two clamp clips attached (no text or symbols)

Technical line drawing of a mechanical component with labeled parts (1, 2, 3, 4), no text or symbols present.

FLOW

1. 5 metrus gara ūdens caurule (ar 1/4" diametru)

a b c 1 2

Illustration of a digital kitchen appliance with a digital display showing time and temperature (no text or symbols)

ledusskapja ievades värstu.

(a - Ūdens caurule, b - Uzmava, c - Vārsts)

Diagram showing a device with a lock mechanism and a magnified inset highlighting the internal components.

Line drawing of a car interior with a highlighted camera module and directional arrows (no text or symbols)

Illustration of five different mechanical components or parts, including coiled tubing, a container, a cylindrical device, and a gear-like tool (no text or symbols present)

Diagram of a vehicle interior showing two car seats with a magnified inset of the seat (no text or symbols)

Diagram showing a device with a magnified inset of its internal components, no text or symbols present.

Line drawing of a hand inserting a plug into a device component (no text or symbols)

Technical line drawing of a mechanical or electronic component with a coiled cable and mounting features (no text or symbols)

Simple line drawing of a medical or electrical device with a bulb, plug, and cable (no text or symbols)

Technical illustration of a mechanical component with a downward arrow indicating assembly or disassembly (no text or symbols present)

Diagram of a pipe fitting with a valve and directional arrow, labeled (B), showing no text or symbols beyond the label.

Diagram showing a mechanical assembly with a bolt and connector, no text or symbols present

Illustration of a hand inserting a card into a digital ATM machine (no text or symbols visible)

Bridinajumi

Hand pressing a button on a circular component inside a device (no text or symbols visible)

Line drawing of a mechanical device with a top panel and side panels (no text or symbols)

Jonizators:

Line drawing of a refrigerator interior showing front and rear compartments (no text or symbols)

Auglu nodalijuma mitruma kontroles slīdni

Auglu nodalijuma gaisa mitruma kontroles slidnu izmantošana

Line drawing of a printer's door with two arrows indicating left and right motion (no text or symbols)

Illustration of two hands installing or adjusting a wall-mounted panel inside a cabinet (no text or symbols visible)

Line drawing of a door handle with a vent and ventilation grille (no text or symbols)

Hand inserting a plastic bag into a cabinet or rack (no text or symbols visible)

Line drawing of hands installing or adjusting a component on a cabinet (no text or symbols)

Illustration of hands installing a component into a cabinet (no text or symbols visible)

Line drawing of a hand holding a tool near a window frame (no text or symbols)

Illustration of a hand inserting a plug into a cabinet (no text or symbols visible)

Line drawing of a door frame with a mounted fixture and ventilation unit (no text or symbols)

Line drawing of a refrigerator interior showing front shelves and storage compartments (no text or symbols)

Two technical line drawings showing front and side views of a door frame structure (no text or symbols)

Two-panel illustration showing a hand holding a tablet and a close-up of a shelf with bottles (no text or symbols)

Line drawing of a window with two bottles on a shelf, no text or symbols present

Line drawing of a hand using a tool to cut or mark a flat panel on a wooden surface, with no text or symbols present.

EI Recycling

Diagram showing a lightning bolt striking down on a wall-mounted device with wiring and plug (no text or symbols)

food temperature sensor

MILK juice etc. temperature sensor

3 Instalación

Technical line drawing of a computer monitor rear panel with mounting holes and ventilation slots (no text or symbols)

Illustration of a hand using a screwdriver to adjust or install a component, with an arrow indicating direction (no text or symbols present)

Diagram of a mechanical or electrical setup with directional arrows indicating motion, no text or symbols present.

Diagram showing a mechanical assembly with an inset close-up of a gear mechanism, labeled (D), no text or symbols present.

Simple line drawing of a rectangular frame with vertical and horizontal lines, no text or symbols present.

Technical line drawing of a mechanical component with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and internal channels (no text or symbols)

Technical line drawing of a mechanical component with multiple cylindrical features and mounting brackets (no text or symbols)

Tornillo central

Technical line drawing of a mechanical bracket or clamp component (no text or symbols)

Diagram of a gas collection apparatus with a cylindrical tank and two connected tubing (no text or labels)

Diagram showing a screwdriver inserted into a wall with two clamp clips (no text or symbols)

Technical diagram showing four labeled components of a pressure vessel or pressure regulator assembly, including coiled tubing, connector housing, and cylinder.

FLOW

Illustration of a digital water level meter device with control panel and display (no text or symbols)

Diagram showing a car interior with a highlighted device and directional arrow, likely illustrating vehicle or system components.

Line drawing of a vehicle interior with a highlighted camera module (no text or symbols)

Technical line drawings of five different mechanical components or parts, including coiled tubing, housing, and a cylindrical device (no text or symbols present)

Diagram illustrating vehicle door lock mechanism with zoomed-in views and directional arrow indicating motion

Line drawing of a mechanical component with hands connecting it to a central pin (no text or symbols)

Line drawing of a device with a cable and connector, labeled '1b' (no text or symbols on the diagram itself)

Simple line drawing of a medical or electrical device with a bulb, plug, and cable (no text or symbols)

Technical illustration of a mechanical component with a downward arrow indicating force or movement (no text or symbols present)

Diagram of a pipe fitting with a valve and directional arrow, labeled (B), showing no text or symbols beyond the label.

Diagram showing a mechanical assembly with a bolt and connector, no text or symbols present

Illustration of a hand inserting a small into a digital ATM machine (no text or symbols visible)

Avisos

Hand inserting a circular component into a rack-mounted device (no text or symbols visible)

Line drawing of a mechanical device with open lid and clamped arms (no text or symbols)

lon:

Line drawing of a refrigerator interior showing front and rear compartments (no text or symbols)

Line drawing of a hand inserting a slot into a printer (no text or symbols)

Illustration of two hands installing or adjusting a wall-mounted panel inside a cabinet (no text or symbols visible)

Line drawing of a door handle with a vent and lid (no text or symbols)

Hand inserting a plastic bag into a cabinet or rack (no text or symbols visible)

Line drawing of hands installing or adjusting a component on a cabinet (no text or symbols)

Illustration of hands installing a component into a cabinet (no text or symbols visible)

Line drawing of a hand holding a tool near a window (no text or symbols)

Illustration of a hand inserting a plug into a cabinet (no text or symbols visible)

Line drawing of a door frame with a mounted fixture and ventilation unit (no text or symbols)

Line drawing of a refrigerator interior showing three shelves and doors (no text or symbols)

Two technical line drawings showing front and side views of a door frame structure (no text or symbols)

Two-panel illustration showing a hand holding a tablet and a close-up of a shelf with bottles (no text or symbols)

Line drawing of a window with two bottles on a shelf, no text or symbols present

Line drawing of a hand using a tool to cut or mark a rectangular object on a flat surface, with no text or symbols present.

Diagram showing a lightning bolt striking a component inside a refrigerator (no text or symbols)

food temperature sensor

MILK juice etc. temperature sensor

3 Installasjon

Diagram showing a computer panel with screwdriver inserted into a device, illustrating the process of mounting or repair.

Diagram of a mechanical or electrical setup with directional arrows indicating motion, no text or symbols present.

Diagram showing a mechanical device connected to a motor, with an inset close-up of the internal components (no text or symbols present)

Simple line drawing of a two-panel cabinet or enclosure with vertical and horizontal arrows indicating measurement directions (no text or symbols)

Technical diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

i Ved bruk av en skrutrekker fjernes skruen på øvre hengseldeksel på døren du ønsker å justere.

Technical line drawing of a mechanical component with mounting holes and internal channels (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and internal channels (no text or symbols)

Senterskrue

Technical line drawing of a mechanical bracket or clamp component (no text or symbols)

i Sett på hengseldekslet og fest med skruen.

Installere vannfilter

(P noen modeller)

Installasjonskrav

Diagram of a gas collection apparatus with a cylindrical tank and a tap, both connected by tubing (no text or labels)

Diagram showing a screwdriver interacting with two clamp clips on a wall (no text or symbols)

1. 5 meter langt vannrør (1/4 tomme diameter)
2. Kaldtvannsventil med nettingfilter (kranadapter)
3. Vannfilter som skal tilpasses braketten inne i fryserdelen.

Technical line drawing of a mechanical component with labeled parts (1, 2, 3, 4), no text or symbols present.

FLOW

Illustration of a digital kitchen appliance with a digital display and control panel (no text or symbols)

Diagram showing a car interior with a highlighted vehicle component and directional arrow, likely illustrating a parking or storage system.

Diagram of a vehicle interior showing a device with a circular head and a rectangular panel, no text or symbols present.

Technical line drawings of five different mechanical components or parts, including coiled tubing, a connector, and a cylindrical device (no text or symbols present)

⚠ Advarsel: Vannfilteret renser vannet for fremmedlegemer. Det renser ikke vannet for mikroorganismer.

Diagram of a vehicle interior showing two car aggressive lifters and a circular component, with no visible text or symbols.

Diagram showing a device with a magnified view of its internal components, no text or symbols present

Line drawing of a hand holding a connector to a mechanical component (no text or symbols)

Line drawing of a device with a cable and connector, labeled '1b' (no text or symbols on the diagram itself)

Diagram of a medical or electrical device with a bulb, plug, and cable (no text or symbols)

Technical diagram of a mechanical component with a downward arrow indicating force or movement (no text or symbols present)

Diagram of a pipe fitting with a valve and curved pipe, labeled (B), showing no text or symbols.

Diagram showing a mechanical assembly with a bolt and connector, no text or symbols present

Ice Cube (isbit) Knust is Kaldt vann

Bruke isdispenseren

Illustration of a hand inserting a card into a digital ATM (no text or symbols visible)

Advarsler

Hand placing a circular component into a grid-like device (no text or symbols visible)

Glidehyller

Line drawing of a mechanical device with two stacked compartments and a central opening (no text or symbols)

lon:

Line drawing of a refrigerator interior showing front and rear shelves (no text or symbols)

Line drawing of a printer's door with two arrows indicating left and right motion (no text or symbols)

Illustration of two hands installing or adjusting a wall-mounted panel inside a cabinet (no text or symbols visible)

Line drawing of a door handle with a vent and lid (no text or symbols)

Hand inserting a card into a cabinet or rack unit (no text or symbols visible)

Line drawing of hands installing or adjusting a component on a cabinet (no text or symbols)

Illustration of hands installing or adjusting a component on a cabinet (no text or symbols visible)

Line drawing of a hand holding a tool near a window frame (no text or symbols)

Illustration of a hand inserting a plug into a cabinet (no text or symbols visible)

Line drawing of a door with a mounted device and ventilation slots (no text or symbols)

Line drawing of a refrigerator interior showing three shelves with drawers and doors (no text or symbols)

Simple geometric shape: a black rectangle with a top cap inside a white square, enclosed in a black border (no text or symbols)

Line drawing of a door with a window and vertical supports (no text or symbols)

Illustration of a hand pressing down on a tablet device with a curved arrow indicating rotation (no text or symbols)

Simple line drawing of a window with bottles and a small container on the side (no text or symbols)

Line drawing of a window with two bottles and a cylindrical container on a shelf (no text or symbols)

Diagram of a hand using a tool to cut or mark a rectangular object with a cross symbol, no text or labels present

7 Anbefalte løsninger på problemer

Diagram showing a lightning bolt striking down on a wall-mounted device with wiring and plug (no text or symbols)

- Não ligue o frigorífico à tomada, se a tomada de parede estiver solta.

food temperature sensor

MILK juice etc. temperature sensor

3 Instalação

Diagram of a computer chassis back panel with mounting holes and ventilation slots (no text or labels)

Illustration of a hand using a screwdriver to adjust or install a component, with an arrow indicating the process (no text or symbols present)

Diagram showing a mechanical or electrical setup with directional arrows indicating motion, no text or symbols present.

(A)

Diagram showing a mechanical assembly with an inset close-up of a gear mechanism, labeled (D), no text or symbols present.

Simple line drawing of a rectangular frame with vertical and horizontal lines, no text or symbols present.

Technical line drawing of a mechanical component with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and internal channels (no text or symbols)

Technical line drawing of a mechanical assembly with mounting holes and housing (no text or symbols)

Parafuso central

Technical line drawing of a mechanical bracket or clamp component (no text or symbols)

Diagram of a gas collection apparatus with a cylindrical tank and two connected tubing (no text or labels)

Diagram showing a screwdriver interacting with two mechanical clips on a wall (no text or symbols)

Technical line drawing of a pressure vessel with labeled components (no text or symbols present)

FLOW

Illustration of a digital water meter device with control panel and display screen (no text or symbols)

Diagram showing a car interior with a highlighted vehicle component and a bag attached to the door, with an arrow indicating direction.

Line drawing of a vehicle interior with a highlighted camera module (no text or symbols)

Technical line drawings of mechanical components including coiled tubing, a connector, and a cylindrical device (no text or symbols)

Diagram of a vehicle interior showing two car seats with a magnified inset highlighting the seat (no text or symbols present)

Diagram showing a car interior with a magnified inset of the engine compartment, highlighting a specific component with an arrow indicating direction.

Line drawing of a mechanical component with hands holding a tool, no text or symbols present

Technical line drawing of a mechanical component with a cable and connector (no text or symbols)

Simple line drawing of a pump connected to a cylindrical device with a power outlet, no text or symbols present.

Technical illustration of a mechanical component with a downward arrow indicating force or movement (no text or symbols present)

Diagram of a pipe fitting with a valve and directional arrow, labeled (B), showing no text or symbols beyond the label.

Diagram showing a mechanical assembly with a bolt and connector, no text or symbols present

Illustration of a hand inserting a small into a digital ATM machine (no text or symbols visible)

Avisos

Hand pressing down on a drain cover with a circular drain (no text or symbols visible)

Line drawing of a mechanical device with a lid and frame (no text or symbols)

Tabuleiro para ovos

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

Illustration of two hands installing or adjusting a wall-mounted panel inside a cabinet (no text or symbols visible)

Line drawing of a door handle with a vent and lid (no text or symbols)

Hand inserting a card into a cabinet or rack unit (no text or symbols visible)

Line drawing of hands installing or adjusting a component on a cabinet (no text or symbols)

Illustration of hands installing or adjusting a component inside a cabinet (no text or symbols visible)

Line drawing of a hand holding a tool near a window frame (no text or symbols)

Illustration of a hand inserting a small component into a cabinet (no text or symbols visible)

Line drawing of a door frame with a vent and handle, no text or symbols present

Line drawing of a refrigerator interior showing three shelves and drawers (no text or symbols)

Simple geometric diagram with a black rectangle above a white square, enclosed in a larger square frame (no text or symbols)

Line drawing of a door with a window and vertical bars (no text or symbols)

Illustration of a hand pressing down on a device with an arrow indicating rotation (no text or symbols)

Simple line drawing of a window with bottles on the side (no text or symbols)

Line drawing of a window with three bottles on a shelf (no text or symbols)

Diagram showing a hand using a tool to cut or mark a cross symbol on a rectangular panel (no text or labels)

Recycling

Diagram showing a device with a lightning bolt and cable, no text or symbols present

food temperature sensor

MILK juice etc. temperature sensor

3 Монтаж

Diagram showing a device being inserted into a rack, with arrows indicating the process and a close-up of the tool.

Diagram of a mechanical or electrical component with directional arrows indicating motion, no text or symbols present.

(A)

2

(C)

4 123

(B)

117 cm 154 cm

Diagram showing a mechanical assembly with an inset close-up of a gear mechanism, labeled (D), no text or symbols present.

Simple line drawing of a two-panel cabinet with vertical and horizontal arrows indicating measurement or alignment (no text or symbols)

Technical line drawing of a mechanical component with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and a curved internal structure (no text or symbols)

Technical line drawing of a mechanical component with multiple ports and mounting brackets (no text or symbols)

Централен винт

Technical line drawing of a mechanical bracket or clamp component (no text or symbols)

Line drawing of a gas collection apparatus with a cylindrical tank and a tap, both connected by tubing (no text or symbols)

Diagram showing a screwdriver inserted into a wall with two clamp clips (no text or symbols)

Technical diagram showing four labeled components of a pressure vessel or pressure regulator assembly, including coiled tubing, flange, and housing.

FLOW

Illustration of a digital water meter device with control panel and display screen (no text or symbols)

Diagram showing two views of a car interior with labeled components, including a zoomed-in view of the main component.

Technical line drawings of mechanical components including coiled tubing, a connector, and a cylindrical device (no text or symbols)

Diagram of a vehicle interior showing two car seats with a magnified inset of the seat (no text or symbols)

Diagram showing a car interior with a magnified inset of the dashboard and a directional arrow indicating movement or change.

Line drawing of a hand holding a tool interacting with a mechanical component (no text or symbols)

Technical line drawing of a mechanical component with a cable and connector (no text or symbols)

Simple line drawing of a medical or electrical device with a bulb, plug, and cable (no text or symbols)

Technical illustration of a mechanical component with a downward arrow indicating motion or force (no text or symbols present)

Diagram of a pipe fitting with a valve and directional arrow, labeled (B), showing no text or symbols beyond the label.

Diagram showing a mechanical assembly with a bolt and connector, no text or symbols present

Illustration of a hand inserting a card into a digital ATM (no text or symbols visible)

Предупреждения

Hand placing a circular component into a rack with a thermometer (no text or symbols visible)

Плъзгащи се рафтове

Line drawing of a mechanical device with a lid and base (no text or symbols)

ЙОН:

Interior view of a refrigerator showing open door, front drawer, and side shelves (no text or symbols visible)

Line drawing of a printer's door with two arrows indicating left and right motion (no text or symbols)

Line drawing of a refrigerator interior showing three shelves with drawers and doors (no text or symbols)

Illustration of two hands installing or adjusting a wall-mounted panel inside a cabinet (no text or symbols visible)

Hand inserting a card into a cabinet or rack unit (no text or symbols visible)

Illustration of hands installing or adjusting a component inside a cabinet (no text or symbols visible)

Illustration of a hand inserting a plug into a cabinet (no text or symbols visible)

Line drawing of a door frame with a vent and side panel (no text or symbols)

Line drawing of hands installing or adjusting a component inside a vehicle (no text or symbols)

Line drawing of hands cleaning a car door panel with a tool (no text or symbols)

Line drawing of a door handle with a vent and vent slots, no text or symbols present

Two technical line drawings showing front and side views of a room with windows and doorways (no text or symbols)

Two-panel illustration showing a hand holding a tablet and a wall-mounted shelf with bottles (no text or symbols)

Line drawing of a window with two bottles and a cylindrical container on a shelf (no text or symbols)

Line drawing of a hand using a tool to cut or mark a dark object on a wooden base (no text or symbols)

Recycling

Diagram showing a device with a lightning bolt and cable, no text or symbols present

food temperature sensor

MILK juice etc. temperature sensor

3 Instalace

Diagram of a computer monitor rear panel with ventilation grilles and mounting holes (no text or labels)

Illustration of a hand using a screwdriver to adjust a component, with an arrow indicating direction (no text or symbols present)

Zapojení do sítě

Diagram of a mechanical or electrical setup with directional arrows indicating motion, no text or symbols present.

Technical diagram showing a mechanical assembly with an inset close-up of a gear mechanism (no text or symbols present)

Simple line drawing of a two-panel cabinet or enclosure with vertical and horizontal arrows indicating measurement directions (no text or symbols)

Technical diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

Technical line drawing of a mechanical component with mounting holes and internal channels (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical bracket or clamp component (no text or symbols)

Diagram of a water tap with tubing and a side faucet, no text or symbols present

Diagram showing a screwdriver pointing to three mechanical components on a panel (no text or symbols)

Technical diagram of a water filter component with numbered parts including coiled tubing, valve, and bulb

FLOW

Illustration of a digital water level meter device with control panel and display screen (no text or symbols)

Diagram showing a car interior with a highlighted vehicle component and directional arrow, likely illustrating vehicle positioning or assembly.

Line drawing of a vehicle interior with a highlighted internal component (no text or symbols)

Illustration of various household appliances and components including a coiled tube, a connector, a water dispenser, and accessories (no text or labels)

Diagram of a vehicle interior showing two car seats with a magnified inset of the seat (no text or symbols)

Diagram showing a device with a magnified inset of its top view, no text or symbols present

Line drawing of a hand connecting a black cable to a mechanical component (no text or symbols)

Technical line drawing of a mechanical component with a cable and connector (no text or symbols)

Diagram of a medical or electrical device with a bulb, plug, and cable (no text or symbols)

Technical line drawing of a mechanical component with a downward arrow indicating motion or assembly (no text or symbols)

Diagram of a pipe fitting with a valve and directional arrow indicating flow or movement (no text or symbols)

Diagram showing a mechanical assembly with a bolt and connecting rod, no text or symbols present

Ice Off (Vypnout led)

Illustration of a hand inserting a card into a digital device (no text or symbols visible)

Upozornění

Hand placing a circular component into a grid-like device (no text or symbols visible)

Posuvné police trupu

Line drawing of a mechanical device with open lid and side panels (no text or symbols)

lon:

Line drawing of a refrigerator interior showing front and rear compartments (no text or symbols)

Line drawing of a hand inserting a slot into a printer (no text or symbols)

Illustration of two hands installing or adjusting a wall-mounted panel inside a cabinet (no text or symbols visible)

Line drawing of a door handle with a vent and ventilation grille (no text or symbols)

Hand inserting a plastic bag into a cabinet or rack unit (no text or symbols visible)

Line drawing of hands installing or adjusting a component on a cabinet (no text or symbols)

Illustration of hands installing or adjusting a component inside a cabinet (no text or symbols visible)

Line drawing of a hand holding a tool near a window frame (no text or symbols)

Illustration of a hand inserting a plug into a cabinet (no text or symbols visible)

Line drawing of a door with a mounted device and ventilation slots (no text or symbols)

6 Údržba a čištění

Line drawing of a refrigerator interior showing three shelves with drawers and doors (no text or symbols)

Minibar

Pure architectural line drawings of a building facade and window frame (no text or symbols)

Two-panel illustration showing a hand holding a tablet and a close-up of a shelf with bottles (no text or symbols)

Line drawing of a window with two bottles and a small box on a shelf (no text or symbols)

Diagram showing a hand using a tool to cut or mark a dark object on a wooden base, with no visible text or symbols.
