KQD 1360 X A - Fridge BLOMBERG - Free user manual and instructions

Product Type	Combined refrigerator with freezer compartment and water dispenser
Brand	Blomberg
Model	KQD 1360 X A
Estimated dimensions (H × W × D)	178 × 70 × 70 cm
Estimated net weight	85 kg
Power supply	220-240 V, 50 Hz, 10 A fuse
Estimated total capacity	300 L (refrigerator + freezer)
Main functions	Touch screen, quick freezing, rapid cooling, fresh zone, Flexi Zone (adjustable refrigerator/freezer), water dispenser with filter, open door alarm, holiday function, Eco Extra, blue light for vegetable bin, minibar
Refrigerant	R600a (flammable) – check label
Cleaning and maintenance	Unplug before cleaning; use warm water and baking soda; do not use solvents, gasoline or benzene; inspect seals regularly
Safety	Grounding mandatory; 5 min automatic stop after power cut; do not damage cooling circuit; do not use electrical appliances inside
Spare parts and repairability	Spare parts available for 10 years; repairs by authorized service only
General information	User manual of 294 pages; ambient temperature min. 10 °C; wall distance min. 5 cm (top and sides); distance between two refrigerators min. 2 cm

Frequently Asked Questions - KQD 1360 X A BLOMBERG

How to set the refrigerator temperature?

Use the touch control panel. Press the refrigerator compartment temperature adjustment button (reference 4) several times to choose between 2, 4, 6 or 8 °C. The temperature is displayed on the screen.

What to do if the door open alarm sounds?

The alarm sounds if a door is left open for more than one minute. To turn it off, close the door or press any button on the control panel.

How to activate the holiday function?

Press the Eco Extra / Holiday button (reference 1) for 3 seconds. The Holiday indicator lights up. The refrigerator compartment stops cooling (display '-') but the freezer continues to operate normally. Press again for 3 seconds to deactivate.

What is the Flexi Zone for and how to configure it?

The Flexi Zone compartment can be used as a refrigerator or freezer. To switch, press and hold the Flexi Zone temperature adjustment button (reference 6) for 3 seconds. In refrigerator mode, set between 2 and 10 °C; in freezer mode, between -18 and -24 °C. Useful for storing meat, fish or dairy at the ideal temperature.

How to change the water filter?

Before changing the filter, activate Ice Off mode (button 17 for 3 seconds). Remove the filter cover by pulling forward, then turn the filter downward to unlock and remove it. Insert the new filter, turn it upward to lock, then press the filter change cancel warning button (reference 19) for 3 seconds to reset the counter. The filter must be replaced every 6 months.

What to do if condensation forms inside the refrigerator?

Condensation may appear if the door is opened frequently, if ambient humidity is high, or if liquids are stored without lids. Set the temperature to a colder level, reduce door openings, cover food, and wipe condensation with a dry cloth. If the problem persists, check the seal tightness.

How to activate control lock (child safety)?

Press simultaneously the Rapid Cooling button (reference 5) and the Flexi Zone temperature adjustment button (reference 6) for about 3 seconds. The lock indicator (reference 16) lights up. Settings are then protected. Repeat the operation to deactivate.

Why does the refrigerator make noise (gurgling or blowing)?

Gurgling or spraying sounds are normal: they come from the refrigerant fluid circulation. Blowing sounds come from cooling fans. If the noise becomes abnormal (vibrations), check that the appliance is level and nothing is touching the walls.

How to clean the inside of the refrigerator?

Unplug the appliance. Remove all food. Use a damp cloth soaked in a solution of warm water and baking soda (1 teaspoon per 1/2 liter of water). Never use abrasive products, gasoline or benzene. Dry thoroughly before restarting.

What to do if the freezer compartment is not cooling enough?

First check that the set temperature is low enough (ideally -18 °C). Make sure the door is properly closed and the seals are clean. If the refrigerator has just been plugged in or loaded with warm food, wait a few hours. If the problem persists, the malfunction indicator (reference 15) may light up: note the displayed error code and contact authorized after-sales service.

USER MANUAL KQD 1360 X A BLOMBERG

KQD 1360X
KQD 1360E
KQD 1360 X A+
KQD 1360 E A+
KQD 1360 X A++

Please read this manual first!

Dear Customer,

We hope that your product, which has been produced in modern plants and checked under the most meticulous quality control procedures, will provide you an effective service.

For this, we recommend you to carefully read the entire manual of your product before using it and keep it at hand for future references.

This manual

• Will help you use your appliance in a fast and safe way.
• Read the manual before installing and operating your product.
• Follow the instructions, especially those for safety.
• Keep the manual in an easily accessible place as you may need it later.
• Besides, read also the other documents provided with your product.

Please note that this manual may be valid for other models as well.

Symbols and their descriptions

This instruction manual contains the following symbols:

i Important information or useful usage tips.

⚠ Warning against dangerous conditions for life and property.

⚠ Warning against electric voltage.

This product is supplied with the selective sorting symbol for waste electrical and electronic equipment (WEEE).

This means that this product must be handled pursuant to European Directive 2002/96/EC in order to be recycled or dismantled to minimise its impact on the environment. For further information, please contact your local or regional authorities.

Electronic products not included in the selective sorting process are potentially dangerous for the environment and human health due to the presence of hazardous substances.

1 The refrigerator 3

2 Important Safety Warnings 4

Intended use ....4
For products with a water dispenser; .6
Child safety 6
HCA Warning 6
Things to be done for energy saving ..6

3 Installation 7

Points to be considered when re-transporting your refrigerator .....7
Before operating your refrigerator .....7
Electric connection 8
Disposing of the packaging .....8
Disposing of your old refrigerator .....8
Placing and Installation 8

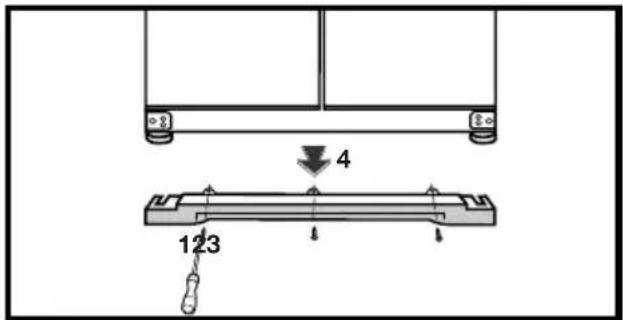

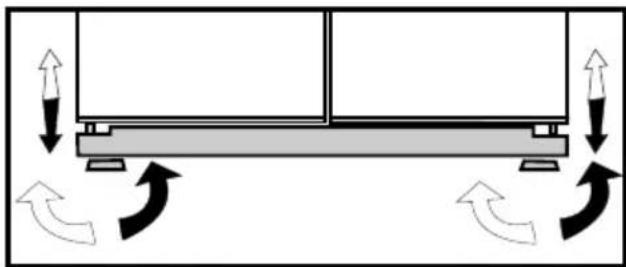

Floor balance adjustment .....9

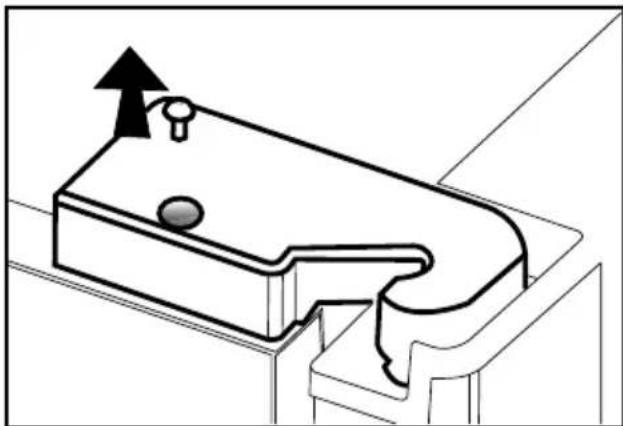

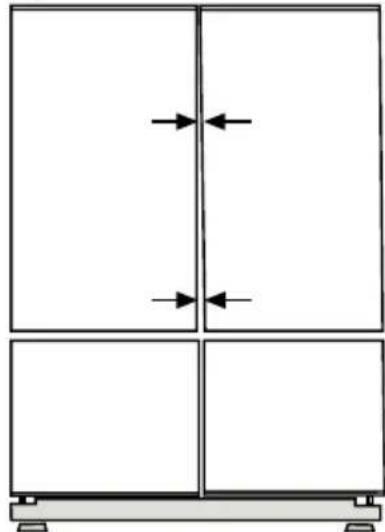

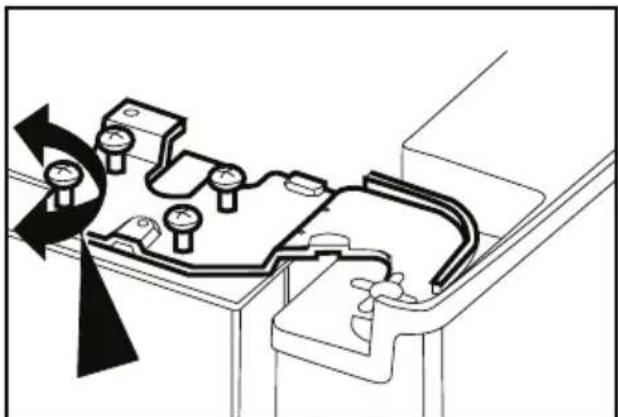

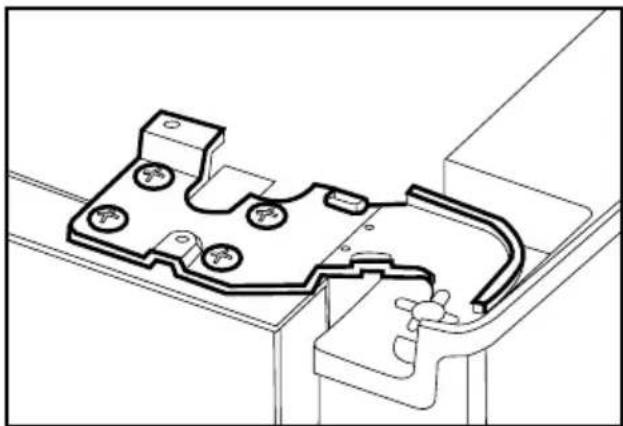

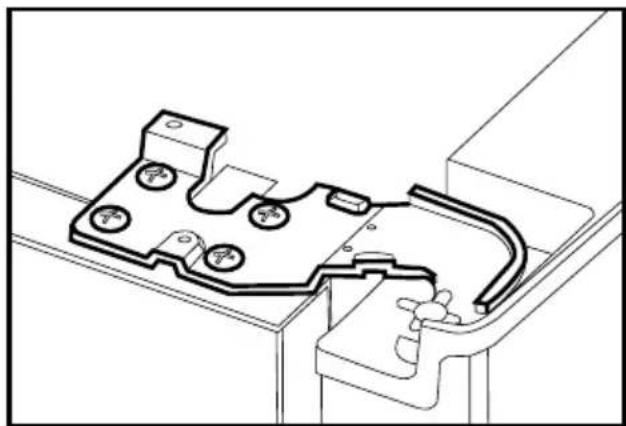

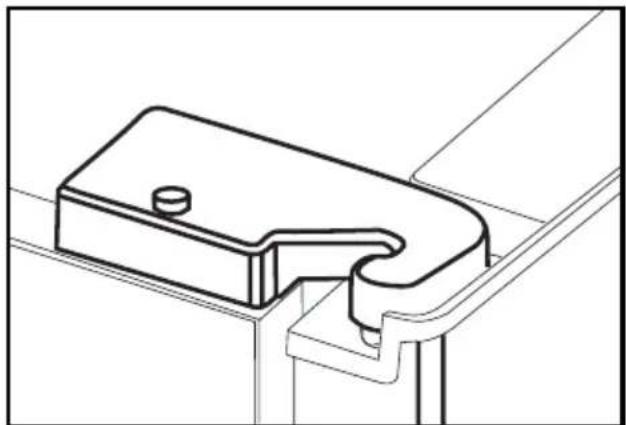

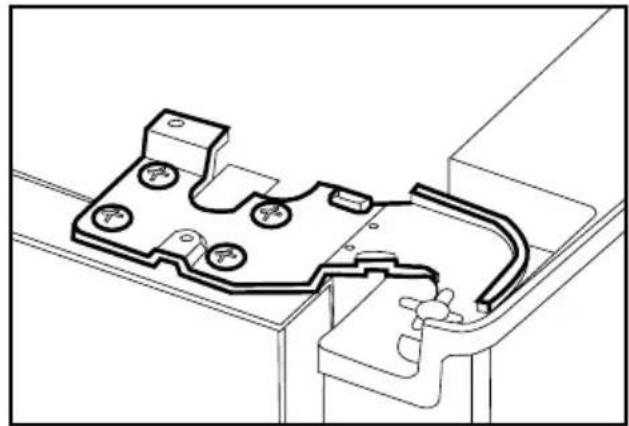

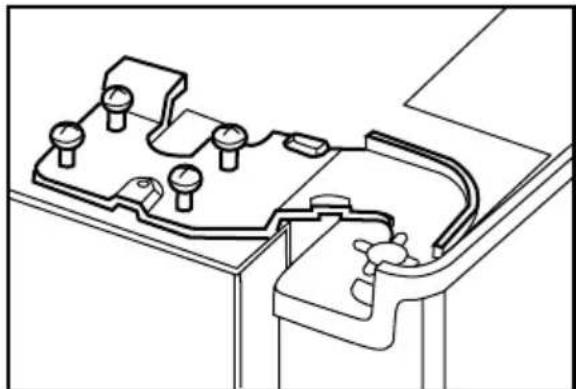

Adjusting the gap between the upper door ....9

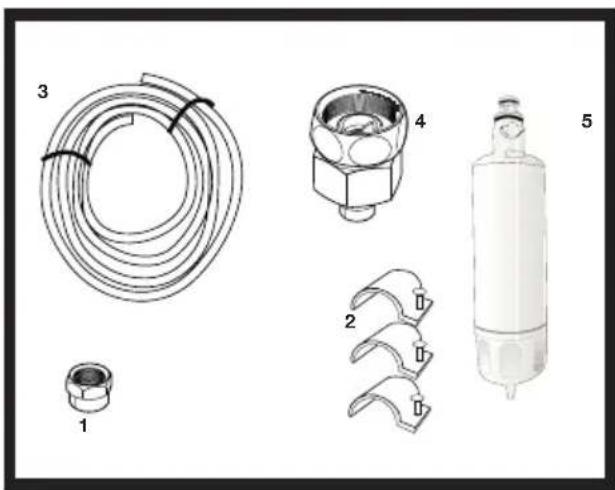

Installing Water Filter 11

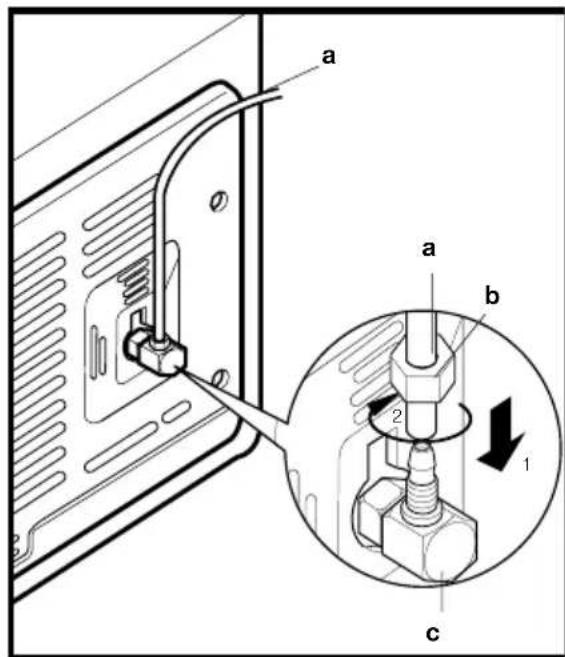

Connection of the Water Pipe to the Refrigerator ....11

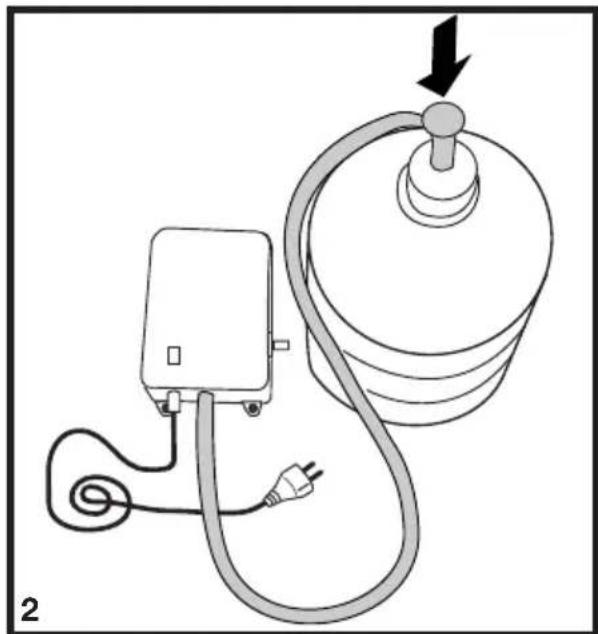

Connection of Water Hose to the Jug 12

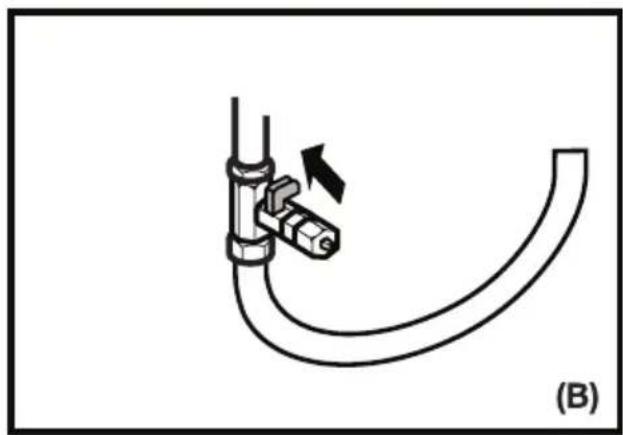

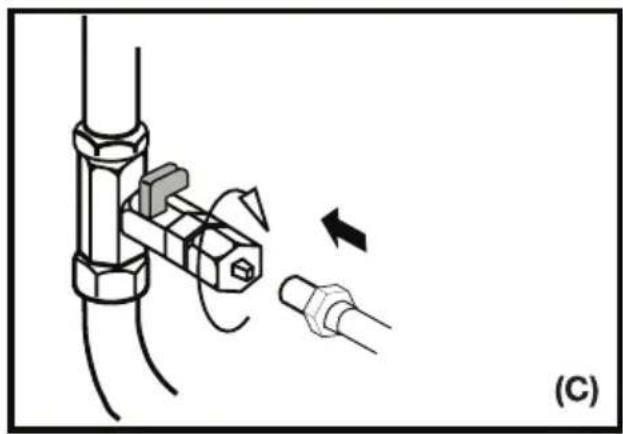

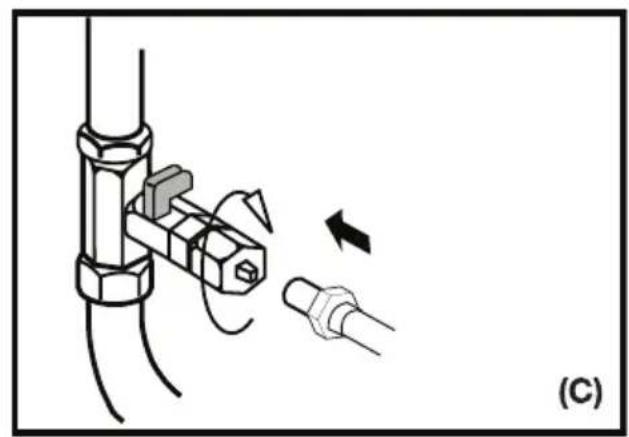

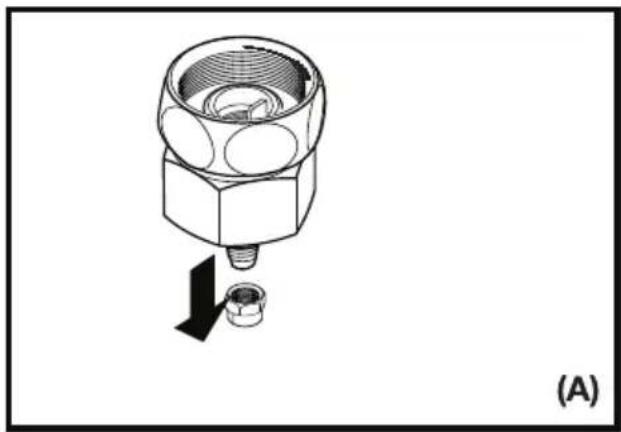

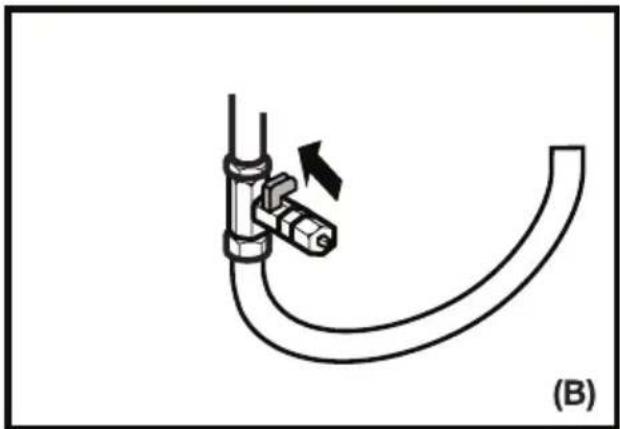

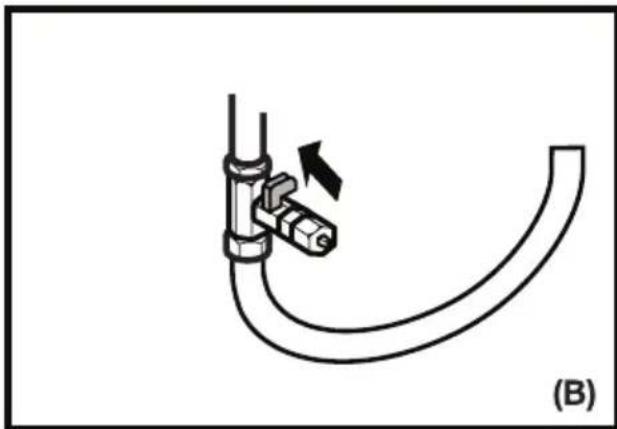

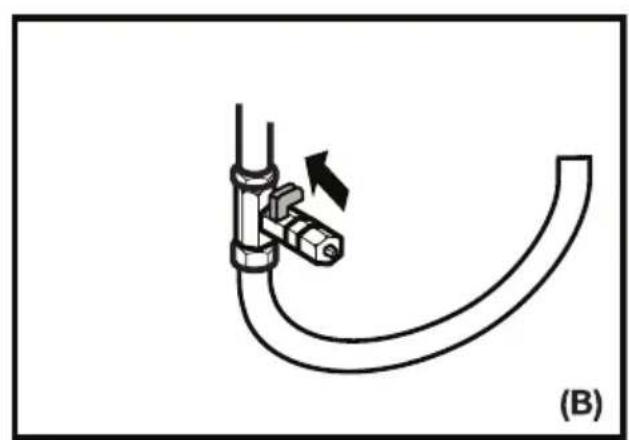

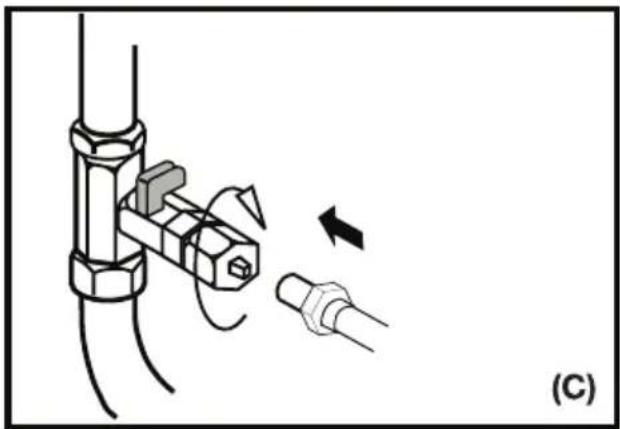

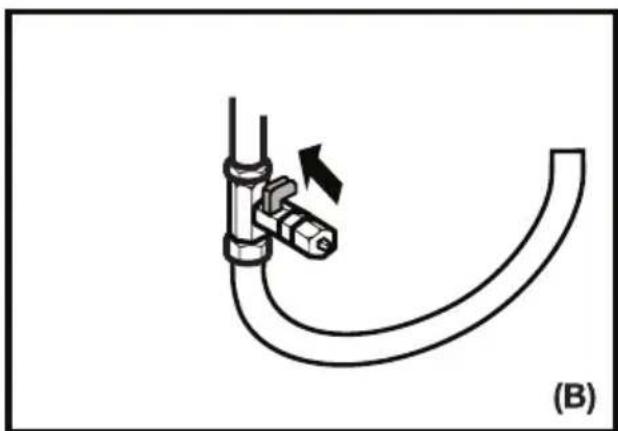

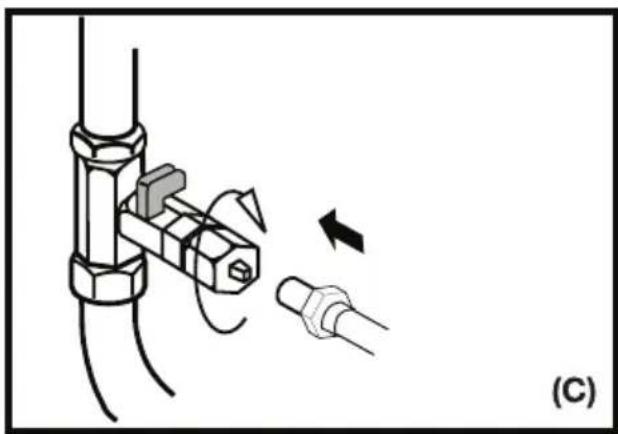

Connection of the Water Pipe to the Cold Water Mains Line ....13

Prior to first use of Water Dispenser .15

4 Preparation 16

5 Using your refrigerator 17

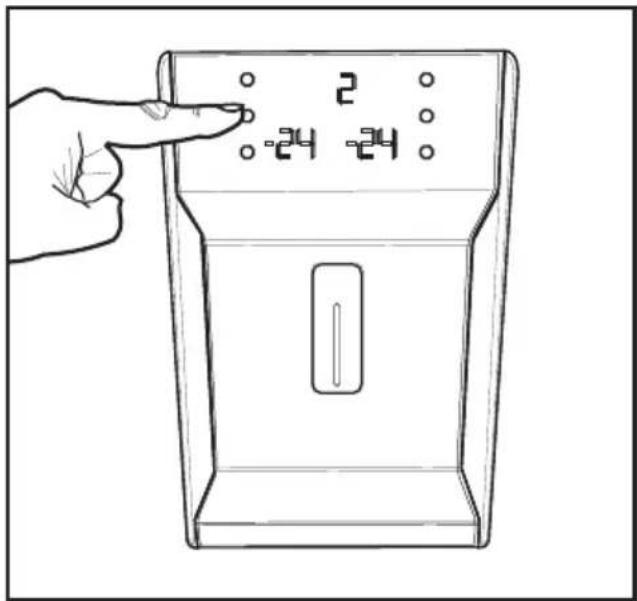

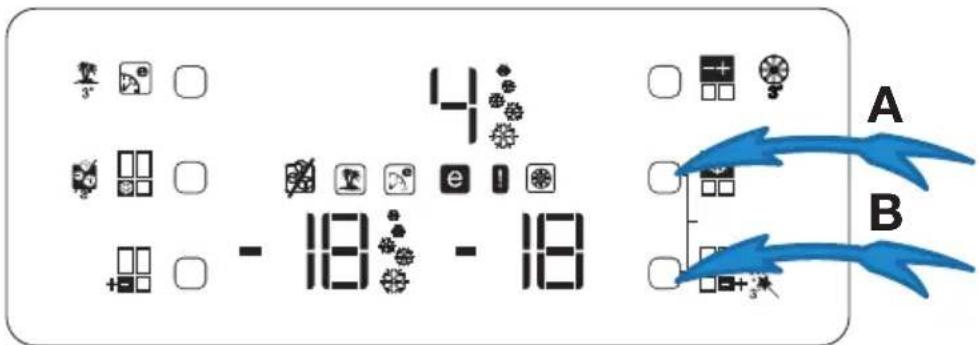

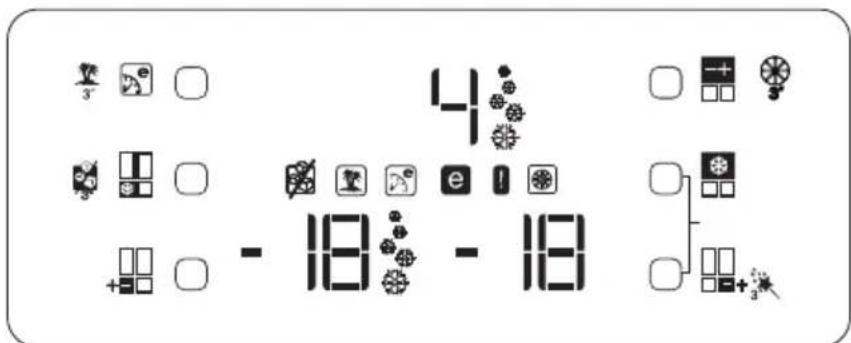

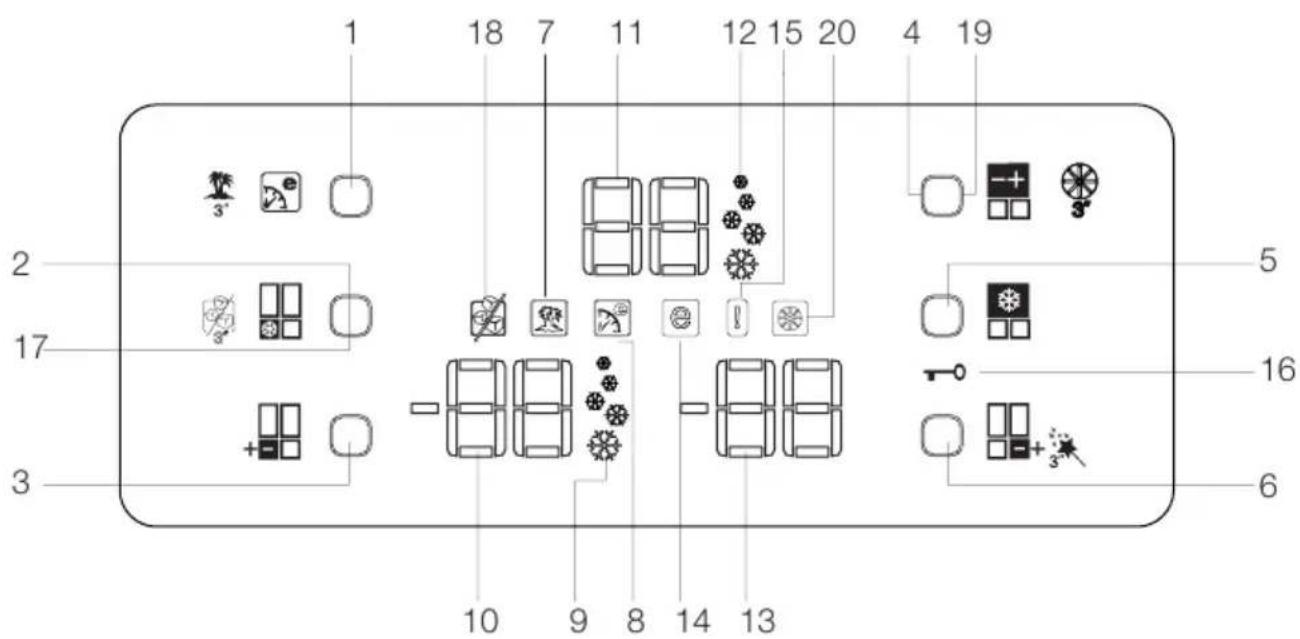

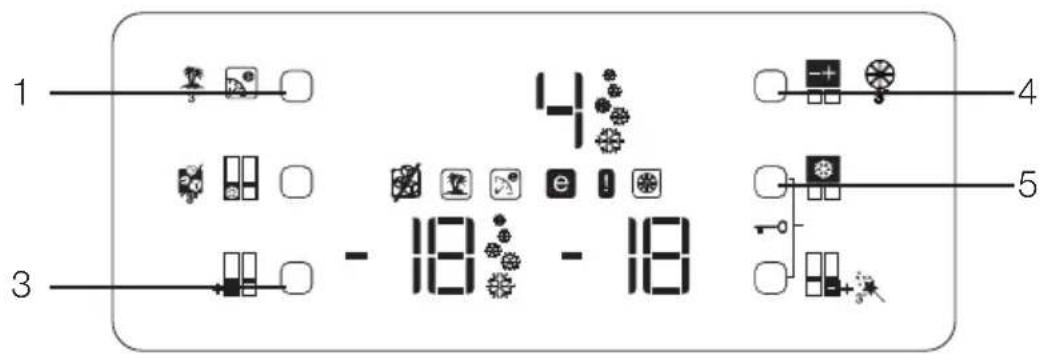

Indicator Panel 17
Things to do to have the filter usage time calculated automatically .....21

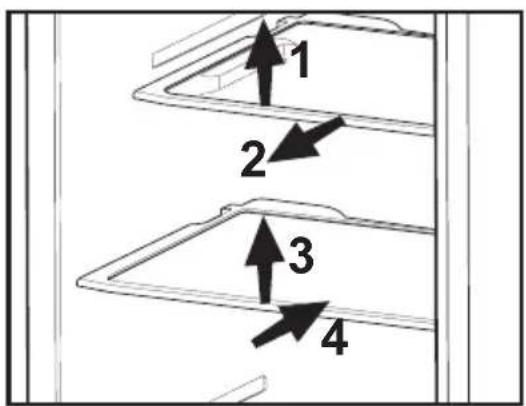

Sliding Body Shelves ......22
Egg tray 22

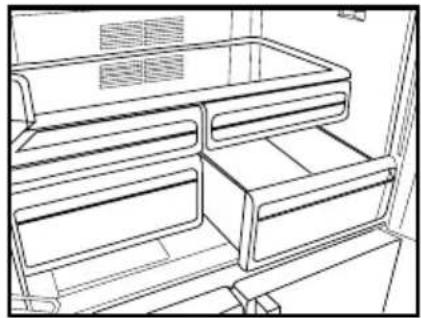

Crisper 22
Chiller compartment 22
Movable Middle Section .....23
Flexi Zone Storage Compartment ..23
Blue light 23

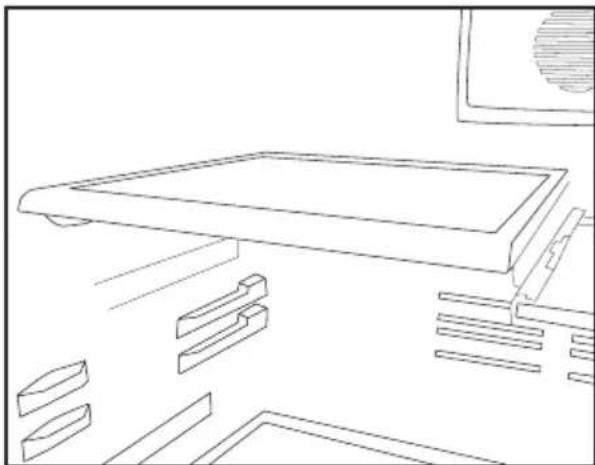

Sliding Body Shelves With Rear Hangers 24

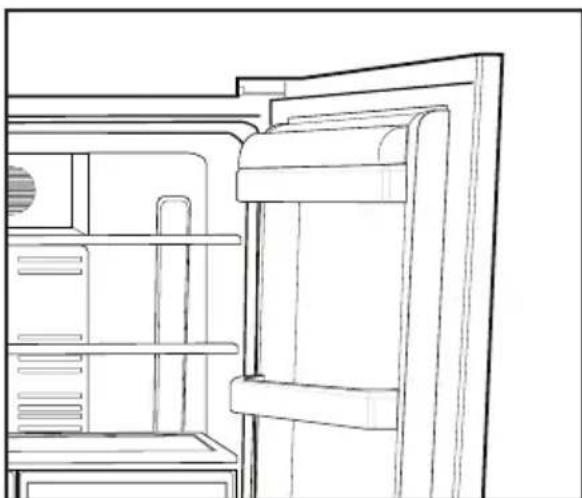

Butter & Cheese Section .....24
Using the water spring 24

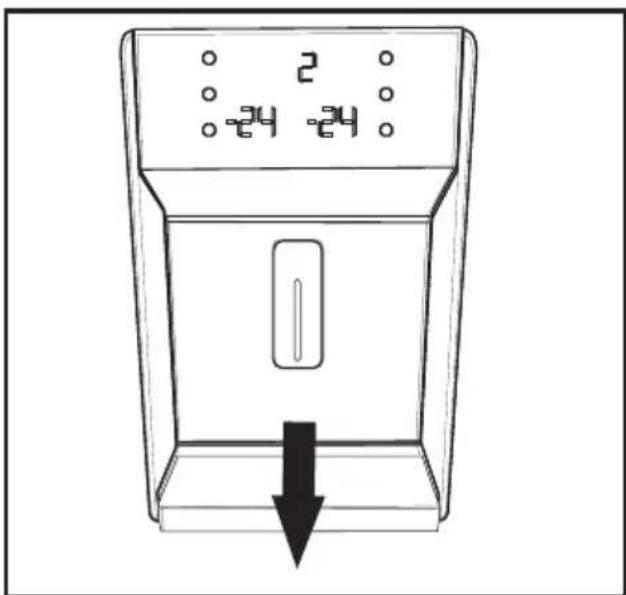

Spillage Tray 24

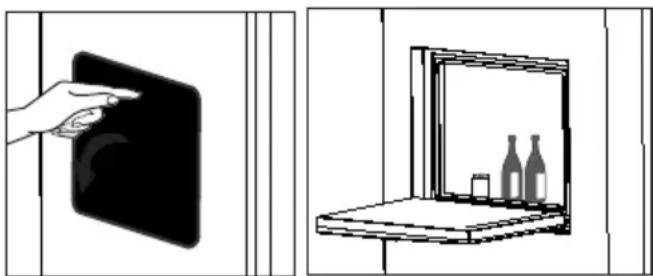

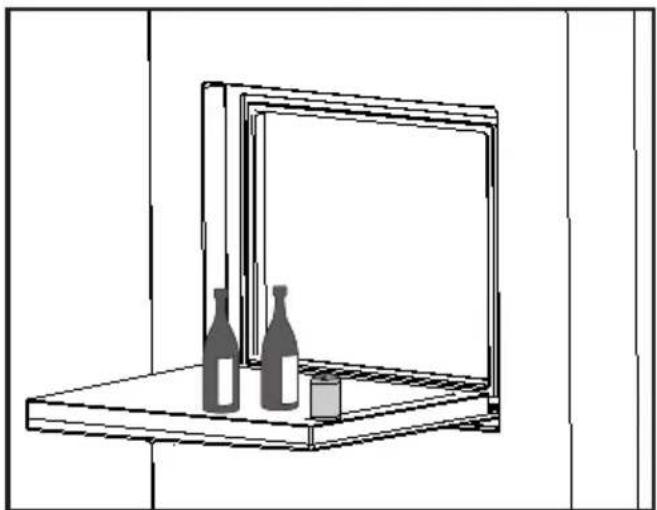

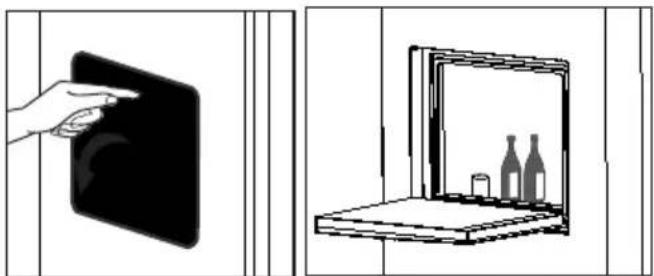

Minibar 25

6 Cleaning and care 26

Protection of plastic surfaces ..... 26

7 Recommended solutions for the problems 27

1 The refrigerator

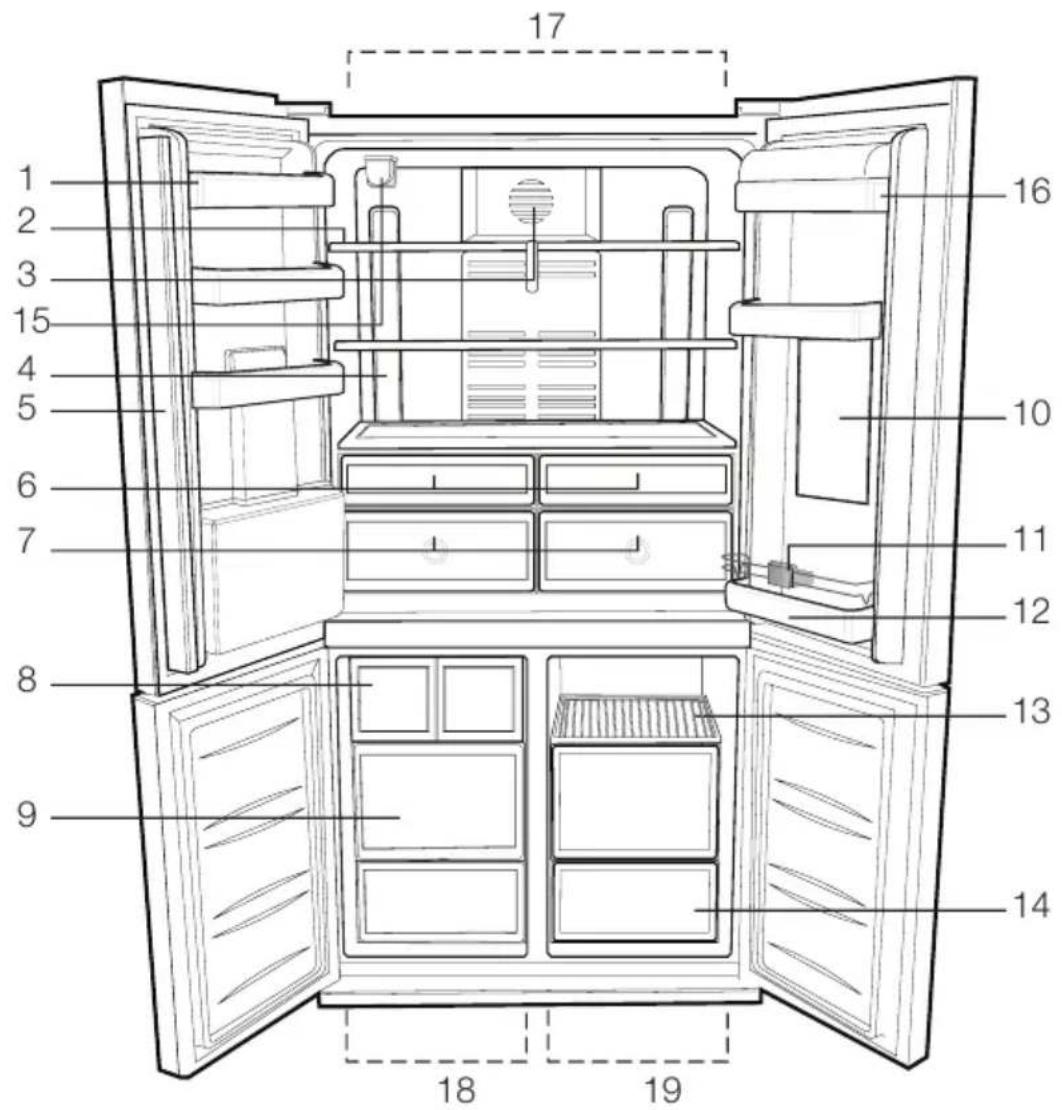

1 2 3 15 4 5 6 7 8 9 17 16 10 11 12 13 14 18 19

1- Fridge compartment door shelves
2- Fridge compartment glass shelves
3- Diffuser cover
4- Illumination lens

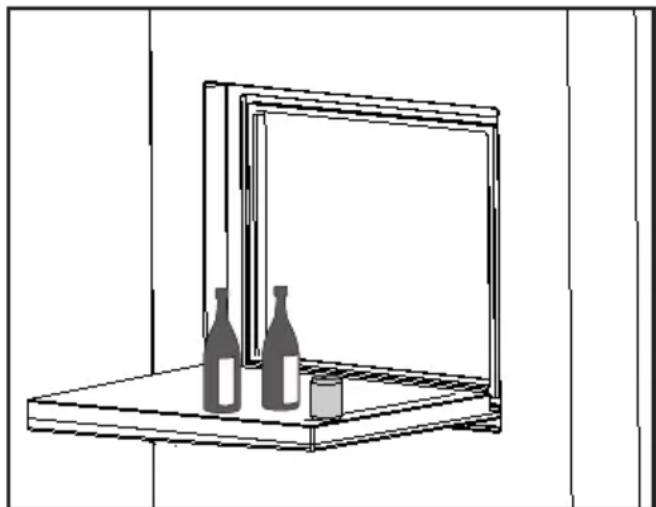

5- Movable middle section

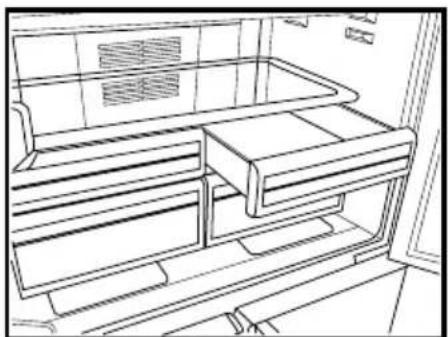

6- Chiller compartment
7- Crisper
8- Icematic
9- Frozen food storage compartments

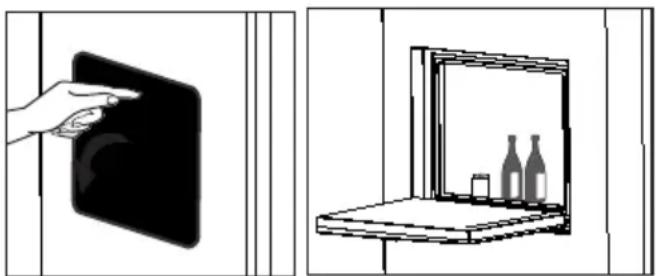

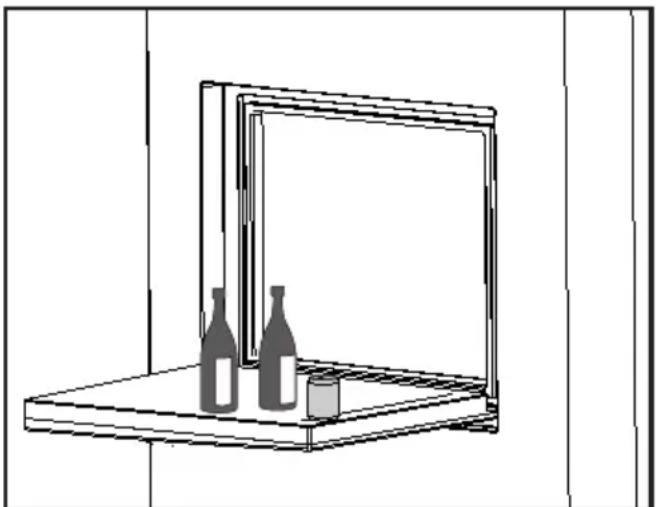

10- Minibar

11- Bottle holder
12- Bottle shelf
13- Food storage compartment shelves
14- Food storage compartments

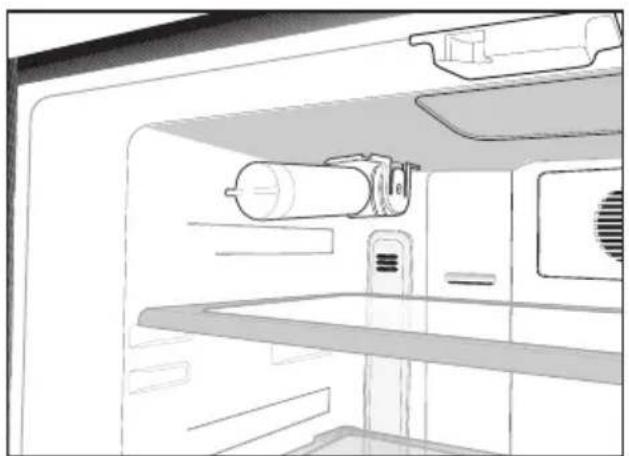

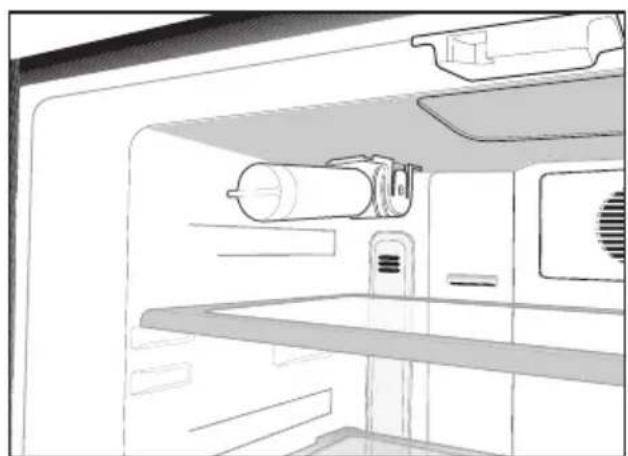

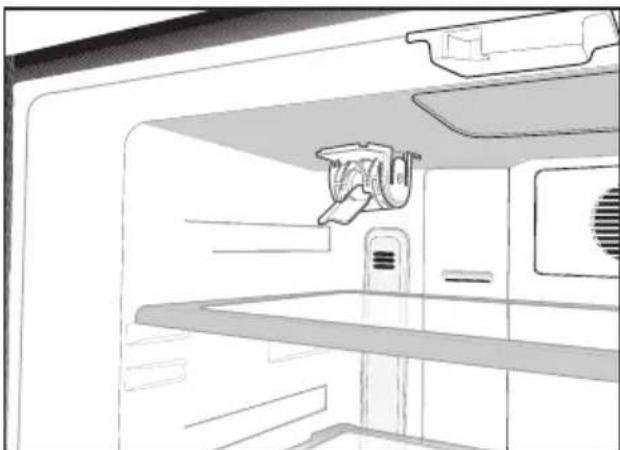

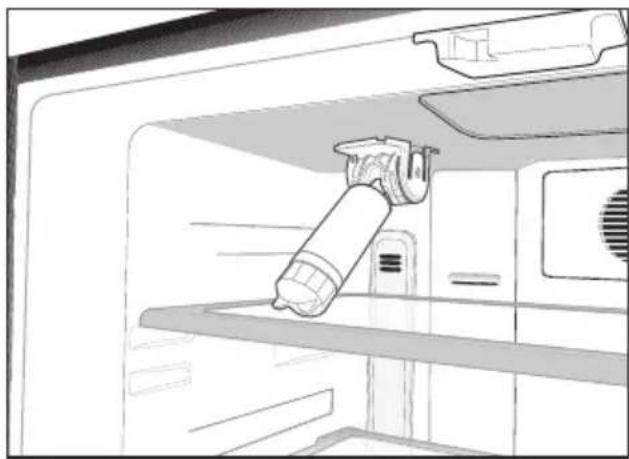

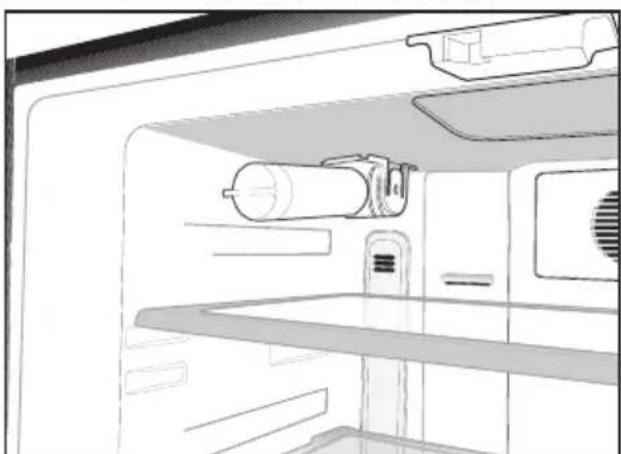

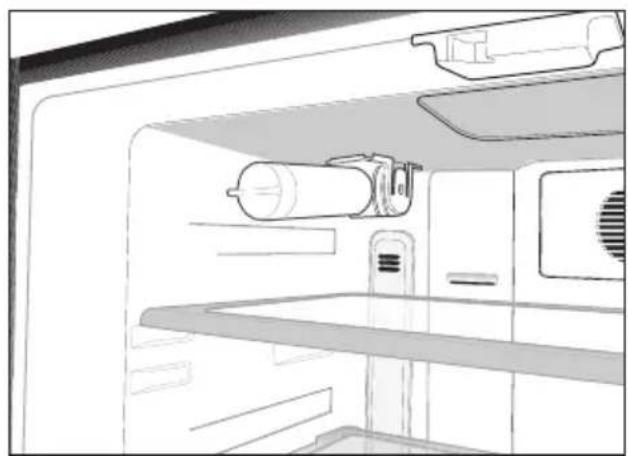

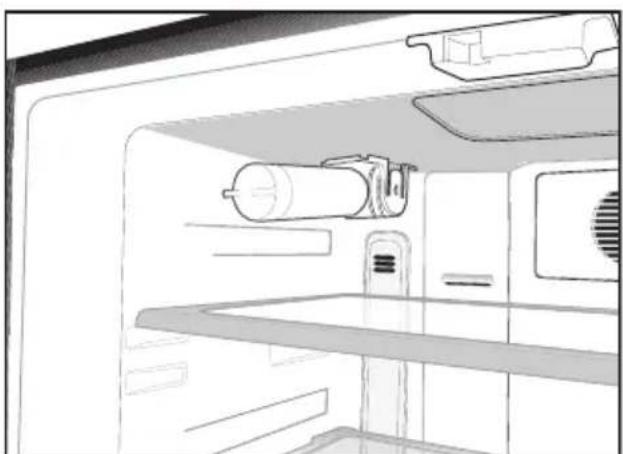

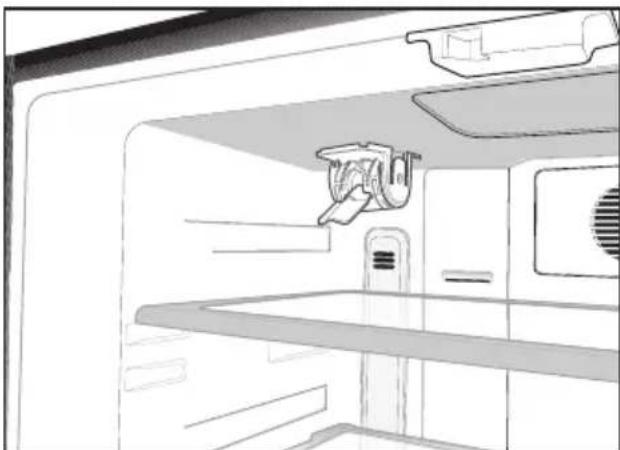

15- Water Filter
16- Butter & Cheese shelf
17- Fridge compartment
18- Freezer compartment

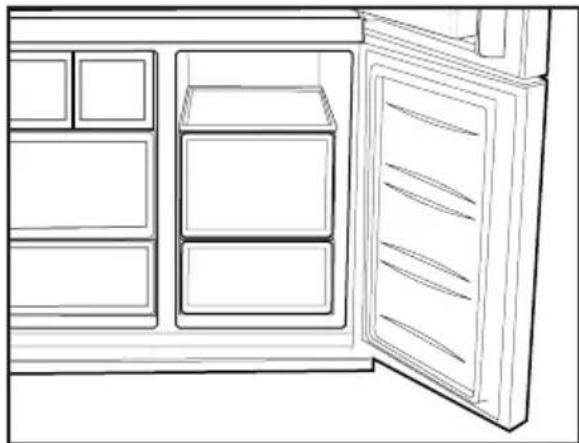

19- Flexi Zone

i Figures that take place in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models.

2 Important Safety Warnings

Please review the following information.

Failure to observe this information may cause injuries or material damage.

Otherwise, all warranty and reliability commitments will become invalid.

The usage life of the unit you purchased is 10 years. This is the period for keeping the spare parts required for the unit to operate as described.

Intended use

This product is intended to be used

- indoors and in closed areas such as homes;

– in closed working environments such as stores and offices;

– in closed accommodation areas such as farm houses, hotels, pensions.

- This product should not be used outdoors.

General safety

- When you want to dispose/scrap the product, we recommend you to consult the authorized service in order to learn the required information and authorized bodies.

- Consult your authorized service for all your questions and problems related to the refrigerator. Do not intervene or let someone intervene to the refrigerator without notifying the authorised services.

- For products with a freezer compartment; Do not eat cone ice cream and ice cubes immediately after you take them out of the freezer compartment! (This may cause frostbite in your mouth.)

- For products with a freezer compartment; Do not put bottled and canned liquid beverages in the freezer compartment. Otherwise, these may burst.

- Do not touch frozen food by hand; they may stick to your hand.

- Unplug your refrigerator before cleaning or defrosting.

- Vapor and vaporized cleaning materials should never be used in cleaning and defrosting processes of your refrigerator. In such cases, the vapor may get in contact with the electrical parts and cause short circuit or electric shock.

- Never use the parts on your refrigerator such as the door as a means of support or step.

- Do not use electrical devices inside the refrigerator.

- Do not damage the parts, where the refrigerant is circulating, with drilling or cutting tools. The refrigerant that might blow out when the gas channels of the evaporator, pipe extensions or surface coatings are punctured causes skin irritations and eye injuries.

- Do not cover or block the ventilation holes on your refrigerator with any material.

- Electrical devices must be repaired by only authorised persons. Repairs performed by incompetent persons create a risk for the user.

- In case of any failure or during a maintenance or repair work, disconnect your refrigerator's mains supply by either turning off the relevant fuse or unplugging your appliance.

- Do not pull by the cable when pulling off the plug.

- Place the beverage with higher proofs tightly closed and vertically.

- Never store spray cans containing flammable and explosive substances in the refrigerator.

- Do not use mechanical devices

or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

- This product is not intended to be used by persons with physical, sensory or mental disorders or unlearned or inexperienced people (including children) unless they are attended by a person who will be responsible for their safety or who will instruct them accordingly for use of the product

- Do not operate a damaged refrigerator. Consult with the service agent if you have any concerns.

- Electrical safety of your refrigerator shall be guaranteed only if the earth system in your house complies with standards.

- Exposing the product to rain, snow, sun and wind is dangerous with respect to electrical safety.

- Contact authorized service when there is a power cable damage to avoid danger.

- Never plug the refrigerator into the wall outlet during installation. Otherwise, risk of death or serious injury may arise.

- This refrigerator is intended for only storing food items. It must not be used for any other purpose.

- Label of technical specifications is located on the left wall inside the refrigerator.

- Never connect your refrigerator to electricity-saving systems; they may damage the refrigerator.

- If there is a blue light on the refrigerator, do not look at the blue light with optical tools.

- For manually controlled refrigerators, wait for at least 5 minutes to start the refrigerator after power failure.

- This operation manual should be handed in to the new owner of the product when it is given to others.

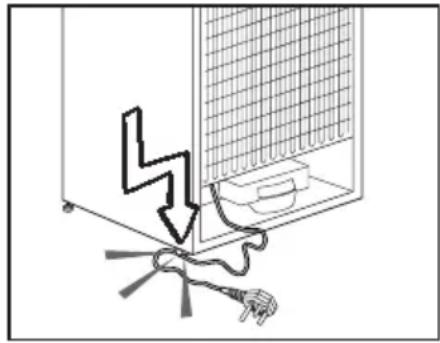

- Avoid causing damage on power cable

when transporting the refrigerator. Bending cable may cause fire. Never place heavy objects on power cable. Do not touch the plug with wet hands when plugging the product.

Diagram showing a lightning bolt striking down on a wall-mounted device with wiring and plug (no text or symbols)

• Do not plug the refrigerator if the wall outlet is loose.
• Water should not be sprayed directly on inner or outer parts of the product for safety purposes.
• Do not spray substances containing inflammable gases such as propane gas near the refrigerator to avoid fire and explosion risk.
• Never place containers filled with water on top of the refrigerator, otherwise this may cause electric shock or fire.
• Do not overload your refrigerator with excessive amounts of food. If overloaded, the food items may fall down and hurt you and damage refrigerator when you open the door. Never place objects on top of the refrigerator; otherwise, these objects may fall down when you open or close the refrigerator's door.
• As they require a precise temperature, vaccines, heat-sensitive medicine and scientific materials and etc. should not be kept in the refrigerator.
• If not to be used for a long time, refrigerator should be unplugged. A possible problem in power cable may cause fire.
• The plug's tip should be regularly cleaned; otherwise, it may cause fire.
• The plug's tip should be cleaned

regularly with a dry cloth; otherwise, it may cause fire.

• Refrigerator may move if adjustable legs are not properly secured on the floor. Properly securing adjustable legs on the floor can prevent the refrigerator to move.
• When carrying the refrigerator, do not hold it from door handle. Otherwise, it may be snapped.
• When you have to place your product next to another refrigerator or freezer, the distance between devices should be at least 8cm. Otherwise, adjacent side walls may be humidified.

For products with a water dispenser;

Pressure of water mains should be minimum 1 bar. Pressure of water mains should be maximum 8 bars.

- Use only potable water.

Child safety

• If the door has a lock, the key should be kept away from reach of children.
• Children must be supervised to prevent them from tampering with the product.

HCA Warning

If your product's cooling system contains R600a:

This gas is flammable. Therefore, pay attention to not damaging the cooling system and piping during usage and

transportation. In the event of damage, keep your product away from potential fire sources that can cause the product catch a fire and ventilate the room in which the unit is placed.

Ignore this warning if your product's cooling system contains R134a.

Type of gas used in the product is stated in the type plate which is on the left wall inside the refrigerator.

Never throw the product in fire for disposal.

Things to be done for energy saving

• Do not leave the doors of your refrigerator open for a long time.
• Do not put hot food or drinks in your refrigerator.
• Do not overload your refrigerator so that the air circulation inside of it is not prevented.
• Do not install your refrigerator under direct sunlight or near heat emitting appliances such as ovens, dishwashers or radiators.
• Pay attention to keep your food in closed containers.
• For products with a freezer compartment; You can store maximum amount of food items in the freezer when you remove the shelf or drawer of the freezer. Energy consumption value stated for your refrigerator has been determined by removing freezer shelf or drawer and under maximum load. There is no harm to use a shelf or drawer according to the shapes and size of food to be frozen.
• Thawing frozen food in fridge compartment will both provide energy saving and preserve the food quality.

3 Installation

i Please remember that the manufacturer shall not be held liable if the information given in the instruction manual is not observed.

Points to be considered when re-transporting your refrigerator

1. Your refrigerator must be emptied and cleaned prior to any transportation.
2. Shelves, accessories, crisper and etc. in your refrigerator must be fastened securely by adhesive tape against any jolt before repackaging.
3. Packaging must be tied with thick tapes and strong ropes and the rules of transportation printed on the package must be followed.

i Always remember...

Every recycled material is an indispensable source for the nature and for our national resources.

If you wish to contribute to recycling the packaging materials, you can get further information from the environmental bodies or local authorities.

Before operating your refrigerator

Before starting to use your refrigerator check the following:

1. Is the interior of the refrigerator dry and can the air circulate freely in the rear of it?

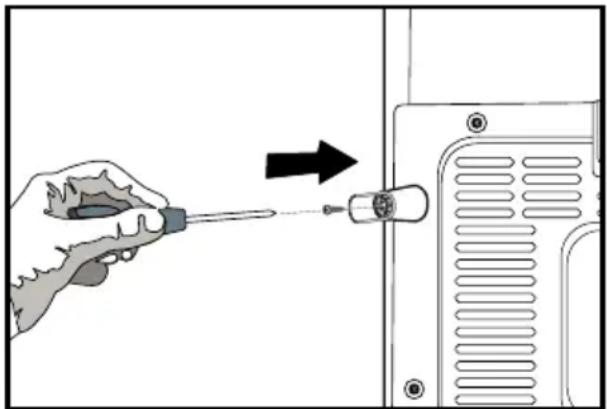

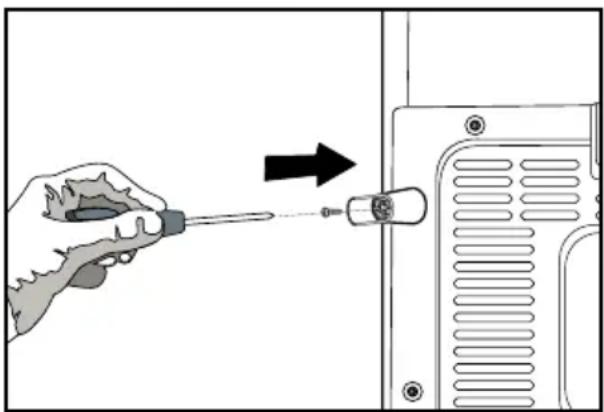

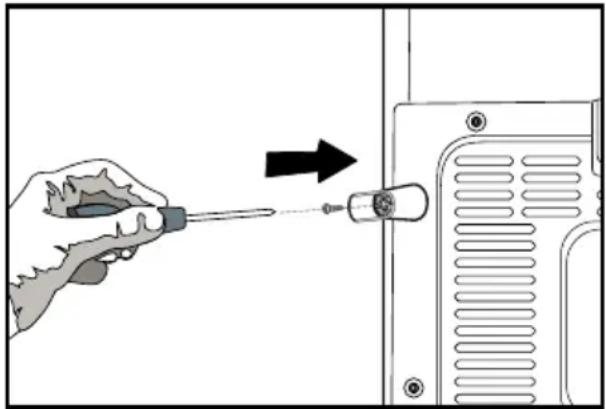

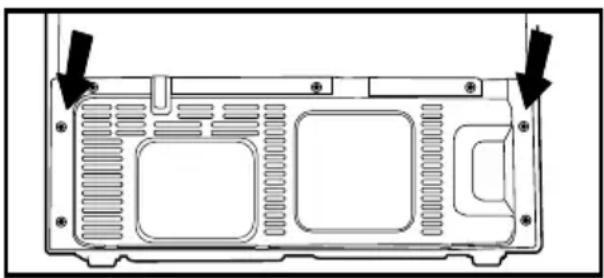

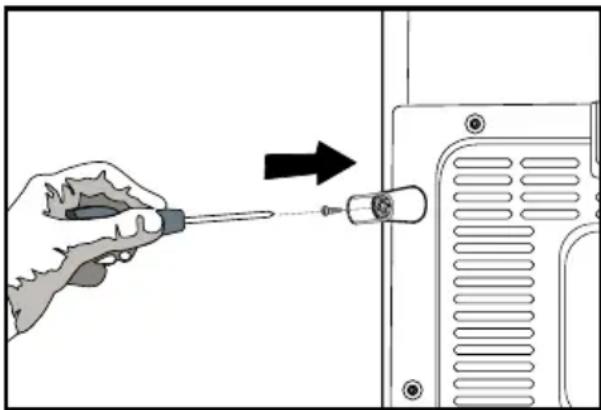

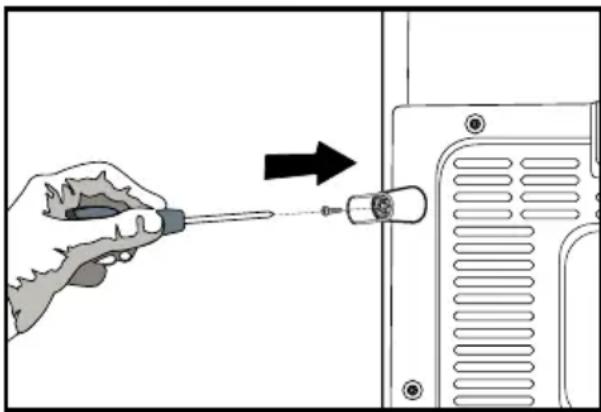

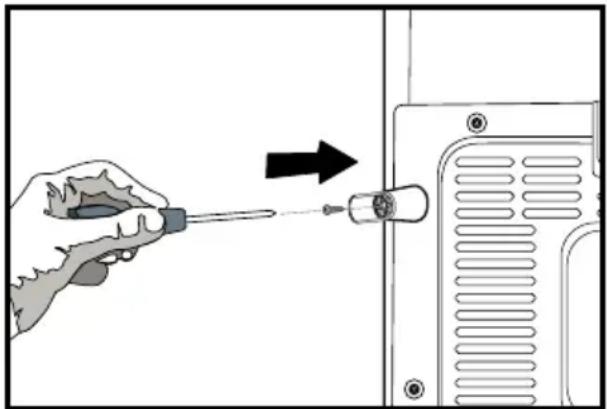

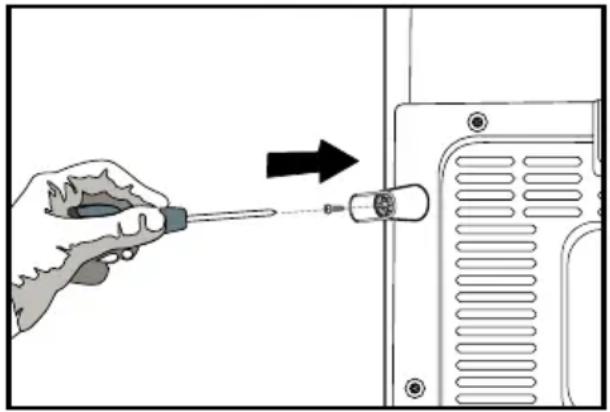

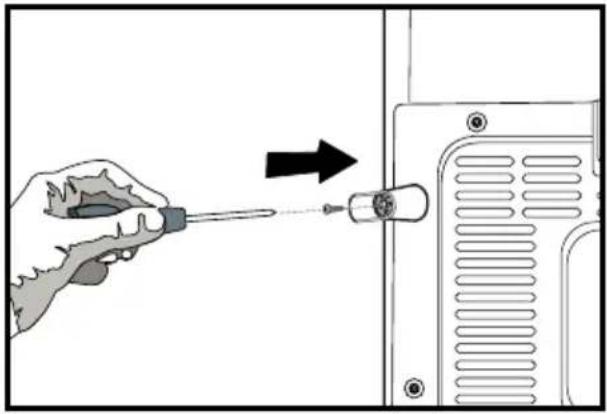

2. Insert the 2 plastic wedges onto the rear ventilation cover as illustrated in the following figure. To do this, remove the screws on the product and use the screws given in the same pouch.

Plastic wedges will provide the required distance between your refrigerator and the wall in order to allow the air circulation.

Technical line drawing of a computer monitor rear panel with mounting holes and ventilation slots (no text or symbols)

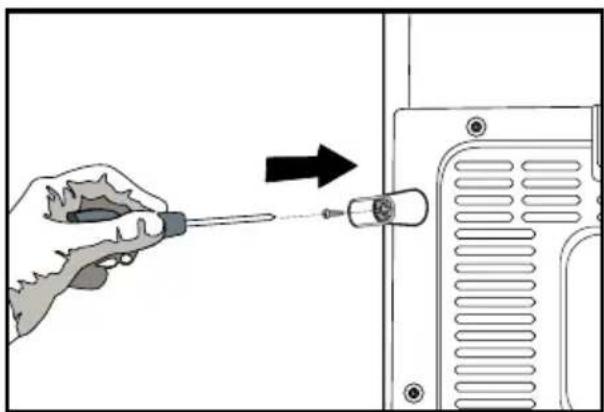

Illustration of a hand using a screwdriver to adjust or install a device component (no text or symbols visible)

1. Clean the interior of the refrigerator as recommended in the "Maintenance and cleaning" section.
2. Plug the refrigerator into the wall outlet. When the door is open the respective interior light will come on.
3. You will hear a noise as the compressor starts up. The liquid and gases sealed within the refrigeration system may also give rise to noise, even if the compressor is not running and this is quite normal.
4. Front edges of the refrigerator may feel warm. This is normal. These areas are designed to be warm to avoid condensation.

Electric connection

Connect your refrigerator to a grounded socket which is being protected by a fuse with the appropriate capacity. Important:

The connection must be in compliance with national regulations.
The power cable plug must be easily accessible after installation.
△ Voltage and allowable fuse protection are specified in the “Technical Specifications” section.
The specified voltage must be equal to your mains voltage.
△ Extension cables and multiway plugs must not be used for connection.
A damaged power cable must be replaced by a qualified electrician.
The appliance must not be operated before it is repaired! There is danger of electric shock!

Disposing of the packaging

⚠ The packing materials may be dangerous for children. Keep the packing materials out of the reach of children or dispose them of by classifying them in accordance with the waste instructions. Do not dispose them of along with the normal household waste.

The packing of your refrigerator is produced from recyclable materials.

Disposing of your old refrigerator

Dispose of your old machine without giving any harm to the environment.

⚠️ You may consult your authorized dealer or waste collection center of your municipality about the disposal of your refrigerator.

⚠️ Before disposing of your refrigerator, cut out the electric plug and, if there are any locks on the door, make them inoperable in order to protect children against any danger.

Placing and Installation

Caution: Never plug the refrigerator into the wall outlet during installation. Otherwise, risk of death or serious injury may arise.
⚠️ If the entrance door of the room where the refrigerator will be installed is not wide enough for the refrigerator to pass through, than call the authorised service to have them remove the doors of your refrigerator and pass it sideways through the door.

1. Install your refrigerator to a place that allows ease of use.
2. Keep your refrigerator away from heat sources, humid places and direct sunlight.
3. There must be appropriate air ventilation around your refrigerator in order to achieve an efficient operation. If the refrigerator is to be placed in a recess in the wall, there must be at least 5 cm distance with the ceiling and at least 5 cm with the wall.

If the floor is covered with a carpet, your product must be elevated 2.5 cm from the floor.

1. Place your refrigerator on an even floor surface to prevent jolts.
2. Do not keep your refrigerator in ambient temperatures under 10^ C.

Floor balance adjustment

⚠️If your refrigerator is unbalanced;
⚠ First unplug the product. The product must be unplugged when making the balance adjustment. There is the risk of electric shock.

4 123

1- Ventilation cover is removed by unscrewing its screws as illustrated in the figure before the procedure. You can balance your refrigerator by turning the front legs of it as illustrated in the figure. The corner where the leg exists is lowered when you turn in the direction of black arrow and raised when you turn in the opposite direction. Taking help from someone to slightly lift the refrigerator will facilitate this process.

Diagram of a mechanical or electrical component with directional arrows indicating motion, no text or symbols present

1. After the balance issue is remedied, install back the ventilation cover and fasten the screws.
2. Remove the screws fastening the lower ventilation cover using a Philips screwdriver.

Adjusting the gap between the upper door

Diagram of a cabinet with four panes and two doors, each with bidirectional arrows indicating movement (no text or symbols)

You can adjust the gap between the fridge compartment doors as illustrated in the figures.

Door shelves should be empty when adjusting the door height.

Technical line drawing of a mechanical component with an upward arrow indicating motion (no text or symbols)

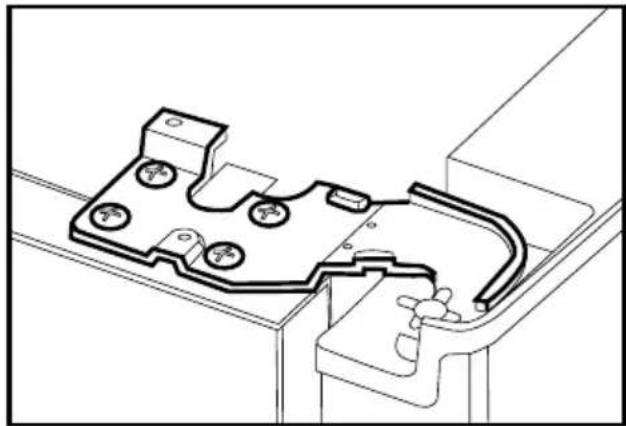

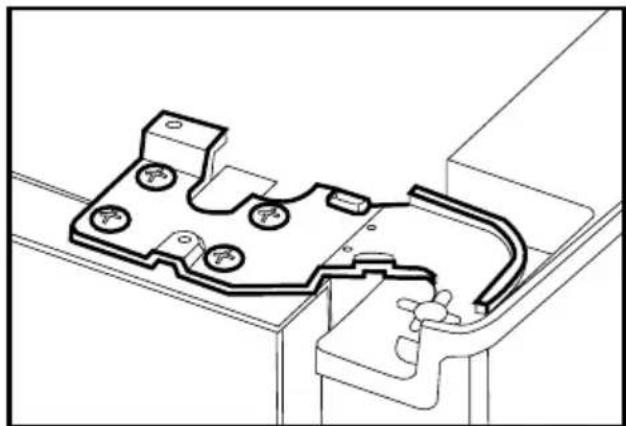

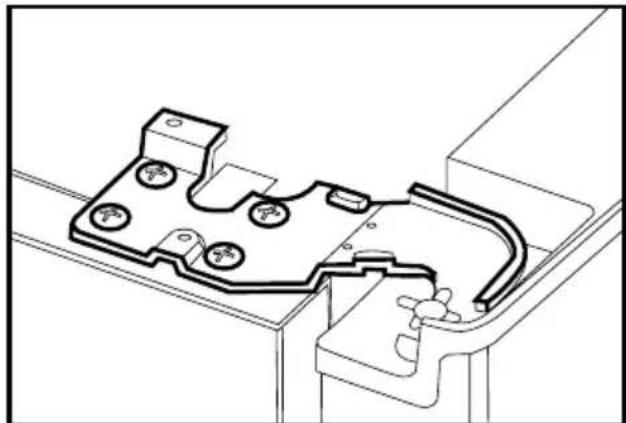

Using a screwdriver, remove the screw of upper hinge cover of the door you want to adjust.

Technical diagram of a mechanical assembly with pressure gauges and housing (no text or labels)

Technical line drawing of a mechanical component with mounting holes and a curved pipe (no text or symbols)

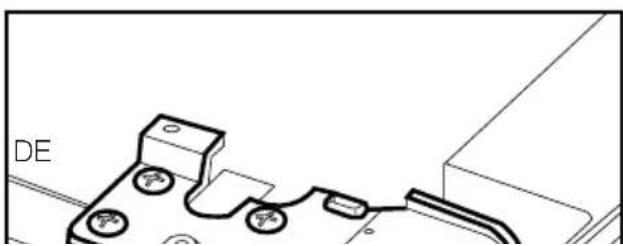

i Adjust the door appropriately as you desire by loosing the screws.

Technical line drawing of a mechanical component with multiple cylindrical features and mounting brackets (no text or symbols)

i Fix the door you have adjusted by tightening the screws without changing the position of the door.

Technical line drawing of a mechanical bracket or bracket component (no text or symbols)

i Replace the hinge cover and fix with the screw.

Installing Water Filter (in some models)

Two different water sources may be connected to the refrigerator for water supply: the mains cold water supply and water in a jug. Installation Requirements

A pump should be used for jug water usage.

Check that the parts stated below are supplied with your appliance.

1. Union for connection of the water pipe to the rear of the appliance. (If it does not fit, provide it from the nearest authorized service.)
2. 2 pieces of pipe clips (In case required to secure the water pipe)
   Note: Since the following parts are not required in use with a jug, they may not be found in the product you purchased.
3. 5-meter long water pipe (1/4 inch in diameter)
4. Cold mains water valve with mesh filter (Tap Adapter)
5. Water Filter or externally connectable filter to be fitted to the bracket inside the fridge compartment.

Exploded view diagram of a mechanical component with labeled parts (no text or symbols beyond labels)

Place where the external filter is going to be fitted should be determined first. (Applies to the filter being used outside the refrigerator.) Then, determine the distance between the filter and the refrigerator and required hose lengths from the filter to the refrigerator water inlet.

Water filter must be hold upright as shown in the figure. It is important to properly attach the filter to water inlet and water outlet points.

After attaching the filter, do not use first 3-4 glasses of water.

Connection of the Water Pipe to the Refrigerator

1. After installing the union onto the water pipe, insert the water pipe to the refrigerator inlet valve by pressing downwards firmly.
2. Fix union as seen in the opposite figure, by squeezing by hand on the refrigerator inlet valve.

(a- Water Pipe, b-Union, c-Valve)

Note 1: You should not need to tighten the union with a tool to achieve water tight assembly. In case of a leak use a spanner or a pair of pliers to tighten the union.

a b c 1 2

Connection of Water Hose to the Jug

(in some models)

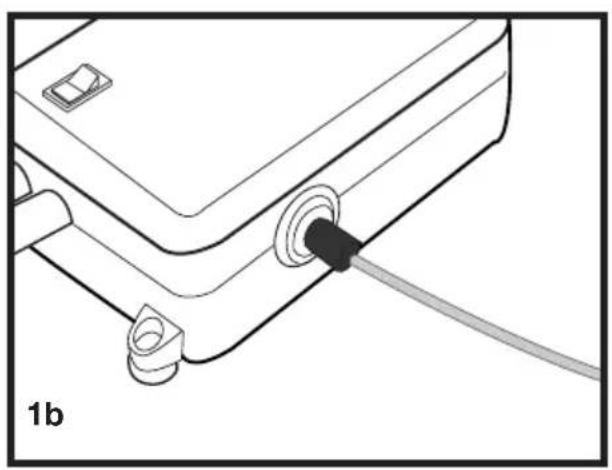

To connect water to the refrigerator from a jug, a pump is needed. Follow the instructions below after connecting one end of the water pipe coming out of the pump to the refrigerator as described on the previous page.

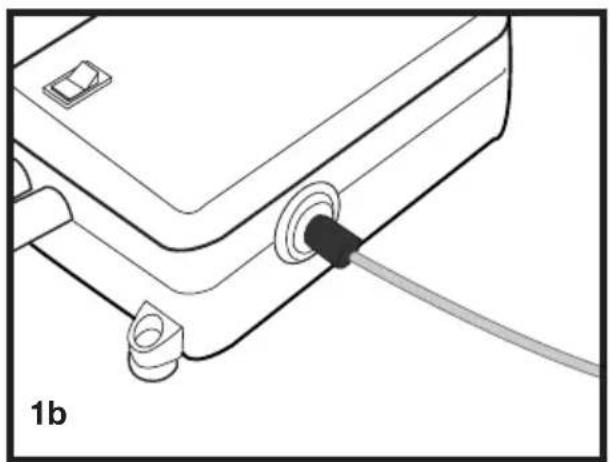

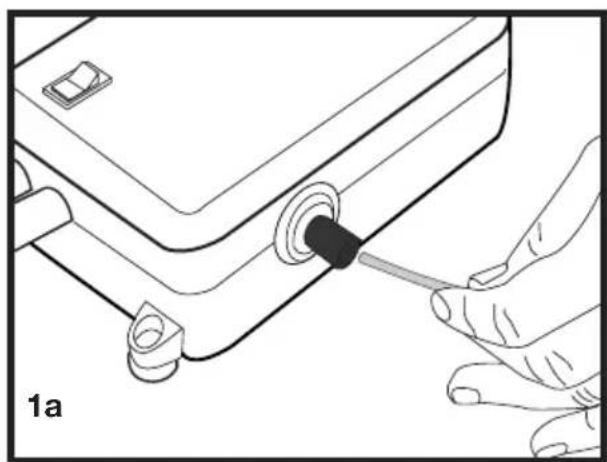

1. Finish the connection by pushing the other end of the water pipe into the water pipe inlet of the pump as shown in the figure.

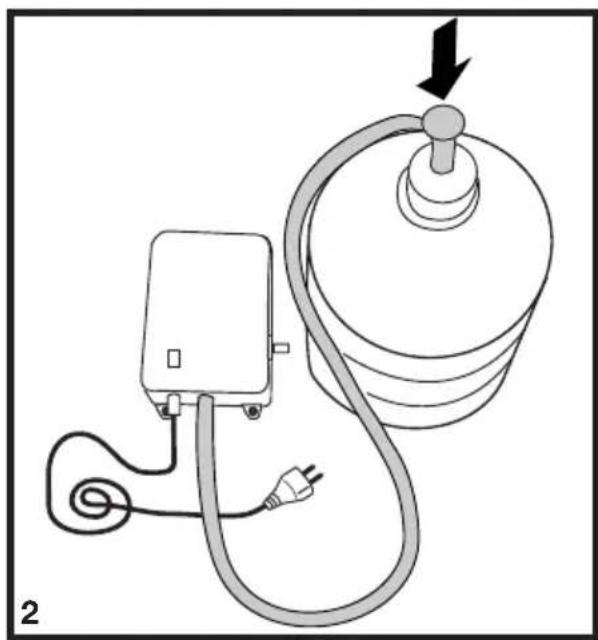

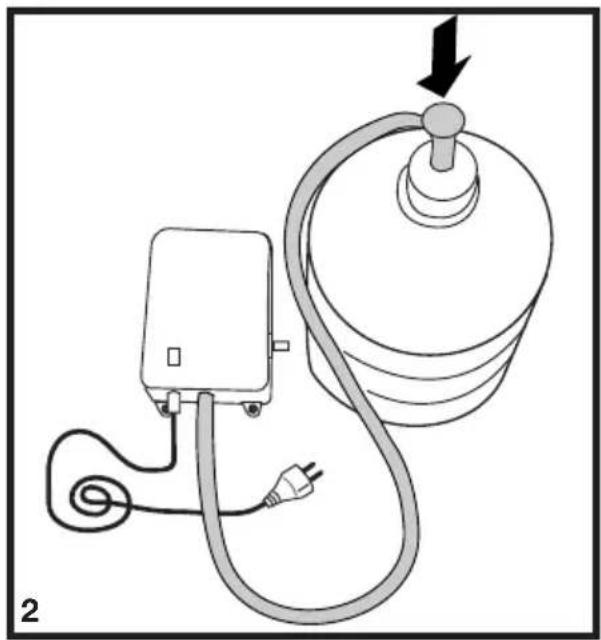

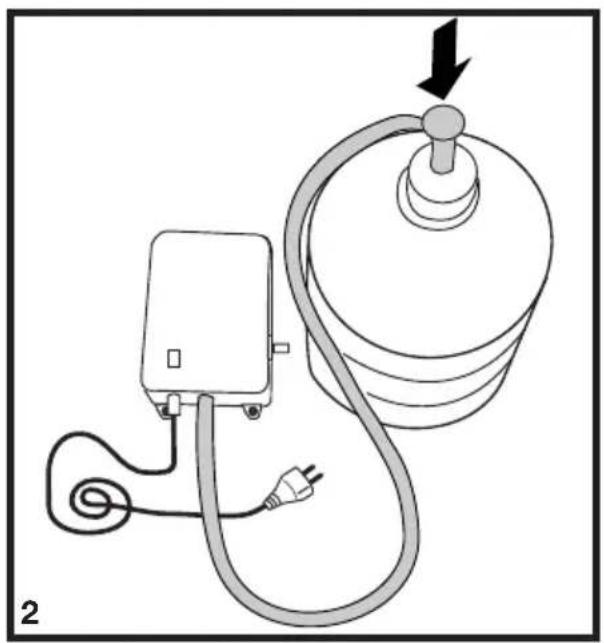

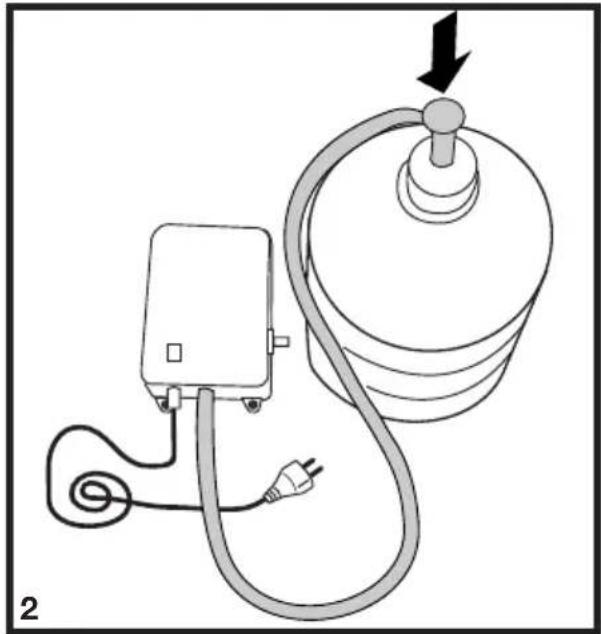

2. Put and fix the pump hose into the jug as shown in the figure.

3. After completing the connection, plug in and run the pump.

To provide an efficient operation of the pump, wait for 2-3 minutes after starting the pump.

i You may refer to the user manual of the pump while making the water connection.

There is no need to use water filter in case a jug is used.

i Pump must be used when jug will be used.

Line drawing of hands using a tool to adjust or install a component, no text or symbols present

Technical line drawing of a mechanical component with a cable and connector (no text or symbols)

Diagram of a medical or electrical device with a bulb, plug, and cable (no text or symbols)

Connection of the Water Pipe to the Cold Water Mains Line

(in some models)

If you want to use your refrigerator by connecting it to the cold water mains line,

you will have to connect a standard 1/2" valve connection fitting to the cold water supply in your house. In case this valve is not present or in case you are not sure, consult a qualified plumber.

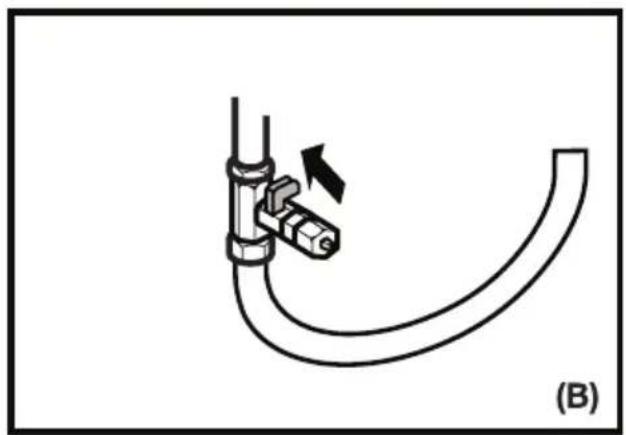

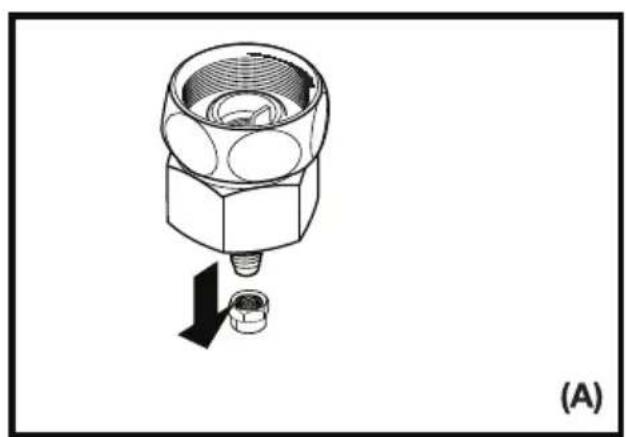

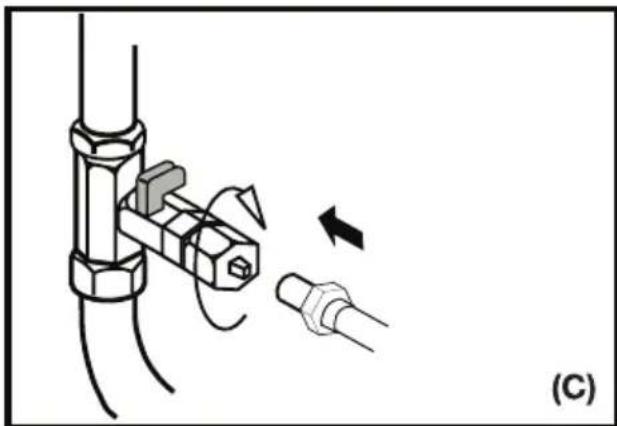

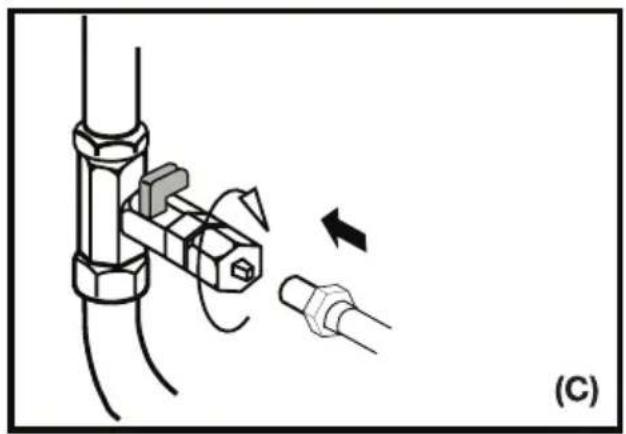

1. Separate the union from the tap adaptor. (Figure A)
2. Install the tap adaptor to 1/2" valve fitting as shown in the figure. (Figure B)
3. After inserting the water pipe to the union, install it to the tap adaptor and insert to the tap as shown in the figure. (Figure C)
4. Tighten the union manually. In case of a leak use a spanner or a pair of pliers to tighten the union.

⚠ Caution: Secure the water pipe to suitable points by means of the pipe clips supplied to avoid any damage or displacement or accidental disconnection.

⚠ Caution: After turning on the water valve, make sure that there is no leakage at both connection points of the water pipe. In case of a leak, turn off the valve immediately and tighten all joints again using a spanner or a pair of pliers.

⚠ Caution: Make sure that standard 1/2" valve fitting fed by cold mains water supply is available and is turned off fully.

Technical illustration of a mechanical component with a downward arrow indicating force or movement (no text or symbols present)

Diagram of a pipe fitting with a valve and directional arrow, labeled (B), showing no text or symbols beyond the label.

Diagram showing a mechanical assembly with a bolt and connector, no text or symbols present

To fit the water filter follow the instructions below referring to figures supplied:

1. Press ice cancel button on the display.

2 24 24

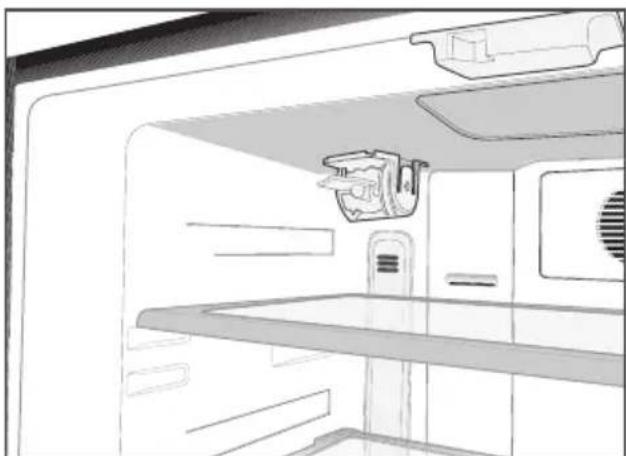

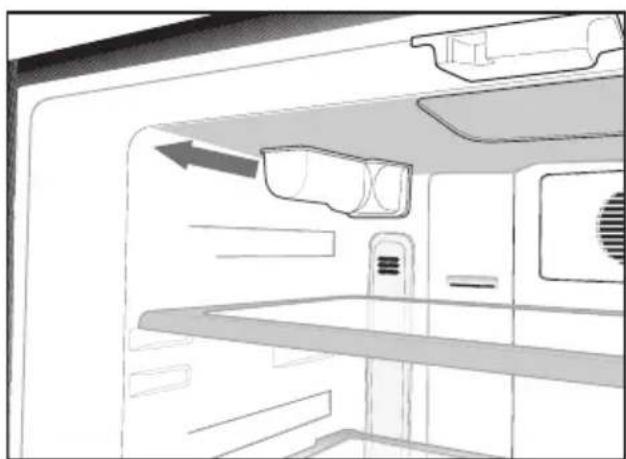

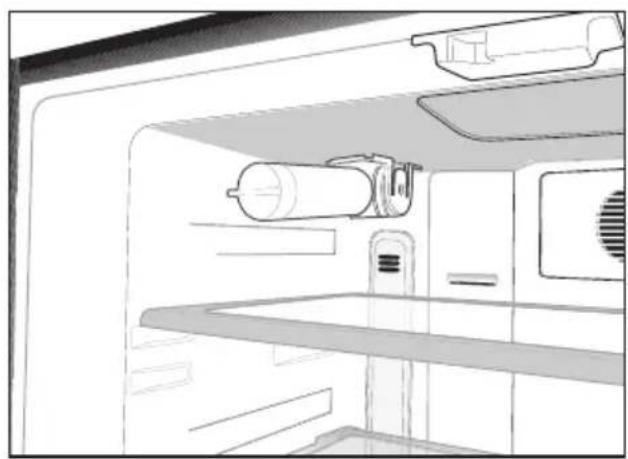

1. Remove the filter cover in the fridge compartment by pulling it forward.

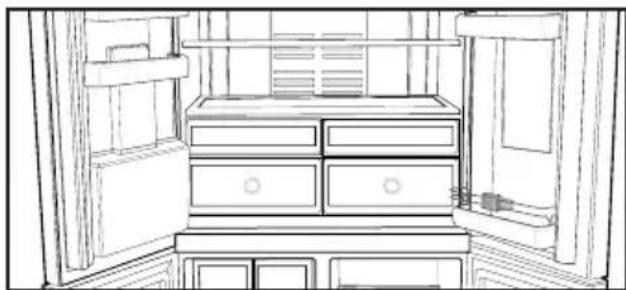

Interior view of a refrigerator with visible door, shelf, and ventilation duct (no text or symbols)

1. Take out the water filter by-pass cover by rotating it downwards.

Line drawing of a refrigerator interior showing front and side views (no text or symbols)

Line drawing of a kitchen interior with a shower unit and shelf (no text or symbols)

⚠ Caution: Make sure that the "Ice off" mode is active before taking out the bypass cover.

Note: It is normal that a few drops of water drip after the cover has been taken out.

1. Remove the lid on top of the water filter to place it as shown in the figure and turn upwards to lock it.
2. Press ice cancel button on the display again to exit from this mode.
   Water filter should be replaced every 6 months.

If you want to have the filter change time calculated automatically and receive a warning at the end of usage time, please read "Calculating the Filter Usage Time Automatically" section.

The water filter must be removed as shown in the figure when it is going to be replaced or when it will no longer be used and by-pass cover must be attached. It must be made sure that Ice Off mode is active before taking it out.

Caution: Water filter cleans some foreign particles in the water. It does not purify water from microorganisms.
⚠ Caution: Ice Off button must always be pressed during replacement of the water filter or installing the by-pass cover.

Line drawing of a kitchen appliance with a mounted cylindrical tool (no text or symbols)

Line drawing of a refrigerator interior showing shelves, doors, and equipment (no text or symbols)

Prior to first use of Water Dispenser

i Water mains pressure must not be below 1 bar.
i Water mains pressure must not be above 8 bars.
i Pumps must be used in case the supply water pressure drops below 1 bar or if a jug is going to be used.
i Water system of the refrigerator must be connected to the cold water line. It must not be connected to hot water line.
No water may be obtained in the initial operation of the refrigerator. This is caused by the air in the system. To discharge air from the system, press Dispenser latch for periods of 1 minute until water comes from the Dispenser. Water flow may be irregular in the beginning. Irregular water flow will be normalized after the air in the system is discharged.
At the initial startup of the refrigerator approx.12 hours must pass before cold water can be obtained.
i Water mains pressure must be between 1-8 bars for the operation of Ice/Water Dispenser smoothly. For this, check that 1 glass of water (100 cc) can be filled in 10 seconds.
i The first 10 glasses of water should not be consumed.
i Approximately the first 30 cubes of ice to be obtained from the Ice Dispenser must not be used.
i Always use the water filter when a jug is not being used.

4 Preparation

Your refrigerator should be installed at least 30 cm away from heat sources such as hobs, ovens, central heater and stoves and at least 5 cm away from electrical ovens and should not be located under direct sunlight.
The ambient temperature of the room where you install your refrigerator should at least be 10^ C. Operating your refrigerator under cooler conditions than this is not recommended with regard to its efficiency.
i Please make sure that the interior of your refrigerator is cleaned thoroughly.
If two refrigerators are to be installed side by side, there should be at least 2 cm distance between them.
When you operate your refrigerator for the first time, please observe the following instructions during the initial six hours.

- The door should not be opened frequently.

- It must be operated empty without any food in it.

- Do not unplug your refrigerator. If a power failure occurs out of your control, please see the warnings in the “Recommended solutions for the problems” section.

i Original packaging and foam materials should be kept for future transportations or moving.

5 Using your refrigerator

Indicator Panel

This touch-control indicator panel allows you to set the temperature without opening the door of your refrigerator. Just touch the relevant button with your finger to set the temperature.

1 18 7 11 12 15 20 4 19 3' 5 16 17 3 6 10 9 8 14 13

1. Eco Extra/Vacation Button
2. Fast Freeze Button
3. Freezer Compartment Temperature Setting Button
4. Fridge Compartment Temperature Setting Button
5. Quick Cool Button
6. Flexi Zone Compartment Temperature Setting Button
7. Vacation Function Indicator
8. Eco Extra Function Indicator
9. Quick Freeze Function Indicator

10. Freezer Compartment Temperature Indicator

11. Fridge Compartment Temperature Indicator

12. Quick Cool Function Indicator
13. Flexi Zone Storage Compartment Temperature Indicator
14. Economy Mode Indicator
15. Error Status Indicator
16. Key Lock Indicator
17. Ice Cancel Button
18. Ice Off indicator
19. Cancel Filter Change Warning Button
20. Filter Change Warning Indicator

1. Eco Extra/Vacation Button

Press this button briefly to activate the Eco Extra function. Press and hold this button for 3 sec. to activate the Vacation function. Press this button again to deactivate the selected function.

2. Fast Freeze Button

Press this button briefly to activate the Fast Freeze function. Press this button again to deactivate the selected function.

3. Freezer Compartment Temperature Setting Button

Press this button to set the temperature of the freezer compartment to -18, -20, -22, -24, -18... respectively. Press this button to set the desired temperature for the Freezer Compartment.

4. Fridge Compartment Temperature Setting Button

Press this button to set the temperature of the fridge compartment to 8, 6, 4, 2, 8... respectively. Press this button to set the desired temperature for the Fridge Compartment.

5. Quick Cool Button

Press this button briefly to activate the Quick Cool function. Press this button again to deactivate the selected function.

6. Flexi Zone Compartment Temperature Setting Button

You can set the Flexi Zone Compartment either as a Freezer or a Cooler. Press and hold this button for a long time (3 sec) to set the Flexi Zone Compartment as a Freezer or a Cooler. This compartment is set as a Freezer Compartment at factory.

If the Flexi Zone Compartment is set as a Freezer, then the temperature of the Flexi Zone Compartment will change as -18, -20, -22, -24, -18... respectively each time you press this button. If the Flexi Zone Compartment is set as a Fridge, then the temperature of the Flexi Zone Compartment will change as 10, 8, 6, 4, 2, 0, -6, ... respectively each time you press this button.

7. Vacation Function Indicator

Indicates that the vacation function is active. If this function is active, "-" appears on the indicator of the fridge compartment and no cooling is performed in the fridge compartment. Other compartments will be cooled in accordance with the temperature set for them.

Press the relevant button again to deactivate this function.

8. Eco Extra Function Indicator

It indicates that the Eco-Extra function is active. If this function is active, your refrigerator will automatically detect the least usage periods and energy-efficient cooling will be performed during those times. Economy indicator will be active while energy-efficient cooling is performed.

Press the relevant button again to deactivate this function.

9. Quick Freeze Function Indicator

It indicates that the Fast Freeze function is active. Use this function when you place fresh food into the freezer compartment or when you need ice. When this function is active, your refrigerator will run for a certain period of time.

Press the relevant button again to deactivate this function.

10. Freezer Compartment Temperature Indicator

It indicates the temperature set for Freezer Compartment.

11. Fridge Compartment Temperature Indicator

Indicates the temperature set for Fridge Compartment.

12. Quick Cool Function Indicator

Indicates that the Quick Cool function is active. Use this function when you place fresh food into the fridge compartment or when you need to cool your food quickly. When this function is active, your refrigerator will run for 2 hours without stopping.

Press the relevant button again to deactivate this function.

13. Flexi Zone Storage Compartment Temperature Indicator

It indicates the temperature set for Flexi Zone compartment.

14. Economy Mode Indicator

Indicates that the refrigerator is running in energy-efficient mode. Freezer Compartment temperature This indicator will be active if the function is set to -18 or the energy efficient cooling is being performed due to Eco-Extra function.

15. Error Status Indicator

If your refrigerator does not cool adequately or if there is a sensor failure, this indicator will be activated. When this indicator is active, Freezer Compartment Temperature indicator will display "E" and Fridge Compartment Temperature Indicator will display numbers such as "1,2,3...". These numbers on the indicator provides information about the error to the service personnel.

16. Key Lock Indicator

Use this function if you do not want your refrigerator temperature setting changed. Press Quick Cool Button and Flexi Zone Compartment Temperature Setting Button simultaneously for a long time (3 sec) to activate this feature.

Press the relevant buttons again to deactivate this function.

17. Ice Cancel Button

To stop ice formation, ice cancel button is pressed for 3 seconds. When ice cancel is selected, no water will be sent to the ice box. Despite this, some ice may be leftover in the ice box which may be taken from there. To restart ice formation, ice cancel button has to be pressed for 3 seconds.

18. Ice Cancel Indicator

If you do not want to get ice from the refrigerator, you need to use this function. You may use this function by pressing the ice cancel button for 3 seconds.

19. Cancel Filter Change Warning

Button

Filter of your refrigerator must be replaced every 6 months. Your refrigerator calculates this time automatically and the filter change waning indicator illuminates when the filter usage time has elapsed. Press Cancel filter change warning button for 3 seconds to allow the refrigerator to calculate the new filter time automatically after changing the filter.

20. Cancel Filter Change Warning

Indicator

When the filter usage time has elapsed, filter change warning indicator starts to illuminate.

Things to do to have the filter usage time calculated automatically

(For products connected to the mains water line and equipped with filter)

1- After plugging the refrigerator in, press A and B buttons together to activate the key lock.

4 - 18 - 18 A B

2- Then press Eco-Extra (1), Fridge Compartment Temperature Setting (4), Quick Cool (5) and Freezer Compartment Temperature Setting (3) buttons respectively.

1 4 - 18 - 18 3 4 5

4 - 18 - 18

If button configuration is pressed in the correct order, key lock symbol will go off, buzzer will be activated shortly, and Filter change warning indicator illuminates. Press cancel filter change warning button (Item 19 in display descriptions) after changing the filter to have the filter usage time calculated automatically.

i If the filter usage time is being calculated automatically, filter change warning indicator will illuminate in a few seconds after the product is plugged in.

① Automatic filter usage time calculation is not active ex factory. It must be activated in products equipped with a filter.

i Repeat the same procedure in products whose automatic filter usage time calculation is activated in order to deactivate the filter usage time calculation.

Egg tray

You can install the egg holder to the desired door or body shelf.

Never store the egg holder in the freezer compartment

Sliding Body Shelves

Sliding body shelves can be pulled by slightly lifting up from the front and moved back and forth. They come to a stop point when pulled towards front to allow you reach the foods placed at the back of the shelf; when it is pulled after slightly lifted upwards at the second stop point, the body shelf will be released.

The shelf should be hold tightly from the bottom as well in order to prevent it from tipping over. The body shelf is placed on the rails at the sides of the refrigerator body by bringing it to one lower or one upper level.

The body shelf should be pushed backwards to seat it completely.

1 2 3 4

Crisper

Crisper of your refrigerator is designed specially to keep your vegetables freshly without loosing their humidity. For this purpose, cool air circulation occurs around the crisper in general. Remove the door shelves that align with the crisper before removing the crispers. You can remove the crispers as illustrated in the figure.

Line drawing of a refrigerator interior showing three drawers and one drawer (no text or symbols)

Chiller compartment

Chiller compartments enable the foods to be frozen become ready for freezing. You can also use these compartments to store your food at a temperature a few degrees below the fridge compartment. You can increase the inner volume of your refrigerator by removing any of the chiller compartments. To do this, pull the compartment towards yourself; the compartment will lean against the stopper and stop. This compartment will be released when you lift it about 1 cm and pull it towards yourself.

Line drawing of an open refrigerator interior showing internal compartments and ventilation grilles (no text or symbols)

Movable Middle Section

Movable middle section is intended to prevent the cold air inside your refrigerator from escaping outside.

1- Sealing is provided when the gaskets on the door presses on the surface of the movable middle section while the fridge compartment doors are closed.
2- Another reason that your refrigerator is equipped with a movable middle section is that it increases the net volume of the fridge compartment. Standard middle sections occupy some non-usable volume in the refrigerator.
3- Movable middle section is closed when the left door of the fridge compartment is closed.
4- It must not be opened manually. It moves under the guidance of the plastic part on the body while the door is closed.

Flexi Zone Storage Compartment

The Flexi Zone Storage Compartment of your refrigerator may be used in any desired mode by adjusting it to fridge (2/4/6/8 °C) or freezer (-18/-20/-22/-24) temperatures. You can keep the compartment in the desired temperature with the Flexi Zone Storage Compartment Temperature Setting Button. The temperature of the Flexi Zone Storage Compartment may be set to 0 and 10 degrees in addition to the fridge compartment temperatures and to -6 degrees in addition to the freezer compartment temperatures. 0 degree is used to store the deli products longer, and -6 degrees is used to keep the meats up to 2 weeks in an easily cuttable condition.

Line drawing of a refrigerator interior with open door and storage compartments (no text or symbols)

The feature of switching to a Fridge or Freezer compartment is provided by a cooling element located in the closed section (Compressor Compartment) behind the refrigerator. During operation of this element, sounds similar to the sound of seconds heard from an analog clock may be heard. This is normal and is not fault cause.

Blue light

Foodstuff stored in the crispers that are enlightened with a blue light continue their photosynthesis by means of the wavelength effect of blue light and thus, preserve their freshness and increase their vitamin content.

Line drawing of an open cabinet with drawers and doors (no text or symbols)

Sliding Body Shelves With Rear Hangers

Sliding body shelves with rear hangers can be moved back and forth. Height of these shelves can be adjusted by removing and then installing them to upper or lower positions. Raise the shelf up slightly and pull towards yourself to remove it.

Line drawing of a kitchen appliance with a tray and drawer (no text or symbols)

Butter & Cheese Section

You can store food such as butter, cheese, and margarine in this section which has a lid.

Line drawing of a refrigerator interior showing front and side views (no text or symbols)

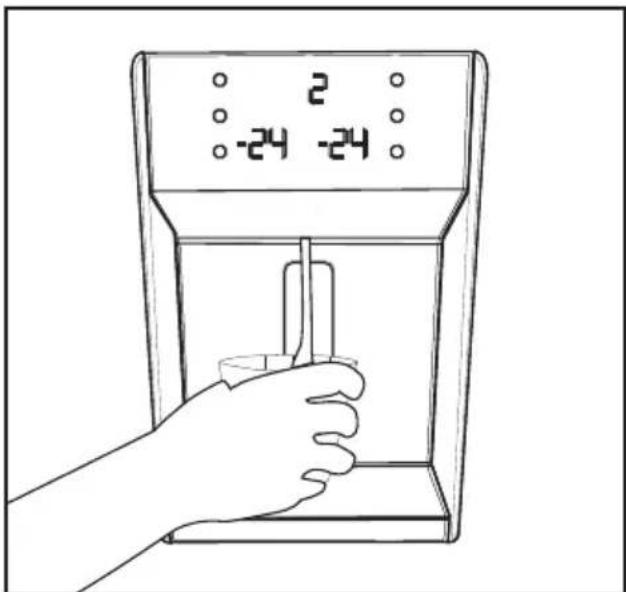

Using the water spring Warnings

It is normal for the first few glasses of water taken from the dispenser to be warm.

In cases where the water dispenser has not been used frequently, sufficient amount of water must be drained from the dispenser to get fresh water.

2 -24 -24

Spillage Tray

Water drops that drip during use, accumulates in the spillage tray. You can remove spillage tray by pulling it to yourself or pressing on its edge (depending on the model). You can remove the water with a sponge or a soft cloth.

Line drawing of a digital air conditioner unit with a black downward arrow indicating airflow or cooling (no text or symbols)

Minibar

Minibar door provides you extra comfort when using your refrigerator. The door shelf in the refrigerator can be accessed without opening the refrigerator door; thanks to this feature, you can easily pick from the refrigerator the foods and drinks which you frequently consume. Since you do not have to open the refrigerator door frequently, you will have decreased the power consumption of refrigerator.

To open the minibar door, press by your hand on the minibar and pull back to open.

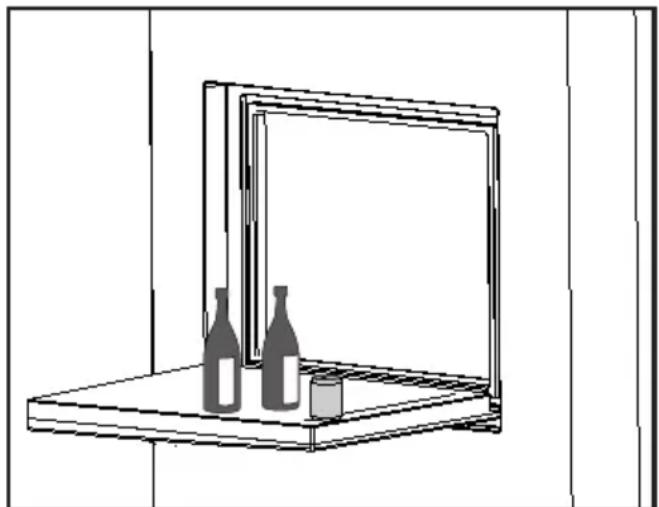

When the door of minibar is open, you may use the inner face of the door as a table on which you may put your bottles and glasses for a short time as shown in the figure.

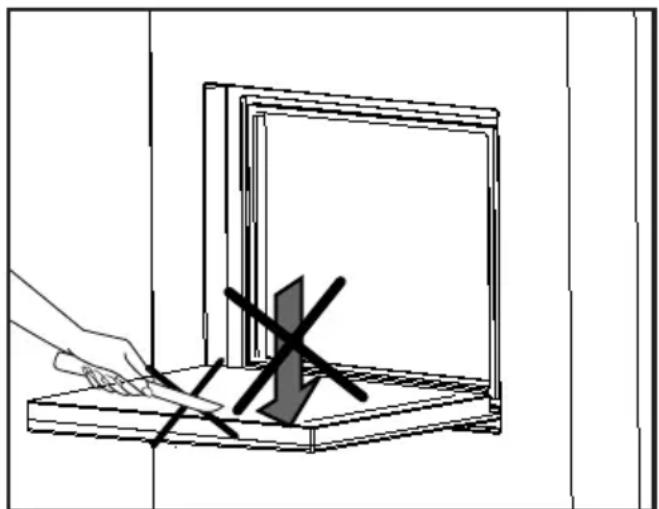

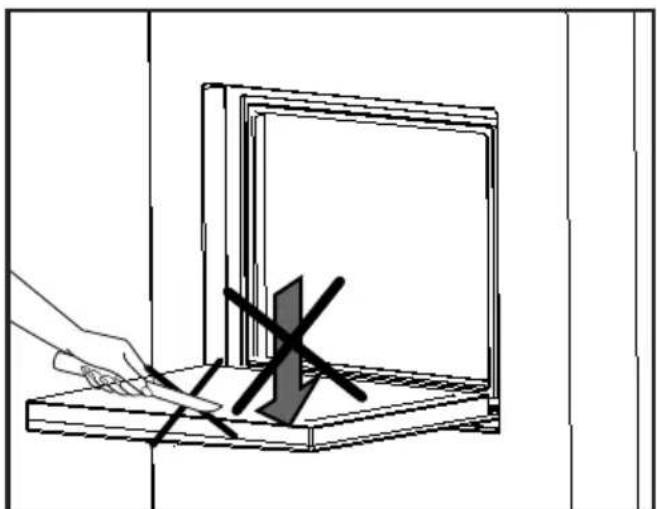

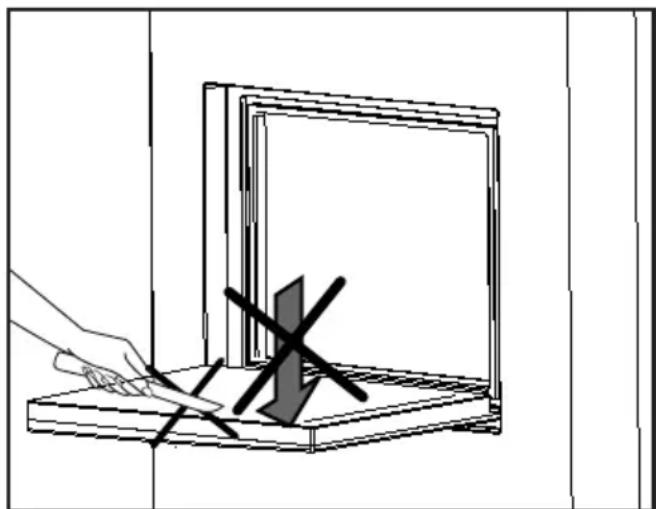

⚠️ Caution: Never do things that may put pressure on the door such as sitting on, climbing up or hanging to the table and do not place heavy objects on it. This may cause damage on the refrigerator or personal injuries. ⚠️ Caution: Never perform cutting on the Minibar door and be careful that the door is not damaged by pointed objects.

Architectural line drawings showing front and side views of a building facade (no text or symbols)

Illustration showing a hand holding a tablet and a wall-mounted shelf with bottles (no text or symbols)

Line drawing of a window with two bottles and a small container on top (no text or symbols)

Diagram showing a hand using a tool to cut or mark a dark object on a wooden surface, with no visible text or symbols.

6 Cleaning and care

⚠️ Never use gasoline, benzene or similar substances for cleaning purposes.
⚠️ We recommend that you unplug the appliance before cleaning.
i Never use any sharp abrasive instrument, soap, household cleaner, detergent and wax polish for cleaning.
Use lukewarm water to clean the cabinet of your refrigerator and wipe it dry.
Use a damp cloth wrung out in a solution of one teaspoon of bicarbonate of soda to one pint of water to clean the interior and wipe it dry.
⚠️ Make sure that no water enters the lamp housing and other electrical items.
⚠️ If your refrigerator is not going to be used for a long period of time, unplug the power cable, remove all food, clean it and leave the door ajar.
Check door seals regularly to ensure they are clean and free from food particles.
⚠️ To remove door racks, remove all the contents and then simply push the door rack upwards from the base.

Protection of plastic surfaces

Do not put the liquid oils or oil-cooked meals in your refrigerator in unsealed containers as they damage the plastic surfaces of your refrigerator. In case of spilling or smearing oil on the plastic surfaces, clean and rinse the relevant part of the surface at once with warm water.

7 Recommended solutions for the problems

Please review this list before calling the service. It might save you time and money. This list includes frequent complaints that are not arising from defective workmanship or material usage. Some of the features described here may not exist in your product.

The refrigerator does not operate.

Is the refrigerator properly plugged in? Insert the plug to the wall socket.Is the fuse of the socket which your refrigerator is connected to or the main fuse blown out? Check the fuse.

Condensation on the side wall of the fridge compartment (MULTIZONE, COOL CONTROL and FLEXI ZONE).

Very cold ambient conditions. Frequent opening and closing of the door. Highly humid ambient conditions. Storage of food containing liquid in open containers.Leaving the door ajar. Switching the thermostat to a colder degree.Decreasing the time the door left open or using it less frequently.Covering the food stored in open containers with a suitable material.Wipe the condensation using a dry cloth and check if it persists.

Compressor is not running

Protective thermic of the compressor will blow out during sudden power failures or plug-out plug-ins as the refrigerant pressure in the cooling system of the refrigerator has not been balanced yet. Your refrigerator will start running approximately after 6 minutes. Please call the service if the refrigerator does not startup at the end of this period.The fridge is in defrost cycle. This is normal for a full-automatically defrosting refrigerator. Defrosting cycle occurs periodically.Your refrigerator is not plugged into the socket. Make sure that the plug is properly fit into the socket.Are the temperature adjustments correctly made?Power might be cut off.

The fridge is running frequently or for a long time.

·Your new product may be wider than the previous one. This is quite normal. Large refrigerators operate for a longer period of time.·The ambient room temperature may be high. This is quite normal.·The refrigerator might have been plugged in recently or might have been loaded with food. Cooling down of the refrigerator completely may last for a couple of hours longer.·Large amounts of hot food might have been put in the refrigerator recently. Hot food causes longer running of the refrigerator until they reach the safe storage temperature.·Doors might have been opened frequently or left ajar for a long time. The warm air that has entered into the refrigerator causes the refrigerator to run for longer periods. Open the doors less frequently.·Freezer or fridge compartment door might have been left ajar. Check if the doors are tightly closed.·The refrigerator is adjusted to a very low temperature. Adjust the refrigerator temperature to a warmer degree and wait until the temperature is achieved.·Door seal of the fridge or freezer may be soiled, worn out, broken or not properly seated. Clean or replace the seal. Damaged/broken seal causes the refrigerator to run for a longer period of time in order to maintain the current temperature.

Freezer temperature is very low while the fridge temperature is sufficient.

·The freezer temperature is adjusted to a very low temperature. Adjust the freezer temperature to a warmer degree and check.

Fridge temperature is very low while the freezer temperature is sufficient.

·The fridge temperature might have been adjusted to a very low temperature. Adjust the fridge temperature to a warmer degree and check.

Food kept in the fridge compartment drawers are freezing.

·The fridge temperature might have been adjusted to a very low temperature. Adjust the fridge temperature to a warmer degree and check.

Temperature in the fridge or freezer is very high.

·The fridge temperature might have been adjusted to a very high degree. Fridge adjustment has an effect on the temperature of the freezer. Change the temperature of the fridge or freezer until the fridge or freezer temperature reaches to a sufficient level.·Doors might have been opened frequently or left ajar for a long time; open them less frequently.·Door might have been left ajar; close the door completely.·Large amount of hot food might have been put in the refrigerator recently. Wait until the fridge or freezer reaches the desired temperature.·The refrigerator might have been plugged in recently. Cooling down of the refrigerator completely takes time.

The operation noise increases when the refrigerator is running.

·The operating performance of the refrigerator may change due to the changes in the ambient temperature. It is normal and not a fault.

Vibrations or noise.

·The floor is not even or it is weak. The refrigerator rocks when moved slowly. Make sure that the floor is strong enough to carry the refrigerator, and level.·The noise may be caused by the items put onto the refrigerator. Items on top of the refrigerator should be removed.

There are noises coming from the refrigerator like liquid spilling or spraying.

·Liquid and gas flows happen in accordance with the operating principles of your refrigerator. It is normal and not a fault.

There is a noise like wind blowing.

·Fans are used in order to cool the refrigerator. It is normal and not a fault.

Condensation on the inner walls of refrigerator.

·Hot and humid weather increases icing and condensation. It is normal and not a fault.·Doors might have been left ajar; make sure that the doors are closed fully.·Doors might have been opened frequently or left ajar for a long time; open them less frequently.

Humidity occurs on the outside of the refrigerator or between the doors.

·There might be humidity in the air; this is quite normal in humid weather. When the humidity is less, condensation will disappear.

Bad odor inside the refrigerator.

·Inside of the refrigerator must be cleaned. Clean the inside of the refrigerator with a sponge, lukewarm water or carbonated water.·Some containers or package materials might cause the smell. Use a different container or different brand packaging material.

The door is not closing.

·Food packages may prevent the door's closing. Replace the packages that are obstructing the door.·The refrigerator is not completely upright on the floor and rocking when slightly moved. Adjust the elevation screws.·The floor is not level or strong. Make sure that the floor is level and capable to carry the refrigerator.

Crispers are stuck.

·The food might be touching the ceiling of the drawer. Rearrange food in the drawer.

Diagram showing a lightning bolt striking down on a wall-mounted device with a plug, no text or symbols present

Technical line drawing of a computer chassis panel with mounting holes and ventilation slots (no text or symbols)

Illustration of a hand using a screwdriver to adjust or install a device component (no text or symbols visible)

Diagram of a mechanical or electrical setup with directional arrows indicating motion, no text or symbols present

Pure diagram of a cabinet with vertical and horizontal arrows indicating forces or movement (no text or symbols)

Technical line drawing of a mechanical component with an upward arrow indicating motion (no text or symbols)

Technical diagram of a mechanical assembly with pressure gauges and housing (no text or labels)

Pure electrical circuit lines without any symbols

Technical line drawing of a mechanical component with multiple cylindrical features and mounting brackets (no text or symbols)

Technical line drawing of a mechanical bracket or clamp assembly (no text or symbols)

Technical line drawings of five different mechanical components or parts, including coiled tubing, a connector, and a cylindrical device (no text or symbols present)

Line drawing of a hand using a tool to adjust or install a component, no text or symbols present

Line drawing of a mechanical or electronic component with a black connector inserted, labeled '1b' (no text or symbols on the diagram itself)

Diagram of a medical or electrical device with a bulb, plug, and cable (no text or symbols)

Technical illustration of a mechanical component with a downward arrow indicating force or movement (no text or symbols present)

Diagram of a pipe fitting with a valve and directional arrow, labeled (B), showing no text or symbols beyond the label.

Diagram showing a mechanical assembly with a bolt and connector, no text or symbols present

Interior view of a refrigerator with air ducts and shelf (no text or symbols visible)

Line drawing of a refrigerator interior showing front and rear compartments with no text or symbols

Line drawing of a kitchen interior with appliances and fixtures (no text or symbols)

Line drawing of a refrigerator interior showing a hand holding a cylindrical device (no text or symbols)

Interior view of a refrigerator with shelves and refrigerators (no visible text or symbols)

Line drawing of an open refrigerator interior showing drawer, front pane, and side shelves (no text or symbols)

Kühlfach

Line drawing of an open refrigerator interior showing internal compartments and ventilation grilles (no text or symbols)

Line drawing of a refrigerator interior with open door and storage compartments (no text or symbols)

Blaues Licht

Line drawing of a cabinet interior with open doors and drawers (no text or symbols)

Schubablagen

Line drawing of a desk with a tray and drawers, no text or symbols present

Butter- & Käsefach

Line drawing of a refrigerator interior showing front and side views (no text or symbols)

Architectural line drawings of a room with a black rectangle and a window frame (no text or symbols)

Two-panel illustration showing a hand holding a black rectangular object and a wall-mounted shelf with bottles (no text or symbols)

Line drawing of a wall-mounted shelf with two bottles and a cylindrical container (no text or symbols)

Line drawing of a hand using a tool to cut or mark a rectangular object with a cross symbol (no text or labels)

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Technical line drawing of a computer chassis panel with mounting holes and ventilation slots (no text or symbols)

Illustration of a hand using a screwdriver to adjust or install a component on a device panel (no text or symbols visible)

Diagram of a mechanical or electrical setup with directional arrows indicating motion, no text or symbols present

Simple line drawing of a cabinet with four panes and two doors, no text or symbols present

Technical line drawing of a mechanical component with an upward arrow indicating motion (no text or symbols)

Technical diagram of a mechanical assembly with pressure gauge and housing (no text or labels)

Technical line drawing of a mechanical component with mounting holes and internal channels (no text or symbols)

Technical line drawing of a mechanical component with multiple cylindrical features and mounting brackets (no text or symbols)

Technical line drawing of a mechanical bracket or bracket component (no text or symbols)

Exploded view diagram of a mechanical component with labeled parts (no text or symbols present)

Line drawing of a mechanical component with hands holding a tool, no text or symbols present

Line drawing of a device with a black connector inserted into a cable, labeled '1b' (no text or symbols on the diagram itself)

Diagram of a medical or electrical device with a bulb, plug, and cable (no text or symbols)

Technical illustration of a mechanical component with a downward arrow indicating force or movement (no text or symbols present)

Diagram of a pipe fitting with a valve and directional arrow, labeled (B), showing no text or symbols beyond the label.

Diagram showing a mechanical assembly with a bolt and connecting rod, no text or symbols present

Interior view of a refrigerator with air ducts and shelves (no text or symbols visible)

Line drawing of a refrigerator interior showing front and rear compartments with no text or symbols

Line drawing of a kitchen interior with a shower unit and sink (no text or symbols)

Line drawing of a kitchen appliance with a cylindrical device mounted on a shelf (no text or symbols)

Interior view of a kitchen appliance with a cylindrical device mounted on a shelf (no visible text or symbols)

Line drawing of an open refrigerator with drawers and doors (no text or symbols)

Compartiment Zone fraîche

Line drawing of an open refrigerator interior showing internal compartments and ventilation slots (no text or symbols)

Section centrale modulable

Line drawing of a refrigerator interior with open door and storage compartments (no text or symbols)

Line drawing of an open wardrobe cabinet with drawers and doors (no text or symbols)

Line drawing of a desk with a large shelf and wall-mounted drawers (no text or symbols)

Line drawing of a refrigerator interior showing front and side views (no text or symbols)

Diagram showing a hand inserting into a digital device with display numbers and Chinese characters, likely illustrating a device's internal structure or status.

Architectural line drawings showing front and side views of a building facade (no text or symbols)

Two-panel illustration showing a hand holding a black rectangular object and a wall-mounted shelf with bottles (no text or symbols)

Line drawing of a window with two bottles and a small container on top (no text or symbols)

Diagram showing a hand using a tool to cut a panel with a cross mark, no text or symbols present

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Diagram of a computer monitor rear panel showing internal compartments and mounting points (no text or labels)

Illustration of a hand using a screwdriver to adjust or install a component, with an arrow indicating the process (no text or symbols present)

Diagram of a mechanical or electrical setup with directional arrows indicating motion, no text or symbols present

Simple diagram of a cabinet with four panes and two side supports, no text or symbols present.

Technical line drawing of a mechanical component with an upward arrow indicating motion (no text or symbols)

Technical diagram of a mechanical assembly with pressure gauge and housing (no text or labels)

Technical line drawing of a mechanical component with mounting holes and a curved pipe (no text or symbols)

Technical line drawing of a mechanical component with multiple cylindrical features and a curved base (no text or symbols)

Technical line drawing of a mechanical bracket or bracket component (no text or symbols)

Exploded view diagram of a mechanical component with labeled parts (no text or symbols present)

Line drawing of a hand using a tool to adjust or install a component, no text or symbols present

Line drawing of a mechanical or electronic component with a black connector and a cable, labeled '1b' (no text or symbols on the diagram itself)

Diagram of a medical or electrical device with a bulb, plug, and cable (no text or symbols)

Technical illustration of a mechanical component with a downward arrow indicating force or movement (no text or symbols present)

Diagram of a pipe fitting with a valve and directional arrow, labeled (B), showing no text or symbols beyond the label.

Diagram showing a mechanical assembly with a bolt and connecting rod, no text or symbols present

Interior view of a refrigerator with air ducts and ventilation system (no text or symbols visible)

Line drawing of a refrigerator interior showing front and rear compartments (no text or symbols)

Line drawing of a kitchen interior with a shower unit and shelf (no text or symbols)

Line drawing of a mechanical assembly or fixture with no visible text or symbols

Interior view of a kitchen appliance with a cylindrical tube mounted on a shelf (no visible text or symbols)

Line drawing of a refrigerator interior showing three drawers and one drawer (no text or symbols)

Line drawing of an open refrigerator interior showing internal compartments and ventilation grilles (no text or symbols)

Line drawing of a refrigerator interior with open door and storage compartments (no text or symbols)

Line drawing of an open refrigerator with drawers and doors (no text or symbols)

Line drawing of a desk with a tray and shelves, no text or symbols present

Line drawing of a refrigerator interior showing front and side views (no text or symbols)

Line drawing of a hand inserting into a digital device with dual-digit display showing 2 and -24.

Architectural line drawings showing front and side views of a building facade (no text or symbols)

Two-panel illustration showing a hand holding a tablet and a window with bottles (no text or symbols)

Line drawing of a window with two bottles and a small container on a shelf (no text or symbols)

Diagram showing a hand using a tool to cut a window frame with a cross symbol (no text or labels)

6 Чистка и уход

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Technical diagram of a computer monitor rear panel showing internal components and mounting points (no text or labels)

Illustration of a hand using a screwdriver to adjust a component on a device panel (no text or symbols present)

Diagram of a mechanical or electrical setup with directional arrows indicating motion, no text or symbols present

Pure diagram of a cabinet with four panes and arrows indicating directional flow (no text or symbols)

Technical diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

Technical diagram of a mechanical assembly with pressure gauge and housing (no text or labels)

Technical line drawing of a mechanical component with mounting holes and internal channels (no text or symbols)

Technical line drawing of a mechanical component with multiple cylindrical features and a curved base (no text or symbols)

Technical line drawing of a mechanical bracket or clamp component (no text or symbols)

Technical line drawings of a mechanical component with labeled parts (no text or symbols present)

Line drawing of a hand using a tool to adjust or install a component, no text or symbols present

Line drawing of a mechanical or electronic component with a black connector and a cable, labeled '1b' (no text or symbols on the diagram itself)

Diagram of a medical or electrical device with a bulb, plug, and cable (no text or symbols)

Technical illustration of a mechanical component with a downward arrow indicating assembly or disassembly (no text or symbols present)

Diagram of a pipe fitting with a valve and directional arrow, labeled (B), showing no text or symbols beyond the label.

Diagram showing a mechanical assembly with a bolt and connecting rod, no text or symbols present

Interior view of a refrigerator with air ducts and ventilation grilles (no text or symbols)

Line drawing of a refrigerator interior showing front and rear compartments (no text or symbols)

Interior view of a kitchen appliance with a showerhead and stainless steel counter (no text or symbols visible)

Line drawing of a refrigerator interior showing a hand holding a cylindrical device (no text or symbols)

Interior view of a refrigerator with refrigerators and a cylindrical tank (no text or symbols visible)

Line drawing of an open refrigerator drawer with drawers and ventilation grilles (no text or symbols)

Line drawing of an open refrigerator interior showing internal compartments and ventilation grilles (no text or symbols)

Line drawing of a refrigerator interior with open door and storage compartments (no text or symbols)

Line drawing of a cabinet interior with open doors and drawers (no text or symbols)

Line drawing of a kitchen appliance with drawer and shelf (no text or symbols)

Line drawing of a refrigerator interior showing front and side views (no text or symbols)

Line drawing of a hand inserting a small object into a device with a digital display (no text or symbols)

Architectural line drawings showing front and side views of a building facade (no text or symbols)

Illustration showing a hand holding a tablet and a wall-mounted shelf with bottles (no text or symbols)

Line drawing of a window with two bottles and a small container on the shelf (no text or symbols)

Diagram showing a hand using a tool to cut a panel with a cross mark, no text or symbols present

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Diagram of a computer monitor rear panel showing internal components and mounting points (no text or labels)

Illustration of a hand using a screwdriver to adjust or install a device component (no text or symbols visible)

Diagram of a mechanical or electrical setup with directional arrows indicating motion, no text or symbols present

Simple line drawing of a cabinet with four panes and two doors, no text or symbols present

Technical line drawing of a mechanical component with an upward arrow indicating motion (no text or symbols)

Technical diagram of a mechanical assembly with pressure gauge and housing (no text or labels)

Technical line drawing of a mechanical component with mounting holes and internal channels (no text or symbols)

Technical line drawing of a mechanical component with multiple cylindrical features and a curved base (no text or symbols)

Technical line drawing of a mechanical bracket or bracket component (no text or symbols)

i Поставете отново пантата на капака и фиксирайте с винта.

Exploded view diagram of a mechanical assembly with labeled parts (no text or symbols present)

a a b c 1

Line drawing of a hand holding a tool interacting with a mechanical component (no text or symbols)

Line drawing of a mechanical or electronic component with a black connector and a cable, labeled '1b' (no text or symbols on the diagram itself)

Diagram of a medical or electrical device with a bulb, plug, and cable (no text or symbols)

Technical diagram of a mechanical component with a downward arrow indicating a force or movement (no text or symbols present)

Diagram of a pipe fitting with a valve and directional arrow, labeled (B), showing no text or symbols beyond the label.

Diagram showing a mechanical assembly with a bolt and connecting rod, no text or symbols present

Hand-drawn diagram of a 3D device with numeric display and control buttons, showing a hand pointing to it.

Interior view of a refrigerator with visible door, shelf, and ventilation duct (no text or symbols)

Line drawing of a refrigerator interior showing front and rear views (no text or symbols)

Interior view of a kitchen appliance with a showerhead and ventilation system (no text or symbols visible)

Line drawing of a refrigerator interior showing a hand holding a cylindrical device (no text or symbols)

Interior view of a kitchen appliance showing a cylindrical stove mounted on a shelf (no text or symbols visible)

Line drawing of a refrigerator interior showing drawer arrangement (no text or symbols)

Line drawing of an open refrigerator interior showing internal compartments and ventilation slots (no text or symbols)

Line drawing of a refrigerator with open door and storage compartments (no text or symbols)

Line drawing of an open cabinet with drawers and doors (no text or symbols)

Line drawing of a desk with a shelf and wall-mounted drawers (no text or symbols)

Line drawing of a refrigerator interior showing front and side views (no text or symbols)

Line drawing of a hand inserting into a digital device with a tray (no text or symbols)

Pure architectural line drawings of a room layout with no text, numbers, or symbols

Illustration showing a hand holding a tablet and a wall-mounted shelf with bottles (no text or symbols)

Line drawing of a window with two bottles and a small container on the shelf (no text or symbols)

Diagram showing a hand using a tool to cut a panel with a cross mark, no text or symbols present

Diagram showing a lightning bolt striking a wall-mounted device with wires and a plug, no text or symbols present

Technical line drawing of a computer chassis panel with mounting holes and ventilation grilles (no text or symbols)

Illustration of a hand using a screwdriver to adjust or install a device component (no text or symbols visible)

Diagram of a mechanical or electrical setup with directional arrows indicating motion, no text or symbols present

Simple line drawing of a cabinet with two doors and arrows indicating left and right motion (no text or symbols)

Technical line drawing of a mechanical component with an upward arrow indicating motion (no text or symbols)

Diagram of a mechanical or electrical component with directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and internal channels (no text or symbols)

Technical line drawing of a mechanical component with multiple cylindrical features and a central housing (no text or symbols)

Technical line drawing of a mechanical bracket or bracket component (no text or symbols)

Illustration of five different mechanical components or parts, including coiled tubing, a container, a cylindrical tank, and two separate clamps (no text or symbols present)

Line drawing of a hand using a tool to adjust or install a component, no text or symbols present

Line drawing of a mechanical or electronic component with a black connector and a cable, labeled '1b' (no text or symbols on the diagram itself)

Diagram of a medical or electrical device with a bulb, plug, and cable (no text or symbols)

Technical illustration of a mechanical component with a downward arrow indicating assembly or disassembly (no text or symbols present)

Diagram of a pipe fitting with a valve and directional arrow, labeled (B), showing no text or symbols beyond the label.

Diagram showing a mechanical assembly with a bolt and connecting rod, no text or symbols present

Interior view of a refrigerator with visible door, ceiling lights, and ventilation duct (no text or symbols)

Line drawing of a refrigerator interior showing front and side views (no text or symbols)

Line drawing of a kitchen interior with a shower unit and shelf (no text or symbols)

Line drawing of a kitchen appliance with a mounted vacuum cleaner inside a storage cabinet (no text or symbols)

Line drawing of a refrigerator interior showing storage racks and ventilation duct (no text or symbols)

Line drawing of a refrigerator interior showing three drawers and one drawer (no text or symbols)

Køleafdeling

Line drawing of an open refrigerator interior showing internal compartments and ventilation grilles (no text or symbols)

Line drawing of a refrigerator interior with open door and storage compartments (no text or symbols)

Line drawing of an open wardrobe cabinet with drawers and doors (no text or symbols)

Line drawing of a cabinet or shelf with drawers and compartments (no text or symbols)

Line drawing of a refrigerator interior showing front and side views (no text or symbols)

Line drawing of a device with a black arrow pointing downward, showing no text or symbols on the device itself.

Minibar

Architectural line drawings showing front and side views of a building facade (no text or symbols)

Two-panel illustration showing a hand holding a black rectangular object and a wall-mounted shelf with bottles (no text or symbols)

Line drawing of a window with two bottles and a small container on top (no text or symbols)

Diagram showing a hand using a tool to cut a panel with a cross symbol, no text or labels present

Diagram showing a lightning bolt striking down an electrical plug into a grid-patterned container (no text or symbols)

- Não ligue o frigorífico à tomada, se a tomada de parede estiver solta.

Technical diagram of a computer monitor rear panel with mounting holes and ventilation slots (no text or labels)

Illustration of a hand using a screwdriver to adjust or install a component on a device panel (no text or symbols visible)

Diagram of a mechanical or electrical setup with directional arrows indicating motion, no text or symbols present

Pure diagram of a cabinet with four panes and two side panels, no text or symbols present

Technical line drawing of a mechanical component with an upward arrow indicating motion (no text or symbols)

Technical diagram of a mechanical assembly with pressure gauges and housing (no text or labels)

Technical line drawing of a mechanical housing or bracket component (no text or symbols)

Technical line drawing of a mechanical component with multiple cylindrical features and mounting brackets (no text or symbols)

Technical line drawing of a mechanical bracket or bracket component (no text or symbols)

Technical line drawings of five different mechanical components or parts, including coiled tubing, a connector, a cylindrical device, and a gear mechanism (no text or symbols present)

Line drawing of a hand using a tool to adjust or install a component, no text or symbols present

Line drawing of a mechanical or electronic component with a black connector inserted, labeled '1b' (no text or symbols on the diagram itself)

Diagram of a medical or electrical device with a bulb, plug, and cable (no text or symbols)

Technical illustration of a mechanical component with a downward arrow indicating force or movement (no text or symbols present)

Diagram of a pipe fitting with a valve and directional arrow, labeled (B), showing no text or symbols beyond the label.

Diagram showing a mechanical assembly with a bolt and connecting rod, no text or symbols present

Interior view of a refrigerator with visible door, shelf, and ventilation duct (no text or symbols)

Line drawing of a refrigerator interior showing front and rear compartments (no text or symbols)

Line drawing of a kitchen interior with a shower unit and sink (no text or symbols)

Line drawing of a refrigerator interior showing a hand holding a cylindrical device (no text or symbols)

Line drawing of a refrigerator interior showing storage tanks and appliances (no text or symbols)

Line drawing of a refrigerator interior showing drawer compartments and storage areas (no text or symbols)

Line drawing of an open refrigerator interior showing internal compartments and ventilation slots (no text or symbols)

Line drawing of a refrigerator interior with open door and storage compartments (no text or symbols)

Line drawing of an open cabinet with drawers and doors (no text or symbols)

Line drawing of a desk with a tray and drawers, no text or symbols present

Line drawing of a refrigerator interior showing front and side views (no text or symbols)

Line drawing of a hand inserting a small container into a digital device (no text or symbols)

Line drawing of a 3D refrigerator with digital display and arrow pointing to the bottom (no text or symbols)

Minibar

Two technical line drawings showing a black rectangle and a window frame, both without any text or symbols.

Two-panel illustration showing a hand holding a tablet and a mirror with bottles (no text or symbols)

Line drawing of a window with two bottles on a shelf, no text or symbols present

Line drawing of a hand using a tool to cut or mark a rectangular object on a wooden base, with no text or symbols present.

Diagram showing a lightning bolt striking down on a wall-mounted device with wiring and plug (no text or symbols)

Technical diagram of a computer monitor rear panel showing internal components and mounting holes (no text or labels)

Illustration of a hand using a screwdriver to adjust a component on a device (no text or symbols visible)

Simple line drawing of a cabinet with four panes and two legs, no text or symbols present

Technical line drawing of a mechanical component with an upward arrow indicating motion (no text or symbols)

Mechanical assembly diagram showing a rotating component with pressure gauge and mounting base (no text or symbols)

Diagram of a mechanical or electrical component with directional arrows indicating motion, no text or symbols present.

Technical line drawing of a mechanical component with mounting holes and internal channels (no text or symbols)

Technical line drawing of a mechanical component with multiple cylindrical features and mounting brackets (no text or symbols)

Technical line drawing of a mechanical bracket or clamp component (no text or symbols)

Technical diagram showing exploded view of a mechanical component with labeled parts 1 through 5

Line drawing of a hand using a tool to adjust or install a component, no text or symbols present

Technical line drawing of a mechanical component with a cable and connector (no text or symbols)

Diagram of a medical or electrical device with a plug, cable, and cap, showing no text or symbols.

Technical diagram of a mechanical component with a downward arrow indicating motion or assembly (no text or symbols present)

Diagram of a pipe fitting with a valve and directional arrow, labeled (B), showing no text or symbols beyond the label.

Diagram showing a mechanical assembly with a valve and connector, no text or symbols present

Interior view of a refrigerator with visible door, shelf, and ventilation (no text or symbols)

Interior view of a kitchen appliance with a showerhead and shelf (no text or symbols visible)

Interior view of a refrigerator with ventilation ducts and airflow direction indicator (no text or symbols)

Line drawing of a kitchen appliance with a cylindrical tool inserted into the door (no text or symbols)

Line drawing of a refrigerator interior showing storage tanks and a cylindrical device (no text or symbols)

Line drawing of an open refrigerator with drawer compartments (no text or symbols)

مhfظه سردکن

Line drawing of an open refrigerator interior showing internal compartments and ventilation grilles (no text or symbols)

سینی تخم مرغ

Line drawing of a refrigerator interior with open door and storage compartments (no text or symbols)

Line drawing of an open refrigerator with drawers and doors (no text or symbols)

بخش ميانى متحرك

Line drawing of a 3D device with a black arrow pointing downward, showing no text or symbols on the device itself.

Line drawing of a desk with shelves and a monitor (no text or symbols)

بخش کره و پنیر

Line drawing of a refrigerator interior showing front and side views (no text or symbols)

Two technical line drawings showing structural components: one with a black rectangle and another with a rectangular frame (no text or symbols)

مینی بار

Two-panel image showing a hand holding a black rectangular object and a wall-mounted shelf with bottles (no text or symbols visible)

Line drawing of a cabinet with two bottles and a cylindrical container on top (no text or symbols)

Diagram showing a hand using a tool to cut or mark a dark object on a wooden surface, with no visible text or symbols.

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Technical line drawing of a computer chassis panel with mounting holes and ventilation slots (no text or symbols)

Illustration of a hand using a screwdriver to adjust or install a component, with an arrow indicating direction (no text or symbols present)

Diagram of a mechanical or electrical component with directional arrows indicating motion, no text or symbols present

Diagram of a cabinet with two doors and two seats, showing bidirectional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical component with an upward arrow indicating motion (no text or symbols)

Technical diagram of a mechanical assembly with pressure gauges and housing (no text or labels)

Technical line drawing of a mechanical component with mounting holes and internal channels (no text or symbols)

Technical line drawing of a mechanical component with multiple cylindrical features and mounting brackets (no text or symbols)

Technical line drawing of a mechanical bracket or bracket component (no text or symbols)

Technical line drawings of mechanical components including coiled tubing, a connector, and a cylindrical device (no text or symbols)

Line drawing of a hand using a tool to adjust or install a component, no text or symbols present

Line drawing of a device with a black connector inserted into a cable, labeled '1b' (no text or symbols on the diagram itself)

Diagram of a medical or electrical device with a bulb, plug, and cable (no text or symbols)

Technical illustration of a mechanical component with a downward arrow indicating assembly or disassembly (no text or symbols present)

Diagram of a pipe fitting with a valve and directional arrow, labeled (B), showing no text or symbols beyond the label.

Diagram showing a mechanical assembly with a bolt and connecting rod, no text or symbols present

Interior view of a refrigerator with air ducts and ventilation grilles (no text or symbols)

Line drawing of a refrigerator interior showing front and side views (no text or symbols)

Line drawing of a kitchen interior with a shower unit and kitchen sink (no text or symbols)

Line drawing of a refrigerator interior showing a hand holding a cylindrical device (no text or symbols)

Line drawing of a refrigerator interior showing storage tanks and appliances (no text or symbols)

Line drawing of an open refrigerator with drawers and doors (no text or symbols)

Jäähdytyslokero

Line drawing of an open refrigerator interior showing internal compartments and ventilation grilles (no text or symbols)

Line drawing of a refrigerator interior with open door and storage compartments (no text or symbols)

Line drawing of an open cabinet with drawers and doors (no text or symbols)

Line drawing of a kitchen appliance with shelves and a monitor (no text or symbols)

Maitotuoteosasto

Line drawing of a refrigerator interior showing front and side views (no text or symbols)

Line drawing of a device with a black downward arrow pointing to the bottom panel (no text or symbols)

Minibaari

Architectural line drawings of a room with a black rectangle and a window frame (no text or symbols)

Two-panel illustration showing a hand holding a black rectangular object and a wall-mounted shelf with bottles (no text or symbols)

Line drawing of a wall-mounted shelf with two bottles and a cylindrical container (no text or symbols)

Line drawing of a hand using a tool to cut or mark a rectangular object with a cross symbol (no text or labels)
