AHM2003 - Mixer BESTRON - Free user manual and instructions

USER MANUAL AHM2003 BESTRON

Abstract black arrow symbol pointing right, no text or symbols present

BESTRON®

AHM2003

Line drawing of a hand mixer with two standers (no text or symbols)

Nederlands

Handleiding powermixer

Deutsch

Instruction manual power mixer

Italiano

Technical diagram of a motor and electrical plug assembly with numbered parts labeled 1 through 7

Simple line drawing of a device with a circular body, two vertical rods, and a base (no text or symbols)

REINIGING EN ONDERHOUD

Handwritten signature or scribble on a line, possibly a signature or artistic mark

R. Neyman Quality control

Technical diagram of a hand mixer with numbered parts for identification

Simple line drawing of a device with two vertical rods and a central circular component (no text or symbols)

Handwritten signature or scribble on a line, possibly a signature or autograph

Technical diagram of a hand mixer with numbered parts for identification

Simple line drawing of a door with two handles and a central circular opening, no text or symbols present

NETTOYAGE ET ENTRETIEN

CONDITIONS DE GARANTIE

DÉCLARATION DE CONFORMITÉ CE

SAFETY INSTRUCTIONS - General

• Please read these instructions carefully and retain them for reference.
• Use this appliance solely in accordance with these instructions.
• This appliance shall not be used by children. Keep the appliance and its cord out of reach of children. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Children shall not play with the appliance.
  • Have any repairs carried out solely by a qualified electrician. Never try to repair the appliance yourself.

SAFETY INSTRUCTIONS - Electricity and heat

• Before use please verify that the mains voltage is the same as indicated on the rating plate of the appliance.
  • Make sure that you always use an earthed wall socket to connect the appliance.
• Always remove the plug from the mains socket before moving the appliance and when the appliance is not in use.
• Remove the plug from the wall socket by pulling the plug, not the power cord.
• Check the appliance's power cord regularly to make sure it is not damaged. Do not use the appliance if the power cord is damaged. Have a damaged power cord replaced by a qualified repair service.
  • Certain parts of the appliance may get hot. Do not touch these parts in order to avoid a hazard
• Make sure that the appliance, the power cord or the plug do not make contact with hot services, such as a hot hob or naked flame.
  • Make sure that the appliance, the power cord and plug do not make contact with water.

SAFETY INSTRUCTIONS - During use

• Never use the appliance outdoors.
• Never use the appliance in a humid room.
- Never allow the power cord to hang over the edge of the draining board, worktop or table.
• Make sure that your hands are dry before touching the appliance, power cord or plug.
- Switch off the appliance and remove the plug from the wall socket in the event of a malfunction.
• Always disconnect the appliance from the power supply if it is left unattended and before assembling, disassembling or cleaning.
- Turn off the device and remove the power plug from the outlet before changing accessories or approaching parts that move during use.
- Clean the appliance thoroughly after use (see 'Cleaning and maintenance').
- Never immerse the appliance, the plug or the power cord in water or other liquid.
• This appliance may not be used through an external timer or by means of a remote control.

TECHNICAL DETAILS

Type: AHM2003

Output: 150W

Power supply: 230V \~ 50Hz

THE ENVIRONMENT

- Dispose of packaging material, such as plastic and boxes, in the appropriate waste containers. When this product reaches the end of its useful life do not dispose of it by putting it in a dustbin; hand it in at a collection point for the reuse of electrical and electronic equipment. Please refer to the symbols on the product, the user's instructions or the packaging.

- The materials can be re-used as indicated. Your help in the re-use, recycling or other means of making use of old electrical equipment will make an important contribution to the protection of the environment.

- Contact your municipality for the address of the appropriate collection point in your neighbourhood.

OPERATION - General

The appliance is intended only for domestic use, not for professional use.

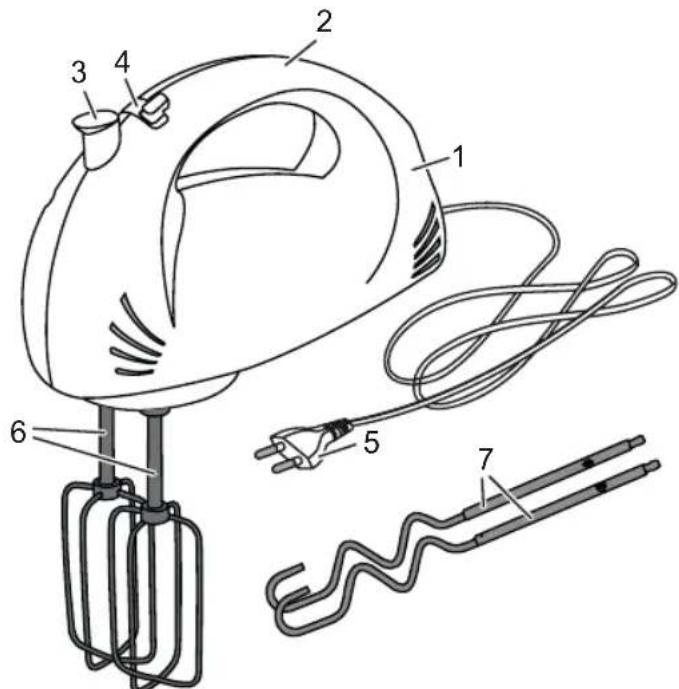

Technical diagram of a hand mixer with numbered parts for identification

1. Motor unit
2. Handle
3. Release button
4. Speed dial
5. Power cord with plug
6. Whisks
7. Dough hooks

OPERATION - Before use for the first time

1. Unpack the appliance. Remove all packaging thoroughly.
2. Clean the appliance (see 'Cleaning and maintenance').

OPERATION - Using your power mixer

1. Attach the accessories to the appliance (see 'Fitting the accessories').
2. Insert the plug into the plug socket
3. Switch on the appliance by turning the speed dial to position '1'.

Whilst mixing gradually increase the speed by turning the speed dial to the required position.

The mixer may not be used for more than 4 consecutive minutes. Then wait 15 minutes to allow the appliance to cool down.

1. Switch off the appliance by turning the speed dial to position '0'.

OPERATION - Attaching the accessories

You must always attach the accessories before switching on the mixer. The mixer is supplied with the following accessories:

• Two whisks: these can be used to beat/mix egg white, whipped cream, mayonnaise, pudding, purée, and light types of dough;
• Two dough hooks: these can be used to mix heavier types of dough, such as dough for bread.2

Switch off the appliance (turn the speed dial to the '0' position) and remove the plug from the wall socket before you attach the accessories.

Insert the shaft of the accessory in the opening on the underside of the mixer. The pins projecting from the accessory fit in the recess. Press the accessory into the opening; a 'click' will be heard when the accessory locks in position. Use the same procedure to fit the second accessory.

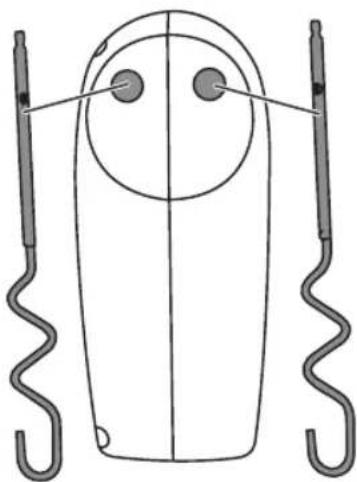

OPERATION - Removing the accessories

Switch off the appliance (turn the speed dial to the '0' position) and remove the plug from the wall socket before you remove the accessories.

To remove the accessories hold them with one hand whilst pressing the release button with the other hand.

Simple line drawing of a stylized object with two circular eyes and two curved legs, no text or symbols present.

CLEANING AND MAINTENANCE

1. Remove the plug from the wall socket.

2. Remove the accessories from the appliance (see 'Removing the accessories'). You can clean the accessories in washing-up solution, or place them in a dishwasher. Rinse the accessories with ample water, and dry them thoroughly.

3. Clean the motor housing of the appliance with a damp cloth. After cleaning, dry it thoroughly.

4. Store the appliance.

- Verify that the plug is out of the socket before you clean it. - Clean the accessories after each use.

- Never use corrosive or scouring cleaning agents or sharp objects (such as knives or hard brushes) to clean the appliance.

- Do not immerse the motor unit in water, or in other liquids.

GUARANTEE TERMS

The importer guarantees the appliance against defects caused by manufacturing and/or material faults for 60 months from the date of purchase, subject to the following conditions.

1. No charges will be made for labour costs or materials during the warranty period. Any repairs carried out during the warranty period do not extend the warranty period.

2. The importer automatically becomes the owner of any faulty parts that he replaces or a faulty appliance (in the event of replacement of the appliance).

3. All claims submitted under warranty must be accompanied by the original bill of sale.

4. Claims under warranty must be submitted to the dealer where the appliance was purchased or to the importer.

5. The warranty is issued solely to the first purchaser and cannot be transferred.

6. The warranty does not cover damage caused by:

a. Accidents, incorrect use, wear and/or neglect. b. Faulty installation and/or use in a manner contravening the prevailing legal, technical or safety regulations.

c. Connection to a mains voltage other than the voltage specified on the type plate.

d. Unauthorized modifications.

e. Repairs carried out by third parties.

f. Careless transport, i.e. without suitable packaging materials or protection.

1. No claims may be made under this warranty for:

a. Losses incurred during transport.

b. The removal or changing of the appliance's serial number.

1. The guarantee does not cover power cords, lamps or glass parts.

2. No claims can be submitted under this warranty for damage other than the repair or replacement of faulty parts. The importer can never be held responsible for any consequential loss or damage or any other consequences, resulting either directly or indirectly from the appliance supplied by the importer.

3. In case of claims under guarantee you can contact your dealer where the appliance is purchased. Bestron offers you also the possibility to send the appliance directly to our Service Department. Do not

send your appliance without consulting us. The package may be refused and any any costs will be for your account. Please contact the Service Department and they will tell you how to pack and send the appliance.

1. This appliance is not suitable for professional use.

SERVICE

If a fault should occur please contact the BESTRON service department www.bestron.com/service

CE DECLARATION OF CONFORMITY

This product conforms to the essential requirements of the following EU safety directives:

• EMC Directive 2004/108/EC
• Low Voltage Directive 2006/95/EC

###

R. Neyman Quality control

Technical diagram of a hand mixer with labeled parts including a stand, power plug, and cord.

Simple line drawing of a door with two handles and a central circular opening, no text or symbols present

Handwritten signature or scribble on a line, possibly a signature or artistic mark

Technical diagram of a hand mixer with labeled parts including a motor, cable, and plug

Simple line drawing of a door with two handles and a central circular opening, no text or symbols present

LIMPIEZA Y MANTENIMIENTO
