USER MANUAL AGL9 BESTRON

Congratulations with the purchase of this snack maker, which you can use to bake and toast the most delicious dishes. The snack maker has a capacity of 6 litre. Furthermore the snack maker has top and bottom heating elements to select the top and bottom heat separately or simultaneously.

Safety instructions

General

• Please read these instructions carefully and retain them for reference.
• Use this appliance solely in accordance with these instructions.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.
• Have any repairs carried out solely by a qualified electrician. Never try to repair the appliance yourself.

Electricity and heat

• Before use, verify that the mains voltage is the same as that indicated on the type plate on the appliance.
• Plug the appliance only into an earthed wall socket.
• Always remove the plug from the socket when the appliance is not in use.
• Always remove the plug from the wall socket by pulling on the plug, not the power cord.
• Check the appliance's power cord regularly to make sure it is not damaged. Do not use the appliance if the power cord is damaged. Have a damaged power cord replaced by a qualified service department.
• When using an extension lead always make sure that the entire cable is unwound from the reel. Use solely approved extension leads.
• Certain parts of the appliance can get hot. Do not touch them, as you may burn yourself.
• The appliance needs space to allow heat to escape, thereby preventing the risk of fire. Make sure that the appliance has sufficient space around it, and does not come in contact with flammable material. The appliance must not be covered.
• Never use the appliance in the vicinity of flammable materials.
• Make sure that the appliance, the power cord and the plug do not come in contact with sources of heat, such as a hot hob or naked flame.
• Make sure that the appliance, the power cord and plug do not come in contact with water.

During use

• Never use the appliance outdoors.
• Never use the appliance in a humid room.
• Place the appliance on a stable and flat surface where it cannot fall over.
• Make sure that your hands are dry before touching the appliance, power cord or plug.
• Switch off the appliance and remove the plug from the wall socket in the event of a malfunction during use, and before cleaning the appliance, fitting or removing an accessory, or storing the appliance after use.
• Never leave the appliance unsupervised whilst it is in use.
• Never move the appliance whilst it is switched on or is still hot. Switch off the appliance, and wait until it has cooled down before you move it.
• Make sure there is sufficient free space around the appliance (at least 5cm), as well as above the appliance (at least 15cm).
• The glass door becomes hot during use. Therefore, always use the handle to open and close the door.
• Do not place the following items on top of the appliance: cardboard, plastic, paper, candles or flammable objects.
• Do not place heavy objects on the glass door when it is open.
• Carefully remove the baking tray when it contains hot juices or fat.
• Avoid water coming into contact with the glass door during or shortly after use. This may cause the glass to break.
• Do not place the appliance near a gas ring or another heat source, nor immediately next to an electrical fan. They may have a negative effect on the appliance's temperature control.
• Do not pick up the appliance if it falls into water. Remove the plug from the wall socket immediately. Do not use the device again.
• Clean the appliance thoroughly after use (see "Cleaning and maintenance").
• Never immerse the appliance, the power cord or the plug in water or any other
• This appliance may not be used through an external timer or by means of a remote control

Operation

General

The snack maker is only intended for domestic use, not for professional use.

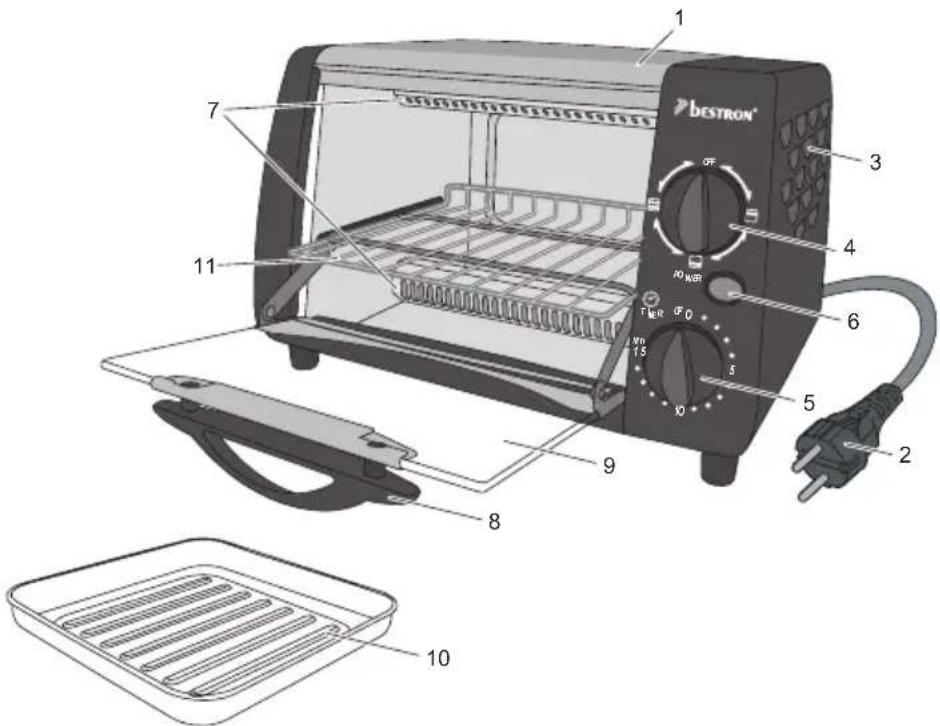

Figure 1 features

1. Housing
2. Power cord and plug
3. Ventilation slots
4. Selection knob
5. 'TIMER' knob
6. On/Off indicator light
7. Heating elements
8. Door handle
9. Door
10. Baking tray
11. Grille

Before use for the first time

1. Remove the packaging.
2. Clean all the accessories to remove any residue that may be left from the manufacturing process (see "Cleaning and maintenance"). Dry them thoroughly.
3. Turn on the top and bottom heating elements for 15 minutes at the highest temperature with the door open. This will remove any packaging odour from the appliance.

Note The appliance may emit a little smoke and a characteristic smell when you switch it on for the first time. This is normal, and will soon stop. Make sure the appliance has sufficient ventilation.

Use

1. Grease the tray with butter, margarine or cooking oil.
2. Plug the unit into the power supply socket.
3. Depending on the kind of food to heat/cook, choose one of the cooking selections. Then, turn the timer knob to choose the required time. The heating elements will not turn on until you have selected the cooking time. The pilot lightilluminates.
4. Your new snack maker has 3 cooking selections: tal spatula, knife or fork. These will damage the non-stick coating.

Position Control Switch Settings
OFF Off
	Top heat
	Bottom heat
	Top and bottom heat

1. When the timer stops, a bell will ring.
2. If you want to stop before the selected time is over, place the function selector in "OFF" position.
3. Carefully open the door, preferably using an oven glove.
4. Turn the snack maker off and plug the unit out the power supply socket.

Cleaning and maintenance

Clean the appliance every time after use.

1. Remove the plug from the wall socket and allow the appliance to cool down completely.
2. Use warm water with a small amount of washing-up liquid to clean the baking tray. Rinse the items with plenty of water and dry them thoroughly.
3. Use a damp cloth to clean the grille, fat and crumb tray, interior and exterior of the snack maker and the door. Dry them thoroughly.
4. Place all the items back in the snack maker and store the snack maker.

PLEASE NOTE

• Make sure the plug has been removed from the plug socket before cleaning the appliance.
• Never use corrosive or scouring cleaning agents or sharp objects (such as knives or hard brushes) to clean the appliance.
• Never immerse the appliance, the power cord or the plug in water or any other fluid.

Technical information

Type: AGL9

Output: 600W

Power supply:

230V~50Hz

The environment

Dispose of packaging material, such as plastic and boxes, in the appropriate waste containers.

When this product reaches the end of its useful life do not dispose of it by putting it in a dustbin; hand it in at a collection point for the reuse of electrical and electronic equipment. Please refer to the symbols on the product, the user's instructions or the packaging.

The materials can be re-used as indicated. Your help in the re-use, recycling or other means of making use of old electrical equipment will make an important contribution to the protection of the environment.

Contact your municipality for the address of the appropriate collection point in your neighbourhood.

Guarantee terms

The importer guarantees the appliance against defects caused by manufacturing and/or material faults for 60 months from the date of purchase, subject to the following conditions.

1. No charges will be made for labour costs or materials during the warranty period. Any repairs carried out during the warranty period do not extend the warranty period.

2. The importer automatically becomes the owner of any faulty parts that he replaces or a faulty appliance (in the event of replacement of the appliance).

3. All claims submitted under warranty must be accompanied by the original bill of sale.

4. Claims under warranty must be submitted to the dealer where the appliance was purchased or to the importer.

5. The warranty is issued solely to the first purchaser and cannot be transferred.

6. The warranty does not cover damage caused by:

a. Accidents, incorrect use, wear and/or neglect.

b. Faulty installation and/or use in a manner contravening the prevailing legal, technical or safety regulations.

c. Connection to a mains voltage other than the voltage specified on the type plate.

d. Unauthorized modifications.

e. Repairs carried out by third parties.

f. Careless transport, i.e. without suitable packaging materials or protection.

1. No claims may be made under this warranty for:

a. Losses incurred during transport.

b. The removal or changing of the appliance's serial number.

1. The guarantee does not cover power cords, lamps or glass parts.

2. No claims can be submitted under this warranty for damage other than the repair or replacement of faulty parts. The importer can never be held responsible for any consequential loss or damage or any other consequences, resulting either directly or indirectly from the appliance supplied by the importer.

3. In case of claims under guarantee you can contact your dealer where the appliance is purchased. Bestron offers you also the possibility to send the appliance directly to our Service Department. Do not send your appliance without consulting us. The package may be refused and any any costs will be for your account. Please contact the Service Department and they will tell you how to pack and send the appliance.

4. This appliance is not suitable for professional use.

Service

If a fault should occur please contact the BESTRON service department:

THE NETHERLANDS:

BESTRON NEDERLAND BV

BESTRON SERVICE

Moeskampweg 20

5222 AW's-Hertogenbosch

Tel: [phone]

Fax: [phone]

Email: [e-mail]

Internet: www.bestron.com

CE Declaration of conformity

This product conforms to the essential requirements of the following EU safety directives:

EMC Directive 2004/108/EC
Low Voltage Directive 2006/95/EC

R. Neyman

Quality control
