Congratulations with the purchase of your compact 1500W vacuum cleaner, which is equipped with a revolutionary centrifugal suction system. The appliance has a unique and easy-to-clean filter system and dust separator; consequently you no longer need to buy expensive dust bags.

SAFETY INSTRUCTIONS - General

• Please read these instructions carefully and retain them for reference.
• Use this appliance solely in accordance with these instructions.
• Use solely accessories recommended by the supplier. The use of other accessories may result in damage to the appliance, thereby creating hazards for the user.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Have any repairs carried out solely by a qualified electrician. Never try to repair the appliance yourself.

SAFETY INSTRUCTIONS - Electricity and heat

• Before use please verify that the mains voltage is the same as indicated on the rating plate of the appliance.
  • Always remove the plug from the socket when the appliance is not in use.
• Remove the plug from the wall socket by pulling the plug, not the power cord.
• Check the appliance's power cord regularly to make sure it is not damaged. Do not use the appliance if the power cord is damaged. Have a damaged power cord replaced by a qualified repair service.
• When using an extension lead always make sure that the entire cable is unwound from the reel.
  • Use solely approved extension leads.
• Avoid stumbling over the extension lead or power cord.
  • Make sure the air vents are not covered or blocked.
  • Make sure that the appliance, the power cord or the plug do not make contact with heat sources, such as a hot hob or naked flame.
• Make sure that the appliance, the power cord and plug do not make contact with water.

SAFETY INSTRUCTIONS - During use

• Never use the appliance outdoors.
• Never use the appliance in a humid room.

• Make sure that your hands are dry before touching the appliance, power cord or plug.
• Take care when fitting the filter. Do not use the appliance if the filter is damaged or fitted incorrectly; this could damage the appliance.
- Do not use the appliance to suck up the following objects:

• glowing or burning objects
  • glass splinters or other sharp objects
  • residues of plaster, cement, stone, soot, and similar
  • liquids, or moist dirt.

These objects could cause serious damage to the appliance and the filter system, and make it unsafe to use.

• Do not use the vacuum cleaner on wet rugs and carpets.
• Never insert objects in the air-exhaust vents.
• Make sure that the suction and exhaust openings are open, and that the filter is not blocked. Blockages will cause the appliance to overheat. Switch off the vacuum cleaner immediately! Once you have remedied the problem, wait 20 to 30 minutes to allow the vacuum cleaner to cool down completely. It will then be ready for use again.
• Keep the nozzle and the tubes away from the body while the vacuum cleaner is running. This could cause serious injury, for example to the eyes or ears.
• Never roll the appliance over the cord.
• Switch off the appliance and remove the plug from the wall socket in the event of a malfunction during use, and before emptying the appliance, cleaning the appliance, fitting or removing an accessory, or storing the appliance after use.
• Do not pick up the appliance if it falls into water. Remove the plug from the wall socket immediately. Do not use the appliance any more.
• Never immerse the appliance, the power cord or the plug in water or other liquid. After washing the filters make sure they are thoroughly dry before returning them to the appliance.

TECHNICAL INFORMATION

Type: A1500SR/D1500SP

Output: 1500W max

Power supply: 230V \~ 50Hz

THE ENVIRONMENT

- Dispose of packaging material, such as plastic and boxes, in the appropriate waste containers. When this product reaches the end of its useful life do not dispose of it by putting it in a dustbin; hand it in at a collection point for the reuse of electrical and electronic equipment. Please refer to the symbols on the product, the user's instructions or the packaging.

• The materials can be re-used as indicated. Your help in the re-use, recycling or other means of making use of old electrical equipment will make an important contribution to the protection of the environment.
• Contact your municipality for the address of the appropriate collection point in your neighbourhood.

OPERATION - General

The appliance is intended only for domestic use, not for professional use.

use, not for professional use. 8 7 11 12 3 9 2 4 5 10 6 atures

1. Hose opening
2. Cable reel-in button
3. Vacuum-cleaner handle
4. On/Off switch
5. Rear wheels
6. Dust receptacle
7. Hose
8. Grip with adjustable air opening
9. Release button
10. Crevice tool and round brush
11. Telescopic tube
12. Combi nozzle

Figure 1 Features

OPARATION - Use

1. Rotate the hose connector into the hose opening on the motor unit to the right (see Figure 2a). To remove the hose, rotate the connector to the left and pull the connector from the hose opening.
2. The power cord has a yellow and red mark, see Figure 2b. Pull out the cord to the yellow mark.

Never pull out the power cord beyond the d mark. This could damage the power cord.

Figure 2

1. Insert the plug in the wall socket, and press the On/Off switch. To switch off the appliance, press the On/Off switch again. (see Figure 2c).

2. Slide the telescopic tubes onto the hose handle, see Figure 3a.

3. Press the button on the telescopic tubes and keep it pressed in; you can then extend or retract the tubes to the required length. See Figure 3b.
4. Press the foot button on the nozzle to set the combi nozzle for use on hard or soft surfaces, see Figure 3c. For use on hard surfaces, press the foot button on the combi nozzle to extend the brushes. Lift the button for use on soft surfaces. Figure 3

a c b

Illustration of a vacuum cleaner with labeled parts (a, b, c) and a curved tube component (no text or symbols beyond labels)

1. The appliance is now ready for use. You can move the vacuum cleaner while you are cleaning by pulling on the hose grip. You can lift the appliance with the vacuum cleaner's handle.

If so required, you can also reduce the suction quickly by moving the slide on the hose grip.

ACCESSOIRIES

This vacuum cleaner is supplied with one combined accessory:

- a crevice tool with a narrow nozzle, which you can use to clean radiators, window frames, crevices, small openings, and similar.

- a small brush, which you can use to clean delicate or irregular surfaces, furniture, Venetian blinds, and similar.

Two hand-drawn diagrams of a garment sleeve, one with a waistband and the other with a zipper (no text or symbols)

Figure 4

OPARATION - Storage after use

1. Remove the plug from the wall socket.

2. Press the rewind button and keep it pressed in; the power cord will automatically rewind onto the reel.

Guide the power cord whilst it rewinds onto the reel, since otherwise the cord could become tangled or the plug could strike the back of the appliance. Take hold of the power cord near the mark, and allow it to gently slide through your fingers back into the appliance, see Figure 5a.

1. Storing the vacuum cleaner, see Figure 5b.

Figure 5

b a

CLEANING AND MAINTENANCE - Cleaning the housing

1. Remove the plug from the wall socket.
2. Clean the outer surface of all parts with a damp cloth and a cleaner suitable for plastics.
3. Over the course of time dust and dirt can accumulate around the wheel axles, thereby preventing the wheels from turning easily. Consequently they should be kept clean.

- Never immerse the appliance, plug or power cord in water.

- Never use corrosive or scouring cleaning agents or sharp objects (such as knives or hard brushes) to clean the appliance.

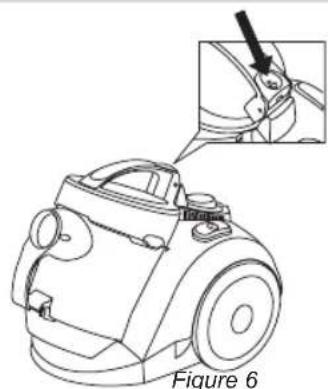

CLEANING AND MAINTENANCE - Removing waste from the dust receptacle

Line drawing of a vacuum cleaner with an inset showing the component detail (no text or symbols)

a

Line drawing of a vacuum cleaner with two views showing internal components (no text or symbols)

b

Line drawing of a portable vacuum cleaner with wheels and handle (no text or symbols)

1. Remove the plug from the wall socket.
2. Remove the hose.

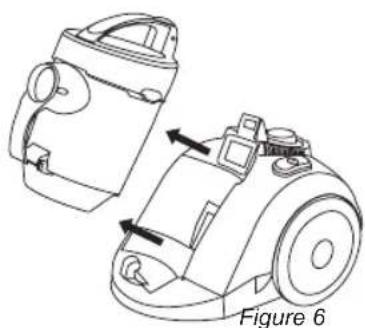

3. Remove the dust receptacle by pressing the release button on the dust receptacle (see Figure 6a) and pulling on the receptacle, and hold it above a waste-bin.
4. Press the button in the handle to open the bottom flap (see Figure 6b).

5. If so required, use your hand to remove any waste sticking to the receptacle.

6. Close the bottom flap, and press until it clicks into place.

7. Fit the dust receptacle onto the appliance, and click it into position.

CLEANING AND MAINTENANCE - Cleaning or replacing the HEPA filter

For best results clean or replace the HEPA filter after every second or third use of the vacuum cleaner, or more frequently if the filter is visibly blocked.

Clean the HEPA filter regularly to avoid that the filter becomes clogged and the engine overheated.

1. Remove the waste from the dust receptacle (see "Removing waste from the dust receptacle").
2. Turn the cover/filter from the dust receptacle.
3. Turn the HEPA filter anti-clockwise to release it, and then remove it from the cover.
4. Rinse both thoroughly in lukewarm water.
5. Allow the HEPA filter and the holder to dry thoroughly.
6. Fit the holder and HEPA filter to the dust receptacle in the reverse sequence. If necessary, replace the HEPA filter.

Line drawing of a portable blender with handle and spout (no text or symbols)

Line drawing of a handbag and a spool with rotational arrows indicating rotation (no text or symbols)

Figure 7

• Water could penetrate into the appliance if the filter is not thoroughly dry. This could result in (electrical) damage.

• Do not clean the filter in a washing machine.
• Do not dry the filter with a hairdryer.

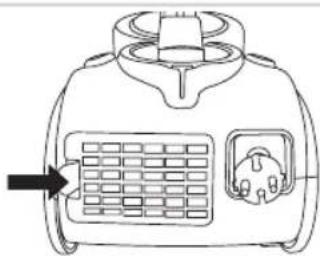

CLEANING AND MAINTENANCE - Cleaning or replacing the exhaust filter

Replace the exhaust filter at least twice a year, and more frequently if the filter is visibly blocked.

1. Remove the plug from the wall socket.
2. Open the exhaust-filter cover by pulling on the lip on the cover. Remove the exhaust filter from the appliance, see Figure 8.
3. Rinse the filter in lukewarm water. Allow it to dry thoroughly.
4. Return the cleaned filter to the appliance. Close the cover, and press until it clicks into place.

Line drawing of a portable electric stove with front panel and side outlets (no text or symbols)

Figure 8

Water could penetrate into the appliance if the filters are not thoroughly dry. This could result in (electrical) damage.

GUARANTEE TERMS

The importer guarantees the appliance against defects caused by manufacturing and/or material faults for 60 months from the date of purchase, subject to the following conditions.

1. No charges will be made for labour costs or materials during the warranty period. Any repairs carried out during the warranty period do not extend the warranty period.

2. The importer automatically becomes the owner of any faulty parts that he replaces or a faulty appliance (in the event of replacement of the appliance).

3. All claims submitted under warranty must be accompanied by the original bill of sale.

4. Claims under warranty must be submitted to the dealer where the appliance was purchased or to the importer.

5. The warranty is issued solely to the first purchaser and cannot be transferred.

6. The warranty does not cover damage caused by:

a. Accidents, incorrect use, wear and/or neglect.
b. Faulty installation and/or use in a manner contravening the prevailing legal, technical or safety regulations.

c. Connection to a mains voltage other than the voltage specified on the type plate.

d. Unauthorized modifications.

e. Repairs carried out by third parties.

f. Careless transport, i.e. without suitable packaging materials or protection.

1. No claims may be made under this warranty for:

a. Losses incurred during transport.
b. The removal or changing of the appliance's serial number.
8. The guarantee does not cover power cords, lamps or glass parts.
9. No claims can be submitted under this warranty for damage other than the repair or replacement of faulty parts. The importer can never be held responsible for any consequential loss or damage or any other consequences, resulting either directly or indirectly from the appliance supplied by the importer.
10. In case of claims under guarantee you can contact your dealer where the appliance is purchased. Bestron offers you also the possibility to send the appliance directly to our Service Department. Do not send your appliance without consulting us. The package may be refused and any any costs will be for your account. Please contact the Service Department and they will tell you how to pack and send the appliance.
11. This appliance is not suitable for professional use.

SERVICE

If a fault should occur please contact the BESTRON service department:

THE NETHERLANDS:

BESTRON NEDERLAND BV

Bestron Service

Moeskampweg 20

5222 AW 's-Hertogenbosch

Tel: +31 (0) 73 - 623 11 21

Fax: +31 (0) 73 - 621 23 96

Email: [e-mail]

Internet: www.bestron.com

CE DECLARATION OF CONFORMITY

This product conforms to the essential requirements of the following EU safety directives:

• EMC Directive 2004/108/EC
• Low Voltage Directive 2006/95/EC

R. Neyman

Quality control

Illustration of a vacuum cleaner with labeled parts (a, b, c) and directional arrows indicating motion (no text or symbols beyond labels)

Figura 3

Two hand-drawn diagrams of a bag with a zipper, showing different designs (no text or symbols)

Figura 4

Line drawing of a vacuum cleaner with a close-up inset showing the component (no text or symbols)

a

Line drawing of a vacuum cleaner with attached housing and mounting bracket (no text or symbols)

b

Line drawing of a portable vacuum cleaner with wheels and control panel (no text or symbols)

Line drawing of a portable blender with a handle and spout, labeled Figura 7 (no text or symbols on the device itself)

Illustration of a car and a cylindrical component with rotational arrows (no text or symbols)

Line drawing of a portable air conditioner unit with vent, grille, and socket (no text or symbols)

Diagram of a vacuum cleaner with labeled parts (a, b, c) and directional arrows indicating motion or movement (no text or symbols beyond labels)

Two hand-drawn diagrams of a bag with a zipper, showing front and side views (no text or symbols)

Figura 4

Line drawing of a vacuum cleaner with an inset showing the component being adjusted (no text or symbols present)

a

Line drawing of a vacuum cleaner with internal components and directional arrows indicating assembly (no text or symbols)

b

Line drawing of a portable soap dispenser with wheels and handle (no text or symbols)

Line drawing of a portable blender with a handle and spout, showing internal structure and rotation arrow (no text or symbols)

Illustration of a car and a cylindrical brush with rotation arrows (no text or symbols)

Line drawing of a portable electric heater with ventilation grilles and power socket (no text or symbols)

Figura 8

Line drawing of a vacuum cleaner device (no text or symbols)

BESTRON®

A1500SR/D1500SP

v021013-08
