A1800S - Vacuum Cleaner BESTRON - Free user manual and instructions

Brand	Bestron
Model	A1800S
Product type	Bagless vacuum cleaner
Power	1800 W (max)
Mains voltage	230 V ~ 50 Hz
Filtration system	Washable HEPA filter, exhaust air filter
Dust container	Bagless, manual emptying
Included accessories	Crevice tool, round brush, telescopic tube, floor nozzle
Cord length	Approx. 5 m (with yellow and red marks)
Cord rewinder	Yes, rewinding button
Warranty	60 months (parts and labor)
Intended use	Household use only
Filter cleaning	HEPA filter: rinse with lukewarm water and dry completely; exhaust filter: same
Filter replacement frequency	At least 2 times per year (or more if clogged)
Wheel maintenance	Clean regularly to prevent blockage
Safety	Do not vacuum hot substances, sharp objects, liquids; do not use without filter
Certifications	EMC 2004/108/EC, Low Voltage 2006/95/EC
After-sales service	Bestron Service (Belgium and France)

Frequently Asked Questions - A1800S BESTRON

How do I connect the hose to the Bestron A1800S vacuum cleaner?

Turn the hose onto the motor block until it clicks. To detach, turn it to the left and pull.

How do I adjust the length of the telescopic tube?

Press the button on the rigid tubes and hold it while sliding the tubes to the desired length.

How do I adapt the floor nozzle to hard or soft floors?

Use the tip of your foot to operate the position switch: pressed for hard floors (brush out), raised for soft floors.

How do I empty the dust container?

Unplug the device, remove the hose, press the release button to remove the container, then open the bottom flap by pressing the handle button. Empty and close until it clicks.

How do I clean the HEPA filter?

Remove the container cover, turn the HEPA filter to the left to remove. Rinse it with lukewarm water as well as the filter holder, let dry completely, then reassemble.

How often should the HEPA filter be replaced?

At least twice a year, or more often if the filter is clogged. It is recommended to clean it regularly to prevent motor overheating.

How do I clean the exhaust air filter?

Unplug the device, open the exhaust filter cover by pulling on the rim, remove the filter, rinse it with lukewarm water, dry it completely, then put it back and close the cover.

What should I do if the power cord is damaged?

Do not use the device. Have the cord replaced by a qualified technical service (e.g., Bestron after-sales service).

Can the Bestron A1800S vacuum cleaner pick up liquids?

No, never use this vacuum cleaner to pick up liquids or wet waste. This could seriously damage the appliance and filters.

How do I benefit from the 60-month warranty?

Keep the proof of purchase. In case of defect, contact your dealer or Bestron after-sales service. Repairs under warranty are free for parts and labor, but do not extend the warranty.

USER MANUAL A1800S BESTRON

Line drawing of a vacuum cleaner with visible wheels and mounting brackets (no text or symbols)

EN User's instructions, Turbine vacuum cleaner

Technical diagram of a vacuum cleaner with numbered parts for identification and assembly reference.

Figuur 1 Overzicht

Illustration of a vacuum cleaner with labeled parts A and B, showing internal structure and movement arrows (no text or symbols present)

Simple line drawing of a mechanical component with an arrow indicating downward motion (no text or symbols)

Line drawing of a vacuum cleaner with attached power plug, showing internal components and wiring (no text or symbols)

Line drawing of a vacuum cleaner with a black arrow pointing to the component (no text or symbols present)

Line drawing of a vacuum cleaner with attached electrical plug (no text or symbols)

Line drawing of a vacuum cleaner with a downward arrow indicating the component (no text or symbols present)

Line drawings of a vacuum cleaner with labeled parts, showing front and side views (no text or symbols present)

Line drawing of a portable water dispenser with wheels and handle (no text or symbols)

Figuur 11

Diagram illustrating the process of a portable air conditioner with labeled parts including a fan, brush, and water drop.

Line drawing of a vehicle's internal components with arrows indicating movement or assembly (no text or symbols)

Abstract line drawing with intertwined curves and a straight line (no text or symbols)

Staubsauger

Illustration of a vacuum cleaner with labeled parts A and B, showing internal structure and movement arrows (no text or symbols on the device itself)

Line drawing of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Line drawing of a vacuum cleaner with attached power plug, showing wiring and airflow direction (no text or symbols)

Line drawing of a vacuum cleaner with a black arrow pointing to the component (no text or symbols present)

Line drawing of a vacuum cleaner connected to a cord with an attached plug (no text or symbols)

Line drawing of a vacuum cleaner with a handle and spool, showing mechanical components and a downward arrow indicating assembly (no text or symbols)

Line drawings of a vacuum cleaner with labeled parts, showing front and side views (no text or symbols present)

Line drawing of a cylindrical water dispenser with wheels and handle (no text or symbols)

Abbildung 11

Illustration of a portable air purifier with four different components and airflow direction (no text or symbols)

Line drawing of a mechanical device with two arrows pointing to internal components (no text or symbols)

Abstract line drawing with intertwined curves and a looped shape (no text or symbols)

Two views of a vacuum cleaner: (A) straight pipe with handle and (B) vertical arm with adjustment arrows (no text or symbols)

Line drawing of a cleaning or cleaning tool with a handle and arrow indicator (no text or symbols)

Line drawing of a vacuum cleaner with attached power plug, showing airflow direction (no text or symbols)

Line drawing of a vacuum cleaner with a downward arrow indicating the component (no text or symbols present)

Line drawing of a vacuum cleaner with attached power cord (no text or symbols)

Line drawing of a vacuum cleaner with a downward arrow indicating the component (no text or symbols present)

Line drawings of a vacuum cleaner with labeled parts, showing front and side views (no text or symbols present)

Line drawing of a cylindrical water dispenser with wheels and a handle (no text or symbols)

Figure 11

Illustration of a portable blender with three different components and a faucet, showing mechanical parts and flow direction (no text or symbols)

Line drawing of a tank interior with ventilation grilles and two directional arrows indicating movement or flow (no text or symbols)

Two symbolic icons: a tree above a circular symbol and a crossed-out trash bin below a horizontal line (no text or labels)

Environnement

Abstract line drawing with intertwined curves and a looped shape (no text or symbols)

Vacuum cleaner

Congratulations with the purchase of your compact 1800W vacuum cleaner, which is equipped with a revolutionary centrifugal suction system. The appliance has a unique and easy-to-clean filter system and dust separator; consequently you no longer need to buy expensive dust bags.

Safety Instructions

General

• Please read these instructions carefully and retain them for reference.
• Use this appliance solely in accordance with these instructions.
• Use solely accessories recommended by the supplier. The use of other accessories may result in damage to the appliance, thereby creating hazards for the user.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.
• Have any repairs carried out solely by a qualified electrician. Never try to repair the appliance yourself.

Electricity and heat

• Before use please verify that the mains voltage is the same as indicated on the rating plate of the appliance.
  • Always remove the plug from the socket when the appliance is not in use.
• Remove the plug from the wall socket by pulling the plug, not the power cord.
• Check the appliance's power cord regularly to make sure it is not damaged. Do not use the appliance if the power cord is damaged. Have a damaged power cord replaced by a qualified repair service.
• When using an extension lead always make sure that the entire cable is unwound from the reel.
• Use solely approved extension leads.
• Avoid stumbling over the extension lead or power cord.
• Make sure the air vents are not covered or blocked.
• Make sure that the appliance, the power cord or the plug do not make contact with heat sources, such as a hot hob or naked flame.
  • Make sure that the appliance, the power cord and plug do not make contact with water.

During use

• Never use the appliance outdoors.
• Never use the appliance in a humid room.
  • Make sure that your hands are dry before touching the appliance, power cord or plug.
  • Take care when fitting the filter. Do not use the appliance if the filter is damaged or fitted incorrectly; this could damage the appliance.
• Do not use the appliance to suck up the following objects:
• glowing or burning objects
• glass splinters or other sharp objects
  • residues of plaster, cement, stone, soot, and similar
  • liquids, or moist dirt.

These objects could cause serious damage to the appliance and the filter system, and make it unsafe to use.

• Do not use the vacuum cleaner on wet rugs and carpets.
• Never insert objects in the air-exhaust vents.
  • Make sure that the suction and exhaust openings are open, and that the filter is

not blocked. Blockages will cause the appliance to overheat. Switch off the vacuum cleaner immediately! Once you have remedied the problem, wait 20 to 30 minutes to allow the vacuum cleaner to cool down completely. It will then be ready for use again.

• Keep the nozzle and the tubes away from the body while the vacuum cleaner is running. This could cause serious injury, for example to the eyes or ears.
• Never roll the appliance over the cord.
• Switch off the appliance and remove the plug from the wall socket in the event of a malfunction during use, and before emptying the appliance, cleaning the appliance, fitting or removing an accessory, or storing the appliance after use.
• Do not pick up the appliance if it falls into water. Remove the plug from the wall socket immediately. Do not use the appliance any more.
• Never immerse the appliance, the power cord or the plug in water or other liquid. After washing the filters make sure they are thoroughly dry before returning them to the appliance.

Operation

General

The appliance is intended only for domestic use, not for professional use.

Technical diagram of a vacuum cleaner with numbered parts and exploded view

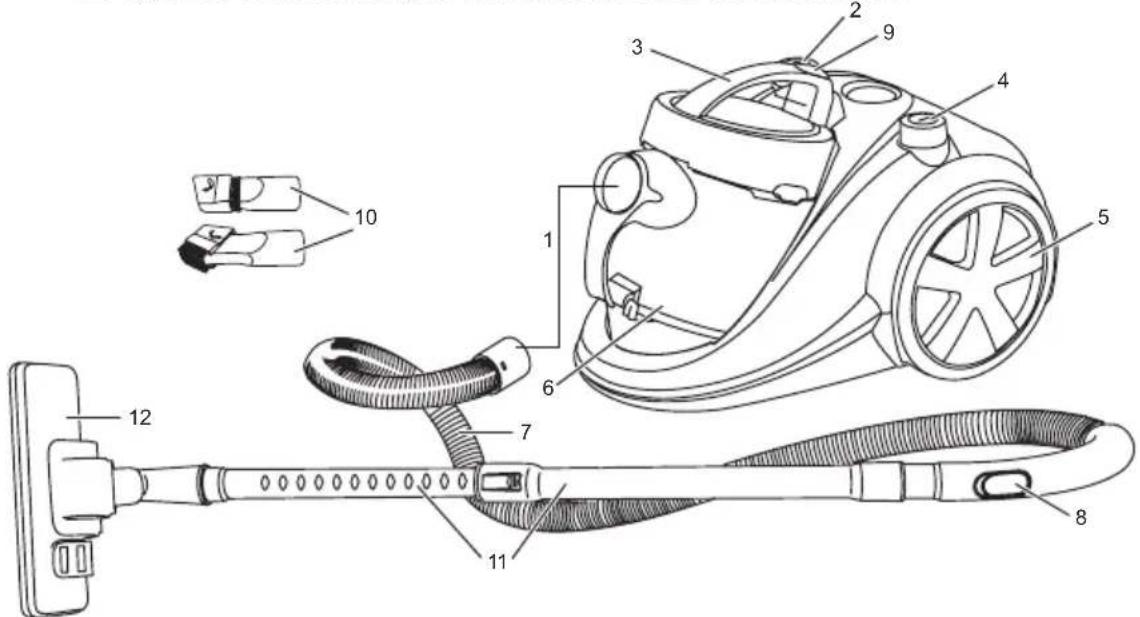

Figure 1 Features

1. Hose opening
2. Cable reel-in button
3. Vacuum-cleaner handle
4. On/Off switch
5. Rear wheels
6. Dust receptacle
7. Hose
8. Grip with adjustable air opening
9. Release button
10. Crevice tool and round brush
11. Telescopic tube
12. Combi nozzle

Use

Line drawing of a hand using a brush to clean or adjust a vacuum cleaner (no text or symbols present)

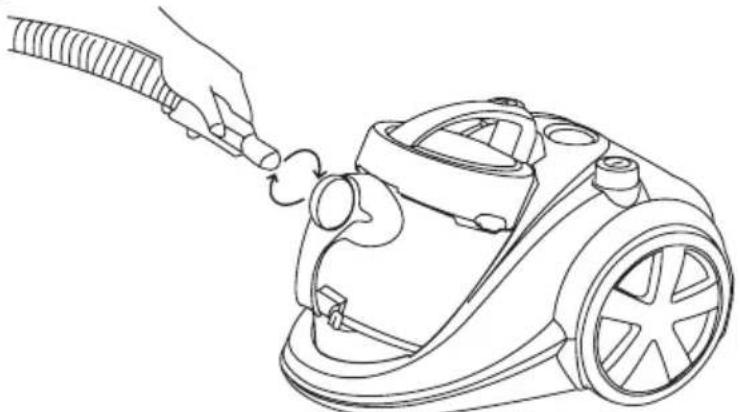

Figure 2 Fitting the hose to the connector

1. Rotate the hose connector into the hose opening on the motor unit to the right (see Figure 2). To remove the hose, rotate the connector to the left and pull the connector from the hose opening.

Two technical illustrations of a vacuum cleaner: one with a curved tube and labeled component A, the other with a vertical arrow indicating measurement or force (no text or symbols present)

Figure 3 Adjusting the length of the telescopic tubes

1. Slide the telescopic tubes onto the hose handle, see Figure 3A.
2. Press the button on the telescopic tubes and keep it pressed in; you can then extend or retract the tubes to the required length. See Figure 3B.

Line drawing of a mechanical component with a downward arrow indicating a force or direction (no text or symbols present)

Figure 4 Soft and hard surfaces

1. Press the foot button on the nozzle to set the combi nozzle for use on hard or soft surfaces, see Figure 4. For use on hard surfaces, press the foot button on the combi nozzle to extend the brushes. Lift the button for use on soft surfaces.

Line drawing of a vacuum cleaner connected to a plug, with arrows indicating airflow direction (no text or symbols)

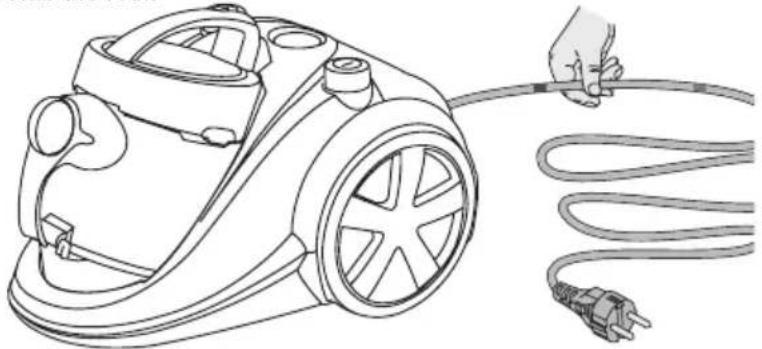

Figure 5 Markings on the power cord

1. The power cord has a yellow and red mark, see Figure 5. Pull out the cord to the yellow mark.

PLEASE NOTE

• Never pull out the power cord beyond the red mark. This could damage the power cord.
• Insert the plug in the wall socket, and press the On/Off switch. To switch off the appliance, press the On/Off switch again.

Line drawing of a vacuum cleaner with a downward arrow indicating the component (no text or symbols present)

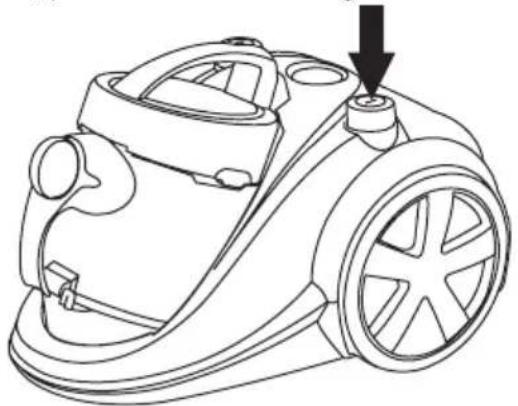

Figure 6 On/Off switch

1. The appliance is now ready for use. You can move the vacuum cleaner while you are cleaning by pulling on the hose grip. You can lift the appliance with the vacuum cleaner's handle.

Note If so required, you can also reduce the suction quickly by moving the slide on the hose grip.

Accessoires

Figure 7

This vacuum cleaner is supplied with one combined accessory:

• a crevice tool with a narrow nozzle, which you can use to clean radiators, window frames, crevices, small openings, and similar;
• a dusting brush, which you can use to clean delicate or irregular surfaces, furniture, Venetian blinds, and similar.

Storage after use

1. Remove the plug from the wall socket.
2. Press the rewind button and keep it pressed in; the power cord will automatically rewind onto the reel.

Line drawing of a vacuum cleaner with attached power cord (no text or symbols)

Figure 8 Rewinding the power cord

PLEASE NOTE

- Guide the power cord whilst it rewinds onto the reel, since otherwise the cord could become tangled or the plug could strike the back of the appliance. Take hold of the power cord near the mark, and allow it to gently slide through your fingers back into the appliance, see Figure 8.

Line drawing of a vacuum cleaner with a handle and spool, showing mechanical components and a downward arrow indicating assembly (no text or symbols present)

Figure 9 Storing the vacuum cleaner

Cleaning and maintenance

Cleaning the housing

1. Remove the plug from the wall socket.
2. Clean the outer surface of all parts with a damp cloth and a cleaner suitable for plastics.
3. Over the course of time dust and dirt can accumulate around the wheel axles, thereby preventing the wheels from turning easily. Consequently they should be kept clean.

PLEASE NOTE

• Never immerse the appliance, plug or power cord in water.
• Never use corrosive or scouring cleaning agents or sharp objects (such as knives or hard brushes) to clean the appliance.

Removing waste from the dust receptacle

1. Remove the plug from the wall socket.

Line drawing of a vacuum cleaner with two views showing internal components and adjustment arrows (no text or symbols)

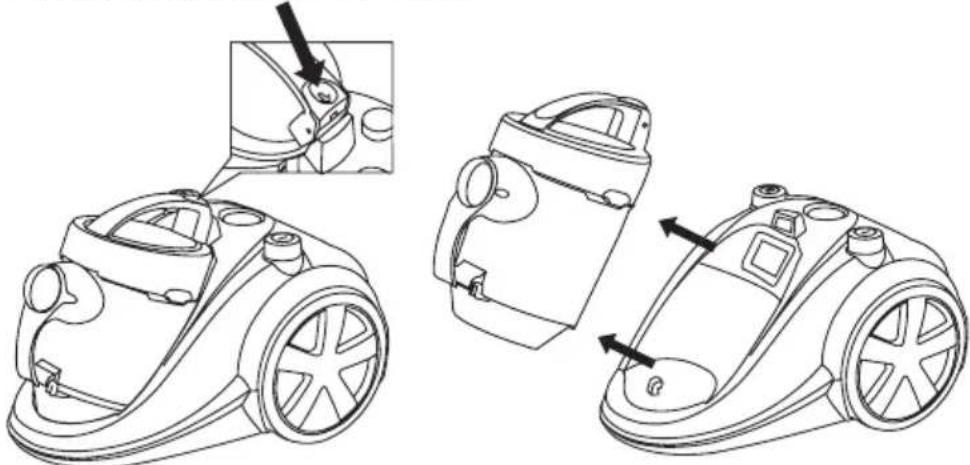

Figure 10 Removing waste from the dust receptacle

1. Remove the hose.
2. Remove the dust receptacle by pressing the release button on the dust receptacle (see Figure 10) and pulling on the receptacle, and hold it above a waste-bin.

Line drawing of a portable water dispenser with wheels and handle (no text or symbols)

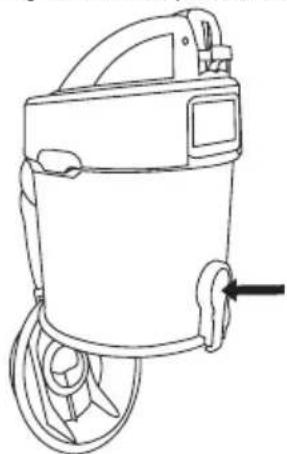

Figure 11

1. Press the button in the handle to open the bottom flap (see Figure 11).

2. If so required, use your hand to remove any waste sticking to the receptacle.

3. Close the bottom flap, and press until it clicks into place.
4. Fit the dust receptacle onto the appliance, and click it into position.

Cleaning or replacing the HEPA filter

For best results clean or replace the HEPA filter after every second or third use of the vacuum cleaner, or more frequently if the filter is visibly blocked.

NOTE Clean the HEPA filter regularly to avoid that the filter becomes clogged and the engine overheated.

1. Remove the waste from the dust receptacle (see "Removing waste from the dust receptacle").

le").

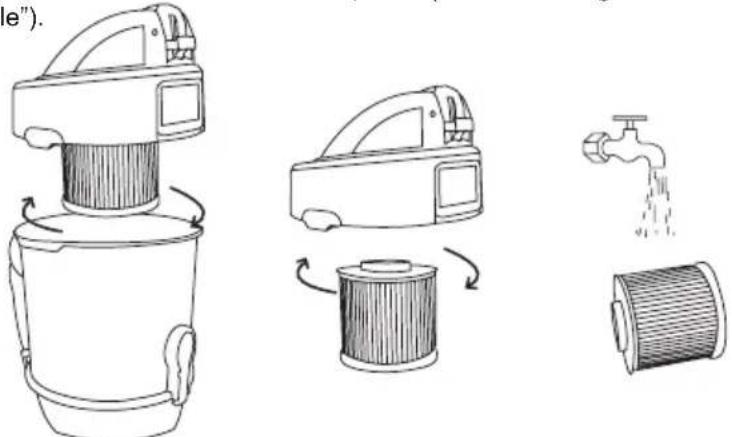

Figure 12 Removing the HEPA filter

1. Turn the cover/filter from the dust receptacle.
2. Turn the HEPA filter anti-clockwise to release it, and then remove it from the cover.
3. Rinse both thoroughly in lukewarm water.
4. Allow the HEPA filter and the holder to dry thoroughly.
5. Fit the holder and HEPA filter to the dust receptacle in the reverse sequence. If necessary, replace the HEPA filter.

PLEASE NOTE

• Water could penetrate into the appliance if the filter is not thoroughly dry. This could result in (electrical) damage.
• Do not clean the filter in a washing machine.
• Do not dry the filter with a hairdryer.

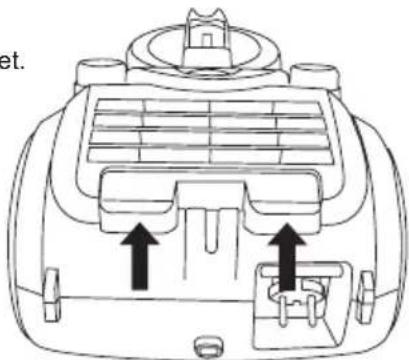

Cleaning of replacing the exhaust filter

Replace the exhaust filter at least twice a year, and more frequently if the filter is visibly blocked.

1. Remove the plug from the wall socket.

Line drawing of a tank's internal components with two arrows indicating movement or assembly (no text or symbols)

Figure 13 Removing the exhaust filter

1. Open the exhaust-filter cover by pulling on the lip on the cover. Remove the exhaust filter from the appliance, see Figure 13.
2. Rinse the filter in lukewarm water. Allow it to dry thoroughly.
3. Return the cleaned filter to the appliance. Close the cover, and press until it clicks into place.

PLEASE NOTE

- Water could penetrate into the appliance if the filters are not thoroughly dry. This could result in (electrical) damage.

Technical information

Type: A1800S

Output: 1800W max

Power supply: 230V \~ 50Hz

The environment

Dispose of packaging material, such as plastic and boxes, in the appropriate waste containers.

When this product reaches the end of its useful life do not dispose of it by putting it in a dustbin; hand it in at a collection point for the reuse of electrical and electronic equipment. Please refer to the symbols on the product, the user's instructions or the packaging.

The materials can be re-used as indicated. Your help in the re-use, recycling or other means of making use of old electrical equipment will make an important contribution to the protection of the environment.

Contact your municipality for the address of the appropriate collection point in your neighbourhood.

Warranty terms

The importer guarantees the appliance against defects caused by manufacturing and/or material faults for 60 months from the date of purchase, subject to the following conditions.

1. No charges will be made for labour costs or materials during the warranty period. Any repairs carried out during the warranty period do not extend the warranty period.
2. The importer automatically becomes the owner of any faulty parts that he replaces or a faulty appliance (in the event of replacement of the appliance).
3. All claims submitted under warranty must be accompanied by the original bill of sale.
4. Claims under warranty must be submitted to the dealer where the appliance was purchased or to the importer.
5. The warranty is issued solely to the first purchaser and cannot be transferred.
6. The warranty does not cover damage caused by:

a. Accidents, incorrect use, wear and/or neglect.
b. Faulty installation and/or use in a manner contravening the prevailing legal, technical or safety regulations.
c. Connection to a mains voltage other than the voltage specified on the type plate.
d. Unauthorized modifications.
e. Repairs carried out by third parties.

f. Careless transport, i.e. without suitable packaging materials or protection.

1. No claims may be made under this warranty for:

a. Losses incurred during transport.

b. The removal or changing of the appliance's serial number.

1. The guarantee does not cover power cords, lamps or glass parts.

2. No claims can be submitted under this warranty for damage other than the repair or replacement of faulty parts. The importer can never be held responsible for any consequential loss or damage or any other consequences, resulting either directly or indirectly from the appliance supplied by the importer.

3. In case of claims under guarantee you can contact your dealer where the appliance is purchased. Bestron offers you also the possibility to send the appliance directly to our Service Department. Do not send your appliance without consulting us. The package may be refused and any any costs will be for your account. Please contact the Service Department and they will tell you how to pack and send the appliance.

4. This appliance is not suitable for professional use.

Service

If a fault should occur please contact the BESTRON service department:

THE NETHERLANDS:

BESTRON NEDERLAND BV

BESTRON SERVICE

Moeskampweg 20

5222 AW 's-Hertogenbosch

Tel: +31 (0) 73 - 623 11 21

Fax: +31 (0) 73 - 621 23 96

Email: [e-mail]

Internet: www.bestron.com

CE Declaration of conformity

This product conforms to the essential requirements of the following EU safety directives:

• EMC Directive 2004/108/EC

- Low Voltage Directive 2006/95/EC

R. Neyman

Quality control

Abstract line drawing with intertwined curves and a looped shape (no text or symbols)

Aspirapolvere

Line drawing of a hand using a brush to clean or install a vacuum cleaner (no text or symbols present)

Two views of a vacuum cleaner: one with a curved tube and handle, the other with a vertical adjustment arrow (no text or symbols)

Line drawing of a mechanical component with a downward arrow indicating a force or direction (no text or symbols)

Line drawing of a vacuum cleaner with attached power plug, showing wiring and airflow direction (no text or symbols)

Line drawing of a vacuum cleaner with a black arrow pointing to the component (no text or symbols present)

Line drawing of a vacuum cleaner with attached power cord (no text or symbols)

Line drawing of a vacuum cleaner with a handle and spool, showing mechanical components (no text or symbols)

Line drawing of a vacuum cleaner with two views showing internal components and adjustment arrows (no text or symbols)

Line drawing of a portable water dispenser with wheels and handle (no text or symbols)

Figura 11

Illustration of a four-step cleaning or cleaning process: top-down view of a brush holder, top-down view of a paint roller, right-side view of a water tap with liquid, and bottom-right view of a cylindrical brush (no text or symbols)

Line drawing of a refrigerator interior with ventilation grilles and doorways (no text or symbols)

Abstract line drawing with intertwined curves and a looped shape (no text or symbols)

Aspirador

Technical diagram of a vacuum cleaner with numbered parts and exploded view, including attached components like connectors and tubing.

Figura 1 Partes del aparato

Line drawing of a hand using a brush to clean or install a vacuum cleaner (no text or symbols present)

Illustration of a handheld device with a curved handle and cylindrical body (no text or symbols)

Diagram of a vacuum cleaner with directional arrows indicating motion (no text or symbols)

Line drawing of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Line drawing of a vacuum cleaner connected to a power plug, with arrows indicating airflow direction (no text or symbols)

Line drawing of a vacuum cleaner with a black arrow pointing to the handle (no text or symbols present)

Two diagrams showing a mechanical component with curved arrows indicating rotation or movement (no text or symbols present)

Figura 7

Line drawing of a vacuum cleaner with attached power cord (no text or symbols)

Line drawing of a vacuum cleaner with a handle and spool, showing mechanical components and a downward arrow indicating assembly (no text or symbols)

Line drawings of a vacuum cleaner with labeled parts, showing front and side views (no text or symbols)

Line drawing of a portable water dispenser with wheels and handle (no text or symbols)

Figura 11

Diagram showing four types of household appliances: a blender, a fan-shaped filter, a water tap, and a coiled fan.

Figura 12 Quitar el filtro HEPA

Line drawing of a vehicle's front panel showing vent, air gap, and door (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or restriction (no text present)

Medio ambiente

Abstract line drawing with intertwined curves and a looped shape (no text or symbols)

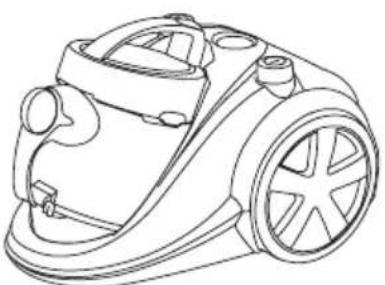

Line drawing of a vacuum cleaner with handle, wheels, and mounting feet (no text or symbols)

BESTRON®

A1800S

v 090715-06
