Bapi 7.0 Capsule - Blender TAURUS - Free user manual and instructions

Product type	Immersion blender (hand blender)
Brand	Taurus
Model	Bapi 7.0 Capsule
Power supply	220-240 V ~ 50/60 Hz
Power	300 W (estimation)
Speeds	Electronic speed control (10 positions)
Included accessories	Whisk, beaker 1 (approx. 0.5 L), beaker 2 (approx. 0.8 L)
Body material	Stainless steel and plastic
Dimensions (L x W x H)	Approx. 35 x 7 x 7 cm (main body)
Weight	Approx. 0.8 kg
Cable length	Approx. 1.2 m
Usage	Household only
Main functions	Blend, whisk, chop, emulsify
Maximum liquid temperature	Do not exceed 60 °C (hot liquids)
Continuous use time	1 minute maximum, then at least 1 minute rest
Thermal protection	Overheat safety device (automatic shut-off)
Cleaning blades	By hand with caution (sharp blades)
Dishwasher-safe parts	Whisk, beakers (gentle program)
Certifications	Compliant with directives 2006/95/EC and 2004/108/EC
Warranty	2 years (depending on country)

Frequently Asked Questions - Bapi 7.0 Capsule TAURUS

What is the power of this Taurus Bapi 7.0 Capsule immersion blender?

The power is not precisely indicated in the manual, but for this type of household appliance, it is generally around 300 W.

How to adjust the speed?

Use the speed control (A) located on the motor body. Turn it to select the desired power among the 10 available levels.

Can I blend hot liquids?

Yes, but with caution. Only fill the beaker halfway and use the slowest speed. Avoid exceeding 60 °C to prevent splashing.

How long can I use the appliance continuously?

Do not exceed 1 minute of continuous use. After each cycle, let the appliance cool for at least 1 minute before using it again.

How to clean the whisk and beakers?

These parts can be washed in warm soapy water or in the dishwasher (gentle program). Dry them thoroughly after washing.

What to do if the appliance stops by itself?

This is probably the thermal protection device. Unplug the appliance and wait about 15 minutes before plugging it back in. If it does not restart, contact an authorized service.

Can I use this appliance to make mayonnaise?

Yes, with the whisk. Pour the ingredients (egg, salt, vinegar, oil) into the beaker and blend without moving the appliance until fully emulsified.

Are the blades removable?

The blades are not removable. Be very careful when cleaning as they are very sharp. Wipe them with a soft sponge.

Can I use this blender to crush ice?

Yes, set the speed to 10 and introduce the ice cubes into the beaker. Press each ice cube to crush them. Be careful not to exceed the capacity.

Where can I find spare parts?

Accessories (whisk, beakers) can be purchased separately from authorized technical support services. Use only original parts.

USER MANUAL Bapi 7.0 Capsule TAURUS

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

Español BAPI 7.0 INOX

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

Servicio:

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

Salsa bechamel

Velocidad: 4

Cantidad: 600 ml

Tiempo: 15s

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

Puré de patatas

Velocidad: 10

Cantidad: 400 g

Tiempo: 30s

Picar carne

Velocidad: 10

Cantidad: 40 g

Tiempo: 3s

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

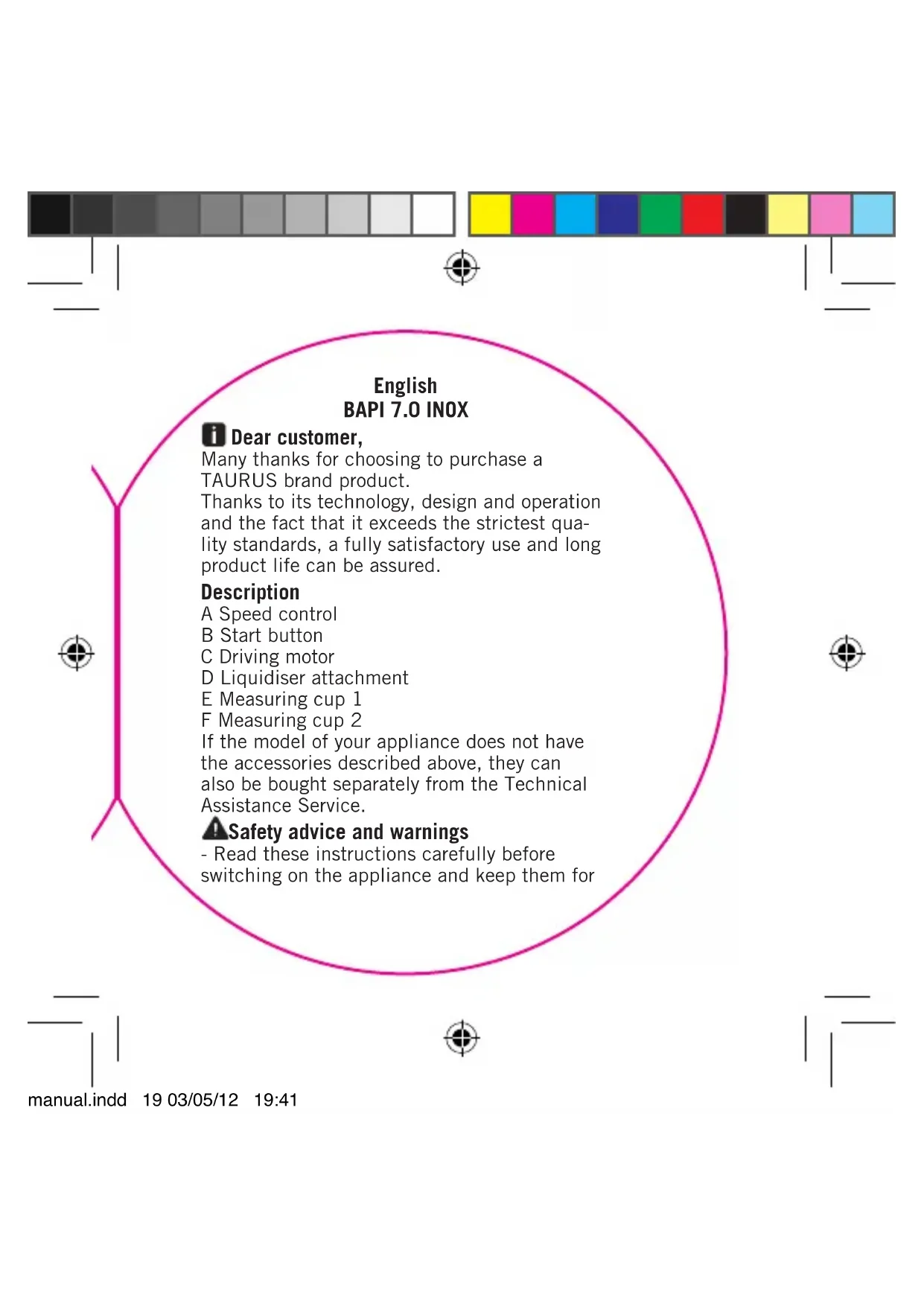

English BAPI 7.0 INOX

Dear customer,

Many thanks for choosing to purchase a TAURUS brand product. Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

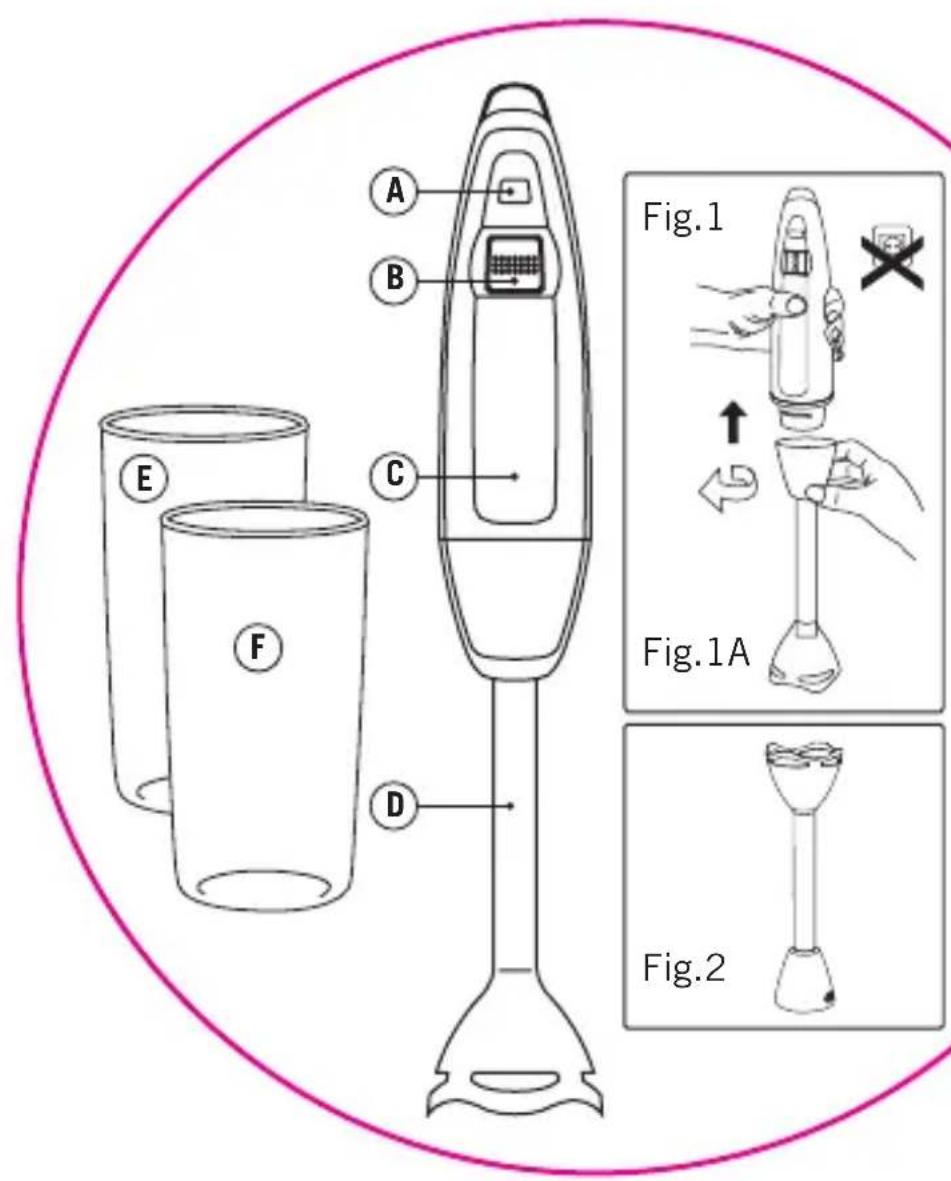

Description

A Speed control
B Start button
C Driving motor
D Liquidiser attachment
E Measuring cup 1
F Measuring cup 2
If the model of your appliance does not have the accessories described above, they can also be bought separately from the Technical Assistance Service.

Safety advice and warnings

- Read these instructions carefully before switching on the appliance and keep them for

future reference. Failure to follow and observe these instructions may result in an accident.

- Clean all the parts of the product that will be in contact with food, as indicated in the cleaning section, before use.

Use or working environment:

- Keep the working area clean and well lit. Cluttered and dark areas invite accidents.

Electric safety:

• Do not use the appliance if the cable or plug is damaged.
• Ensure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance.
• Connect the appliance to a base with an earth socket withstanding a minimum of 10 amperes.
• The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.
• Do not use or store the appliance outdoors.
• If any of the appliance casings breaks,

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.

• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• Do not use the appliance with damp hands or feet, or when barefooted.
• Never use the electric wire to lift up, carry or unplug the appliance.
• Do not wrap the cable around the appliance.
• Do not touch the plug with wet hands.

Personal safety:

• Take the necessary measures to avoid starting the appliance involuntarily.
• Do not touch any of the appliance's moving parts while it is operating.
• The temperature of the accessible surfaces may be high when the appliance is in use.

Use and care:

- Fully unroll the appliance's power cable before each use.

- Do not use the appliance if its accessories are not properly fitted.

- Do not use the appliance if it is empty.

- Do not use the appliance while the goblet is empty.

- Do not use the appliance if the on/off switch does not work.

- Do not force the appliance's work capacity.

-Do not add a volume of hot liquid greater than half of the total capacity of the goblet, and whenever there are hot liquids inside the goblet ensure that only the slowest speed is used.

- Disconnect the appliance from the mains when not in use and before undertaking any cleaning task.

- Unplug the appliance from the mains before replacing any accessory.

- This appliance is for household use only, not professional or industrial use.

- Ensure that this product is not used by the disabled, children or people unused to its handling.

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

- This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.

- This appliance should be stored out of reach of children and/or the disabled.

- Keep the appliance in good condition. Check that the moving parts are not misaligned or locked and make sure there are no broken parts or anomalies that may prevent the appliance from operating correctly.

- Keep cutting tools well sharpened and clean.

- Do not use the appliance for longer than 1 minute at a time, or to complete cycles lasting more than 5 minutes. In the latter case always ensure rest periods of at least 1 minute between cycles.

- The table adjoined contains example recipes with ingredient quantities and operating times.

- Do not use the appliance on any part of the body of a person or animal.

- In view of the sharpness of the cutting blades, take extra care when adding or removing

accessories; proceed cautiously and avoid direct contact with the blades.

Service:

• Make sure that the appliance is serviced only by specialist personnel, and that only original spare parts or accessories are used to replace existing parts/accessories.
• Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

Instructions for use

Before use:

• Make sure that all the product's packaging has been removed.
• Before using the product for the first time, clean the parts that will come into contact with food in the manner described in the cleaning section.

Use:

- Unroll the cable completely before plugging it in.

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

• Connect the appliance to the mains.
• Work with the food you want to process.
• Select the desired speed.
• Turn the appliance on using the on/off switch.

Electronic speed control:

- The speed of the appliance can be regulated by using the speed regulator control (A). This function is very useful, as it makes it possible to adapt the power of the appliance to the type of work that needs to be done.

Once you have finished using the appliance:

• Turn the appliance off, using the on/off switch.
• Unplug the appliance to the mains.
• Clean the appliance

Accessories:

Stick blender accessory (Fig.1)

• This accessory is used to make sauces, soups, mayonnaise, milkshakes, baby food, crushed ice, etc.
• Attach the stick blender to the motor body

by turning it in the direction indicated by the arrow (Fig.1A).

• Pour the foodstuffs into the sieve and operate it by pressing the start button.
• Detach the stick blender by turning it in the opposite direction to the arrow and remove it for later cleaning.

Safety thermal protector:

• The appliance has a safety device, which protects the appliance from overheating.
• If the appliance turns itself off and does not switch itself on again, disconnect it from the mains supply, and wait for approximately 15 minutes before reconnecting. If the machine does not start again seek authorised technical assistance.

Cleaning

Disconnect the appliance from the mains and let it cool before undertaking any cleaning task.

- Clean the equipment with a damp cloth

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

with a few drops of washing-up liquid and then dry.

- Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.

- Do not submerge the appliance in water or any other liquid, or place it under a running tap.

- During the cleaning process, take special care with the blades, as they are very sharp.

- It is advisable to clean the appliance regularly and remove any food remains.

- If the appliance is not in good condition of cleanliness, its surface may degrade and inexorably affect the duration of the appliance's useful life and could become unsafe to use.

The appliance is suitable for cleaning in hot soapy water or in a dishwasher (using a soft cleaning program):

- Liquidiser attachment

- Measuring cup 1

- Measuring cup 2

- The draining/drying position for washable parts in dishwashers or after washing by hand in a sink must allow for water to drain easily (Fig.2).

Anomalies and repair

- Take the appliance to an authorised technical support service if problems arise. Do not try to dismantle or repair without assistance, as this may be dangerous.

- If the connection to the mains has been damaged, it must be replaced and you should proceed as you would in the case of damage. For EU product versions and/or in case that it is requested in your country:

Ecology and recyclability of the product

- The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public recycling bins for each type of material.

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

The product does not contain concentrations of substances that could be considered harmful to the environment

- This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective action of waste electrical and electronic component (WEEE)

This appliance complies with Directive 2006/95/EC on Low Voltage and Directive 2004/108/EC on Electromagnetic Compatibility.

PREPARATION OF FOODSTUFFS

Mayonnaise

Speed: 2

Quantity: 250 ml

Time: 35 s

Preparation: Put 1 egg in the jug with a pinch of salt and some drops of vinegar or lemon. Add oil until the indicated level.

Turn the appliance on without moving until the oil binds.

Fruit smoothies

Speed: 8

Quantity: ----

Time: ----

Preparation: Add fruit and activate the blender until the mixture has a smooth consistency.

Béchamel sauce

Speed: 4

Quantity: 600 ml

Time: 15 s

Preparation: Melt 30 gr. of butter in a pan on a slow heat. Add 100 gr. of flour and 30 gr. of fried onions (already cut up with the slicer). Slowly add 500 ml of milk.

Crushed ice

Speed: 10

Quantity: 4/6 cubes

Time: 15 s

Preparation: Put the ice cubes in the jug and crush by exerting pressure on each ice cube.

Mashed potato

Speed: 10

Quantity: 400 g

Time: 30 s

Preparation : The potatoes can be sliced by activating the blender directly in the saucepan directly.

Baby food: fruit and biscuit mush

Speed: 10

Quantity: 300 g

Time: 25 s

Preparation : Cut up and place 100 gr. of apple, 100 gr. of banana, 50 gr. of biscuits and the juice of one orange in the jug.

Chopped meat

Speed: 10

Quantity: 40 g

Time: 3 s

Preparation : Dice the meet into 1 cm chunks and chop until the desired texture is obtained.

Chopped Spanish Serrano ham

Speed: 10

Quantity: 60 g

Time: 3 s

Preparation : Dice the ham into 1 cm chunks. Chop until the desired texture is obtained.

Français

BAPI 7.0 INOX

i Cher Client,

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

Usage :

Accessoires :

Accessoire fouet (Fig.1):

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

PRÉPARATION DES ALIMENTS

Sauce mayonnaise

Vitesse: 2

Quantité: 250 ml

Temps: 35 s

Sauce béchamel

Vitesse: 4

Quantité: 600 ml

Temps: 15 s

Viande hachée

Vitesse: 10

Quantité: 40 g

Temps: 3 s

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

ficha eléctrica.

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

Controlo electrónico da velocidade:

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

Molho bechamel

Velocidade: 4

Quantidade : 600 ml

Tempo: 15 s

Puré de batata

Velocidade: 10

Quantidade : 400 g

Tempo: 30 s

OPicar carne

Velocidade: 10

Quantidade : 4 g

Tempo: 3 s

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

• Para obtener un listado actualizado de los Servicios de Atención Técnica puede consultar en:
• For an updated list of Technical Assistance Services consult at:
• Para uma lista atualizada de Serviços de assistência técnica consultar em:
• Pour une liste actualisée des services d'assistance technique consultez:

[phone]

www.taurus.es

Net weight: 1,07 kg

Gross weight: 1,13 kg
