USER MANUAL Sonicare FlexCare+ HX6995 PHILIPS

©2009 Koninklijke Philips Electronics NV (KPENV).

All rights reserved. PHILIPS and the Philips shield are

registered trademarks of KPENV. Quadpacer, Sonicare, and the Sonicare logo are trademarks of Philips Oral Healthcare, Inc. and/or KPENV.Printed in the U.S.A. Printed on 100% recycled paper.

Protected by U.S. and international patents.

Other patents pending. Reg. U.S. Pat. & Tm. Off. 603930_FlexCarePLUS_DFU-02AW.indd 1 12/19/2008 11:07:47 AM2

A B C D E F G H I J N M L K

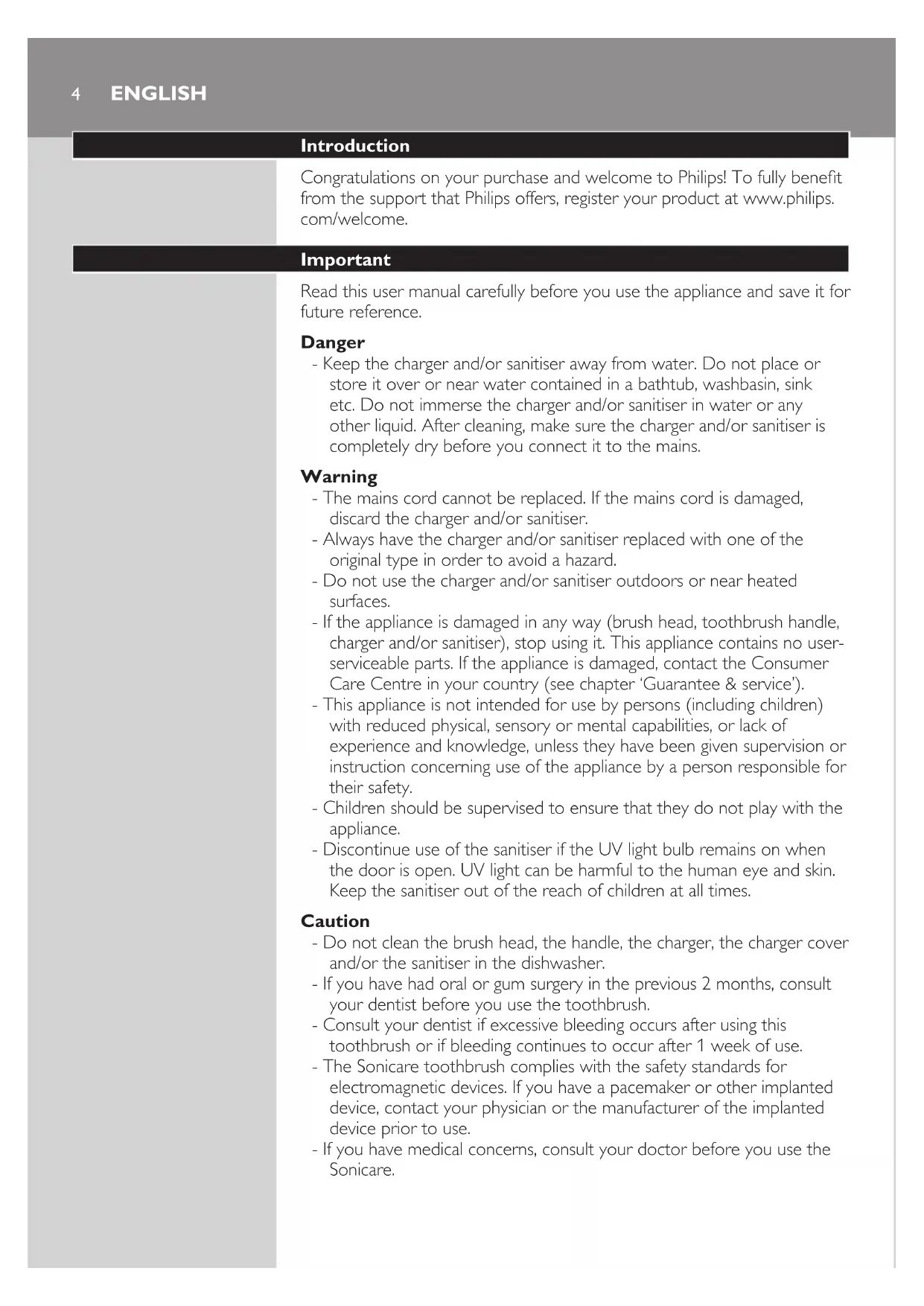

Congratulations on your purchase and welcome to Philips! To fully benet

from the support that Philips offers, register your product at www.philips.

Read this user manual carefully before you use the appliance and save it for

- Keep the charger and/or sanitiser away from water. Do not place or

store it over or near water contained in a bathtub, washbasin, sink

etc. Do not immerse the charger and/or sanitiser in water or any

other liquid. After cleaning, make sure the charger and/or sanitiser is

completely dry before you connect it to the mains.

- The mains cord cannot be replaced. If the mains cord is damaged,

discard the charger and/or sanitiser.

- Always have the charger and/or sanitiser replaced with one of the

original type in order to avoid a hazard.

- Do not use the charger and/or sanitiser outdoors or near heated

- If the appliance is damaged in any way (brush head, toothbrush handle,

charger and/or sanitiser), stop using it. This appliance contains no user-

serviceable parts. If the appliance is damaged, contact the Consumer

Care Centre in your country (see chapter ‘Guarantee & service’).

- This appliance is not intended for use by persons (including children)

with reduced physical, sensory or mental capabilities, or lack of

experience and knowledge, unless they have been given supervision or

instruction concerning use of the appliance by a person responsible for

- Children should be supervised to ensure that they do not play with the

- Discontinue use of the sanitiser if the UV light bulb remains on when

the door is open. UV light can be harmful to the human eye and skin.

Keep the sanitiser out of the reach of children at all times.

- Do not clean the brush head, the handle, the charger, the charger cover

and/or the sanitiser in the dishwasher.

- If you have had oral or gum surgery in the previous 2 months, consult

your dentist before you use the toothbrush.

- Consult your dentist if excessive bleeding occurs after using this

toothbrush or if bleeding continues to occur after 1 week of use.

- The Sonicare toothbrush complies with the safety standards for

electromagnetic devices. If you have a pacemaker or other implanted

device, contact your physician or the manufacturer of the implanted

device prior to use.

- If you have medical concerns, consult your doctor before you use the

ENGLISH- This appliance has only been designed for cleaning teeth, gums and

tongue. Do not use it for any other purpose. Stop using the appliance

and contact your doctor if you experience any discomfort or pain.

- Do not use other brush heads than the ones recommended by the

- If your toothpaste contains peroxide, baking soda or bicarbonate

(common in whitening toothpastes), thoroughly clean the brush head

with soap and water after each use. This prevents possible cracking of

- The UV light bulb is hot during and immediately after the sanitising

cycle. Do not touch the UV light bulb when it is hot.

- Do not operate the sanitiser without the protective screen in place to

avoid contact with a hot bulb.

Electromagnetic elds (EMF)

This Philips appliance complies with all standards regarding electromagnetic

elds (EMF). If handled properly and according to the instructions in this

user manual, the appliance is safe to use based on scientic evidence

C Interchangeable colour code ring

D Handle with soft grip

E Power on/off button

I UV sanitiser base with integrated charger and cord wrap (specic types

J UV sanitiser (specic types only)

K Deluxe charger (specic types only)

L Charger cover with brush head holder

N Charger base with cord wrap

- Not shown: UV light bulb

- Not shown: Sanitiser drip tray

- Not shown: Protective screen for UV light bulb

Changing the colour code ring

Sonicare brush heads come with interchangeable colour code rings to

identify your brush head.

To change the colour code ring:

ENGLISH 51 Pull the colour code ring from the bottom of the brush head.

2 Install a new ring by slipping one edge of the new ring over the

bottom of the brush head.

Attaching the brush head

1 Align the brush head so the bristles face the front of the handle.

2 Firmly press the brush head down on the metal shaft until it stops.

Note: There is a small gap between the colour code ring and the handle.

Charging your Sonicare

1 Put the mains plug of the charger or sanitiser in the wall socket.

2 Place the handle on the charger or sanitiser.

, The ashing light of the battery gauge indicates that the toothbrush

- 1 solid green LED indicates that the toothbrush is 34-66% charged.

- 2 solid green LEDs indicate that the toothbrush is 67-94% charged.

- 3 solid green LEDs indicate that the toothbrush is fully charged.

Note: If the battery charge of your Sonicare is low, you hear 3 beeps and 1

LED of the recharge gauge ashes yellow for 30 seconds after completing the

Note: To keep the battery fully charged at all times, you may keep your

Sonicare on the charger when not in use. Once the Sonicare is fully charged,

the charger draws minimal energy from the wall socket.

Note: It takes at least 24 hours to fully charge the battery.

ENGLISH6Using the Sonicare

Brushing instructions

1 Wet the bristles and apply a small amount of toothpaste.

2 Place the toothbrush bristles against the teeth at a slight angle

towards the gumline.

3 Press the power on/off button to switch on the Sonicare.

4 Apply light pressure to maximise Sonicare’s effectiveness and let the

Sonicare toothbrush do the brushing for you. Do not scrub.

5 Gently move the brush head slowly across the teeth in a small back

and forth motion so the longer bristles reach between your teeth.

Continue this motion throughout your brushing cycle.

Note: To make sure you brush evenly throughout the mouth, divide your mouth

into 4 sections using the Quadpacer feature (see chapter ‘Features’).

6 Begin brushing in section 1 (outside top teeth) and brush for 30

seconds before moving to section 2 (inside top teeth). Continue

brushing in section 3 (outside bottom teeth) and brush for 30

seconds before moving to section 4 (inside bottom teeth).

7 After you have completed the brushing cycle, you can

spend additional time brushing the chewing surfaces of your teeth

and areas where staining occurs. You may also brush your tongue,

with the toothbrush switched on or off, as you prefer.

Your Sonicare is safe to use on:

- Braces (brush heads wear out sooner when used on braces)

- Dental restorations (llings, crowns, veneers)

Sonicare automatically starts in the default Clean mode.

1 Prior to switching on the Sonicare, press the mode button to toggle

, The selected brushing mode illuminates.

, Once a brushing mode has been selected, it remains active until

another brushing mode is selected.

Note: When the toothbrush is switched on, you cannot toggle between modes.

The following brushing modes are available:

Complete whole mouth cleaning (2 minutes).

Complete whole mouth cleaning (2 minutes) plus gentle cleaning for

problem areas and along the gumline (1 minute).

Touch-up for a quick clean (1 minute).

Gentle cleaning for sensitive gums and teeth (2 minutes).

Gentle gum stimulation (2 minutes).

Note: When Sonicare is used in clinical studies, the default 2-minute Clean

mode must be selected. The handle has to be fully charged. Deactivate the

Easy-start feature. For areas where excess staining occurs, an additional 30

seconds of brushing time can be spent to help remove stains.

This Sonicare type comes with the Easy-start feature activated.

The Easy-start feature gently increases power over the rst 14 brushings to

help you get used to brushing with the Sonicare.

Note: Each of the rst 14 brushings must be at least 1 minute in length to

properly move through the Easy-start ramp-up cycle.

Deactivating or activating the Easy-start feature

1 Attach your brush head to the handle.

2 Place the handle on the plugged-in charger.

- To deactivate Easy-start:

Press and hold the power on/off button for 2 seconds. You hear 1 beep to

indicate that the Easy-start feature has been deactivated.

- To activate Easy-start:

Press and hold the power on/off button for 2 seconds. You hear 2 beeps to

indicate that the Easy-start feature has been activated.

Note: Using the Easy-start feature beyond the initial ramp-up period is not

recommended and reduces Sonicare’s effectiveness in removing plaque.

The Smartimer indicates that your brushing cycle is complete when

it automatically switches off the toothbrush at the end of the brushing

Dentists recommend brushing at least 2 minutes twice a day.

- The Quadpacer is an interval timer that has a short beep and pause to

remind you to brush the 4 sections of your mouth. Depending on the

brushing mode you have selected, the Quadpacer beeps at different

intervals during the brushing cycle. See section ‘Brushing modes’

in chapter ‘Using the Sonicare’.

The Quadpacer feature on this type has been activated. To deactivate or

reactivate the Quadpacer feature:

1 Place the handle with a brush head attached on the plugged-in

2 Press and hold the mode button for 2 seconds.

ENGLISH8, You hear 1 beep to indicate the Quadpacer has been deactivated or

you hear 2 beeps to indicate the Quadpacer has been activated.

Cord wrap on deluxe charger (specic types only)

If your type includes the deluxe charger cover and base, the travel charger

is pre-installed inside the cover. If you want to shorten the mains cord, you

can store excess cord in the cord wrap feature built into the charger base.

1 To separate the charger cover from the charger base, press the two

grey snap bars on the charger base and pull the white charger cover

2 Wrap excess power cord around the grey charger base as shown in

the picture. Be sure to wrap the cord on the inside of the two snap

3 When you have stored the excess cord, guide the mains cord

through the small groove in the rear of the grey charger base.

4 To reattach the charger cover, press it down over the charger base

until it snaps into place.

Tip: For extra convenience during travel, you can remove the travel charger and

use it without the charger cover and charger base.

Cord wrap on sanitiser with integrated charger (specic types

- If your type includes the sanitiser, you can store excess cord in the cord

wrap feature built into the bottom of the sanitiser.

EnglisH 9Sanitising (specic types only)

- With the UV sanitiser you can clean your brush head after every use.

Discontinue use of the sanitiser if the UV light bulb remains on when

the door is open or if the blue window is broken or missing from

the sanitiser. UV light can be harmful to the human eye and skin. This

appliance should be kept out of reach of children at all times.

Unplug the sanitiser and call Consumer Care if the sanitiser gives off

smoke or a burning smell while it is operating.

1 After brushing, rinse the brush head and shake off excess water.

Do not place the travel cap on the brush head during sanitisation.

2 Place your nger in the door recess on top of the sanitiser and pull

3 Place the brush head on one of the 2 pegs in the sanitiser.

- Make sure the bristles of the brush head directly face the light bulb.

Note: Only clean Sonicare ProResults brush heads in the sanitiser.

4 Make sure the sanitiser is plugged into the wall socket.

5 Close the door and press the green power on/off button once to

select the UV clean cycle.

Note: You can only switch on the sanitiser if the door is properly closed.

Note: The sanitiser stops if you open the door during the sanitising cycle.

Note: The sanitiser cycle runs for 10 minutes and then automatically switches

, The sanitiser is in operation when the blue light glows through the

, When the sanitising cycle is complete, the sanitiser automatically

Do not clean the brush head, handle, travel charger, charger cover and

the UV sanitiser in the dishwasher.

ENGLISH10Toothbrush handle

1 Remove the brush head and rinse the metal shaft area with warm

Do not push on the rubber seal on the metal shaft with sharp objects, as

this may cause damage.

2 Use a damp cloth to wipe the entire surface of the handle.

1 Rinse the brush head and bristles after each use.

2 Remove the brush head from the handle and rinse the brush head

connection at least once a week with warm water.

1 Unplug the charger.

2 Use a damp cloth to wipe the surface of the charger.

Sanitiser (specic types only)

Do not clean the sanitiser when the UV light bulb is hot.

For optimal effectiveness, it is recommended to clean the sanitiser weekly.

1 Unplug the sanitiser.

2 Pull the drip tray straight out. Rinse the drip tray and wipe it clean

3 Clean all reector surfaces with a damp cloth.

4 Remove the protective screen in front of the UV light bulb.

To remove the screen, grasp the edges next to the snaps, gently squeeze

5 Remove the UV light bulb.

To remove the light bulb, grasp it and pull it out of the metal clasp.

6 Clean the protective screen and the UV light bulb with a damp cloth.

7 Reinsert the UV light bulb.

To reinsert the light bulb, align the bottom of the light bulb with the metal

clasp and push the bulb into the clasp.

8 Reinsert the protective screen.

ENGLISH 11To reinsert the screen, align the pegs on the screen with the slots on the

reective surface near the UV light bulb. Push the screen straight into the

slots on the sanitiser.

- If you are not going to use the appliance for an extended period of

time, remove the mains plug from the wall socket. Then clean the

appliance and store it in a cool and dry place away from direct sunlight.

You can use the cord wrap feature to store the mains cord neatly.

- Replace Sonicare brush heads every 3 months to achieve optimal

- Use only compatible Sonicare replacement brush heads.

- You can order replacement UV light bulbs from the Consumer Care

Centre in your country or an authorised Philips service centre.

- The built-in rechargeable battery contains substances that may pollute

the environment. Always remove the battery before you discard and

hand in the appliance at an ofcial collection point. Dispose of the

battery at an ofcial collection point for batteries. If you have trouble

removing the battery, you can also take the appliance to a Philips

service centre. The staff of this centre will remove the battery for you

and will dispose of it in an environmentally safe way.

- Do not throw away the appliance or the UV light bulb (bulb contains

mercury) with the normal household waste at the end of its life, but

hand it in at an ofcial collection point for recycling. By doing this, you

help to preserve the environment.

Removing the rechargeable battery

Please note that this process is not reversible.

To remove the rechargeable battery, you need a at-head (standard)

1 To deplete the rechargeable battery of any charge, remove the

handle from the charger, switch on the Sonicare and let it run until

it stops. Repeat this step until you can no longer switch on the

ENGLISH122 Insert a at-head (standard) screwdriver into the slot located at the

bottom of the handle. Turn the screwdriver anticlockwise to release

3 Hold the handle upside down and push down on the shaft to release

the internal components of the handle.

4 Insert the screwdriver under the circuit board, next to the battery

connections, and twist to break the connections. Remove the circuit

board and pry the battery from the plastic carrier.

If you need information or if you have a problem, please visit the Philips

website at www.philips.com or contact the Philips Consumer Care Centre

in your country (you nd its phone number in the worldwide guarantee

leaet). If there is no Consumer Care Centre in your country, go to your

local Philips dealer.

Guarantee restrictions

The terms of the international guarantee do not cover the following:

- Damage caused by misuse, abuse, neglect or alterations

- Normal wear and tear, including chips, scratches, abrasions,

discolouration or fading

EnglisH 13Frequently asked questions

This chapter lists the questions most frequently asked about the appliance.

If you cannot nd the answer to your question, contact the Consumer

Care Centre in your country.

Why doesn’t the Sonicare

You may need to recharge the Sonicare. Charge the Sonicare for

The socket may not be live. The electricity supply to sockets in

mirror cabinets over washbasins or shaver sockets in bathrooms

may be cut off when the light is switched off..

You may need to reattach or replace the brush head.

Why do I feel a tickling sensation

when I use the Sonicare?

You may experience a slight tickling/tingling sensation when you

use Sonicare for the rst time. As you become accustomed to

brushing with the Sonicare, this sensation diminishes.

Why is there a brief pause in the

bristle motion while I’m brushing?

This is the Quadpacer feature reminding you to move to a new

section of your mouth. This feature enables you to spend equal

time brushing all areas of the mouth (see chapter ‘Using the

Sonicare, section ‘Brushing instructions’).

The brush head chatters against my

teeth. What can I do about this?

To avoid this, keep the brush head properly oriented, with the

bristles placed on the gumline at a slight angle.

Why does the toothbrush seem

You may need to charge the Sonicare.

The Easy-start feature may be on. Deactivate the Easy-start

feature (see chapter ‘Features’).

You may need to replace the brush head.

Why doesn’t the mode

button work during brushing?

Brushing modes should be selected prior to switching on the

Why doesn’t the UV sanitiser

You may need to plug the sanitiser into a live wall socket.

You may need to shut the sanitiser door.

You may need to replace the UV light bulb (see chapter

Do I need a special charger if I

travel with my Sonicare?

The travel charger, the deluxe charger and the sanitiser can be

used at common worldwide voltages between 100-240V AC, at

either 50 or 60Hz. All you need is a simple plug adapter.

Travel tip: The Sonicare battery is designed to last up to 3 weeks

Consumer Care Centre in uw land.

www.philips.com/support ©2009 Koninklijke Philips Electronics NV (KPENV). All rights reserved. PHILIPS and the Philips shield areregistered trademarks of KPENV. Quadpacer, Sonicare, and the Sonicare logo are trademarks of Philips Oral Healthcare, Inc. and/or KPENV.Printed in the U.S.A. Printed on 100% recycled paper. Protected by U.S. and international patents. Other patents pending. Reg. U.S. Pat. & Tm. Off. 603930_FlexCarePLUS_DFU-02AW.indd 1 12/19/2008 11:07:47 AM 4235.020.3302.1
