Operating Instructions

! Before placing your new appliance into operation please

read these operating instructions carefully. They contain

important information for safe use, for installation and for

care of the appliance.

! Please keep these operating instructions for future

reference. Pass them on to possible new owners of the

Positioning and connection

1. Place the appliance in a well-ventilated humidity-free

2. Do not obstruct the rear fan grills. The compressor and

condenser give off heat and require good ventilation to

operate correctly and save energy.

3. Leave a space of at least 10 cm between the top part of

the appliance and any furniture above it, and at least 5

cm between the sides and any furniture/side walls.

4. Ensure the appliance is away from any sources of heat

(direct sunlight, electric stove, etc.).

5. In order to maintain the correct distance between the

appliance and the wall behind it, fit the spacers supplied

in the installation kit, following the instructions provided.

1. Install the appliance on a level and rigid floor.

2. If the floor is not perfectly horizontal, adjust the

refrigerator by tightening or loosening the front feet.

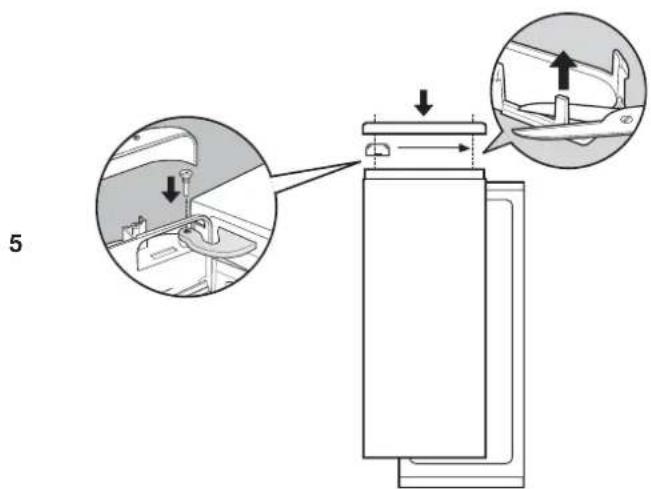

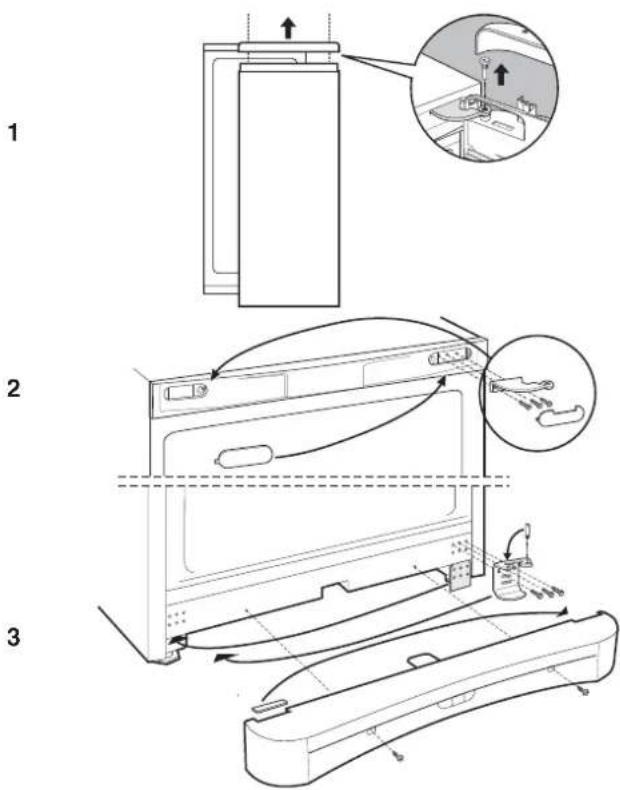

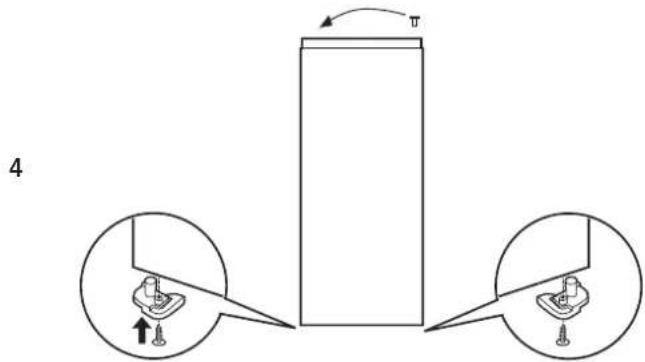

Electrical connections

After the appliance has been transported, carefully place it

vertically and wait at least 3 hours before connecting it to

the electricity mains. Before inserting the plug into the

electrical socket ensure the following:

 The appliance is earthed and the plug is compliant with

 The socket can withstand the maximum power of the

appliance, which is indicated on the data plate

located inside the freezer (e.g. 150 W).

 The voltage is in the range of values indicated on the

data plate located inside the freezer (e.g. 220-240V).

 The socket is compatible with the plug of the appliance.

If the socket is incompatible with the plug, ask an

authorised technician to replace it (see Assistance). Do

not use extension cords or multiple sockets.

! Once the appliance has been installed, the power supply

cable and the electrical socket must be easily accessible.

! The cable must not be bent or compressed.

! The cable must be checked regularly and replaced by

authorised technicians only (see Assistance).

! The manufacturer declines any liability should these

safety measures not be observed.

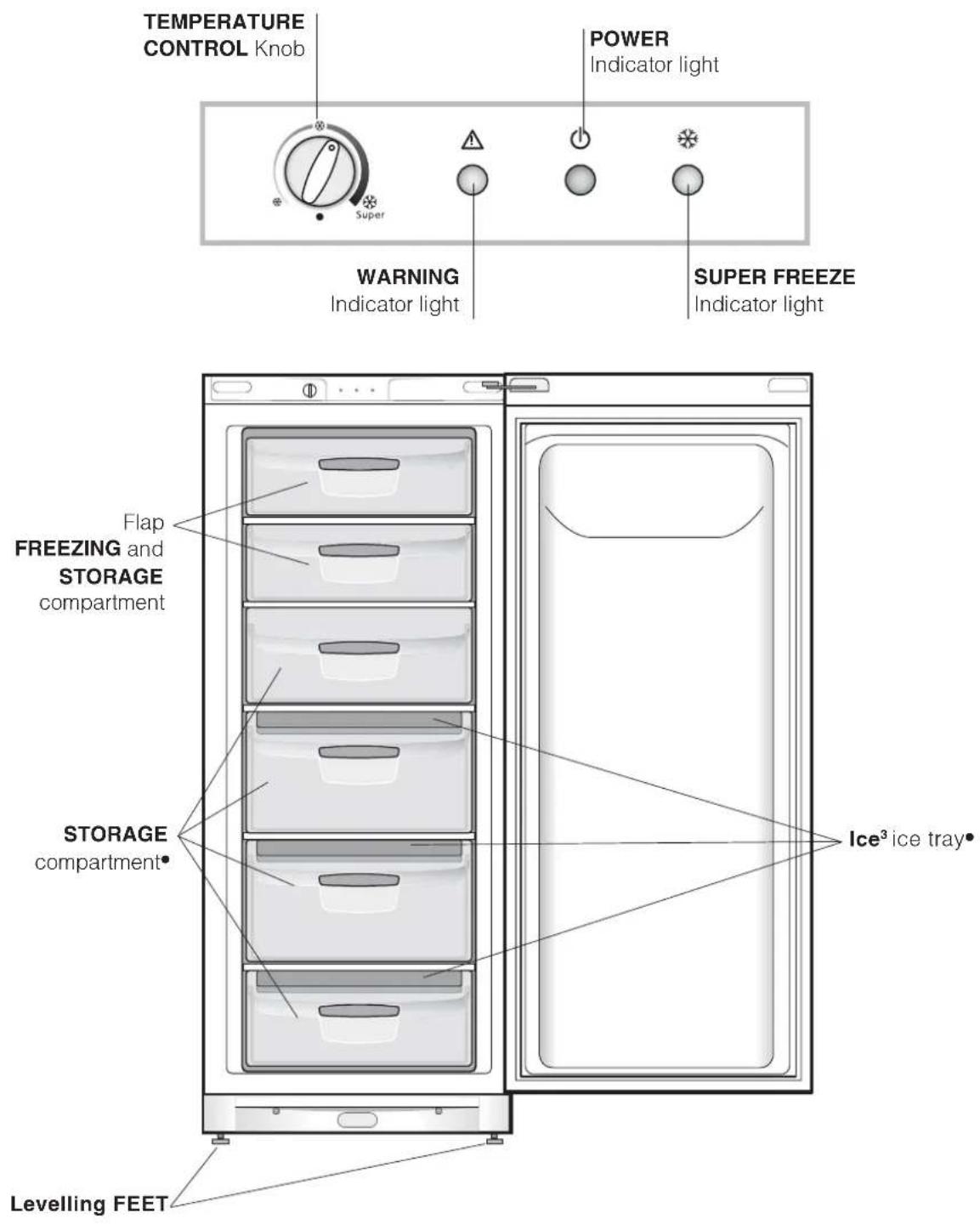

The instructions contained in this manual are applicable to different model refrigerators. The diagrams may not

directly represent the appliance purchased. For more complex features, consult the following pages.

 Varies by number and/or position.

WATER LEVEL MAX WATER LEVEL MAX WATER LEVEL MAX Starting the appliance

! Before starting the appliance, follow the installation

instructions (see Installation).

! Before connecting the appliance, clean the

compartments and accessories well with lukewarm

water and bicarbonate.

1. Insert the plug into the socket and ensure that the red

ALARM and green POWER indicator lights illuminate (the

TEMPERATURE ADJUSTMENT knob must not be on

2. Turn the TEMPERATURE ADJUSTMENT knob to the

Super position: the yellow SUPER FREEZE indicator

light will illuminate.

3. When the red indicator light switches off, turn the

TEMPERATURE ADJUSTMENT knob to a medium

position. The freezer is now ready to be used.

Using the freezer to its full potential

 Use the FREEZER OPERATION knob to adjust the

temperature (see Description).

 Do not re-freeze food that is defrosting or that has

already been defrosted. These foods must be cooked

and eaten (within 24 hours).

 Fresh food that needs to be frozen must not come into

contact with food that has already been defrosted.

Fresh food must be stored in the top FREEZER and

STORAGE compartment where the temperature drops

below -18°C and guarantees rapid freezing.

 Do not place glass bottles which contain liquids, and

which are corked or hermetically sealed in the freezer

because they could break.

 The maximum quantity of food that may be frozen each

day is indicated on the data plate, which is located inside

the freezer (for example: 4 kg per 24 hours).

 To freeze food (if the freezer is already in operation):

- For small quantities measuring less than half of the

value indicated on the data plate, turn the

TEMPERATURE ADJUSTMENT knob to the SUPER (rapid

freezing) position (the corresponding yellow indicator

light will illuminate), place the food inside and close the

door. After 24 hours, once the freezing process is

complete, turn the knob back to its normal operating

- For large quantities measuring over half of the maximum

value indicated on the data plate, turn the

TEMPERATURE ADJUSTMENT knob to the SUPER

position 24 hours before placing the food you wish to

freeze inside. After another 24 hours, once the freezing

process is complete, turn the knob back to its normal

! Do not open the door during freezing.

! If there is a power cut or malfunction, do not open the

freezer door. This will help maintain the temperature inside

the freezer, ensuring that foods are conserved for at least

! Warning Indicator Light. When this red warning light

comes on for a prolonged period of time, it means that the

freezer is not functioning properly and the temperature is

rising too much. (Call your Service Centre)

This warning light might come on for a brief period when:

a) the door is left open for an extended period of time

(when the freezer is being loaded or unloaded).

TEMPERATURE ADJUSTMENT

the Super setting.

In these two cases, the fact that the warning light comes

on does not indicate that the freezer is malfunctioning or

The fact that they are situated on the top part of the

freezer drawers ensures greater cleanliness: the ice no

longer comes into contact with the food placed inside

the freezer compartment; furthermore, the dripping of

the water during filling is avoided (a lid to cover up the

hole after filling with water is also provided).

1. Pull out the tray by pushing it up.

Check that the tray is ompletely empty and fill it with

water through the opening provided.

2. Take care not to exceed the level indicated (MAX WATER LEVEL). Excess water prevents the ice cubes

from dispensing (if this happens, wait for the ice to

melt and empty the tray).

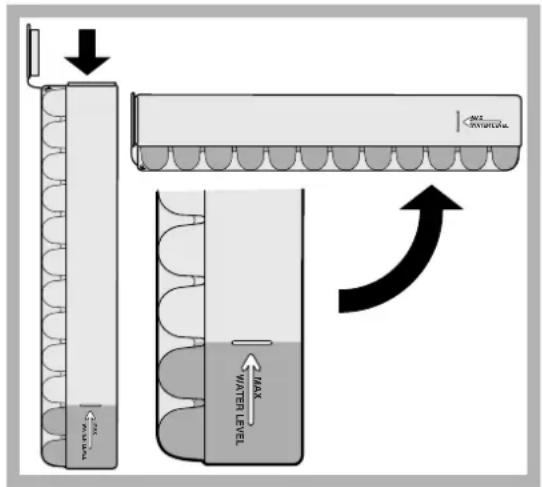

3. Turn the tray 90°: due to the connected compartments

each mould fills with water (see diagram).

4. Close the opening with the lid provided and put the

tray back, placing the top part in the corresponding

housing and allowing it to drop in again.

5. When the ice has formed (minimum time

approximately 8 hours) knock the tray against a hard

surface and wet the outside so that the ice cubes

come loose and take them out through the opening.GB

Maintenance and care

Switching the appliance off

During cleaning and maintenance it is necessary to

disconnect the appliance from the electricity supply:

It is not sufficient to set the temperature adjustment

(appliance off) to eliminate all electrical

Cleaning the appliance

 The external and internal parts, as well as the rubber

seals may be cleaned using a sponge that has been

soaked in lukewarm water and bicarbonate of soda or

neutral soap. Do not use solvents, abrasive products,

 The removable accessories may be soaked in warm

water and soap or dishwashing liquid. Rinse and dry

 The back of the appliance may collect dust which can

be removed by delicately using the hose of a vacuum

cleaner set on medium power. The appliance must be

switched off and the plug must be pulled out before

cleaning the appliance.

Avoiding mould and unpleasant odours

 The appliance is manufactured with hygienic materials

which are odour free. In order to maintain an odour free

refrigerator and to prevent the formation of stains, food

must always be covered or sealed properly.

 If you want to switch the appliance off for an extended

period of time, clean the inside and leave the doors

Defrosting the appliance

! Follow the instructions below.

Do not use objects with sharp or pointed edges to

defrost the appliance as these may damage the

refrigeration circuit beyond repair.

If the frost layer is greater than 5 mm, it is necessary to

1. The day before defrosting, turn the TEMPERATURE CONTROL knob to the Superr setting (the yellow

SUPER FREEZE indicator light illuminates) to further

, which will switch the refrigerator off.

3. Wrap frozen foods in newspaper and place them in

another freezer or in a cool place.

4. Leave the door open until the frost has melted

completely. This can be made easier by placing

containers with lukewarm water in the freezer

5. Certain appliances are

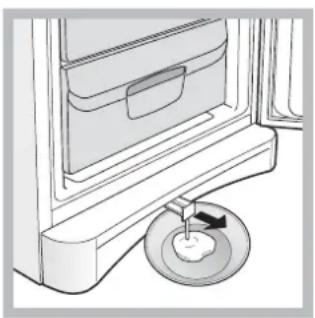

fitted with the DRAIN SYSTEM to lead the water

outside. Let the water flow

into a container (see

6. Clean and dry the freezer compartment carefully

before switching the appliance on again.

7. Wait for approximately 2 hours, i.e. until the ideal

storage conditions have been restored, before

placing food in the freezer compartment.14

GB Precautions and tips

 Observe local environmental standards when

disposing packaging material for recycling purposes.

 The European Directive 2002/96/EC on Waste

Electrical and Electronic Equipment (WEEE), requires

that old household electrical appliances must not be

disposed of in the normal unsorted municipal waste

stream. Old appliances must be collected separately

in order to optimise the recovery and recycling of the

materials they contain and reduce the impact on

human health and the environment. The crossed out

wheeled bin symbol on the product reminds you of

your obligation, that when you dispose of the

appliance it must be separately collected.

Consumers should contact their local authority or

retailer for information concerning the correct disposal

of their old appliance.

Respecting and conserving the

 Install the appliance in a fresh and well-ventilated

room. Ensure that it is protected from direct sunlight

and do not place it near heat sources.

 Try to avoid keeping the door open for long periods or

opening the door too frequently in order to conserve

 Do not fill the appliance with too much food:

cold air must circulate freely for food to be preserved

properly. If circulation is impeded, the compressor will

 Do not place hot food directly into the refrigerator. The

internal temperature will increase and force the

compressor to work harder and will consume more

 Defrost the appliance if ice forms (see Maintenance).

A thick layer of ice makes cold transference to food

products more difficult and results in increased

 Regularly check the door seals and wipe clean to

ensure they are free of debris and to prevent cold air

from escaping (see Maintenance).

! The appliance was designed and manufactured in

compliance with international safety standards. The

following warnings are provided for safety reasons and

must be read carefully.

This appliance complies with the following

Community Directives:

- 73/23/EEC of 19/02/73 (Low Voltage) and

subsequent amendments;

-89/336/EEC of 03.05.89 (Electromagnetic

Compatibility) and subsequent amendments;

 The appliance was designed for domestic use inside the

home and is not intended for commercial or industrial use.

 The appliance must be used to store and freeze food

products by adults only and according to the instructions

 The appliance must not be installed outdoors, even in

covered areas. It is extremely dangerous to leave the

appliance exposed to rain and storms.

 Do not touch the appliance with bare feet or with wet or

moist hands and feet.

 WARNING: do not damage the refrigerant circuit.

 Do not touch the internal cooling elements: this could

cause skin abrasions or frost/freezer burns.

 When unplugging the appliance always pull the plug from

the mains socket, do not pull on the cable.

 Before cleaning and maintenance, always switch off the

appliance and disconnect it from the electrical supply. It is

not sufficient to set the temperature adjustment knobs on

(appliance off) to eliminate all electrical contact.

 In the case of a malfunction, under no circumstances

should you attempt to repair the appliance yourself.

Repairs carried out by inexperienced persons may cause

injury or further malfunctioning of the appliance.

 Do not use any sharp or pointed utensils or electrical

equipment - other than the type recommended by the

manufacturer - inside the frozen food storage

 Do not put ice cubes taken directly from the freezer into

 Do not allow children to tamper with the controls or play

with the appliance. Under no circumstance should they be

allowed to sit on the bins or to hang from the door.

 Keep packaging material out of the reach of children! It can

become a choking or suffocation hazard.GB

The green POWER indicator light does

The WARNING Indicator light is Always

The motor runs continuously.

The appliance makes a lot of noise.

Possible causes / Solutions:

 The plug has not been inserted into the electrical socket, or not far enough

to make contact, or there is no power in the house.

 The door is not closed properly or has been open continuously.

 The door has been opened too frequently.

 The TEMPERATURE ADJUSTMENT knob is not in the correct position.

 The TEMPERATURE ADJUSTMENT knob is in the Fast Freeze position:

the yellow FAST FREEZE indicator light is on (see Description).

 The door is not closed properly or is continuously opened.

 The outside ambient temperature is very high.

 The thickness of the frost exceeds 2-3 mm (see Maintenance).

 The appliance has not been installed on a level surface (see Installation).

 The appliance has been installed between cabinets that vibrate and make

 The internal refrigerant makes a slight noise even when the compressor is

off. This is not a defect, it is normal.

If the appliance does not work, before calling for Assistance (see Assistance), check for a solution from the following list.16

Before calling for Assistance:

 Check if the malfunction can be solved on your own (see Troubleshooting).

 If after all the checks, the appliance still does not operate or the problem persists, call the nearest Service

 type of malfunction

 appliance model (Mod.)

 serial number (S/N)

This information can be found on the data

plate located on the bottom left side of the

refrigerator compartment.

Never call on unauthorized technicians and always refuse spare parts which are not originals.

 As partes externas, as partes internas e as
