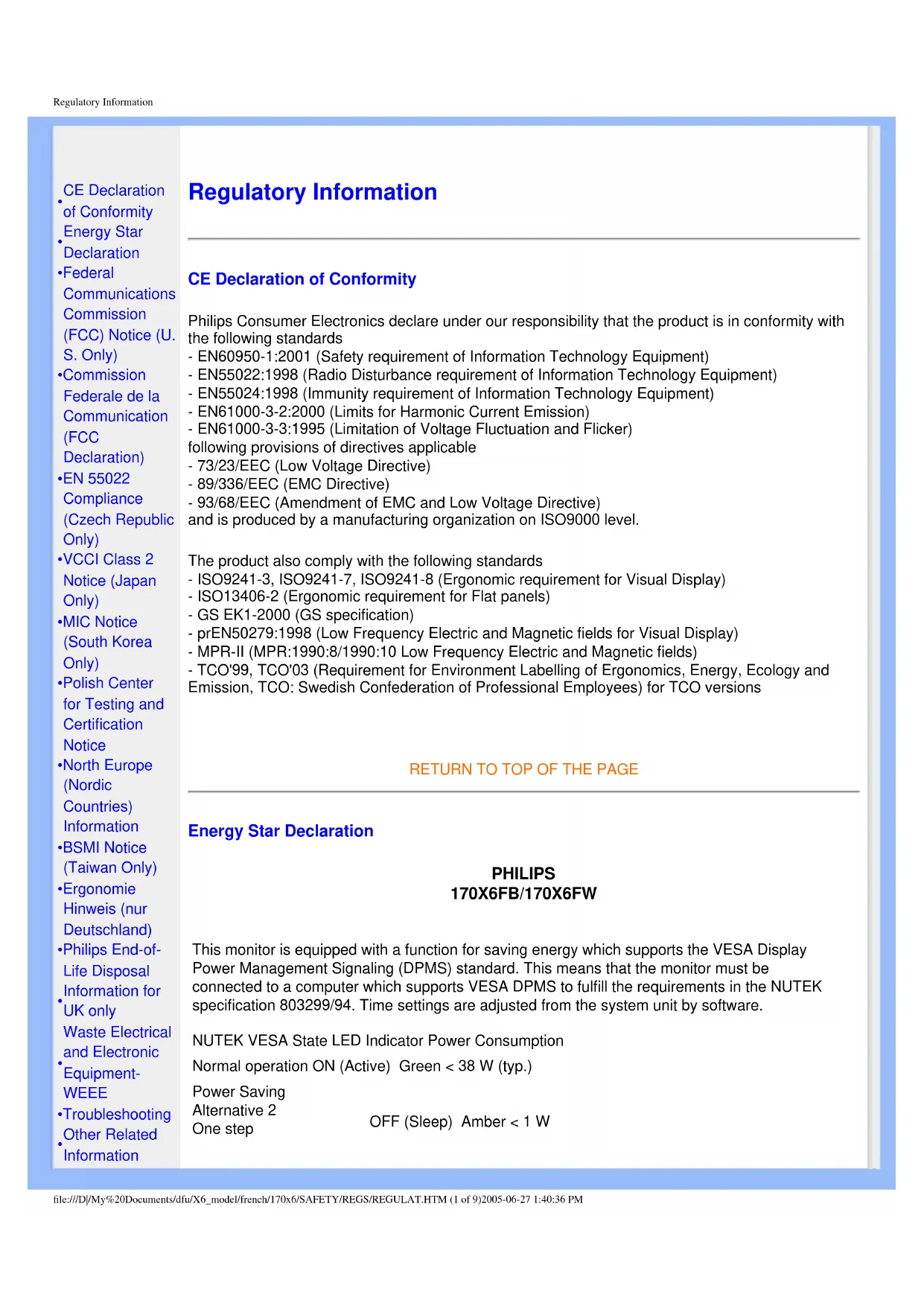

Regulatory Information

CE Declaration of Conformity

Philips Consumer Electronics declare under our responsibility that the product is in conformity with

the following standards

- EN60950-1:2001 (Safety requirement of Information Technology Equipment)

- EN55022:1998 (Radio Disturbance requirement of Information Technology Equipment)

- EN55024:1998 (Immunity requirement of Information Technology Equipment)

- EN61000-3-2:2000 (Limits for Harmonic Current Emission)

- EN61000-3-3:1995 (Limitation of Voltage Fluctuation and Flicker)

following provisions of directives applicable

- 73/23/EEC (Low Voltage Directive)

- 89/336/EEC (EMC Directive)

- 93/68/EEC (Amendment of EMC and Low Voltage Directive)

and is produced by a manufacturing organization on ISO9000 level.

The product also comply with the following standards

- ISO9241-3, ISO9241-7, ISO9241-8 (Ergonomic requirement for Visual Display)

- ISO13406-2 (Ergonomic requirement for Flat panels)

- GS EK1-2000 (GS specification)

- prEN50279:1998 (Low Frequency Electric and Magnetic fields for Visual Display)

- MPR-II (MPR:1990:8/1990:10 Low Frequency Electric and Magnetic fields)

- TCO'99, TCO'03 (Requirement for Environment Labelling of Ergonomics, Energy, Ecology and

Emission, TCO: Swedish Confederation of Professional Employees) for TCO versions

RETURN TO TOP OF THE PAGE Energy Star Declaration

170X6FB/170X6FW This monitor is equipped with a function for saving energy which supports the VESA Display

Power Management Signaling (DPMS) standard. This means that the monitor must be

connected to a computer which supports VESA DPMS to fulfill the requirements in the NUTEK

specification 803299/94. Time settings are adjusted from the system unit by software.

NUTEK VESA State LED Indicator Power Consumption

Normal operation ON (Active) Green < 38 W (typ.)

Switch Off OFF < 1 W As an ENERGY STAR

Partner, PHILIPS has determined that this product

guidelines for energy efficiency.

We recommend you switch off the monitor when it is not in use for quite a long time.

RETURN TO TOP OF THE PAGE Federal Communications Commission (FCC) Notice (U.S. Only)

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency energy

and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

● Reorient or relocate the receiving antenna.

● Increase the separation between the equipment and receiver.

● Connect the equipment into an outlet on a circuit different from that to which the receiver is

● Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the party responsible for

compliance could void the user's authority to operate the equipment.

Use only RF shielded cable that was supplied with the monitor when connecting this monitor to a

To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or

RETURN TO TOP OF THE PAGE EN 55022 Compliance (Czech Republic Only)

RETURN TO TOP OF THE PAGE VCCI Notice (Japan Only)

This is a Class B product based on the standard of the Voluntary Control Council for Interference

(VCCI) for Information technology equipment. If this equipment is used near a radio or television

file:///D|/My%20Documents/dfu/X6_model/french/170x6/SAFETY/REGS/REGULAT.HTM (3 of 9)2005-06-27 1:40:36 PMRegulatory Information

receiver in a domestic environment, it may cause radio Interference. Install and use the equipment

according to the instruction manual.

Class B ITE RETURN TO TOP OF THE PAGE MIC Notice (South Korea Only)

Please note that this device has been approved for non-business purposes and may be used in any

environment, including residential areas.

RETURN TO TOP OF THE PAGE Polish Center for Testing and Certification Notice

The equipment should draw power from a socket with an attached protection circuit (a three-prong

socket). All equipment that works together (computer, monitor, printer, and so on) should have the

same power supply source.

The phasing conductor of the room's electrical installation should have a reserve short-circuit

protection device in the form of a fuse with a nominal value no larger than 16 amperes (A).

To completely switch off the equipment, the power supply cable must be removed from the power

file:///D|/My%20Documents/dfu/X6_model/french/170x6/SAFETY/REGS/REGULAT.HTM (4 of 9)2005-06-27 1:40:36 PMRegulatory Information

supply socket, which should be located near the equipment and easily accessible.

A protection mark "B" confirms that the equipment is in compliance with the protection usage

requirements of standards PN-93/T-42107 and PN-89/E-06251.

RETURN TO TOP OF THE PAGE North Europe (Nordic Countries) Information

Placering/Ventilation

RETURN TO TOP OF THE PAGE End-of-Life Disposal

Your new monitor contains materials that can be recycled and reused. Specialized companies can

recycle your product to increase the amount of reusable materials and to minimize the amount to be

Please find out about the local regulations on how to dispose of your old monitor from your local

(For customers in Canada and U.S.A.)

This product may contain lead and/or mercury. Dispose of in accordance to local-state and federal

For additional information on recycling contact www.eia.org (Consumer Education Initiative)

WARNING - THIS APPLIANCE MUST BE EARTHED.

This apparatus is supplied with an approved

moulded 13A plug. To change a fuse in this type

of plug proceed as follows:

1. Remove fuse cover and fuse.

2. Fit new fuse which should be a BS 1362 5A,A.

S.T.A. or BSI approved type.

3. Refit the fuse cover.

If the fitted plug is not suitable for your socket

file:///D|/My%20Documents/dfu/X6_model/french/170x6/SAFETY/REGS/REGULAT.HTM (7 of 9)2005-06-27 1:40:36 PMRegulatory Information

outlets, it should be cut off and an appropriate 3-

pin plug fitted in its place.

If the mains plug contains a fuse, this should

have a value of 5A. If a plug without a fuse is

used, the fuse at the distribution board should

not be greater than 5A.

Note: The severed plug must be destroyed to

avoid a possible shock hazard should it be

inserted into a 13A socket elsewhere.

How to connect a plug

The wires in the mains lead are coloured in

accordance with the following code:

BLUE - "NEUTRAL" ("N")

1. The GREEN AND YELLOW wire must be

connected to the terminal in the plug which is

marked with the letter "E" or by the Earth symbol

or coloured GREEN or GREEN AND YELLOW.

2. The BLUE wire must be connected to the

terminal which is marked with the letter "N" or

3. The BROWN wire must be connected to the

terminal which marked with the letter "L" or

Before replacing the plug cover, make certain

that the cord grip is clamped over the sheath of

the lead - not simply over the three wires.

RETURN TO TOP OF THE PAGE

file:///D|/My%20Documents/dfu/X6_model/french/170x6/SAFETY/REGS/REGULAT.HTM (8 of 9)2005-06-27 1:40:36 PMRegulatory Information

Waste Electrical and Electronic Equipment-WEEE Attention users in European Union private households

This marking on the product or on its packaging illustrates that, under European

Directive 2002/96/EG governing used electrical and electronic appliances, this product may not be

disposed of with normal household waste. You are responsible for disposal of this equipment

through a designated waste electrical and electronic equipment collection. To determine the

locations for dropping off such waste electrical and electronic, contact your local government office,

the waste disposal organization that serves your household or the store at which you purchased the
