USER MANUAL ZGG62414BA ZANUSSI

ding is ingeschakeld.

Subject to change without notice.

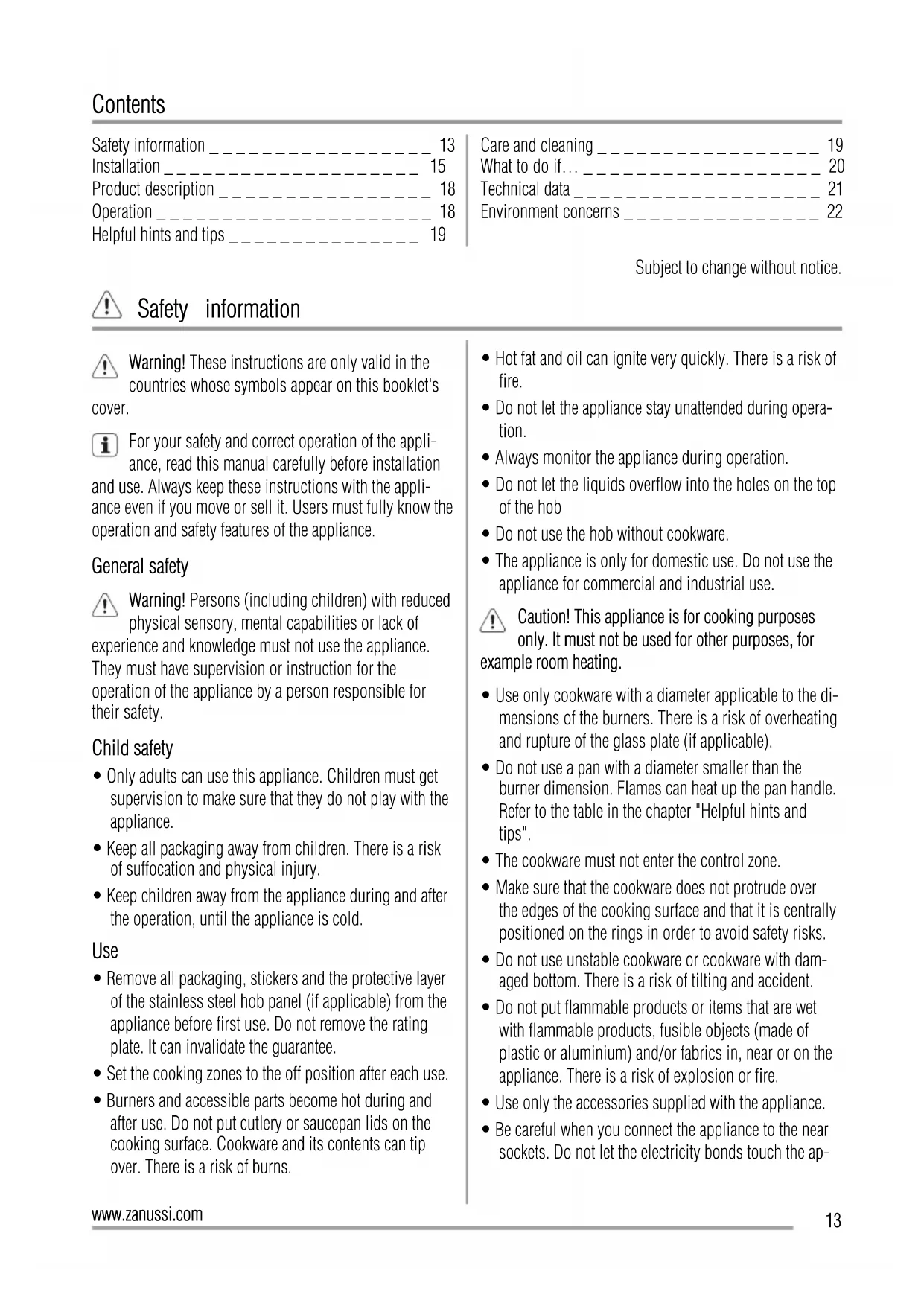

Warning! These instructions are only valid in the

countries whose symbols appear on this booklet's

For your safety and correct operation of the appli-

ance, read this manual carefully before installation

and use. Always keep these instructions with the appli-

ance even if you move or sell it. Users must fully know the

operation and safety features of the appliance.

Warning! Persons (including children) with reduced

physical sensory, mental capabilities or lack of

experience and knowledge must not use the appliance.

They must have supervision or instruction for the

operation of the appliance by a person responsible for

• Only adults can use this appliance. Children must get

supervision to make sure that they do not play with the

• Keep all packaging away from children. There is a risk

of suffocation and physical injury.

• Keep children away from the appliance during and after

the operation, until the appliance is cold.

• Remove all packaging, stickers and the protective layer

of the stainless steel hob panel (if applicable) from the

appliance before first use. Do not remove the rating

plate. It can invalidate the guarantee.

• Set the cooking zones to the off position after each use.

• Burners and accessible parts become hot during and

after use. Do not put cutlery or saucepan lids on the

cooking surface. Cookware and its contents can tip

over. There is a risk of burns.

• Hot fat and oil can ignite very quickly. There is a risk of

• Do not let the appliance stay unattended during opera-

• Always monitor the appliance during operation.

• Do not let the liquids overflow into the holes on the top

• Do not use the hob without cookware.

• The appliance is only for domestic use. Do not use the

appliance for commercial and industrial use.

Caution! This appliance is for cooking purposes

only. It must not be used for other purposes, for

example room heating.

• Use only cookware with a diameter applicable to the di-

mensions of the burners. There is a risk of overheating

and rupture of the glass plate (if applicable).

• Do not use a pan with a diameter smaller than the

burner dimension. Flames can heat up the pan handle.

Refer to the table in the chapter "Helpful hints and

• The cookware must not enter the control zone.

• Make sure that the cookware does not protrude over

the edges of the cooking surface and that it is centrally

positioned on the rings in order to avoid safety risks.

• Do not use unstable cookware or cookware with dam-

aged bottom. There is a risk of tilting and accident.

• Do not put flammable products or items that are wet

with flammable products, fusible objects (made of

plastic or aluminium) and/or fabrics in, near or on the

appliance. There is a risk of explosion or fire.

• Use only the accessories supplied with the appliance.

• Be careful when you connect the appliance to the near

sockets. Do not let the electricity bonds touch the ap-

www.zanussi.compliance or hot cookware. Do not let the electricity

• You must read these instructions. The manufacturer is

not responsible for any injury to persons and pets or

damage to property caused by failure to obey these re-

• To prevent the risks of structural damage or physical

injury, installation, connection of the appliance to the

power supply and gas system, setting up and mainte-

nance must only be done by qualified personnel in

compliance with standards and local regulation force.

• Make sure that the appliance is not damaged because

of transport. Do not connect a damaged appliance. If it

is necessary, speak to the supplier.

• Only use built-in appliances after you assemble the ap-

pliance into correct built-in units and work surfaces

that obey the standards.

• Do not install the hob over a domestic appliances if the

installation instructions do not allow it.

• Install the appliance only on a worktop with flat sur-

• Do not change the specifications or modify this prod-

uct. There is the risk of injury and damage to the appli-

• Fully obey the laws, ordinances, directives and stand-

ards in force in the country where you use the appli-

ance (safety regulations, recycling regulations, electri-

cal safety rules etc.)

• Keep the minimum distances to other appliances and

• Install anti-shock protection, for example install the

drawers only with a protective panel directly below the

• Prevent damage of the cut surfaces of the worktop

against moisture with a correct sealant.

• Seal the appliance to the worktop with no space left

with a correct sealant.

• Prevent damage to the bottom of the appliance from

steam and moisture, e.g. from a dishwasher or oven.

• Do not install the appliance adjacent to doors and be-

low windows. Hot cookware can be hit off the hob

when you open the doors or windows.

• Before installation, make sure that the local supply

conditions (gas type and pressure) agree with the ad-

justment of appliance. The adjustment conditions for

the appliance are on the rating plate, which you can

find near the gas supply pipe.

• This appliance is not connected to a combustion prod-

ucts evacuation device. It must be installed and con-

nected in accordance with current installation regula-

tions. Particular attention must be given to the relevant

requirements regarding ventilation.

• The use of a gas cooking appliance cause heat and

moisture in the room in which it is installed. Make sure

that the ventilation in the kitchen is good: keep natural

ventilation holes open or install a mechanical ventila-

tion device (mechanical extractor hood).

• More ventilation (for example opening of a window or

increasing the level of mechanical ventilation where

present) is necessary when you operate the appliance

with intensity for a long time.

• Carefully obey the instructions for electrical connec-

tions. There is the risk of injury from electrical current.

• Disconnect the appliance from the electrical supply,

before you do the maintenance work or you clean it.

• The electrical mains terminal is live.

• Make electrical mains terminal free of voltage.

• Install correctly to give anti-shock protection.

• A loose and incorrect mains plug and socket connec-

tions can make the terminal become too hot.

• A qualified electrician must install the clamping con-

• Use a strain relief clamp on cable.

damaged mains cable with applicable cable. Speak to

your local Service Force Centre.

• The appliance must have the electrical installation

which lets you disconnect the appliance from the

mains at all poles with a contact opening width of min-

• If the fixing bracket is near to the terminal block, al-

ways make sure the connection cable does not come in

contact with the edge of the bracket.

• You must have correct isolation devices: line protect-

ing cut-outs, fuses (screw type fuses removed from the

holder), ground leakage trips and contactors.

Disposal of the appliance

• To prevent the risk of physical injury or damage

– Disconnect the appliance from the power supply.

www.zanussi.com– Cut off the mains cable where it connects with the

appliance and discard it.

– Flat the external gas pipes if there are fitted.

– Speak to your local authorised facilities for disposal

Warning! The following instructions about

installation, connection and maintenance must be

carried out by qualified personnel in compliance with

standards and local regulations in force.

It is necessary that the connection to the gas mains are

carried out by means of an AGB tap. Choose fixed con-

nections or use a flexible pipe in AGB (stainless steel) in

compliance with the regulation in force. If you use flexible

metallic pipes, be careful they do not come in touch with

mobile parts or they are not squeezed. Also be careful

when the hob is put together with an oven.

The connection must be done according to regulation

Important! Make sure that the gas supply pressure of the

appliance obeys the recommended values. The adjustable

connection is fixed to the comprehensive ramp by means

of a threaded nut G 1/2". All the components shown in the

figure have already been assembled in the factory. The

appliance, before leaving the factory, has been tested in

order to give you the best results.

End of shaft with nut

Liquid gas: use the rubber pipe holder. Always engage the

gasket. Then continue with the gas connection. The flexi-

ble pipe is prepared for apply when:

– it can not get hot more than room temperature, higher

– it is no longer than 1500 mm;

– it shows no throttles;

– it is not subject to traction or torsion;

– it does not get in touch with cutting edges or corners;

– it can be easily examined in order to check its condi-

The control of preservation of the flexible pipe consists in

– it does not show cracks, cuts, marks of burnings on the

two ends and on its full length;

– the material is not hardened, but shows its correct

– the fastening clamps are not rusted;

– expired term is not due.

www.zanussi.comIf one or more defects are visible, do not repair the pipe,

Important! When installation is complete, make sure that

the seal of each pipe fitting is correct. Use a soapy

solution, not a flame!

Injectors replacement (only for Belgium)

1. Remove the pan supports.

2. Remove the caps and crowns of the burner.

3. With a socket spanner 7 remove the injectors and re-

place them with the ones which are necessary for the

type of gas you use (see table in Technical Data sec-

4. Assemble the parts, follow the same procedure back-

5. Replace the rating plate (it is near the gas supply

pipe) with the one for the new type of gas supply.

You can find this plate in the package supplied with

If the supply gas pressure is changeable or different from

the necessary pressure, you must fit an applicable pres-

sure adjuster on the gas supply pipe.

Adjustment of minimum level

To adjust the minimum level of the burners (only for Bel-

1. Light the burner.

2. Turn the knob on the minimum position.

4. With a thin screwdriver, adjust the by-pass screw

– If you change from natural gas G20/G25 20/25

mbar to liquid gas, fully tighten the adjustment

– If you change from liquid gas to natural gas G20/

G25 20/25 mbar, undo the by-pass screw ap-

proximately 1/4 of a turn.

Warning! Make sure the flame does not go out when

you quickly turn the knob from the maximum

position to the minimum position.

Electrical connection

• Ground the appliance according to safety precautions.

• Make sure that the rated voltage and type of power on

the rating plate agree with the voltage and the power of

the local power supply.

• This appliance is supplied with a mains cable. It has to

be supplied with a correct plug, able to support the

load marked on the rating plate. The plug has to be fit-

ted in a correct socket.

• Any electrical component must be installed or replaced

by the Service Force Centre technician or qualified

• Always use a correctly installed shockproof socket.

• Make sure that there is an access to the mains plug af-

• Do not pull the mains cable to disconnect the appli-

ance. Always pull the mains plug.

• The appliance must not be connected with an extension

cable, an adapter or a multiple connection (risk of fire).

Check that the ground connection is in conformity with

the standard and regulations force.

• The power cable must be placed in such a way that it

does not touch any hot part.

• Connect the appliance to the mains with a device that

lets to disconnect the appliance from the mains at all

poles with a contact opening width of minimum 3 mm,

eg. automatic line protecting cut-out, earth leakage

• None of a parts of the connection cable can not get a

temperature 90 °C. The blue neutral cable must be

connected to the terminal block label with "N". The

brown (or black) phase cable (fitted in the terminal

block contact marked with "L") must always be connec-

ted to the live phase.

Replacement of the connection cable

To replace the connection cable use only H05V2V2-F T90

or equivalent type. Make sure that the cable section is ap-

plicable to the voltage and the working temperature. The

www.zanussi.comyellow/green earth wire must be approximately 2 cm lon-

ger than the brown (or black) phase wire.

B) supplied brackets

Possibilities for insertion

Kitchen unit with door

The panel installed below the hob must be easy to remove

and let an easy access in case a technical assistance inter-

vention is necessary. min 20 mm(max 150 mm)30 mm60 mm b

b) Space for connections

Kitchen unit with oven

The hob recess dimensions must obey the indication and

the kitchen unit must be equipped with vents to let a con-

tinuous supply of air. The electrical connection of the hob

and the oven must be installed separately for safety rea-

sons and to let easy remove oven from the unit. 50 cm 2 360 cm 2 180 cm 2 120 cm 2

Cooking surface layout

Ignition of the burner

Warning! Be very careful when you use open fire in

kitchen environment. Manufacturer decline any

responsibility in case misuse of the flame

Always light the burner before you put cookware.

To light the burner:

1. Turn the control knob counterclockwise to the maxi-

2. Keep the control knob pushed for approximately 5

seconds; this will let thermocouple to warm up. If

not, the gas supply will be interrupted.

3. Adjust the flame after it is regular.

If after some tries the burner does not light, check if

the crown and its cap are in correct positions.

www.zanussi.comWarning! Do not keep the control knob pushed for

more than 15 seconds.

If the burner does not light after 15 seconds, release the

control knob, turn it into off position and try to light the

burner again after minimum 1 minute.

Important! In the absence of electricity you can ignite the

burner without electrical device; in this case approach the

burner with a flame, push the relevant knob down and turn

it counter-clockwise to maximum gas release position.

If the burner accidentally goes out, turn the control

knob to the off position and try to light the burner

again after minimum 1 minute.

The spark generator can start automatically when

you switch on the mains, after installation or a pow-

er cut. It is normal.

Turning the burner off

To put the flame out, turn the knob to the symbol .

Warning! Always turn the flame down or switch it off

before you remove the pans from the burner.

Helpful hints and tips

• If possible, always put the lids on the pans.

• When the liquid starts to boil, turn down the flame to

barely simmer the liquid.

Warning! Use pots and pans with bottom applicable

to the dimension of burner.

Do not use cooking vessels on the hotplate that overlap its

Semi-rapid 120 - 220 mm

Auxiliary 80 - 160 mm

Warning! Pots must not enter the control zone.

Flame will heat up the control zone.

Do not put the same pan on two burners.

Warning! Make sure pot handles do not protrude

over the front edge of the cooktop and that pots are

centrally positioned on the rings in order to achieve

maximum stability and to obtain lower gas consumption.

Do not place unstable or deformed pots on the rings to

prevent from spill and injury.

Warning! Flame diffuser are not recommended.

Information on acrylamides

Important! According to the newest scientific knowledge, if

you brown food (specially the one which contains starch),

acrylamides can pose a health risk. Thus, we recommend

that you cook at the lowest temperatures and do not brown

Warning! Deactivate the appliance and let it cool

down before you clean it. Disconnect the appliance

from the electrical supply before you do cleaning or

www.zanussi.comWarning! For safety reasons, do not clean the

appliance with steam cleaners or high-pressure

Warning! Do not use abrasive cleaners, steel wool

pads or acids. They can cause damage to the

Scratches or dark stains on the surface have no ef-

fect on how the appliance operates.

• You can remove the pan supports to easily clean the

• To clean the enamelled parts, cap and crown, wash

them with warm soapy water and dry them carefully be-

fore you put them back.

• Wash stainless steel parts with water, and then dry

them with a soft cloth.

• The pan supports are not dishwasher proof. They must

• When you wash the pan supports by hand, take care

when you dry them as the enamelling process occa-

sionally leaves rough edges. If necessary, remove

stubborn stains using a paste cleaner.

• Make sure you position the pan supports correctly after

• To make the burners work correctly, make sure that the

arms of the pan supports are in the centre of the burn-

• Be very careful when you replace the pan supports to

prevent the hob top from damage.

After cleaning, dry the appliance with a soft cloth.

The stainless steel can become tarnished if it is too much

heated. Refer to this you must not cook with potstones,

earthenware pans or cast iron plates. Do not use alumini-

um foil to prevent damage the top during operation.

1. – Remove immediately: melting plastic, plastic foil,

and food containing sugar.

– Stop the appliance and let it cool down before

you clean: limescale rings, water rings, fat stains,

shiny metallic discolorations. Use a special

cleaner applicable for surface of hob.

2. Clean the appliance with a damp cloth and some de-

3. At the end rub the appliance dry with a clean cloth.

Cleaning of the spark plug

This feature is obtained through a ceramic ignition candle

with a metal electrode. Keep these components well clean

to prevent difficult lighting and check that the burner

crown holes are not obstructed.

Periodic maintenance

Periodically speak your local Service Force Centre to

check the conditions of the gas supply pipe and the pres-

sure adjuster, if fitted.

Problem Possible cause Remedy

There is no spark when lighting the

• There is no electrical supply • Make sure that the unit is connec-

ted and the electrical supply is

• Control the fuse. If the fuse is re-

leased more than one time, refer

to a qualified electrician.

• Burner cap and crown are placed

• Make sure that the burner cap and

crown are in correct positions.

The flame is blow out immediately af-

• Thermocouple is not heated suffi-

• After lightning the flame, keep the

knob pushed for approximately 5

The gas ring burns unevenly • Burner crown is blocked with food

• Make sure that the injector is not

blocked and the burner crown is

clear of food particles.

www.zanussi.comIf there is a fault, first try to find a solution to the problem

yourself. If you cannot find a solution to the problem

yourself, speak your dealer or the local Service Force

If you operated the appliance incorrectly, or the in-

stallation was not carried out by a registered engi-

neer, the visit from the customer service technician or

dealer may not take place free of charge, even during the

Labels supplied with the accessories bag

Stick the adhesive labels as indicated below:

Stick it on Guarantee Card and send this part

Stick it on Guarantee Card and keep this part

Stick it on instruction booklet

These data are necessary to help you quickly and correct-

ly. These data are available on the supplied rating plate.

• Product number (PNC)

• Serial Number (S.N.)

Use the original spare parts only. They are available at

Service Force Centre and approved spare parts shops.

Hob recess dimensions

Gas connection: R 1/2 "

0.75 119 0.286 0.332 86 204 200

Environment concerns

The symbol on the product or on its packaging

indicates that this product may not be treated as

household waste. Instead it should be taken to the

appropriate collection point for the recycling of electrical

and electronic equipment. By ensuring this product is

disposed of correctly, you will help prevent potential

negative consequences for the environment and human

health, which could otherwise be caused by inappropriate

waste handling of this product. For more detailed

information about recycling of this product, please contact

your local council, your household waste disposal service

or the shop where you purchased the product.

The packaging materials are friendly to the environ-

ment and can be recycled. The plastic components

are identified by marking: >PE<,>PS<, etc. Discard the

packaging materials as household waste at the waste dis-

posal facilities in your municipality.
