USER MANUAL Aqualtis AQ83F 497 HOTPOINT

Installation, 2-3 Unpacking and levellingConnecting the electricity and water suppliesTechnical data Description of the machine, 4-5 Control panel Running a wash cycle, 6

Wash cycles and options, 7 Table of wash cyclesWash options Detergents and laundry, 8 DetergentPreparing the laundryWashing recommendationsLoad balancing system Precautions and advice, 9 General safetyDisposalOpening the porthole door manually Care and maintenance, 10 Cutting off the water and electricity suppliesCleaning the machineCleaning the detergent dispenser drawerCaring for your appliance drumCleaning the pumpChecking the water inlet hose Trouble shooting, 11

EN WASHING MACHINE AQUALTIS AQ83F 49

installation and use

FR Français,13 DE Deutsch,25Nederlands,37 NLEN

! If the appliance is levelled correctly, it will be more stable

and much less likely to cause vibrations and noise while it

is operating, particularly during the spin cycle.

! If it is placed on carpet or a rug, adjust the feet in such a

way as to allow a sufficient ventilation space underneath

the washing machine.

Connecting the electricity and water

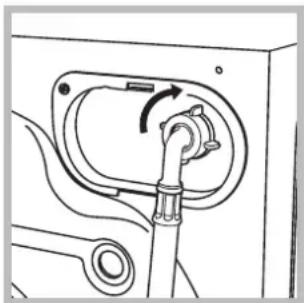

Connecting the water inlet hose

! Before connecting the inlet hose to the water supply, run

the water until it is perfectly clear.

1. Connect the inlet hose

to the machine by screwing

it onto the cold water inlet

of the appliance, which is

situated on the top right-

hand side of the rear part of

the appliance (see figure).

2. Connect the inlet hose

by screwing it to a cold

water tap using a 3/4 gas

threaded connection (see

3. Make sure that the hose is not folded over or bent.

! The water pressure at the tap must fall within the values

indicated in the Technical data table (see next page).

! If the inlet hose is not long enough, contact a specialised

shop or an authorised technician.

! Never use second-hand or old inlet hoses; use the

products supplied with the machine.

! This instruction manual should be kept in a safe place

for future reference. If the washing machine is sold, given

away or moved, please ensure the manual is kept with

the machine, so that the new owner may benefit from the

advice contained within it.

! Read these instructions carefully: they contain vital

information relating to the safe installation and operation of

! Inside the pack containing this manual, you will also find

the guarantee and all the details necessary for installation.

Unpacking and levelling

1. Once you have removed all the packaging from the

washing machine, make sure it has not been damaged

during transportation.

If it has been damaged, contact the retailer and do not

proceed any further with the installation process.

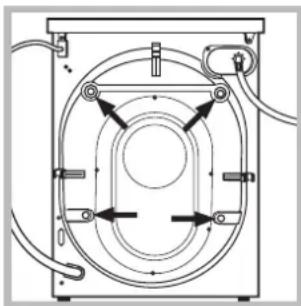

2. Remove the 4 protective

transportation) and the

corresponding spacer,

located on the rear part of

the appliance (see figure).

3. Close off the holes using the plastic plugs supplied in the

4. Keep all the parts in a safe place; they will be needed

again if the washing machine is moved to another location,

to prevent the inside of the appliance being damaged.

! Packaging materials should not be used as toys for

1. Place the washing machine on a flat sturdy floor, without

resting it up against walls or cabinets.

2. If the floor is uneven, the

front feet of the machine

may be adjusted until

it reaches a horizontal

position (the angle of

inclination must not exceed

Connecting the drain hose

Connect the drain hose to

drain duct piping or a wall

drain located between 65

and 100 cm above the floor,

making sure it is not bent

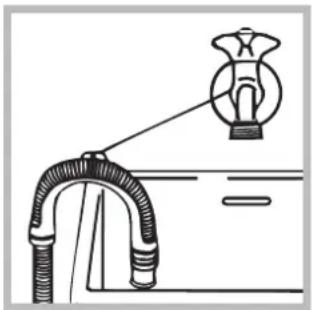

Alternatively, rest the

drain hose on the side of

a washbasin or bathtub,

fastening the duct supplied

to the tap (see figure).

The free end of the hose

should not be underwater.

! We advise against the use of hose extensions; if it is

absolutely necessary, the extension must have the same

diameter as the original hose and must not exceed 150 cm

Electrical connections

Before plugging the appliance into the electricity socket,

• the socket is earthed and complies with all applicable

• the socket is able to withstand the maximum power load

of the appliance as indicated in the Technical data table

• the power supply voltage falls within the values indicated

in the Technical data table (see opposite);

• the socket is compatible with the plug of the appliance.

If this is not the case, have the socket or the plug

! The appliace must only be installed indoor in a frost free

and dry room, to prevent it from electronic damage due to

frost or condensation.

! The mains socket must remain within easy reach after the

washing machine has been installed.

! Do not use extension cords or multiple sockets.

! The cable should not be bent or compressed.

! The power supply cable and plug must only be replaced

by authorised technicians.

Warning! The company shall not be held responsible in the

event that these regulations are not respected.

Technical data ModelAQ83F 49Dimensionswidth 59.5 cmheight 85 cmdepth 58 cmCapacityfrom 1 to 8 kg Electrical connectionsplease refer to the technical data plate fixed to the machineWater connectionsmaximum pressure 1 MPa (10 bar)minimum pressure 0.05 MPa (0.5 bar)drum capacity 58 litresSpin speedup to 1400 rotations per minuteTest wash cycles in accordance with directives 1061/2010 and 1015/2010programme ; Cotton standard 60 °C;programme ; Cotton standard 40 °C.This appliance conforms to the following EC Directives:- 2004/108/EC (Electromagnetic Compa-tibility)- 2006/95/EC (Low Voltage)- 2012/19/EUEN

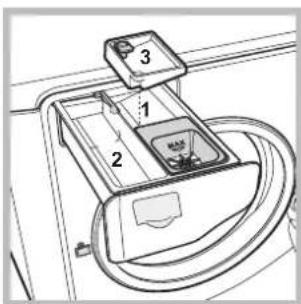

1. pre-wash compartment:

use powder detergent.

! Before pouring in the

detergent, make sure that

extra compartment 3 has

2. main wash compartment:

If liquid detergent is used,

it is recommended that the

removable plastic partition A

(supplied) be used for proper

dosage.If powder detergent is used, place the partition into

3. extra compartment: Bleach

! The use of extra compartment 3 excludes the pre-

washing additives compartment: for fabric softener

or liquid additives. We recommend that the maximum

level indicated by the grille is not exceeded, and that

concentrated fabric softeners are diluted.

This washing machine, in compliance with new energy

saving regulations, is fitted with an automatic standby

system which is enabled after about 30 minutes if no

activity is detected. Press the ON-OFF button briefly and

wait for the machine to start up again.

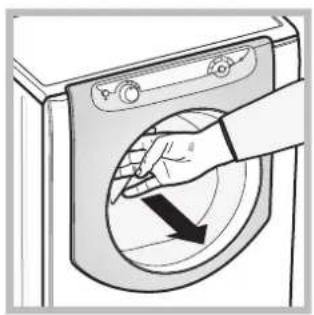

PORTHOLE DOOR Always use the handle to

open the porthole door (see

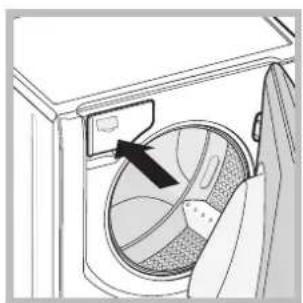

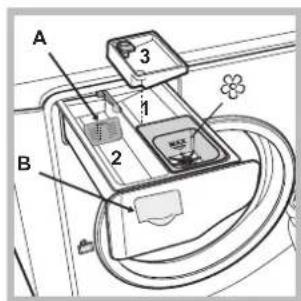

DETERGENT DISPENSER DRAWER The detergent dispenser

drawer is located inside

the machine and can be

accessed by opening the

For more information on

detergent measures, please

refer to the chapter entitled

“Detergents and laundry”.

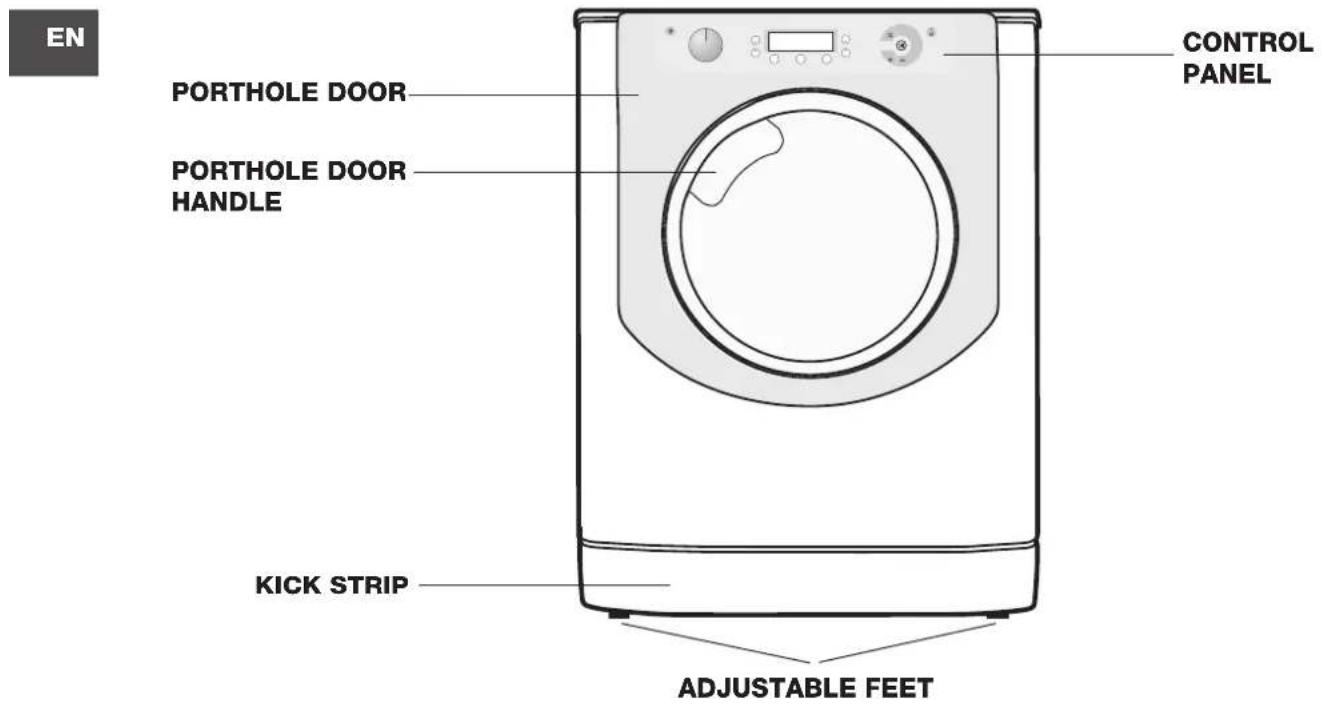

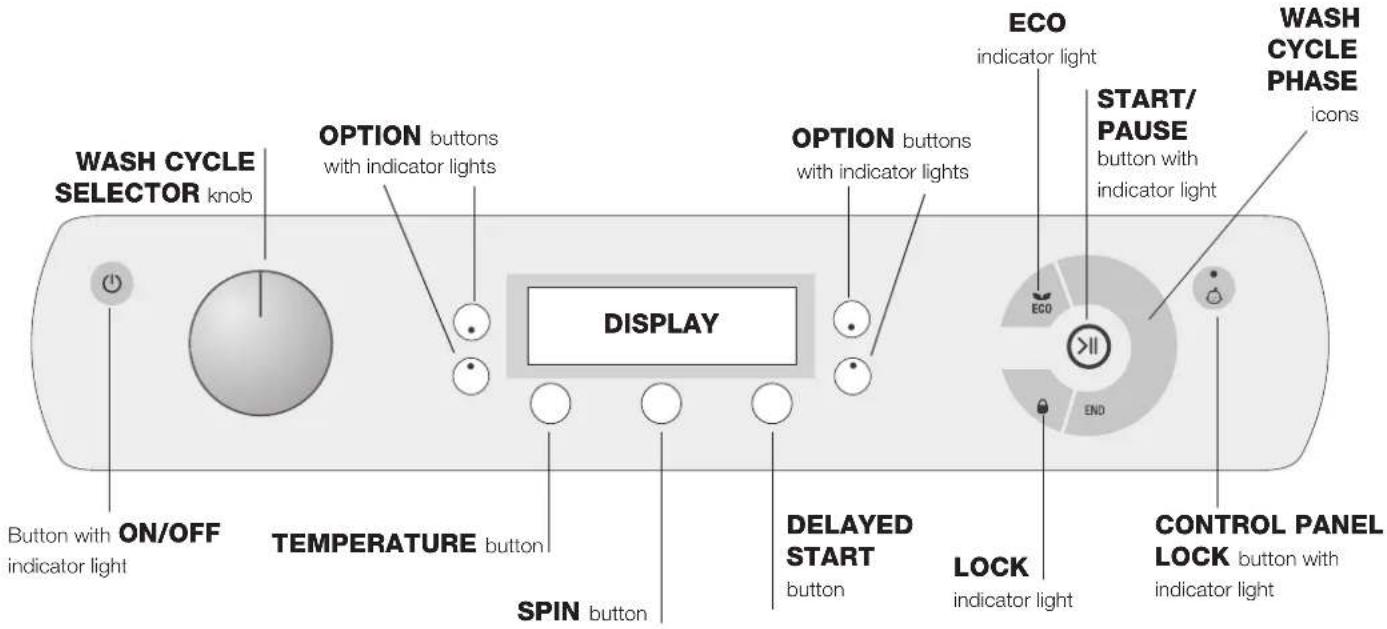

CONTROL PANEL PORTHOLE DOOR PORTHOLE DOOR HANDLE KICK STRIP ADJUSTABLE FEET

with indicator lights

with indicator lights

Button with ON/OFF indicator light: press this briefly

to switch the machine on or off. The green indicator light

indicates that the machine is switched on. To switch off the

washing machine during the wash cycle, press and hold

the button for approximately 3 seconds; if the button is

pressed briefly or accidentally the machine will not switch

off. If the machine is switched off during a wash cycle, this

wash cycle will be cancelled.

WASH CYCLE SELECTOR knob: may be turned in

either direction. To select the most suitable wash cycle,

please refer to the “Table of wash cycles”.

The knob will not move during the wash cycle.

TEMPERATURE button: press to modify or exclude

the temperature setting; the value selected will appear on

the display above (see “Running a wash cycle”).

SPIN CYCLE button: press to modify or exclude the

spin cycle; the value selected will appear on the display

above (see “Running a wash cycle”).

DELAYED START button: press to set a delayed start

for the selected wash cycle; the set delay time will appear

on the display above (see “Running a wash cycle”).

OPTION buttons with indicator lights: press to select the

available options. The indicator light corresponding to the

selected option will remain lit (see “Running a wash cycle”).

WASH CYCLE PHASE icons: these illuminate to indicate the

progress of the wash cycle (Wash – Rinse – Spin –

Drain ). The text lights up when the cycle is complete.

START/PAUSE button with indicator light: when the green

indicator light flashes slowly, press the button to start a

wash cycle. Once the cycle has begun the indicator light

will remain lit in a fixed manner. To pause the wash cycle,

press the button again; the indicator light will flash in an

orange colour. If the “LOCK” indicator light is switched

off, the door may be opened. To start the wash cycle from

the point at which it was interrupted, press the button

LOCK indicator light: indicates that the porthole door

is locked. To open the door, pause the wash cycle (see

“Running a wash cycle”).

CONTROL PANEL LOCK button with indicator light:

to activate or deactivate the control panel lock, press and

hold the button for approximately 2 seconds. when the

indicator light is illuminated, the control panel is locked.

This means it is possible to prevent wash cycles from being

modified accidentally, especially where there are children in

ECO indicator light: the icon lights up when, after

altering the washing parameters, an energy saving of

at least 10% is made. Furthermore, before the machine

enters “Standby” mode, the icon will light up for a few

seconds; when the machine is switched off the estimated

energy saving will be around the 80% mark.

WARNING: before you use the washing machine for the

first time, run a wash cycle with detergent and no laundry,

using the 90° cottons cycle without pre-wash.

1. SWITCH THE MACHINE ON. Press the button.

All the indicator lights will illuminate for 1 second; the

indicator light corresponding to the button will then

remain lit in a fixed manner and the START/PAUSE

indicator light will flash slowly.

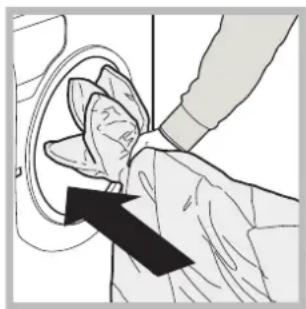

2. LOAD THE LAUNDRY. Open the porthole door.

Load the laundry, making sure you do not exceed the

maximum load value indicated in the table of wash

cycles on the following page.

3. MEASURE OUT THE DETERGENT. Pull out the

detergent dispenser drawer and pour the detergent into

the relevant compartments as described in “Description

4. CLOSE THE PORTHOLE DOOR.

5. SELECT THE PROGRAMME. Turn the WASH CYCLE SELECTOR KNOB right or left, until you have selected

the desired wash cycle. A temperature and spin speed

is set for each wash cycle; these may be adjusted.

6. CUSTOMISE THE WASH CYCLE. Use the relevant

buttons on the control panel:

Modify the temperature and/or spin speed.

The machine automatically displays the maximum

temperature and spin speed values set for the selected

cycle, or the most recently-used settings if they are

compatible with the selected cycle. The temperature

can be decreased by pressing the button, until the

cold wash ( ) setting is reached. The spin speed may

be progressively reduced by pressing the button,

until it is completely excluded ( ). If these buttons are

pressed again, the maximum values are restored.

programme is selected, the

temperature can be increased up to a value of 90°C.

Set a delayed start.

Press the button until you have reached the desired

delay time. During the setting process, the delay time is

shown on the display and the symbol flashes.

After selecting a delayed start time, the fixed symbol

and the cycle duration will appear on the display. Press

the button once to display the selected delay time.

To remove the delayed start option, press the button

until the display shows the text OFF; the symbol will

! Once the START/PAUSE button has been pressed, the

time delay may only be decreased.

Modify the cycle settings.

Press the OPTION buttons to customise the wash cycle

in accordance with your own requirements.

• Press the button to activate the option; the

corresponding indicator light will switch on.

• Press the button again to disable the option; the

indicator light will switch off.

! If the selected option is not compatible with the

selected wash cycle, this incompatibility will be signalled

by the flashing of the indicator light and a sound alert

(3 beeps); the option will not be activated.

! If the selected option is not compatible with another

option that has been selected previously, the indicator

light corresponding to the first option selected will

flash and only the second option will be activated; the

indicator light corresponding to the button will remain lit

in a constant manner.

7. START THE PROGRAMME. Press the START/PAUSE

button. The corresponding indicator light remains lit in a

fixed manner and the porthole door locks (the LOCK

indicator light illuminates). The icons corresponding to

the wash cycle phases will light up during the cycle to

indicate which phase is currently in progress.

To change a wash cycle once it has already started,

pause the washing machine by pressing the START/

PAUSE button; then select the desired cycle and press

the START/PAUSE button again.

To open the door during a wash cycle, press the START/

PAUSE button; if the LOCK indicator light is switched

off you may open the door. Press the START/PAUSE

button again to restart the wash cycle from the point at

which it was interrupted.

8. THE END OF THE WASH CYCLE. This is indicated

by the illuminated text END. The porthole door may be

opened immediately. If the START/PAUSE indicator light

is flashing, press the button to end the cycle. Open the

door, unload the laundry and switch off the machine.

! If you wish to cancel a cycle which has already begun,

press and hold the button until the cycle stops and the

machine switches off.

Bag for quilts, curtains and delicate garments

The Aqualtis washing machine makes it easier for you

to wash even the most valuable and delicate garments

in complete confidence thanks to the special bag which

protects the laundry (this is supplied with the machine).

We recommend that the bag is used every time you wash

quilts and padded items with an outer layer made

using synthetic material.

Running a wash cycleEN

By selecting this option, the efficiency of the rinse is increased

and optimal residual detergent removal is guaranteed. It is

particularly useful for skin which is sensitive to detergents. We

recommend this option is used with a full load of washing, or

when a large amount of detergent is required.

! It cannot be used in conjunction with , , , , .

By selecting this option, the wash and spin cycles will be

modified in order to reduce the formation of creases.

At the end of the cycle the washing machine drum will

rotate slowly; the “Easy Iron” and START/PAUSE indicator

lights will flash. To end the cycle press the START/PAUSE

button or the “Easy Iron” button.

! It cannot be used in conjunction with , , , , , .

This option offers a high-performance wash due to the greater

quantity of water used in the initial phase of the cycle, and

due to the increased wash cycle duration, is particularly

useful for the removal of stubborn stains. It can be used with

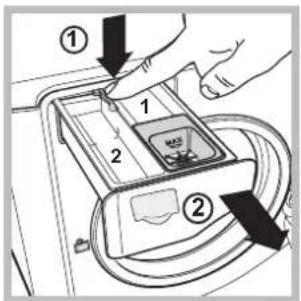

or without bleach. If you desire bleaching, insert the extra

tray compartment (3) into

compartment 1. When pouring

in the bleach, be careful not

to exceed the “max” level

marked on the central pivot

(see figure). To bleach laundry

without carrying out a full

wash cycle, pour the bleach

into the extra compartment 3,

select the “Rinse” cycle”

and activate the “Super Wash”

! It cannot be used in conjunction with , , , , ,

If this function is selected, the pre-wash cycle will run; this is

useful for removing stubborn stains.

N.B.: put the detergent in the relevant compartment.

! It cannot be used in conjunction with , , , , ,

Wash cycles and options

Table of wash cycles

Note: 10 minutes after the START, the machine will recalculate the time remaining until the end of the wash cycle on the basis of the load inside it; this value will then be shown on the display. The length of cycle shown on the display or in this booklet is an estimation only and is calculated assuming standard working conditions. The actual duration can vary accor-

ding to factors such as water temperature and pressure, the amount of detergent used, the amount and type of load inserted, load balancing and any wash options selected.

1) Test wash cycle in compliance with directive 1061/2010: set wash cycle with a temperature of 60°C.

This cycle is designed for cotton loads with a normal soil level and is the most efficient in terms of both electricity and water consumption; it should be used for garments which can be washed at 60°C. The actual washing temperature may differ from the indicated value. 2) Test wash cycle in compliance with directive 1061/2010: set wash cycle with a temperature of 40°C.

This cycle is designed for cotton loads with a normal soil level and is the most efficient in terms of both electricity and water consumption; it should be used for garments which can be washed at 40°C. The actual washing temperature may differ from the indicated value.3) At 60 °C the “Prewash” function cannot be selected.For all Test Institutes: 2) Long wash cycle for cottons: set wash cycle with a temperature of 40°C.4) Long wash cycle for synthetics: set wash cycle with a temperature of 40°C. Icon Description of the wash cycleMax. temp. (°C)Max. speed (rpm)Detergent and additivesMax. load (kg)Residual dampness %Energy con-sumption kWh Total water lt Cycle dura- tion Prewash Wash BleachFabric softenerSynthetics60° 800    4 45 1,11 48 115’

Synthetics (4) 40° 800     4 45 0,74 46 100’ Whites60° 1400  -

 5 - - - 200’ Coloureds40° 1400    5 53 0,88 69 105’ Darks30° 800 - 

 5 - - - 75’ Shirts40° 600 -  2 - - - 75’ Duvets: for down-stuffed garments. 30° 1200 -

 1 - - - 75’ Wool: for wool, cashmere, etc. 40° 800 -

 2 - - - 105’ Mix 30': to refresh lightly soiled garments quickly (not suitable for wool, silk and clothes which require washing by hand).30° 800 - 

Cotton Standard 60°C (1): heavily soiled whites and resistant colours.

60° (Max. 90°) 1400 (3)  8 53 1,04 55 200’ Cotton Standard 40°C (2): lightly soiled whites and delicate colours. 40° 1400 -   8 53 0,92 73 190’ Cotton Standard 20°C: lightly soiled whites and delicate colours. 20° 1400 -   8 - - - 180’EN

Detergents and laundry

Duvets: to wash double or single duvets (the weight of

which should not exceed 3,5 kg), cushions or clothes

padded with goose down such as puffa jackets, use the

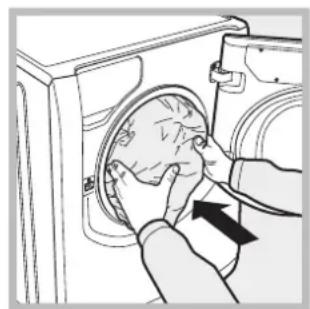

special wash cycle. We recommend that duvets are

placed in the drum with their edges folded inwards (see

figure) and that no more than ¾ of the total volume of the

drum is used. To achieve the best results, we recommend

that a liquid detergent is used and placed inside the

detergent dispenser drawer.

Quilts: to wash quilts with a synthetic outer layer, use the

bag provided and set the wash cycle to .

Bedlinen and towels: Use programme to wash bed

linen and towels in one single cycle: it optimises softener

performance and helps you save time and energy. We

recommend the use of powder detergent

Anti Allergy: use programme to remove major allergens

such as pollen, mites, cat’s and dog’s hair.

Ultradelicates: use programme to wash very delicate

garments having strasses or sequins.

We recommend turning the garments inside out before

washing and placing small items into the special bag

for washing delicates. Use liquid detergent on delicate

garments for best results.

To wash Silk garments and Curtains (these should be

folded and placed inside the bag provided), select cycle

and then option (in this case it will also be possible

to enable the “Extra Rinse” option); the machine will

end the cycle while the laundry is soaking and the

indicator light will flash. To drain the water so that the

laundry may be removed, press the START/PAUSE button

Wool: the wool wash cycle on this Hotpoint-Ariston

machine has been tested and approved by The Woolmark

Company for washing wool garments labelled as hand

washable provided that the garments are washed

according to the instructions on the garment label

and those issued by the manufacturer of this washing

machine. Hotpoint-Ariston is the first washing machine

brand to be approved by The Woolmark Company for

Apparel Care- Platinum for its washing performance and

consumption of energy and water.

Cotton Standard 20°C: ideal for lightly soiled cotton

loads. The effective performance levels achieved at cold

temperatures, which are comparable to washing at 40°,

are guaranteed by a mechanical action which operates at

varying speed, with repeated and frequent peaks.

The type and quantity of detergent required depend on

the type of fabric you are washing (cotton, wool, silk,

etc.), as well as its colour, the washing temperature, the

level of soiling and the hardness of the water in the area.

Measuring out the detergent carefully will avoid wastage

and help to protect the environment: although they are

biodegradable, detergents still contain ingredients which

alter the balance of nature.

We recommend the following:

• use powder detergents for white cotton garments and

• use liquid detergents for delicate cotton garments and

for all low-temperature wash cycles.

• use gentle liquid detergents for wool and silk

The detergent should be poured into the relevant

compartment - or the dispenser placed directly inside the

drum - before the wash cycle begins. In the latter case, it will

not be possible to select the Cottons with pre-wash cycle.

! Use powder detergent for white cotton garments, for

pre-washing, and for washing at temperatures over 60°C

! Follow the instructions given on the detergent packaging.

! Do not use hand washing detergents because these

create too much foam.

Preparing the laundry

• Shake out the garments before loading them into the

• Divide the laundry according fabric type (symbol on the

washing instruction label) and colour, making sure you

separate the coloured garments from the white ones;

• Empty all pockets and check the buttons;

• Do not exceed the values listed in the “Table of wash cycles”,

which refer to the weight of the laundry when dry.

How much does your laundry weigh?

Washing recommendations

Whites: use this cycle to wash white clothes. The

programme is designed to maintain the brightness of

white clothes over time.

Coloureds: use this cycle to wash bright coloured

clothes. The programme is designed to maintain bright

Darks: Use cycle to wash dark-coloured garments.

This programme is designed to maintain dark colours

over time. We recommend using a liquid detergent for the

best results when washing dark-coloured garments.

Shirts: use the special wash cycle to wash shirts in

different fabrics and colours to guarantee they receive the

best possible care.EN

that household appliances should not be disposed of

using the normal solid urban waste cycle. Exhausted

appliances should be collected separately in order to

optimise the cost of re-using and recycling the materials

inside the machine, while preventing potential damage

to the atmosphere and to public health. The crossed-out

dustbin is marked on all products to remind the owner

of their obligations regarding separated waste collection.

For more information relating to the correct disposal of

household appliances, owners should contact their local

authorities or appliance dealer.

Opening the porthole door manually

In the event that it is not possible to open the porthole door

due to a powercut, and if you wish to remove the laundry,

1. remove the plug from the

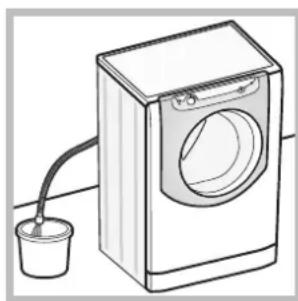

2. make sure the water level

inside the machine is lower

than the door opening; if

it is not, remove excess

water using the drain hose,

collecting it in a bucket as

indicated in the figure.

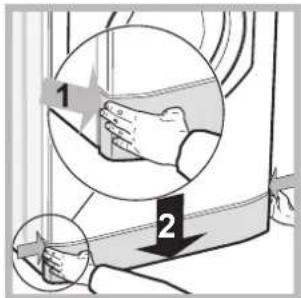

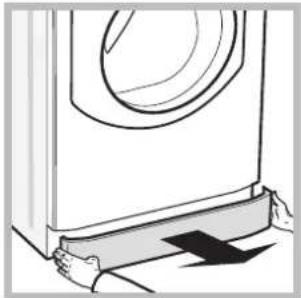

3. remove the cover panel on the lower front part of the

washing machine (see overleaf).

4. pull outwards using the

tab as indicated in the figure,

until the plastic tie-rod is freed

from its stop position; pull

downwards until you hear a

“click”, which indicates that

the door is now unlocked.

5. open the door; if this is

still not possible repeat the

6. reposition the panel, making sure the hooks are securely

in place before you push it onto the appliance.

Precautions and tips

! The machine was designed and constructed in

accordance with international safety regulations. The

following information is provided for safety reasons and

must therefore be read carefully.

• This appliance was designed for domestic use only.

• This appliance is not intended for use by persons

(including children) with reduced physical, sensory or

mental capabilities, or lack of experience and knowledge,

unless they have been given supervision or instruction

concerning use of the appliance by a person responsible

for their safety. Children should be supervised to ensure

that they do not play with the appliance.

• the machine must only be used by adults, in accordance

with the instructions given in this manual.

• Do not touch the machine when barefoot or with wet or

• Do not pull on the power supply cable when unplugging

the appliance from the electricity socket. Hold the plug

• Do not touch the drained water as it may reach

extremely high temperatures.

• Never force the porthole door. This could damage the

safety lock mechanism designed to prevent accidental

• If the appliance breaks down, do not under any

circumstances access the internal mechanisms in an

attempt to repair it yourself.

• Always keep children well away from the appliance while

• If it must be moved, proceed with the help of two or

three people and handle it with the utmost care. Never

try to do this alone, because the appliance is very heavy.

• Before loading laundry into the washing machine, make

sure the drum is empty.

Load balancing system

Before every spin cycle, to avoid excessive vibrations

before every spin and to distribute the load in a uniform

manner, the drum rotates continuously at a speed which

is slightly greater than the washing rotation speed. If,

after several attempts, the load is not balanced correctly,

the machine spins at a reduced spin speed. If the load is

excessively unbalanced, the washing machine performs

the distribution process instead of spinning. To encourage

improved load distribution and balance, we recommend

small and large garments are mixed in the load.

• Disposing of the packaging materials: observe local

regulations so that the packaging may be re-used.

• The European Directive 2012/19/EU relating to Waste

Electrical and Electronic Equipment (WEEE) statesEN

10 To access the pre-chamber:1. take off the cover panel on the front of the machine by first pressing it in the centre and then pushing downwards on both sides until you can remove it (see figures);2. position a container so that it will collect the water which flows out (approximately 1.5 l) (see figure);3. unscrew the lid by rotating it in an anti-clockwise direction (see figure);4. clean the inside thoroughly;5. screw the lid back on;6. reposition the panel, making sure the hooks are securely in place before you push it onto the appliance. Checking the water inlet hose Check the inlet hose at least once a year. If there are any cracks, it should be replaced immediately: during the wash cycles, water pressure is very strong and a cracked hose could easily split open. Cutting off the water and electricity

supplies • Turn off the water tap after every wash cycle. This will limit wear on the hydraulic system in the machine and help to prevent leaks.• Unplug the appliance when cleaning it and during all maintenance work. Cleaning the machine The outer parts and rubber components of the appliance can be cleaned using a soft cloth soaked in lukewarm soapy water. Do not use solvents or abrasives. Cleaning the detergent dispenser

drawer To remove the drawer, press lever (1) and pull the drawer outwards (2) (see figure).Wash it under running water; this procedure should be repeated frequently. Caring for your appliance drum • Always leave the door ajar to prevent unpleasant odours from forming. Cleaning the pump The washing machine is fitted with a self-cleaning pump which does not require any maintenance. Sometimes, small items (such as coins or buttons) may fall into the protective pre-chamber at the base of the pump. Make sure the wash cycle has finished and unplug the appliance.

Your washing machine could occasionally fail to work. Before contacting the Technical Assistance Centre (see “Assistance”),

make sure that the problem cannot be not solved easily using the following list.

The washing machine does not

The wash cycle does not start.

The washing machine does not fill

The washing machine door

The machine continuously fills

with water and drains.

The washing machine does not

The machine vibrates a lot during

The washing machine leaks.

The icons corresponding to the

“Phase in progress” flash rapidly

at the same time as the ON/OFF

There is too much foam.

The washing machine door

Possible causes / Solutions:

• The appliance is not plugged into the socket fully, or not enough to make

• There is no power in the house.

• The door is not closed properly.

• The START/PAUSE button has not been pressed.

• The water tap has not been opened.

• A delayed start has been set.

• The water inlet hose is not connected to the tap.

• The water tap has not been opened.

• There is no water supply in the house.

• The pressure is too low.

• The START/PAUSE button has not been pressed.

• If you have selected the option, at the end of the cycle the washing machine

drum will rotate slowly; to end the cycle press the START/PAUSE button or the

• The drain hose is not fitted at a height between 65 and 100 cm from the floor

(see “Installation”).

• The free end of the hose is under water (see “Installation”).

• If the dwelling is on one of the upper floors of a building, there may be

problems relating to water drainage, causing the washing machine to fill with

water and drain continuously. Special anti-draining valves are available in shops

and help to prevent this inconvenience.

• The wall drainage system is not fitted with a breather pipe.

• The wash cycle does not include draining: Some wash cycles require the drain

phase to be started manually (see “Wash cycles and options”).

• The “Easy iron” option is enabled: to complete the wash cycle, press the

START/PAUSE button (“Wash cycles and options”).

• The drain hose is bent (see Installation).

• The drainage duct is clogged.

• The drum was not unlocked correctly during installation (see “Installation”).

• The machine is not level (see “Installation” ).

• The machine is trapped between cabinets and walls (see “Installation”).

• The load is unbalanced (see “Detergents and laundry”).

• The water inlet hose is not screwed on properly (see “Installation”).

• The detergent dispenser is blocked (to clean it, see “Care and maintenance”).

• The drain hose is not fixed in place properly (see “Installation”).

• Switch off the machine and unplug it, wait for approximately 1 minute and

then switch it back on again. If the problem persists, contact the Technical

• The detergent is not suitable for machine washing (it should display the text

“for washing machines” or “hand and machine wash”, or the like).

• Too much detergent was used.

• Perform the manual unlocking procedure (see “Precautions and tips”).

! Note: to exit “Demo mode”, switch machine off, then press and hold the two “START/PAUSE” and “ON/OFF” buttons

simultaneously for 3 seconds.EN

Before calling for Assistance:

• Check whether you can solve the problem by yourself (see “Trouble shooting”);

• Restart the wash cycle to check whether the problem has been solved;

• If it has not, contact the Authorised Technical Assistance Service.

! If the washing machine has been installed or used incorrectly, you will have to pay for the call-out service.

! Always request the assistance of authorised technicians.

Please have the following information to hand:

• the type of problem;

• the appliance model (Mod.);

• the serial number (S/N).

The above information can be found on the data plate located on the appliance itself.

! It cannot be used in conjunction with , , , , ,

Antiallergen60° 1400 - 
