CHAPTER 1. BEFORE USING YOUR FRIDGE

Safety Instructions

- If the model contains R600a-see name plate under refrigerant (the coolant isobutane), naturals gas that, is very environmentally friendly but also combustible. When transporting and installing the unit care must be taken to ensure that none of the refrigeration circuit components become damaged. In the event of damage avoid naked flames or ignition sources and ventilate the room in which the unit is placed for a few minutes.

Warning: Keep ventilation openings in appliance enclosure or in structure for building in, clear of obstruction.

• Do not use mechanical devices or other artificial means to accelerate the defrosting process.
• Do not use electrical appliances in the refrigerator or freezer compartment of the appliance.
• If this appliance is to replace an old refrigerator with a lock; break or remove the lock as a safety measure before storing it, to protect children while playing might lock themselves inside.
• Old refrigerators and freezers contain insulation gases and refrigerant, which must be disposed of properly. Entrust the disposal of a scrap unit categorically to competence of your local waste disposal service and contact your local authority or your dealer if you have any questions. Please ensure that the pipe of work of your refrigerating unit does not get damaged prior to being picked-up by the relevant waste disposal service.

Important note:

Please read this booklet before installing and switching on this appliance. The manufacturer assumes no responsibility for incorrect installation and usage as described in this booklet.

Conformity Information

• Tropical Class is defined for the environment temperatures between 16^ and 43^ in accordance with the TS EN ISO 15502 Standards.
• The appliance is designed in compliance with the EN15502, IEC60335-1 / IEC60335-2-24, 2004/108/EC standards.

Safety warnings

Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. Do not damage the refrigerant circuit.

• Do not use multiple receptacles or extension cord.
• Do not plug in damaged, torn or old plugs.

Illustration of three hands performing a knotting or wire manipulation technique (no text or symbols present)

• Do not pull, bend or damage the cord.
• This appliance is designed for use by adults, do not allow children to play with the appliance or let them to hang over the door.
• Do not plug-in or out the plug from the receptacle with wet hands to prevent electrocution!
• Do not place explosive or flammable material in your fridge for your safety. Place drinks with higher alcohol amount vertically and by closing their necks tightly in the fridge department.
• Do not cover the body or top of fridge with lace. This effects the performance of your fridge.
• Fix the accessories in the fridge during transportation to prevent damage to accessories.
• When the door of the fridge is closed, vacuum will occur. Wait for about 1 minute to reopen it.

- The appliance is not intended for use by people (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they don't play with the appliance.

- If the supply cord is damaged it must be replaced by the manufacturer or service agent or similar qualified people in order to avoid a hazard.

Cartoon illustration of a character peeking out of a door, no text or symbols present

Installing and Operating your Fridge

- Operating voltage for your fridge is 220-240 V at 50Hz.

- Before starting to use your fridge, please call the nearest authorized service, and get help on the installation, operation and usage of your fridge.

- Mains cord of your fridge has a grounded plug. This plug should be used with a grounded receptacle that has a 16 amper fuse minimum. If you don't have a receptacle confirming with this, please have it done by a qualified electrician.

- We do not take the responsibility of the damages that occur due to ungrounded usage.

- Place your fridge in a place that it would not be exposed to direct sunlight.

- Your appliance should be at least 50 cm away from stoves, ovens and heater cores, and should be at least 5 cm away from electrical ovens.

- It should never be used outdoors or left under the rain.

- When your fridge is placed next to a deep freezer, there should be at least 2 ~cm between them to prevent humidity on the outer surface.

- Do not place anything on your fridge, and install your fridge in a suitable place so that at least 15 cm is available on the upper side.

- Fit the plastic wall spacers to the condenser at the back of the refrigerator in order to prevent leaning to the wall for good performance.

- If you will place your fridge next to your kitchen cabinets, leave a space of 2 cm between them.

• Install the distance adjustment plastic (the part with black vanes at the rear) by turning it 90° to prevent the condenser from touching the wall.

KG

Cartoon illustration of a smiling refrigerator with hands giving thumbs up and a bowl holding a tool (no text or symbols)

Diagram showing two curved arrows indicating rotational motion between a rectangular object inside a coiled tube (no text or symbols)

- The adjustable front legs should stabilized in an appropriate height to allow your fridge operate in a stable and proper way. You can adjust the legs by turning them clockwise (or in the opposite direction). This should be done before placing food in the fridge.

- Before using your fridge, wipe all parts with warm water added with a tea spoonful of sodium bicarbonate, and then rinse with clean water and dry. Place all parts after cleaning.

Before Using your Fridge

- When it is operated for the first time or after transportation, keep your fridge in the upright position for 3 hours and plug it on to allow efficient operation. Otherwise, you may damage the compressor.

- Your fridge may have a smell when it is operated for the first time; the smell will fade away when your fridge starts to cool.

CHAPTER 2. USAGE INFORMATION

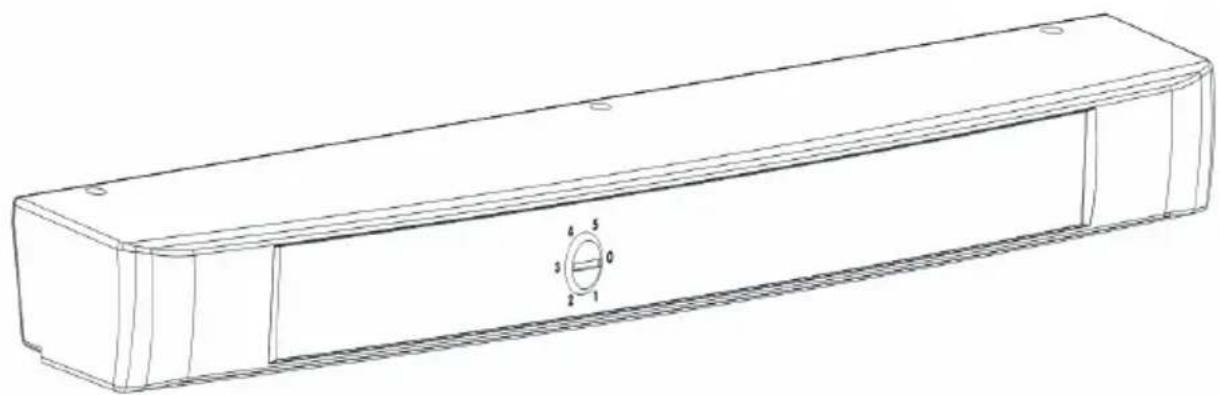

Thermostat Setting

Technical line drawing of a rectangular mechanical component with internal channels and mounting holes (no text or symbols)

Larders (coolers) have not any freezer compartment but can cool below 5°C.

- Thermostat automatically regulates the inside temperature of the refrigerator compartment. By rotating the knob from position « 1 » to « 5 », colder temperatures can be obtained.

- « 0 » position shows thermostat is closed and no cooling is available.

- For short-term storage of food in the refrigerator compartment, you can set the knob between minimum and medium position.(1-3)

- For long-term storage of food in the refrigerator compartment, you can set knob to medium position.(3-4)

- Note that; the ambient temperature, temperature of the freshly stored food and how often the door is opened, affects the temperature in the refrigerator compartment. If required, change the temperature setting.

- Larders (coolers) have not any freezer compartment but can cool below 5^ .

- When you first switch on the appliance, for starting a suitable cooling, the appliance should work 24 hours continuously until it cools down to sufficient temperature.

- In this time do not open the door so often and place a lot of food inside the appliance.

- If the unit is switched off or unplugged, you must allow at least 5 minutes before restarting or re-plugged the unit in order not to damage the compressor.

Accessoires

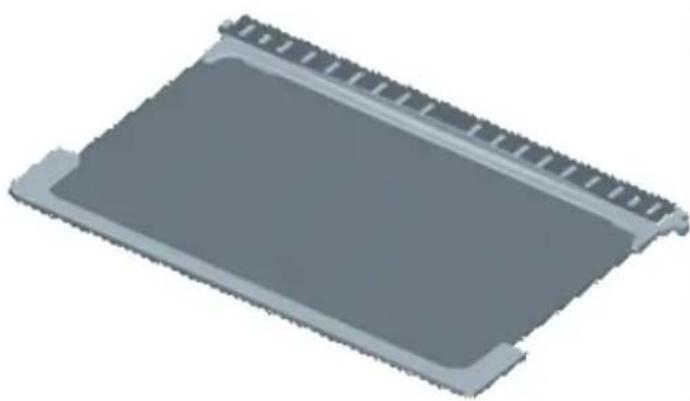

Glass shelf with slide damper

The slide damper above the crisper bins allows the temperature and humidity in the bins to be regulated.

• Opening the damper reduces the temperature and humidity.
• Closing the damper increases the temperature and humidity.

3D rendering of a rectangular electronic component with textured edges and mounting brackets (no text or symbols)

CHAPTER 3. CLEANING AND MAINTENANCE

• Make sure to unplug the fridge before starting to clean it.
• Do not wash your fridge by pouring water.
• You can wipe the inner and outer sides with a soft cloth or a sponge using warm and soapy water.
• Remove the parts individually and clean with soapy water. Do not wash in washing machine.
• Never use flammable, explosive or corrosive material like thinner, gas, acid for cleaning.
• Make sure that your fridge is unplugged while cleaning.

Cartoon illustration of a smiling refrigerator with a hand waving, accompanied by a smiling phone and a small bottle (no text or symbols)

Cartoon illustration of a smiling book character waving, accompanied by two small toy bolls (no text or symbols)

Defrosting

Simple line drawing of a structural beam or support with a small circular hole at one end (no text or symbols)

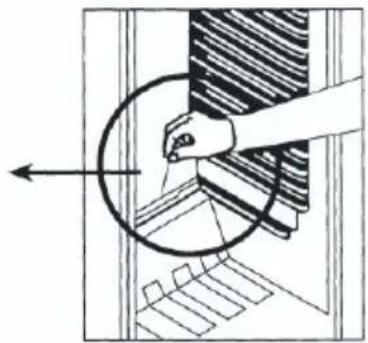

Diagram showing a hand holding a circular object over a window, with an arrow pointing to the left side (no text or symbols present)

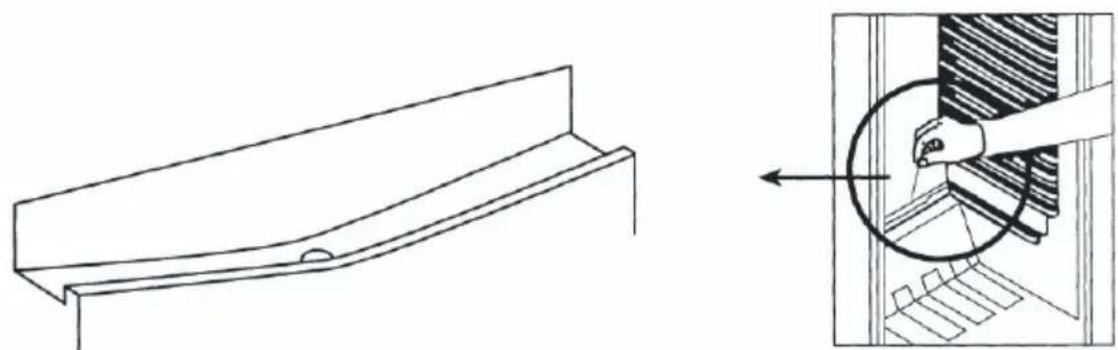

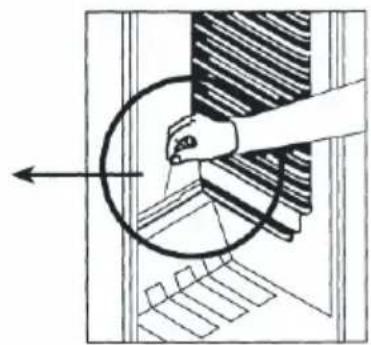

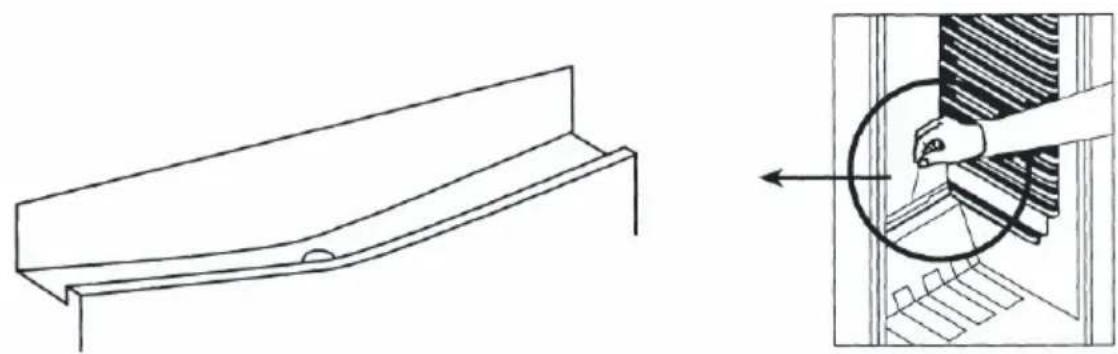

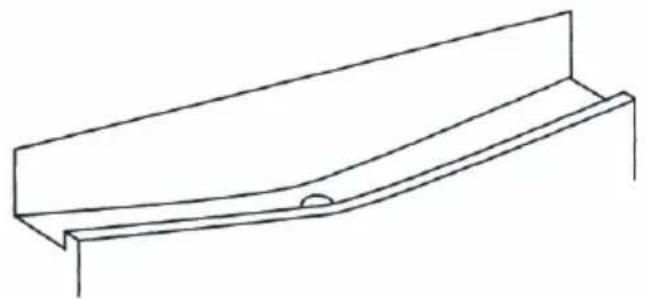

- Defrosting occurs automatically in refrigerator compartment during operation; the defrost water is collected by the evaporating tray and evoparates automatically.

- The evaporating tray and the defrost water drain hole should be cleaned periodically with defrost drain plug to prevent the water from collecting on the bottom of the refrigerator instead of flowing out.

- You can also pour 12 glass of the water to drain hole to clean inside.

Replacing the Bulb

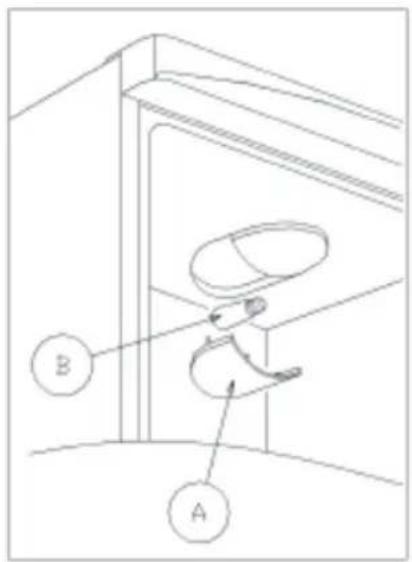

To replace the bulb in freezer and fridge departments;

1- Unplug your fridge.
2- Remove the cover of the box from the claws using a screwdriver.
3- Replace with a bulb of maximum 15 Watts.
4- Install the cover.
5- Wait for 5 minutes before re-plugging and bring the thermostat to its original position.

Technical diagram showing a mechanical assembly with labeled components A and B, likely illustrating a gear or mechanism setup.

CHAPTER 4. SHIPMENT AND REPOSITIONING

- Original package and foam may be kept for re-transportation (optionally).

- You should fasten your fridge with thick package, bands or strong cords and follow the instructions for transportation on the package for re-transportation.

- Remove movable parts (shelves, accessories, vegetable bins etc.) or fix them into the fridge against shocks using bands during re-positioning and transportation.

- Carry your fridge in the upright position.

Simple line drawing of two children playing a board game (no text or symbols)

Repositioning the Door (For some models)

You can reposition the doors of your fridge. Contact nearest authorized service for this.

CHAPTER 5. BEFORE CALLING SERVICE

If your refrigerator is not working properly, it may be a minor problem, therefore check the following, before calling an electrician to save time and money.

What to do if your refrigerator does not operate ;

Check that ;

• There is no power,
  • The general switch in your home is not disconnected,
• The thermostat setting is on « 0 » position,
• The socket is not sufficient. To check this, plug in another appliance that you know which is working into the same socket.

What to do if your refrigerator performs poorly ;

Check that ;

• You have not overloaded the appliance,
  • The doors are closed perfectly,
• There is no dust on the condenser,
• There is enough place at the rear and side walls.

If there is noise ;

The cooling gas which circulates in the refrigerator circuit may make a slight noise(bubbling sound) even when the compressor is not running. Do not worry this is quite normal. If these sounds are different check that ;

• The appliance is well leveled,
- Nothing is touching the rear,
- The stuffs on the appliance are vibrating.

If there is water in the lower part of the refrigerator

Check that ;

The drain hole for defrost water is not clogged(Use defrost drain plug to clean the drain hole)

If your fridge is not cooling enough;

Your fridge is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. We do not recommend operating your fridge out of stated temperatures value limits in terms of cooling effectiveness.

Climate Class	Ambient Temperature (°C)
T Between 16 and 43 (°C)
ST Between 16 and 38 (°C)
N Between 16 and 32 (°C)
SN Between 10 and 32 (°C)

IMPORTANT NOTES:

• Compressor protection function will be activated after sudden power breakdowns or after unplugging the appliance, because the gas in the cooling system is not stabilized yet. Your fridge will start after 5 minutes, there is nothing to worry about.
• If you will not use your fridge for a long time (e.g. in summer holidays) unplug it. Clean your fridge according to Chapter 4 and leave the door open to prevent humidity and smell.

If the problem persists after you have followed all the instructions above, please consult to the nearest Authorized service.

The lifetime of your appliance stated and declared by the Department of the Industry is 10 years (the period for retaining parts required for the proper functioning of the appliance).

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS

Technical diagram of a refrigerator with numbered parts for identification and assembly reference.

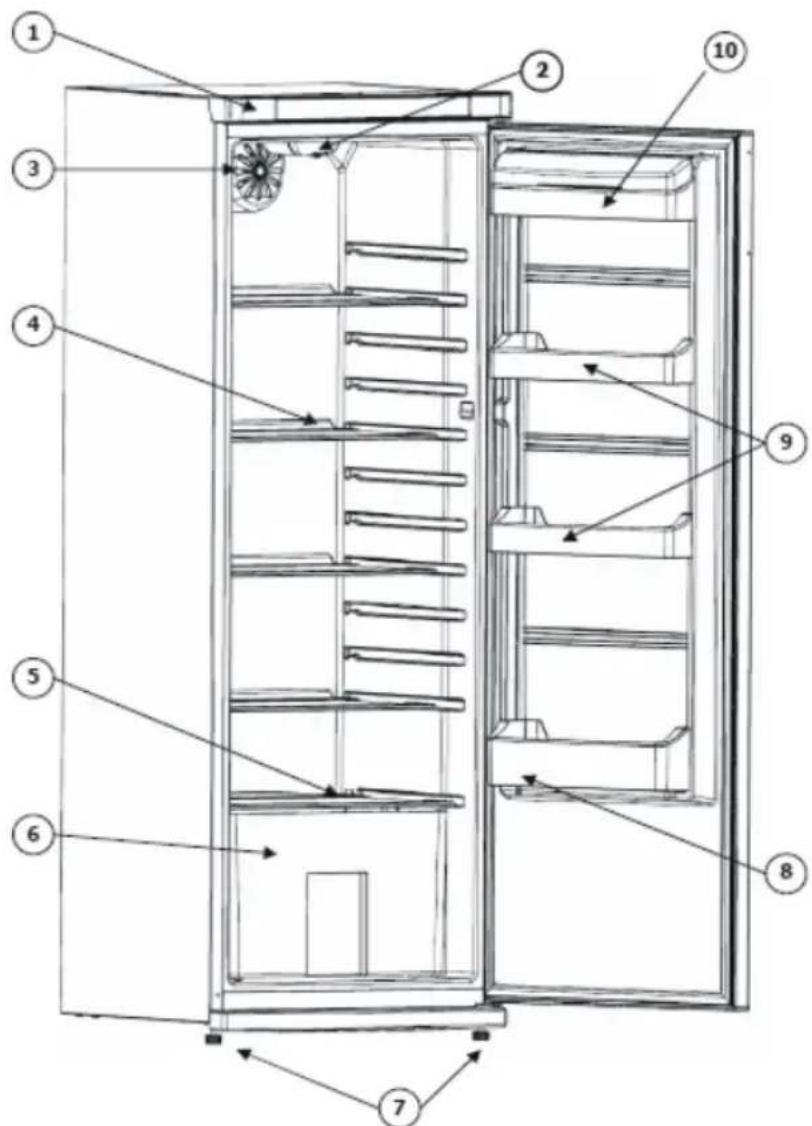

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

1) HEAD PANEL
2) LIGHT BULB
3) TURBO FAN (GLASS SHELF MODELS)
4) GLASS SHELVES
5) CRISPER COVER (SAFETY GLASS*)
6) CRISPER
7) LEVELING FEET
8) BOTTLE HOLDER
9) DOOR SHELVES
10) TOP SHELF
