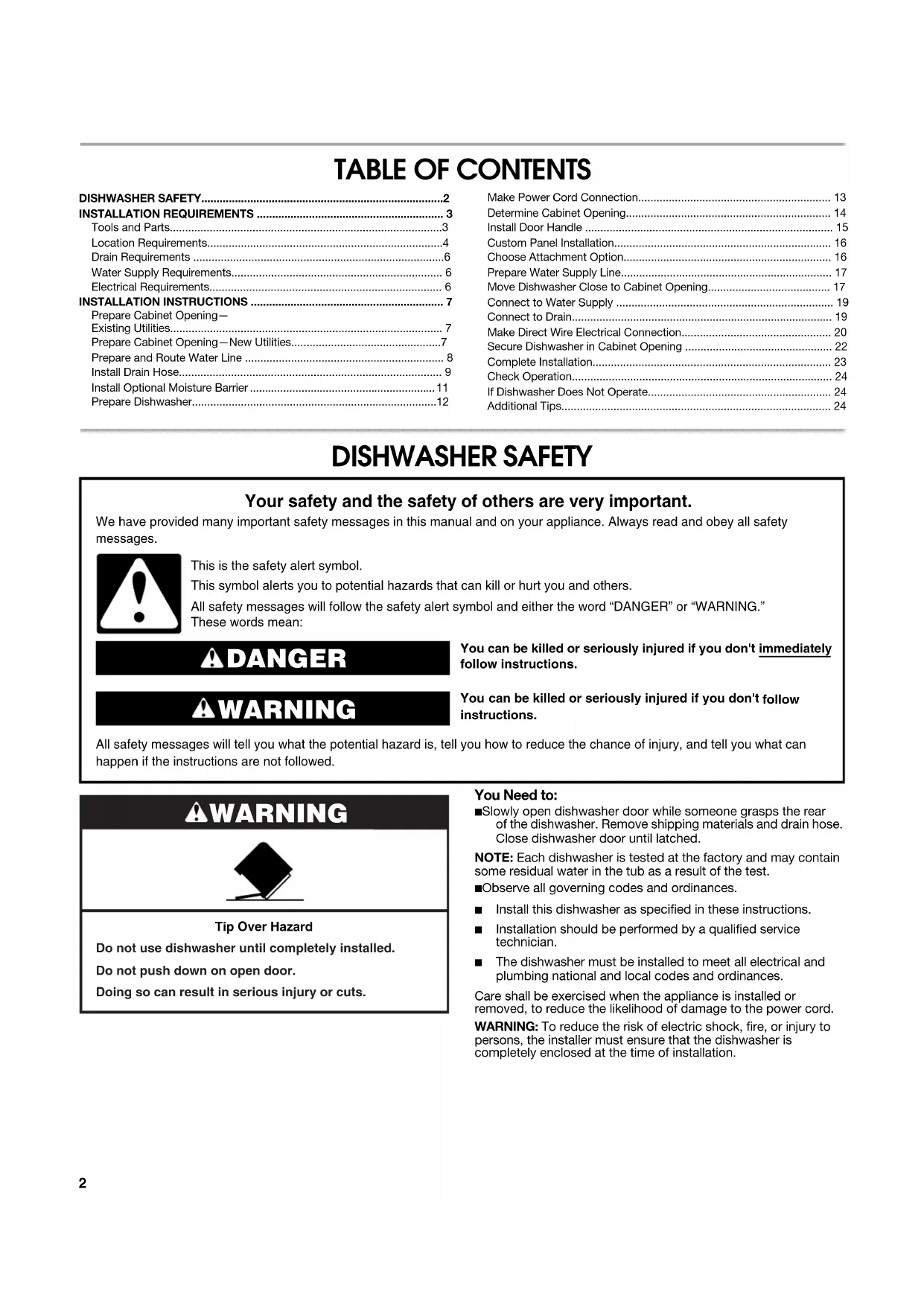

TABLE OF CONTENTS DISHWASHER SAFETY2INSTALLATION REQUIREMENTS 3Tools and Parts3Location Requirements4Drain Requirements 6Water Supply Requirements 6Electrical Requirements 6INSTALLATION INSTRUCTIONS 7Prepare Cabinet Opening—Existing Utilities 7Prepare Cabinet Opening—New Utilities7Prepare and Route Water Line 8Install Drain Hose 9 Install Optional Moisture Barrier 11 Prepare Dishwasher12Make Power Cord Connection 13Determine Cabinet Opening 14Install Door Handle 15Custom Panel Installation 16Choose Attachment Option 16Prepare Water Supply Line 17Move Dishwasher Close to Cabinet Opening 17Connect to Water Supply 19Connect to Drain 19Make Direct Wire Electrical Connection 20Secure Dishwasher in Cabinet Opening 22Complete Installation 23Check Operation 24If Dishwasher Does Not Operate 24Additional Tips 24

DISHWASHER SAFETY You Need to: ■ Slowly open dishwasher door while someone grasps the rear of the dishwasher. Remove shipping materials and drain hose. Close dishwasher door until latched.NOTE: Each dishwasher is tested at the factory and may contain some residual water in the tub as a result of the test.■ Observe all governing codes and ordinances. ■ Install this dishwasher as specified in these instructions.

■ Installation should be performed by a qualified service technician. ■ The dishwasher must be installed to meet all electrical and plumbing national and local codes and ordinances.Care shall be exercised when the appliance is installed or removed, to reduce the likelihood of damage to the power cord.WARNING: To reduce the risk of electric shock, fire, or injury to persons, the installer must ensure that the dishwasher is completely enclosed at the time of installation. You can be killed or seriously injured if you don't immediately

can be killed or seriously injured if you don'tfollow All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed. Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.This is the safety alert symbol.This symbol alerts you to potential hazards that can kill or hurt you and others.All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”These words mean:follow instructions.instructions.

DANGER WARNING WARNING Tip Over HazardDo not use dishwasher until completely installed.Do not push down on open door.Doing so can result in serious injury or cuts.3

INSTALLATION REQUIREMENTS Tools and Parts

Gather the recommended tools and parts before starting

installation. Read and follow the instructions provided with any

Other Useful Items You May Need:

Make sure all these parts are included in the literature package.

If parts are not included, call 1-800-422-1230. In Canada, call

Other Parts Needed: (not provided)

Optional Accessory Parts Available:

First-time Installations:

Check local codes. Check existing electrical supply. See the

“Electrical Requirements” section. It is recommended that

electrical connections be made by a licensed electrical installer.

Additional Tools Needed:

Additional Parts Needed (not provided)

NOTE: If using a flexible braided hose, replace inlet hose after

5 years to reduce the risk of hose failure. Record hose installation

or replacement dates on the hose for future reference.

†®TORX, T15, and T20 are registered trademarks of Acument Intellectual Properties, LLC.

Location Requirements

Dishwasher must be fully enclosed (top, sides, back, and floor)

upon installation. A side panel kit is available from your dealer for

installing your dishwasher at the end of your cabinetry.

An optional moisture barrier accessory is also available for

installing underneath a wooden countertop. See the “Tools and

Parts” section at the front of the guide for part details and orders.

Check location where dishwasher will be installed. The location

■ Convenient access for loading and unloading dishes. Corner

locations require a 2" (5.1 cm) minimum clearance between

the side of the dishwasher door and the wall or cabinet.

■ Easy access to water, electricity and drain.

■ Grounded electrical supply required.

■ Make sure pipes, wires and drain hose are within the

shaded area shown in the “Product and Cabinet Opening

Dimensions” section.

■ Do not run drain lines, water lines or electrical wiring

where they can interfere with or contact dishwasher motor

■ Shelter dishwasher and water lines leading to dishwasher

against freezing. Damage from freezing is not covered by

NOTE: If dishwasher will be left unused for a period of time or

in a location where it may be subject to freezing, have it

winterized by authorized service personnel.

■ A square opening for proper operation and appearance.

■ The cabinet front to be perpendicular to floor.

Helpful Hint: If floor at front of opening is not level with floor at

rear of opening, shims may be used to level dishwasher.

NOTE: To avoid shifting during dishwasher operation, shims

must be securely attached to the floor.

■ The location where the dishwasher will be installed must

provide clearance between motor and flooring. Motor should

not touch the floor.

■ Do not install dishwasher over carpeted flooring.5

CB. For panel-ready models, dishwasher depth is 24" (60 cm) not including the " (1.9 cm) custom door panel.C. Door handles may protrude forward of the face of the dishwasher; varies by model.A. Insulation may be compressed (not used on all models). 3 " - 4 "(8.8 cm - 10.6 cm) For 4" (10 cm) toe kick, height of cabinetopening is 34" (86.3 cm).NOTE: Shaded areas of cabinet walls show where utility connections may be installed.D. Measured from the lowest point on the underside of the countertop. May be reduced to 33" (85.1 cm) by removing the wheels and perforated area of insulation (blanket) on dishwasher.E. Minimum, measured from narrowest point of opening.Check that all surfaces have no protrusions that would prohibit dishwasher installation.Clear Area

■ A new drain hose is supplied with your dishwasher. If drain

hose is not long enough, use a new drain hose with a

maximum length of 12 ft (3.7 m) that meets all current AHAM/

IAPMO test standards, is resistant to heat and detergent, and

fits the 1" (2.5 cm) drain connector of the dishwasher. See the

“Tools and Parts” section at the front of the guide for part

■ Make sure to connect drain hose to waste tee or disposer inlet

above drain trap in house plumbing and 20" (50.8 cm)

minimum above the floor. It is recommended that the drain

hose either be looped up and securely fastened to the

underside of the counter, or be connected to an air gap.

■ Make sure to use an air gap if the drain hose is connected to

house plumbing lower than 20" (50.8 cm) above sub floor or

■ If required, the air gap should be installed in accordance with

the air gap installation instructions. When you are connecting

the air gap, a rubber hose (not provided) will be needed to

connect to the waste tee or disposer inlet.

■ Use ½" minimum I.D. drain line fittings

Water Supply Requirements

■ A hot water line with 20 to 120 psi (138 to 862 kPa) water

pressure can be verified by a licensed plumber.

■ 120°F (49°C) water at dishwasher.

■ ³⁄₈" O.D. copper tubing with compression fitting or flexible

braided water supply line. See the “Tools and Parts” section at

the front of the guide for part details and orders.

NOTE: ¹⁄₂" minimum plastic tubing is not recommended.

■ A 90° elbow with ³⁄₄" hose connection with rubber washer. See

the “Tools and Parts” section at the front of the guide for part

■ Do not solder within 6" (15.2 cm) of the water inlet valve.

Electrical Requirements

Be sure that the electrical connection and wire size are adequate

and in conformance with the National Electrical Code, ANSI/NFPA

70 - latest edition and all local codes and ordinances.

A copy of the above code standards can be obtained from:

National Fire Protection Association

■ A maximum of two field wiring supply conductors (12 AWG

largest size) plus one grounding conductor are permitted in

If Connecting Dishwasher With A Power Cord:

■ Use UL Listed power cord kit marked

for use with dishwasher. See the

“Tools and Parts” section at the front

of the guide for part details and orders.

■ Power cord must plug into a grounded 3 prong

outlet, located in the cabinet next to the

dishwasher opening. Outlet must meet all local

codes and ordinances.

If Connecting Dishwasher With Direct Wiring:

■ Use flexible, armored or nonmetallic

sheathed, copper wire with

grounding wire that meets the

wiring requirements for your home

and local codes and ordinances.

■ Use a UL Listed/CSA Approved metallic strain relief. See the

“Tools and Parts” section at the front of the guide for part

details and orders.7

INSTALLATION INSTRUCTIONS Prepare Cabinet Opening—

Existing Utilities When removing a previous dishwasher, be sure to avoid damaging the existing power cord, drain line, and water line connected to the dishwasher. If the water line and the cable extend to the locations shown, proceed to the “Install Drain Hose” section. If they do not reach far enough, follow the instructions in the “Prepare Cabinet Opening—New Utilities” section. Prepare Cabinet Opening—New Utilities

Prepare And Route The Electrical Supply

Option A, Power Cord: NOTE: A grounded 3 prong outlet is required inside a cabinet next to the dishwasher cabinet opening. Drill a 1¹⁄₂" (3.8 cm) hole in cabinet side or rear. See the “Product and Cabinet Opening Dimensions” section.

WARNING Disconnect electrical power at the fuse box or circuit

breaker box before installing dishwasher.

Failure to do so can result in death or electrical shock.

Electrical Shock Hazard8

Wood cabinet: Sand the hole until smooth.

Metal cabinet: Cover edges of hole with grommet included with

See the “Tools and Parts” section at the front of the guide for part

Option B, Direct Wire

Helpful Tip: Wiring the dishwasher will be easier if you route the

cable into the cabinet opening from the right-hand side.

Drill a 1¹⁄₂" (3.8 cm) hole in right-hand cabinet side or rear.

See the “Product and Cabinet Opening Dimensions” section.

Wood cabinet: Sand the hole until smooth.

Metal cabinet: Cover edges of hole with a grommet.

See the “Tools and Parts” section at the front of the guide for part

Route cable from power supply through cabinet hole (cable must

extend to the right front side of cabinet opening). Tape cable to

the floor in area shown. This will prohibit cable from moving when

dishwasher is moved into cabinet opening.

Prepare and Route Water Line

Helpful Tip: Routing the water line through the left-hand side of

cabinet opening will make water connection easier.

Drill a ¹⁄₂" (1.3 cm) hole in the cabinet side or rear.

If using copper tubing, measure overall length of copper tubing

required to reach the water supply, cut to length and attach

compression fittings.

If using flexible braided line, confirm braided line is of adequate

length. See the “Tools and Parts” section at the front of the guide

for part details and orders.9

NOTE: If using a flexible braided hose, replace inlet hose after

5 years to reduce the risk of hose failure. Record hose installation

or replacement dates on the hose for future reference.

Attach the water supply line (copper tubing or flexible braided line)

to the hot water line using a connection configuration that is in

compliance with local codes and ordinances. The water supply to

the dishwasher should have a manual shutoff valve located under

Slowly route water supply line through hole in cabinet. (If you are

using copper tubing, it will bend and kink easily, so be gentle.) It

should be far enough into the cabinet opening to connect it to the

dishwasher inlet on the front left side of the dishwasher.

Slowly turn water shutoff valve to “ON” position. Flush water into

a shallow pan until clear to get rid of particles that could clog the

inlet valve. Turn shutoff valve to “OFF” position.

Route water line and tape it to the floor in area shown. This will

keep it from moving when dishwasher is moved into cabinet

determine whether an air gap is required.

If needed, drill a 1¹⁄₂" (3.8 cm) diameter hole in cabinet wall or side

of the opening closest to the sink.

Route drain hose, as shown, through hole in cabinet to the front

center of opening where drain connection will be made. Tape

drain hose to the floor in area shown. This will prohibit it from

moving when dishwasher is moved into cabinet opening.10

IMPORTANT: The drain hose connection of the disposer or a

waste tee must be made before the drain trap and at least

20" (50.8 cm) above the floor where the dishwasher will be

Helpful Tip: To reduce vibration of the hose, keep the hose away

Option A, Waste Disposer – No Air Gap

Helpful Tip: Remove disposer knockout plug.

Option B, No Waste Disposer – No Air Gap

Option C, Waste Disposer – With Air Gap

1. Using a hammer and screwdriver,

knock plug into disposer.

2. Use needle-nose pliers to remove

3. Attach drain hose to disposer inlet

with large drain hose clamp

(provided). Use pliers to squeeze

clamp open and move into position.

1. Fit rubber end of drain hose to waste

tee and cut if needed.

NOTE: Do not cut ribbed section.

2. Attach rubber end of drain hose to

waste tee with a large drain hose

clamp (provided). Use pliers to

squeeze clamp open and move into

position. If the drain hose was cut,

use a 1¹⁄₂" to 2" (3.8 to 5 cm) screw-

type clamp (not provided).11

Helpful Tip: Remove disposer knockout plug.

Option D, No Waste Disposer – With Air Gap

Install Optional Moisture Barrier

See the “Tools and Parts” section at the front of the guide for part

1. Make sure the area under the cabinet is clean and dry for

installation of the moisture barrier.

2. Remove the backing of the moisture barrier and apply to

underside of the countertop along the front edge of the

1. Using a hammer and screwdriver,

knock plug into disposer.

2. Use needle-nose pliers to remove

3. Connect rubber end of drain hose to

air gap and cut if needed.

NOTE: Do not cut ribbed section.

4. Attach drain hose to air gap with

large drain hose clamp (provided).

Use pliers to squeeze clamp open

and move into position. If the drain

hose was cut, use a 1¹⁄₂" to 2" (3.8 to

5 cm) screw-type clamp (not

5. Use a rubber hose (not provided)

with screw-type clamps (not

provided) to connect from air gap to

1. Connect rubber end of drain hose to

air gap and cut if needed.

NOTE: Do not cut ribbed section.

2. Attach drain hose to air gap with

large drain hose clamp (provided).

Use pliers to squeeze clamp open

and move into position. If the drain

hose was cut, use a 1¹⁄₂" to 2" (3.8 to

5 cm) screw-type clamp (not

3. Use a rubber hose (not provided)

with screw-type clamps (not

provided) to connect from waste tee

Helpful Tip: Place cardboard under dishwasher until installed in

cabinet opening to avoid damaging floor covering.

Remove and discard the foam blocks (if blocks are present, not all

models have them) located above the front legs on each side of

the dishwasher. The blocks cover the rope/link pulleys on the

Using 2 or more people, grasp sides of dishwasher door frame

and place dishwasher on its back.

Do not use door panel as a worktable without first covering with a

towel to avoid scratching the door panel.

Remove and discard the plastic rail cover on each side of the

dishwasher frame. To remove the plastic rail cover, push upward

and back to unsnap it from the dishwasher frame.

Option A, Remove Access Panel - Plastic Panel

Using a flat-blade screwdriver, turn the plastic fasteners ¹⁄₄ turn

counterclockwise to unlock them. Remove panel. Do not remove

tech sheet from access panel.

Option B, Remove Access Panel - Metal Panel

Using a ¹⁄₄" nut driver or Phillips screwdriver, remove 2 screws

attaching access panel and lower panel to dishwasher.

Do not remove tech sheet from access panel.

WARNING Tip Over Hazard

Do not use dishwasher until completely installed.

Do not push down on open door.

Doing so can result in serious injury or cuts.

WARNING Excessive Weight Hazard

Use two or more people to move and install

Failure to do so can result in back or other injury.13

NOTE: If using Option B, proceed to “Determine Cabinet

Opening,” to continue with more of the installation of your

dishwasher before making the direct wire connection.

Make Power Cord Connection

Option A, Power Cord

Do not disconnect the green, black, or white dishwasher wires

already attached to the terminal box. There should be adequate

length in these wires to pull the terminal box out from under the

dishwasher if you lift the wires off of the nearby clips or

components being used to keep them off the floor.

Use a ¹⁄₄" nut driver or ¹⁄₄" hex-head socket wrench to remove the

screw that holds the terminal box to the cross brace. Then, tilt the

terminal box, free the tab and lift the terminal box away from the

crossbar. Remove the cover by sliding it up and lifting its hooks

out of the slots. Retain cover for later use.

Install a UL Listed/CSA Approved metallic strain relief. Make sure

screw heads are facing up when tightening conduit nut. Strain

relief is provided with the power cord kit. See the “Tools and

Parts” section at the front of the guide for part details and orders.

Route cord so that it does not touch dishwasher motor or lower

part of dishwasher tub. Pull cord through strain relief in terminal

Note: A maximum of two power cord supply conductors (12 AWG

largest size) plus one grounding conductor are permitted in the

Remove the ground connector screw on the raised floor inside the

box and place it through the ring terminal of the green ground wire

of power cord. Reattach and tighten the ground connector screw

to the raised floor of the box.

WARNING Electrical Shock Hazard

Electrically ground dishwasher.

Connect ground wire to green ground connector in

Do not use an extension cord.

Failure to follow these instructions can result in death,

fire, or electrical shock.14

Select UL Listed/CSA Approved twist-on wire connectors of the

proper size. See the “Tools and Parts” section at the front of the

guide for part details. Connect wires, black to black and white to

white, using the twist-on wire connectors.

NOTE: Do not pre-twist stranded wire. Twist on wire connector.

Gently tug on wires to be sure both are secured.

Tighten strain relief screws to secure cord.

Place wires inside terminal box. Replace the cover by inserting the

hooks of the terminal cover into the slots in the floor of the

terminal box and sliding the cover tight against the back wall

where wires come in. Make sure wires are tucked inside the box

and not pinched by the cover.

Then, put the terminal box back on the crossbar with the tab in

place. Use a ¹⁄₄" nut driver and the previously removed screw to

secure the terminal box to the crossbar.

NOTE: Do not plug into outlet until instructed to do so.

Once the terminal box has been remounted on the dishwasher,

there should be some excess length or slack in the green, black,

and white wires coming from the dishwasher to the terminal box.

Wrap these wires over the nearby components or clip them back

into the nearby clips that they were routed through prior to your

removing the box, to help keep them off the floor.

Determine Cabinet Opening

Measure height of cabinet opening from underside of countertop

to floor where dishwasher will be installed (you will need to

measure the lowest point on the underside of the countertop and

the highest point on the floor). Refer to “Dishwasher Height

Adjustment Chart” for wheel position and for wheel position and

height of front legs needed for your cabinet opening height.15

NOTE: If the minimum cabinet opening height is less than 34"

(86.4 cm), the rear wheels can be removed for additional

clearance. This will allow the dishwasher and perforated section

of the insulation blanket to fit into a 33¹⁄₂" (85.1 cm) high cabinet

opening, but the dishwasher will be more difficult to move.

Measurements are approximate. Wheels and legs are preset at

the factory for 34¹⁄₂" (87.6 cm).

Cut insulation blanket along perforation for cabinet opening height

of 33½" (85.1 cm). For other cabinet opening heights, do not cut.

Turn both leveler legs to the same height. Put wheels in the

required position determined from “Dishwasher Height

Built-up floors: If the kitchen floor is higher than the cabinet

opening's floor - for example, the kitchen floor tile does not

extend into the cabinet opening - add shims as needed in the area

shown to bring the dishwasher up to 34" (86.4 cm) below the

NOTE: Shims must be securely attached to floor to avoid

movement when the dishwasher is in use.

IMPORTANT: Do not scratch the front panel during this

Remove the door handle and hardware bag containing the

setscrews and hex key from the cardboard box. Setscrews are

already installed in the handle. Place handle on mounting studs

with the setscrews facing down. Push the door handle tightly

against the door. Insert the short end of the hex key into the

setscrews. Tighten the setscrews ¹⁄₄ turn past snug.

Retain hex key with Installation Instructions.16

Using 2 or more people, stand the dishwasher up.NOTE: Do not install kick plate until instructed to do so. Custom Panel Installation

(Custom Panel models only) For custom panel installation, refer to the Custom Panel Installation Instruction Sheet (Part Number W10750117A). Complete custom panel installation before proceeding to the “Choose Attachment Option” section. Choose Attachment Option IMPORTANT: The dishwasher must be secured to the cabinet as one of the final steps. Prepare the dishwasher for this by attaching the two brackets found in the parts bag to the dishwasher. For countertops that are wood, laminate, or another similar surface, use Option A. For countertops that are marble, granite, or another hard surface, use Option B. Option A, Countertop Attachment Remove the brackets from the package and insert into the open slots on the left-hand and right-hand top of the dishwasher collar, as shown.Using a pair of pliers, bend the tab down to secure the bracket in place. Repeat this step for the other side. NOTE: Do not attach the dishwasher. This will be done later.

Option B, Dishwasher Side Attachment NOTE: Remove the brackets from the parts package.Break off the end of the bracket along the scored line. With another person holding the rear of the dishwasher to keep it from tipping, open dishwasher door and place towel over pump assembly and spray arm of dishwasher. This will keep screws from falling into pump area when you are securing dishwasher to cabinet.Push the plastic buttons out of the side of the tub.NOTE: Save the buttons to cover the holes after dishwasher is installed.

WARNING Excessive Weight Hazard

Use two or more people to move and install

Failure to do so can result in back or other injury.17

Push bracket into slot on the side of dishwasher, and bend tab in

toward the side of the dishwasher so that it keeps the bracket in

place. Repeat this step for the other side of the dishwasher.

NOTE: Do not attach the dishwasher. This will be done later.

Prepare Water Supply Line

Copper tubing only: Slide nut, and then ferrule about 1" (2.5 cm)

NOTE: To avoid vibration during operation, route the water supply

line so that it does not touch the dishwasher base, frame or motor.

Get ³⁄₈" compression x ¾" hose fitting with 90-degree elbow. See

the “Tools and Parts” section at the front of the guide for part

details and orders. Connect the ³⁄₈"compression fitting of the 90°

elbow to the water supply line prior to installing the unit into the

cabinet opening. Attach such that the ³⁄₄" connection is facing

upward, as shown above.

Copper tubing only: Put the tubing into the 90° elbow fitting as far

as it will go (the copper tubing bends and kinks easily). Slide the

nut and ferrule forward, and then start the nut onto the elbow

Flexible braided connection: Secure nut to elbow using ⁵⁄₈" open

ended wrench or adjustable wrench.

NOTE: Do not use Teflon

tape with compression fittings.

Move Dishwasher Close to

Use 2 or more people to move and install dishwasher.

IMPORTANT: Double-check correct placement of utilities. Grasp

the sides of the dishwasher at the edges of the door panel. Tilt

dishwasher backward on wheels and move dishwasher close to

NOTE: Do not push on the front of the panel or on the console.

Panel or console may dent.

Helpful Tip: Temporarily tape utilities to the floor in the locations

shown to prohibit them from moving when dishwasher is moved

into the cabinet opening.

Check that water line is on the left-hand side of opening and drain

hose is near the center of the cabinet opening.

†®TEFLON is a registered trademark of E.I. Du Pont De Nemours and Company.

WARNING Excessive Weight Hazard

Use two or more people to move and install

Failure to do so can result in back or other injury.18

With another person holding the dishwasher to keep it from

tipping, open and close the door a few times. If the door closes or

falls open under its own weight, the door tension will need to be

To adjust the door spring tension, unhook the spring from the rear

Using a ⁵⁄₁₆" nut driver or hex socket, remove the screw from the

The screw can be put into one of 3 holes (1, 2, 3) in the front leg of

dishwasher. If the door closes by itself, move the tensioner to a

lower-numbered hole and replace screw. Reattach door spring to

NOTE: Tensioners on both sides of dishwasher should be secured

When door is unlatched, if door opens by itself, move the

tensioner to a higher-numbered hole and replace the screw.

Reattach door spring to rear leg.

NOTE: Tensioners on both sides of dishwasher should be secured

IMPORTANT: If wheels were removed, cover the floor when

moving the dishwasher. Slowly move dishwasher completely into

cabinet opening. Do not kink or pinch water line, drain hose,

power cord or direct wire between dishwasher and cabinet.

Remove cardboard from under dishwasher.

■ It is all right if dishwasher fits tightly into cabinet opening. Do

not remove insulation blanket – the blanket reduces the sound

■ If using power cord, make sure to route end through hole in

cutout before sliding dishwasher into cabinet opening.

■ For models with water softener, make sure that the drain hose

stays on the hanger that is on the right-hand side and is

tucked in on the side of the unit.

Align front of dishwasher door panel with front of cabinet doors.

You may need to adjust alignment to be even with your cabinets.19

Check that leveling legs are firmly against the floor. Close and

latch the door, and place level against the front panel. Check that

dishwasher is centered from front to back in the opening. If

needed, adjust leveling leg until dishwasher is plumb. Repeat for

other side of dishwasher.

Helpful Tip: Push up on front of dishwasher to raise dishwasher

off the ground to adjust front legs. With some installations, it may

be easier to adjust the front leg using the ³⁄₁₆" hex-head socket or

Place level against top front opening of tub. Check that

dishwasher is level from side-to-side. If dishwasher is not level,

adjust front legs up or down until dishwasher is level.

Connect to Water Supply

Be sure rubber washer is properly seated in fitting. Slide the

³⁄₄" fitting of the 90° elbow up to the valve and hand tighten to

avoid cross-threading. Hand tighten until the coupling is tight.

Using pliers, check the tightness of the coupling. An additional

¹⁄₄ to ¹⁄₂ turn may be required to seal the rubber gasket.

NOTE: Do not over tighten. Damage to the coupling can result.

Place paper towel under 90° elbow fitting. Turn on water supply

and check for leaks. If leak occurs, repeat previous step.

NOTE: Do not use Teflon

tape with compression fittings.

Place towel under drain hose to catch any water in drain hose.

Place the small drain hose clamp onto the small end of the drain

hose. Push the new drain hose into the rubber drain hose

connector up to the drain hose stop.

†®TEFLON is a registered trademark of E.I. Du Pont De Nemours and Company.20

Using pliers, squeeze open the small drain hose clamp and slide

onto connector between stops.

After hose is connected, remove towel.

Make Direct Wire Electrical Connection

NOTE: If the power cord was connected earlier, proceed to

“Secure Dishwasher in Cabinet Opening” section.

Option B, Direct Wire

Install a UL Listed/CSA Approved metallic strain relief. See the

“Tools and Parts” section at the front of the guide for part details

Route cable so that it does not touch dishwasher motor or lower

part of dishwasher tub. Pull cable through UL Listed/CSA Approved strain relief in terminal box.

Note: A maximum of two field wiring supply conductors (12 AWG

largest size) plus one grounding conductor are permitted in the

Form bare ground wire into a U-shaped hook. Wrap ground wire

hook clockwise around the ground connector screw on the raised

floor inside the box and under the washer. Securely tighten

Select UL Listed/CSA Approved twist-on wire connectors of the

proper size. See the “Tools and Parts” section at the front of the

guide for part details. Connect wires, black to black and white to

white, using the twist-on wire connectors.

NOTE: Do not pre-twist stranded wire. Twist on wire connector.

Gently tug on wires to be sure both are secured.

Tighten strain relief screws to secure cable. Make sure screw

heads are facing up when tightening conduit nut.

Place wires inside terminal box. Replace the cover by inserting the

hooks of the terminal cover into the slots in the floor of the

terminal box and sliding the cover tight against the back wall

where wires come in. Make sure wires are tucked inside the box

and not pinched by the cover. Then, put the terminal box back on

the crossbar with the tab in place. Use a ¹⁄₄" nut driver and the

previously removed screw to secure the terminal box to the

Once the terminal box has been remounted on the dishwasher,

there should be some excess length or slack in the green, black,

and white wires coming from the dishwasher to the terminal box.

Wrap these wires over the nearby components, or clip them back

into the nearby clips that they were routed through prior to your

removing the box, to help keep them off the floor.

WARNING Electrical Shock Hazard

Electrically ground dishwasher.

Connect ground wire to green ground connector in

Do not use an extension cord.

Failure to follow these instructions can result in death,

fire, or electrical shock.22

Secure Dishwasher in Cabinet Opening

Check that dishwasher is still level front-to-back and side-to-side

Open dishwasher door to prepare for securing the dishwasher to

■ The dishwasher must be secured to keep it from shifting when

■ Do not drop screws into bottom of dishwasher.

Option 1 - Secure Dishwasher To Countertop.

■ Locate brackets installed on top of dishwasher (during

Choose Attachment Method)

■ Secure dishwasher to countertop with two, #10 x ½" Phillips-

head screws (included).

Option 2 - Side Mount Dishwasher To Cabinet.

■ Locate brackets installed on sides of dishwasher (during

Choose Attachment Method).

■ Drill pilot holes in cabinet to avoid splitting the wood.

■ Secure dishwasher to cabinet with two, #10 x ½" Phillips-

head screws (included).

Open door and check that space between dishwasher cabinet

opening and tub is equal on both sides. If spacing is not equal,

loosen bracket screws and shift tub. Tighten bracket screws

Check that top of door does not contact screws, brackets or

countertop. If it does, adjust leveling legs.

If securing with a side attachment, check that sides of door do not

rub against the screw heads. If they do, dishwasher must be

re-centered. When dishwasher is properly centered, replace

Complete Installation

Check that power supply wire or cord does not touch dishwasher

motor or lower part of dishwasher tub.

Option A, Install Access Panel - Plastic Panel

Place the plastic access panel against the dishwasher leg.

Check that the lower edge of the access panel touches the floor.

Adjust if necessary.

Using a flat-blade screwdriver, turn the fasteners ¹⁄₄ turn clockwise

to lock into place. The fasteners slot will be straight up and down

when properly locked.

Option B, Install Access Panel - Metal Panel

Check that grounding clip is attached to the lower panel. Position

the lower panel behind the access panel. On some models there

is insulation on the access panel that must fall behind the

insulation on the lower panel.

Hold the 2 panels together and place them against dishwasher

leg. Using a Phillips screwdriver or ¹⁄₄" nut driver, reinstall the

screws through the holes in the access panel, and the slots in the

Check that the lower edge of the lower panel contacts the floor.

Adjust if necessary.24

Tighten access panel screws.

Plug into a grounded 3 prong outlet.

Check Operation ■ Read the Dishwasher User Guide that came with your dishwasher. ■ Check that all parts have been installed and no steps were skipped. Check that you have all tools used.

■ Start dishwasher and allow it to complete the shortest wash

cycle. After the first 2 minutes, unlatch door, wait 5 seconds,

then open door. Check that there is water in the bottom of the

dishwasher tub. Check that dishwasher is working properly.

If the dishwasher is not working properly, disconnect power or

unplug dishwasher and See the “If Dishwasher Does Not

If Dishwasher Does Not Operate

First try the solutions suggested here to possibly avoid the cost of

a service call. ■ Has the circuit breaker tripped or the house fuse blown?■ Is the door closed tightly and latched? ■ Has the cycle been set correctly to start the dishwasher? ■ Is the water turned on? If none of these possible solutions work, please see the User

Guide for service contact information.

Expect longer wash times. Your new dishwasher will average

2 to 3 hours per load, but use nearly 40% less energy than older

models. Designed with a low wattage, low energy consumption

motor, your dishwasher washes longer to ensure exceptional

cleaning. Certain models are equipped with an optical water

sensor so the first cycle will run longer to calibrate to optical

sensor. Selecting certain options could increase cycle time past

Rinse aid is necessary for good drying results:

This dishwasher is designed to be used with rinse aid for good

drying performance and controlling hard water deposit buildup.

Energy efficient dishwashers use less water and energy, so they

depend on the water sheeting action of rinse aid for good drying

Start/Resume indicator light may flash:

When pressing Start/Resume, you must make sure the door is

closed within 3 seconds. If you do not close the door within

3 seconds, the Start/Resume indicator light will flash until you

press it again. (You must also do this when adding a dish during

the middle of a cycle.)

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death,

fire, or electrical shock.

Option B, raccordement direct :

10 x 1/2" (incluses).

/™ ©2014. All rights reserved.
