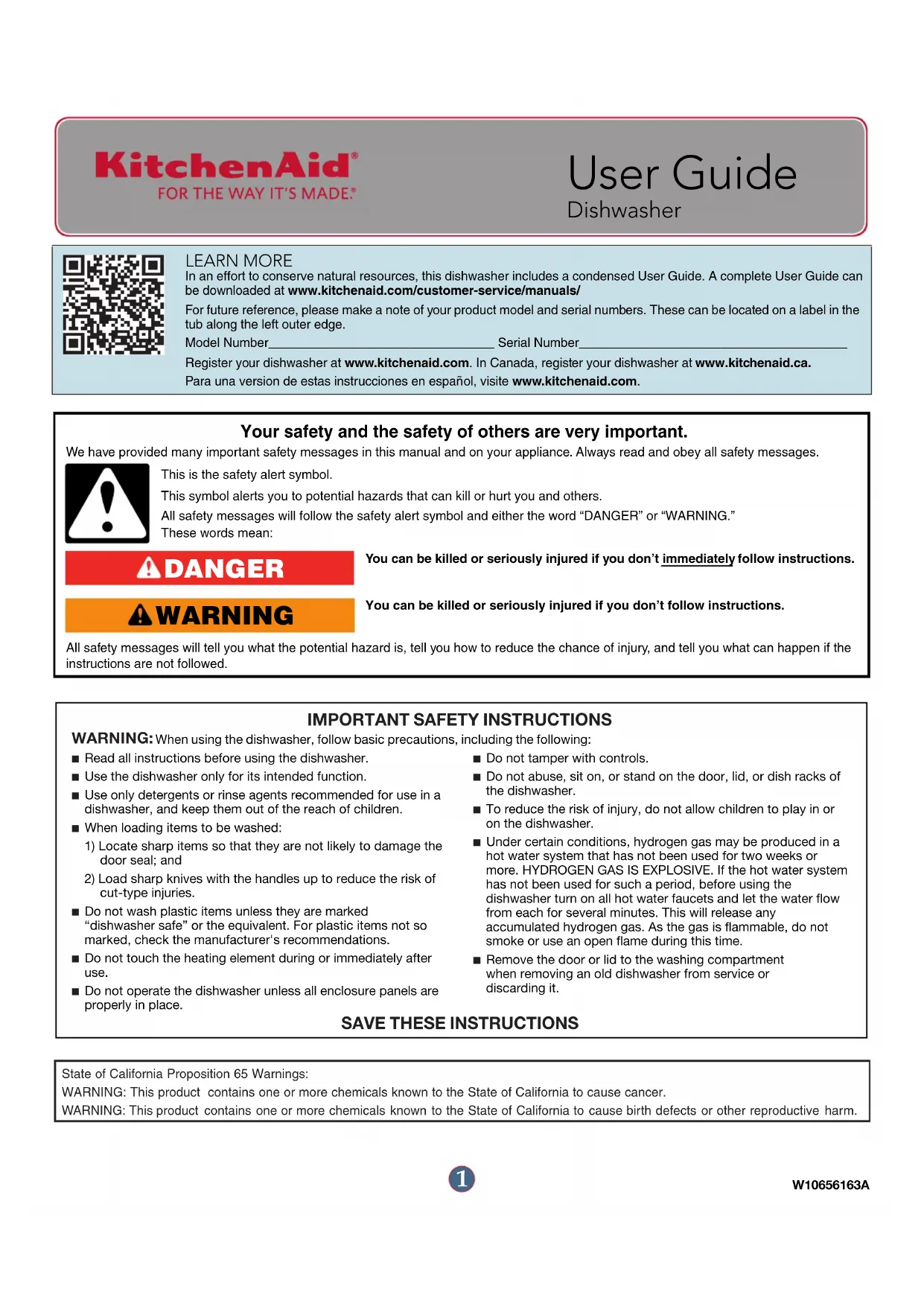

USER MANUAL Architect KDTM354DSS KITCHENAID

W10656163ALEARN MOREIn an effort to conserve natural resources, this dishwasher includes a condensed User Guide. A complete User Guide can be downloaded at www.kitchenaid.com/customer-service/manuals/ For future reference, please make a note of your product model and serial numbers. These can be located on a label in the tub along the left outer edge. Model Number________________________________ Serial Number______________________________________ Register your dishwasher at www.kitchenaid.com. In Canada, register your dishwasher at www.kitchenaid.ca.

You can be killed or seriously injured if you don’t immediately follow instructions.

You can be killed or seriously injured if you don’t follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed. Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol.This symbol alerts you to potential hazards that can kill or hurt you and others.All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”These words mean:

DANGER WARNING IMPORTANT SAFETY INSTRUCTIONS WARNING: When using the dishwasher, follow basic precautions, including the following:

SAVE THESE INSTRUCTIONS

■ Read all instructions before using the dishwasher.

■ Use the dishwasher only for its intended function.

■ Use only detergents or rinse agents recommended for use in a dishwasher, and keep them out of the reach of children. ■ When loading items to be washed: 1) Locate sharp items so that they are not likely to damage the door seal; and2) Load sharp knives with the handles up to reduce the risk of cut-type injuries. ■ Do not wash plastic items unless they are marked “dishwasher safe” or the equivalent. For plastic items not so marked, check the manufacturer's recommendations. ■ Do not touch the heating element during or immediately after

■ Do not operate the dishwasher unless all enclosure panels are properly in place. ■ Do not tamper with controls.

■ Do not abuse, sit on, or stand on the door, lid, or dish racks of the dishwasher. ■ To reduce the risk of injury, do not allow children to play in or on the dishwasher. ■ Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, before using the dishwasher turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time. ■ Remove the door or lid to the washing compartment when removing an old dishwasher from service or discarding it.

State of California Proposition 65 Warnings:WARNING: This product contains one or more chemicals known to the State of California to cause cancer. WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other reproductive harm.2

Tip Over HazardDo not use dishwasher until completely installed.Do not push down on open door.Doing so can result in serious injury or cuts.

WARNING GROUNDING INSTRUCTIONS SAVE THESE INSTRUCTIONS

For a grounded, cord-connected dishwasher:The dishwasher must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. The dishwasher is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinances.WARNING: Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service representative if you are in doubt whether the dishwasher is properly grounded. Do not modify the plug provided with the dishwasher; if it will not fit the outlet, have a proper outlet installed by a qualified electrician. ■

For a permanently connected dishwasher:The dishwasher must be connected to a grounded metal, permanent wiring system, or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the dishwasher.

KEY USAGE TIPS Drying - Rinse Aid is essential. You must use a drying agent such as a rinse aid for good drying performance. Rinse aid along with the ProDry™ option will provide best drying and avoid excessive moisture in dishwasher interior. Energy efficiency Energy efficiency is gained by extending cycle time and reducing the amount of wattage and water used during your dishwasher’s cycle. For exceptional cleaning, cycles are longer due to the soak and pauses. Several models contain an optical water sensor used to determine water and energy consumption for great cleaning performance. Efficient dishwashers run longer to save water and energy, just as driving a car slower saves on gas. Your first cycle will run longer to calibrate the optical water sensor.

RINSE AIDIMPROVES DRYING CHECK WITH DOOR FULLY OPEN Full

Press start/resume every time you add a dish. IMPORTANT: If anyone opens the door (such as, for adding a dish, even during the Delay Hours option), START/RESUME must be pressed each time. Push door firmly closed within 3 seconds of pressing START/RESUME. If door is not closed within 3 seconds, the start button LED will flash, an audible tone will be heard, and cycle will not start. Recommended detergent The United States and Canada have passed a restriction limiting the amount of phosphorus (phosphates) in the household dishwasher detergents to no more than 0.5%, whereas previous detergents contained 8.7%. Major manufacturers have reformulated their dishwasher detergent for this change in detergents as another step in eco-conscious awareness. With these recent changes it is recommended to use tablets and packs for convenience and improved performance.3

1. Prepare and Load the Dishwasher

IMPORTANT: Remove leftover food, bones, toothpicks and other hard

items from dishes. Remove labels from containers before washing. ■ Make sure when dishwasher door is closed no items are blocking detergent dispenser. ■ Items should be loaded with soiled surfaces facing down and inward to the spray as shown in the graphics above. This will

improve cleaning and drying results. Angle dirtiest dish surface

downward, allowing space for water to flow up through rack and

between dishes. ■ Avoid overlapping items like bowls or plates that may trap food. ■ Place plastics, small plates and glasses in upper rack. ■ Wash only items marked “dishwasher safe.” ■ To avoid thumping/clattering noises during operation: Load dishes so they do not touch one another. Make sure lightweight load items

are secured in racks. ■ When loading silverware, always place sharp items pointing down and avoid “nesting.” If your silverware does not fit into the

designated slots, push tabs inward on either end and lift lid off of

the silverware baskets. ■ Use slots in the covers and suggested loading patterns to keep your silverware separated for optimum wash. See the complete

on-line User Guide for detailed illustrations.

2. Check that all arms spin freely

NOTE: If you do not plan to run a wash cycle soon, run a rinse cycle.

Do not use detergent.

■ Use automatic dishwasher detergent only. Add detergent just

before starting a cycle. ■ Fresh automatic dishwasher detergent results in better

cleaning. Store tightly closed

detergent container in a cool, dry

Premeasured Detergents

Many detergents now come in

premeasured forms (gel packs,

tablets, or powder packs). These

forms are suitable for all hardness and soil levels. Always place

premeasured detergents in main compartment and close lid.

Using dishwasher detergent tablets and packs have been proven better

than powder, liquid or gel detergents at reducing filming on dishes.

Using tablets and packs over time will start to reduce or eliminate white

film. Also, by using a rinse aid you can minimize repeat buildup of white

NOTE: Follow instructions on the package when using other

dishwasher detergent types.

4. Add Rinse Aid ■ Your dishwasher is designed to use rinse aid for good drying performance. Without rinse aid, your dishes and dishwasher interior

will have excessive moisture. The ProDry™ option will not perform

as well without rinse aid. ■ Rinse aid keeps water from forming droplets that can dry as spots or streaks. It also improves drying by

allowing water to drain off of dishes after final rinse. ■ To add rinse aid, turn the dispenser cap ¼ turn

counterclockwise and lift off.

Pour rinse aid into the

opening until indicator level is

at “Full.” Replace dispenser

cap and turn to “Lock.” Make

sure cap is fully locked.

NOTE: For most water conditions,

the factory setting will give good results. ■ Check water hardness level to ensure no rings or spots on your dishware before adding rinse

aid or adjusting the factory setting. ■ If you are experiencing poor drying performance, you may want to try a higher

Turn the arrow adjuster inside the dispenser to change rinse aid setting.

Efficient dishwashers run longer to save water and energy, just as

driving a car slower saves on gas. Typical cycle time is approximately

2 hours, but can take less or more time to complete depending on

You can customize your cycles by pressing the options desired. If you

change your mind, press the option again to turn off the option. Not all

options are available for every cycle. If an invalid option is selected for a

given cycle, the lights will flash.

7. Start or Resume a Cycle

NOTE: Run hot water at sink nearest your dishwasher until water is hot.

■ Push door firmly closed. The door latches automatically. Select the

wash cycle option and press START/RESUME or press START/

RESUME to repeat the same cycle and options used in the

previous wash cycle.

IMPORTANT: If anyone opens the door (such as, for adding a dish,

even during the Delay Hours option), the Start/Resume button must be

■ Push door firmly closed within 3 seconds of pressing START/

RESUME. If door is not closed within 3 seconds, the Start button

LED will flash, an audible tone will be heard, and cycle will not start.

CYCLES SOIL LEVEL WASH TIME* (MINS.)

W/O OPTIONS WATER USAGE GALLONS

TYPICAL MAX The most advanced and versatile cycle. ProWash™ cycle

senses the load size, soil amount, and toughness of soil, to

adjust the cycle for optimal cleaning using only the amount of

water and energy needed.

Light to Medium 85 150 3.7 (14.0)

Heavy 120 180 4.2 (15.9)

Use for hard-to-clean, heavily soiled pots, pans, casseroles,

and regular tableware.

Heavy/Baked-On 120 180 4.2 (15.9)

This cycle with only the ProDry™ option selected, and

without other options selected, is recommended to

completely wash and dry a full load of normally soiled dishes.

The energy usage label is based on this cycle and option

Use for lightly soiled items or china and crystal. Light to Medium 80 145 2.7 (10.2)

Heavy 120 180 4.2 (15.9)

When you need fast results, the Express Wash will clean

dishes using slightly more water and energy. Select the

ProDry™ option to speed drying times.

All soil levels 60 60 5.2 (19.8)

Use for rinsing dishes, glasses, and silverware that will not be

Do not use detergent.

All soil levels 16 16 2.1 (8.1)

CYCLE GUIDE OPTIONS CAN BE SELECTED WITH WHAT IT DOES ADDED TIME TO CYCLE ADDED WATER GALLONS

TYPICAL MAX Dries dishes with heat and a fan. This option,

with the use of rinse aid, will provide the best

drying performance. Plastic items are less

likely to deform when loaded in the top rack.

Turn the ProDry™ option off for an air dry.

element to heat air,

vents and a fan that

any cycle is selected

Lower jets clean pans, casseroles, etc., with

tough food soil to eliminate the need for

soaking and scrubbing of dirty, baked-on

to provide intensified

specific wash areas.

Raises the main wash temperature to

improve cleaning for loads containing tough,

from 105°F (41°C) to

Sanitizes dishes and glassware in

accordance with NSF International NSF/

ANSI Standard 184 for Residential

Dishwashers. Certified residential

dishwashers are not intended for licensed

food establishments. The Sani indicator

indicates at the end of the cycle whether the

Sani Rinse option was successfully

completed. If the indicator is not activated, it

is probably due to the cycle being

from 105°F (41°C) to

the final rinse from

For added convenience, use for washing a

small load of dishes in the top rack to help

keep the kitchen continuously clean.

Slightly faster wash

Runs the dishwasher at a later time or during

off-peak electrical hours. Select a wash cycle

and options. Press the Delay button. Press

START/RESUME. Close the door firmly.

NOTE: Anytime the door is opened (such as,

to add a dish), the Start/Resume button must

be pressed again to resume the delay

Delays the start of a

OPTIONS WHAT IT DOES Avoids unintended use of the dishwasher between cycles, or cycle and option changes during a cycle.

To turn on Lock, press and hold TOP RACK ONLY for 3 seconds. The Control Lock light will stay on for a short time, indicating that

it is activated, and all buttons are disabled. If you press any button while your dishwasher is locked, the light flashes 3 times. The

dishwasher door can still be opened/closed while the controls are locked.

NOTE: You may need to disable Sleep Mode by pressing either START/RESUME or CANCEL/DRAIN, or by opening and closing

the door before you are able to turn Control Lock off.

To turn off Control Lock, press and hold TOP RACK ONLY for 3 seconds. The light turns off.

NOTE: If your model requires you to press and hold TOP RACK ONLY to lock the controls, the Control Lock LED will be on or off

to indicate whether Control Lock is active or not.

Control Purpose Comments

To start or resume a

If the door is opened during a cycle or the power is interrupted, the Start/Resume indicator

flashes. The cycle will not resume until the door is closed and START/RESUME is pressed.

NOTE: If the Start/Resume button is located on top of door, push door firmly closed within

3 seconds of pressing START/RESUME. If the door is not closed within 3 seconds, the Start/

Resume button LED will flash, an audible tone will be heard, and the cycle will not start.

OPTIONS CAN BE SELECTED WITH WHAT IT DOES ADDED TIME TO CYCLE ADDED WATER GALLONS

Cleaning the Dishwasher

Clean the exterior of dishwasher with a soft, damp cloth and mild

detergent. If your dishwasher has a stainless steel exterior, a stainless

steel cleaner is recommended - Stainless Steel Cleaner and Polish Part

Removal of Hard Water / Filming: It is recommended to use a

monthly maintenance product such as affresh

■ Load your dishwasher (preferably with dishes affected by filming /

■ Place tablet in main wash compartment of detergent dispenser.

■ Select cycle/option best for heavily soiled dishes and start

NOTE: It is recommended to use a premeasured detergent tablet or

pack for regular daily use.

If you have a drain air gap, check

and clean it if the dishwasher isn't

To Reduce Risk of Property Damage During Vacation or Extended

■ When you will not be using the dishwasher during the summer

months, turn off the water and power supply to the dishwasher.

■ Make sure the water supply lines are protected against freezing

conditions. Ice formations in the supply lines can increase water

pressure and cause damage to your dishwasher or home. Damage

from freezing is not covered by the warranty.

■ When storing your dishwasher in the winter, avoid water damage by

having your dishwasher winterized by authorized service

cycle after it's started.

Press and hold CANCEL/DRAIN to reset any control selections made.

See “Canceling A Cycle After Dishwasher Is Started” and “Changing A Cycle After Dishwasher

Is Started” sections in the full User Guide.

Press and hold the Hi-Temp Wash button for 3 seconds to turn the audible tones on or off. Only

audible tones for confirming button presses can be turned on/off. Important audible tones, such

as indicating a cycle has been interrupted, cannot be deactivated.

Indicator Lights are

The Clean indicator glows when a cycle is finished.

If you select the Sani Rinse option, when the Sani Rinse cycle is finished, the Sanitized

indicator glows. If your dishwasher did not properly sanitize your dishes, the light flashes at the

end of the cycle. This can happen if the cycle is interrupted, or the water could not be heated to

the required temperature.

The Clean and Sanitized lights go off when you open and close the door or press and hold

follow the progress of

the dishwasher cycle,

The indicators will inform you if you are able to add a dish to the cycle after it has started. It will

also inform you if the dishwasher is washing, rinsing, drying, complete, and/or sanitized. They

will show whether the control is locked and/or the delay option is selected. A series of bars will

count down the duration of the cycle remaining from left to right. Each bar equals

approximately 24 minutes of cycle length. The bars will also count down the delay feature from

left to right, and the delay indicator will be activated.

After every 30 cycles, the dishwasher will display “affresh,” providing a temporary reminder for

you to perform a monthly maintenance procedure. See “Dishwasher Care” section.

Control Purpose Comments

First try the solutions suggested here. If you need further assistance or more recommendations that may help you to avoid a service call, refer to

the warranty page in this manual and scan the code with your mobile device, or visit https://www.kitchenaid.com/product_help. In Canada, visit

http://www.kitchenaid.ca

Contact us by mail with any questions or concerns at the address below:

KitchenAid Brand Home Appliances

KitchenAid Brand Home Appliances

200 - 6750 Century Ave.

Please include a daytime phone number in your correspondence.

Check the following:

■ Is the overfill protection float able to move up and down freely? Press down to release.

■ Be sure the water supply is turned on to the dishwasher. (This is very important following the new installation of your

■ Check for suds in the dishwasher. For more information on suds, see “Dishwasher does not clean completely.”

NOTE: Plastic and items with nonstick surfaces are difficult to dry because they have a porous surface, which tends to

collect water droplets. Towel drying may be necessary.

Use of rinse aid along with the ProDry™ option is needed for proper drying.

Proper loading of items can affect drying.

■ For improved results, place items on the more slanted side of the rack.

Glasses and cups with concave bottoms hold water. This water may spill onto other items when you are unloading the

■ Unload the bottom rack first.

Spotting/Filming NOTES:

■ Liquid rinse aid is necessary for drying and to reduce spotting.

■ Use the correct amount of detergent.

Confirm that the cloudiness is removable by soaking the item in white vinegar for 5 minutes. If the cloudiness disappears, it

is due to hard water. Adjust the amount of detergent and rinse aid (see “Dishwasher Care” section). If it does not come

clear, it is due to etching.

Be sure the incoming water temperature is set at 120°F (49°C).

Try using the Hi-Temp Wash or Sani Rinse options.

To remove spotting, see “Dishwasher Care” section.

Be sure the dishwasher is loaded correctly. Improper loading can greatly decrease the washing performance (see the

“Operating Your Dishwasher” section).

Select the proper cycle for the type of soils. The ProWash™ or Tough cycle can be used for tougher loads.

Be sure the incoming water temperature is at least 120°F (49°C).

Use the proper amount of fresh detergent. More detergent is needed for heavier-soiled loads and hard water conditions.

Scrape food from dishes prior to loading (do not prerinse).

If foam or suds are detected by the dishwasher sensing system, the dishwasher may not operate properly or may not fill

■ Using the incorrect type of detergent, such laundry detergent, hand soap, or dish detergent for hand washing dishes.

■ Not replacing the rinse aid dispenser cap after filling (or refilling) the rinse aid.

■ Using an excessive amount of dishwasher detergent.8

DISHWASHER LIMITED WARRANTY ATTACH YOUR RECEIPT HERE. PROOF OF PURCHASE IS REQUIRED TO OBTAIN WARRANTY SERVICE.Please have the following information available when you call the Customer eXperience Center:■ Name, address and telephone number■ Model number and serial number■ A clear, detailed description of the problem■ Proof of purchase including dealer or retailer name and address IF YOU NEED SERVICE:

1. Before contacting us to arrange service, please determine whether your product requires repair. Some

questions can be addressed without service. Please take a few minutes to review the Troubleshooting or

Problem Solver section of the Use and Care Guide, scan the QR code on the right to access additional resources, or visit http://kitchenaid.custhelp.com. 2. All warranty service is provided exclusively by our authorized KitchenAid Service Providers . In the U.S. and Canada, direct all requests for warranty service to: KitchenAid Customer eXperience CenterIn the U.S.A., call 1-800-422-1230. In Canada, call 1-800-807-6777. If outside the 50 United States or Canada, contact your authorized KitchenAid dealer to determine whether another warranty applies.

LIFETIME LIMITED WARRANTY WHAT IS COVERED WHAT IS NOT COVERED FIRST YEAR LIMITED WARRANTY (PARTS AND LABOR)For one year from the date of purchase, when this major appliance is installed, operated and maintained according to instructions attached to or furnished with the product, KitchenAid brand of Whirlpool Corporation or Whirlpool Canada, LP (hereafter “KitchenAid”) will pay for factory specified replacement parts and repair labor to correct defects in materials or workmanship that existed when this major appliance was purchased, or at its sole discretion replace the product. In the event of product replacement, your appliance will be warranted for the remaining term of the original unit's warranty period.SECOND THROUGH FIFTH YEAR LIMITED WARRANTY (CERTAIN COMPONENT PARTS ONLY - LABOR NOT INCLUDEDIn the second through fifth years from the date of original purchase, when this major appliance is installed, operated and maintained according to instructions attached to or furnished with the product, KitchenAid will pay for factory specified parts for the following components to correct non-cosmetic defects in materials or workmanship in these parts that prevent function of this major appliance and that existed when this major appliance was purchased. This is a limited 5-year warranty on the below named parts only and does not include repair labor. ■ Nylon dish racks

■ Electronic controls LIFETIME LIMITED WARRANTY (STAINLESS STEEL TUB AND INNER DOOR LINER ONLY)For the lifetime of the product from the date of original purchase, when this major appliance is installed, operated and maintained according to instructions attached to or furnished with the product, KitchenAid will pay for factory specified parts and repair labor for the following components to correct non-cosmetic defects in materials or workmanship that existed when this major appliance was purchased: ■ Stainless steel tub

■ Inner door liner YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. Service must be provided by a KitchenAid designated service company. This limited warranty is valid only in the United States or Canada and applies only when the major appliance is used in the country in which it was purchased. This limited warranty is effective from the date of original consumer purchase. Proof of original purchase date is required to obtain service under this limited warranty. 1. Commercial, non-residential or multiple-family use, or use inconsistent with published user, operator or installation instructions. 2. In-home Instruction on how to use your product3. Service to correct improper product maintenance or installation, installation not in accordance with electrical or plumbing codes or correction of household electrical or plumbing (i.e. house wiring, fuses or water inlet hoses). 4. Consumable parts (i.e. light bulbs, batteries, air or water filters, etc.).5. Damage from accident, misuse, abuse, fire, floods, acts of God or use with products not approved by KitchenAid.6. Repairs to parts or systems to correct product damage or defects caused by unauthorized service, alteration or modification of the appliance.7. Cosmetic damage including scratches, dents, chips, and other damage to appliance finishes unless such damage results from defects in materials and workmanship and is reported to KitchenAid within 30 days. 8. Discoloration, rust or oxidation of surfaces resulting from caustic or corrosive environments including but not limited to high salt concentrations, high moisture or humidity or exposure to chemicals.9. Pick-up or delivery. This product is intended for in-home repair. 10. Travel or transportation expenses for service in remote locations where an authorized KitchenAid servicer is not available. 11. Removal or reinstallation of inaccessible appliances or built-in fixtures (i.e. trim, decorative panels, flooring, cabinetry, islands, countertops, drywall, etc.) that interfere with servicing, removal or replacement of the product. 12. Service or parts for appliances with original model/serial

numbers removed, altered or not easily determined.The cost of repair or replacement under these excluded circumstances shall be borne by the customer. DISCLAIMER OF IMPLIED WARRANTIES IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow limitations on the

duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY KitchenAid makes no representations about the quality, durability, or need for service or repair of this major appliance other than the representations

contained in this warranty. If you want a longer or more comprehensive warranty than the limited warranty that comes with this major appliance, you

should ask KitchenAid or your retailer about buying an extended warranty.LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. KITCHENAID SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the exclusion or limitation

incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.

http://kitchenaid.custhelp.com

® /™ ©2014. Used under license in Canada. All rights reserved. 5/14 Printed in U.S.A.1

RINSE AID IMPROVES DRYING CHECK WITH DOOR FULLY OPEN Full

https://www.kitchenaid.com/product_help.com

. Au Canada, consulter le site Internet

http://www.kitchenaid.ca

Vous pouvez adresser tous commentaires ou questions par courrier à l'adresse ci-dessous :

KitchenAid Brand Home Appliances

KitchenAid Brand Home Appliances

http://www.kitchenaid.ca
