USER MANUAL Swing H1 Parquet MIELE

Abluftfilter Active AirClean

21Warning and Safety instructions 23

Guide to the appliance 28

Caring for our environment 30

Preparing for use 31

Using the accessories supplied 31

Unwind the mains cable 32

To adjust the telescopic tube 32

Switch on the vacuum cleaner32

To switch on and off32

To adjust the floorhead 32

Setting down and storing the cleaner 33

Purchasing new dustbags and filters 34

Ordering the correct dustbags and filters 34

When to change the dustbag 34

How to replace the dustbag 35

When to change the dust compartment filter (for motor protection) 35

How to change the dust compartment filter 35

When to replace the exhaust filter 35

How to replace the AirClean exhaust filter 35

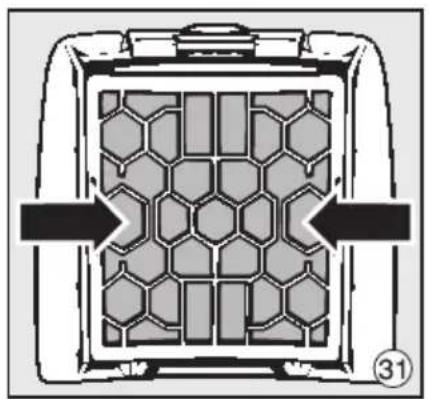

How to replace an Active AirClean filter or an AirClean+ filter 36

Replacing one type of exhaust filter with another 36

When to change the thread lifters 36

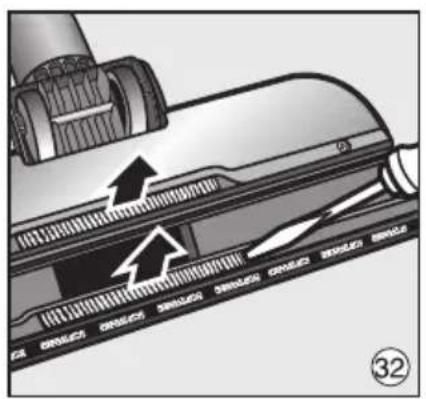

How to replace the thread lifters 36

Cleaning and care 37

Problem solving guide 37

After sales service 37

Optional accessories38

Electrical connection for the UK 40

Electrical connection AU, NZ 40

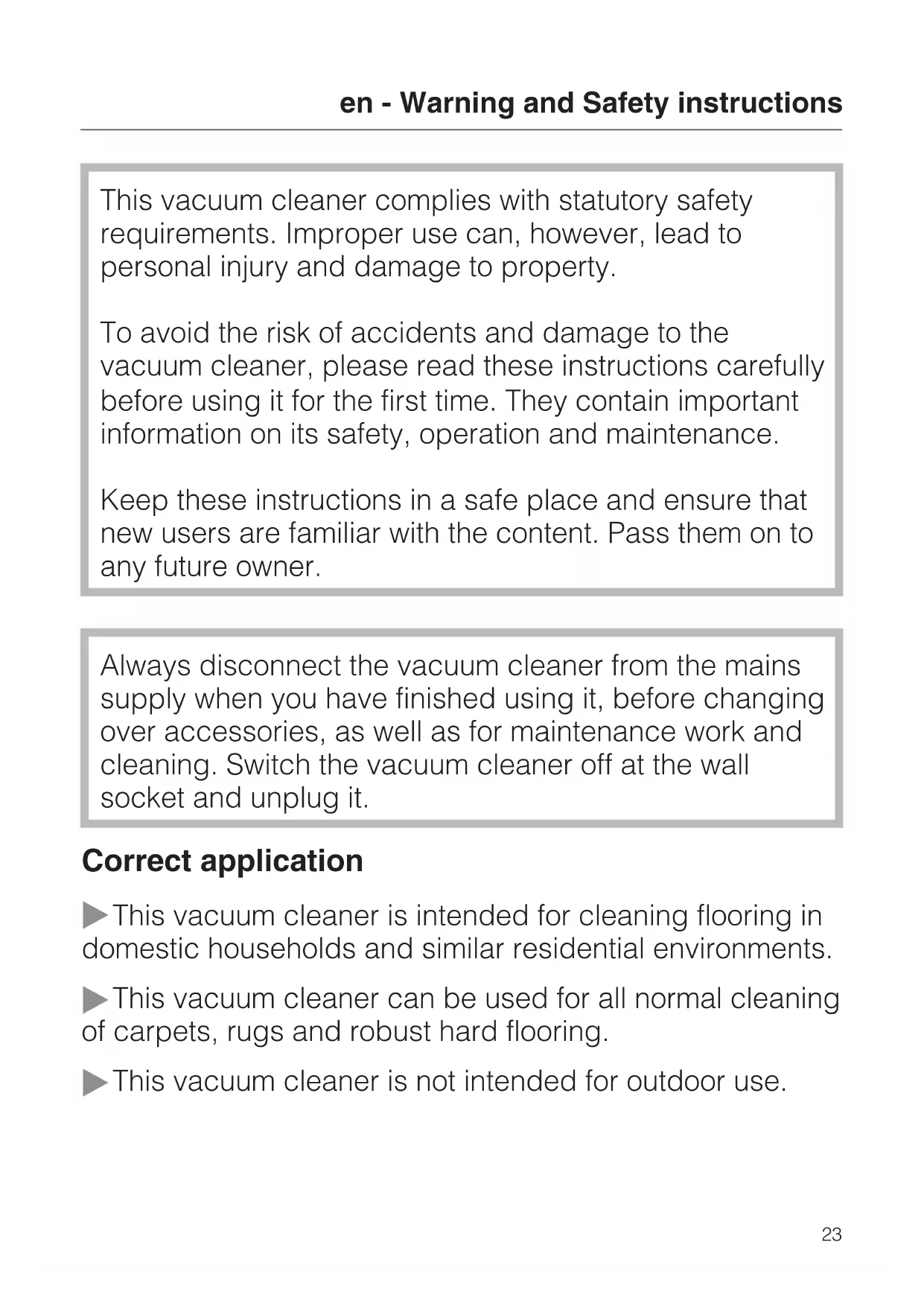

22This vacuum cleaner complies with statutory safety

requirements. Improper use can, however, lead to

personal injury and damage to property.

To avoid the risk of accidents and damage to the

vacuum cleaner, please read these instructions carefully

before using it for the first time. They contain important

information on its safety, operation and maintenance.

Keep these instructions in a safe place and ensure that

new users are familiar with the content. Pass them on to

Always disconnect the vacuum cleaner from the mains

supply when you have finished using it, before changing

over accessories, as well as for maintenance work and

cleaning. Switch the vacuum cleaner off at the wall

socket and unplug it.

This vacuum cleaner is intended for cleaning flooring in

domestic households and similar residential environments.

This vacuum cleaner can be used for all normal cleaning

of carpets, rugs and robust hard flooring.

This vacuum cleaner is not intended for outdoor use.

en - Warning and Safety instructions

The vacuum cleaner must only be used to vacuum dry

floor surfaces. Do not use on people and animals. Any

other usage, modification or alteration is not supported by

the manufacturer and could be dangerous.

This vacuum cleaner can only be used by people with

reduced physical, sensory or mental capabilities, or lack of

experience or knowledge, if they are supervised whilst

using it or have been shown how to use it in a safe way

and understand and recognise the consequences of

incorrect operation.

Safety with children

Children under 8 years of age must be kept away from

the vacuum cleaner unless they are constantly supervised.

Children 8 years and older may only use the vacuum

cleaner unsupervised if they have been shown how to use

it safely and recognise and understand the consequences

of incorrect operation.

Children must not be allowed to clean or maintain the

vacuum cleaner unsupervised.

Please supervise children in the vicinity of the vacuum

cleaner and do not let them play with it.

Before using the vacuum cleaner and its accessories,

check for any visible signs of damage. Do not use a

en - Warning and Safety instructions

Ensure that the connection data on the data plate of the

vacuum cleaner (voltage and frequency) match the mains

electricity supply exactly.

The mains electrical plug must be fitted with an

In areas with fluctuating power supplies the vacuum

cleaner may suffer a temporary drop in power. If the supply

impedance at the point of connection to the electrical

supply exceeds 0.457 Ohm, further measures may be

required before the vacuum cleaner can be connected to

this supply and operated as normal. If necessary check the

impedance with your local energy supply provider.

While the vacuum cleaner is under guarantee, repairs

should only be undertaken by a Miele authorised service

technician. Otherwise the guarantee will be invalidated.

Do not pull or carry the vacuum cleaner by the cable,

and be careful not to damage the cable when withdrawing

the plug from the socket.

Keep the cable away from sharp edges and do not let it

get squashed, for example, under a door.

This could damage the cable, plug or socket and pose a

risk to your safety.

Do not use the vacuum cleaner if the cable is damaged.

If the cable is damaged it must be replaced with an

original Miele cable. For safety reasons this work must be

done by the Miele Service Department or a Miele

authorised service technician.

en - Warning and Safety instructions

The socket on the vacuum cleaner (depending on

model) must only be used for the Miele Electrobrushes

listed in these operating instructions.

Do not let the vacuum cleaner get wet. Clean only with a

dry cloth or slightly damp cloth when disconnected from

Repairs should only be carried out by a Miele authorised

service technician. Repairs and other work by unqualified

persons can cause considerable danger to users.

To avoid the risk of damage, do not use the vacuum

cleaner without the dustbag, dust compartment filter and

exhaust filter in place.

The dust compartment cover will not close without a

dustbag fitted. Do not force it.

Floor attachments, accessories and tubes must not be

Do not vacuum up anything which has been burning or

is still glowing e.g. cigarettes, ashes or coal, whether

glowing or apparently extinguished.

Do not use the vacuum cleaner to vacuum up any water,

liquid or damp dirt. Wait until any freshly cleaned or

shampooed carpets or floor coverings are completely dry

before attempting to vacuum.

en - Warning and Safety instructions

Do not use the vacuum cleaner to vacuum toner dust.

Toner, such as that used in printers and photocopiers, can

conduct electricity.

Do not vacuum up any inflammable or combustible

liquids or gases and do not vacuum in areas where such

substances are stored.

To avoid the risk of injury when vacuuming with a Miele

The Miele Electrobrush is a motor driven accessory for

use only with Miele vacuum cleaners. For safety reasons,

the cleaner must not be used with an Electrobrush

produced by another manufacturer.

Only use genuine dustbags, filters and accessories with

the "Original Miele" logo on them. Otherwise the

manufacturer cannot guarantee the safety of the product.

Miele cannot be held liable for damage caused by

incorrect use or operation or by non-compliance with

these Warning and Safety instructions.

en - Warning and Safety instructions

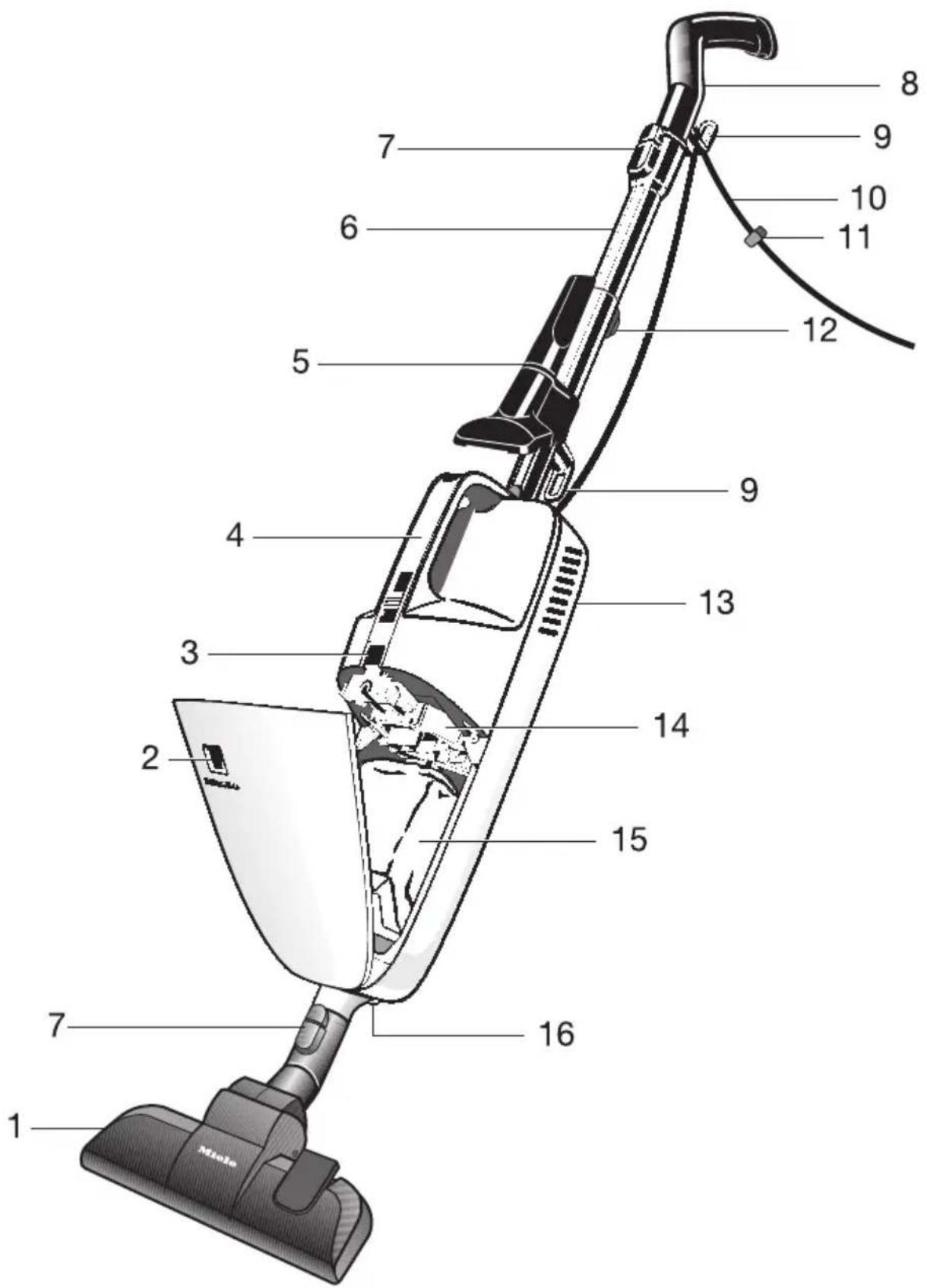

b Dustbag change indicator

c Dust compartment release button

d Carry handle with controls

e Accessory clip with two accessories*

h Handle with non-slip end cap and hook

l Telescopic tube release button *

m Exhaust filter cover (on back)

n Dust compartment filter (for motor protection)

p Socket for Electrobrush *

Features marked * depend on model and may vary or not be available on your

Certain models are supplied as standard with the following accessories which are

not illustrated on this page.

en - Guide to the appliance

29Disposal of packing material

The packaging is designed to protect

the vacuum cleaner from damage

during transportation. The packaging

materials used are selected from

materials which are environmentally

friendly for disposal and should be

Recycling the packaging reduces the

use of raw materials in the

manufacturing process and also

reduces the amount of waste in landfill

Ensure that any plastic wrappings,

bags, etc. are disposed of safely and

kept out of the reach of babies and

young children. Danger of suffocation.

Disposing of the dustbag and

These are made from environmentally

friendly materials. The filters can be

disposed of with the normal household

waste. The dustbag can also be

disposed of in this way if it has been

used exclusively for general household

Disposing of your old

Before disposing of your old appliance

remove the dustbag and all the filters

and dispose of them with your normal

Electrical and electronic appliances

often contain valuable materials. They

also contain materials which, if handled

or disposed of incorrectly, could be

potentially hazardous to human health

and to the environment. They are,

however, essential for the correct

functioning of your appliance. Please

do not therefore dispose of it with your

Please dispose of it at your local

community waste collection/recycling

centre, or contact your dealer for

Ensure that it presents no danger to

children while being stored for

en - Caring for our environment

30The illustrations referred to in the text

are shown on the fold-out pages at

the end of these operating

Fit the suction tube with the square

hole facing upwards into the body of

the vacuum cleaner and twist gently

until it clicks into place.

To remove the suction tube

^ Press the release button (see detail)

and pull off the tube with a gentle

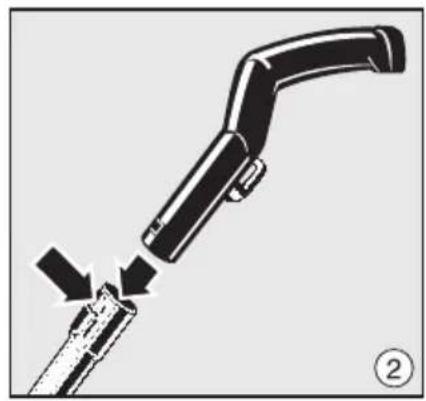

Attach the handle to the suction tube

^ Fit the handle with the square hole

facing upwards into the tube and

twist gently until it clicks into position.

To release the handle from the sucti

on tube, press the release button and

pull the handle out of the suction

tube, twisting it slightly as you do so.

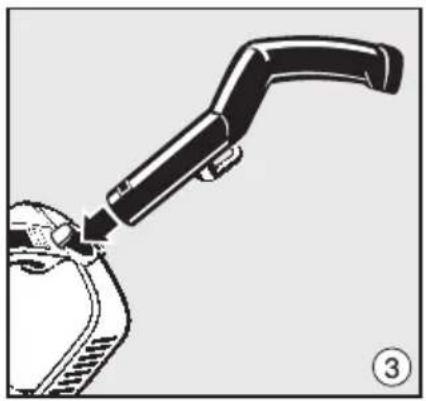

The handle can also be fitted directly to

the body of the vacuum cleaner (dia. 3).

The vacuum cleaner is then easier to

use, e.g. when vacuuming e.g.

mattresses, upholstery etc.

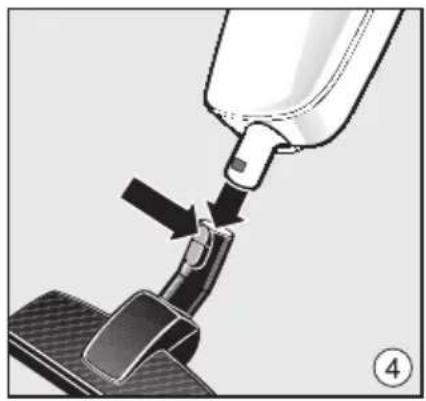

Attach the standard floorhead (dia. 4)

Attach the floorhead to the vacuum

cleaner connection stub and twist

gently until it clicks into position.

To remove the floorhead, press the

release button and pull the vacuum

cleaner away from the floorhead

twisting it slightly as you do so.

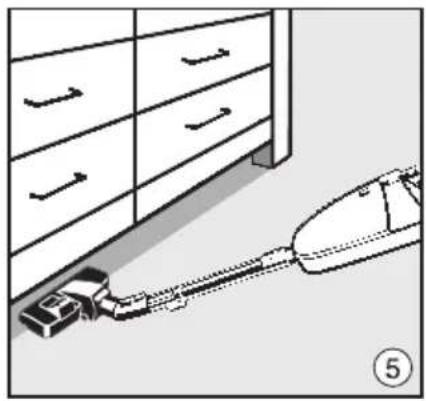

The suction tube can also be attached

to the vacuum cleaner connection stub

This is useful for vacuuming underneath

low furniture, for example.

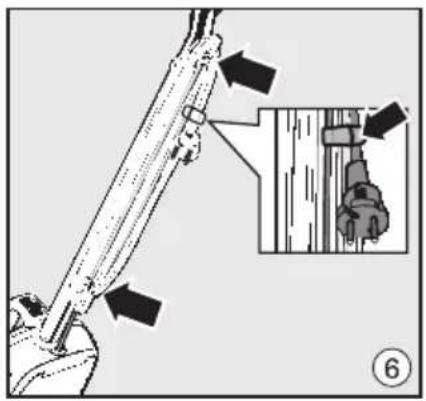

When the vacuum cleaner is not in use

the cable can be wound around the two

Secure the cable by clamping the plug

to the cable (see detail).

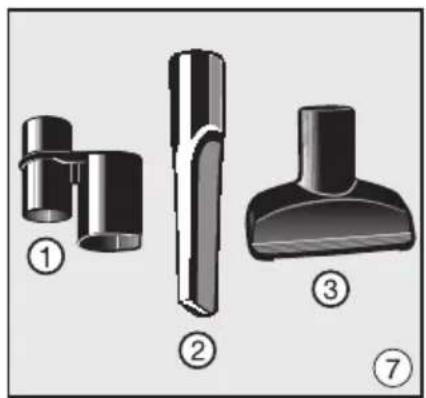

Using the accessories

The following accessories are supplied:

to the suction tube.

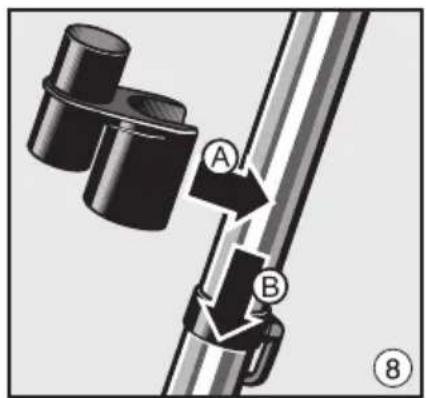

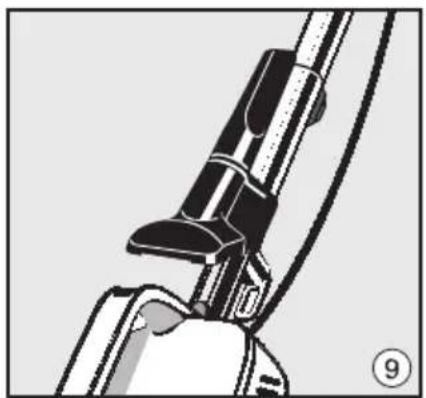

Push the accessory clip down over

the cable hook ring until it clicks into

The accessory clip holds the crevice

nozzle and upholstery nozzle supplied

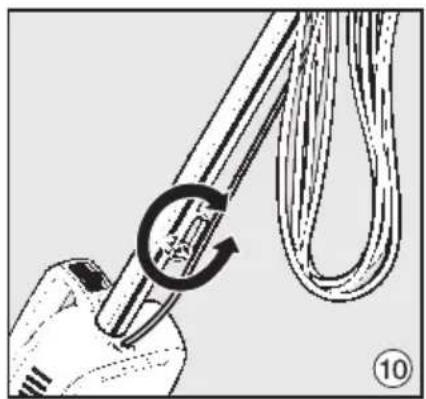

The lower cable hook swivels round.

Turn it upwards so that the cable can

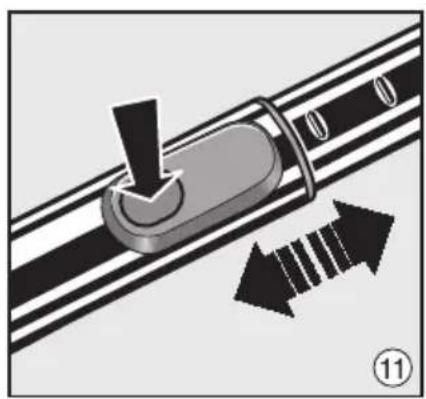

To adjust the telescopic tube (dia. 11)

(depending on model)

One part of this telescopic tube is

packed inside the other and can be

adjusted to suit your height for

comfortable vacuum cleaning.

^ Press the release button to release

the tubes and adjust to the required

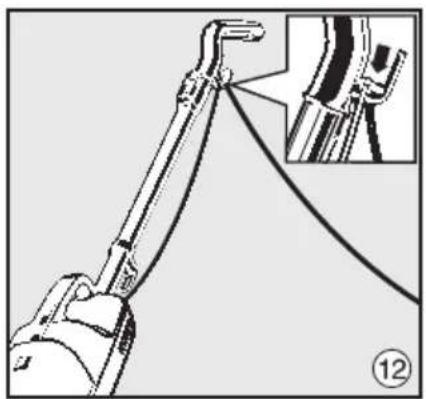

Switch on the vacuum cleaner (dia.

^ Plug the vacuum cleaner into a

socket protected by at least a 10 A

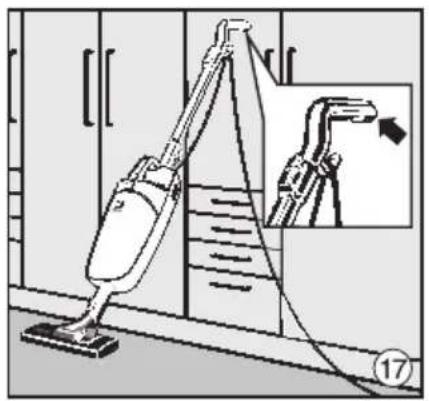

over the cable hook on the handle

This way the mains cable will not get in

the way during vacuuming. This also

takes the strain off the cable-entry on

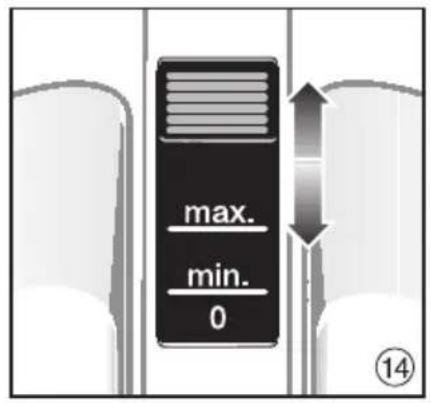

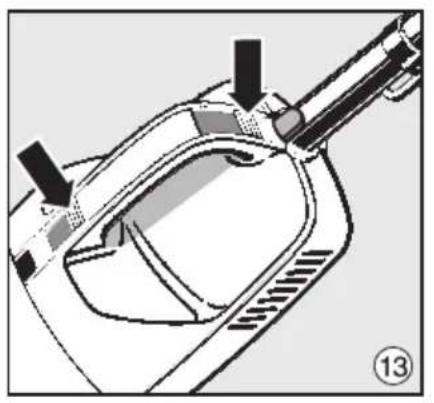

To switch on and off (dia. 13 + 14)

There are two separate switches on the

carrying handle to enable the vacuum

cleaner to be conveniently operated in

any vacuum-cleaning situation.

0 = Vacuum cleaner is switched

min. = Reduced suction

Select min. for vacuuming

lightweight items such as curtains or

max. = Maximum suction

Select max. if using a turbobrush.

To switch the vacuum cleaner on,

slide either switch to max. .

^ To switch the vacuum cleaner off,

push the slide switch to 0 until it

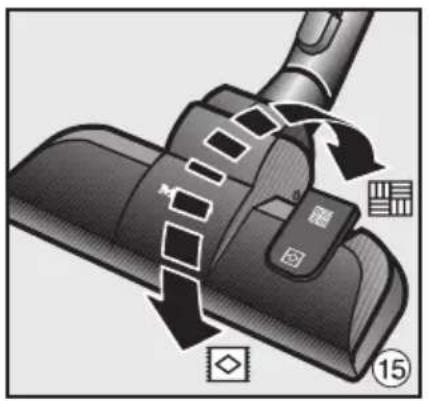

To adjust the floorhead (dia. 15 + 16)

This vacuum cleaner can be used for

all normal cleaning of carpets, rugs and

robust hard flooring.

Miele offer a range of other floorheads,

brushes and accessories for other

types of flooring and special

requirements (see "Optional

Please observe the flooring

manufacturer's cleaning and care

Vacuum carpets and rugs with the

32Clean hard flooring which is not

susceptible to scratching, as well as

flooring with gaps or deep crevices in it

with the brush protruding:

Press the ) foot control.

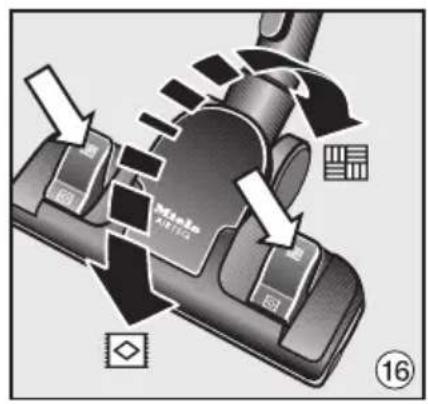

AirTeQ floorhead (dia. 16)

If the suction power of the AirTeQ

floorhead seems too high, select the

Setting down and storing the

There is a non-slip end cap on the

handle. The vacuum cleaner can be

leaned upright against a wall or

furniture during pauses in vacuuming or

when storing it (dia. 17).

Before leaving the vacuum cleaner

make sure it is switched off and if

you lean it against a wall make sure

it is at a safe angle so that it cannot

When using a floor brush we

recommend that you hang the

vacuum cleaner up when storing it to

protect the bristles.

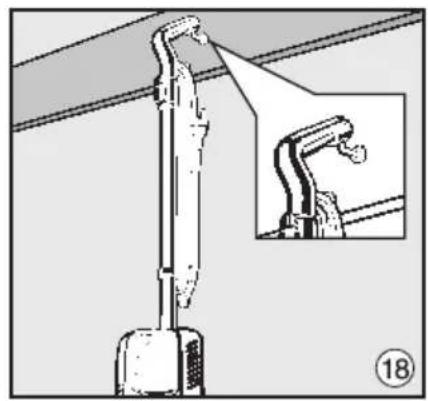

For longer term storage, the vacuum

cleaner can also be hung on a wall hook

using the hook on the handle (dia. 18).

Always disconnect the vacuum

cleaner from the electrical supply for

maintenance work and for cleaning.

Switch off at the wall socket and

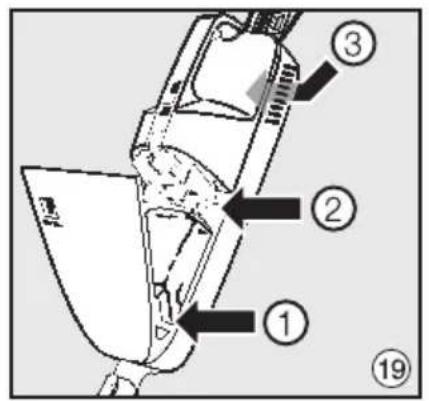

The Miele filtration system consists of

three filters (dia.19).

b Dust compartment filter (for motor

These will need to be replaced from

time to time to ensure that your vacuum

cleaner performs efficiently.

Only use genuine dustbags, filters

and accessories with the "Original

Miele" logo on them. This will ensure

that the suction power of the

vacuum cleaner is maintained,

giving the best possible cleaning

The use of dustbags made from

paper or paper-based materials,

or dustbags with a cardboard collar,

or dustbags that do not carry the

"Original Miele" logo, can seriously

damage the vacuum cleaner and

invalidate the warranty.

33Purchasing new dustbags and filters

Original Miele dustbags and filters can

be ordered from Miele, your Miele

dealer or online at:

Ordering the correct dustbags and

Only use original Miele K/K dustbags

with a yellow collar and original Miele

filters. These are identified by the

"Original Miele" logo on the packaging

or directly on the dustbag.

An AirClean filter and dust

compartment filter are supplied with

every packet of Miele dustbags.

These can also be purchased

separately from your Miele Dealer, from

Miele or from the online shop. Please

quote the model number of your

vacuum cleaner when ordering to make

sure you get the correct filter.

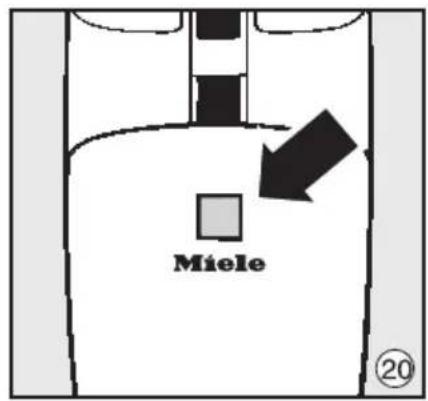

When to change the dustbag (dia. 20)

Change the dustbag when the colour

marker in the dustbag change indicator

turns red, or sooner if it is no longer

effective (see possible reasons for this

Miele dustbags are disposable and

designed for single use only.

Dispose of the dustbag when full.

Do not attempt to reuse. Blocked

pores in used dustbags will reduce

the suction power of the vacuum

Attach the standard floorhead to the

Switch the vacuum cleaner on and

select the highest power setting.

^ Lift the floorhead off the floor a little.

How the dustbag change indicator

The dustbag change indicator is set for

normal household dust. This generally

contains a mixture of dust, hair,

threads, carpet fluff, grit etc.

However, if the cleaner has been used

to vacuum up fine dust, such as

plaster, brick dust, cement or flour, the

pores of the dustbag will become

blocked very quickly. This affects the

air permeability of the bag, and the

marker will indicate that the bag is "full"

even when it is not. If this happens you

must still change the dustbag because

suction power will be greatly reduced

by blocked pores in the dustbag.

If, on the other hand, a large amount of

hair and carpet fluff which typically

contains a lot of air is vacuumed up, the

indicator may fail to react even though

the bag is full. You should still change

it. Both these extremes can occur.

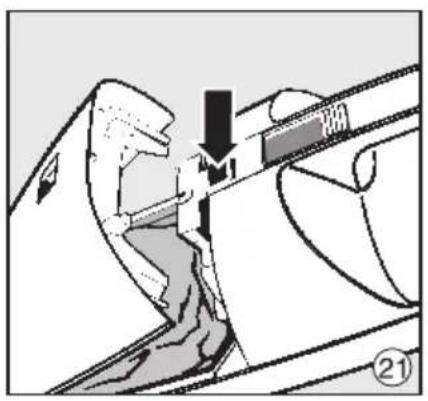

Press the dust compartment release

button and raise the lid.

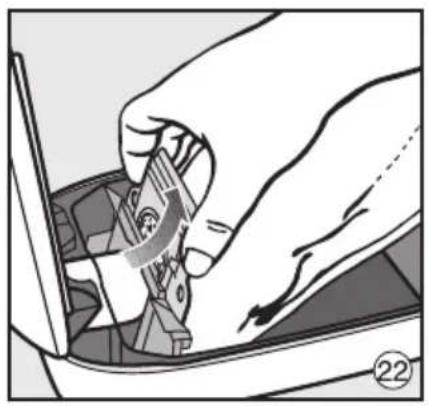

Holding the bag by the collar, lift it

away from the suction socket and

then pull it out of its holder.

The dustbag has a closing flap which

closes automatically when the dustbag

is removed from the vacuum cleaner to

prevent any dust escaping.

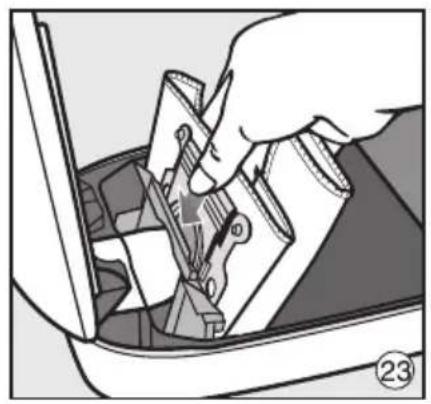

Fit the new dustbag into the yellow

holder as far as it will go. Leave it

folded up when you take it out of the

^ It should be unfolded as far as

possible in the dust compartment.

^ Close the dust compartment lid

securely, making sure it clicks into

position. Take care not to trap the

dustbag when doing so.

The lid will not close without a

dustbag in place. Do not force it!

When to change the dust

compartment filter (for motor

Replace this filter every time you start a

new packet of dustbags.

A dust compartment filter is supplied

with every packet of Miele dustbags.

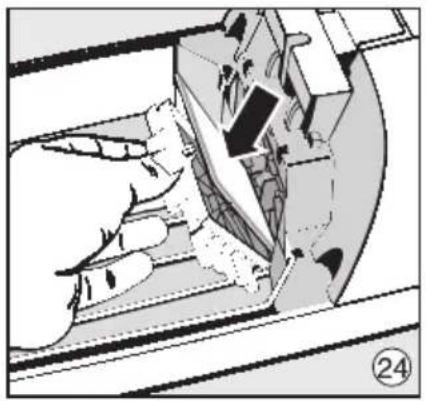

How to change the dust

compartment filter (dia. 24)

Open the dust compartment lid.

Unclip the yellow filter frame,

remove the old filter and replace with

Close the filter frame making sure the

Close the dust compartment lid

making sure it clicks into position.

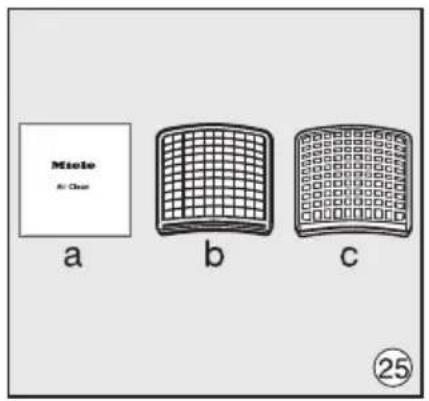

When to replace the exhaust filter

Depending on model, your vacuum

cleaner will be fitted as standard with

one of the following exhaust filters

Replace this filter every time you start a

new packet of Miele dustbags. An

AirClean exhaust filter is supplied with

every packet of Miele dustbags.

These types of filter need to be

changed approx. once a year. Make a

note of the date on the filter.

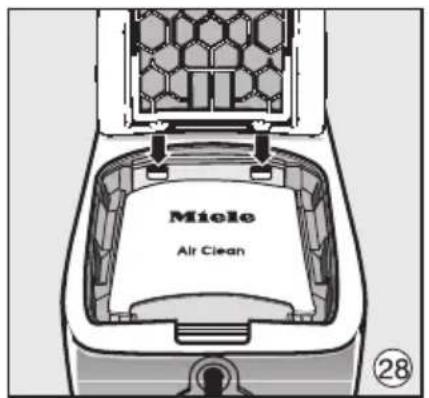

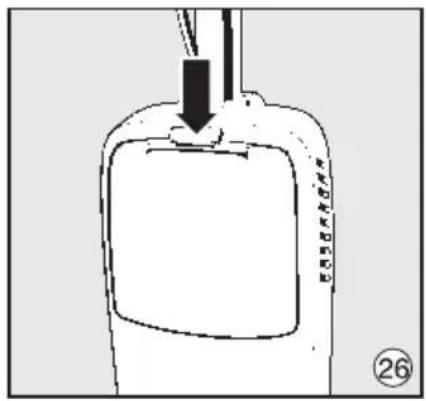

How to replace the AirClean exhaust

filter (dia. 26, 27 + 28)

Do not use more than one exhaust

Press the button on the rear of the

vacuum cleaner and remove the lid.

Grasp the used AirClean filter by the

clean, unsoiled section and take it

Replace it with a new AirClean filter.

If you wish to fit an Active AirClean

or AirClean+ filter please see

"Replacing one type of exhaust filter

Put the lid back on and close it.

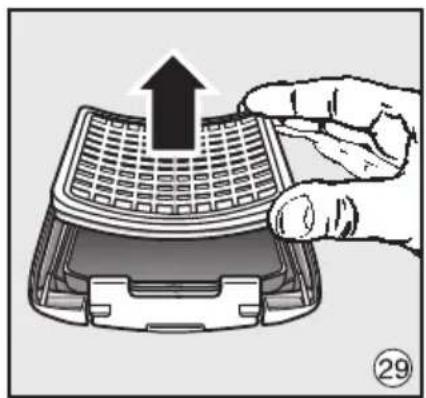

35How to replace an Active AirClean

filter or an AirClean+ filter (dia. 29 +

Do not use more than one exhaust

Press the button on the rear of the

vacuum cleaner and remove the lid

If you wish to fit an AirClean filter,

see "Replacing one type of exhaust

filter with another".

^ Put the lid back on and close it.

Replacing one type of exhaust filter

Depending on model, your vacuum

cleaner will be fitted as standard with

one of the following exhaust filters

c AirClean+ (SF H 10)

You can replace the filter supplied with

the vacuum cleaner with one of the

other filters listed above.

Do not use more than one exhaust

The exhaust filters have different

properties (see "Optional accessories").

When changing the filter please note:

1. If you wish to replace exhaust filter a

with filter b or c, it is essential that you

remove the filter grille from the lid

before you fit the new filter.

2. If you wish to replace exhaust filter b

or c with filter a, it is essential that you

also fit the filter grille * in the lid.

* Filter grille - see "Optional

Grasp inside the hexagons in the

filter grille in the positions shown by

the arrows and squeeze slightly. The

grille can then be removed or

When to change the thread lifters

The thread lifters on the suction inlet to

the floorhead can be replaced.

Check them from time to time and

replace them if the pile has worn down.

How to replace the thread lifters

Use a suitable screwdriver to remove

the thread lifters from the slots.

Fit new thread lifters.

Replacement parts are available from

your Miele Dealer or from Miele (see

end of booklet for contact details).

Always disconnect the vacuum

cleaner from the electrical supply

before cleaning it. Switch off at the

wall socket and unplug it.

Vacuum cleaner and accessories

The vacuum cleaner and all plastic

accessories can be cleaned with a

proprietary cleaner suitable for plastic.

Do not use abrasive cleaning

agents, glass cleaning agents,

all-purpose cleaners or oil-based

conditioning agents.

The dust compartment can, if

necessary, be cleaned using a dry

duster, brush or, if available, a second

vacuum cleaner to vacuum the dust

Do not let the vacuum cleaner

get wet. If moisture gets into the

appliance, there is a risk of electric

Problem solving guide

The vacuum cleaner switches off

A temperature limiter switches the

vacuum cleaner off automatically if it

This can occur if, for instance, large

articles block the suction tube or when

the dustbag is full or contains particles

A heavily soiled exhaust or dust

compartment filter can also be the

cause of overheating. Switch the

vacuum cleaner off. Switch off at the

wall socket and unplug it.

After removing the cause, wait for

approximately 20 - 30 minutes to allow

the vacuum cleaner to cool down. It

can then be switched on again.

In the event of a fault that you cannot

easily remedy, please contact

– your Miele Dealer, or

– Miele (see end of booklet for contact

Please note that telephone calls may

be monitored or recorded for training

The appliance is guaranteed for a

period of 2 years from the date of

For information on the appliance

guarantee specific to your country

please contact Miele. See end of

booklet for contact details.

37Optional accessories

Certain models are supplied as

standard with one or more of the

following accessories.

Please observe the flooring

manufacturer's cleaning and care

You can order these and many other

products on the internet at:

They can also be purchased from your

Electrobrushes can only be connected

to a vacuum cleaner which has an

Electrobrush socket.

Electrobrush Electro Comfort

This Electrobrush is particularly suitable

for intensive vacuuming of carpets

which are subject to hard wear. It is

very effective at removing deep seated

dirt and preventing areas of frequent

use being trodden into a path.

Electrobrush Electro Premium

In comparison to the SEB 217 this

Electrobrush is 60 mm wider and is also

more powerful, making it particularly

suitable for cleaning large areas.

It has the following additional features

compared to the SEB 217:

the height can be adjusted to suit

different types of flooring.

LEDs to light up the area being

a multi-function indicator light.

Floorheads / brushes

Classic Allergotec floorhead

This floorhead is suitable for daily

hygienic cleaning of all floor surfaces.

The level of cleanliness of the floor

shows in a colour "traffic light" display

Turbo Comfort turbobrush (STB 205)

This brush is ideal for cleaning cut pile

Hard floor brush (SBB 235)

This brush is designed for use on hard

flooring such as tiled or stone floors.

Parquet floor brush (SBB Parquet)

(only available in selected countries)

This brush has natural bristles and is

designed for use on parquet floors and

other surfaces which are susceptible to

scratching such as laminate flooring

Turbo Mini Compact turbobrush

For vacuuming upholstery, mattresses

38Universal brush (SUB 20)

(only available in selected countries)

For dusting books, shelves, etc.

Radiator brush (SHB 30)

For dusting radiators, narrow shelves

Mattress nozzle (SMD 10)

For vacuuming upholstery, mattresses,

cushions, curtains, covers etc.

Crevice nozzle, 300 mm (SFD 10)

Extra long crevice nozzle for cleaning in

folds, crevices and corners.

Crevice nozzle, 560 mm (SFD 20)

Flexible crevice nozzle for vacuuming

hard to reach places.

Upholstery nozzle, 190 mm (SPD 10)

Extra wide upholstery nozzle for

cleaning upholstered furniture,

mattresses and pillows.

For vacuuming skirting boards, carved

furniture or ornaments.

Dusting brush with natural bristles

For dusting particularly delicate items.

For storing the accessories supplied

(crevice nozzle and upholstery brush)

Cylinder vacuum cleaner accessories

Cylinder vacuum cleaner accessories

can be attached to the suction tube on

your vacuum cleaner to give greater

This can enable you to reach high up

areas, e.g. the tops of door frames,

bookshelves, curtains, etc. and also

reach underneath low items of furniture

such as wardrobes and beds.

Please quote the model number of

your vacuum cleaner when purcha

sing cylinder vacuum cleaner

Active AirClean exhaust filter

Absorbs odours caused by the dirt in

AirClean+ exhaust filter (SF H 10)

Excellent filtration level for very clean

exhaust air. This filter is particularly

suitable for allergy sufferers.

The filter grille is required if you wish to

use an AirClean filter instead of an

Active AirClean or AirClean+ filter.

39Electrical connection for the UK All electrical work should be carried out

by a suitably qualified and competent

person in strict accordance with current

national and local safety regulations

(BS 7671 in the UK).

The voltage and frequency are given on

the data plate located underneath the

vacuum cleaner. Please ensure that

these match the household mains

supply. The fuse rating is quoted on the

The appliance is supplied with a cable

and moulded plug ready for connection

to a 230-240 V/50 Hz a.c. single phase

Non-rewireable plugs BS 1363

The fuse cover must be re-fitted when

changing the fuse, and if the fuse cover

is lost the plug must not be used until a

suitable replacement is obtained. The

colour of the correct replacement cover

is that of the coloured insert in the base

of the plug, or the colour that is

embossed in words on the base of the

plug, (as applicable to the design of

Replacement fuses should be ASTA

approved to BS1362 and have the

correct rating. Replacement fuses and

fuse covers may be purchased from

your local electrical supplier.

Electrical connection AU, NZ All work should be carried out by a

suitably qualified and competent

person in strict accordance with

national and local safety regulations.

The voltage and rated load are given

on the data plate located underneath

the vacuum cleaner. Please ensure that

these match the household mains

supply. The fuse rating is quoted on the

The appliance is supplied with a cable

and moulded plug ready for connection

to a 230V/50Hz AC single phase

Test Marks Electrical safety

Electrically suppressed

according to AS/NZS 1044

cassette vol is (het venster is dan hele

Controle of de stofcassette vol is

of AirClean+-filter.

94en - Alteration rights reserved
