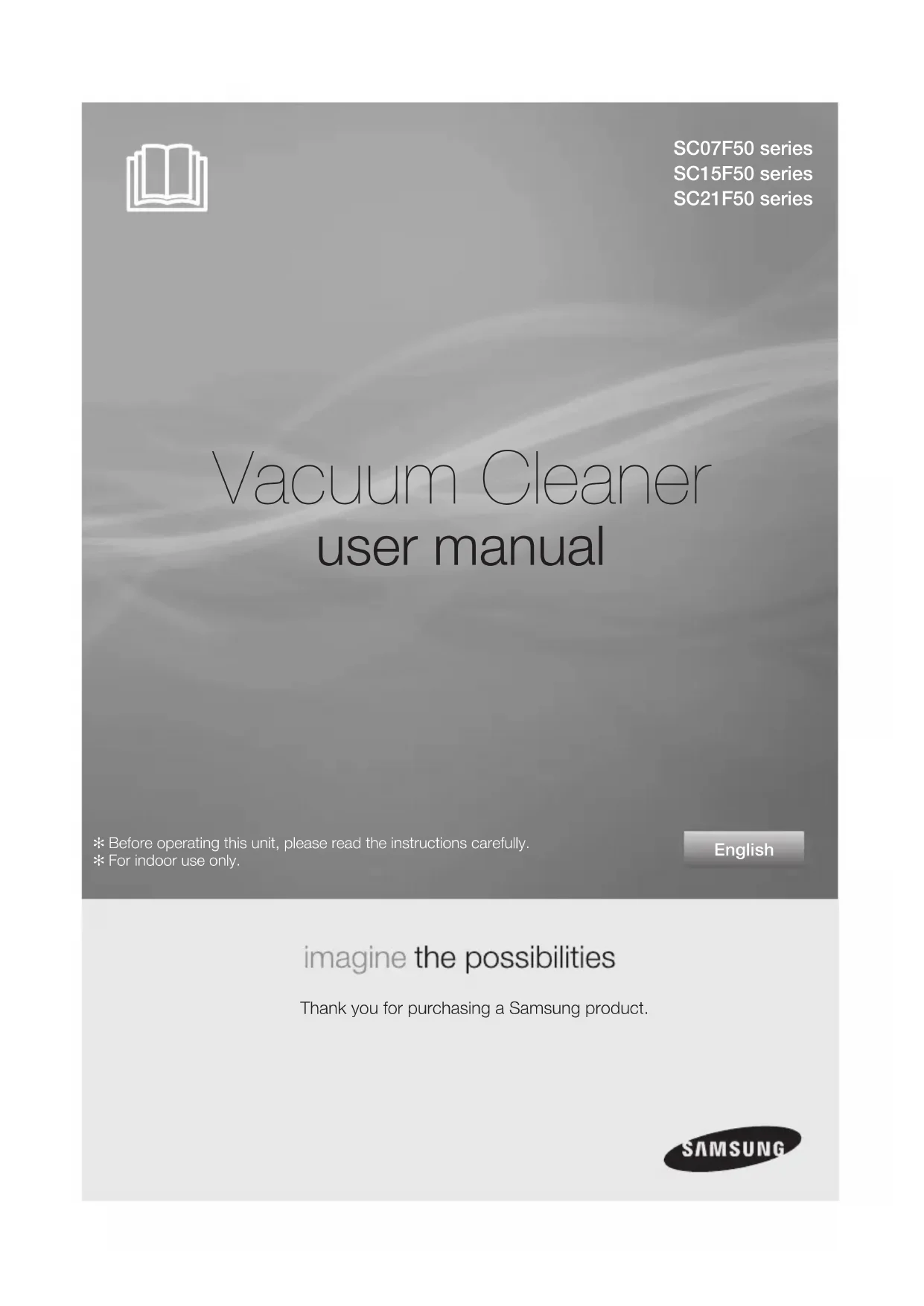

USER MANUAL SC21F50VA SAMSUNG

Thank you for purchasing a Samsung product.

SAFETY INFORMATION WARNING • Before operating the appliance, please read this manual thoroughly and retain it for your

reference. WARNING • Because these following operating instructions cover various models, the characteristics of

your vacuum cleaner may differ slightly from those described in this manual.

CAUTION/WARNING SYMBOLS USED WARNING Indicates that a danger of death or serious injury exists. CAUTION Indicates that a risk of personal injury or material damage exists.

OTHER SYMBOLS USED Represents something you must NOT do.

Represents something you must follow.

Indicates that you must disconnect the power plug from the socket.

This vacuum cleaner is designed for household use only.

Do not use this vacuum cleaner to clean building waste and debris.

Regularly keep the fi lters in clean conditions to prevent of collecting fi ne dust in them.

Do not use this vacuum cleaner with any of the fi lters removed.

Failure to meet these requirements could cause damage to the internal parts and void

Notes on the energy label

• Declared energy effi ciency and cleaning performance class on carpet or

in places where the carpet is used can be met with the enclosed "Eco

• When the hard fl oor has joints and gaps, please use the enclosed "Eco

Hard Floor " brush which is designed to meet the energy effi ciency and

cleaning performance class on hard fl oor with joints and gaps.

• The values provided on the energy label have been determinded

according to the prescribed measuring process (in accordance with

IMPORTANT SAFEGUARDS GENERAL

• Read all instructions carefully. Before switching on, make sure

that the voltage of your electricity supply is the same as that

indicated on the rating plate on the bottom of the cleaner.

• WARNING : Do not use the vacuum cleaner when rug or fl oor is

wet. Do not use to suck up water.

• Close supervision is necessary when any appliance is used by

or near children. Do not allow the vacuum cleaner to be used

as a toy. Do not allow the vacuum cleaner to run unattended at

any time. Use the vacuum cleaner only for its intended use as

described in these instructions.

• Do not use the vacuum cleaner without a dust bin.

Empty the dust bin before it is full in order to maintain the best

• Do not use the vacuum cleaner to pick up matches, live ashes or

cigarette butts. Keep the vacuum cleaner away from stoves and

other heat sources. Heat can deform and discolour the plastic

• Avoid picking up hard, sharp objects with the vacuum cleaner as

they may damage the cleaner parts.

Do not stand on the hose assembly. Do not put weight on the

Do not block the suction or the exhaust port.

• Switch the vacuum cleaner off on the body of the machine

before unplugging from the electrical outlet. Disconnect the plug

from the electrical outlet before emptying the dust bin. To avoid

damage, please remove the plug by grasping the plug itself, not

by pulling on the cord.

• This appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental

DJ68-00699H-05.indb 03DJ68-00699H-05.indb 03 2014. 11. 10.  11:412014. 11. 10.  11:4104_ safety information

capabilities or lack of experience and knowledge if they have

been given supervision or instruction concerning use of the

appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user

maintenance shall not be made by children without supervision.

• Children should be supervised to ensure that they do not play

• The plug must be removed from the socket outlet before

cleaning or maintaining the appliance.

• The use of an extension cord is not recommended.

• If your vacuum cleaner is not operating correctly, switch off the

power supply and consult an authorized service agent.

• If the supply cord is damaged, it must be replaced by the

manufacturer or its service agent or a similarly qualifi ed person in

order to avoid a hazard.

• Don’t carry the vacuum cleaner by holding the hose.

Use the handle on the vacuum cleaner set.

• Unplug the cleaner when not in use.

Turn off the power switch before unplugging.

• Since the UV rays from the UV Brush damage skin and eyes,

never allow the rays to make contact with skin or eyes and do

not let children or the elderly use the UV Brush. It may damage

• If the transparent window is broken and the UV rays are exposed

directly, turn the power off and contact the service center.

• Do not use the UV Brush for purposes other than the sterilization

of mattresses, bedclothes, beds, cushions and so on made from

material. The company will not be held liable for any loss due to

accidents from using the UV Brush for purposes other than its

original purpose as listed above.

DJ68-00699H-05.indb 04DJ68-00699H-05.indb 04 2014. 11. 10.  11:412014. 11. 10.  11:41safety information _05

• Do not sit on the UV Brush or drop it, and avoid imparting

impacts on the product. Failing to do so may result in injury or

• Do not touch the power terminals on the back of the UV Brush

with a metal pin or rod. This may result in electric shock or fi re.

• When the UV lamp is out of order, never disassemble or modify

the product yourself.

Please contact the manufacturer or service center for a

• Since an internal discharge occurs within the UV Brush, never

use the product near an infl ammable spray or substance.

• Take care not to touch the UV lamp window after using the

UV Brush for an extended period of time as the surface of the

• The UV Brush may start slowly at a low temperature due to the

inherent characteristics of UV lamps. Please keep the UV Brush

10 Using the UV brush (SC21F50U Series)

16 Emptying the dust bin

17 Cleaning the dust fi lter

18 Cleaning the dust fi lter

19 Cleaning the outlet fi lter

when carrying machine.

• For storage, park the fl oor nozzle.

assembling the cleaner

OPTION DJ68-00699H-05.indb 07DJ68-00699H-05.indb 07 2014. 11. 10.  11:412014. 11. 10.  11:4108_ operating the cleaner

POWER CORD CAUTION • When removing the plug from the electrical outlet, grasp the plug, not the

POWER CONTROL Radio frequency remote-control

(SC15F50H, SC21F50H, SC15F50U, SC21F50U Series)

HOSE (SC15F50H, SC21F50H Series)

1. ON/OFF [ ] Button

] button to operate the vacuum cleaner. Press

again to stop the vacuum cleaner.

2. Suction [+], [-] Button

- Press the [+] button to operate the vacuum to high suction

power. Press the [-] button to operate the vacuum to low

If no button is pressed for 30 minutes while cleaning, the safety device is activated and the

In this case, press the [Power] button on the main unit or unplug and then plug the power cord

operating the cleaner

The cleaner is controlled by radio

DJ68-00699H-05.indb 08DJ68-00699H-05.indb 08 2014. 11. 10.  11:412014. 11. 10.  11:41operating the cleaner _09

02 OPERATING THE CLEANER HOSE (SC15F50U, SC21F50U Series)

1. ON/OFF [ ] Button

- Press the [ ] button to operate the vacuum cleaner. Press

again to stop the vacuum cleaner.

2. [SUCTION (-/+)] Button

- Press the [SUCTION (-/+)] button to increase or decrease the

suction power. Each time you press the button, you gradually

increase the suction power. After the suction power reaches its

maximum, the next time you press the button, you return the

suction power to its minimum.

3. [BRUSH ON/OFF] Button

- Press the [BRUSH ON/OFF] button to operate the UV Brush. Press again to stop the UV Brush.

If no button is pressed for 30 minutes while cleaning, the safety device is activated and the

In this case, press the [Power] button on the main unit or unplug and then plug the power cord

• When the vacuum cleaner does not work, replace the batteries.

If the problem persists, please contact our authorized dealer.

• Use 2 batteries of size AAA.

1. Never disassemble or recharge the batteries.

2. Never heat up the batteries or throw them into fi re.

3. Do not reverse (+), (-) poles.

4. Dispose of the batteries property.

BODY Press the power ON/OFF button repeatedly to start and to stop

the vacuum cleaner. (OFF → ON → OFF)

If the remote handle control is not working, the cleaner

can be operated using the ON/OFF button on the body

The ON/OFF button operates the vacuum cleanner or stops it.

The fi lter light is illuminated when the dust pack requires checking or emptying. CAUTION Handle Control

The cleaner is controlled by radio

DJ68-00699H-05.indb 09DJ68-00699H-05.indb 09 2014. 11. 10.  11:412014. 11. 10.  11:4110_ operating the cleaner

Body-control type (SC15F50V, SC21F50V, SC07F50V Series)

- HOSE To reduce suction for leaning draperies, small rugs, and other

light fabrics, pull the tap air until the hole is open

- BODY To control power level, just slide the power control up and

MIN = For delicate fabrics, e.g.net curtains.

MAX = For hard fl oors and heavily soiled carpets.

USING THE UV BRUSH (SC15F50U, SC21F50U SERIES)

1. Insert the brush into the hose handle.

• Insert the UV brush securely into the hose handle until you hear a “clicking”

2. Press the [BRUSH ON/OFF] button to start cleaning.

• Press the [BRUSH ON/OFF] button and choose the appropriate

suction strength for the cleaner.

• It is advisable to select the (Max) suction strength setting.

• UV sterilization cannot be activated by itself.

3. When you have fi nished UV cleaning, press the [

] button to stop the cleaner.

- For safety reasons, UV brushing only runs for 30 minutes and then stops

operating. To resume the operation, press the [SUCTION (-/+)] button again.

The UV brush, which is inserted into the hose handle (not directly connected to the telescopic

pipe), is dedicated for bedclothes.

CAUTION MIN MIN MAX MAX MIN MAX DJ68-00699H-05.indb 10DJ68-00699H-05.indb 10 2014. 11. 10.  11:412014. 11. 10.  11:41maintain tools and fi lter _11

03 MAINTAIN TOOLS AND FILTER USING ACCESSORY Pipe

• Adjust the length of the telescopic pipe by sliding the length control

button located in the center of the telescopic pipe back and forth.

• To check for blockages, separate the telescopic pipe and adjust to

shorten. This allows for easier removal of waste clogging the tube.

Accessory (SC15F50H, SC21F50H, SC07F50V, SC15F50V, SC21F50V Series)

• To use the upholstery tool, push the accessory

on to the end of the hose handle.

• Pull out the button, to use the dusting brush.

• To use the crevice tool, push the accessory on

to the end of the hose handle in the opposite

maintain tools and fi lter

DJ68-00699H-05.indb 11DJ68-00699H-05.indb 11 2014. 11. 10.  11:412014. 11. 10.  11:4112_ maintain tools and fi lter

Accessories (SC15F50U, SC21F50U Series)

• Push the accessory onto the end of the hose

• Pull out the dusting brush to use the crevice tool.

• Push the accessory onto the end of the pipe.

• Pull out the dusting brush to use the crevice

maintain tools and fi lter

DJ68-00699H-05.indb 12DJ68-00699H-05.indb 12 2014. 11. 10.  11:412014. 11. 10.  11:41maintain tools and fi lter _13

03 MAINTAIN TOOLS AND FILTER MAINTAIN FLOOR TOOLS

• Adjust the inlet lever according to the fl oor surface.

• Remove waste matter completely if the inlet is blocked.

Power Pet Plus Brush (Option)

Frequent vacuuming of hair or pet fur may cause a falling-off of the rotation due to matters tangled around

the drum. In this case, clean the drum with care.

1. Push the Open button of the transparent screen cover to separate the cover.

2. Remove the brushbar from the transparent screen.

3. Remove waste matter such as dust and hair tangled around the brushbar using scissors.

4. Remove dust inside the brush housing using a dry duster or crevice tool.

5. Insert brushbar into rotating belt and assemble.

6. Click the transparent screen cover back into place to reassemble.

Parquet Master Brush (Option)

• Vacuum dust in wide area at once.

• Remove waste matter completely if the inlet is

Carpet Cleaning Floor Cleaning

of pet hair and fi bre on

- To replace brushroll

1. If a clog is present or debris is visible, unscrew the two screws on

the back of the Mini turbo brush to remove the faceplate and clear

2. Inspect condition of brushroll.

Replace brushroll if brushes are worn down.

To remove brushroll, pull up and out of end slots in nozzle housing.

Insert ends of brushroll into same slots to replace.

Inspect belt to ensure that it is in good condition.

If belt is broken or cracked, replace belt according to To Replace

Press the MAX button to operate the vacuum at maximum intake.

1. Remove bottom plate.

See fi gure in To Replace Brushroll instructions.

2. Loop one end of new belt around shaft of pulley.

3. Loop other end of belt around designated area for it on brushroll.

Insert brushroll into slots in nozzle housing.

See fi gure in To Replace Brushroll instructions.

4. Fit Mini turbo brush back together as described in To Replace

Brushroll instructions.

maintain tools and fi lter

DJ68-00699H-05.indb 14DJ68-00699H-05.indb 14 2014. 11. 10.  11:412014. 11. 10.  11:41maintain tools and fi lter _15

03 MAINTAIN TOOLS AND FILTER To remove dust from the dust bin of the UV brush

(SC15F50U, SC21F50U Series)

When you notice that the dust bin is fi lled, use the [Dust Removal] button to empty the dust bin.

1. To remove dust from the dust bin, move the [Dust Removal] button

to the “Open” position.

- While the cleaner is operating (suction), use the [Dust Removal]

button for this purpose.

2. When done, move the [Dust Removal] button to the “Close”

- When the [Dust Removal] button is in the “Open” position, the

suction power of the cleaner is reduced.

Cleaning the UV brush (Cleaning the drum) (SC15F50U, SC21F50U Series)

Human and pet hair often becomes tangled in the drum, causing a reduction in the rotary power of the

the drum. To prevent this, clean the drum on a regular basis.

1. Push the [Open Transparent Cover] button inward to remove the

2. Use the crevice tool to remove impurities such as dust and hair

from around the drum.

3. When done, push the [Open Transparent Cover] button outward to

DJ68-00699H-05.indb 15DJ68-00699H-05.indb 15 2014. 11. 10.  11:412014. 11. 10.  11:4116_ maintain tools and fi lter

EMPTYING THE DUST BIN

maintain tools and fi lter

You may rinse the dust bin with cold

• Empty into a plastic bag.

(recommended for asthma/allergy sufferers)

Once dust reaches the dust full

mark, empty the dust bin.

Take the dust bin out by pushing

Throw the dust away in the bin. Close the dust bin cover.

Before use, push the dust

bin into the main body of the

vacuum cleaner until you hear

DJ68-00699H-05.indb 16DJ68-00699H-05.indb 16 2014. 11. 10.  11:412014. 11. 10.  11:41maintain tools and fi lter _17

03 MAINTAIN TOOLS AND FILTER CLEANING THE DUST FILTER When to clean the dust fi lter

• The lamp will turn red when suction is

reduced. If the light comes on, please

clean the dust fi lter.

• Turn the vacuum power to ‘MAX’.

• If the fi lter check indicator turns red with the inlet fl oating 10cm above

fl at fl oor, clean the dust pack.

When suction is noticeably reduced continuously or vacuum cleaner abnormally overheats,

please clean the dust pack.

DJ68-00699H-05.indb 17DJ68-00699H-05.indb 17 2014. 11. 10.  11:412014. 11. 10.  11:4118_ maintain tools and fi lter

CLEANING THE DUST FILTER Make sure the fi lter is completely dry before putting it back into the

vacuum cleaner. Allow 12 hours for it to dry.

maintain tools and fi lter

Take the dust bin out. Pull the dust bin cover to open.

Remove the fi lter from the dust

Shake the fi lter over a garabage

can to remove loose dust, then

wash the fi lter with water.

Let the fi lter dry in the shade for

Put the fi lter into the dust bin.

Close the dust bin cover.

Before use, push the dust

bin into the main body of the

vacuum cleaner until you hear

To close the dust bin cover,

fi lter should be assembled.

03 MAINTAIN TOOLS AND FILTER CLEANING THE OUTLET FILTER

• When suction is noticeably reduced continuously or vacuum cleaner abnormally overheats,

please clean the outlet fi lter. Note. Do not wash fi lter.

If cleaning does not resolve the problem Please replace blocked out fi lter.

• Replacement fi lters are available at your local Samsung distributor.

Remove the fi xed frame part at

the back of the main body.

Pull out the fi lter using the tab. Pull out the micro fi lter

Clean the fi lter. Put the fi lter and frame part into the main body.

PROBLEM SOLUTION Motor does not start.

• Check cable, plug and socket.

Suction force is gradually

• Check for blockage and remove.

Cord does not rewind

• Pull the cord out 2-3m and push down the cord rewind button.

Vacuum cleaner dows not

• Please check fi lter and, if required, clean as illustrated in the

instructions. if fi lters are out of condition change them to new ones.

Body overheating. • Please check fi lters, if required clean as illustrated in the instruction.

• Please decrease power suction.

• This can also occur when air in the room is very dry.

Please ventilate the room to air humidity become a normal.

This Vacuum cleaner is approved the following.

Electromagnetic Compatibility Directive : 2004/108/EEC Low Voltage Directive : 2006/95/EC DJ68-00699H-05.indb 20DJ68-00699H-05.indb 20 2014. 11. 10.  11:412014. 11. 10.  11:41Product fi che

According to Commission Regulation (EU) No 665/2013 and No 666/2013

A Supplier Samsung Electronics., Co. Ltd

SC07F50VV SC07F50VR SC15F50VR SC15F50VV SC15F50V3

C Energy Effi ciency Class A E D Annual Energy Consumption

E Carpet Cleaning Performance

I Rated Input Power (W) 650 1300

J Type General purpose vacuum cleaner

1) Indicative annual energy consumption (kWh per year), based on 50 cleaning tasks.

Actual annual energy consumption will depend on how the appliance is used.

2) Measurements for power consumption and performance are based on methods in EN

60312-1 and EN 60704.

If you have any questions or comments relating to Samsung products,

please contact the SAMSUNG customer care center.

DJ68-00699H-05.indb 24DJ68-00699H-05.indb 24 2014. 11. 10.  11:412014. 11. 10.  11:41Deutsch

joints et des raccords.

A Fabricant Samsung Electronics., Co. Ltd
