905 - Four à pizza ARIETE - Free user manual and instructions

USER MANUAL 905 ARIETE

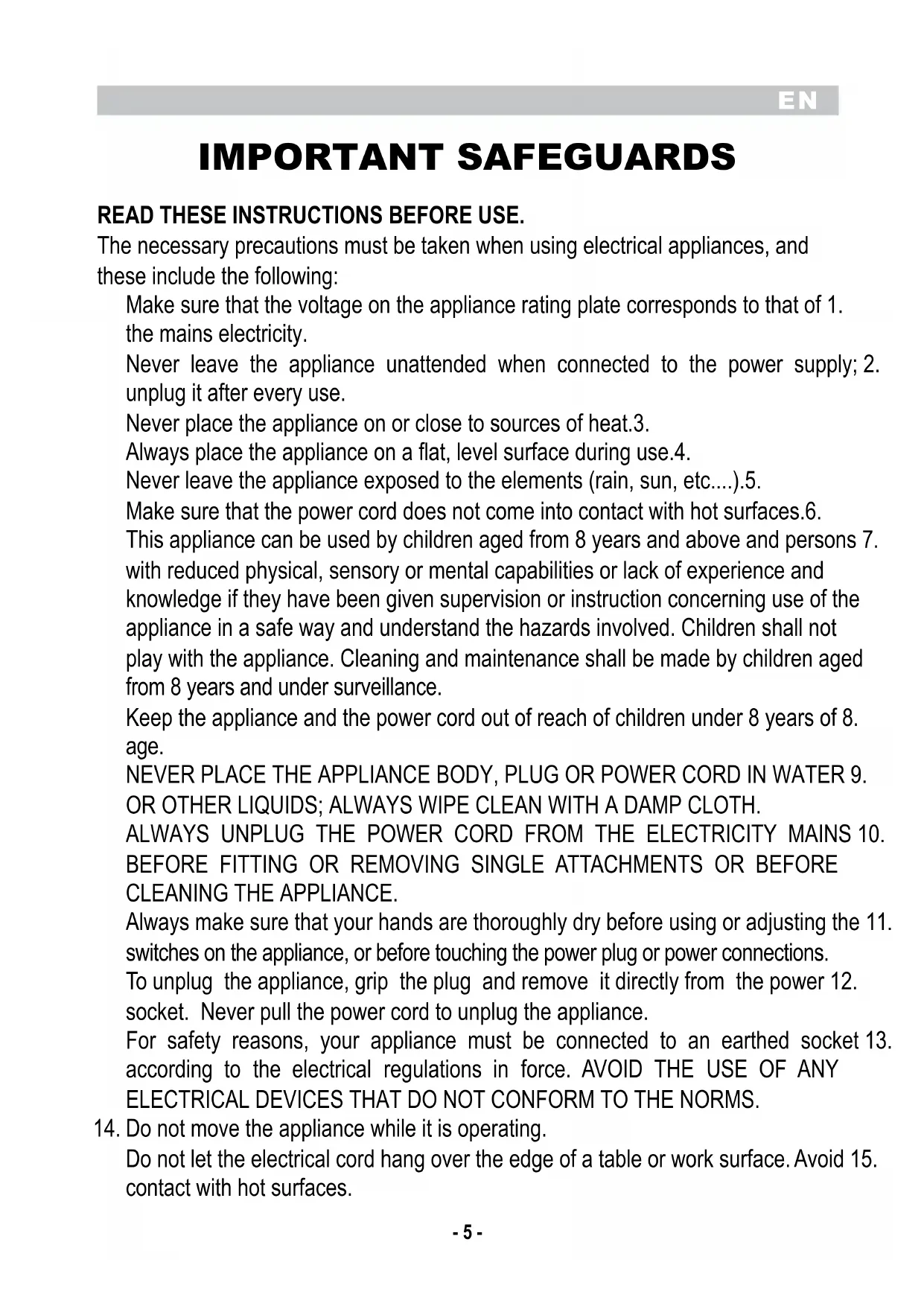

IMPORTANT SAFEGUARDS READ THESE INSTRUCTIONS BEFORE USE.

The necessary precautions must be taken when using electrical appliances, and

these include the following:

Make sure that the voltage on the appliance rating plate corresponds to that of 1.

the mains electricity.

Never leave the appliance unattended when connected to the power supply; 2.

unplug it after every use.

Never place the appliance on or close to sources of heat.3.

Always place the appliance on a flat, level surface during use.4.

Never leave the appliance exposed to the elements (rain, sun, etc....).5.

Make sure that the power cord does not come into contact with hot surfaces.6.

This appliance can be used by children aged from 8 years and above and persons 7.

with reduced physical, sensory or mental capabilities or lack of experience and

knowledge if they have been given supervision or instruction concerning use of the

appliance in a safe way and understand the hazards involved. Children shall not

play with the appliance. Cleaning and maintenance shall be made by children aged

from 8 years and under surveillance.

Keep the appliance and the power cord out of reach of children under 8 years of 8.

NEVER PLACE THE APPLIANCE BODY, PLUG OR POWER CORD IN WATER 9.

OR OTHER LIQUIDS; ALWAYS WIPE CLEAN WITH A DAMP CLOTH.

ALWAYS UNPLUG THE POWER CORD FROM THE ELECTRICITY MAINS 10.

BEFORE FITTING OR REMOVING SINGLE ATTACHMENTS OR BEFORE CLEANING THE APPLIANCE.

Always make sure that your hands are thoroughly dry before using or adjusting the 11.

switches on the appliance, or before touching the power plug or power connections.

To unplug the appliance, grip the plug and remove it directly from the power 12.

socket. Never pull the power cord to unplug the appliance.

For safety reasons, your appliance must be connected to an earthed socket 13.

according to the electrical regulations in force. AVOID THE USE OF ANY ELECTRICAL DEVICES THAT DO NOT CONFORM TO THE NORMS.

Do not move the appliance while it is operating. 14.

Do not let the electrical cord hang over the edge of a table or work surface. Avoid 15.

contact with hot surfaces.EN

Do not touch the cooking surface when the oven is in use and as long as it 16.

remains hot after being switched off.

During the initial operating cycles the oven will smoke. This is absolutely normal 17.

and will disappear after it has been used for some time.

Do not place the appliance on/near to sources of heat or electrical parts. Do not 18.

position it on other appliances.

Do not cover the insides of the oven with aluminium foil.19.

Only use the oven to cook or heat foods.20.

Do not place cloths or plates on the appliance.21.

Do not use the oven in kitchen units or built into furniture.22.

Do not use the appliance near to walls or curtains.23.

After use, switch off, before moving or cleaning it.24.

The outer surfaces of the appliance can become very hot while it is operat-25.

WARNING – Place the oven on a work top capable of withstanding tempera-26.

tures of at least 90°C, taking care that there is nothing on it to prevent the

WARNING – Danger of burns. Do not touch the hot surfaces while 27.

This product is not to be intended to operate by means of an external timer or 28.

separate remote-control system.

Never use the appliance if the power cord or plug are damaged or if the appliance 29.

itself is faulty; in this case, take it to your nearest Authorised Assistance Centre.

To prevent any risks, if the power cord is damaged, it must be replaced by the 30.

manufacturer, its Technical Assistance Service or a similarly qualified person.

This appliance is designed for HOME USE ONLY and may not be used for com-31.

mercial or industrial purposes.

This appliance conforms to the directives 2006/95/EC and EMC 2004/108/EC, 32.

and to the regulations (EC) No. 1935/2004 of 27/10/2004 regarding material in

Any changes to this product that have not been expressly authorised by the 33.

manufacturer may lead to the user’s guarantee being rendered null and void.

In the event that you decide to dispose of the appliance, we advise you to make 34.

it inoperative by cutting off the power cord. We also recommend that any parts

that could be dangerous be rendered harmless, especially for children, who may

play with the appliance or its parts.EN

Packaging must never be left within the reach of children since it is potentially 35.

36. To dispose of product correctly according to European Directive 2009/96/

CE, please refer to and read the provided leaflet enclosed with the product.

DO NOT THROW AWAY THESE INSTRUCTIONS APPLIANCE DESCRIPTION (Picture 1)

E Temperature adjusting dial

G ON/OFF and timer dial

HOW TO OPERATE WARNING:

Before use, check the baking plate is clean and free of dust streaks. If need be, clean using

While using for the first time, a very small amount of smoke may come out; this is just caused

by the warming up of some components.

- Plug in appliance.

- Set the required temperature level, according to your needs, using the dial (E):

- Set baking time by rotating ON/OFF and timer dial (G); the related light (F) goes on indicating

starting of the pre-heating phase. After few minutes, the light turns off and the appliance is ready

- Raise then the upper part of the appliance with handles (D) and place the pizza or any other food

to be baked on the baking stone plate (B).

- Close appliance upper part.

- “Timer” sends out a signal after every baking cycle. Rotate the temperature dial (E) to “0” and

disconnect the plug from the socket.

Make sure appliance is properly closed during baking phase or that food inside isn’t in con-

tact with the upper heater.

DO not open lid during baking to avoid heat dispersion and a probable lengthening of baking

Prevent the condiment used for pizza (oil, cheese, tomato, mozzarella, etc.) from falling onto

the baking stone (B), in order to avoid absorption as well as unpleasant smoke emissions

In case fresh pasta is used for pizza making, cover in flour the surface where pasta is made

to prevent it from sticking to the baking stone during baking phase.

PREPARATION AND BAKING TIME WARNING:

For the best pizza baking results, it is recommended to pre-heat the oven at the highest tem-

perature for about 10 minutes.

• Bake for 5-7 minutes (anyhow, follow times indicated on package).

• It is recommended to take pizza out of freezer 20-30 minutes before putting it in the oven (anyhow,

follow instructions on package).

BOXED PIZZA (TO BE KNEADED)

• Bake for 6-8 minutes.

• Refer to instructions on package.

PIZZA MADE WITH RECIPE

• Refer to instructions of the recipe.

CLEANING AND MAINTENANCE WARNING:

Only clean the oven after first making sure that it is unplugged from the power mains and that

it has cooled down completely.

- Remove cooking residues with a spatula.

- Avoid the use of abrasive products or any other detergents.

- The cooking surface of the fireproof stone tends to change its colour to a darker hue after use

over a long period and to show spots. This does not compromise the operation of the oven or the

quality of the cooking.

- Wipe the outer surfaces of the appliance with a damp cloth.FR
