B03127 - Coffee machine KOENIG - Free user manual and instructions

Product type	Capsule coffee machine
Brand	Koenig
Model	B03127 (CitiZ)
Dimensions (W x D x H)	13 × 27.8 × 37.2 cm
Weight	3.4 kg
Power supply	220-240 V, 50/60 Hz, 1260 W
Maximum pressure	19 bar
Water tank capacity	1 L
Used capsule container capacity	9-11 capsules
Beverage types	Espresso (40 ml), Lungo (110 ml)
Water volume programming	Yes, by pressing and holding the button
Energy saving mode	Automatic shut-off after 9 or 30 min (adjustable)
Descaling alarm	Yes (flashing lights)
Extraction system	High pressure, exclusive Nespresso
Capsule material	Aluminum (recyclable)
Cleaning	Damp cloth and mild detergent; do not immerse
Descaling	With Nespresso kit, frequency according to water hardness
Safety	Automatic shut-off, overheat protection, lever lock
Package contents	Machine, 16 Grand Cru capsules, welcome kit, manual
Warranty	2 years (parts and labor)

Frequently Asked Questions - B03127 KOENIG

How to use my Koenig B03127 machine for the first time?

Before first use, rinse the water tank and fill it with drinking water. Plug in the machine, press the Espresso or Lungo button to turn it on. Perform a rinse by pressing the Lungo button (repeat 3 times). Then, lift the lever, insert a Nespresso capsule, close the lever, place a cup, and press the desired button.

How to adjust the water volume for a personalized cup?

Place a cup under the coffee outlet. Press and hold the Espresso or Lungo button. Release the button when the desired volume is reached. This volume is now saved for subsequent preparations.

What to do if the lights flash while the machine is ready?

This is the descaling alarm. Your machine needs descaling. Follow the descaling procedure described in the manual with the Nespresso kit.

How to descale my Koenig B03127 machine?

Empty the capsule container and drip tray. Fill the water tank with 0.5 L of water and 1 dose of Nespresso descaling liquid. Turn on the machine, press the Espresso and Lungo buttons simultaneously for 3 seconds to enter descaling mode. Press Lungo to start the cycle. Repeat with the used solution, then rinse with clear water. Exit the mode by pressing both buttons again.

Can I use capsules other than Nespresso?

The machine is designed exclusively for Nespresso capsules. Using other capsules may damage the appliance and void the warranty. Only Nespresso capsules guarantee optimal quality and safety.

How to clean my machine?

Unplug the appliance and let it cool down. Clean the surface with a damp cloth and mild detergent. Never immerse the appliance in water. Clean the coffee outlet and drip tray regularly. Removable parts can be cleaned separately by hand.

Why is the coffee flowing very slowly?

This may be due to a need for descaling or the type of coffee used. Check if the descaling alarm is active. If the problem persists, contact the Nespresso Club.

How to activate or deactivate energy saving mode?

Press the Espresso button to cycle through options: 9 min, 30 min, or off. To exit the mode, press the Lungo button for 3 seconds.

What to do if water flows around the capsule?

Check that the capsule is correctly positioned. If the problem persists, the capsule may be damaged. Never use a deformed capsule. Contact the Nespresso Club if the leak continues.

How to empty the system before prolonged absence or transport?

Press the Espresso and Lungo buttons simultaneously to turn off the machine. Remove the water tank and open the lever. Close the lever. The machine empties automatically. Empty and clean the capsule container and drip tray.

USER MANUAL B03127 KOENIG

Nespresso, an exclusive system creating the perfect Espresso, time after time.

All machines are equipped with a unique extraction system that guarantees up to 19 Bar pressure. Each parameter has been calculated with great precision to ensure that all the aromas from each Grand Cru can be extracted, to give the coffee body and create an exceptionally thick and smooth crema.

These instructions are part of the appliance. Read all instructions and all safety instructions before operating the appliance.

OveRvieW/PResenTaTiOn 11

sPecificaTiOns/sPecificaTiOns 11

eneRgY saving mODe/mODe écOnOmie D'eneRgie 12

fiRsT use OR afTeR lOng PeRiOD Of nOn-use/PRemieRe uTilisaTiOn Ou aPRes une lOngue PeRiODe De nOn-uTilisaTiOn .... 13

cOffice PRePaRaTiOn/PRePaRaTiOn Du cafe 14

PROgRamming The WaTeR vOlume/PROgRammaTiOn Du vOlume D'eau ..... 15 emPTYing The sYsTem befORe a PeRiOD Of nOn-use anD fOR fROsT

PROTecTiOn, OR befORe a RePaiR/viDange Du sYsTeme avanT une PeRiODe D'inuTilisaTiOn, POuR la PROTecTiOn cOnTRe le gel Ou avanT une RePaRaTiOn .... 16

Reset TO facTORY setTings/ ResTauReRles Reglages D'usine.... 17

Descaling/DeTaRTRage 18

cleaning/neTTOYage 20

TROublesh00Ting/Pannes 21

cOnTacT The NESPRESSO club/cOnTacTeR le club NESPRESSO 22

DisPOsal anD enviROnmenTal PROTecTiOn/ RecYclage eT PROTecTiOn De l'enviROnnemenT 22

ec0lab0RaTi0n: ec0lab0RaTi0n.c0m/

ec0labORaTiOn: ec0labORaTiOn.cOm 23

limiTeD WaRRanTY/gaRanTie limiTee 24

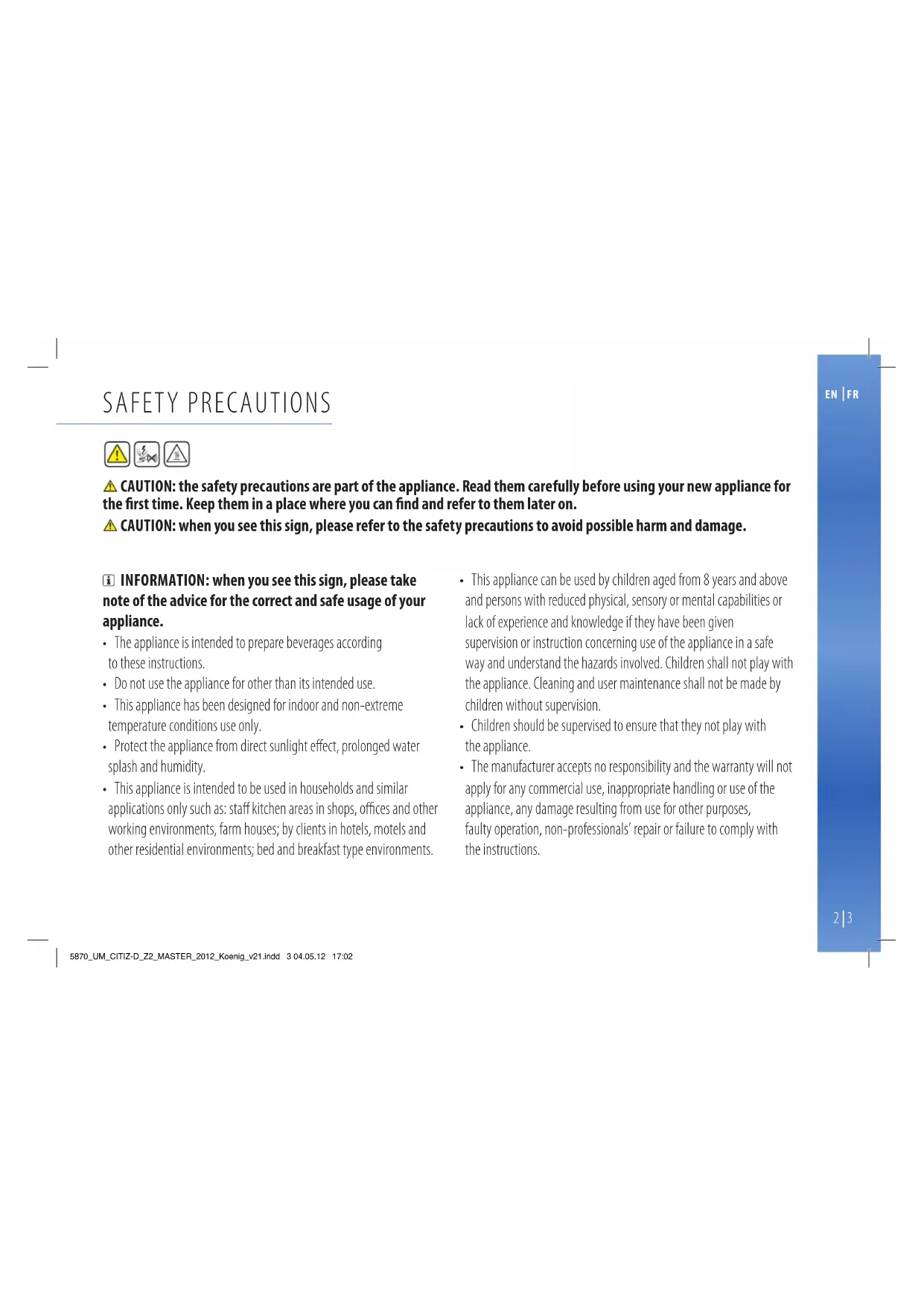

SAFETY PRECAUTIONS

CAUTION: the safety precautions are part of the appliance. Read them carefully before using your new appliance for the first time. Keep them in a place where you can find and refer to them later on.
CAUTION: when you see this sign, please refer to the safety precautions to avoid possible harm and damage.

i INFORMATION: when you see this sign, please take note of the advice for the correct and safe usage of your appliance.

• The appliance is intended to prepare beverages according to these instructions.
• Do not use the appliance for other than its intended use.
• This appliance has been designed for indoor and non-extreme temperature conditions use only.
• Protect the appliance from direct sunlight effect, prolonged water splash and humidity.

• This appliance is intended to be used in households and similar applications only such as: staff kitchen areas in shops, offices and other working environments, farm houses; by clients in hotels, motels and other residential environments; bed and breakfast type environments.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
  • Children should be supervised to ensure that they not play with the appliance.

• The manufacturer accepts no responsibility and the warranty will not apply for any commercial use, inappropriate handling or use of the appliance, any damage resulting from use for other purposes, faulty operation, non-professionals' repair or failure to comply with the instructions.

SAFETY PRECAUTIONS

Avoid risk of fatal electric shock and fire.

• In case of an emergency: immediately remove the plug from the power socket.
• Only plug the appliance into suitable, easily accessible, earthed mains connections.
  Make sure that the voltage of the power source is the same as that specified on the rating plate.
  The use of an incorrect connection voids the warranty.

The appliance must only be connected after installation.

• Do not pull the cord over sharp edges, clamp it or allow it to hang down.
• Keep s the cord away from heat and damp.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons.
• If the cord is damaged, do not operate the appliance.
• Return the appliance to the Nespresso Club or to a Nespresso authorized representative.
• If an extension cord is required, use only an earthed cord with a conductor cross-section of at least 1.5 ~mm^2 or matching input power.

• To avoid hazardous damage, never place the appliance on or beside hot surfaces such as radiators, stoves, ovens, gas burners, open flame, or similar.

• Always place it on a horizontal, stable and even surface. The surface must be resistant to heat and fluids, like water, coffee, descaler or similar.

• Disconnect the appliance from the mains when not in use for a long period. Disconnect by pulling out the plug and not by pulling the cord itself or the cord may become damaged.
• Before cleaning and servicing, remove the plug from the mains socket and let the appliance cool down.
• Never touch the cord with wet hands.
• Never immerse the appliance or part of it in water or other liquid.
• Never put the appliance or part of it in a dishwasher.
  • Electricity and water together is dangerous and can lead to fatal electrical shocks.
• Do not open the appliance. Hazardous voltage inside!
• Do not put anything into any openings. Doing so may cause fire or electrical shock!

SAFETY PRECAUTIONS

Avoid possible harm when operating the appliance.

• Never leave the appliance unattended during operation.
• Do not use the appliance if it is damaged or not operating perfectly. Immediately remove the plug from the power socket. Contact the Nespresso Club or Nespresso authorized representative for examination, repair or adjustment.
  • A damaged appliance can cause electrical shocks, burns and fire.
  • Always completely close the lever and never lift it during operation. Scalding may occur.
• Do not put fingers under coffee outlet, risk of scalding.
• Do not put fingers into capsule compartment or the capsule shaft. Danger of injury!
• Water could flow around a capsule when not perforated by the blades and damage the appliance.
• Never use a damaged or deformed capsule. If a capsule is blocked in the capsule compartment, turn the machine off and unplug it before any operation. Call the Nespresso Club or Nespresso authorized representative.
  • Always fill the water tank with cold, fresh drinking water.

• Empty water tank if the appliance will not be used for an extended time (holidays,etc.).

• Replace water in water tank when the appliance is not operated for a weekend or a similar period of time.

• Do not use the appliance without the drip tray and drip grid to avoid spilling any liquid on surrounding surfaces.
• Do not use any strong cleaning agent or solvent cleaner. Use a damp cloth and mild cleaning agent to clean the surface of the appliance.
• When unpacking the machine, remove the plastic film and dispose.
• This appliance is designed for Nespresso coffee capsules available exclusively through the Nespresso Club or your Nespresso authorized representative. Nespresso quality is only guaranteed when Nespresso capsules are used in Nespresso appliances.
• For your own safety, you should only use parts and appliance accessories from Nespresso that are designed for your appliance.
• All Nespresso appliances pass stringent controls. Reliability tests under practical conditions are performed randomly on selected units. This can show traces of any previous use.
• Nespresso reserves the right to change instructions without prior notice.

SAFETY PRECAUTIONS

Descaling

- Nespresso descaling agent, when used correctly, helps ensure the proper functioning of your machine over its lifetime and that your coffee experience is as perfect as the first day. For the correct amount and procedure to follow, consult the user manual included in the Nespresso descaling kit.

SAVE THESE INSTRUCTIONS

Pass them on to any subsequent user.

This instruction manual is also available as a PDF at

nespresso.com

CONSIGNES DE SECURITE

Simple line drawing of a finger holding two circular buttons with a crown symbol (no text or labels)

Two blue circular icons with lightning bolts on fingers, no text or symbols present

To turn the machine off before automatic Power Off mode, press both the Espresso and Lungo button simultaneously. Pour éteindre la machine avant mise en veille automatique, appuyez simultanément sur les boutons Espresso et Lungo.

To change this setting: Pour modifier ce réglage:

Simple line drawing of a finger pressing a button with a circular button (no text or symbols)

1. With machine being turned off, press and hold the Espresso button for 3 seconds.

2. Avec la machine éteinte, appuyez et maintenez le bouton Espresso pendant 3 secondes.

Blue icon of a sun with a triangular base and a circular symbol inside, resembling a stylized letter or icon (no text or numbers present)

Simple line drawing of a finger pressing a button with a small circular icon (no text or symbols)

Simple line drawing of a finger pressing a button with a small icon (no text or symbols)

3D rendering of a black and white electronic device with a blue cable inserted (no visible text or symbols)

1. Place a container (min. 1 L) under coffee outlet.
2. Placez un récipient (min. 1 L) sous la sortie café.

Illustration of a computer mouse with an upward arrow indicating motion (no text or symbols)

1. Remove the plastic film from the drip grid.
2. Retirer le film plastique de la grille d'égoutage.

Illustration of a hand pouring liquid into a container (no text or symbols)

Two blue circular icons with sun-like shapes and a coffee cup symbol, no text or labels present.

Simple line icon of a power plug with a square socket and two circular buttons (no text or symbols)

Simple line drawing of a hand holding two circular objects with 'P' symbols (no text or labels)

Two blue circular icons with sun-like shapes and a coffee cup symbol, no text or labels present.

pia, v21 indd 13.04

Simple line drawing of a finger pointing to a circular button with a cup icon, labeled '3X' (no text or symbols beyond the label)

(No text)
[Non-Text]
[Non-Text]

COFFEE PREPARATION/ PREPARATION DU CAFE

Illustration of a hand pouring liquid into a container (no text or symbols)

Blue icon of a finger holding two circular buttons with '立' symbols (no text or numbers present)

Two blue circular icons with sun-like patterns, each containing a coffee cup and a smaller circle with a cup (no text or symbols)

Blinking Lights: heating up (25 sec) Voyants clignotants: préchauffage (25 sec)

Close-up of a black mechanical component with blue circular elements and a white handle (no text or symbols visible)

cauTiOn: never lift lever during operation and refer to the safety precautions to avoid possible harm when operating the appliance.

i nOTE: during heat up, you can press either coffee button while blinking. The coffee will then flow automatically when the machine is ready.

Simple line icon of a finger pressing two circular icons with a coffee cup symbol (no text or labels)

Close-up of a black mechanical knob with blue motion arrows indicating airflow or movement (no text or symbols)

Close-up of a black industrial machine with a blue brush applying a white cup (no visible text or symbols)

PROGRAMMING THE WATER VOLUME/ PROGRAMMATION DU VOLUME D'EAU

Simple line drawing of a finger holding two circular objects with icons (no text or symbols)

Close-up of a black mechanical component with blue airflow indicators (no text or symbols)

Close-up of a black and white industrial machine with a blue brush applying a white cup (no visible text or symbols)

Simple line drawing of a finger holding two circular icons with 'P' symbols (no text or labels)

Two blue icons on finger tips, one with a lock and the other with a cup (no text or symbols)

Close-up of a mechanical knob with a blue circular arrow indicating rotation (no text or symbols visible)

Two blue line-drawn icons of fingers holding circular buttons (no text or symbols)

1. Press both the Espresso and Lungo button for
   3 seconds.
2. Appuyez simultanément sur la touche Espresso et
   Lungo pendant 3 secondes.

Four blue circular icons with sunburst or flame-like patterns, no text or symbols present.

Both LEDs blink alternatively. Les deux voyants clignotent alternativement.

Close-up of a mechanical knob with a blue arrow indicating rotation (no text or symbols visible)

Simple line drawing of a finger pressing a circular button with a small symbol (no text or labels)

1. With machine being turned off, press and hold down the Lungo button for 5 seconds.

2. Avec la machine éteinte, appuyez et maintenez enfoncé le bouton Lungo pendant 5 secondes.

Two blue circular icons with sunburst lines, each containing a coffee cup and a lightbulb symbol, labeled '3X' below (no text or numbers on icons)

Four blue circular icons with sun and cup symbols, no text or labels present

Power Off mode: 9 min

This machine is equipped with a descaling alarm. When both LEDs blink during ready mode, your machine needs descaling.

NOTE: duration approximately 15 minutes.

Close-up of a black mechanical knob with blue curved arrows indicating motion or force (no text or symbols)

1. Remove the capsule and close the lever.
2. Retirer la capsule et fermez le levier.

Two black plastic components with perforated bases, one partially covered by a transparent plastic cover (no text or symbols visible)

Illustration of a hand pouring liquid into a container with a barcode tag (no text or symbols)

Close-up of a white cylindrical device with a blue arrow pointing to it, mounted on a black surface (no visible text or symbols)

1. Place a container (min. volume 1 L) under the coffee outlet.
2. Placez un récipient (min. 1 litre de volume) sous la sortie café.

Two blue circular icons with crown-like symbols on finger tips, no text or labels present

Two blue circular icons with radiating lines, resembling stylized suns or logos (no text or symbols)

Simple line drawing of a finger pressing a button with a small circular icon (no text or symbols)

Illustration of a robotic arm pouring liquid from a cylindrical container (no text or symbols)

Illustration of a hand pouring liquid into a container (no text or symbols)

Two blue circular icons with 'P' symbols on fingers, no text or numbers present

Risk of fatal elec trical shock and fire.

Never immerse the appliance or part of it in water.

Be sure to unplug the machine before cleaning.

Do not use any strong cleaning agent or solvent cleaner.

Do not use sharp objects, brushes or sharp abrasives.

Do not place in a dishwasher.

ATTENTION

Simple line drawing of a hand holding a triangular object (no text or symbols)

Clean the coffee outlet regularly with a soft damp cloth.

3D rendering of a mechanical component with meshed base and transparent casing (no text or symbols)

Maintenance unit can be

removed in separate pieces

for easy cleaning.

No light indicator.	→ Check the mains, plug, voltage, and fuse. In case of problems, call the Nespresso Club.
No coffee, no water.	→ First use: fill water tank with warm water (max. 55°C) and run through machine according to instructions on page 13.→ Water tank is empty. Fill water tank.→ Descale if necessary; see Descaling section.
Coffee comes out very slowly.	→ Flow speed depends on the coffee variety.→ Descale if necessary; see Descaling section.
Coffee is not hot enough.	→ Preheat cup.→ Descale if necessary.
Capsule area is leaking(water in capsule container).	→ Position capsule correctly. If leakages occur, call the Nespresso Club.
Irregular blinking.	→ Send appliance to repair or call the Nespresso Club.
No coffee, just water runs out (despite inserted capsule).	→ In case of problems, call the Nespresso Club.
Both LEDs blink during ready mode.	→ Proceed to descaling.

CONTACT THE NESPRESSO CLUB/

CONTACTER LE CLUB NESPRESSO

As we may not have foreseen all uses of your appliance, should you need any additional information, in case of problems or simply to seek advice, call the Nespresso Club or your Nespresso authorized representative.

Contact details for your nearest Nespresso Club or your Nespresso authorized representative can be found in the «Welcome to Nespresso» folder in your machine box or at.nespresso.com

This appliance complies with the EU Directive 2002/96/EC. Packaging materials and appliance contain recyclable materials.

Your appliance contains valuable materials that can be recovered or can be recyclable. Separation of the remaining waste materials into different types facilitates the recycling of valuable raw materials. Leave the appliance at a collection point. You can obtain information on disposal from your local authorities.

ECOLABORATION: ECOLABORATION.COM/ ECOLABORATION: WWW.ECOLABORATION.COM

WARRanTY and LIabilITY: Koenig Nespresso machines are guaranteed in Switzerland for two years (parts and labour). To claim under this guarantee you will require your store receipt showing the date of purchase. Guarantee claims cannot be accepted if the machine has not been descaled, or has been incorrectly descaled (infrequently, use of inappropriate products). Only the use of Nespresso capsules will guarantee the proper functioning and lifetime of your Nespresso machine. Any defect resulting from the usage of non-genuine Nespresso capsules will not be covered by this warranty.

kOntakt NESPRESSO CIUb/CONTattaRE II NESPRESSO CIUb 46

EntsORGUnG UnD UmwEltsChUtZ/

smaltImEnt0 E PROtEZIONE ambIENTALE 46

ECOlab0Rat10n: ECOlab0Rat10n.COm/

ECOlabORat10n: ECOlabORat10n.COM 47

GaRantIE/GaRanZla 48

SICHERHEITSHINWEISE

Simple line drawing of a finger holding two circular buttons with a crown symbol (no text or labels)

Two blue circular icons with lightning bolts on fingers, no text or symbols present

Simple line drawing of a finger pressing a button with a circular button (no text or symbols)

Blue icon of a sun with a circular symbol containing a document or folder, radiating from a center (no text or numbers)

1. Die Espressotaste blinkt, um die derzeitige Einstellung anzuzeigen.
2. Il pulsante Espresso lampeggerà per indicare l'impostazione corrente.

Simple line drawing of a finger pressing a button with a circular button (no text or symbols)

1. Um die Einstellung zu ändern, Espressotaste drücken: Einmaliges Drücken aktiviert die Abschaltautomatik nach 9 Minuten Erneutes Drücken aktiviert die Abschaltautomatik nach 30 Minuten Erneutes Drücken deaktiviert die Abschaltautomatik.
2. Per cambiare l'impostazione premere il pulsante Espresso: Una volta per la modalità di spegnimento dopo 9 minuti Un'altra volta per la modalità di spegnimento dopo 30 minuti Un'ultima volta per disattivare la modalità di spegnimento.

Simple line drawing of a finger pressing a button with a small icon (no text or symbols)

Illustration of a hand pouring liquid into a container (no text or symbols)

Exterior view of a modern office building (no signage)

Illustration of a curved electronic device with a blue arrow indicating upward motion (no text or symbols)

Simple line icon of a power plug with a square socket and two pins (no text or symbols)

Simple line drawing of a finger holding two circular icons with 'P' symbols (no text or numbers present)

Three blue circular icons with sunburst and coffee cup symbols, no text or labels present

Tasten Blinken: Aufheizphase (25 Sekunden) Luci intermittenti: riscaldamento (25 sec)

Simple line drawing of a finger holding a circular object with a teapot icon, labeled '3X' (no text or symbols on the diagram itself)

Simple line drawing of a finger holding two circular objects (no text or symbols)

Close-up of a black mechanical device with blue airflow indicators (no text or symbols visible)

Close-up of a black industrial machine with a white brush applying white powder to a blue cup (no visible text or symbols)

Simple line drawing of a finger holding two circular icons with 'P' and 'C' symbols (no text or labels)

Two blue line-drawn icons of fingers holding circular objects, no text or symbols present

1. Um das Systemi zu entleeren, drücken Sie gleichzeitig die Espresso- und Lungotaste um die Maschine auszuschalten.
2. Per entrare nella modalità di svuotamento, premere insieme i pulsanti Espresso e Lungo per spegnere la macchina.

Close-up of a mechanical knob with a blue circular arrow indicating rotation (no text or symbols visible)

Two blue finger icons with crown symbols, no text or numbers present

Four blue circular icons with sunburst patterns, each containing a stylized icon (no text or symbols)

Beide Tasten blinken abwechselnd. Entrambi i LED lampeggiano alternativamente.

Close-up of a mechanical knob with a blue arrow indicating rotation (no text or symbols visible)

Simple line drawing of a finger pressing a circular button with a small icon (no text or symbols)

Two blue circular icons with sunburst lines and a coffee cup symbol, labeled '3X' below (no text or numbers on icons)

1. Schnelles, dreimaliges Blinken der Tasten bestätigt das Rücksetzen auf die Werkseinstellung.
2. I LED lampeggeranno velocemente per 3 volte per confermare che la macchina è stata ripristinata con le impostazioni di fabbrica.

Two blue circular icons with sun-like shapes and coffee cup symbols, no text or labels present.

Close-up of a black mechanical knob with blue curved arrows indicating motion or force (no text or symbols)

Two black plastic components with perforated bases, one partially covered by a transparent plastic cover (no text or symbols visible)

Illustration of a hand pouring liquid into a container with a barcode tag (no text or symbols)

1. Füllen Sie den Wassertank mit einem Beutel der Nespresso Entkalkungslösung und 0,5 L Leitungswasser auf.
2. Riempire il serbatoio dell'acqua con 500 ml di acqua potabile e aggiungere 1 soluzione decalcificante Nespresso.

Close-up of a white cylindrical device with a blue arrow pointing to it, no visible text or symbols

Two blue circular icons with crown-like symbols on finger tips, no text or labels present

1. Um den Entkalkungsvorgang zu starten, drücken Sie im Bereit Modus 3 Sekunden lang gleichzeitig die Espresso- und Lungotaste.
2. Per entrare nella modalità di decalcificazione premiere entrambi i pulsanti per 3 secondi, con la macchina accesa.

Two blue circular icons with sunburst lines, one with a megaphone and the other with a cup, both without any text or symbols.

Beide Tasten blinken. Entrambi i LED lampeggiano.

Simple line drawing of a finger pressing a button with a small circular icon (no text or symbols)

Diagram of a robotic arm pouring liquid into a cylindrical container (no text or symbols)

Illustration of a hand pouring liquid into a container (no text or symbols)

Two blue circular icons with 'P' symbols on fingers, no text or numbers present

Simple line drawing of a hand holding a triangular object (no text or symbols)

Two plastic mechanical components with textured bases, one partially filled and one partially outlined (no text or symbols visible)

ECOLABORATION: WWW.NESPRESSO.COM/ECOLABORATION ECOLABORATION: WWW.ECOLABORATION.COM
