USER MANUAL FlexBrew SingleServe HAMILTON BEACH

READ BEFORE USE LIRE AVANT UTILISATION LEA ANTES DE USAR Visit www.hamiltonbeach.com for our

complete line of products and Use and

Care Guides – as well as delicious recipes,

tips, and to register your product online!

Rendez-vous sur www.hamiltonbeach.ca

Please call us – our friendly

associates are ready to help.

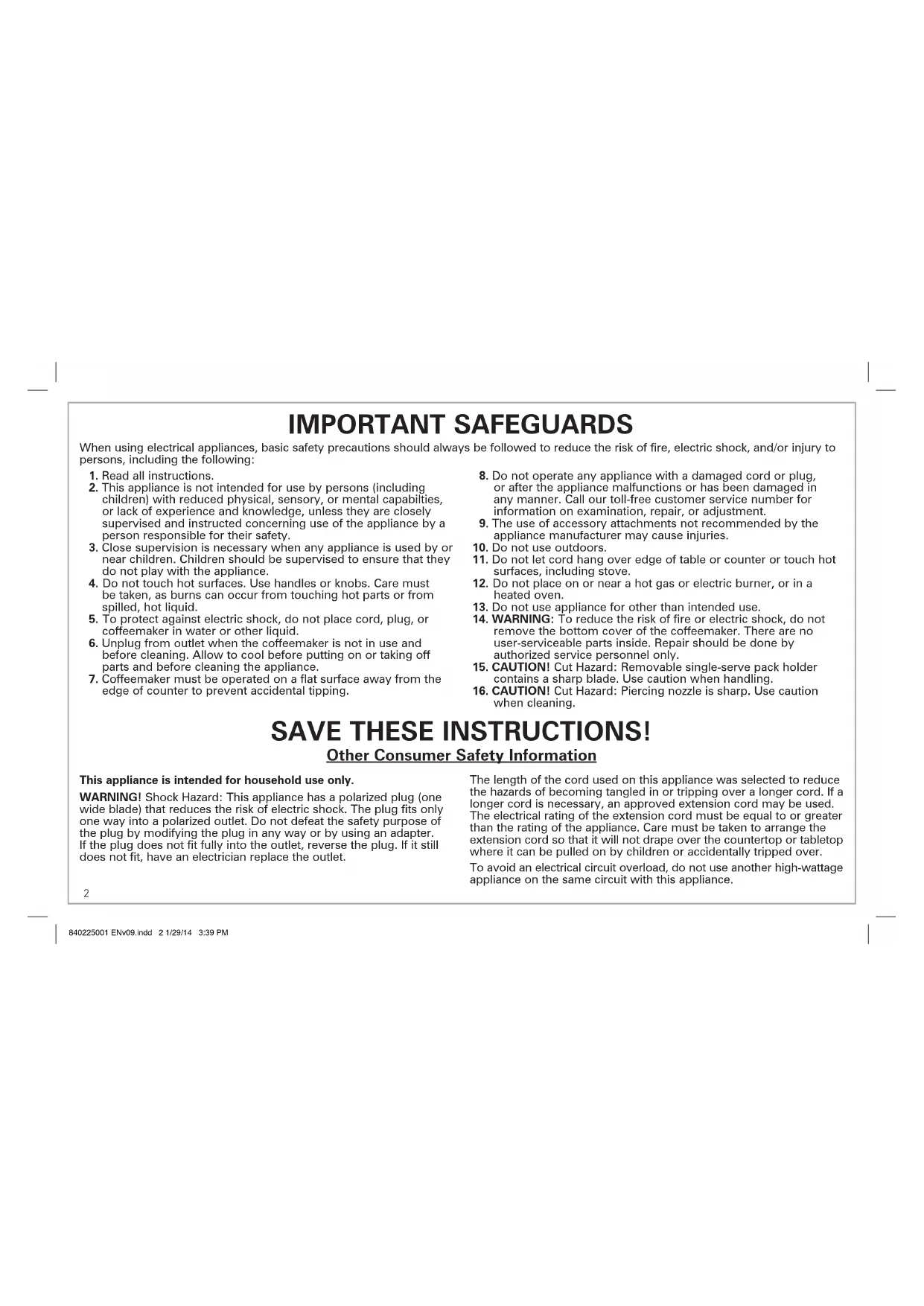

IMPORTANT SAFEGUARDS

1. Read all instructions.

2. This appliance is not intended for use by persons (including

children) with reduced physical, sensory, or mental capabilties,

or lack of experience and knowledge, unless they are closely

supervised and instructed concerning use of the appliance by a

person responsible for their safety.

3. Close supervision is necessary when any appliance is used by or

near children. Children should be supervised to ensure that they

do not play with the appliance.

4. Do not touch hot surfaces. Use handles or knobs. Care must

be taken, as burns can occur from touching hot parts or from

spilled, hot liquid.

5. To protect against electric shock, do not place cord, plug, or

coffeemaker in water or other liquid.

6. Unplug from outlet when the coffeemaker is not in use and

before cleaning. Allow to cool before putting on or taking off

parts and before cleaning the appliance.

7. Coffeemaker must be operated on a flat surface away from the

edge of counter to prevent accidental tipping.

8. Do not operate any appliance with a damaged cord or plug,

or after the appliance malfunctions or has been damaged in

any manner. Call our toll-free customer service number for

information on examination, repair, or adjustment.

9. The use of accessory attachments not recommended by the

appliance manufacturer may cause injuries.

10. Do not use outdoors.

11. Do not let cord hang over edge of table or counter or touch hot

surfaces, including stove.

12. Do not place on or near a hot gas or electric burner, or in a

13. Do not use appliance for other than intended use.

14. WARNING: To reduce the risk of fire or electric shock, do not

remove the bottom cover of the coffeemaker. There are no

user-serviceable parts inside. Repair should be done by

authorized service personnel only.

15. CAUTION! Cut Hazard: Removable single-serve pack holder

contains a sharp blade. Use caution when handling.

16. CAUTION! Cut Hazard: Piercing nozzle is sharp. Use caution

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to

persons, including the following:

SAVE THESE INSTRUCTIONS!

Other Consumer Safety Information

This appliance is intended for household use only.

WARNING! Shock Hazard: This appliance has a polarized plug (one

wide blade) that reduces the risk of electric shock. The plug fits only

one way into a polarized outlet. Do not defeat the safety purpose of

the plug by modifying the plug in any way or by using an adapter.

If the plug does not fit fully into the outlet, reverse the plug. If it still

does not fit, have an electrician replace the outlet.

The length of the cord used on this appliance was selected to reduce

the hazards of becoming tangled in or tripping over a longer cord. If a

longer cord is necessary, an approved extension cord may be used.

The electrical rating of the extension cord must be equal to or greater

than the rating of the appliance. Care must be taken to arrange the

extension cord so that it will not drape over the countertop or tabletop

where it can be pulled on by children or accidentally tripped over.

To avoid an electrical circuit overload, do not use another high-wattage

appliance on the same circuit with this appliance.

840225001 ENv09.indd 2 1/29/14 3:39 PM3

(holds ground coffee or pod)

Removable Single-Serve Pack

Holder* (punches hole on bottom

Removable Holder for Finely

Ground Coffee* (fits into

brew basket for brewing)

How to Brew a Single-Serve Pack

To avoid contact with hot coffee

line (10 ounces [296 ml

• Fill reservoir with cup or travel

mug of water into which the

coffee will be brewed.

• Fully insert cup or travel mug

w WARNING Press down on edge of the pack

until the pack snaps into place

and hole is punched in the

bottom. Do not remove foil.

Place a pack into the single-serve

Removable single-serve pack

holder has a sharp blade. Use

caution when handling.

NOTE: It can take up to 2 minutes

before brewed coffee starts

dispensing into your cup or travel

mug. Total brew time average is

4 minutes. For best results, allow

the coffeemaker to cool for at

least 2 minutes between brewing

Press down on brew basket

handle to lock and puncture

the foil lid on the pack.

*K-Cup is a registered trademark of Keurig, Inc. Use of the K-Cup trademark does not imply any affiliation with

or endorsement by Keurig, Inc.

w CAUTION 840225001 ENv09.indd 4 1/29/14 3:50 PM5

How to Brew a Single-Serve Pack (cont.)

larger cup, such as a travel mug.

Coffeemaker will shut off

automatically and light will go off

when brew cycle is completed.

Press the ON/OFF (I/O) button

again to STOP brewing midcycle.

Allow 2 minutes to cool in

Brew basket and single-serve

pack holder should be rinsed

Press ON/OFF (I/O) button. The

power ON indicator light will light

up to show that coffeemaker is on.

Fill reservoir with cup or travel

mug into which the coffee will

Pull up on brew basket handle to

6 840225001 ENv09.indd 5 1/29/14 4:02 PM6

How to Brew Ground Coffee or Soft Pod

To avoid contact with hot coffee

line (10 ounces [296 ml

• Fill reservoir with cup or travel

mug of water into which the

coffee will be brewed.

• Fully insert cup or travel mug

• Remove single-serve pack

holder before adding coffee

grounds to brew basket.

Add ground coffee or pod

WARNING! Burn Hazard:

To avoid overflow, keep ground

coffee below MAX fill line.

Or add finely ground coffee to

removable holder. Place holder

in brew basket. (2 Tablespoons

[30 ml] is the MAX amount of any

the Melitta trademark does not imply any affiliation with or endorsement by Melitta

Haushaltsprodukte GmbH & CoKG.

To remove single-serve pack

holder, press down on the single-

serve pack holder tab; then lift

This unit is for use with Melitta

pods, available in the coffee aisle

of your local grocery store.

NOTE: It can take up to 2 minutes

before brewed coffee starts

dispensing into your cup or travel

mug. Total brew time average is

4 minutes. For best results, allow

the coffeemaker to cool for at

least 2 minutes between brewing

Removable single-serve pack

holder has a sharp blade. Use

caution when handling.

† 840225001 ENv09.indd 6 1/29/14 4:07 PM7

How to Brew Ground Coffee or Soft Pod (cont.)

Use the taller cup position for a

larger cup, such as a travel mug.

Coffeemaker will shut off automatically and light will go off when brew

If finer ground coffee is used, coffee will continue to drip after the light

Press the ON/OFF (I/O) button again to STOP brewing midcycle.

Allow 2 minutes to cool in between brews.

Brew basket and single-serve pack holder should be rinsed after every

Press ON/OFF (I/O) button. The

power ON indicator light will light

up to show that coffeemaker is on.

Fill reservoir with cup or travel

mug into which the coffee will

be brewed. 840225001 ENv09.indd 7 1/29/14 4:12 PM8

of cold water into reservoir.

Press the ON/OFF (I/O) button

once. After 30 seconds, unplug

unit and allow vinegar to clean.

After 30 minutes, plug in unit and

allow it to finish the brew cycle.

When brew cycle is finished,

wait for unit to cool. Empty cup

and rinse. Repeat steps 1–4 with

1 cup (237 ml) of cold tap water

instead of 1/2 cup (118 ml) of

vinegar and 1/2 cup (118 ml) of

Place a cup underneath to catch

the water/vinegar solution.

DISHWASHER-SAFE All coffeemakers should be cleaned at least once a month (once a week for areas with hard water).

DO NOT use the “SANI” setting

when washing in the dishwasher.

“SANI” cycle temperatures could

damage your product.

w WARNING Shock Hazard.

Do not immerse cord, plug, or coffeemaker in any liquid. 840225001 ENv09.indd 8 1/29/14 4:17 PM9

PROBLEM PROBABLE CAUSE/SOLUTION Coffee tastes bad. • Coffeemaker needs cleaning.

• Coffee ground too coarsely or too finely. Set coffee grinder to automatic drip grind.

• Poor coffee quality and freshness.

• Poor water quality (use filtered or bottled water).

Water on counter under

• Overfilled water reservoir. Also check cup used to fill reservoir. Some mugs/cups do not pour

cleanly and can dribble water down the side of the cup and onto counter.

Coffeemaker will not

• Make sure you have allowed for the 2 minutes of cool-down time.

• Check for water in water reservoir. If there is no water in the reservoir and the brew button is

pushed, the unit will not brew.

Coffee overflows from

• Use removable holder for ground coffee.

• Use a lesser amount of ground coffee.

• When using whole bean coffee, a standard automatic drip coffee grind will yield best results.

Be careful not to overgrind, since very finely ground coffee can cause overflow in this unit.

Coffee overflows from

• To prevent coffee overflowing from a mug/travel mug, use the same mug/travel mug to brew

into that was used to fill the water reservoir. Do not add more than 10 ounces (296 ml) of

• Added too much water. Remove single-serve pack and replace brew basket. Repeat brewing

Noise or steam at the

• Reduce amount of water in reservoir.

• Brew a different type of single-serve pack.

840225001 ENv09.indd 9 1/29/14 4:17 PM10

Troubleshooting (cont.)

PROBLEM PROBABLE CAUSE Coffee not dispensing. • Piercing nozzle is clogged with coffee grounds. Turn unit off; unplug. Allow unit to cool

completely. To remove any built-up coffee grounds, insert end of bent paper clip into eye of

Water reservoir fills too

• Unit hasn’t cooled down. Allow 2 minutes between brewing cycles.

• Try filling water reservoir before pushing down brew basket handle to pierce single-serve pack.

Start brewing cycle.

Failed foil seal. • There is variability in the single-serve pack manufacturing process which causes some types

of single-serve packs to be weaker at the seams. Let cool 2 minutes between brewing, use less

water, or try a different brand.

840225001 ENv09.indd 10 1/29/14 4:17 PM11

Troubleshooting (cont.)

PROBLEM PROBABLE CAUSE Coffee not dispensing. • Piercing nozzle is clogged with coffee grounds. Turn unit off; unplug. Allow unit to cool

completely. To remove any built-up coffee grounds, insert end of bent paper clip into eye of

Water reservoir fills too

• Unit hasn’t cooled down. Allow 2 minutes between brewing cycles.

• Try filling water reservoir before pushing down brew basket handle to pierce single-serve pack.

Start brewing cycle.

Failed foil seal. • There is variability in the single-serve pack manufacturing process which causes some types

of single-serve packs to be weaker at the seams. Let cool 2 minutes between brewing, use less

water, or try a different brand.

840225001 ENv09.indd 11 1/29/14 4:17 PM12

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and

is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original

purchase. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective,

at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or

component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to

the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or

gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the

product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the

rating label (e.g., 120V ~ 60 Hz).

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All

liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition

of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such

warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have

other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or

special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store. Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada

or visit hamiltonbeach.com in the U.S. or hamiltonbeach.ca in Canada. For faster service, locate the model, type, and series numbers
