Operating Instructions US

CAUTION To prevent electric shock and blade exposure, do not use this polarized

AC plug with an extension cord, receptacle or other outlet unless the

blades can be fully inserted.

• Operate the TV only on DC 19.5 V (with AC adapter)

Location of the identification label

Labels for the TV Model No. and Power Supply rating are located on

the rear of the TV. Labels for the AC adapter Model No. and Serial No.

are located on the bottom of the AC adapter.

• The illustrations of the remote control used in this manual are of the

RM-YD092 unless otherwise stated.

• The illustrations used in this manual may differ depending on your

When cleaning, be sure to unplug the power cord to avoid any chance

• Wipe the LCD screen gently with a soft cloth.

• Stubborn stains may be removed with a cloth slightly moistened

with a solution of mild soap and warm water.

• If using a chemically pretreated cloth, please follow the instruction

provided on the package.

• Never use strong solvents such as a thinner, alcohol or benzine for

• See the supplied Safety Booklet for additional information.

The model and serial numbers are located at the side and rear

of the TV. Record these numbers in the spaces provided below.

Refer to them whenever you call upon your Sony dealer

The 32 class has a 31.5 inch viewable image size and the 48

class has a 47.6 inch viewable image size (measured

US Table of Contents

Inserting Batteries into the

Cable System and VHF/UHF Antenna

HD Cable Box/HD Satellite Box . . . . . . . . . . . . . 8

Securing the TV. . . . . . . . . . . . . . . . . . . . . . . . 9

Preventing the TV from Toppling. . . . . . . . . . . . 9

Recommended Measures to Secure the TV . . . 9

Bundling the Cables . . . . . . . . . . . . . . . . . . . .11

Navigating through Home Menu

Viewing Pictures from Connected

Additional Information

http://www.sony.ca/support

On-line Registration

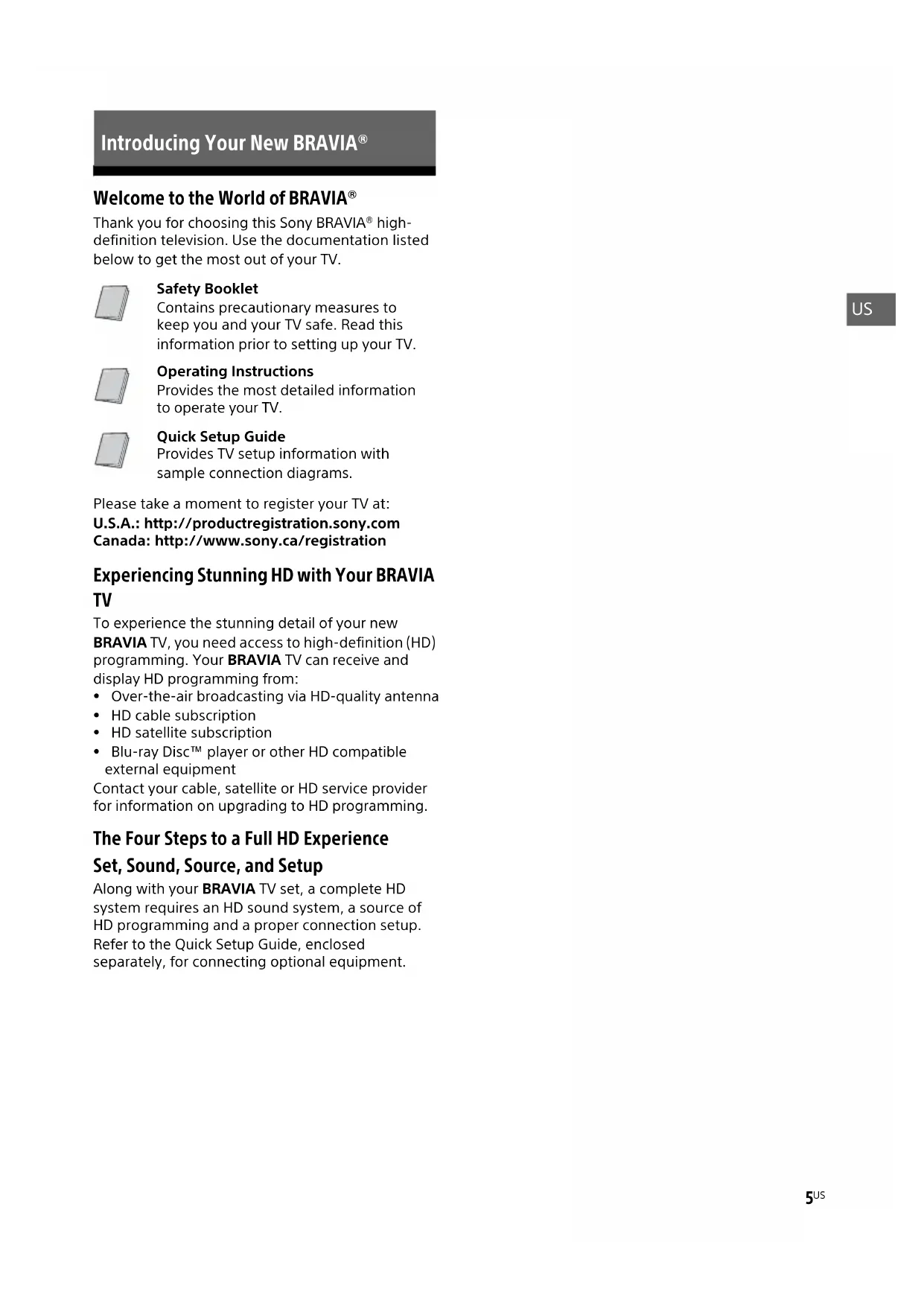

US Welcome to the World of BRAVIA®

Thank you for choosing this Sony BRAVIA® high-

definition television. Use the documentation listed

below to get the most out of your TV.

Please take a moment to register your TV at:

U.S.A.: http://productregistration.sony.com

Canada: http://www.sony.ca/registration

Experiencing Stunning HD with Your BRAVIA TV To experience the stunning detail of your new

BRAVIA TV, you need access to high-definition (HD)

programming. Your BRAVIA TV can receive and

display HD programming from:  Over-the-air broadcasting via HD-quality antenna HD cable subscription HD satellite subscription Blu-ray Disc™ player or other HD compatible external equipment

Contact your cable, satellite or HD service provider

for information on upgrading to HD programming.

The Four Steps to a Full HD Experience

Set, Sound, Source, and Setup

Along with your BRAVIA TV set, a complete HD

system requires an HD sound system, a source of

HD programming and a proper connection setup.

Refer to the Quick Setup Guide, enclosed

separately, for connecting optional equipment.

Introducing Your New BRAVIA®

Contains precautionary measures to

keep you and your TV safe. Read this

information prior to setting up your TV.

Operating Instructions

Provides the most detailed information

Provides TV setup information with

sample connection diagrams.6

US C:\Users\CHAILING\Desktop\FULLSET_CLOVER\Batch 3\Group_Clover 29 (Rev-

Checking the Accessories Remote control (1)*Size AAA batteries (2)AC power cord (1)AC adapter (1)Cable holder (3)Table-Top Stand (1)Fixing screws for Table-Top Stand (M5 x 20) (2)Operating Instructions (1)Quick Setup Guide (1)Safety and Regulatory Booklet (1)Software License (1)Stand Installation Guide (1)* Please refer to the model name printed on the remote control. Inserting Batteries into the

1 Remove the protection sheet.

2 Push and slide the cover to open.

Guidelines for Remote Control  Point your remote control directly at the IR sensor located on your TV. Make sure that no objects are blocking the path between the remote control and the IR sensor on your TV. Fluorescent lamps can interfere with your remote control; try turning off the fluorescent lamps. If you are having problems with the remote control, reinsert or replace your batteries and make sure that they are correctly inserted. Getting Started7

US C:\Users\CHAILING\Desktop\FULLSET_CLOVER\Batch 3\Group_Clover 29 (Rev-

US Setting Up Your TV Some TV models are packaged with a detached

Table-Top Stand so you can mount your TV to a wall

right away. If you are not mounting the TV to a wall,

you will need to attach the Table-Top Stand. You will

need a Phillips screwdriver (not supplied) and the

supplied screws to complete the task. Look for the

supplied Table-Top Stand instruction leaflet.

Be sure to consider the following while setting up

your TV:  Disconnect all cables when carrying the TV. Carry the TV with the adequate number of people; larger size TVs require two or more

people.  Correct hand placement while carrying the TV is very important for safety and to avoid damage.  Do not put stress on the LCD panel or the frame around the screen.  Ensure your TV has adequate ventilation, see page 30.  For best picture quality, do not expose the screen to direct illumination or sunlight.  Avoid installing the TV in a room with reflective wall and floor materials.  Avoid moving the TV from a cold area to a warm area. Sudden room temperature changes may

cause moisture condensation. This may cause the

TV to show poor picture and/or poor color. Should

this occur, allow moisture to evaporate

completely before powering the TV on.  Ensure that there are no objects in front of the TV. Attaching the Table-Top Stand

• If using an electric screwdriver, set the tightening torque

at approximately 1.5 N·m {15 kgf·cm}.

• When detaching the Table-Top Stand, reverse the

attaching procedure.

• Be sure the TV is vertical before turning on. To avoid

uneven picture uniformity do not power on the TV with

the LCD panel facing down.

• When attaching the Table-Top Stand again, be sure to

fasten the screws (previously removed) to the original

holes on the rear of the TV.

Connecting the TV You can enjoy high-definition and standard-

definition digital programming (if available in your

area) along with standard-definition analog

This TV is capable of receiving unscrambled digital

programming for both cable (QAM and 8VSB) and

external VHF/UHF antenna (ATSC).

Cable or VHF/UHF (or VHF only)

Note • It is strongly recommended that you connect the CABLE/ANTENNA input using a 75-ohm coaxial cable to receive optimum picture quality. A 300-ohm twin lead cable can easily be affected by radio frequency interference, resulting in signal degradation. Use an optional A-B RF switch (not supplied) to

switch between the cable and over-the-air antenna

programming, as indicated below.

• Be sure to set the Signal Type setting to Cable or

Antenna found under the Channel settings for your input signal (page 20). You can enjoy high-definition programming by

subscribing to a high-definition cable service or a

high-definition satellite service. For the best

possible picture, make sure you connect this

equipment to your TV via the HDMI or component

video (with audio) input located on the back of your

Shown with HDMI Connection

Cable System or VHF/UHF Antenna System

Cable System and VHF/UHF Antenna

75-ohm coaxial cableCABLE/ANTENNARear of TV B A A/B RF SwitchCableAntennaRear of TVCABLE/ANTENNA HD Cable Box/HD Satellite Box

Side PanelSet Top Box9

US Shown with Component Connection

Securing the TV  Secure the TV to a wall and/or stand. Do not allow children to play or climb on furniture and TV sets.  Avoid placing or hanging items on the TV. Never install the TV on:  slippery, unstable and/or uneven surfaces.

 furniture that can easily be used as steps, such

as a chest of drawers.  Install the TV where it cannot be pulled, pushed, or knocked over.  Route all AC power cords and connecting cables so that they are not accessible to curious children.

Consider the following measures when securing

your TV to a TV stand (not supplied).

1 Secure the stand for the TV.

Make sure the TV stand can adequately support

the weight of the TV. Use two angle braces (not

supplied) to secure the stand.

For each angle brace use the appropriate

hardware to:  Attach one side of the angle brace to the wall stud.  Attach the other side to the TV stand.

Rear of TV Set Top Box

Sony strongly recommends taking

measures to prevent the TV from toppling

over. Unsecured TVs may topple and result

in property damage, serious bodily injury

Preventing the TV from Toppling

Recommended Measures to Secure the TV Angle braces

2 Secure the TV to the stand.

Use the optional hardware listed below (not

 M6 machine screw (screwed into the screw

 A screw or similar (attach it to the TV stand).

 Rope or chain (strong enough to support the

weight of the TV). Make sure that there is no

excess slack in the rope or chain.

The length of the M6 machine screw differs

depending on the rope or chain diameter. Please

refer to below illustration.

3 Anchor the TV to the wall by using bolts, wall

anchor and chain (or rope).

• Your TV is shipped with screws attached to the rear of the

TV depending on the TV model. (They are fastened in the

screw holes for wall mounting.) Be sure to remove the

upper two screws prior to anchoring the TV to a wall.

• Securing the TV to the stand without securing the TV and

the stand to the wall provides minimum protection

against the TV toppling over. For further protection, be

sure to follow the three measures recommended.

of the TV M6 machine

US Bundling the Cables

Note • Do not bundle the AC power cord together with other cables Running Initial Setup

1 Complete your cable connections before

proceeding with the Initial Setup. Connect

the AC power cord to the AC adapter and

plug the AC adapter to the TV in the DC IN

19.5 V terminal. Then, connect the AC

adapter to your nearest power outlet. Refer

to the Quick Setup Guide (supplied) for

sample connection diagrams.

Note • When the TV is in standby mode (the LED indicator does not light up), press POWER on the remote control to turn on the TV. 2 Press /// to select an item, then

Follow the instructions on the screen.

Note • You can also tune channels manually. • Select Home from Location for the best TV settings to use the TV in the home.

/ (Power) Turns the TV on or to switch to standby mode. Note • To disconnect the TV from the AC power completely, pull the plug from the AC power outlet.  + / – / / • Increases/decreases the volume, or selects the next (+) or previous (–) channel when the CH Up/Down notification is displayed by pressing the CH/INPUT button.• Moves the selected input source up/down when the input select menu is displayed by pressing the CH/INPUT button.  CH/INPUT Switches between the CH Up/Down screen and the input select screen.  (Sensors/LED indicator) • Receives signals from the remote control.Do not put anything over the sensor.Doing so may affect its function.• Lights up in amber when the Sleep Timer/On Timer is set (page 24), or the TV is in Photo Frame Mode (page 16).• Lights up in green when Power Saving is set to Picture Off (page 25).• Lights up in green when the TV is turned on.• Does not light up when the TV is in standby mode.• Flashes while the remote is being operated. Note • Make sure that the TV is completely turned off before unplugging the AC power cord. Hint

•The  + button has a tactile dot. Use it as a reference when operating the TV. Parts and Controls

 SYNC MENU Press to display the BRAVIA Sync Menu and

then select connected HDMI/MHL equipment

from Device Selection.

The following options can be selected from

Use the Device Control to operate equipment

that is compatible with BRAVIA Sync Control.

Select options from Home (Menu), Options,

Content List and Power Off to operate the

Select TV Speakers or Audio System to output

the TV’s sound from the TV speakers or

connected audio equipment.

Use the TV Control menu to operate the TV

 PIC OFF Press to turn picture off, and sound remains on.

Select channels. For channel numbers 10 and

above, enter the next digit quickly.

to select digital channels.

Display operation guide (when coloured

buttons are available).

 SLEEP Press repeatedly until the TV displays the time

in minutes Off/15/30/45/60/90/120 that you

want the TV to remain on before shutting off. To

cancel the sleep timer, press SLEEP repeatedly

• Confirm selected items.

• Returns to the previous screen of any

• Stops playback when playing photo/music/

 (fastreverse)/ (PLAY)/ (fast

• Operates the connected BRAVIA Sync-

compatible equipment.

• These keys can also be used to operate USB

 WIDE Adjusts the screen display. Press repeatedly to

 CC/SUBTITLE Changes the subtitle setting (page 23).

 DISPLAY Displays information. Press once to display

information about the program/input you are

viewing. Press again to remove the display from

 OPTIONS Press to display a list that contains shortcuts to

The listed options vary depending on the

current input and content.

 JUMP Returns to the previous channel or input viewed

more than 15 seconds.

Select the next (+) or previous (–) channel.

 MUTING Mutes the sound. Press again to restore the

• The number 5,  and CH + buttons have a tactile dots.

Use the tactile dots as references when operating the TV.15

US C:\Users\CHAILING\Desktop\FULLSET_CLOVER\Batch 3\Group_Clover 29 (Rev-

1 Press / on the TV or POWER on the

remote control to turn on the TV.

2 Press PIC OFF to turn picture off, and sound

3 Press the number buttons or CH +/– to

select a TV channel.

4 Press VOL +/– to adjust the volume.

Changing the Viewing Style

1 Press WIDE repeatedly to select the wide

mode. For HDMI PC Input (PC timing) 1 Press OPTIONS.

2 Press / then to select Scene Select. When you select the desired scene option, the optimum sound and picture quality for selected scene are automatically set. The options you can select may vary. Unavailable options are greyed out.

Watching TV Changing the Wide Mode Wide Zoom* NormalFull Zoom** Parts of the top and bottom of the picture may be cut off.Normal Full 1Full 2 Setting Scene Select16

US C:\Users\CHAILING\Desktop\FULLSET_CLOVER\Batch 3\Group_Clover 29 (Rev-

4-528-762-13(1) The HOME button allows you to access a variety of TV settings and features. 1 Press HOME.

2 Press / then to select Favorites.

3 Press /// then to select a program. Applications Photo Frame displays the clock and calendar at the same time as displaying a photo and listening to music. 1 Press HOME.

2 Press / then to select Applications.

3 Press / then to select Photo Frame Mode. To select photo or music from USB memory

1 Press OPTIONS while playing back a photo or music file. 2 Press / then to select Photo Frame

Mode to launch Photo Frame.

To select Display mode You can change the photo frame display by selecting Display Mode in the Photo Frame Settings (page 23). To select Clock Display mode You can select among three clock display modes by selecting Clock Display in the Photo Frame Settings (page 23). Note • This TV does not have a battery powered backup for the clock. Therefore, if there is a power failure or if you disconnect the power cord, be sure to reset the current date and time. Duration To save power, the TV continually plays back in photo frame mode for up to 24 hours before powering off automatically. After automatic power off, do not use photo frame mode for at least one hour to avoid panel burn-in.You can change the setting of the Duration in the Photo Frame Settings (page 23).To avoid panel burn-in, the position of the photo, clock and calendar are switched automatically every hour. Navigating through Home Menu

Using the TV as a Photo Frame17

US C:\Users\CHAILING\Desktop\FULLSET_CLOVER\Batch 3\Group_Clover 29 (Rev-

Connect, copy and view favourite photos on TV

using your devices (eg. smart phones or tablets).

2 Press / then to select Photo Share.

3 Follow the instructions on the screen to

connect your device to the TV.

4 Open web browser on device after all

connections are established, then follow

the instructions on the screen to access

To display photo on TV

1 Tap on your device to start.

2 Select a photo, then tap the icon on your

To save a photo displayed on TV

1 Tap thumbnail on your device, then hold

the photo to open the context menu.

Note • Thumbnail history in your device will keep up to 5 photos. Connect USB flash drive to keep up to 50 photos.• Up to 10 smart phones or tablets can be connected to the TV at the same time.• Maximum file size of each photos is 10 MB. Media

You can enjoy photo/music/video files stored in a

Sony digital still camera or camcorder through a

USB cable or USB storage device on your TV.

1 Connect a supported USB device to the TV.

3 Press / then to select Media.

4 Press / then to select Photo, Music or

If a Card Reader is connected, press the yellow

button to select Playback Method then Device

Selection to select the appropriate USB device.

5 Press /// then to select a file or

To adjust the picture quality of USB video

1 Press OPTIONS during video playback.

2 Press / then to select Picture

3 Press /// then to select and adjust

To play a photo as a slideshow (Photo)

1 Press the blue button in thumbnail view to

To set Slideshow Effect and Slideshow

• While the TV is accessing the data on a USB device,

observe the following:

Do not turn off the TV.

Do not disconnect the

The data on the USB device may be damaged.

• Sony will not be held liable for any damage to, or loss of,

data on the recording media due to a malfunction of any

connected devices or the TV.

• USB Auto Start shows photo files in the newest digital still

camera folder (DCF-compliant, highest-numbered “DCIM”

• USB Auto Start may not work automatically when some

digital still cameras are connected.

• When you connect a Sony digital still camera, set the

camera’s USB connection mode to “Auto” or “Mass

Storage.” For more information about USB connection

mode, refer to the instructions supplied with your digital

• Use a USB storage device that is compliant with USB Mass

Storage Class standards.

• The file system on the USB device supports FAT16, FAT32

• The file name and folder name may not display correctly

• If a selected file has incorrect container information, or is

incomplete, it cannot be played back.

• Playback of the above file formats is not guaranteed.

Note • The options you can adjust vary depending on the situation. Unavailable options are greyed out or not displayed. Preferences

Sets a picture mode.

The options that can be selected differ

depending on the Scene Select settings.

Resets all the Picture settings except Picture

Mode to the default settings.

Adjusts the brightness of the backlight.

Increases or decreases picture contrast.

Brightens or darkens the picture.

Increases or decreases color intensity.

Increases or decreases the green tones and

Sharpens or softens the picture.

Adjusts the whiteness of the picture.

Reduces the picture noise (snowy picture) in a

weak broadcast signal.

MPEG Noise Reduction

Reduces the picture noise in MPEG-

Provides improved picture movement when

playing BD (Blu-ray Disc), DVD or VCR images

taken on film, reducing picture blur and

graininess. Select Auto to represent original

film-based content as it is.

Note • If the image contains irregular signals or too much noise, CineMotion is automatically turned off even if Auto is selected. Advanced Settings

Sets Picture settings in more detail.

Reset: Resets all the advanced settings to

the factory settings.

Adv. Contrast Enhancer: Automatically

adjusts Backlight and Picture to the

most suitable settings judging from the

brightness of the screen. This setting is

especially effective for dark images

scenes, and will increase the contrast

distinction of the darker picture scenes.

Black Corrector: Enhances black areas of

the picture for stronger contrast.

Gamma: Adjusts the balance between

bright and dark areas of the picture.

Clear White: Emphasises white colors.

Live Color: Makes colors more vivid.

LED Motion Mode: Reduces blur in movies

by controlling the LED backlight source,

but the brightness decreases.

Select according to content you want to

Resets all the Sound settings except Sound

Mode, MTS Audio and Altenate Audio to the

Adjusts sound frequency settings.

Produces a fuller sound for more impact, by

emphasising the bass sounds.

Select On to stabilize the volume across all

programs and commercials.

Select Off to disable this function.

Emphasizes left or right speaker balance.

Adjusts the volume level of the current input

relative to other inputs.

Enjoy stereo, bilingual and mono programs.

Stereo: Select for stereo reception when

viewing a program broadcast in stereo.

Auto SAP: Select to automatically switch

the TV to second audio programs when

a signal is received. If no SAP signal is

present, the TV remains in Stereo mode.

Mono: Select for mono reception. Use to

reduce noise during weak stereo

Digital channels only.

Select among the available options to

switch among the alternate audio

streams. The program you are tuned to

may be broadcasted in a different

language in the alternate audio streams.

For details about wide mode, see page 15.

Automatically changes the wide mode

according to the input signal from an external

equipment. To keep your setting, select Off.

•Even if Auto Wide is set to On or Off, you can always modify the format of the screen by pressing WIDE repeatedly. 4:3 Default

Select On to automatically adjusts the display

area based upon the content or Off to choose

from the Display Area options.

Adjusts the picture display area.

Adjusts the horizontal position of the picture.

Adjusts the vertical position of the picture.

Selects screen mode or adjust the display

position of the picture when receiving PC

Cable: Select if you are receiving cable

channels via Cable TV provider.

Antenna: Select if you are using an

Automatically sets up the channel list on the

TV for all receivable channels.

Select Auto Program.

Select OK to start Auto Program.

Add Digital Channels

Select Add Digital Channels.

Select OK to add digital channels.

Allows you to show or hide channels that

appear when you use the CH +/– buttons.

Press / to scroll through the channels until

you find the channel you want to show or

hide. Then press to select it.

Press / to determine if the channel will be

shown or hidden. Then press to select it.21

US Edit Channel Labels

Allows you to assign labels (such as station

call letters) to channel numbers.

Press F/f to scroll through the channel

numbers. Then press to select the channel

number that you want to assign a label.

Press F/f to scroll through the label

characters (A-Z, 0-9, etc.). Press g to move to

the next character. Repeat the previous steps

to add up to seven characters to the label.

When finished, press .

Allows you to fine-tune the selected analog

channel manually if you feel that a slight

tuning adjustment may improve picture

quality. Select Auto to adjust to the most

appropriate analog channel.

Select On to improve the sound of individual

channels when distortion occurs in mono

Sets up TV to block channel or external input.

Select to change your password.

U.S.A.: Select to use U.S.A. ratings

Canada: Select to use Canadian ratings

Off: Turn Parental Lock off. No programs

are blocked from viewing.

Child: Maximum ratings permitted are:

U.S.: TV-Y, TV-G, G Canada: C, G, TV-Y Youth: Maximum ratings permitted are:

Canada: 14+, 13 ans+, TV-14

Custom: Select to set ratings manually.

U.S.: See page 22 for details.

Canada: See page 22 for details.

Downloadable U.S. Rating

(Available only in U.S.A. where advanced

Off: Turn Downloadable U.S. Rating off.

No programs that contain downloadable

ratings are blocked from viewing.

Custom: Select to block programs based

on downloadable ratings.

Clear All: Select to clear the entire

downloadable rating system.

(Available only when Country is set to U.S.A.)

Allow: Allows programs and movies that

are broadcasted without a rating.

Block: Blocks all programs and movies that

are broadcasted without a rating.

Allows you to block channels regardless of

To View a Blocked Channel

Press when tuned to the blocked channel

then enter the password.22

External Input Block

Locks an external input from being watched.

To view a blocked external input, select

Note • Entering the correct password for blocked channel or external input will temporarily deactivates the Parental Lock feature. To reactivate the Parental Lock settings, turn off and on the TV. • Selecting Clear All will delete the current Downloadable U.S. Rating menu and the menu will no longer be available until the TV is tuned to a channel that contains downloadable ratings. Hint

• If you lost your password, see page 31.

US Models: Selecting Custom Parental

G: All children and general audience.

PG: Parental guidance suggested.

PG-13: Parental guidance for children

R: Restricted viewing, parental guidance is

suggested for children under 17.

NC-17 and X: No one 17 or under allowed.

Block programs by their rating, content or

TV-Y7: Directed to children age 7 and older.

TV-G: General audience.

TV-PG: Parental guidance suggested.

TV-14: Parents strongly cautioned.

TV-MA: Mature audience only.

Content-Based Ratings

FV: Fantasy violence.

D: Suggestive dialog.

S: Sexual situations.

Canadian Models: Selecting Custom

Parental Lock Rating Options

To select custom rating options for Canada,

select Canada in the Country setting

C8+: Children 8 years and older.

G: General programming.

PG: Parental guidance.

14+: Viewers 14 and older.

18+: Adult programming.

G: General programming.

8 ans+: Not recommended for young

13 ans+: Not recommended for ages under

16 ans+: Not recommended for ages under

18 ans+: Programming restricted to adults.

See “US Models” on page 21 for details.

Built-in Wi-Fi: Turns on/off the Wireless

Wi-Fi Direct: Turns on/off to display

photos, music and movies or control

volume level using Wi-Fi direct device

such as PC, mobile phone or digital

Wi-Fi Direct Settings: Sets to connect Wi-Fi

direct device to TV using Wi-Fi Direct

function. If cannot connect, press

OPTIONS key and select Manual.

Device Name: Change the name of the TV

shown on the connected device.

Home Network Setup: Allows devices to

connect using the renderer function.23

US Photo Frame Settings

Display Mode: Allows you to select the

display mode. Select from Image and

Clock, Full Screen Image and Full

Clock Display: Allows you to select the

Audio Application: Sets Music or Off as

Image Selection: Select image.

Music Selection: Select music.

Slideshow Setting: Select from showing

slideshow mode or single view photo.

Music Playback Setting: Select from

listening to all tracks or a single music

Duration: Select the time period (1 h, 2 h,

4 h or 24 h) after which the TV

automatically switches to standby

First day of the week: Set Sunday or

Monday as the first day of the week on

When USB device is connected to the USB

port, select On to automatically view the

thumbnail of the last played Photo/Music/

Closed Captions (CC)

Allows you to select from several closed

caption modes (for programs that are

broadcast with closed captioning).

Closed Captions (CC) is turned on.

Closed Captions (CC) is turned off.

Closed Captions (CC) is turned on when

Analog CC: Allows you to select basic

analog (EIA-608) closed caption options.

Displays a printed version of the dialog or

sound effects of a program. (Should be set

to CC1 for most programs.)

Text1, Text2, Text3, Text4

Displays network/station information

presented using either half or the whole

screen (if available).

Digital CC: When the digital closed caption

service is available, select from the

Service 1-6 or CC1-4

Digital CC Options: Allows you to make

additional settings for digital closed

caption options. Select As Broadcast or

Custom. The Custom option is available

on the Digital CC setting.

Custom: Allows you to customize the

Small, Standard, Large

None, Raised, Depressed, Outline, Left

Provides an audio description (narration) of

Displays the information related to the input

signal you are watching. Select Small to

display minimal channel and program title or

select Large to display detailed channel and

program information along with the TV icon if

you are viewing the TV. Select Hidden to hide

information about the TV channel or program.

This information will appear if it is available

from the broadcaster. Info Banner appears

on the screen each time the channel and

external inputs are changed or when

DISPLAY on the remote control is pressed.24

US C:\Users\CHAILING\Desktop\FULLSET_CLOVER\Batch 3\Group_Clover 29 (Rev-

Sets the timer and clock.

Sleep Timer: Set the time in minutes that

you would like the TV to remain on

before shutting off automatically.

On Timer: Turns on the TV from standby

mode at a time you set, and tuned to a

channel or input of your preference or

photo frame mode. Before setting this

function, make sure you set the correct

Current Time: You can set the current time

and date. This feature also can be set

Starts the initial setup procedure. This option

allows you to retune the TV after moving

house, or to search for new channels that

have been launched by broadcasters.

Select the language in which the menus are

Select On to display the logo when the TV is

turned on. Select Off to disable it.

Select On to light up the LED indicator. Select

Manage Inputs: Assigns name to external

Select Auto to display names when the

equipment is connected, or Always to

display regardless of connection status

or Off to disable input (only for TV).

Video/Component Input: Select Auto to

have the TV detect and switch between

the component video jack or the

video jack when component video

jack or video jack is connected.

• You cannot use the component video jack and

the video jack at the same time

Speakers: Select sound output from the TV

speakers or external audio equipment.

Headphone/Audio Out: Sets the sound

output to headphones, external audio

systems or Active Subwoofer connected

to the TV. Disconnect headphones from

the TV when you select Audio Out or

Headphone Speaker Link: Switches the

TV’s internal speakers on/off when you

connect headphones to the TV.

Headphone Volume: Adjusts the volume

• This option is not available, when Headphone/

Audio Out is set to Audio Out.

Variable: When using an external audio

system, volume output from audio out can

be controlled using the TV’s remote.

Fixed: The audio output of the TV is fixed.

Use your audio receiver’s volume control to

adjust the volume (and other audio

settings) through your audio system.

Digital Audio Out: Sets the audio signal

that is output by connecting using

digital audio output (optical) cable or

HDMI (ARC) cable. Set to Auto, when

connecting equipment compatible with

Dolby Digital or DTS. Set to PCM, when

connecting equipment not compatible

with Dolby Digital or DTS.

TV Position: Improves the speaker settings

when set as Table-Top Stand or Wall

Mount according to your TV’s position.

BRAVIA Sync Settings

Allows the TV to communicate with

equipment that is compatible with the

BRAVIA Sync Control function, and connected

to the HDMI/MHL jacks of the TV. Note that

communication settings must also be made

on the connected equipment.

BRAVIA Sync Control: Sets whether or not

to link the operations of the TV and the

connected equipment that is compatible

with BRAVIA Sync Control. When set to

On, the following functions are

If the specific Sony equipment that is

compatible with BRAVIA Sync Control is

connected, this setting is applied to the

connected equipment automatically.25

US C:\Users\CHAILING\Desktop\FULLSET_CLOVER\Batch 3\Group_Clover 29 (Rev-

US Device Auto Power Off: When this is set to

On, the connected equipment that is

compatible with BRAVIA Sync Control

turns off when your TV goes to standby

TV Auto Power On: When this is set to On,

the TV turns on when you turn on the

connected equipment that is compatible

with BRAVIA Sync Control (except in MHL

Auto Input Change (MHL): When this is set

to On, MHL device is switched to MHL

input automatically.

If the TV is in standby mode, it will not

switch automatically. Select Off to

disable it. The availability of Auto Input

Change (MHL) depends on whether the

MHL-compatible device can support this

BRAVIA Sync Device List: Displays a list of

connected equipment that is compatible

with BRAVIA Sync Control.

Selects Enable to update the BRAVIA Sync Device List.

Device Control Keys: Select button

functions of the TV’s remote control to

operate the connected equipment.

Deactivates the control by the TV’s remote.

For basic operations, such as navigation

buttons (up, down, left or right, etc).

For basic operations and operation of

channel-related buttons, such as CH +/– or

(0-9), etc. Useful when you control a tuner

or set-top box, etc; via the remote control.

For basic operations and operation of the

HOME/OPTIONS buttons. Useful when you

select menus of a BD player, etc; via the

Tuning and Menu Keys

For basic operations and operation of

channel-related buttons and HOME/

Note •You cannot use BRAVIA Sync Control if the TV operations are linked to the operations of an audio system that is compatible with BRAVIA Sync Control.• Some equipment with BRAVIA Sync Control does not support the Device Control feature. Picture Adjustments Lock

Select Lock so no adjustment can be made to

items grayed out, except Picture Mode and

Select Unlock to allow adjustment to any of

the Picture settings.

Provide information of your TV’s model,

software, and others. For details, see page 26.

Reduces power consumption of the TV by

adjusting the backlight.

When you select Picture Off, the picture is

switched off. The sound remains unchanged.

Turns the TV off after it has been kept idle for

the preset length of time.

Select On to automatically power off the TV

when no input signal is detected for a certain

period of time. Select Off to disable this

Displays the model name of your TV.

Displays the current software version of your TV.

TV Selects Signal Diagnostic to display system

information of your TV.

View Manage Inputs: Allows you to view or

manage the TV and external inputs.

View Test Picture: Allow you to check the

picture condition on the display.

Select to perform system update.

Resets all settings to factory settings. After

completing this process, the initial set-up screen is

Note • Be sure not to turn the TV off during this period (it takes about 30 seconds) or press any buttons. Contact Sony

Displays your TV’s product information.27

US C:\Users\CHAILING\Desktop\FULLSET_CLOVER\Batch 3\Group_Clover 29 (Rev-

US Connection Diagram You can connect a wide range of optional equipment to your TV. Viewing Pictures from Connected Equipment

Headphones/Home Audio System/SubwooferDVD player with component outputHome Audio System Optical InputVCR/Video game equipment/DVD player/S VHS/Hi8/DVC camcorderDigital still camera/Camcorder/USB storage mediaHDMI/MHL DeviceHome Audio System with ARC/HDMI28

Using Audio and Video

1 Turn on the connected equipment.

2 Press INPUT to display the input source.

3 Press / then to select the desired

The highlighted item is selected if 2 seconds

pass without any operation.

Note • When connecting a digital audio system not compatible with Audio Return Channel (ARC) technology using an HDMI cable, you need to connect an optical audio cable to the DIGITAL AUDIO OUT (OPTICAL) to output digital sound.• When connecting with an HDMI cable, be sure to use HighSpeed HDMI Cable with Cable Type Logo (Recommended SONY Cable).• When connecting mono equipment, connect the audio cable to the L (mono) jack.• When connecting a device that has DVI output, connect the DVI HDMI video cable to the HDMI IN 2 (ARC). To use MHL device

Use an authorized MHL 2 CABLE with MHL logo (not

The TV simultaneously charges the

MHL-compatible connected device while playing

photo/music/video files.

To use BRAVIA Sync devices

When connecting the TV to BRAVIA Sync

compatible equipment, you can control them

Be sure to perform the necessary settings in

advance. The BRAVIA Sync Control settings must be

set on both the TV and the connected equipment.

See BRAVIA Sync Settings (page 24) for the

settings on the TV side. Refer to the connected

equipment operating instructions for the settings

on the connected equipment side.

Using Screen Mirroring

Screen mirroring displays the screen of a

compatible device (e.g. smartphones) on your large

TV screen by Miracast technology.

No wireless router (or access point) is required to

2 Operate the Screen mirroring compatible

device to connect with the TV. Once

connected, the screen will be displayed on

the device and also TV.

For details, refer to the instruction manual

To show connected devices/delete device

When the standby screen for the Screen mirroring is

displayed, press OPTIONS, then select Show

Device List / Delete.

To deregister a device, select the device in the list to

delete, press . Then, select Ye s in the

confirmation display.

To display registration notification when

attempting to connect a device with the TV Activating this function can avoid an unintended

device from being connected.

When the standby screen for then Screen mirroring

is displayed, press OPTIONS, then select

Registration Notification t On.

Note that once you decline registration request

from a device, you will not be able to connect the

device unless you delete it from the device list.

To change the band setting (for experts)

When the standby screen for Screen mirroring is

displayed, press OPTIONS, then select Band

Note • Connecting devices must conform to the following:-Screen mirroring compatible devices: 2.4GHz connection (5GHz not supported).• For information about the supported wireless band of your device, refer to the instruction manual of your device.29

US Using a Wall-Mount Bracket Your TV can be mounted on a wall using a Wall-Mount Bracket (not supplied) out of the box as packaged. If the Table-Top Stand is attached to the TV, the TV may require detaching the Table-Top Stand.Prepare the TV for the Wall-Mount Bracket before making cable connections.For product protection and safety reasons, Sony strongly recommends that installation of your TV on the wall be performed by qualified professionals. Do not attempt to install it yourself. Follow the instruction guide provided with the Wall-Mount Bracket for your model. Sufficient expertise is required in installing this TV, especially to determine the strength of the wall for withstanding the TV’s weight. The length of the screw for Wall-Mount Bracket differs depending on the mounting hook thickness. Please see below illustration. Be sure to store the unused screws and Table-Top Stand in a safe place until you are ready to attach the Table-Top Stand. Keep the screws away from small children. Note • Read the supplied Safety Booklet for additional safety information. Note • You can bundle the AC adapter as an optional step. Do not bundle it for any reason other than to wall-mount the TV. • Make sure that the label is facing outwards when bundling AC adapter.KDL-48R470B, KDL-40R470BKDL-32R420B Additional Information

Hook attachment on rear of TV setMounting HookScrew8 - 10 mm

Bundling the AC Adapter

Make sure that your TV has adequate ventilation.

Allow enough space around the TV as shown

Installed with stand

Installed on the wall

Never install the TV set as follows:

Note • Inadequate ventilation can lead to overheating of the TV and may cause TV damage or cause a fire. Troubleshooting

When the LED indicator is flashing red, count

how many times it flashes (interval time is three

If the LED indicator flashes red, reset the TV by

disconnecting the AC power cord from the TV for

two minutes, then turn on the TV.

If the problem persists, contact Sony Customer

Support (information provided on the front cover)

with the number of times the LED indicator flashes

red (interval time is three seconds).

Press / on the TV to turn it off, disconnect the AC

power cord, and contact Sony Customer Support.

When the LED indicator is not flashing, check the

If the problem persists, have your TV serviced by

qualified service personnel.

No picture (screen is dark) and no sound  Check the cable/antenna connection.  Connect the TV to the AC power outlet, and press /

on the TV or POWER on the remote control.

No picture or no menu information from

equipment connected to the video input jack

appears on the screen

 Press INPUT to display the connected equipment list,

then select the desired input.  Check the connection between the optional equipment and the TV.

Double images or ghosting  Check the cable/antenna connection, location or direction.

Only snow and noise appear on the screen  Check if the antenna is broken or bent. Check if the antenna has reached the end of its serviceable life (three to five years in normal use, one

to two years at the seaside).

Distorted picture (dotted lines or stripes)  Keep the TV away from electrical noise sources such as cars, motorcycles, hair-dryers or optional

equipment.  When installing optional equipment, leave some space between the optional equipment and the TV.  Check the cable/antenna connection. Keep the antenna cable away from other connecting cables.

Picture or sound noise when viewing a TV

channel  Make sure that the antenna is connected using a 75-ohm coaxial cable (not supplied).

Leave at least this much space around the set.

4 inches (10 cm) Leave at least

Air circulation is blocked.

Air circulation is blocked.

US  Keep the antenna cable away from other connecting cords.  To avoid TV interference, make sure to use an undamaged antenna cable.

Tiny black points and/or bright points appear on

the screen  The picture of a display unit is composed of pixels. Tiny black points and/or bright points (pixels) on the

screen do not indicate a malfunction.

Picture contours are distorted

 Change the current setting of CineMotion to other

No color or irregular color when viewing a signal

from the Y, PB, PR jacks of /

 Check the connection of the Y, PB, PR jacks of /

and check if each jacks are firmly seated in their

No picture from the connected equipment

appears on the screen  Turn the connected equipment on. Check the cable connection.  Press INPUT to display the connected equipment list,

then select the desired input.  Correctly insert the memory card or other storage device in the digital still camera.  Use a digital still camera memory card or other storage device that has been formatted according to

the instruction manual supplied with the digital still

camera.  Operations are not guaranteed for all USB devices. Also, operations differ depending on the features of

the USB device and the video being played.

Cannot select the connected equipment on the

menu or cannot switch the input  Check the cable connection. Sound

No sound, but good picture

 Press VOL +/- or MUTING.

 Check if Speakers in AV Setup is set to TV Speakers

(page 24).  Check if the headphone plug is connected to the TV. No sound or noisy sound  Check if the TV system setting is appropriate (page 19).

The desired channel cannot be selected  Switch between digital and analogue mode and select the desired digital/analog channel.

Some channels are blank  The channel is for scrambled/subscription service only. Subscribe to a pay TV service.  Channel is used only for data (no picture or sound). Contact the broadcaster for transmission details. Digital channels are not displayed  Contact a local installer to find out if digital transmissions are provided in your area.  Upgrade to a higher gain aerial. General

The TV turns off automatically (the TV enters

 Check if the Sleep Timer is activated (page 24).

 Check if the Duration is activated by On Timer

(page 24) or Photo Frame Settings (page 23).

 Check if the Idle TV Standby is activated (page 25).

Some input sources cannot be selected

 Select Manage Inputs and select Always of the input

The remote control does not function  Replace the batteries. HDMI/MHL equipment does not appear on

BRAVIA Sync Device List  Check that your equipment is compatible with BRAVIA Sync Control.

Cannot select Off in BRAVIA Sync Control  If you have connected any audio system that is compatible with BRAVIA Sync Control, you cannot

select Off in this menu. To change the audio output

to the TV speaker, select TV Speakers in the

Speakers menu (page 24).

The Parental Lock password has been forgotten

 Press HOME and select Settings t Preferences t

Parental Lock t Password then enter 4357 for the

Store Display Mode or Promoting Feature Logo

appears on the screen

 On the remote control, press RETURN then press

HOME and select Settings t Preferences t Setup

t Initial Setup. Be sure to select Home in Location.32

wall-mount hole pattern (mm) 200 × 200 wall-mount screw size (mm) M6 (length: refer to diagram on page 29)33

with stand (kg)/(lb.)

KDL-32R420B: 4.7/10.4

Optional accessories

MHL Cable: DLC-MB10/DLC-MB20/DLC-MC20 * Dimensions and mass are approximate values.• Optional accessories availability depends on countries/region/TV model/stock.• Design and specifications are subject to change without notice.• This TV set incorporates MHL 2. Licensing Information

• The terms HDMI and HDMI High-Definition

Multimedia Interface, and the HDMI Logo are

trademarks or registered trademarks of HDMI Licensing LLC in the United States and other

• Fergason Patent Properties, LLC:

U.S. Patent No. 5,717,422

U.S. Patent No. 6,816,141

• Manufactured under license from Dolby

Dolby and the double-D symbol are

trademarks of Dolby Laboratories.

• “BRAVIA” y , S-Force, Motionflow,

BRAVIA Sync y son marcas comerciales o

• Wi-Fi, Wi-Fi Direct and Miracast are

trademarks or registered trademarks of Wi-Fi

• MHL, Mobile High-Definition Link and the MHL Logo are trademarks or registered trademarks

of MHL Licensing, LLC.

• “PlayStation” is a registered trademark and

“PS3” is a trademark of Sony Computer

• For DTS patents, see http://patents.dts.com.

Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and

the Symbol together are registered

trademarks, and DTS 2.0+ Digital Out is a

trademark of DTS, Inc. © DTS, Inc. All Rights

qualified in the default mode.

It meets strict energy efficiency

guidelines set by the U.S.

Environmental Protection Agency

and Department of Energy.

ENERGY STAR is a joint program of these

government agencies, designed to promote

energy efficient products and practices.

Changes to certain features, settings, and

functionalities (when available) of this TV (i.e.

Picture/Sound, Light Sensor, Power Savings,

Picture Scene/Mode, Auto Display, Shop Front

Display Settings) can increase or change the

The “Auto” and “General” picture scenes are

default settings optimized for the input signal

selected. Your BRAVIA TV is tested in these

settings for ENERGY STAR qualification.

Depending upon such changed settings, the

power consumption may exceed the limits

required for the ENERGY STAR qualification in

FCC Related Information

This equipment has been tested and found to

comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection

against harmful interference in a residential

installation. This equipment generates, uses and

can radiate radio frequency energy and, if not

installed and used in accordance with the

instructions, may cause harmful interference to

radio communications. However, there is no

guarantee that interference will not occur in a

particular installation. If this equipment does cause

harmful interference to radio or television

reception, which can be determined by turning the

equipment off and on, the user is encouraged to try

to correct the interference by one or more of the

following measures:  Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.  Consult the dealer or an experienced radio/TV technician for help.

Declaration of Conformity

Trade Name: SONY Model: KDL-48R470B/40R470B/32R420B Responsible Party: Sony Electronics Inc.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules.

Operation is subject to the following two

conditions: (1) This device may not cause harmful

interference, and (2) this device must accept any

interference received, including interference that

may cause undesired operation.

Pursuant to FCC regulations, you are cautioned

that any changes or modifications not expressly

approved in this manual could void your

authority to operate this equipment.35

US C:\Users\CHAILING\Desktop\FULLSET_CLOVER\Batch 3\Group_Clover 29 (Rev-

US Safety and Regulatory

This device complies with Industry Canada licence-

exempt RSS standard(s). Operation is subject to the

following two conditions: (1) this device may not

cause interference, and (2) this device must accept

any interference, including interference that may

cause undesired operation of the device.

This equipment complies with FCC/IC radiation

exposure limits set forth for uncontrolled

equipment and meets the FCC radio frequency (RF)

Exposure Guidelines in Supplement C to OET65 and

RSS-102 of the IC radio frequency (RF) Exposure

rules. This equipment has very low levels of RF

energy that it deemed to comply without maximum

permissive exposure evaluation (MPE). But it is

desirable that it should be installed and operated

with at least 20 cm and more between the radiator

and person’s body (excluding extremities: hands,

wrists, feet and ankles).

This device and its antenna(s) must not be co-

located or operating with any other antenna or

transmitter except Grant condition.

This television includes a QAM demodulator which should

allow you to receive unscrambled digital cable television

programming via subscription service to a cable service

provider. Availability of digital cable television

programming in your area depends on the type of

programming and signal provided by your cable service

NOTE ON AC ADAPTER Warning

To reduce the risk of fire or electric shock, do not

expose this apparatus to rain or moisture.

To prevent fire or shock hazard, do not place

objects filled with liquids, such as vases, on the

Do not install this equipment in a confined space,

such as a bookshelf or similar unit.  Please ensure that the AC power outlet (mains socket) is installed near the equipment and shall be

easily accessible.  Be sure to use the supplied AC adapter and AC power cord (mains lead). Otherwise it may cause a

malfunction.  Connect the AC adapter to an easily accessible AC power outlet (mains socket).  Do not coil the AC power cord (mains lead) around the AC

adapter. The core wire may be

cut and/or it may cause a

malfunction of the TV.  Do not touch the AC adapter with wet hands.  If you notice an abnormality in the AC adapter, disconnect it from the AC power outlet (mains socket)

immediately.  The set is not disconnected from the AC source as long as it is connected to the AC power outlet (mains

socket), even if the set itself has been turned off.  As the AC adapter will become warm when it is used for a long time, you may feel hot when touching it by

http://www.sony.ca/support

1 280 × 1 024, 64,0 kHz, 60 Hz

DIGITAL AUDIO OUT (OPTICAL)

sans support (mm)/(pouces)

• Fergason Patent Properties, LLC :

U.S. Patent No. 5,717,422

U.S. Patent No. 6,816,141

• Fabriqué sous licence de Dolby Laboratories.

Be sure to register your TV.

Your TV is capable of receiving software updates. For the latest

information about software updates for your TV, visit:

http://www.sony.com/tvsupport

http://www.sony.ca/support

NOTE: If your TV is connected to the Internet, you can check for

software updates by selecting Help, Customer Support and then
