USER MANUAL PPR200A Numatic
Original Instructions
Warning! Read instructions before using the machine.
Warnhinweis

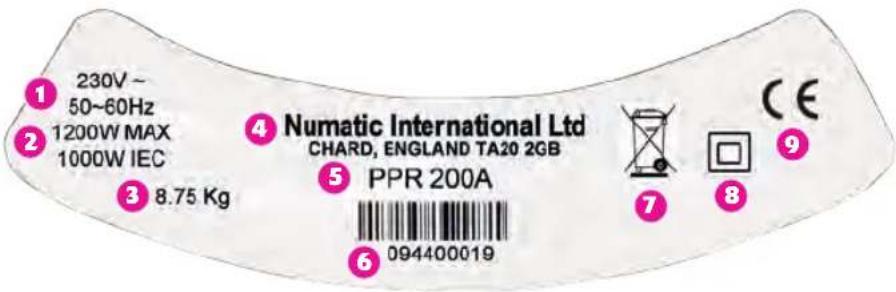

Voltage Frequency
Power rating
Weight (ready to use)
Company Name & Address
Machine Description
6 Machine yr/wk Serial number
WEEELogo
Class 2 Symbol
CE Mark
PPE (personal protective equipment) That may be required for certain operations.
Ear Protection
Safety Footwear
Head Protection
Safety Gloves
Eye Protection
Protective Clothing
Dust/Allergens Protection
Hi Viz Jacket
Caution Floor Sign
NOTE: A risk assessment should be conducted to determine which PPE should be worn.
Safety Critical Components
Mains leads:
HO5-V2V2-F 12.5 x 2 x 1.00 mm
WEEE Legislation
(Waste, Electrical and Electronic Equipment)
Vacuum cleaner, accessories and packaging should be sorted for enviromental-Friendly recycling.
(Only for EU Countries)
Do not dispose of vacuum cleaner into household waste! According to the European Directive 2002 / 96 / EC on waste electrical and electronic equipment and its incorporation into national law.
Vacuum cleaners that are no longer suitable for use must be separately collected and sent for recovery in an enviromental-friendly manner.
Daily

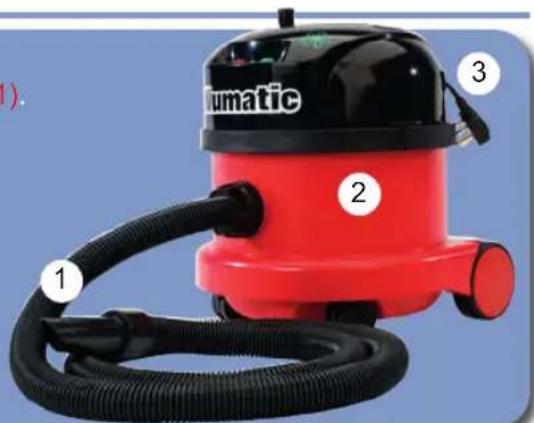

Keep the machine clean, including hoses and tubes (1).
Ensure the bag and filter are fitted (2).
Regularly examine the power cord (3).
Check dust bag frequently.
Check filters are clean.
Weekly - as daily and:
Check for any worn or damaged parts and replace immediately.
Do not steam clean or pressure wash.
Information for DRY USE Vacuum cleaners
Ensure you read the instruction manual before using the machine.
Operators shall be adequately instructed on the use of these machines, as with all electrical equipment, care and attention must be exercised at all times during use, you must also make certain that routine and preventative maintenance is carried out periodically to ensure safe operation.
WARNING Failure to carry out maintenance as necessary, including the replacement of parts to the correct standard could render this equipment unsafe and the manufacturer can accept no responsibility in this respect.
This machine is for DRY USE only
You must disconnected the machine from the mains by removing the plug from the supply socket BEFORE cleaning or maintenance and when replacing parts or converting the machine to another function.
This appliance is intended to be assembled, cleaned and maintained by an adult.
This machine is not suitable for the collection of biological hazards, hazardous or explosive dusts. Contact your local distributor if you require a machine capable of performing these tasks.
The machine must not be used by persons with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction.
You must not allow the supply cord to come into contact with rotating brushes (if fitted).
Only use the socket outlet on the machine for purposes specified in the instructions (where fitted).
This machine is not a toy; children shall not play with this machine.
This machine must not be stored outside, or used in wet environments, or to collect wet materials.
The vacuum cleaner should be stored in a dry place and is for indoor use only.
You must ensure that the filtration system fitted to the machine is suitable for the material being collected.
NOTES
This product complies with the requirements of EN 60335-2.69.
This machine is suitable for commercial use, for example in hotels, schools, hospitals,
factories, shops and offices for other than normal housekeeping purposes.
If the vacuum cleaner stops working, remove the plug from the wall before investigating where the fault lies.
If the vacuum cleaner has a blockage, switch off, remove the plug from the socket outlet, and inspect the floor tool, wands and hose for debris. If the floor tool, wands and hose are clear, replace the dust bag and clean the filter.
The vacuum cleaner should be inspected after use for damage.
- Keep your machine clean.
- Keep filters clean.
- Use filter bags, they will enhance performance and help keep machine clean.
- Use a Numatic Original filter bag under fine dust conditions.
- Keep hoses and tubes clear.
- Replace any worn or damaged parts immediately.
-
Regularly examine the power cord. If damage is found such as cracking or ageing the power must be replaced by a competent person using the correct Numatic original part.
-
Change dust bag frequently.
- Keep diffuser filter (where fitted) clean.
- Only use the brushes provided with the machine. The use of other brushes may impair safety.
- Unreel the cable with one pull or pull on the cable to unplug the machine from the power supply.
- Use to suck up hot ashes or lighted cigarette ends.
- Use steam cleaners, pressure washers or immerse in water to clean the machine.
- Attempt machine maintenance or cleaning unless the power supply plug has been removed from the supply outlet.
- Use in a wet environment or to collect wet materials.
- Store your machine in wet conditions.
Data
| Power Motor Airflow Suction | |||
| Hi Lo | 1200W 600W | 42 l/sec | 2500mm w.g. 1500mm w.g. |
| Size Capacity Cleaning Range Weight | |||
| 200 370 | 9 L 15 L | 31.8 m 6.9 Kg | 7.5 Kg |
| Size Sound Pressure Protection Class | |||
| 200 370 | 355 x 355 x 415 mm 355 x 355 x 465 mm | 67.1 dB - 63.9 dB (A) (IEC 60704-2-1) Uncertainty 0.2 dB | Class II |

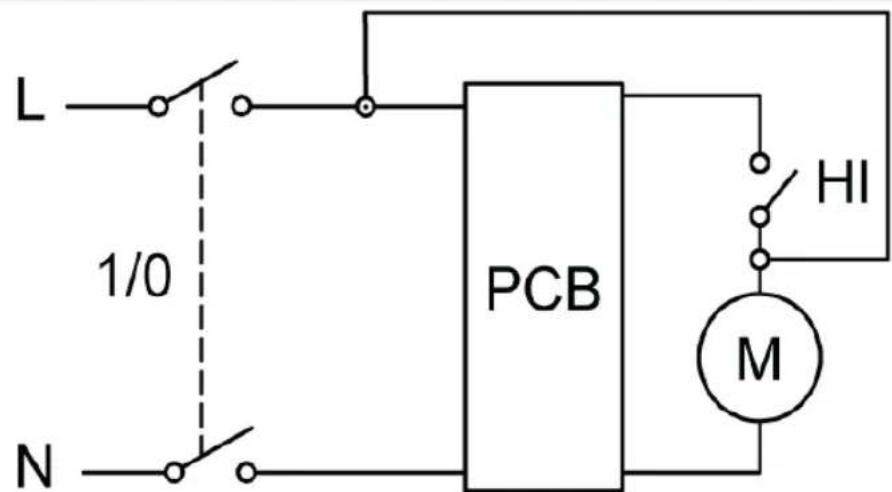

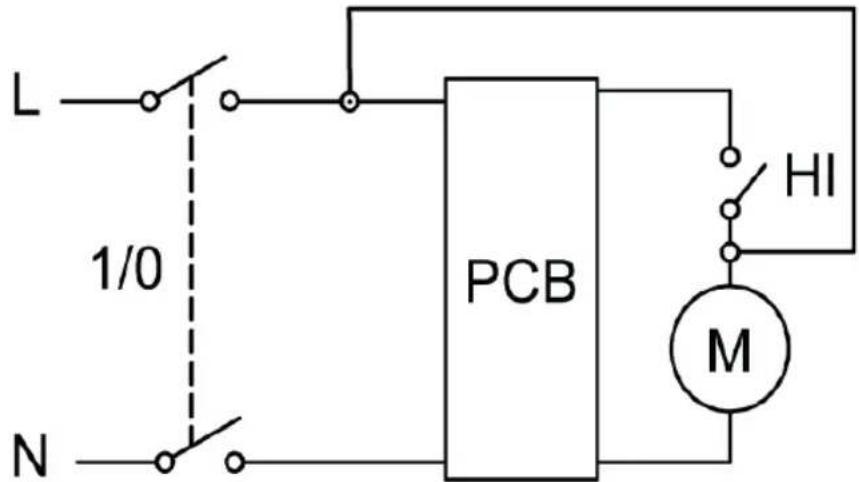

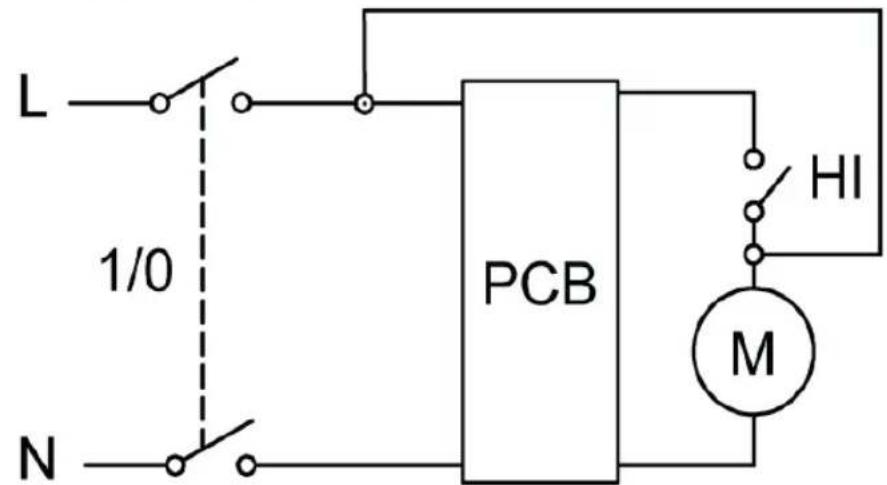

Schematic Diagram
WD-0368(A05)09/02/11
Autosave

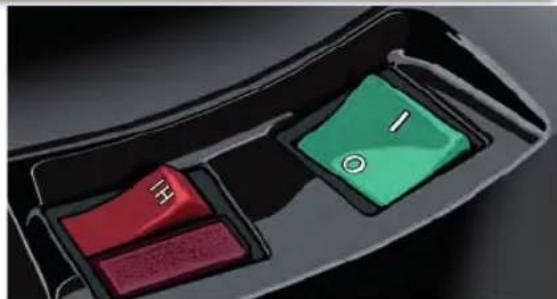

AutoSave Low Energy System
- 50% less power consumption,
30% improved air quality - 20% lower noise levels at our exclusive 'AutoSave Automatic Low Energy' setting.
The AutoSave system means that every time you switch on you will automatically start on the economy setting, only if more power is needed to cope with extra dirt do you need to push the red switch to operate in the Hi mode.
Angaben zum Gerät
Produktplakette
Do not steam clean or pressure wash.
WARTING WARTING DURCHERHUT WARTING DURCHERHUT WARTING DURCHERHUT WARTING DURCHERHUT WARTING DURCHERHUT WARTING DURCHERHUT WARTING DURCHERHUT WARTING DURCHERHUT WARTING DURCHERHUT WARTING DURCHERHUT WARTING DURCHERHUT WARTING DURCHERHUT
WD-0368(A05)09/02/11
Autosave
AutoSave Energiespar automatik
50% wereniger Stromverbrauch
4 Numatic International Ltd CHARD, ENGLAND TA20 2GB
094400019
7
8
m = 311
WD-0368(A05)09/02/11
Autosave
nderdompelen in water.
WD-0368(A05)09/02/11
Autosave
AutoSave
Low Energy System
Failure to rectify the problem or in the event of a breakdown contact your Numatic dealer or the Numatic Technical helpline +44 (0)1460 269268
HepaFlo technology brings with it new standards of performance, higher efficiency, increased capacity and greater cleanliness and convenience.
Declaration of conformity
EU DECLARATION
OF
CONFORMITY
We hereby declare under our sole responsibility that the following equipment fulfil Is all the relevant provisions of the following EU Directives:
Machinery Directive 2006/42/EC
EMC Directive 2004/108/EC
RoHS Directive 2011/65/EU
Machine Description: Vacuum Cleaner
Type: PVR, NSR, NST, PVT, NPR, NPT, PPR, PPT, PPH.
HEP,HRP series
Manufactured by: Numatic International Limited
Relevant standards upon which conformity is declared include:
IEC60335-1:2001+A1:2004+A2:2006
IEC60335-2-2:2002 +A1:2004 +A2:2006
IEC 60335-2-69:2002+A1+A2
EN 55014-1 2001 +A1 2001, +A2 2002
EN 55014-2 1997 + A1 2001 (Cat II)
EN 50366 2003 + A1 2006
A technical construction filie for this equipment is retained at the manufacturer's address under the authorisation of the following signatory:
Position: Technical Manager Nare Allyn Boyes
Signed:
Date: 01/01/2013
Numatic International Limited,
Chard, Somerset.
TA20 2GB
www.nmatic.co.uk
13
EU
Numatic International Limited,
Chard, Somerset.
TA20 2GB
www.nmatic.co.uk
DECLARATION
DE
CONFORMITE EUROPEENNE
Machinery Directive 2006/42/EC
EMC Directive 2004/108/EC
RoHS Directive 2011/65/EU
Position: Responsible TechniqueN
Signé par:
Date: 01/01/2013
Numatic International Limited,
Chard, Somerset
TA20 2GB
www.numatic.co.uk
13
EU
CONFORMITEITSVERKLARING
Numatic International Limited,
Chard, Somerset
TA20 2GB
www.nmatic.co.uk
Distributed by:-
Numatic International Limited, Chard, Somerset, TA20 2GB, ENGLAND.
Telephone 01460 68600 Fax: 01460 68458 www.numatic.co.uk
Numatic International GmbH, Frankische Straße 15-19, 30455 Hannover, DEUTSCHLAND.
Tel: 05 11 98 42 16 0 Fax: 05 11 98 42 16 20
www.numatic.de
Numatic International S.A., 13/17 rue du Valengelier, EAE la Tuilerie, 77500
Chelles, FRANCE. Tel: 01 64 72 61 61 Fax: 01 64 72 61 62
www.numatic.fr
BenNeLux Distribution, Numatic International BV, Postbus 101, 2400 AC
Alphen den Rijn, NEDERLAND. Tel: 0172 467 999 Fax: 0172 467 970
www.numatic.nl
Numatic International (Pty.) Ltd. 16th & Pharmaceutical Roads,
Midrand, Gauteng, S.A. 1685. Tel: 0861 686 284 Fax: 0861 686 329
www.numatic.co.za
Numatic International Schweiz AG. Sihlbruggstrasse 142,
6340 Baar. SCHWEIZ. Tel: 0041 (0) 41 76 80 76 - 0.
Fax: 0041 (0) 41768076-9.
www.numatic.ch
Specification subject to change without prior notice.
www.numatic.com © Numatic International Limited
244057 05/13 (A04)
