USER MANUAL S 8310 PARQUET SPECIAL MIELE

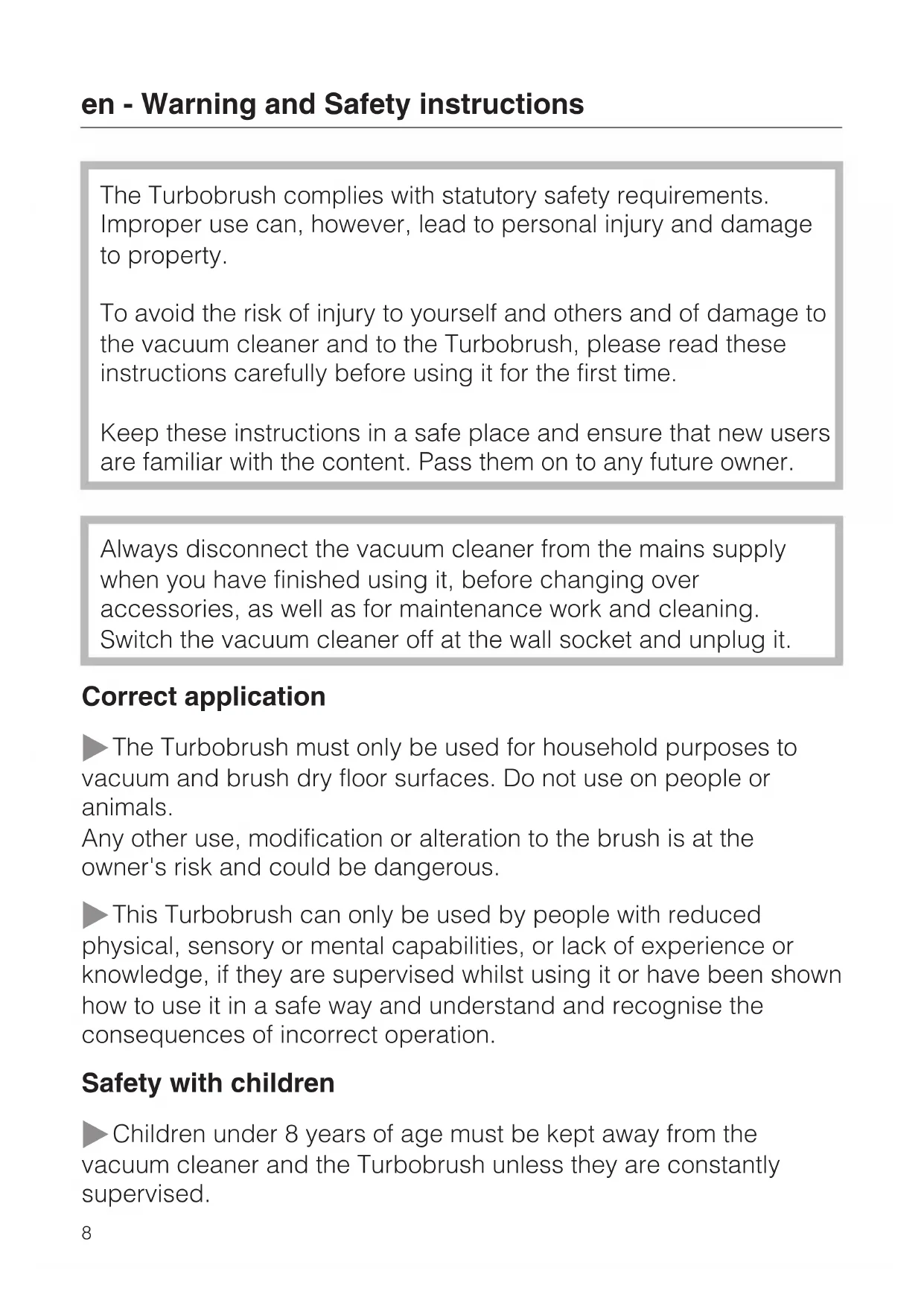

7The Turbobrush complies with statutory safety requirements.

Improper use can, however, lead to personal injury and damage

To avoid the risk of injury to yourself and others and of damage to

the vacuum cleaner and to the Turbobrush, please read these

instructions carefully before using it for the first time.

Keep these instructions in a safe place and ensure that new users

are familiar with the content. Pass them on to any future owner.

Always disconnect the vacuum cleaner from the mains supply

when you have finished using it, before changing over

accessories, as well as for maintenance work and cleaning.

Switch the vacuum cleaner off at the wall socket and unplug it.

The Turbobrush must only be used for household purposes to

vacuum and brush dry floor surfaces. Do not use on people or

Any other use, modification or alteration to the brush is at the

owner's risk and could be dangerous.

This Turbobrush can only be used by people with reduced

physical, sensory or mental capabilities, or lack of experience or

knowledge, if they are supervised whilst using it or have been shown

how to use it in a safe way and understand and recognise the

consequences of incorrect operation.

Safety with children

Children under 8 years of age must be kept away from the

vacuum cleaner and the Turbobrush unless they are constantly

en - Warning and Safety instructions

Children 8 years and older may only use the vacuum cleaner and

Turbobrush unsupervised if they have been shown how to use them

safely and recognise and understand the consequences of incorrect

Children must not be allowed to clean or maintain the vacuum

cleaner and Turbobrush unsupervised.

Please supervise children in the vicinity of the vacuum cleaner

and Turbobrush and do not let them play with them.

Before using the Turbobrush, check for any visible signs of

damage. Do not use a damaged appliance or damaged

Do not immerse the Turbobrush in water. Clean all parts with a

dry or slightly damp cloth only.

Switch the vacuum cleaner off immediately during pauses to

Never touch the roller brush while it is rotating.

Do not use the Turbobrush at head level. Long hair, ties, scarves,

etc. could become entangled in the roller brush.

Keep the Turbobrush away from curtains, clothing, etc. as these

could be vacuumed in and become entangled in the roller brush.

Do not vacuum up any inflammable or combustible liquids or

gases and do not vacuum in areas where such substances are

Do not vacuum any surfaces where there is a danger of items

being sucked up or becoming entangled in the roller brush.

en - Warning and Safety instructions

Do not vacuum up any water, liquid or damp dirt. Wait until any

freshly cleaned or shampooed carpets or floor coverings are

completely dry before attempting to vacuum.

Do not vacuum up ashes or coals, whether glowing or apparently

Miele cannot be held liable for damage caused by incorrect use

or operation or by non-compliance with these Warning and Safety

en - Warning and Safety instructions

10Turbobrush features

The Turbobrush is operated by the

suction power of the vacuum cleaner.

It has a rotating roller brush which is

very effective at picking up thread,

Four rollers maintain the brush 1.5 mm

away from the floor.

The Turbobrush is particularly suitable

for vacuuming thread and hair from cut

The normal floorhead or one of the

Miele floorbrushes should be used for

cleaning hard floors, such as tiled or

It is also important to observe the

flooring manufacturer's cleaning and

The following should not be

vacuumed using the Turbobrush:

Floor surfaces with a variable or

uneven profile. The brush might

come into contact with the floor and

Carpets such as Saxony with very

long pile, berber or sheepskin rugs

and valuable hand-knotted carpets,

e.g. Persian or similar. There is a

danger of the threads being pulled

Using the Turbobrush

To achieve the best effect, pass the

Turbobrush slowly backwards and

forwards over the carpet or floor

For carpets with fringes always draw

the Turbobrush from the carpet across

the fringe towards the rest of the floor.

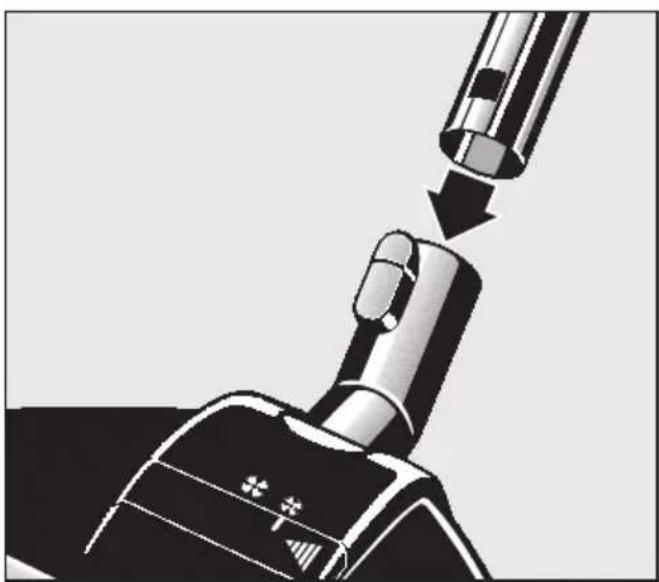

11Fitting the Turbobrush

This Turbobrush is intended for use

with Miele vacuum cleaners.

Instead of the usual floor attachment,

fit the Turbobrush to the suction tube.

Ensure that the locking device

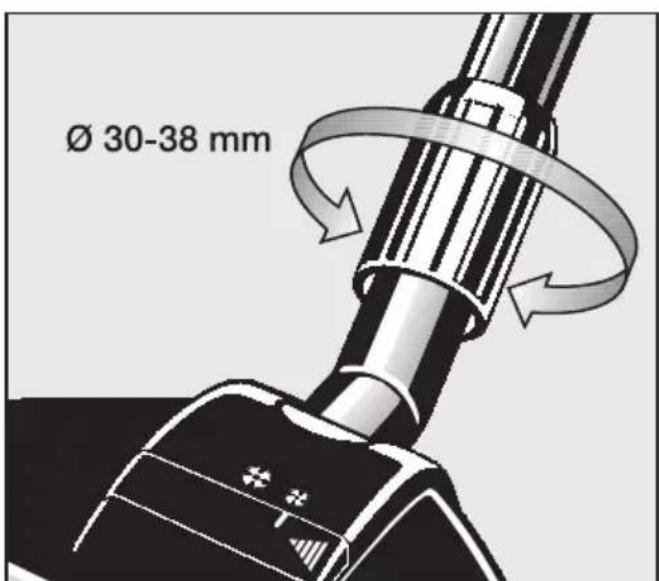

This Turbobrush has an adapter,

enabling it it be used with non-Miele

vacuum cleaners. The adapter fits

suction tubes with a diameter of

between 30 and 38 mm. Only use the

Turbobrush with high performance

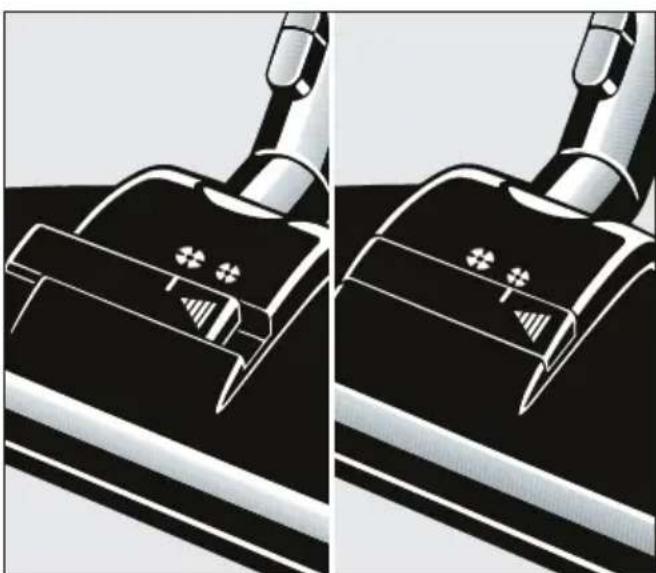

Opening the air adjustment

The brush is operated by the suction

power of the vacuum cleaner. With

deeper, dense pile carpets the roller

brush may rotate more slowly. This is

caused by the carpet pile creating a

seal around the the mouth of the

Turbobrush and hindering the flow of

air. This will affect how well the carpet

To increase the airflow, open the air

adjustment slide (left hand illustration).

In all other situations the air adjustment

slide should be closed, to benefit from

the full suction power.

Close the air adjustment slide (right

Always disconnect the vacuum

cleaner from the electrical supply for

cleaning and maintenance work on

the Turbobrush. Switch off at the

wall socket and remove the plug.

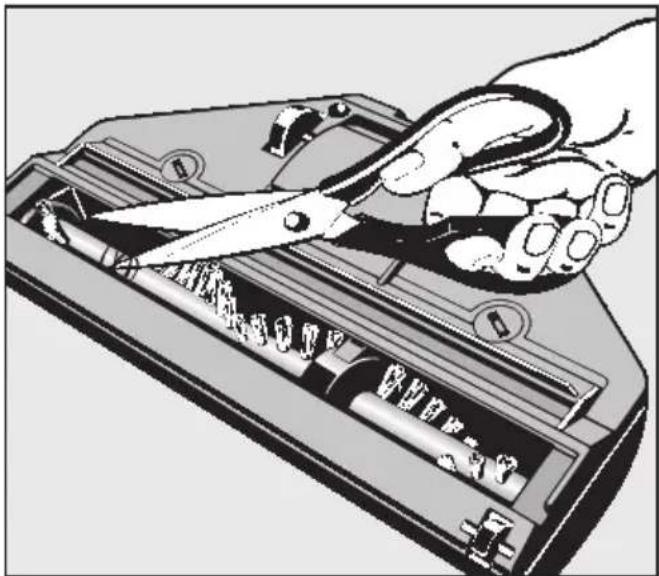

Removing threads and hairs

Cut any threads or hairs that have

become entangled on the roller brush

with a pair of scissors. Then run the

vacuum cleaner to vacuum up the

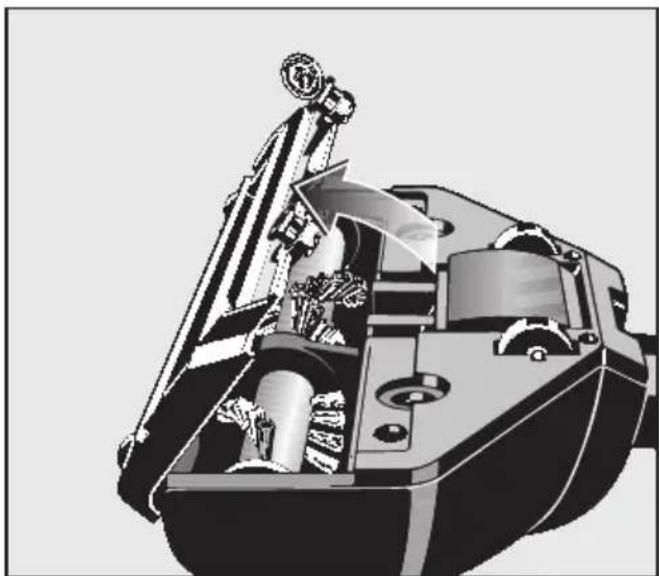

For more obstinate tangles or blockages

inside the Turbobrush, the cover can be

opened. Any large particles can then be

^ Loosen the locking screws on the

underside of the brush with a coin

and take off the roller cover.

^ Remove any dirt in the brush

compartment interior and from the

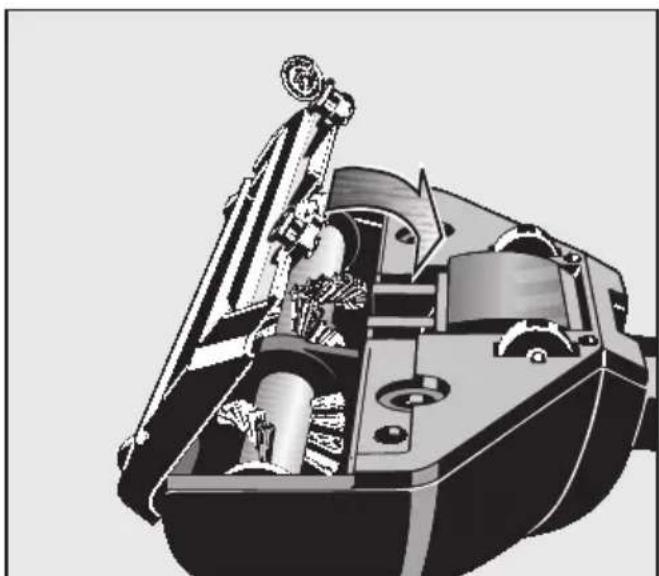

Put the roller cover back on and

Tighten the locking screws.

en - Cleaning and care

13Deze turboborstel voldoet aan de geldende veiligheidsvoorschrif

72The Miele Turbobrush complies with all legal safety requirements.

Improper use can cause both personal injury and property

Before using the appliance, read the Operating Instructions

carefully. They give information on the safety, operation and care

Keep these instructions in a safe place for future reference.

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE Correct usage

The Turbobrush must only be used for household purposes to

vacuum and brush dry floor surfaces.

Do not use on people or on animals.

The manufacturer cannot accept responsibility for damage or

injury when this appliance is used in a manner inconsistent with its

designed purpose, or if the instructions in this manual are not

followed. Use only as described in this manual.

Exercise extreme caution when using near children. Moving parts

and suction can cause injury.

Do not allow appliance to be used as a toy.

Before connecting the Turbobrush to the vacuum cleaner, make

sure the vacuum cleaner is turned off and disconnected from the

en U - Important Safety Instructions

Do not unplug vacuum by pulling on cord. To unplug, grasp the

Turn off all controls before unplugging vacuum cleaner.

Do not submerge the Turbobrush into any liquid. Clean only with

a dry cloth or slightly damp cloth to avoid any moisture getting into

the vacuum cleaner, which could lead to the danger of an electric

Do not touch the brush roller while it is rotating.

Do not use the Turbobrush at head level. Long hair, ties, scarves,

etc. could be sucked in and become entangled in the brush roller.

Keep hair, loose clothing, curtains, fingers and all parts of the

body away from openings and moving parts.

Turn off all controls before unplugging. Unplug from the outlet

when not in use and before servicing.

Do not use to pick up flammable or combustible liquids, such as

gasoline, or use in areas where they may be present, to avoid risk of

Do not use the Turbobrush on surfaces that can unravel or be

Do not vacuum liquids or damp dirt. This could impair the

function and electrical safety of the vacuum cleaner, and could

create a risk of electric shock. Freshly shampooed carpets or

upholstery should be completely dry before they are vacuumed up.

Do not vacuum items which are heavy, hard or have sharp edges.

They could cause a blockage and damage the appliance.

en U - Important Safety Instructions

Do not vacuum anything that is burning or smoking, such as

cigarettes, matches, or hot ashes.

Disposing of an old appliance

Before discarding an old appliance, the power cord should be re

moved. Unplug the vacuum. Cut the power cord of the appliance as

close to the vacuum as possible and cut the plug off the cord. The

plug cut from the cord should be disabled and properly discarded.

Under no circumstance should this plug be inserted into a socket

(electric shock hazard.)

en U - Important Safety Instructions

75Features of the Turbobrush

The Turbobrush is driven by the suction

power of the vacuum cleaner. The

brush roll rotation increases the intake

of threads, hair and lint. Four wheels

keep the turbobrush 1/16" (1.5 mm)

The Turbobrush is intended for clea

ning short-to-medium pile carpeting.

Read these Operating Instructions

carefully and completely before

using this appliance. Failure to do so

can result in property damage or

personal injury to you or others.

– Uneven surfaces should not be va-

cuumed with the Turbobrush. The

brush could come into contact with

the floor and cause damage.

– Please consult the carpet manufactu-

rer before vacuuming carpets such

as: saxony with very long-pile, berber

and sheepskin rugs, and valuable

hand-knotted carpets, e.g. Persian

and similar. There is a danger of the

threads being pulled out.

Using the Turbobrush

To achieve the best results, slowly

pass the Turbobrush back and forth

over the carpet or flooring.

For carpets with fringes, always draw

the Turbobrush from the carpet across

the fringe towards the rest of the floor.

76Attaching the Turbobrush to

the Miele Vacuum Cleaner

This Turbobrush is intended for use

with Miele vacuum cleaners only.

Insert the suction wand into the neck

of the Turbobrush as shown. If the

locking mechanism does not comple

tely engage, gently twist the wand

while it is in the neck until it clicks into

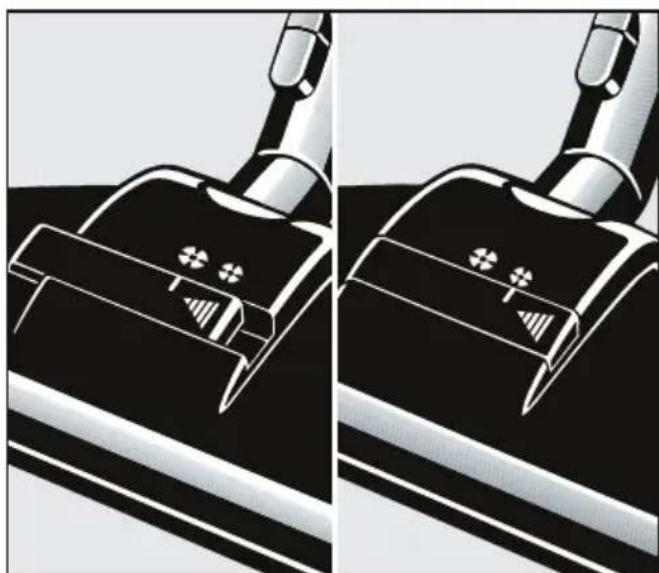

Using the Sliding Air Flow

The Turbobrush is driven by the suction

power of the vacuum cleaner. Deeper

pile carpeting can be drawn into the

suction opening, thereby obstructing

airflow and impeding the action of the

^ This can be remedied by sliding the

air flow regulator to the left as shown

in the left hand illustration.

For routine cleaning of low-to-medium

pile carpeting, or for deep cleaning in

general, slide the airflow regulator to

the right as shown in the far right illu

See right hand illustration to close the

Always turn off the vacuum clea

ner and disconnect the plug from

the electrical supply before cleaning

or servicing the Turbobrush or vacu

Removing threads and hairs

Cut any threads or hairs that have

become entangled on the brush roller

with a pair of scissors. The cut pieces

will be drawn in by the suction power

of the vacuum cleaner the next time it

More obstinate tangles or blockages

can be removed after opening the roller

cover. Any large particles which have

been drawn in can then be removed.

^ Loosen the two locking screws using

a coin or screwdriver, and remove

^ Remove any items stuck in the brush

compartment or wrapped around the

Replace the cover and tighten the

Tighten the locking screws.
