USER MANUAL Escale Verre 900 Murale ROBLIN

GB Instructions for use and installation

Cooker Hood

Two metallic industrial air purifiers with curved metal bases, labeled 'Dampkap' in the top-left corner (no other text or symbols visible)

Escale Murale

F SOMMAIRE

RACCORDEMENT ÉLECTRIQUE

CONSEILS D'INSTALLATIONS

POSE DE L'APPAREIL

FONCTIONNEMENT

CONSEILS D'UTILISATIONS

ENTRETIEN

GARANTIE ET SERVICE APRÈS-VENTE

REMARQUES

GB CONTENTS

ELECTRICAL WIRING

INSTALLATION ADVICE

FITTING THE APPLIANCE

OPERATION

USEFUL HINTS

MAINTENANCE

GUARANTEE AND AFTER-SALES-SERVICES

REMARKS

D INHALT

NETZANSCHLUSS

MONTAGEHILFEN

MONTAGE DES GERÄTES

BETRIEB DES GERÄTES

NUTZUNG

Thank you for buying a Roblin product which has been manufactured to the highest quality standards to meet your requirements.

We recommend you carefully read this booklet in which you will find instructions for installation, hints for use and maintenance.

The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.

1 ELECTRICAL

• This cooker hood is fitted with a 3-core mains cable with a standard 10/16A earthed plug.
  • Alternatively the hood can be connected to the mains supply via a double-pole switch having 3mm minimum contact gap on each pole.
• Before connecting to the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate inside the cooker hood.
• Technical Specification: Voltage 220-240, single phase \~50/60Hz.

2 INSTALLATION ADVICE

• Ensure the cooker hood is fitted in compliance with the recommended fixing heights.
• To ensure the safe operation of this cooker hood, we recommend that the hood should not be fitted below 65cm (for electric) or (70cm for gas) the measurements taken from the surface of the cooking appliance to the underside of the cooker hood.
• It is a possible fire risk if the hood is not sited as recommended.
• To ensure the best results, the cooking fumes should be able to rise naturally towards the inlet grilles on the underside of the cooker hood and the cooker hood should be positioned away from doors and windows, which will create turbulence.
• Ducting
• If the room where the hood is to be used contains a fuel-burning appliance such as a central heating boiler then its flue must be of the room sealed or balanced flue type.
• If other types of flue or appliances are fitted ensure that there is an adequate supply of fresh air to the room. Ensure the kitchen is fitted with an airbrick, which should have a cross-sectional measurement equivalent to the diameter of the ducting being fitted, if not larger.
• The ducting system for this cooker hood must not be connected to any existing ventilation system, which is being used for any other purposes or to a mechanically controlled ventilation ducting.
• The ducting used must be made from fire retardant materials and the correct diameter must be used, as incorrect sized ducting will affect the performance of this cooker hood.
• When the cooker hood is used in conjunction with other appliances supplied with energy other than electricity, the negative pressure in the room must not exceed 0.04 mbar to prevent the fumes from combustion being drawn back into the room.
• The appliance is for domestic use only and should not be operated by children or people who are infirm without supervision.
• This appliance must be positioned so that the wall socket is accessible.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.

3 FITTING

Any permanent electrical installation must comply with the latest regulations concerning this type of installation and a qualified electrician must carry out the work. Non-compliance could cause serious accidents or injury and would deem the manufacturers guarantee null and void.

IMPORTANT - The wires in this mains lead are coloured in accordance with the following code :

- green / yellow : earth

- blue : neutral

- brown : live

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured

markings identifying the terminals in your plug, proceed as follows.

• The wire which is coloured green and yellow must be connected to the terminal in the plug which is marked with the letter E or by the earth symbol or coloured green or green and yellow.
• The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.
• The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

ATTENTION: Do not forget to use adequate plugs to the support brackets. Enquire after the manufacturers. Do an embedding if necessary. The manufacturer accepts no responsibility in case of a faulty hanging due to the drilling and the setting up of plugs.

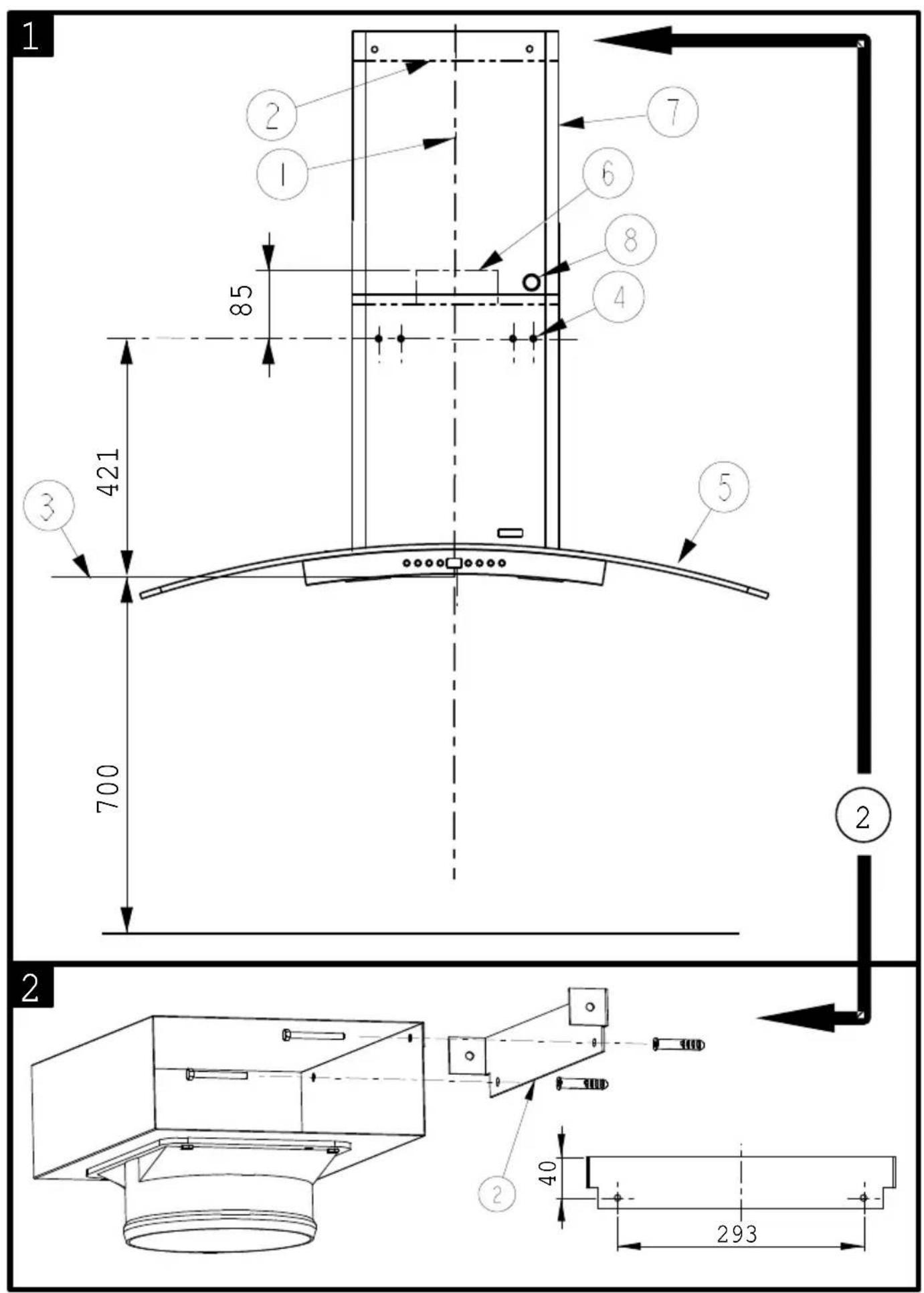

1) Draw a vertical line onto the wall from the centre of the cooking appliance up to the ceiling, using a spirit level and a marker pen as illustrated in Fig. 1 - item 1. This is to ensure the correct alignment of the chimney hood.
2) Place the brackets item 2 on the wall about 1 or 2 mm from the ceiling or from the upper limit, aligning its centre on the vertical line. Mark the two eyelet holes of the bracket onto the wall. Drill the holes for the fixing bracket using an 8 mm masonry bit. Fix the chimney bracket item 2 using the 4.5 x 50 mm screws and rawl plugs supplied.
3) Mark a point on the vertical line at a distance from the cooking appliances of:

$$ d = 1 1 0 2 \mathrm{mm} (\text { Measurement without splashback }). $$

$$ d = \text { height of the splashback } (7 1 9 \mathrm{mm}) + 4 0 2 \mathrm{mm} (\text { Measurement with splashback }). $$

The distance H is the minimum height in mm from the cooking appliances to the bottom edge item 3 of the front panel of the hood. Draw a horizontal line through the vertical as illustrated in Fig. 1.

Splashback (optional): When a splashback is to be fitted, the distance between the hood and the cooking appliances will be determined by the height of the splashback item B and whether or not there is a raised back on the worktop. The splashback is to be installed before installing the canopy. If the splashback is to be fixed to the wall using both the top and bottom fixing holes, Care must be taken to ensure that the splashback is fitted at the correct height before fixing the base units or at least the worktop covering them. As this is a complex operation, it should only be undertaken by the technician installing the kitchen units or by a competent person who knows the final dimensions of the units.

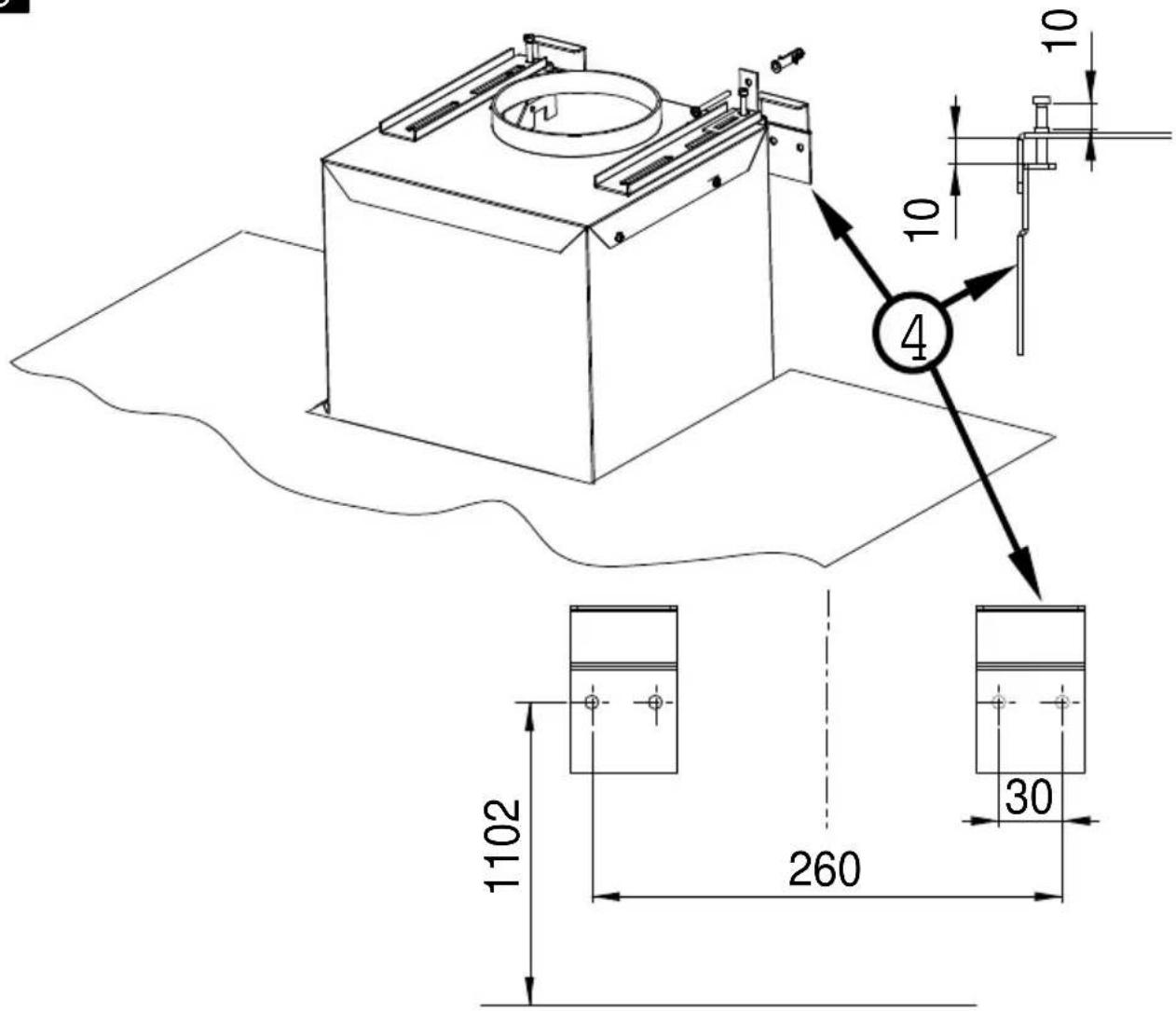

Mark the hole centres for the canopy fixing brackets item 4 at item B mm as illustrated in Fig. 3. Drill the 4 holes for the fixing brackets using an 8 mm masonry bit. Fix the wall brackets item 4 using the 4.5 x 45 mm screws and rawl plugs supplied.

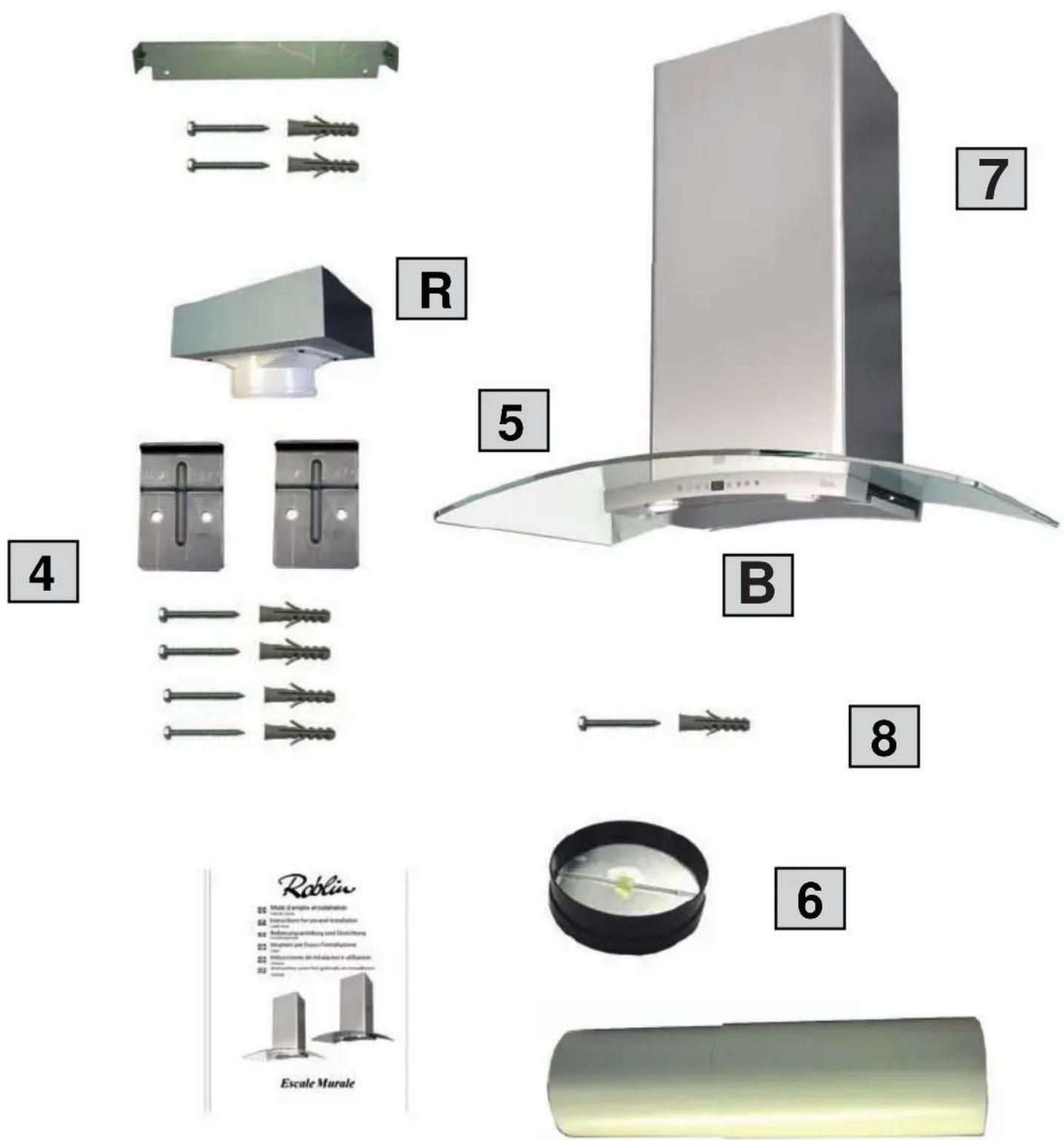

4) Hook the canopy item 5 onto the wall brackets item 4 as illustrated in Fig. 3. To ensure the cooker hood is aligned correctly adjust the screws on the top of the canopy as illustrated in Fig. 3. When the hood is aligned correctly mark the hole centre on the wall for the security fixing screw item8, which is located in the right hand bracket on the top of the canopy. Unhook the canopy from the wall and drill the hole for the security fixing screw. Hook the canopy onto the wall and fix the No 4,5 x 50mm headed screw and rawl plug to secure the canopy to the wall.
5) Ducting:

The hood is more effective when used in the extraction mode (ducted to the outside). When the cooker hood is ducted to the outside, charcoal filters are not required. The ducting used must be 150 mm (6 INS), rigid circular pipe and must be manufactured from fire retardant material, produced to BS.476 or DIN 4102-B1. Wherever possible use rigid circular pipe which has a smooth interior, rather than the expanding concertina type ducting.

Maximum length of ducting run:

• 4 metres with 1 x 90° bend.
• 3 metres with 2 × 90^ bends.
• 2 metres with 3 × 90^ bends.

The above assumes our 150 mm (6 INS) ducting is being installed. Please note ducting components

and ducting kits are optional accessories and have to be ordered, they are not automatically supplied with the chimney hood.

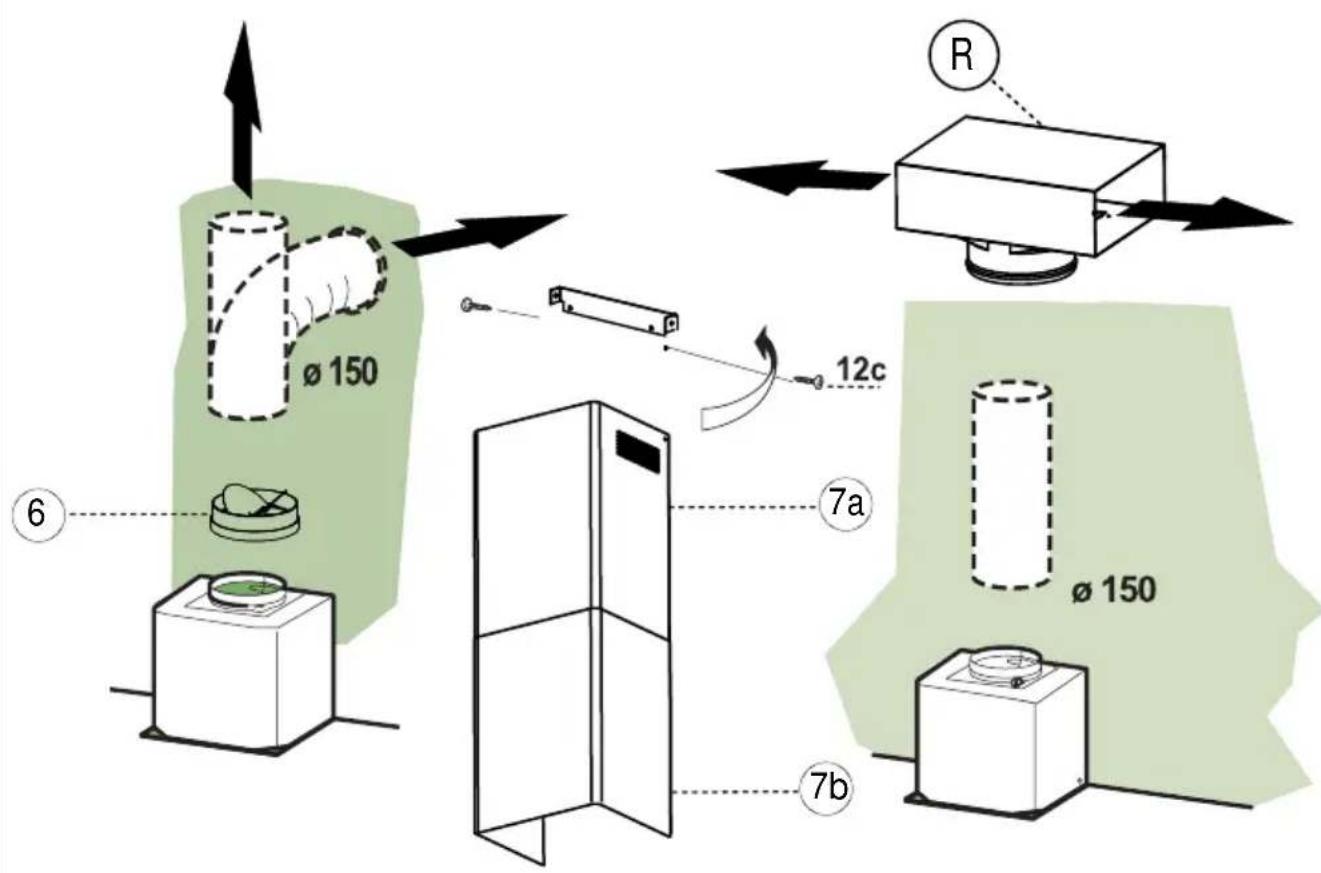

IN THE EXTRACTION MODE:

a. Place the anti-backflow flats item 8 over the round outlet item 6, the telescopic duct and connect the ducting 150mm (6 INS) over the round outlet on top of the canopy and secure the connections with appropriate clamping rings or adhesive tape (Fig. 6).
b. Remove the grease filters (see paragraph Maintenance) Fig. 5 being sure that the connector of the mains cable is correctly inserted in the socket placed on the sides of the fan. Before fitting the chimney to the canopy make the electrical connection as described in the section titled ELECTRICAL. When the electrical connection has been made, test the lights and the fan motor.
c. Each chimney stack consists of two sections. Fit the upper sections (Fig. 1 - item 7a & b) first by expanding the chimneys slightly to allow them to clamp around the bracket item 2 and secure the chimney stacks to the brackets using the two M4 screws item 12c provided. Fit the lower chimney sections by expanding the chimneys slightly to allow them from the top of the canopy to clamp around the upper chimney sections.

IN THE RECIRCULATION MODE:

a. Fit the recirculation spigot R onto the upper chimney wall bracket using the same fixing screws (Fig. 2 item 2).
b. Connect the ducting 150mm (6 INS) not provided between motors item 6 and the recirculation spigot and secure the connections with appropriate clamping rings or adhesive tape.
c. Remove the grease filters (see paragraph Maintenance) Fig. 5 being sure that the connector of the feeding cable is correctly inserted in the socket placed on the side of the fan. Before fitting the chimney to the canopy make the electrical connection as described in the section titled ELECTRICAL. When the electrical connection has been made, test the lights and the fan motor.
d. Insert the charcoal filter into the base of the motor housing and secure the filter with two metal securing straps item A as illustrated in Fig. 4.
e. Each chimney stack consists of two sections. Fit the upper sections (Fig. 1 - item 7a & b) first by expanding the chimneys slightly to allow them to clamp around the bracket item 2 and secure the chimney stacks to the brackets using the two M4 screws item 12c provided. Fit the lower chimney sections by expanding the chimneys slightly to allow them from the top of the canopy to clamp around the upper chimney sections.

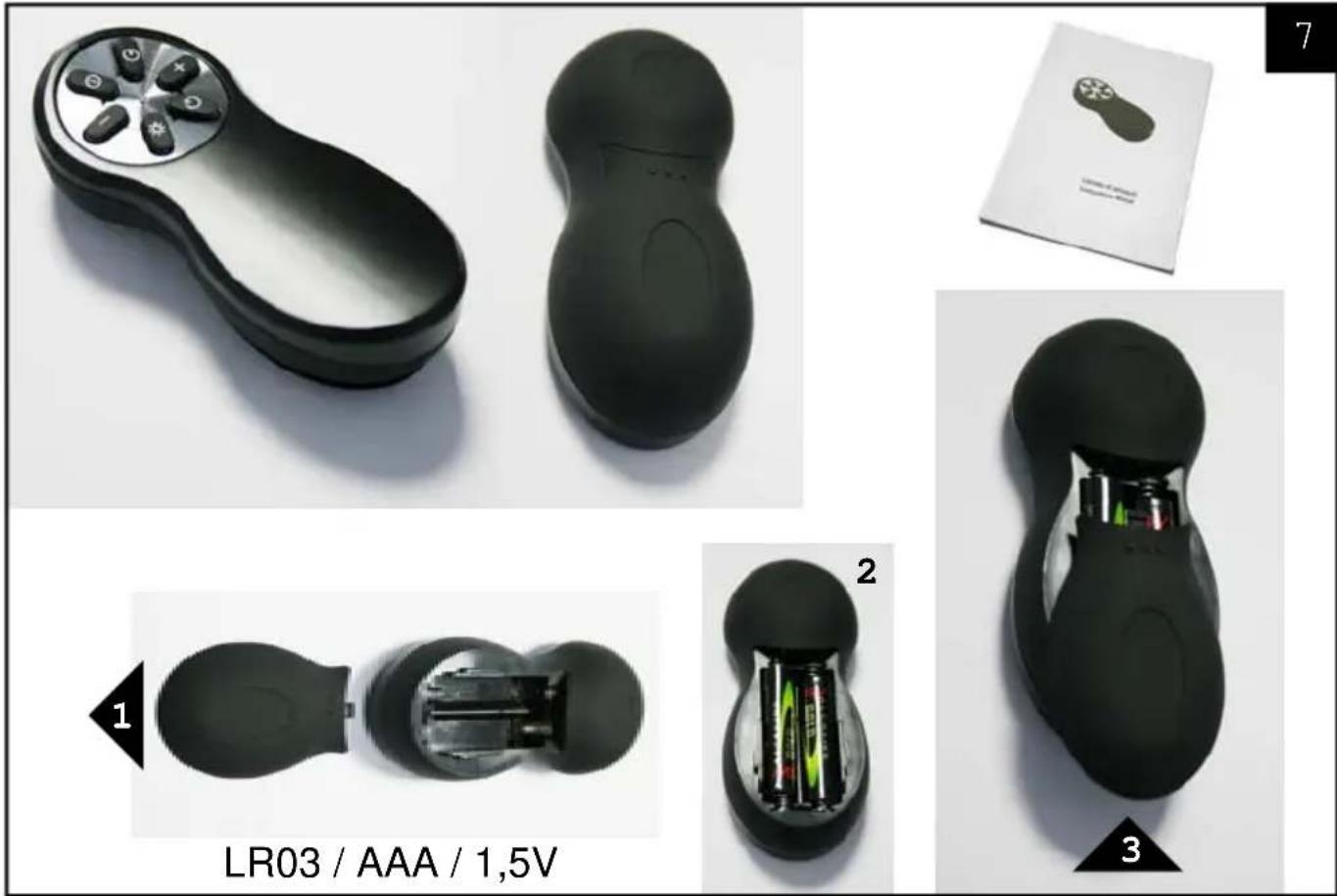

4 OPERATION

① - + i 88 24

A B C D E F G H

Control panel

Button Function Display
A	Turns the suction motor on and off at the last speed used.	Displays the speed set
B Decrease the working speed.
C Increase the working speed.
D	Activates intensive speed from any other speed even with the motor off. This speed is timed to run for 10 minutes, after which the system returns to the previous speed. Suitable to deal with maximum cooking fumes.	Displays HI and the bottom right hand spot flashes once a second.
E	Activates the motor at a speed that allows extraction of 100 m^3/h for 10 minutes every hour, after which the motor stops.When the filter alarm is on, press the button for approximately 3 seconds to reset the alarm. These indications are only visible when the motor is turned off.	Displays 24 and the bottom right hand spot flashes, while the motor is turned onOn completing the procedure the previous indicator is turned off:FF indicates that the metal grease filters need washing. The alarm is triggered after the Hood has been in operation for 100 hours.EF indicates that the activated charcoal filter needs changing and the metal grease filters need washing. The alarm is triggered after the Hood has been in operation for 200 hours.
F	Activates automatic shutdown after 30'. Suitable to complete elimination of residual odours. Can be activated from any position, and is turned off by pressing the button or switching the motor off.	Alternately displays the working speed and the time remaining before the hood turns off. The bottom right hand spot flashes.
G	Turns the main lighting system on and off.
H	Turns the ambiance lighting system on and off.

5 USEFUL HINTS

• To obtain the best performance it is advisable to switch 'ON' the cooker hood a few minutes (in the boost setting) before you start cooking and you should leave it running for approximately 15 minutes after finishing.

• IMPORTANT: NEVER DO FLAMBÉ COOKING UNDER THIS COOKER HOOD

- Do not leave frying pans unattended during use as over-heated fat and oil might catch fire.

- Do not leave naked flames under this cooker hood.

- Switch 'OFF' the electric and gas before removing pots and pans.

- Ensure heating areas on your hotplate are covered with pots and pans when using the hotplate and cooker hood simultaneously.

6 MAINTENANCE

Before carrying out any maintenance or cleaning isolate the cooker hood from the mains supply.

The cooker hood must be kept clean; a build up of fat or grease can be a fire hazard.

Casing

- Wipe the cooker hood frequently with a clean cloth, which has been immersed in warm water containing a mild detergent and wrung out.

- Never use excessive amounts of water when cleaning particularly around the control panel.

- Never use scouring pads or abrasive cleaners.

• Always wear protective gloves when cleaning the cooker hood.

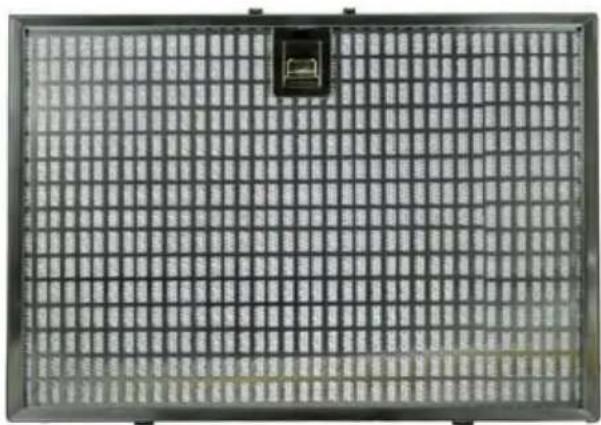

Metal Grease Filters

The metal grease filters absorb grease and dust during cooking to help keep the cooker hood clean inside. The grease filters should be cleaned once a month or more frequently if the hood is used for more than 3 hours per day.

To remove and replace the metal grease filters

- Remove the metal grease filters one at a time by releasing the catches on the filters; the filters can now be removed.

- The metal grease filters should be washed, by hand, in mild soapy water or in a dishwasher.

- Allow to dry before replacing.

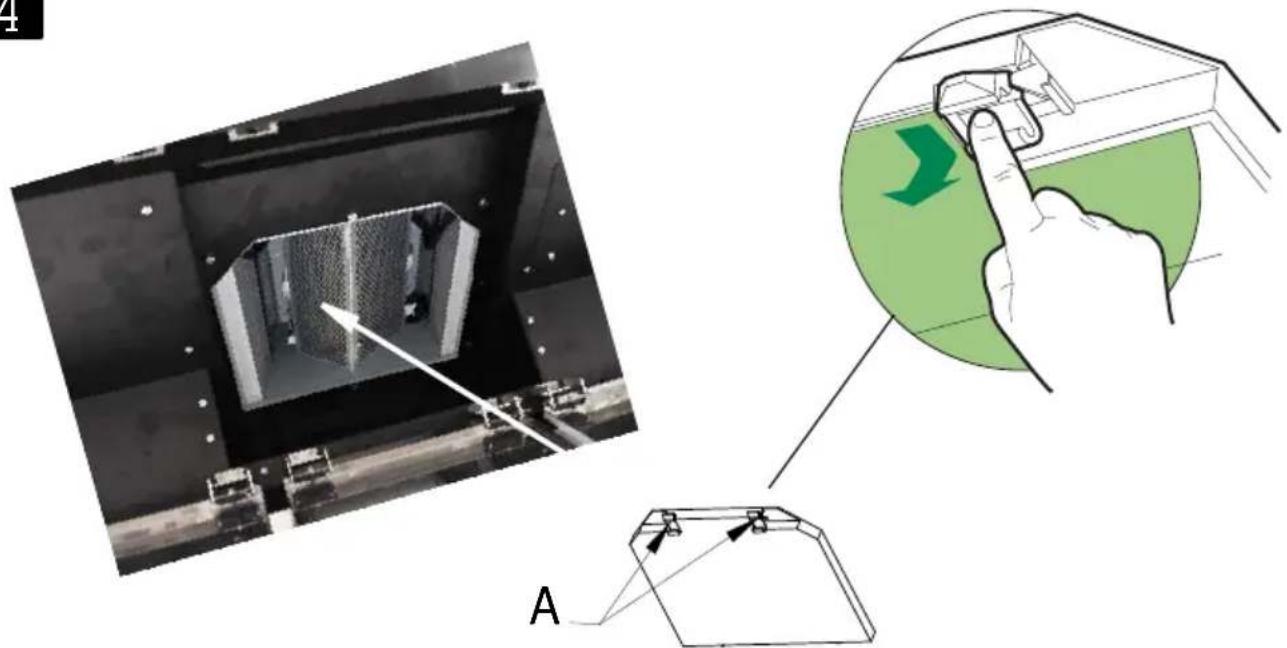

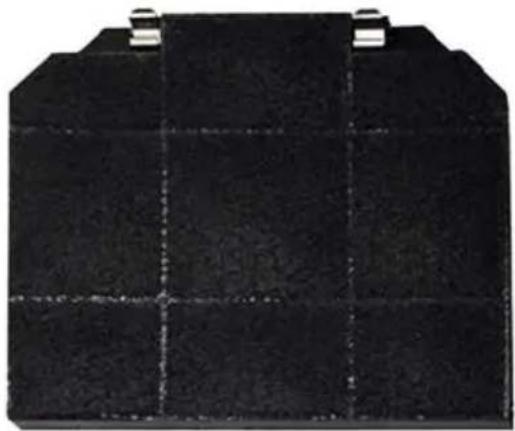

Active Charcoal Filter

The charcoal filter cannot be cleaned. The filter should be replaced at least every three months or more frequently if the hood is used for more than three hours per day.

To remove and replace the filter

- Remove the metal grease filters.

- Press against the two retaining clips, which hold the charcoal filter in place and this will allow the filter to drop down and be removed.

- Clean the surrounding area and metal grease filters as directed above.

- Insert the replacement filter and ensure the two retaining clips are correctly located.

- Replace the metal grease filters.

Extraction tube.

Check every 6 months that the dirty air is being extracted correctly. Comply with local rules and regulations with regard to the extraction of ventilated air.

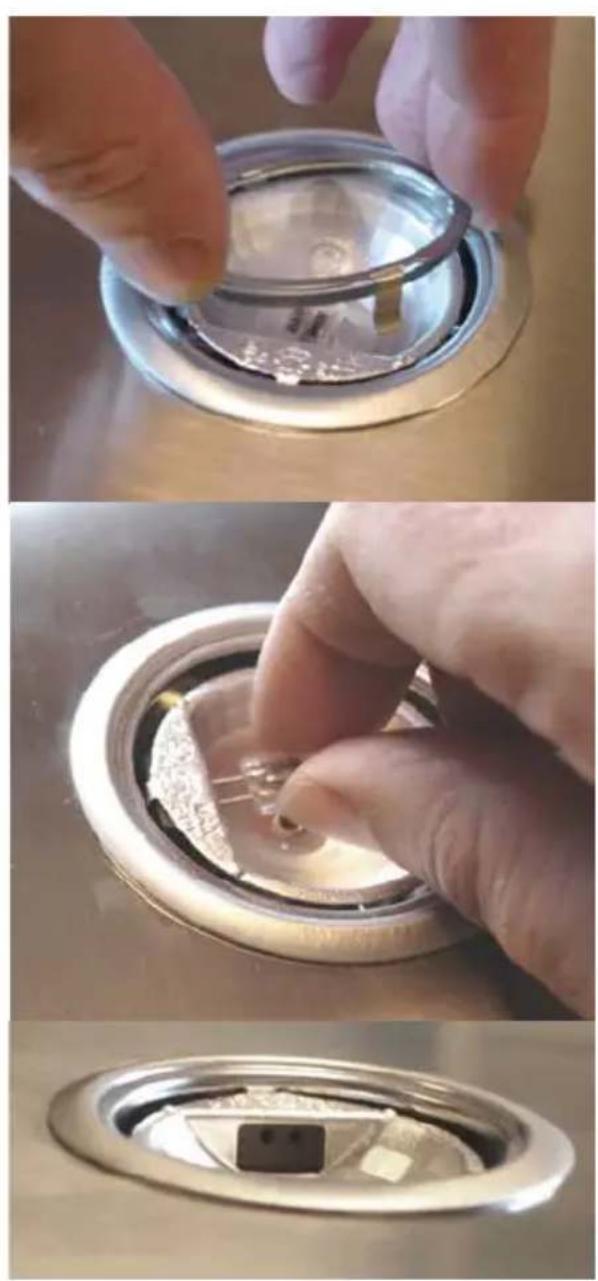

Lighting.

If the lamp fails to function check to ensure it is fitted correctly into the holder. If lamp failure has occurred then it should be replaced with identical replacement.

Do not replace with any other type of lamp and do not fit a lamp with a higher rating.

7 GUARANTEE AND AFTER SALES SERVICE

• In the event of any malfunction or anomaly, notify your fitter who will have to check the appliance and its connection.
• In the event of damage to the mains supply cable, this can only be replaced by at approved repair centre appointed by the manufacturer who have the necessary tools and equipment to carry out any repairs properly. Repairs carried out by other persons will invalidate the guarantee.
• Use only genuine spare parts. Should these warnings fail to be observed it could affect the safety of your cooker hood.
• When ordering spare parts quote the model number and serial number written on the rating plate, which is found on the casing behind the grease filters inside the hood.
• Proof of purchase will be required when requesting service. Therefore, please have your receipt available when requesting service as this constitutes the date from which your guarantee commenced. This Guarantee does not cover :
• Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or filters or removable parts of glass or plastic.

These items are considered to be consumable under the terms of this guarantee.

8 REMARKS

This appliance complies with European regulations on low voltages Directive 2006/95/CE on electrical safety, and with the following European regulations: Directive 2004/108/CE on electromagnetic compatibility and Directive 93/68 on EC marking.

When this crossed-out wheeled bin symbol ↗ is attached to a product it means the product is covered by the European directive 2002/96/EC. Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. Please inform yourself about the local separate collection system for electrical and electronic product. Please act according to your local rules and do not dispose of your old products with your normal household waste. The correct disposal of your old product will help prevent potential negative consequences for the environment and human health.

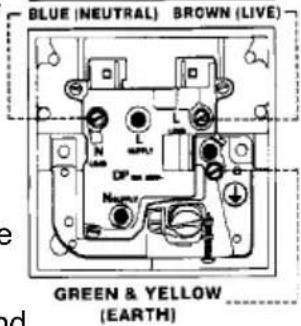

UK ELECTRICAL CONNECTION ELECTRICAL REQUIREMENTS

Any permanent electrical installation must comply with the latest I.E.E. Regulations and local Electricity Board regulations For your own safety this should be undertaken by a qualified electrician e.g. your local Electricity Board or a contractor who is on the roll of the National Inspection Council for Electrical Installation Contacting (NICEIC).

ELECTRICAL CONNECTION

Before connecting to the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate inside the cooker hood.

Electrical switch components labeled FUSE and ON, with circular terminals (no text beyond labels)

BLUE (NEUTRAL) BROWN (LIVE) N L DP N GREEN & YELLOW (EARTH)

The wires in this mains lead are coloured in accordance with ta following code: Green & Yellow Earth Blue Neutral Brown Live

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your connection unit, proceed as follows:-

This appliance is fitted with a 2 core mains cable and must be permanently connected to the electricity supply via a double-pole switch having 3mm minimum contact gap on each pole A Switched Fuse Connection Unit coloured black.

to BS.1363 Part 4, fitted with a 3 Amp fuse, is a The wire which is coloured brown must be connected recommended mainsupply connection accessory to the terminal which is marked with the letter 'L' or ensure compliance with the Safety Requirements coloured red. applicable to fixe wiring instructions.

CH

24.5 25.5 7 N E 23 L 15.8 4

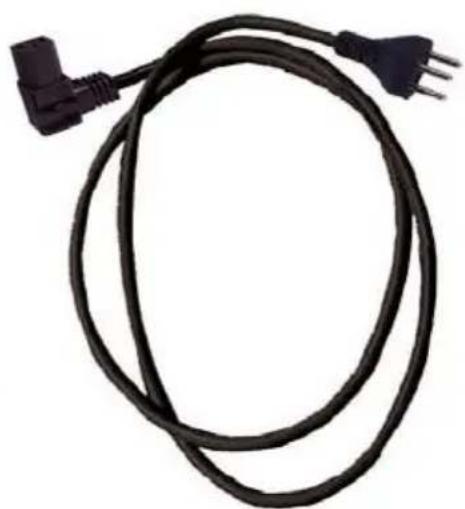

Coiled black electrical plug with two terminal connectors (no text or symbols visible)

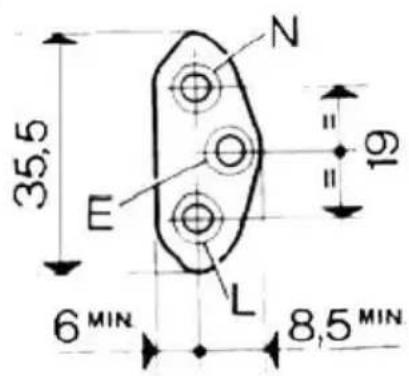

35,5 E N 19 6 MIN L 8,5 MIN

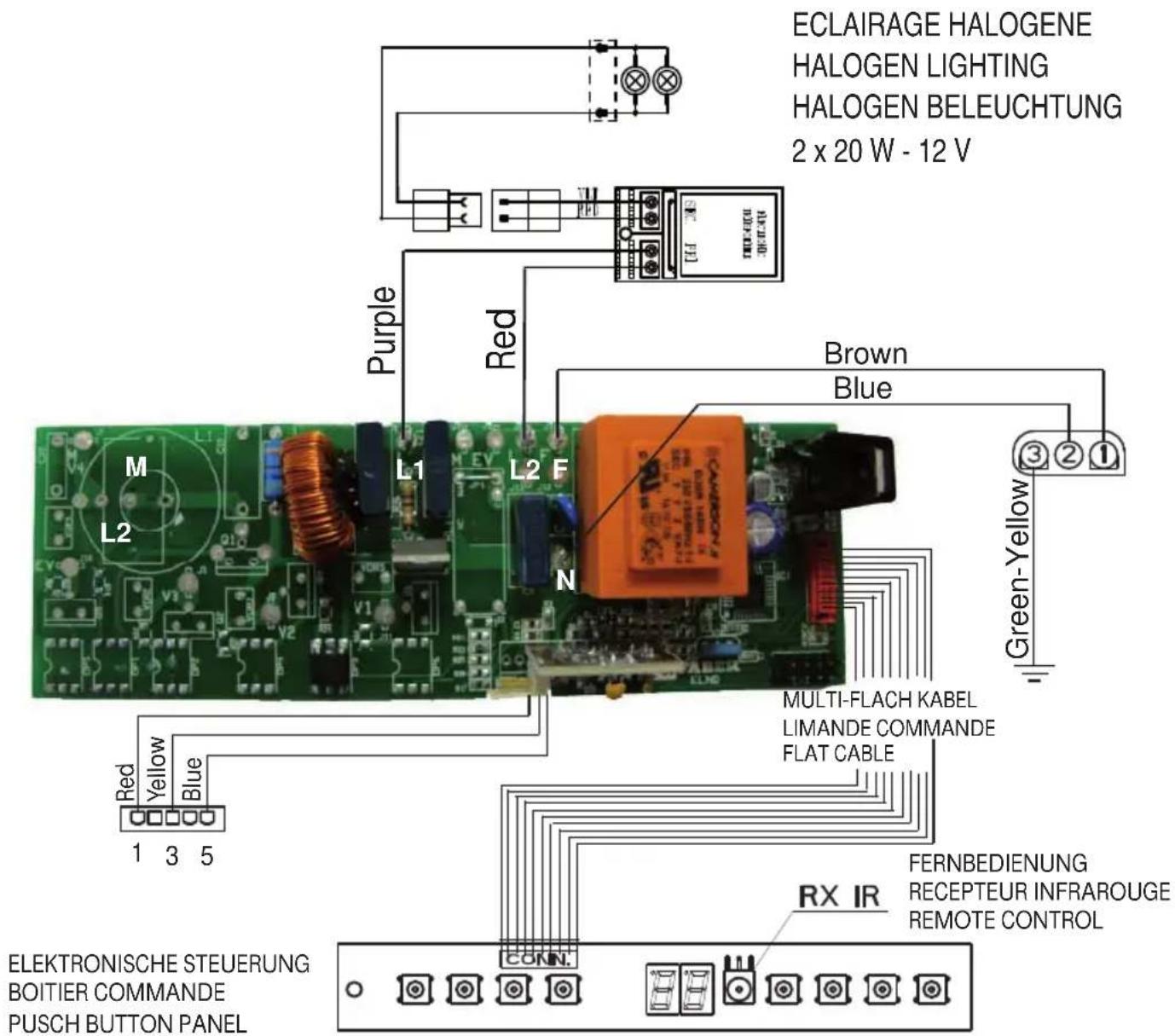

ECLAIRAGE HALOGENE HALOGEN LIGHTING HALOGEN BELEUCHTUNG 2 x 20 W - 12 V M L2 L1 L2 F N Red Purple Brown Blue Green-Yellow Multi-FLACH KABEL LIMANDE COMMANDE FLAT CABLE Red Yellow Blue 1 3 5 RX IR FERNBEDIENUNG RECEPTEUR INFRAROUGE REMOTE CONTROL ELEKTRONISCHE STEUERUNG BOITIER COMMANDE PUSCH BUTTON PANEL

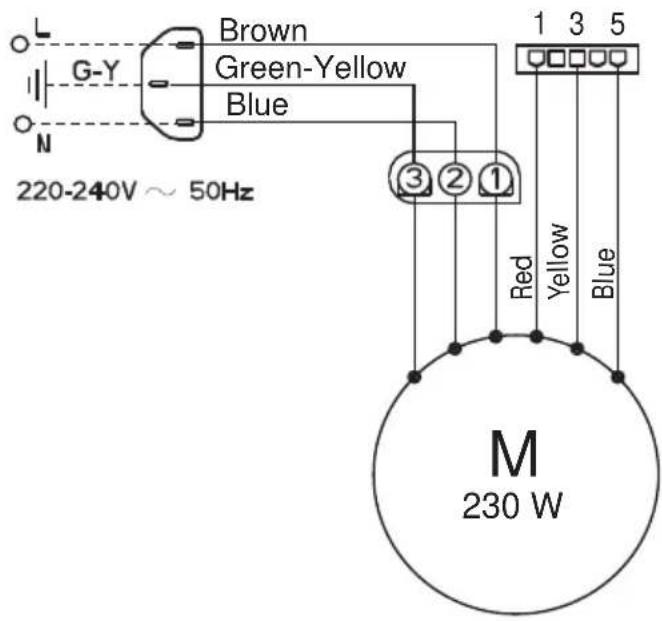

L G-Y Brown Green-Yellow Blue N 220-240V ~ 50Hz ③ ② ① Red Yellow Blue M 230 W

A - AZUR - AZUR - AZUR BLAU

BK - BLACK - NOIR- SCHWARZ

B - BLUE - BLEU - BLAU

Br - BROWN - BRUN - BRAUN

G-Y - GREEN YELLOW - VERT JAUNE - GRÜN GELB

Gr - GREY - GRIS - GRAU

L B - LIGHT BLUE - BLEU CLAIR - HELL BLAU

P - PINK - ROSE - ROSA

V - PURPLE - MAUVE - MALVER FARBIG

R - RED - ROUGE - ROT

W - WHITE - BLANC - WEISS

W-P - WHITE PINK - BLANC ROSE - WEISS ROSA

Y - YELLOW - JAUNE - GELB

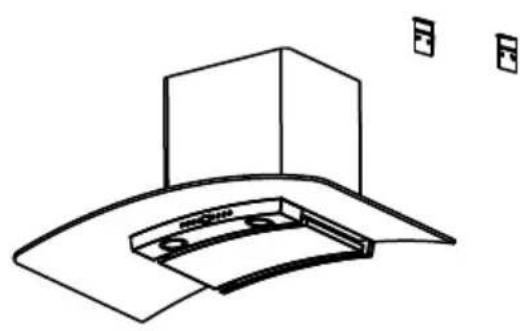

Line drawing of a kitchen range hood with ventilation duct and ventilation grilles (no text or symbols)

3

1102 260 30 4 10 10

4

Technical illustration showing a mechanical assembly with a close-up view and a hand holding a component, both without any visible text or symbols.

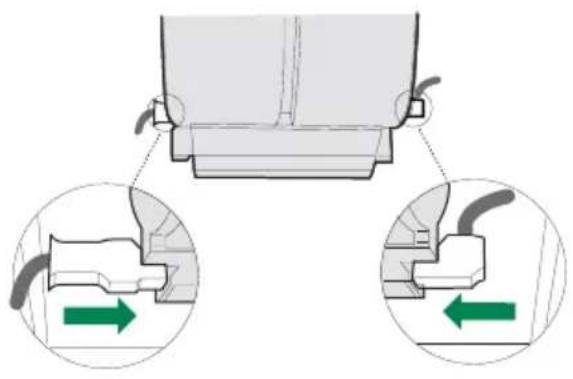

5

Diagram showing mechanical assembly with two circular insets highlighting internal components (no text or symbols)

6

Ø 150 6 12c 7a Ø 150 7b R

Line drawing of a ceiling-mounted device with a curved base and mounting bracket (no text or symbols)

ACCESSOIRES ACCESSORI

ACCESSORIES ACCESORIA

ZUBEHÔRE ACCESSOIRES

Black rectangular object with grid pattern and metallic clips at top (no visible text or symbols)

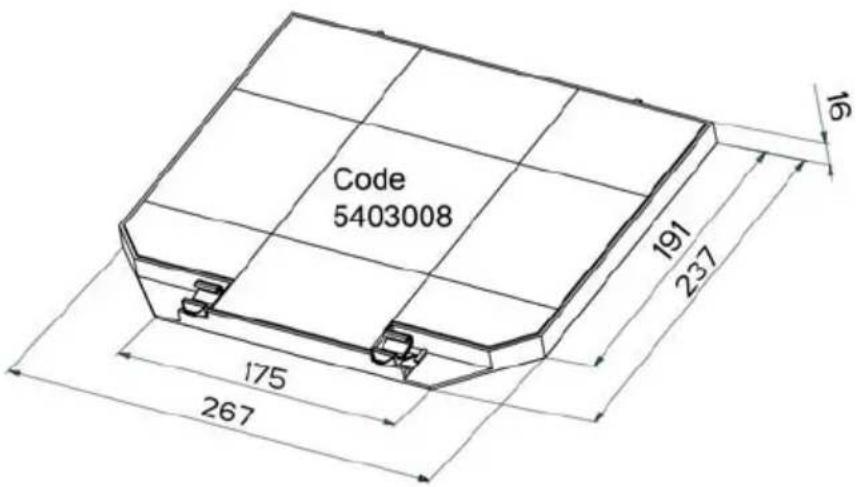

Code 5403008 191 237 175 267 16

Close-up of a grid-patterned electronic component with no visible text or symbols

13MC092

323 × 262 × 9 mm

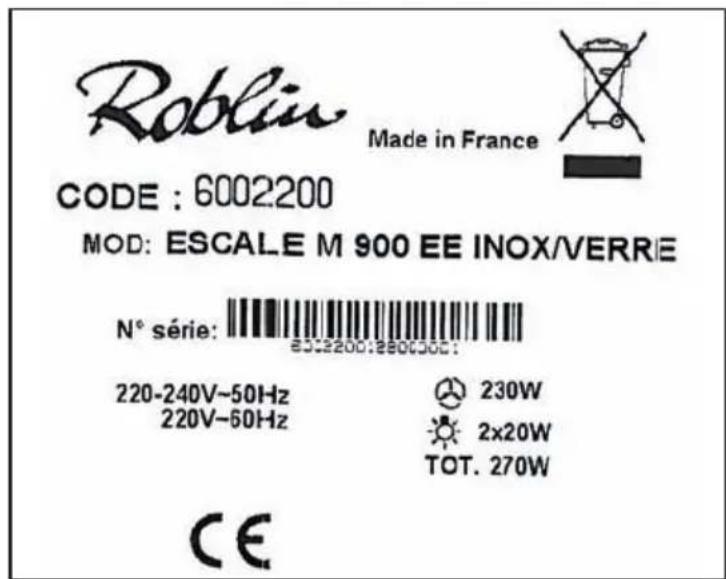

Plaque Signalétique de la hotte Rating plate of the cookerhood Typenschild im Inneren der Dunstesse Etichetta all'interno della cappa Etiqueta de la campana Typeplaatje van de afzuigkap

Modern kitchen chimney with a curved glass top and light blue directional arrows indicating airflow or movement (no text or symbols)

Modèle Model Modell Modello Modelo Model

Numéro de série Serial number Seriennummer Numero di serie Numero de serie Serienummer

Roblin Made in France CODE : 6002200 MOD: ESCALE M 900 EE INOX/VERRE N° série: 220-240V~50Hz 220V~60Hz CE 230W 2x20W TOT. 270W

2

Composants

Components

Bauelemente

Componenti

Componentes

Onderdelen

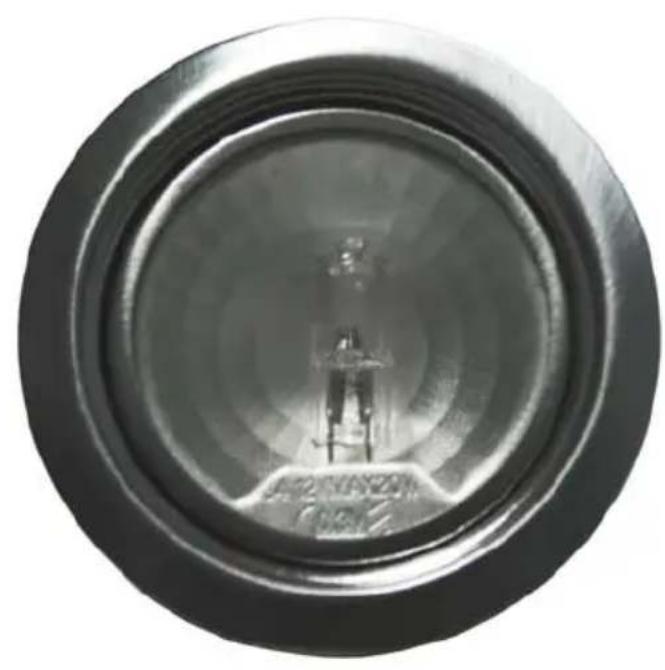

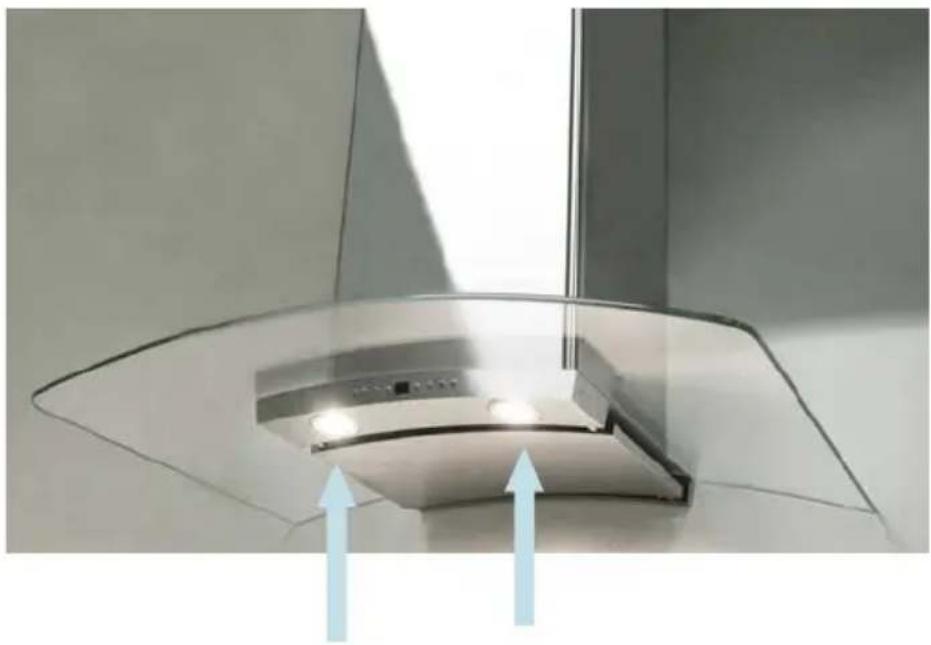

Halogen Beleuchtung Halogen Lighting Eclairage halogène Alogene Luci Alógenas Luz Halogeen Verlichting 2 x 20 W - 12 V

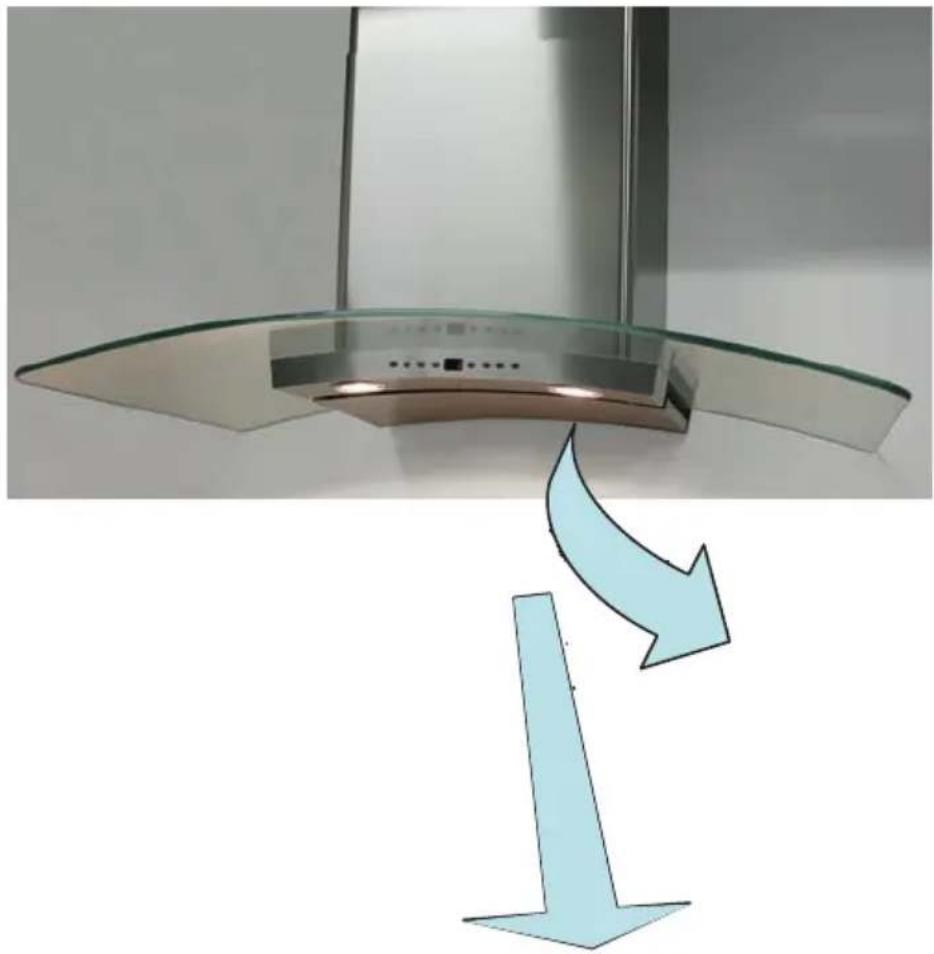

Exterior view of a modern kitchen ventilation duct with two upward arrows indicating airflow or ventilation direction (no text or symbols)

Three-panel photo showing hands installing a glass lid on a sink, with close-up views of the component (no text or symbols visible)

Close-up of a circular mechanical component with concentric rings and a central metallic feature (no visible text or symbols)

G4 12V 20W

Circular ceramic dish with three dark handles and a light interior (no text or symbols visible)

Roblin

FRANKE France S.A.S.
