USER MANUAL 54221 HAMILTON BEACH

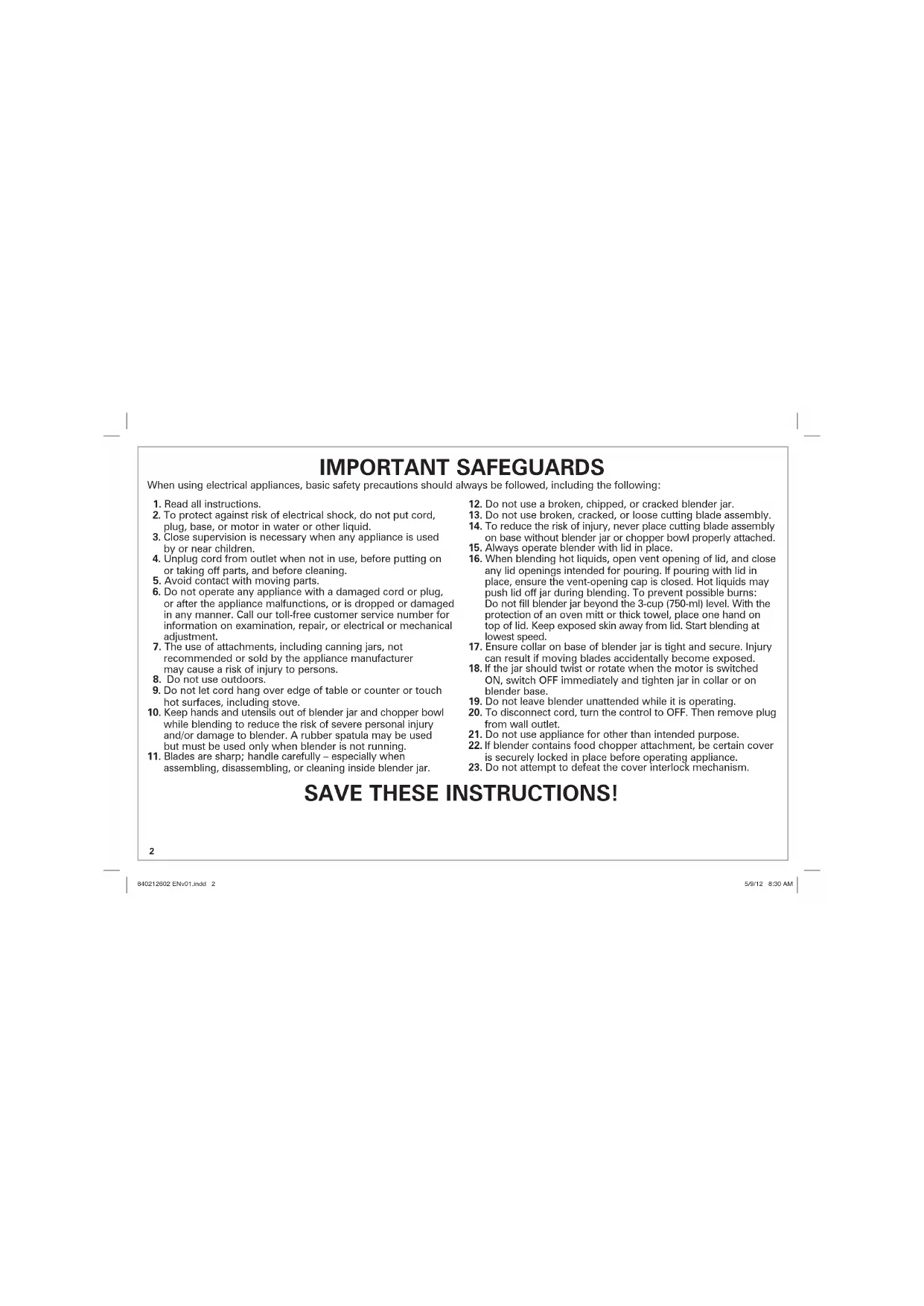

1. Read all instructions.

2. To protect against risk of electrical shock, do not put cord,

plug, base, or motor in water or other liquid.

3. Close supervision is necessary when any appliance is used

by or near children.

4. Unplug cord from outlet when not in use, before putting on

or taking off parts, and before cleaning.

5. Avoid contact with moving parts.

6. Do not operate any appliance with a damaged cord or plug,

or after the appliance malfunctions, or is dropped or damaged in any manner. Call our toll-free customer service number for information on examination, repair, or electrical or mechanical adjustment.

7. The use of attachments, including canning jars, not

recommended or sold by the appliance manufacturer may cause a risk of injury to persons.

8. Do not use outdoors.

9. Do not let cord hang over edge of table or counter or touch

hot surfaces, including stove.

10. Keep hands and utensils out of blender jar and chopper bowl

while blending to reduce the risk of severe personal injury and/or damage to blender. A rubber spatula may be used but must be used only when blender is not running.

11. Blades are sharp; handle carefully – especially when

assembling, disassembling, or cleaning inside blender jar.

12. Do not use a broken, chipped, or cracked blender jar.

13. Do not use broken, cracked, or loose cutting blade assembly.

14. To reduce the risk of injury, never place cutting blade assembly

on base without blender jar or chopper bowl properly attached.

15. Always operate blender with lid in place.

16. When blending hot liquids, open vent opening of lid, and close

any lid openings intended for pouring. If pouring with lid in place, ensure the vent-opening cap is closed. Hot liquids may push lid off jar during blending. To prevent possible burns: Do not fill blender jar beyond the 3-cup (750-ml) level. With the protection of an oven mitt or thick towel, place one hand on top of lid. Keep exposed skin away from lid. Start blending at lowest speed.

17. Ensure collar on base of blender jar is tight and secure. Injury

can result if moving blades accidentally become exposed.

18. If the jar should twist or rotate when the motor is switched

ON, switch OFF immediately and tighten jar in collar or on blender base.

19. Do not leave blender unattended while it is operating.

20. To disconnect cord, turn the control to OFF. Then remove plug

21. Do not use appliance for other than intended purpose.

22. If blender contains food chopper attachment, be certain cover

is securely locked in place before operating appliance.

23. Do not attempt to defeat the cover interlock mechanism.

When using electrical appliances, basic safety precautions should always be followed, including the following: SAVE THESE INSTRUCTIONS! 840212602 ENv01.indd 2840212602 ENv01.indd 2 5/9/12 8:30 AM5/9/12 8:30 AM3 Other Consumer Safety Information This appliance is intended for household use only. Use for food or liquids only. WARNING! Shock Hazard: This appliance has a polarized plug (one wide blade) that reduces the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet. The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over. If the cutting blade assembly locks and will not move, it will damage the motor. Do not use. Call the toll-free customer service number for information. Do not place blender jar in the freezer filled with food or liquid. This can result in damage to the cutting blade assembly, jar, blender, and possibly result in personal injury. The wattage/ampere rating of the blender is determined by an Underwriters Laboratory test and is based on available cutting blade assembly, jar combinations, and attachments that may not be provided with your unit, but are available as replacement parts. This is a measure of input wattage/amperes after 30 seconds of operation. The blender as provided may draw significantly less power. Peak power is the measure of the motor wattage during the first seconds of operation. This is when a blender requires the most power to crush ice, frozen fruit, etc. This is a better measure of what a blender motor can consume when power is needed most. BEFORE FIRST USE: After unpacking blender, wash everything except blender base in hot, soapy water. Dry thoroughly. Wipe blender base with a damp cloth or sponge. DO NOT IMMERSE BASE IN WATER. Care should be taken when handling cutting blade assembly as it is very sharp. Wattage/Peak Power Information 840212602 ENv01.indd 3840212602 ENv01.indd 3 5/9/12 8:31 AM5/9/12 8:31 AM4 Parts and Features Mess-Free Spout With Hinged Cap Blender Jar Base Cutting Blade Assembly NOTE: The gasket is permanently affixed to the cutting blades. Do not try to remove it. Collar Vent Opening Lid Cord Stuff Storage (located on bottom of base) Food Chopper Attachment (optional accessory on select models) Lid Chopper Bowl S-Blade Bowl Base 840212602 ENv01.indd 4840212602 ENv01.indd 4 5/9/12 8:31 AM5/9/12 8:31 AM5 Using Your Blender BEFORE FIRST USE: After unpacking the blender, follow the instructions in “Cleaning Your Blender.” IMPORTANT: Your blender jar and cutting blade assembly are subject to wear during normal use. Always inspect jar for nicks, chips, or cracks. Always inspect cutting blade assembly for broken, cracked, or loose blades. If jar or cutting blade assembly is damaged, do not use. Call our toll-free customer service number to obtain replacement parts.

Push the desired speed button. When using a Pulse button, the blender will only run when the button is held down. CAUTION: Burn Hazard. When blending hot liquids, open vent opening of lid, and close any lid openings intended for pouring. Hot liquids may push lid off jar during blending. Do not fill blender jar beyond the 3-cup (750-ml) level. With the protection of an oven mitt or thick towel, place one hand on top of lid. Keep exposed skin away from lid. Start blending at lowest speed.

To add foods when blender is operating, open hinged pouring cap and add ingredients through the opening.

For best performance, the minimum amount of liquid needed per recipe is one cup (8 ounces/250 ml). Add more liquid if food is not blending properly.

If blending action stops during blending or ingredients stick to sides of the jar, there may not be enough liquid in the jar to blend efficiently.

Do not try to mash potatoes, mix stiff dough, whip egg whites, grind raw meat, or extract juices from fruits and vegetables.

Do not store food or liquids in the blender jar.

Avoid bumping or dropping the blender when in operation or at any time. 840212602 ENv01.indd 6840212602 ENv01.indd 6 5/9/12 8:31 AM5/9/12 8:31 AM7 Using Food Chopper Attachment (Optional Accessory on Select Models)

Cut Hazard. Ensure unit is off and unplugged before attaching food chopper attachment. Do not plug in and turn on until lid is in position and locked on top of food chopper bowl. Always turn off, unplug, and allow blade to stop spinning before opening lid. w WARNING

Ensure unit is in off position before plugging into outlet.

• Always place liquid in blender jar first, then remaining ingredients.

• If ice is not blending, stop blender and PULSE a few times.

Fruit Smoothie Milkshake Frozen Drink INGREDIENTS 1 cup (250 ml) milk 1 1/2 cups (375 ml) yogurt 2 cups (500 ml) berries or other fruit Sweetener to taste (optional) 1 1/2 cups (375 ml) milk 2 large scoops ice cream 2 to 3 tablespoons (15 to 45 ml) flavored syrup 1 cup (250 ml) drink mix, such as Piña Colada mix 10 ice cubes

3 to 4 (makes 4 cups [1 L]) 2 to 3 (makes 3 cups [750 ml])

(makes 2 cups [500 ml])

BLENDER SETTING/TIME

SMOOTHIE setting for 45 seconds or until blended. MIX/MILKSHAKE setting for 5 to 10 seconds or LOW until blended. PURÉE/ICY DRINK setting for 45 seconds or PULSE 5 times and blend on HIGH for 45 seconds or until blended. 840212602 ENv01.indd 8840212602 ENv01.indd 8 5/9/12 8:31 AM5/9/12 8:31 AM9 FOOD Coffee Beans Parmesan Cheese Baking Chocolate Nuts Chopped Vegetables Cookie or Cracker Crumbs Superfine Sugar QUANTITY 1/2 cup (125 ml) 10 oz. (280 g) 2 oz. (50 g) 1 cup (250 ml) 2 cups (500 ml) 1 cup (250 ml) 1 cup (250 ml) PREPARATION None 1/2-in. (1-cm) chunks Coarsely chop squares None Cut into 1-in. (2.5-cm) pieces, cover with water Break cookies or crackers into pieces None BLENDING TIME 30 seconds 15 seconds 15 seconds 5 seconds 10 seconds 5 seconds 30 seconds Food Blending Chart (For Models Without Food Chopper Attachment) TIPS FOR BEST RESULTS:

• Use Pulse button with guidelines outlined in chart.

• Remove jar from base and shake to redistribute pieces.

• Place jar on base and Pulse a few more times until desired consistency is reached.

• Parmesan cheese should remain refrigerated prior to processing. 840212602 ENv01.indd 9840212602 ENv01.indd 9 5/9/12 8:31 AM5/9/12 8:31 AM10 TO MAKE Bread, crumbs Cheese, Parmesan Chocolate, baking Cookie, crumbs Fruit, chopped Garlic, minced Graham Cracker, crumbs Herbs, chopped Meat, ground Nuts, chopped Parsley, chopped or minced Vegetables, chopped or minced Food Chopping Chart (Optional Accessory on Select Models) INSTRUCTION Tear bread slices (max. 3) into 6 pieces. Cut into 1/2-inch (1-cm) cubes. Process 1/2 cup (125 ml) of cubes at a time. Cut into 1/2-inch (1-cm) cubes. Do not process more than 4 oz. (115 g) at a time. Break into pieces. Use up to 2 cups (500 ml) of pieces. Cut fruit into large chunks. Place up to 2 cups (500 ml) of pieces into chopper. Peel and then process 1 or more cloves at a time. Break into 4 pieces. Place up to 6 crackers in chopper at a time. Place up to 1 cup (250 ml) in chopper. Cut into 1/2-inch (1-cm) cubes. Process 8 oz. (225 g) of cubes at a time. Place up to 1 cup (250 ml) in chopper. Pinch off sprigs from bunch. Cut into 1-inch (2.5-cm) chunks. Place up to 2 cups (500 ml) in chopper at a time. TIPS FOR BEST RESULTS:

• Quantities listed above are the recommended maximum. Depending on the food type, smaller amounts may improve chopping performance.

• When chopping or processing, use the Pulse button. Do not exceed 15 seconds. 840212602 ENv01.indd 10840212602 ENv01.indd 10 5/9/12 8:31 AM5/9/12 8:31 AM11 Cleaning Your Blender Electrical Shock Hazard. Disconnect power before cleaning. Do not immerse cord, plug, base, or motor in water or other liquid. w WARNING DISHWASHER-SAFE

Wipe blender base, control panel, and cord with a damp cloth or sponge. To remove stubborn spots, use a mild, nonabrasive cleanser. EASY CLEAN To Easy Clean, pour 2 cups (500 ml) warm water in jar and add 1 drop liquid dishwashing detergent. Run the blender on EASY CLEAN for 10 seconds. Discard soapy water. Rinse with clean water. This function is not a substitute for regular cleaning as instructed in “Cleaning Your Blender.” This function should never be used when blending any mixture containing eggs, milk, or any other dairy products, meats, or seafood. The Easy Clean function should only be used to rinse the blender between batches of processing the same food. When the processing of a single type of food is finished, the blender should be disassembled and thoroughly cleaned as instructed in “Cleaning Your Blender.” DO NOT use the “SANI” setting when washing in the dishwasher. “SANI” cycle temperatures could damage your product. Parts may also be washed with hot, soapy water. Care should be taken when handling the cutting blade assembly as it is very sharp. Rinse and dry thoroughly. Do not soak. 840212602 ENv01.indd 11840212602 ENv01.indd 11 5/9/12 8:31 AM5/9/12 8:31 AM12 This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of three (3) years from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value. This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V ~ 60 Hz). We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you. To make a warranty claim, do not return this appliance to the store. Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or visit hamiltonbeach.com in the U.S. or hamiltonbeach.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance. Limited Warranty 840212602 ENv01.indd 12840212602 ENv01.indd 12 5/9/12 8:31 AM5/9/12 8:31 AM13
