USER MANUAL ABP602 BESTRON

Technical line drawing of a flat-screen grating or tray device with handle and base (no text or symbols)

Nederlands

Instruction manual Plancha baking plate

Italiano

Labeled diagram of an electric heating device with numbered components for identification

1.Griff

2.Grillplatte

3.Buchse

1. Thermostatbedienknopf

5.Temperaturkontrolllampe

Technical diagram of a mechanical device with labeled components and directional arrows indicating motion or movement.

Handwritten signature or scribble on a line, possibly a signature or autograph

R. Neyman

Qualitätskontrolle

CONDITIONS DE GARANTIE

DÉCLARATION DE CONFORMITÉ CE

SAFETY INSTRUCTIONS - General

• Please read these instructions carefully, and retain them for future reference.
• Use this appliance solely in accordance with these instructions.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.
• Have any repairs carried out solely by a qualified electrician. Never try to repair the appliance yourself.

SAFETY INSTRUCTIONS - Electricity and heat

Certain parts of the appliance may get hot.
ot touch these parts to prevent burning yourself.

• Before use, verify that the mains voltage is the same as that indicated on the type plate on the appliance.
  • Always plug the appliance into an earthed wall socket.
  • Always remove the plug from the socket when the appliance is not in use.
  • Always remove the plug from the wall socket by pulling on the plug, not the power cord.
• Check the appliance's power cord regularly to make sure it is not damaged. Do not use the appliance if the power cord is damaged. A damaged cord must be replaced by a qualified electrician.
• When using an extension lead always make sure that the entire cable is unwound from the reel.
• Use solely approved extension leads.
• Certain parts of the appliance can become hot; do not touch them, as you may burn yourself.
• The appliance needs space to allow heat to escape, thereby avoiding the risk of fire. Make sure that the appliance has sufficient space around it, and does not come in contact with flammable materials. The appliance must not be covered.
• Never use the appliance in the vicinity of flammable materials.
• Make sure that the appliance and the power cord do not come in contact with sources of heat, such as a hot hob or naked flame.
• Make sure that the appliance, the thermostat, the power cord and plug do not come in contact with water.

SAFETY INSTRUCTIONS - During use

• Never use the appliance outdoors. • Never use the appliance in humid rooms.
• Place the appliance on a flat, stable and heat-resistant surface where it cannot fall.
• Do not let the power cord hang over the edge of the draining board, worktop or table.
• Make sure that your hands are dry before touching the appliance, power cord, thermostat, or plug.
• Switch off the appliance and remove the plug from the wall socket in the event of a malfunction during use, and before cleaning the appliance or storing it after use.
  • Never leave the appliance unattended when in use.
• Never move the appliance when it is switched on or is still hot. Switch off the appliance before moving it.
  • Always pick up the appliance by the handles. All metal parts can be very hot.
  • Always use implements with a suitable insulating handle when grilling food on the grill plate.
• Do not use sharp or metal implements on the grill plate; these will damage the non-stick coating.
• Clean the appliance thoroughly after use (see "Cleaning and maintenance").
• Never immerse the grill plate, thermostat, power cord or plug in water or other liquid.
• This appliance may not be used through an external timer or by means of a remote control.

TECHNICAL INFORMATION

Type: ABP602

Output: 2000 W

Power supply: 230 V\~50 Hz

THE ENVIRONMENT

- Dispose of packaging material, such as plastic and boxes, in the appropriate waste containers. When this product reaches the end of its useful life do not dispose of it by putting it in a dustbin; hand it in at a collection point for the reuse of electrical and electronic equipment. Please refer to the symbols on the product, the user's instructions or the packaging.

- The materials can be re-used as indicated. Your help in the re-use, recycling or other means of making use of old electrical equipment will make an important contribution to the protection of the environment.

- Contact your municipality for the address of the appropriate collection point in your neighbourhood.

OPERATION - General

The grill is only intended for domestic use, not for professional use.

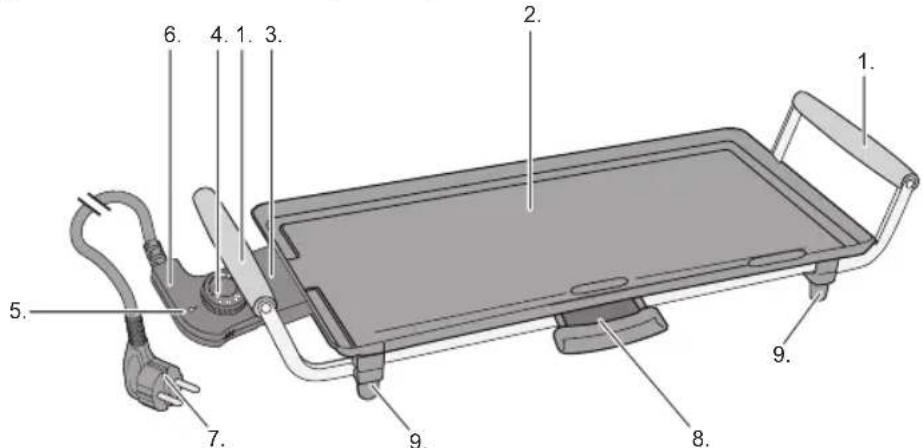

1. Handle

2. Grill plate

3. Socket

4. Thermostat dial

5. Indicator light, temperature

6. Removable thermostat

7. Power cord with plug

8. Collecting groove and drip tray

9. Non-slip feet

BEFORE FIRST USE

1. Remove the grill from the packaging, and remove all packaging materials.
2. Clean the grill plate before using the appliance for the first time (see 'Cleaning and maintenance').

The appliance may emit a little smoke and a characteristic smell when you switch it on for the first time. This is normal, and will soon stop. Make sure the appliance has sufficient ventilation.

Keep house birds away from the appliance when it is in use; fumes released from the non-stick coating when the grill plate is hot can cause stress to birds.

Do not touch the appliance if it falls into water. Remove the plug from the wall socket immediately. Do not use the device again.

USE - Preheating

1. Put the appliance on a level and heat-resistant surface. Keep birds out of the area when using the appliance.
2. Insert the thermostat fully into the grill-plate socket (see Figure 2).

Only the supplied cable with thermostat may be used.

1. Put the plug in the wall socket.
2. Adjust the thermostat dial to the required temperature (position 1 through 5). The indicator light on the thermostat will illuminate to show that the heating element has been switched on.

Position Temperature (°C)

1 approx. 180°C
2 approx. 200°C

3	approx.	220°C
4	approx.	240°C
5	approx.	260°C

Technical line drawing of a mechanical component with a rotary knob and coiled spring (no text or symbols)

Figure 2

5.has

Afterextinguished

waitingthe

aappliance

fewhas

minutesreached

checkthe

During use the heating element will switch on and off to keep the temperature of the grill plate constant. Consequently the indicator light will also occasionally be illuminated.

USE - Grilling

1. Allow the grill plate to preheat (see 'Preheating').
2. If so required, grease the grill plate with a little oil.
3. Place the food you wish to grill on the grill plate.
4. Grill the food until it is cooked. Turn the food over occasionally whilst it is being grilled to ensure that both sides are evenly cooked.
5. Remove the food from the grill plate and place on a plate. Take care! The food is hot.

Do not use a fork, knife or other sharp object! You can damage the non stick coat with it. THERE WILL NOT GUARANTEE WHEN DAMAGING THE BAKING PLATE BY SHARP OBJECTS!

USE - After use

1. Turn the thermostat dial to the "0" position.
2. Remove the plug from the wall socket.
3. Let the appliance cool down fully.

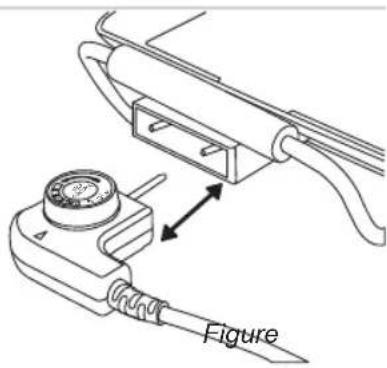

4. Remove the thermostat by holding the appliance's handle with one hand and pulling the thermostat out of the socket with the other hand. Make sure you do not touch the appliance's metal socket; it may still be hot. Always hold the thermostat by the plastic section (See Figure 3.)

The metal pin fitted to the thermostat can be very hot.

Figure

3

CLEANING AND MAINTENANCE

Clean the grill plate after each use.

1. Remove the plug from the wall socket, allow the appliance to cool down completely, and pull the thermostat out of the socket.
2. Clean the grill plate and the base with a damp cloth, if necessary moistened with a couple of drops of washing-up liquid.
3. Dry the grill plate and the base thoroughly.

• Verify that the appliance is not connected to the power supply before you start to clean it.
  Never use corrosive or scouring cleaning agents or sharp objects (such as knives or hard brushes) to clean the appliance.
• Never immerse the socket, thermostat, plug or power cord in water or other liquid.

GUARANTEE TERMS

The importer guarantees the appliance against defects caused by manufacturing and/or material faults for 60 months from the date of purchase, subject to the following conditions.

1. No charges will be made for labour costs or materials during the warranty period. Any repairs carried out during the warranty period do not extend the warranty period.
2. The importer automatically becomes the owner of any faulty parts that he replaces or a faulty appliance (in the event of replacement of the appliance).
3. All claims submitted under warranty must be accompanied by the original bill of sale.
4. Claims under warranty must be submitted to the dealer where the appliance was purchased or to the importer.

5. The warranty is issued solely to the first purchaser and cannot be transferred.

6. The warranty does not cover damage caused by:

a. Accidents, incorrect use, wear and/or neglect.
b. Faulty installation and/or use in a manner contravening the prevailing legal, technical or safety regulations.

c. Connection to a mains voltage other than the voltage specified on the type plate.

d. Unauthorized modifications.

e. Repairs carried out by third parties.

f. Careless transport, i.e. without suitable packaging materials or protection.

1. No claims may be made under this warranty for:

a. Losses incurred during transport.

b. The removal or changing of the appliance's serial number.

1. The guarantee does not cover power cords, lamps or glass parts.

2. No claims can be submitted under this warranty for damage other than the repair or replacement of faulty parts. The importer can never be held responsible for any consequential loss or damage or any other consequences, resulting either directly or indirectly from the appliance supplied by the importer.

3. In case of claims under guarantee you can contact your dealer where the appliance is purchased. Bestron offers you also the possibility to send the appliance directly to our Service Department. Do not send your appliance without consulting us. The package may be refused and any any costs will be for your account. Please contact the Service Department and they will tell you how to pack and send the appliance.
4. This appliance is not suitable for professional use.

SERVICE

If a fault should occur please contact the BESTRON service department:

THE NETHERLANDS:

BESTRON NEDERLAND BV

Bestron Service

Moeskampweg 20

5222 AW 's-Hertogenbosch

Tel: +31 (0) 73 - 623 11 21

Fax: +31 (0) 73 - 621 23 96

Email: [e-mail]

Internet: www.bestron.com

CE DECLARATION OF CONFORMITY

This product conforms to the essential requirements of the following EU safety directives:

• EMC Directive 2004/108/EC
• Low Voltage Directive 2006/95/EC

###

R. Neyman

Quality control

Technical diagram showing a mechanical component with labeled rotary knob and cable connection

Technical line drawing of a mechanical device with a spring and lever assembly (no text or symbols)

3.5 700mm Figura 2

3D rendering of a rectangular flatboard with handles and a curved handle, no text or symbols visible

BESTRON®

ABP602

v 310713-08
