GeForce G210 - Graphic card Colorful - Free user manual and instructions

Product Type	Graphics Card
Brand	Colorful
Model	GeForce G210
Graphics Processor (GPU)	NVIDIA GeForce G210 (GT218)
GPU Clock	589 MHz
Shader Clock	1402 MHz
Video Memory	1 GB GDDR2
Memory Clock	800 MHz (400 MHz DDR)
Memory Interface	64-bit
Memory Bandwidth	6.4 GB/s
Bus Interface	PCI Express 2.0 x16
Display Connectors	1 x DVI, 1 x VGA, 1 x HDMI
Maximum Resolution	2560 x 1600 (DVI) / 1920 x 1200 (VGA)
DirectX Support	DirectX 10.1
OpenGL Support	OpenGL 3.2
Supported Technologies	NVIDIA PureVideo HD, CUDA, PhysX
Power Consumption (TDP)	30W
Recommended PSU	300W
Form Factor	Low Profile (half-height card)
Compatible Operating Systems	Windows 10, 8, 7, Vista, XP
Dimensions (approx.)	168 x 68 x 18 mm
Weight	120g
Included Accessories	Driver CD, user manual, 2 mounting brackets
Care and Cleaning	Clean with a soft, dry cloth. Avoid moisture and abrasive products.
Safety	Disconnect power before handling. Do not open the card casing.
Spare Parts and Repairability	Thermal paste replacement possible if needed. Fan (if present) replaceable.

Frequently Asked Questions - GeForce G210 Colorful

How to install the Colorful GeForce G210 graphics card?

Turn off the computer and unplug the power supply. Insert the card into a free PCI Express x16 slot, secure it with the provided screws, then connect the power cable (if required). Turn on the PC and install the drivers from the included CD or download the latest version from NVIDIA's website.

What power supply is recommended for the GeForce G210?

A 300W or higher power supply is recommended. The card consumes about 30W and does not require an additional PCIe power connector.

Does the GeForce G210 support HDMI with audio?

Yes, the card has an HDMI port and can transmit audio over HDMI. Make sure to install the appropriate NVIDIA audio drivers.

What are the maximum supported screen resolutions?

On DVI, the maximum resolution is 2560 x 1600; on VGA, up to 1920 x 1200; on HDMI, up to 1920 x 1080.

Is the card compatible with DirectX 11?

No, the GeForce G210 only supports DirectX 10.1. It is not compatible with DirectX 11 or later.

Can I use the card in a mini-ITX case?

Yes, the card is low profile (half-height) and fits compact cases. Appropriate mounting brackets are included.

How to update the drivers for the GeForce G210?

Download the drivers from NVIDIA's official website (GeForce Game Ready Driver or Studio Driver) or use the GeForce Experience tool for automatic updates.

Does the card support NVIDIA PureVideo HD technology?

Yes, it includes NVIDIA PureVideo HD technology for smooth HD video playback and reduced CPU load.

Which operating systems are compatible?

The card is compatible with Windows 10, 8, 7, Vista, and XP. Drivers for Linux and other OSes are also available from NVIDIA.

What to do if the screen remains black after installation?

Check that the card is properly inserted, the monitor is connected to the correct port, and the power supply is adequate. Try booting in Safe Mode to reinstall the drivers.

USER MANUAL GeForce G210 Colorful

Colorful GFIG2104552MDDRR M25 Spsec

Model Name:

GFG2045613MDDB2N15 25

Overview:

Chip: G0FFBceG210( G218 (G210

CoreClock: 5800HZMH75

Shader Clock: 1401MHz: MHz

MemoryClock: 800MHZClddH20

Memory Bandwidth: 64BITBnDwidth: 64

Memory Module: GDDR2MB1B6AGDR2M12M

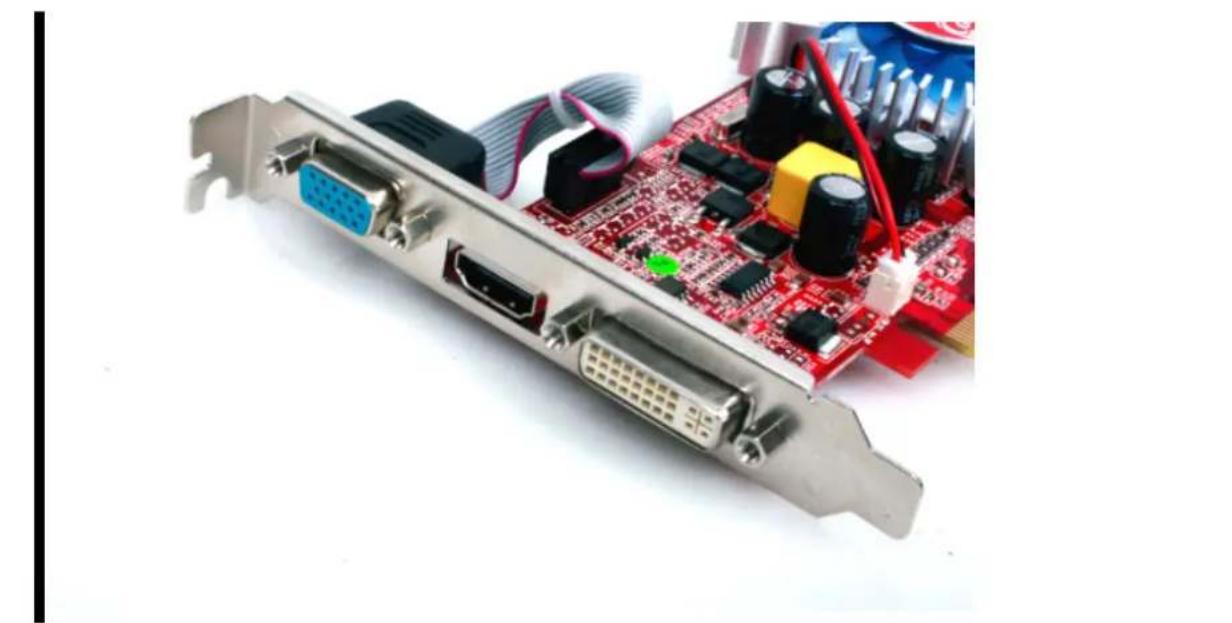

Interface: DVI+VGA+NDMI DVI HDMI

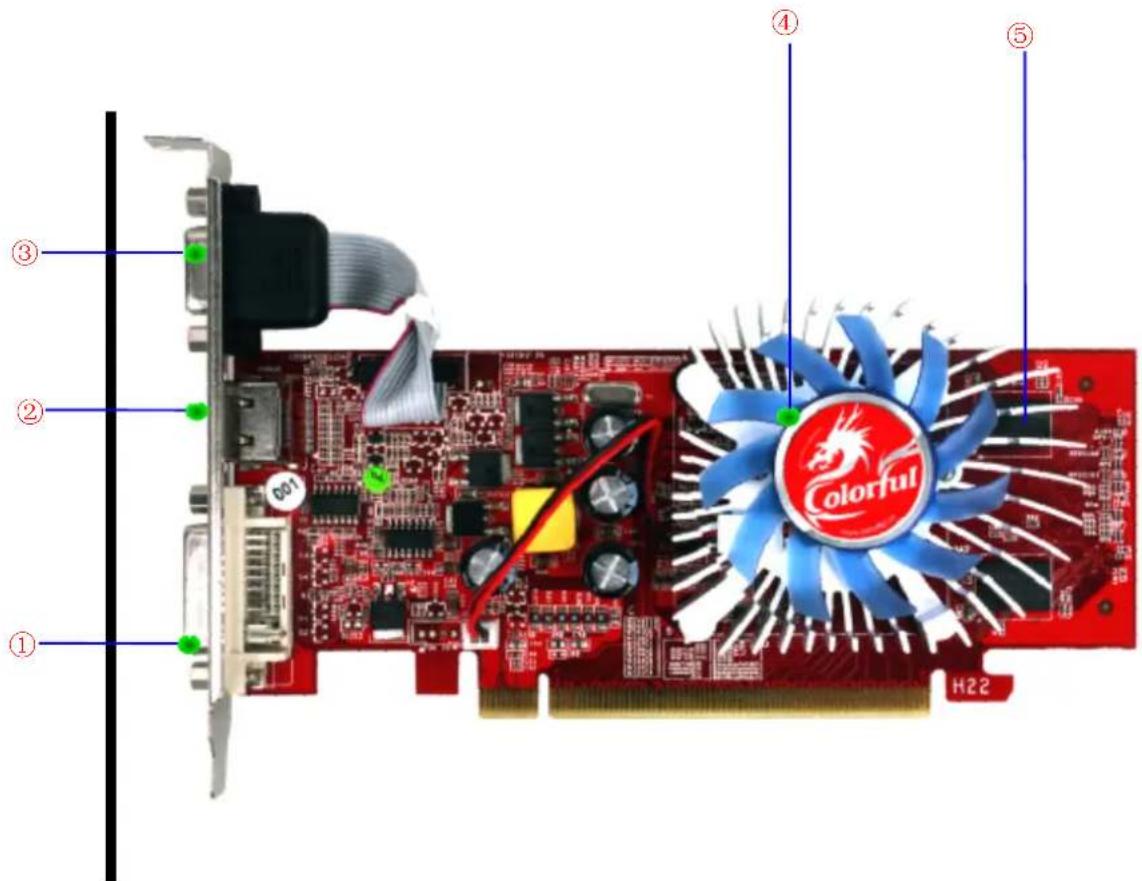

Features:

1. NVWADhev generatigantechnique design, the fichlndfachstgfbor personarecomputer. Lowercomp power consumptionconduoweiitotihmalm and
2. LowLBprofile dSigfilewithfd memory onbmandry and ppoedtdivaHDMI outputpft, i#put p the best chnice fohhFFPCfH@mini-casind-case
3. Supp#oNVIDIA® PurPVidwHbH Technolog thngdellvers dp#e#ednted p#pur#e#rtyd smooth video, accuratevidurccn#precisc#g#scaling furapoxlisponderideo. vidnd.
4. FullSupportsB6p52.0, that IsPtoTethan that othertgeneratlonRcIteExpressExpress PCI
5. NVTWADNTDA*Tachholk#A supported. supported.
6. The Discrete Programming Variable Vehiculars are the best way to obtain the maximum value of a variable. In this example, we want to find the maximum value of x . We can do this by finding the maximum value of x and dividing by 100.

1. DuaabHikkDy1 1

2. BDDM pport

3.VGAPpprt4.

1. Efficienfahan

5.25faGDDRR2mmnoyy

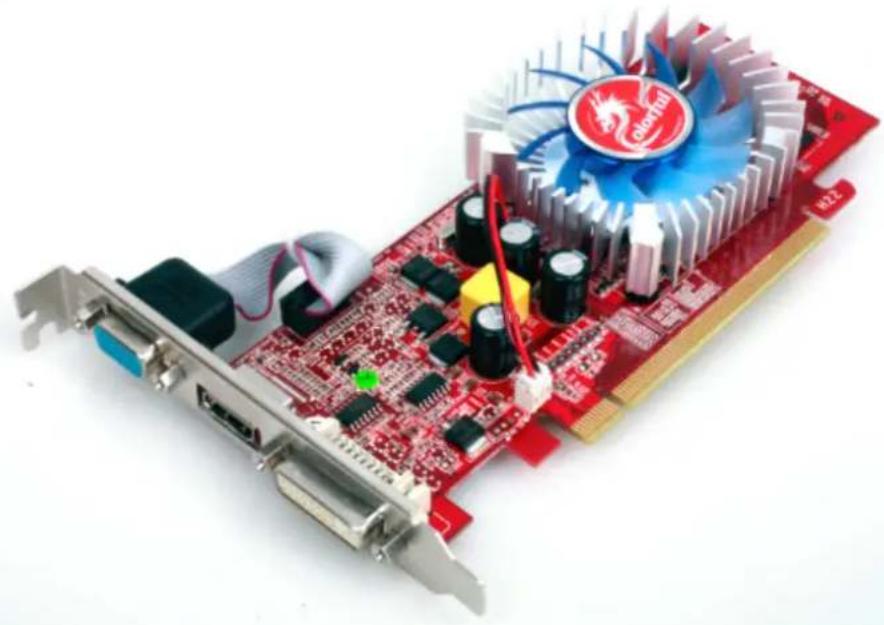

Angle View

Parts of obthbggpplics:

Provide decode

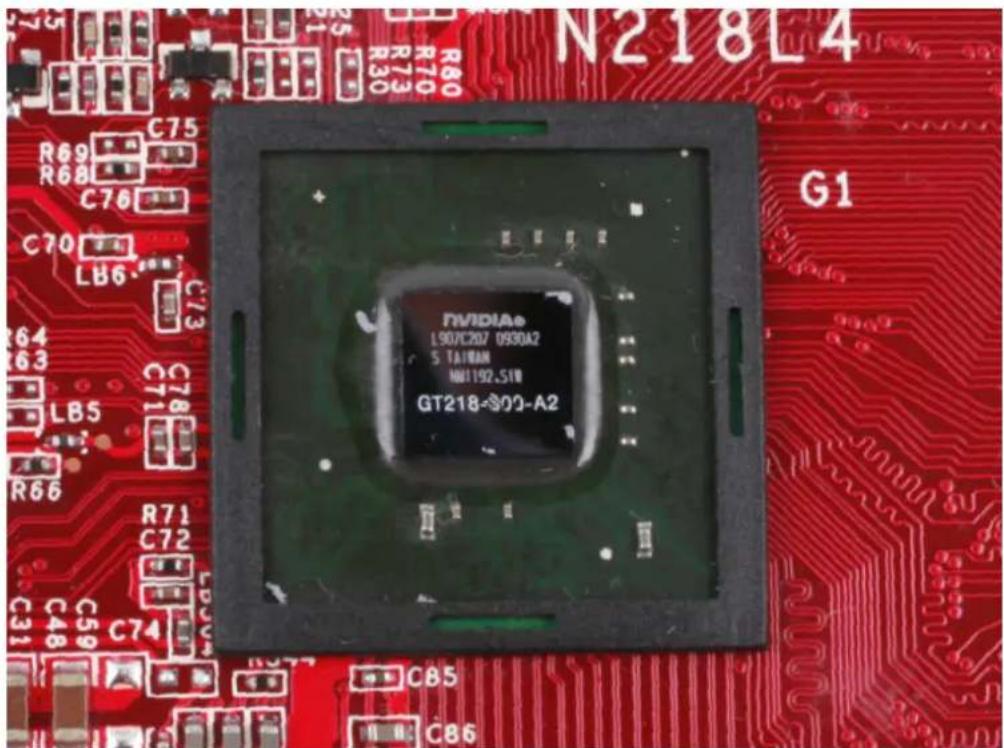

GPU Code is GT218-300-A2

With

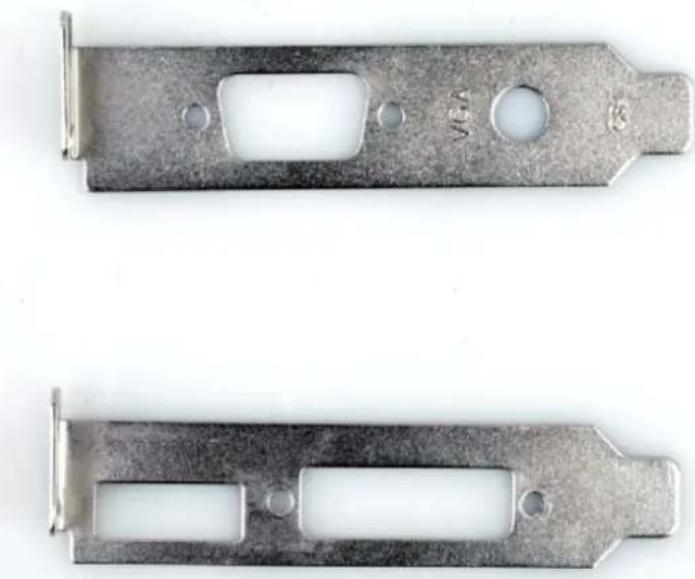

2 pieces

of brackets

in the accessories,

The Pecksgrip and the card

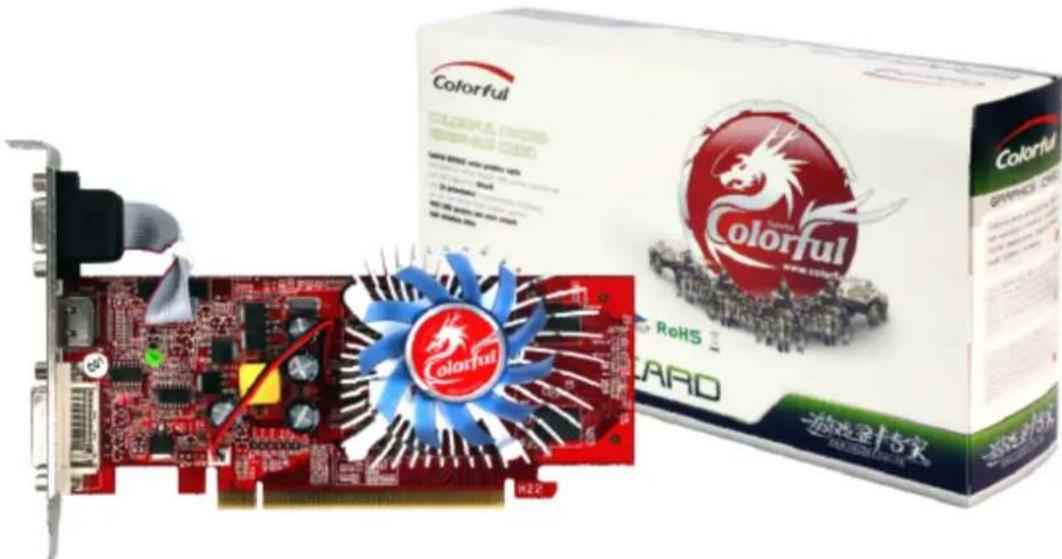

Accessories: EDbierCDUus's Gulder,2'2bharakuts
