USER MANUAL MP211 TEAC

Headphones page 22-23

DVB-T / Charger page 24-25

Specifications page 26-31

MOBILITY & CONNECTIVITY

track 4 >3:42

Future_trends

#

NEW

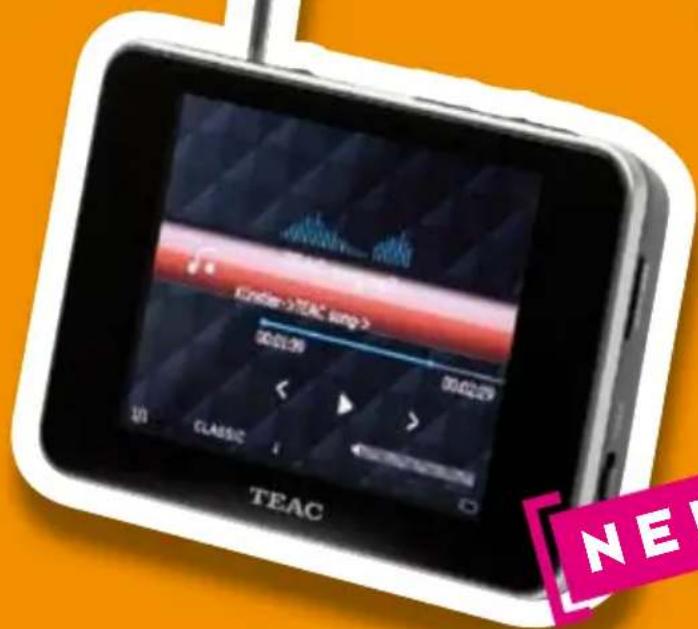

MP-4500

MULTIMEDIA PLAYER AND DVB-T RECEIVER

Supports MP3, WMA, MTV, JPG, BMP, FLAC
FM-tuner and recording
- Picture browsing and high-level digital recording
Clock, Calendar, Alarm
Supports Micro SD card (SDHC)

ORGANIZE YOUR MUSIC

track 4 >3:42

Fascinating_technic

NEW

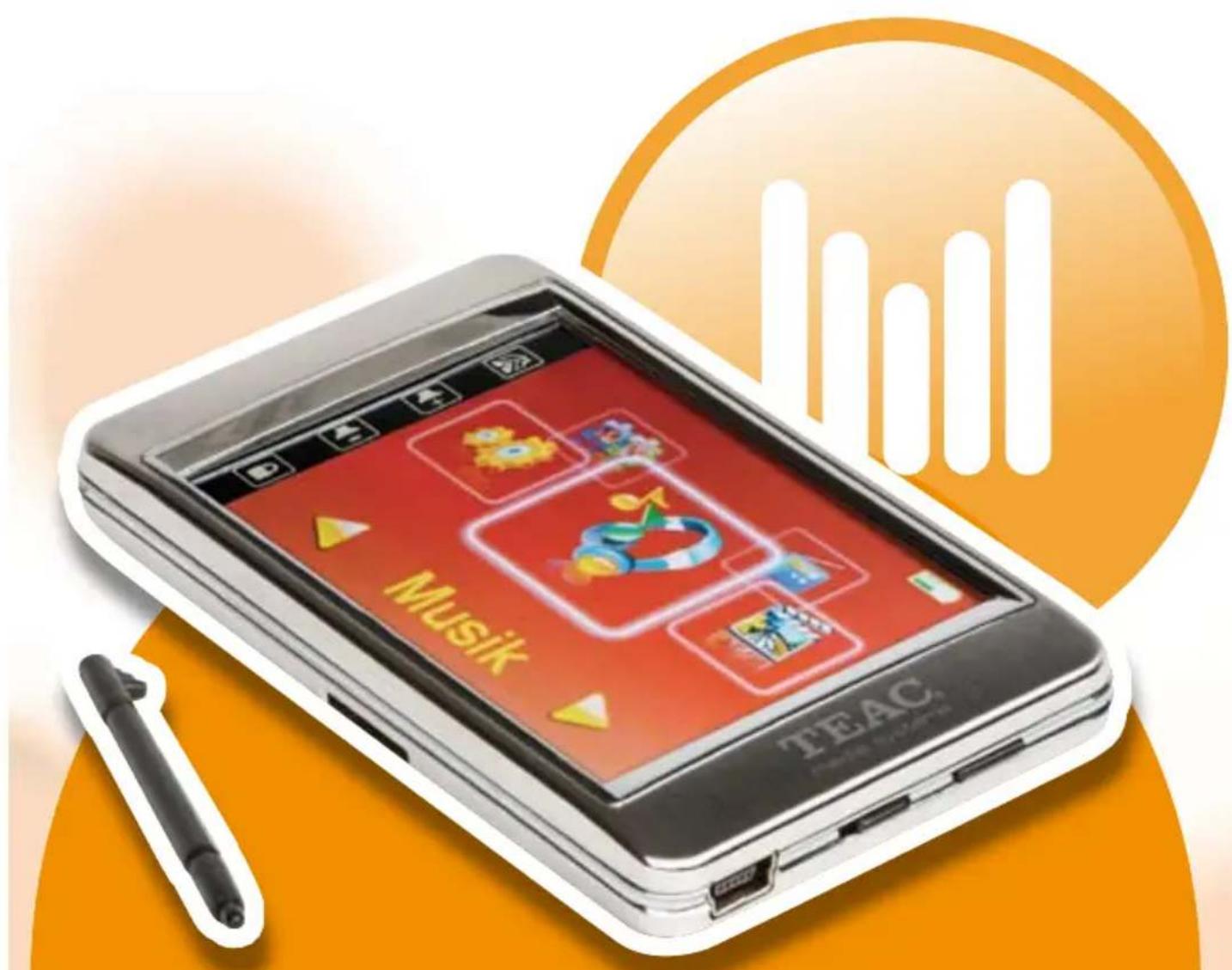

MP-580

MULTIMEDIA PLAYER

Supports MP3, WMA, JPG, BMP, FLAC
- 3" TFT Touch screen
FM-tuner and -recording
Supports Micro SD card (SDHC)

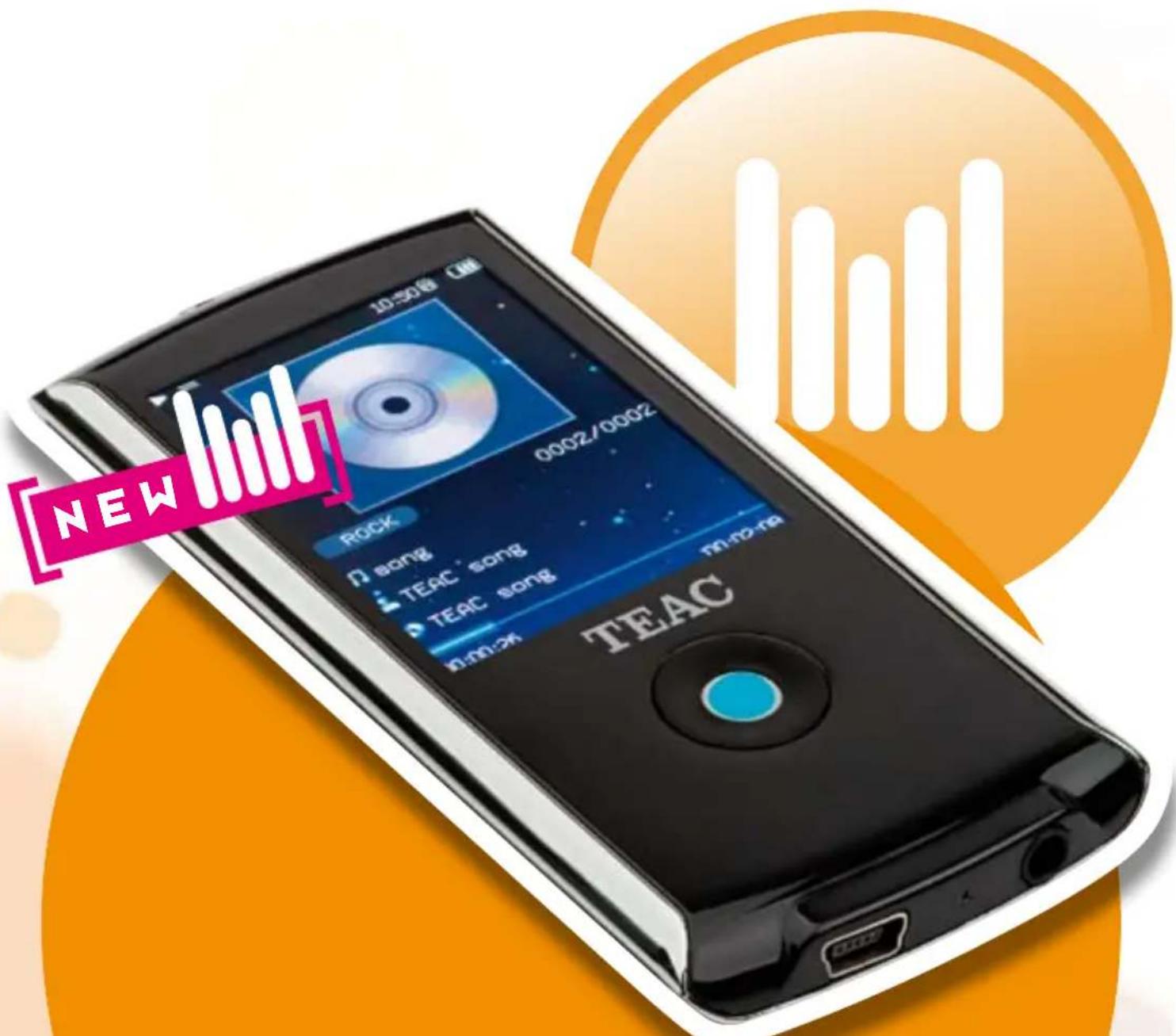

MP-540

MULTIMEDIA PLAYER

Supports MP3, WMA, DRM9, AVI
- 2.8" Touch screen
Built-in speaker
FM-tuner and -recording
Supports Micro SD card (SDHC)

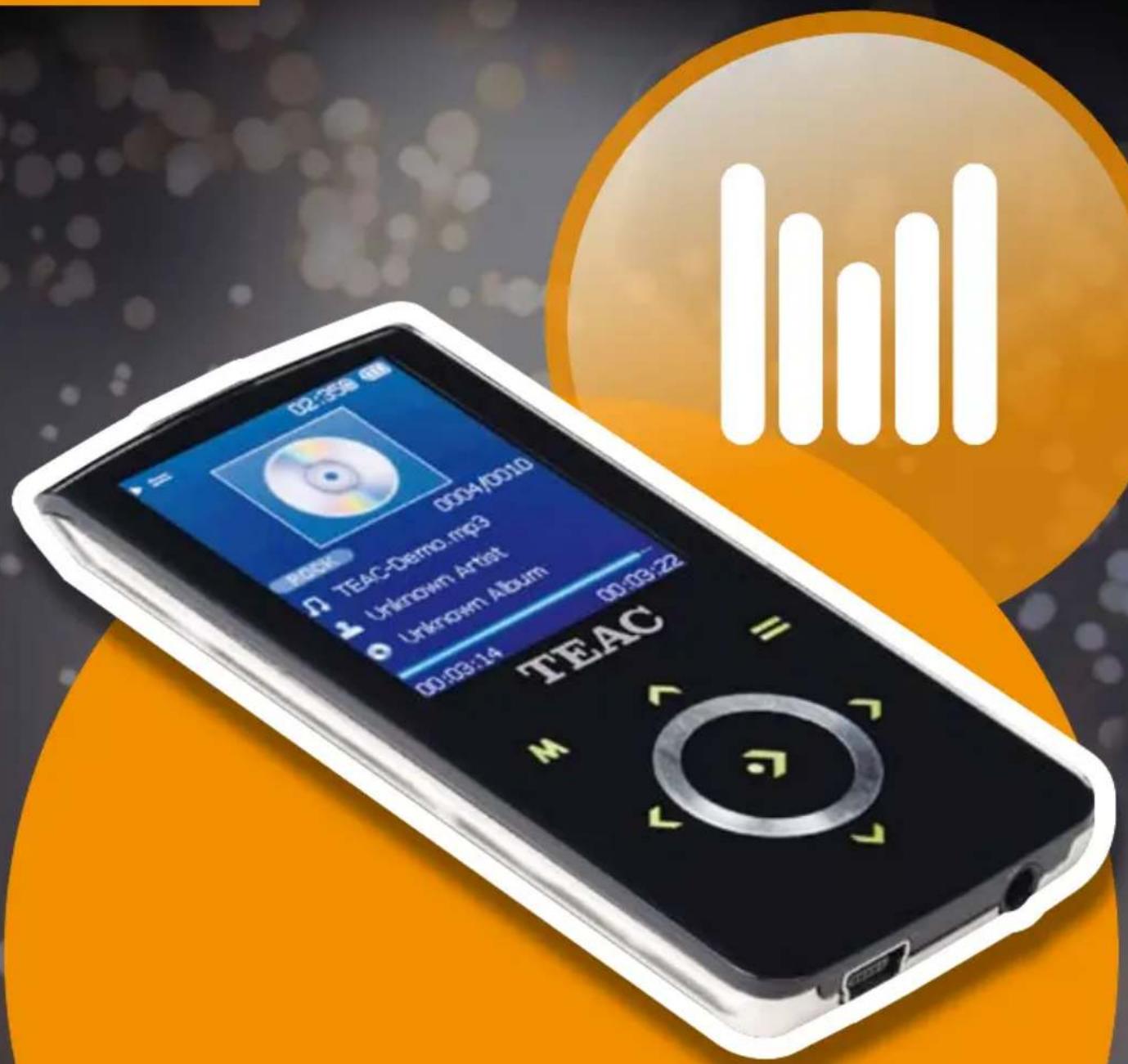

MP-490

MULTIMEDIA PLAYER

Supports MP3, WMA, DRM9, JPG, BMP, OGG, AVI
- 2.2" TFT Display with scroll ball
40 Stations Memory
FM-tuner and recording
- Carry case included

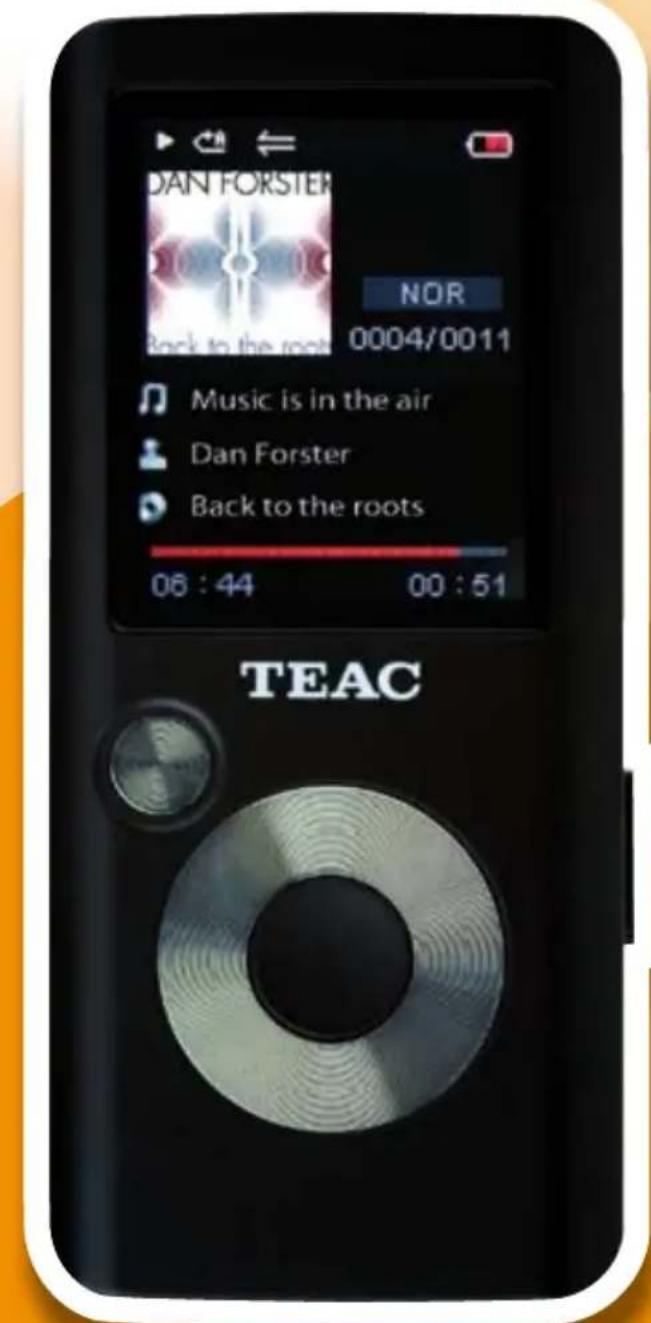

MP-470

MULTIMEDIA PLAYER

Supports MP3 WMA. OGG, AVI
- Touch Buttons
FM Tuner and 20 Stations Memory
- Lyrics Support

MP-299

MULTIMEDIA PLAYER

Supports MP3, WMA, MTV, JPG, BMP
- 1,8" Display
FM-tuner and -recording (WAV)
30 stations memory
- Picture browsing
High-level digital voice recording

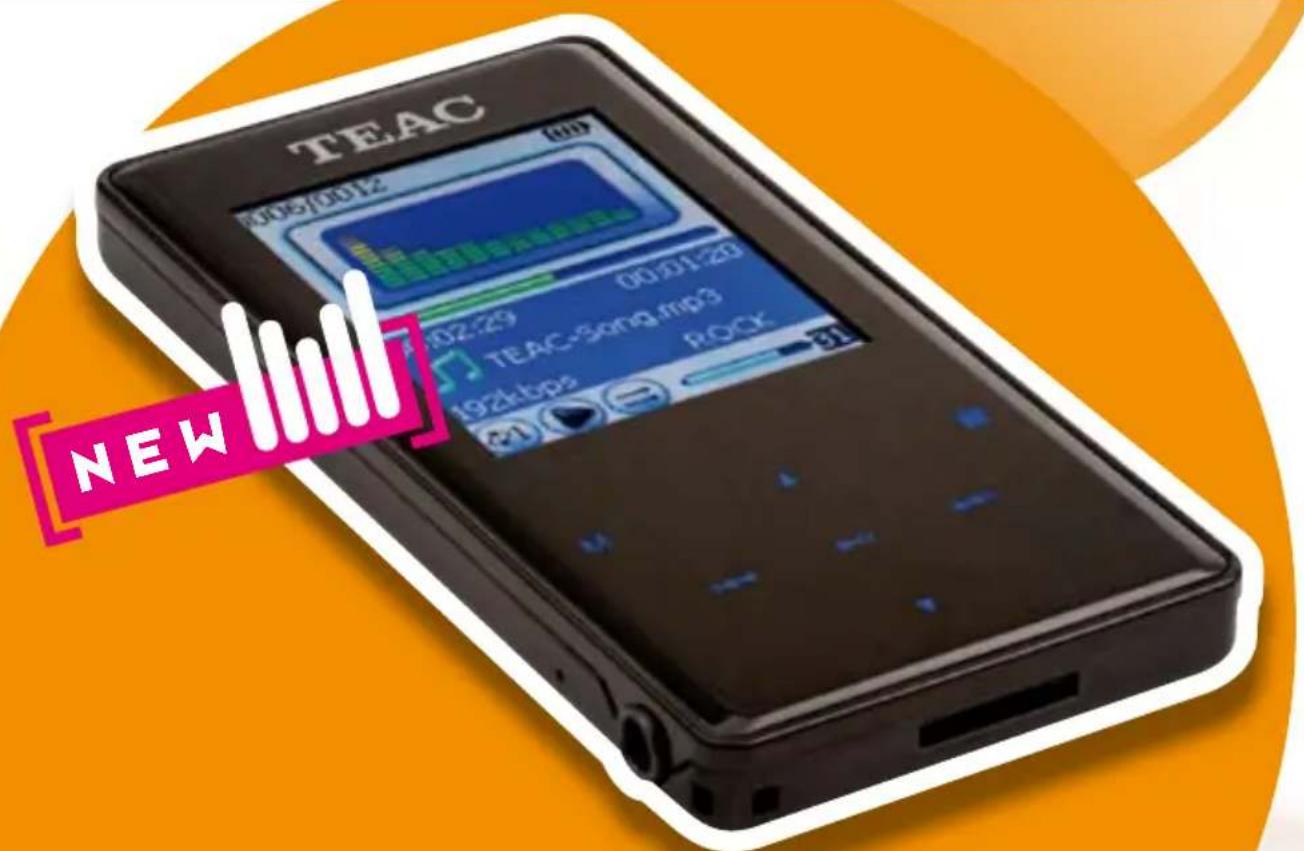

NEW MEDIAEXPERIENCE

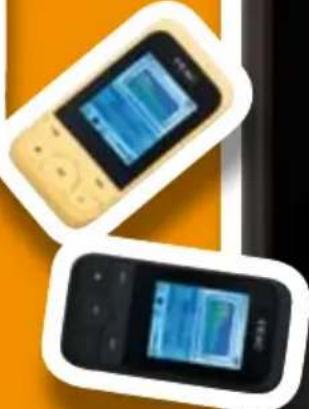

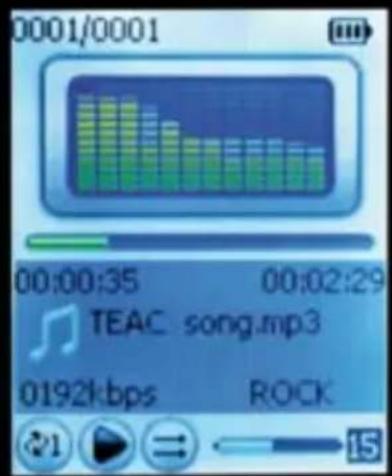

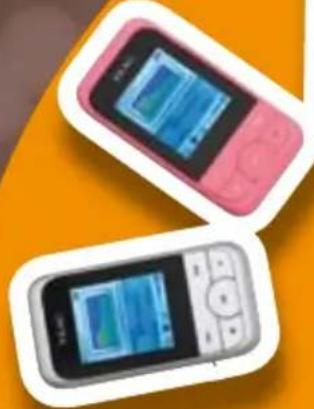

MP-290

MULTIMEDIA PLAYER

Supports MP3, WMA, DRM9, JPG, AVI
- 1,8" CSTN Display
FM-tuner and -recording
- Picture browsing an high-level digital recording
Supports Micro SD card (SDHC)

NEW

TEAC

MP-280

MULTIMEDIA PLAYER

a aae

Supports MP3, WMA, DRM9, JPG, AVI, FLAC
1,8" CSTN Display
FM-tuner
- Picture browsing an high-level digital recording
Rubber coating

NEW

m - 1 0 ;

1 + u1 - 1 = ( 1 + u) u1 < 1 = u

12x + 3 = 12x + 4

当 m = 32 且 m 1 时方程有两个实数根;

m = 311 ;

· ( - ) = 0

当 m = 32 且 m 1 时方程有两个实数根;

1 + u1 - 1 = ( 1 + u) u1 < 1 = u

当 m = 32 且 m 1 时方程有两个实数根;

m - 1 0 ;

m - 1 0 ;

m - 1 0 ;

· ( - ) = 0

· ( - ) = 0

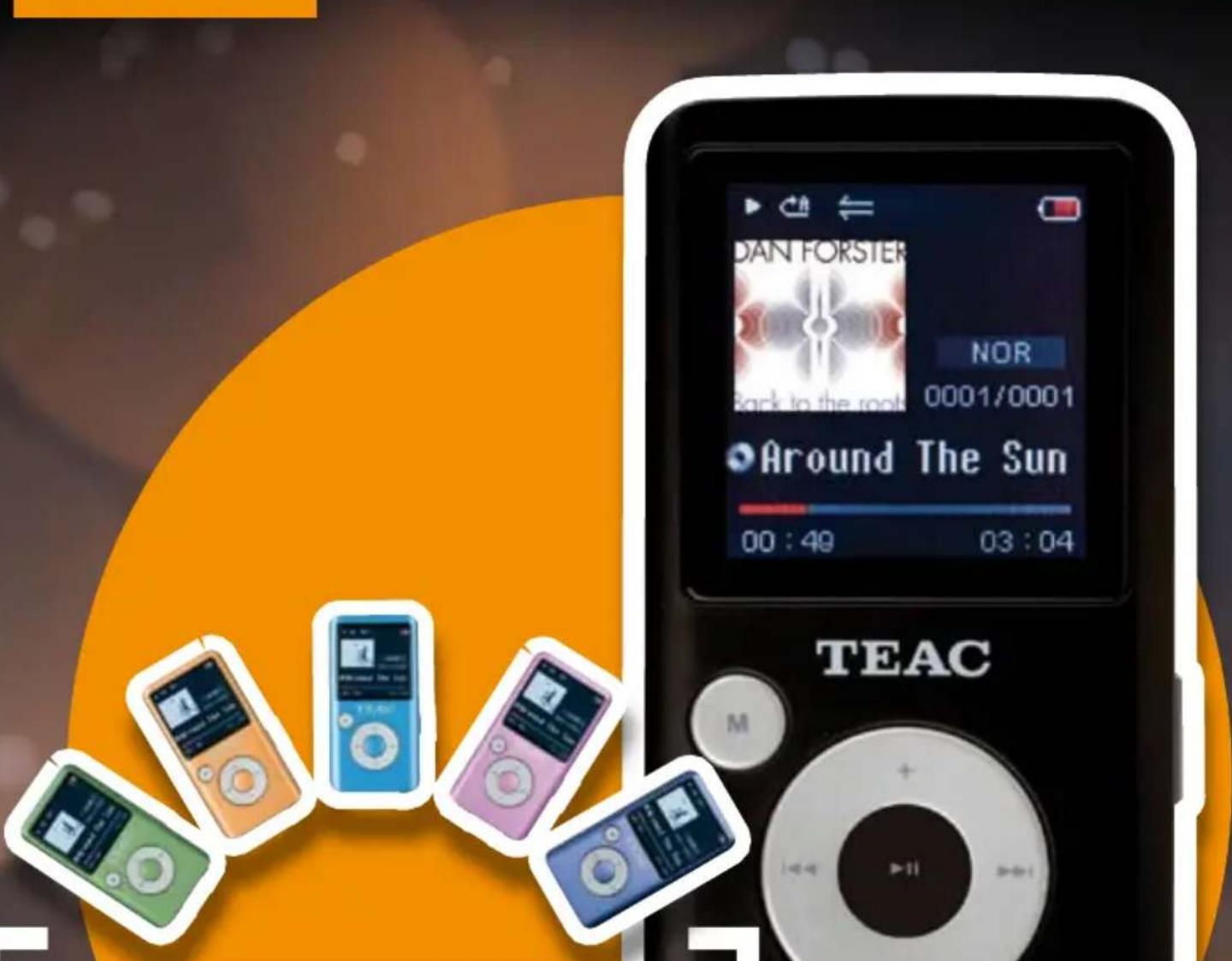

MP-275

MULTIMEDIA PLAYER

a aae

Supports MP3, WMA, DRM9, JPG, FLAC
1,8" CSTN Display
High level digital voice recording
- Picture browsing

Supports MP3, WMA, MTV, JPG, BMP
1.5" Display
FM-tuner and -recording (WAV)
30 stations memory
- Picture browsing
High-level digital voice recording

MP-211

MULTIMEDIA PLAYER

MP-113

FLASH MP3 PLAYER

FEATURES

Supports MP3, WMA
- LCD screen with blue backlight
Digital voice recording
- USB 2.0 - multilingual OSD

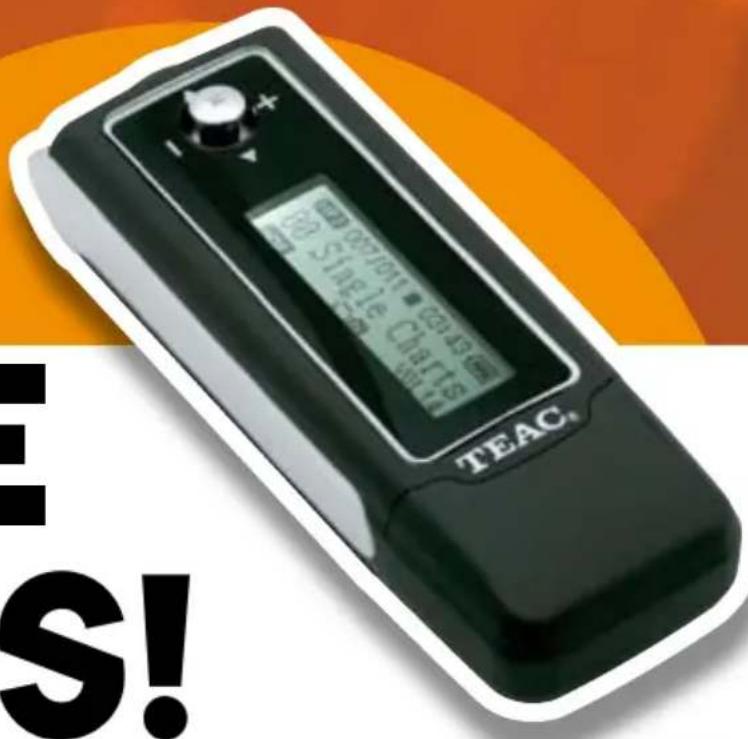

MP-14

FLASH MP3 PLAYER

LITTLE GIANTS!

FEATURES

Supports MP3, WMA
- LCD screen with backlight
Digital voice recording
- USB 2.0 - multilingual OSD

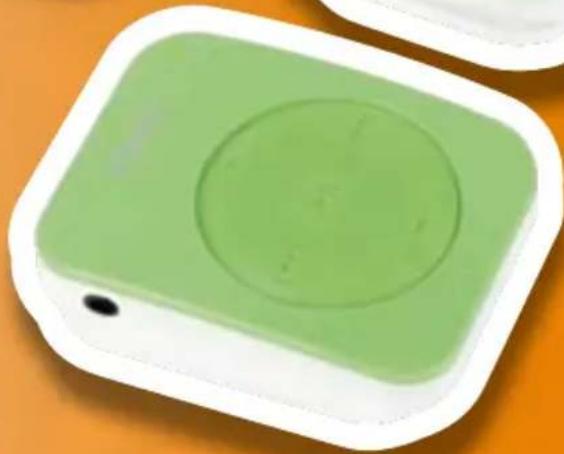

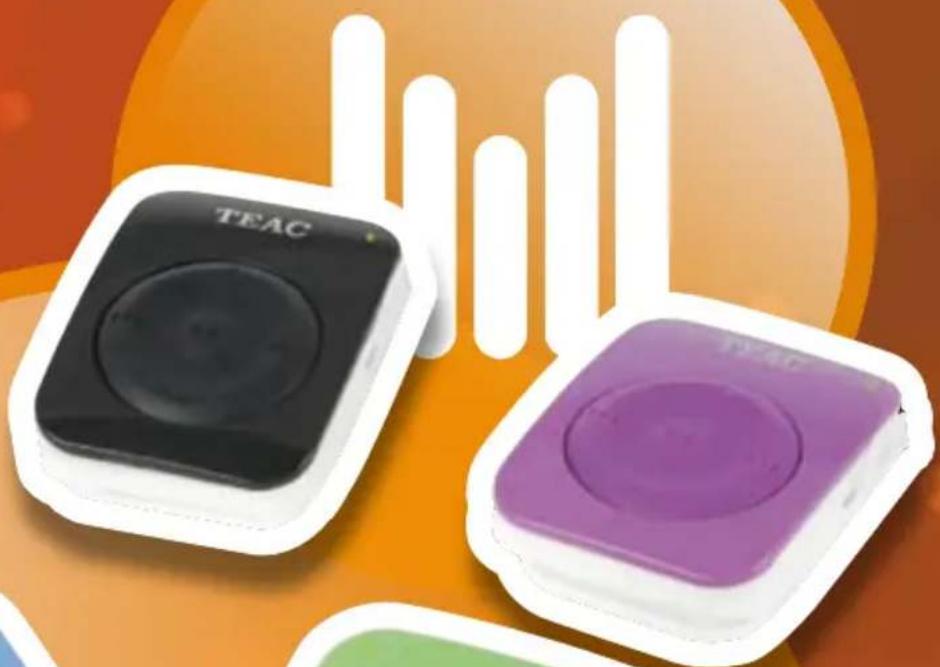

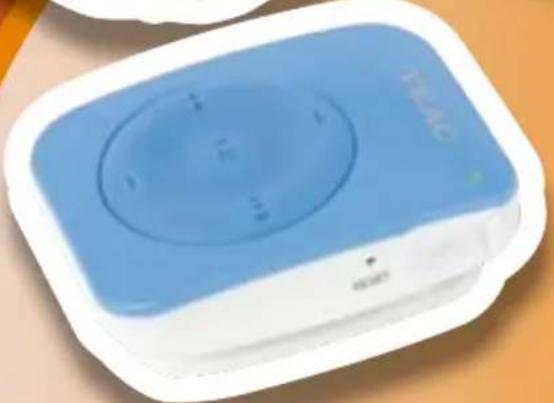

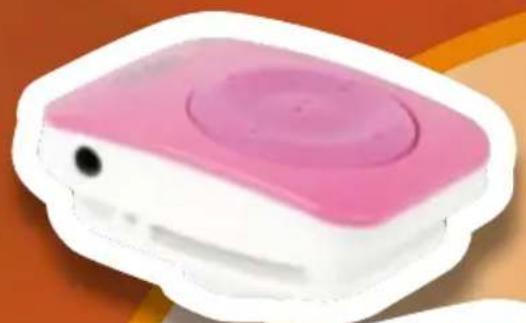

MP-60

CLIP DESIGN MP3 PLAYER

Supports MP3, WMA
Light indicator
USB 2.0 - high speed
Built-in Shuffle function

TIME TO PARTY

track_4>3:42

Sound_sensations

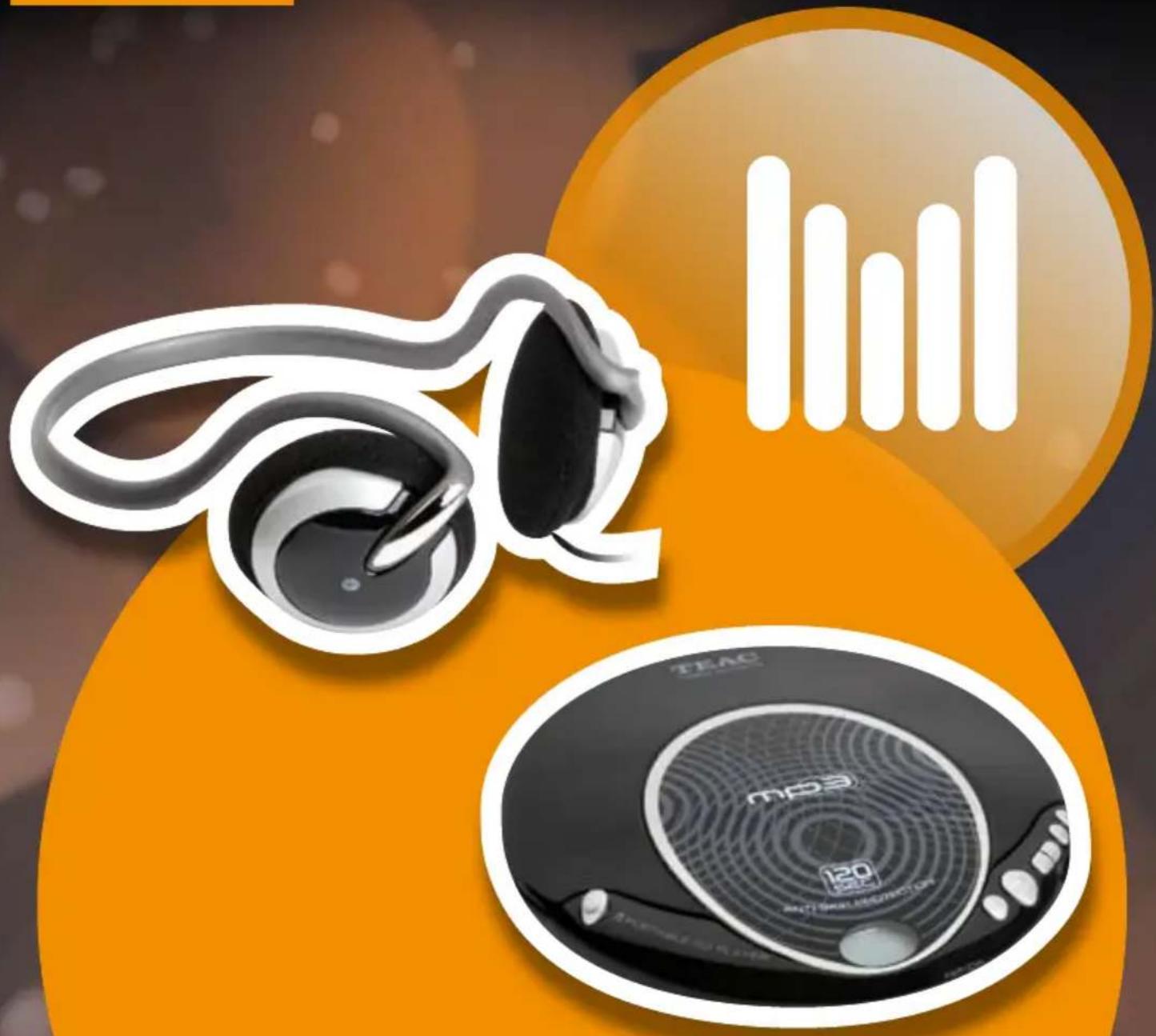

MP-20

CD/MP3-PLAYER

NEW

Supports MP3
40 sec CD, 120 MP3 anti-skip protection
20 program track memory
LCD Display
- LDynamic Bass Boost System (DBBS)

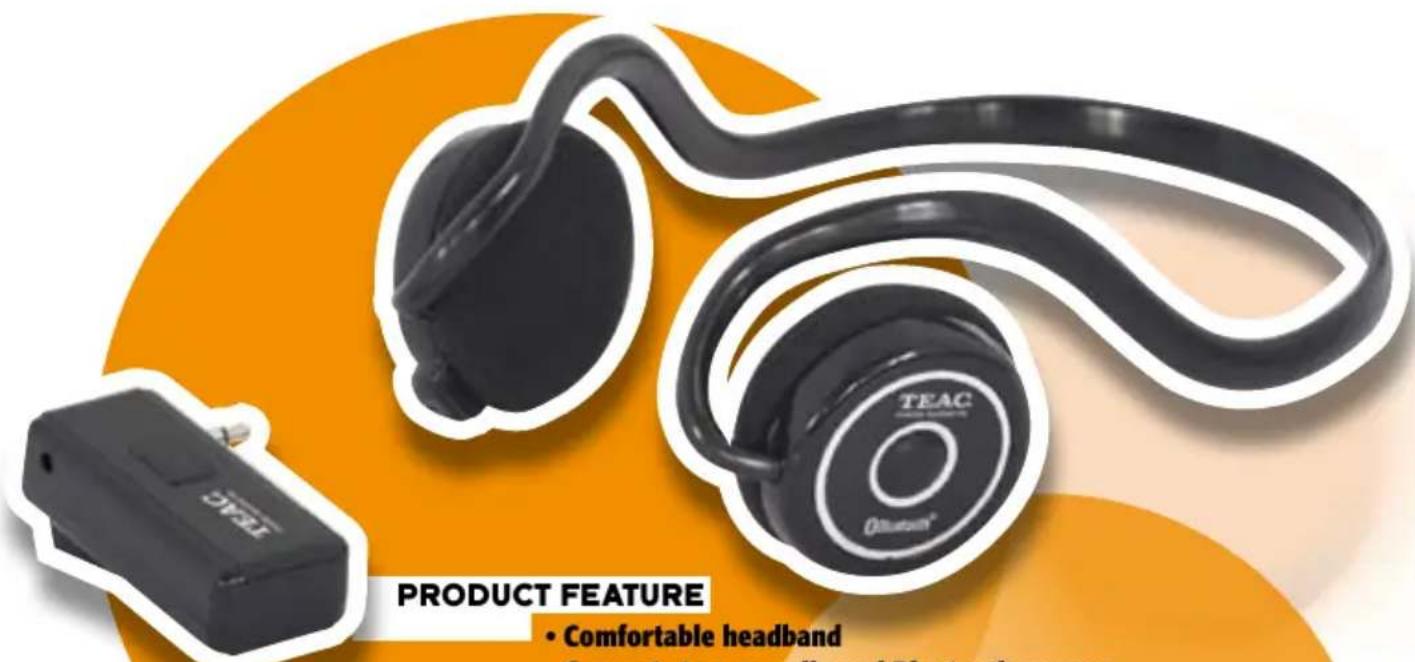

The New Listening Experience.

-Comfortable headband
- Connects to any audio and Bluetooth sources
- Up to 15 metres cable free operation
- Call notification - accept calls directly via headset
- Echo and noise suppression
Including dongle

HP-8BT

BLUETOOTH STEREO HEADSET

MP-4HP

IN-EARPLUGS

PRODUCT FEATURE

Frequency range: 18 - 30,000 Hz
- 3.5 ~mm L-shaped mini phono plug
- Including ear buds in 3 sizes

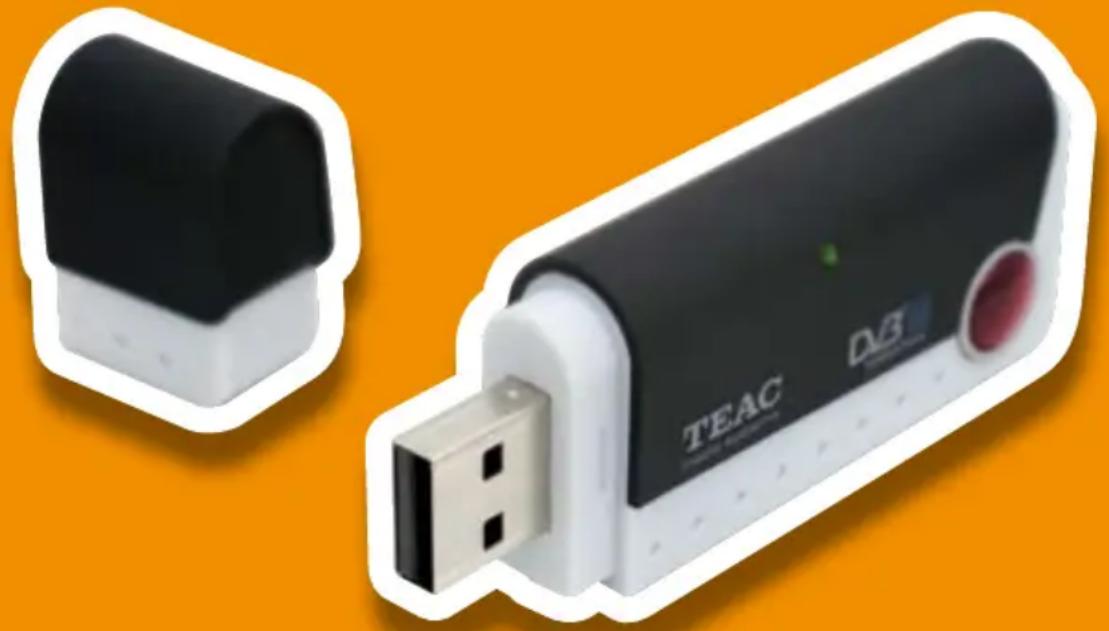

DVB-T101

COMPACT TV RECEIVER

• Digital reception of terrestrial TV channels
• Mobile reception of TV in all DVB-T-ranges
  Electronic program-guide
• Channel auto scan
• RGB video output

• Car charger
• Travel charger

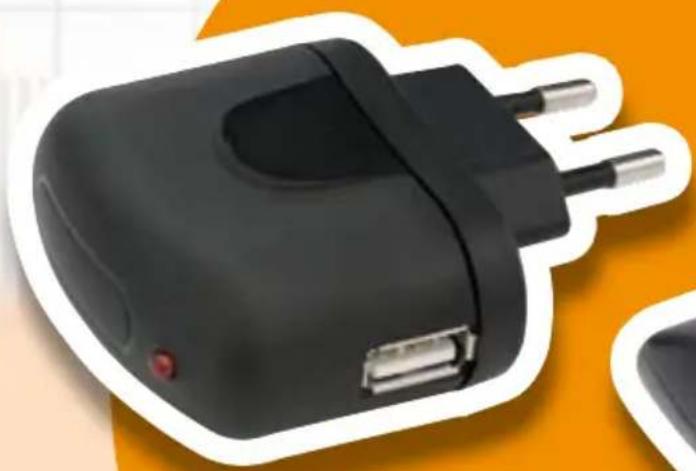

MP-AC102

CAR CHARGER / TRAVEL CHARGER

MP3-PLAYER

Specifications

Characteristic	MP-4500 2 GB / 4 GB / 8 GB Multimedia Player DVB-T reciever	MP-580 2 GB / 4 GB / 8 GB / 16 GB Multimedia Player MuFin Musicfinder	MP-540 1GB / 2 GB / 4 GB / 8 GB Multimedia Player Built-in speaker Supports MP4-Movie	MP-490 2 GB / 4 GB / 8 GB Multimedia Player MuFin Musicfinder
Interface	USB 2.0	USB 2.0	USB 2.0	USB 2.0
Supports
MP3	●	●	●	●
WMA	●	●	●	●
DRM			DRM9	DRM9
MTV	●
JPG	●	●		●
BMP	●	●		●
OGG				●
AVI			●	●
WMV	●
E-Book TXT	●		●	●
FLAC	●	●
Firmware upgrade	●	●	●	●
Cardslot	Micro SD (SDHC)	Micro SD (SDHC)	Micro SD (SDHC)
Display	3,5" TFT	3,0" TFT	2,8" Touchscreen	2,2" TFT
FM-tuner	●	●	●	●
FM-tuner recording	●	●	●	●
Stations memory	30	30	20	40
High-level digital voice recording	●	●	●	●
Folder navigation	●	●		●
Picture browsing	●	●	●	●
User equalizer	8 modes	8 modes	8 modes	7 modes
ID3 tag	●	●	●	●
Lyrics support	●	●	●	●
Built-in rechargeable battery	Lithium-ion	Lithium-ion	Lithium-ion	Lithium-polymer
Playing time MP3/Video	20 hrs (5 hrs video)	20 hrs (6 hrs video)	10 hrs	10 hrs
Dimensions (W x H x D mm)	104 x 70,5 x 18	99 x 57 x 13	92 x 53 x 11	45 x 95 x 10
Weight	134 g	76 g	84,2 g	52 g
Includes
User's manual	●	●	●	●
USB cable	●	●	●	●
Earphones	●	●	●	●
Carry case				●
Neck strap			●
Installation CD	●	●	●	●
Converting Software		●		●
MP3-PLAYER Specifications
Characteristic	MP-470 2 GB / 4 GB / 8 GB Multimedia Player MuFin Musicfinder	MP-299 E-Book Multimedia Player	MP-290 2 GB / 4 GB / 8 GB Multimedia Player MuFin Musicfinder	MP-280 2 GB / 4 GB / 8 GB Multimedia Player MuFin Musicfinder
Interface	USB 2.0	USB 2.0	USB 2.0	USB 2.0
Supports
MP3	●	●	●	●
WMA	●	●	●	●
DRM			DRM9	DRM9
MTV		●
JPG		●	●	●
BMP		●
OGG	●
AVI	●		●	●
WMV
E-Book TXT	●	●	●	●
FLAC				●
Firmware upgrade	●	●	●	●
Cardslot			Micro SD (SDHC)
Display	2,0" TFT	1,8" TFT	1,8" CSTN	1,8" CSTN
FM-tuner	●	●	●	●
FM-tuner recording		●	●
Stations memory	20	30	30	20
High-level digital voice recording		●	●	●
Folder navigation			●	●
Picture browsing	●	●	●	●
User equalizer	7 modes	6 modes	6 modes	7 modes
ID3 tag	●	●	●
Lyrics support	●	●	●	●
Built-in rechargeable battery	Lithium-polymer	●	Lithium-polymer	Lithium-polymer
Playing time MP3/Video	11 hrs	10 hrs	10 hrs (4 hrs video)	16 hrs (5,5 hrs video)
Dimensions (W x H x D mm)	42 x 95 x 9	94 x 42 x 10	83,3 x 41 x 8,5	84 x 44 x 8,5
Weight	57 g	37 g	33,8 g	31,6 g
Includes
User's manual	●	●	●	●
USB cable	●	●	●	●
Earphones	●	●	●	●
Carry case
Neck strap
Installation CD	●	●	●	●
Converting Software			●	●

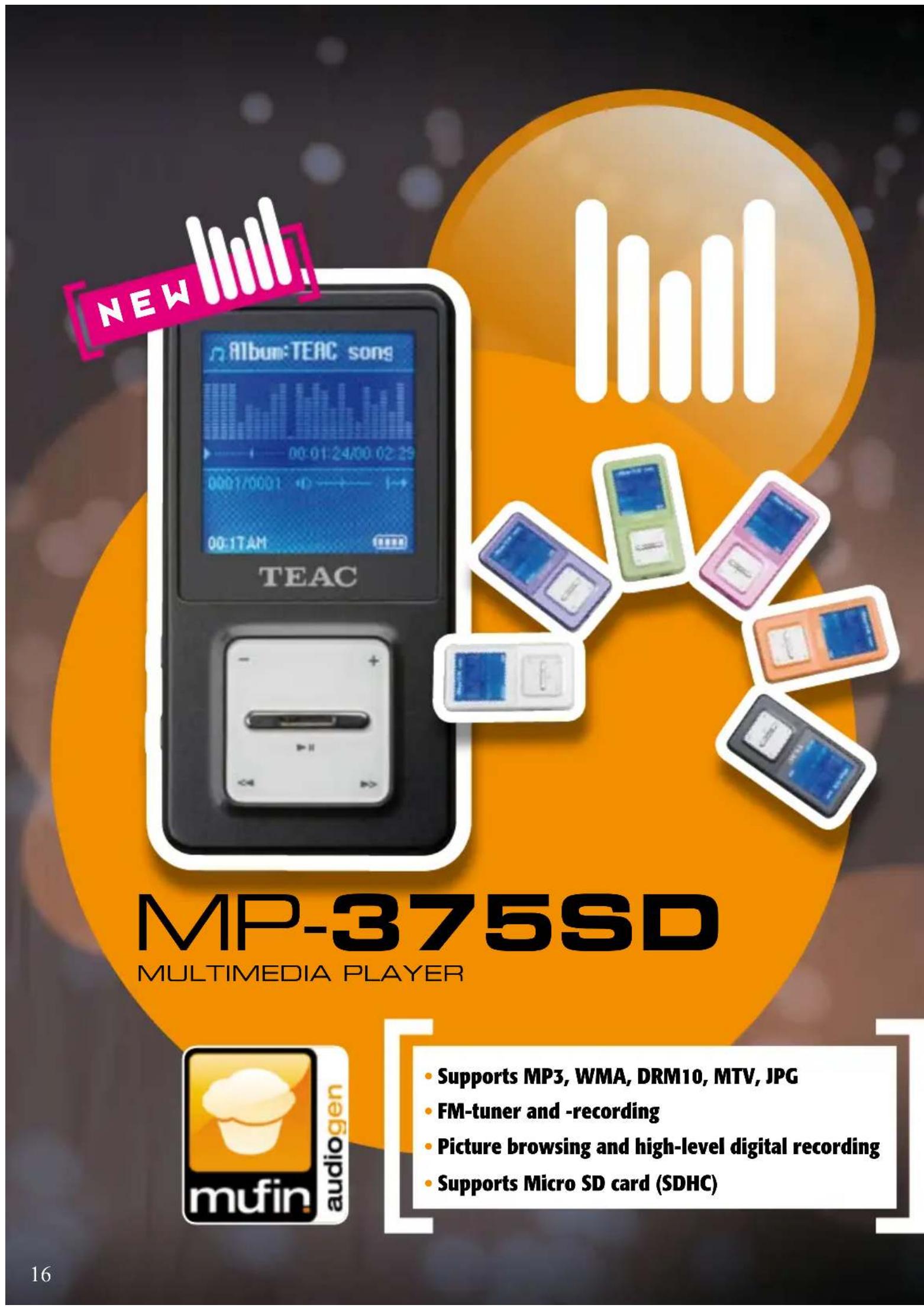

Characteristic	MP-275 2 GB / 4 GB / 8 GB Multimedia Player MuFin Musicfinder	MP-375SD 2 GB / 4 GB / 8 GB Multimedia Player MuFin Musicfinder	MP-211 E-Book Multimedia Player	MP-114 1 GB / 2 GB Multimedia Player Multilanguage OSD
Interface	USB 2.0	USB 2.0	USB 2.0	USB 2.0
Supports
MP3	●	●	●	●
WMA	●	●	●	●
DRM	DRM9	DRM10
MTV		●	●
JPG	●	●	●
BMP			●
OGG
AVI
WMV
E-Book TXT	●	●	●
FLAC	●
Firmware upgrade	●	●	●	●
Cardslot		Micro SD (SDHC)
Display	1,8" CSTN	1,5" CSTN	1,5"	LCD / backlight
FM-tuner		●	●	available
FM-tuner recording		●	●	available
Stations memory		20	30
High-level digital voice recording	●	●	●	●
Folder navigation	●	●
Picture browsing	●	●	●
User equalizer	7 modes	7 modes	6 modes	6 modes
ID3 tag		●	●	●
Lyrics support	●	●	●	●
Built-in rechargeable battery	Lithium-polymer	Lithium-ion	●	1 x AAA battery
Playing time MP3/Video	16	10 hrs (3 hrs video)	10 hrs	11 hrs
Dimensions (W x H x D mm)	84 x 44 x 8,5	70 x 36 x 8,7	79 x 40 x 10	84 x 29 x 19
Weight	31,6 g	23,4 g	30 g	26 g
Includes
User's manual	●	●	●
USB cable	●	●	●
Earphones	●	●	●
Carry case
Neck strap
Installation CD	●	●	●
Converting Software	●	●

MP3-PLAYER

Specifications

Characteristic	MP-113 1 GB / 2 GB Multimedia Player Multilanguage OSD	MP-60 2 GB Clip design MP3 Player Built-in Shuffle function	MP-20 CD/MP3 Player 40 sec CD, 120 sec MP3 anti-skip protection; Dynamic Bass Boost system LCD display
Interface	USB 2.0	USB 2.0 high speed
Supports
MP3	●	●	●
WMA	●	●
DRM
MTV
JPG
BMP
OGG
AVI
WMV
E-Book TXT
FLAC
Firmware upgrade	●
Cardslot
Display	LCD / blue backlight	light indicator	●
FM-tuner	available
FM-tuner recording	available
Stations memory
High-level digital voice recording	●
Folder navigation
Picture browsing
User equalizer	5 modes
ID3 tag	●
Lyrics support	●
Built-in rechargeable battery	1 x AAA battery	Lithium-polymer	2 x AA battery (not incl.)
Playing time MP3/Video	10 hrs	10 hrs	2 hrs (with 2 x AA battery)
Dimensions (W x H x D mm)	86 x 50 x 9	45 x 30 x 17	129 x 27,9 x 150
Weight	60 g	25 g	192 g
Includes
User's manual		●	●
USB cable
Earphones		●	●
Carry case
Neck strap
Installation CD
Converting Software

MP3-SPEAKER

Specifications

MP3-HEADSETS

	MP-5XS	MP-2XS
Characteristics	2.1 Channel Subwoofer	2.0 Digital mobilepower speaker
	stereo sound system	Aluminium case with black leather
Built-in amplifier	3 channels	●
Infrared remote control	●
Control buttons on unit	●
MP3 / MP4 audio input / line-in connection	●
USB charging port	●
Connection mobile operation	12 V car
Connection	Cable	Cable
Frequency range	40 - 20.000 Hz	100 - 12.500 Hz
Output power:
Subwoofer	30 W
Speaker	2 x 10 W	2 x 1,2 W
Voltage	230 V AC - 50 W; 12 DC	USB 5 V or 1 x AA battery
Dimensions (W x H x D mm)	400 x 160 x 246	99 x 37 x 37
System requirements	Analog stereo source with 3,5 mm stereo jack	3,5 mm stereo jack

Specifications

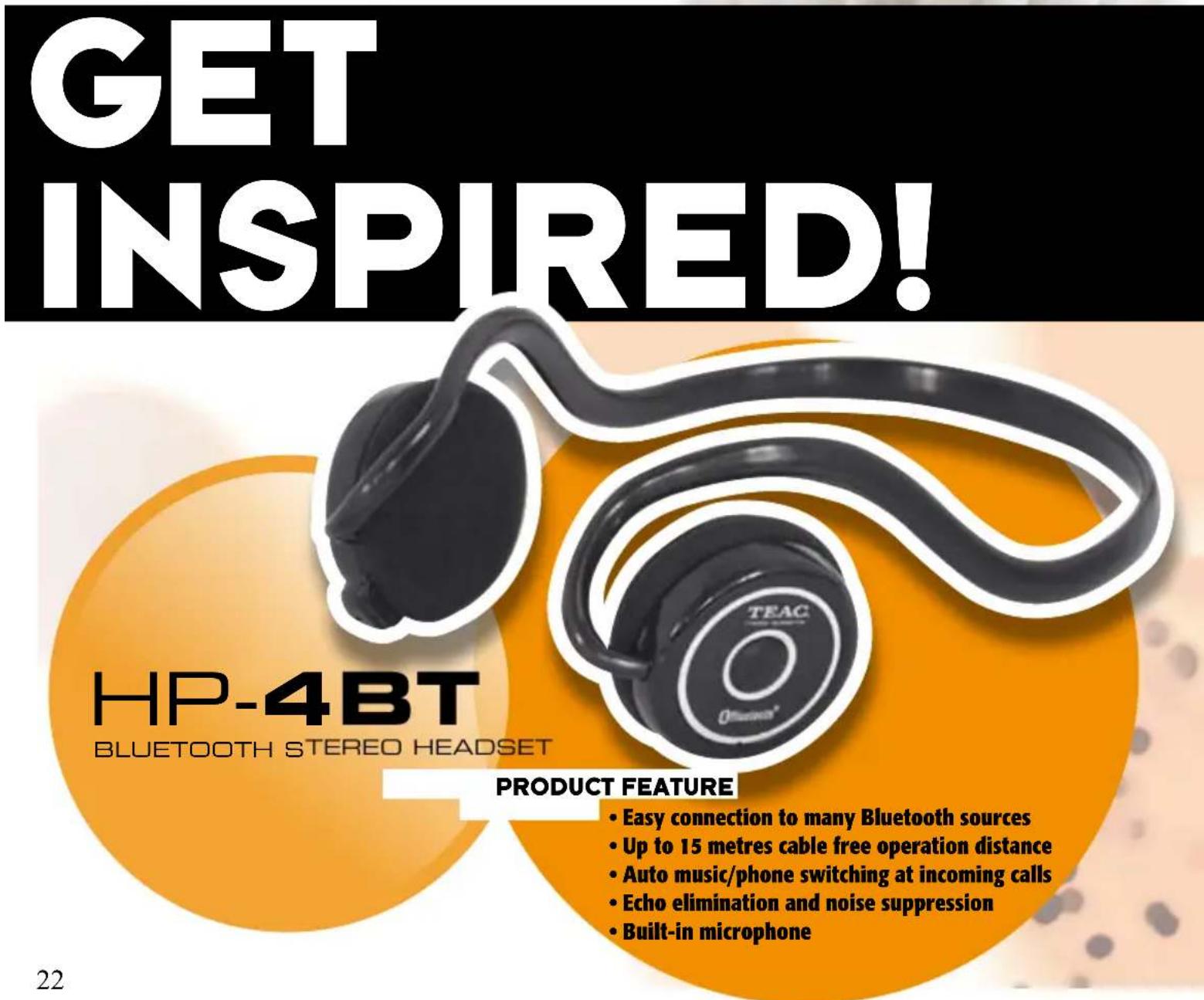

	HP-4BT	HP-8BT	MP-4HP
Characteristics	Bluetooth stereo headset with microphone; Black	Bluetooth stereo headset with microphone; Black; Accepts calls directly via headset	In-Earphones for MP3-Player & other devices
Supports	VoIP, MSN, Skype, Yahoo, & other messengers	VoIP, MSN, Skype, Yahoo, & other messengers
Cablefree operation distance	15 m	15 m
Cablefree operation time	6,5 hrs	6,5 hrs
Echo elimination / Noise suppression	●	●
Volume control	●	●
Automatic music / Phone switching	●	●
Impedance			32 Ohm
Connectivity	Bluetooth interface V 1,2; A2DP/AVRCP-Profile	Bluetooth interface V 1,2; A2DP/ AVRCP-Profile, 3,5 mm stereo jack	3,5 mm stereo jack
Power supply	Rechargeable Lithium-polymer battery	Rechargeable Lithium-polymer battery
Weight	50 g	50 g	15g
Extras		Bluetooth adapter; Dongle	Earbuds in 3 sizes; Neck strap

DVB-T

Specifications

DVB-T101 Characteristics Bus powered - no power adaptor required ETS 300 744 DVB-T compliance
Remote control	●
Automatic bandwidth control	6 / 7 / 8 MHz
Channel search	Increments 6 / 7 / 8 MHz
Frequency range	47 - 860 MHz VHF/UHF
Real-time DVR	●
Timer-controlled recording	●
Single image recording	●
Time-shift	●
EPG	●
Teletext	●
Still frame capture	●
Favorite list	●
Compatibility	DVB-T/ Nordig II
Video and audio decoding	MPEG2 DVD quality
Supports	SDTV & HDTV; QPSK, 16 and 64 Quam
Power supply	USB
Connectivity	USB 2.0 highspeed
System requirements	Intel PIII/IV/Celeron or AMD; Athlon/Duron CPU, at least 256 MB of RAM; MS Windows XP SP 1/2; Windows 2000 SP4 or XP MCE 2005; MS DirectX X 9.0 or more; VGA card with at least 8 MB of RAM; AC97 compatible PCI sound card; available USB 1.1/2.0 port

CHARGER

Specifications

Characteristics	MP-AC-102 Car / travel charger
Input voltage	12 - 24 V
Output voltage	DC 5.0 V ± 5%
Output current	1000 mA ± 100 mA
Travel charger input voltage	AV 100 - 240 V ± 20%

Technical specifications are subject to change without notice.

No responsibility is assumed for printing errors.
