Product type	Multimedia MP3 player
Brand	TEAC
Model	MP375 SD
Storage capacity	2 GB, 4 GB or 8 GB (depending on version)
Power supply	Built-in rechargeable lithium-ion battery
Battery life (audio)	Approximately 10 hours
Battery life (video)	Approximately 3 hours
Dimensions (W × H × D)	70 × 36 × 8.7 mm
Weight	23.4 g
Display	1.5-inch CSTN screen
Supported audio formats	MP3, WMA, FLAC
Supported image formats	JPG, BMP
Supported video formats	MTV
Main functions	Audio/video player, FM tuner with recording, voice recording, photo viewer, 7-band equalizer, lyrics display, ID3 tag, folder navigation, firmware update
Expandable storage	Micro SD card slot (SDHC)
Connectivity	USB 2.0
Box contents	User manual, USB cable, earphones
Care and cleaning	Clean with a soft, dry cloth. Avoid contact with water or chemicals.
Safety	Do not expose the device to moisture, extreme temperatures, or shocks. Do not attempt to open the casing.
Spare parts and repairability	For any spare parts or repairs, contact TEAC customer service. Repairability index not provided.
General information	Designed for mobile use. Compatible with common operating systems.

Frequently Asked Questions - MP375 SD TEAC

How to transfer music to the TEAC MP375 SD?

Connect the device to a computer using the included USB cable. It will be recognized as a removable drive. Copy your audio files in supported formats (MP3, WMA, FLAC) to the desired folder. Then safely disconnect it.

How to use the FM tuner?

From the main menu, select 'FM Tuner'. Launch an automatic station search or manually adjust the frequency. You can save up to 30 stations in memory. FM recording is done via the dedicated function.

What to do if the device does not turn on?

Make sure the battery is charged by plugging the device into a USB source. If the problem persists, perform a reset by holding the power button for 10 seconds. Consult the manual for further troubleshooting.

How to format a micro SD card for the player?

Insert the card into the player, then go to system settings. Choose 'Format card'. Note that this action erases all data. You can also format the card on a computer as FAT32.

What are the supported video formats?

The TEAC MP375 SD supports the MTV video format. To play other formats, you will need to convert your videos using compatible conversion software, such as the one provided on the installation CD.

How to adjust the equalizer?

Go to audio settings and select 'Equalizer'. You can choose from 7 preset modes (Normal, Rock, Pop, Classic, Jazz, etc.) or manually adjust frequencies if the option is available.

Can I use the player as a voice recorder?

Yes, the MP375 SD has a high-quality voice recording function. From the menu, select 'Voice recording' and press the record button. Files are saved in WAV format.

How to display song lyrics?

Make sure the audio file contains embedded lyrics (ID3/Lyrics tag). Start playback, then enable lyrics display from the menu. The lyrics will scroll synchronized with the music.

What accessories are included in the box?

The box contains the MP375 SD player, a USB cable, earphones, and a user manual. The carrying case is not included.

How to update the firmware?

Download the latest firmware version from the TEAC website. Copy the file to internal memory or an empty micro SD card. Then, in the settings menu, select 'Firmware update' and follow the instructions.

USER MANUAL MP375 SD TEAC

Headphones page 22-23

DVB-T / Charger page 24-25

Specifications page 26-31

MOBILITY & CONNECTIVITY

track 4 >3:42

Future_trends

#

NEW

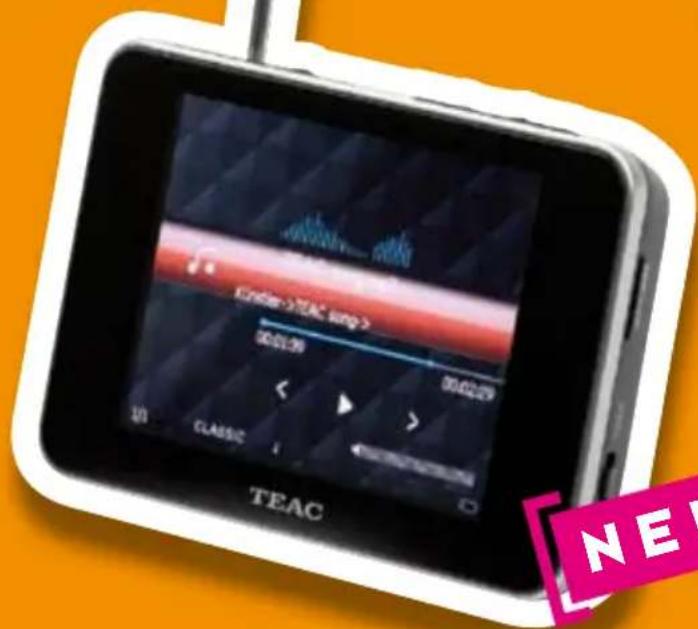

MP-4500

MULTIMEDIA PLAYER AND DVB-T RECEIVER

Supports MP3, WMA, MTV, JPG, BMP, FLAC
FM-tuner and recording
- Picture browsing and high-level digital recording
Clock, Calendar, Alarm
Supports Micro SD card (SDHC)

ORGANIZE YOUR MUSIC

track 4 >3:42

Fascinating_technic

NEW

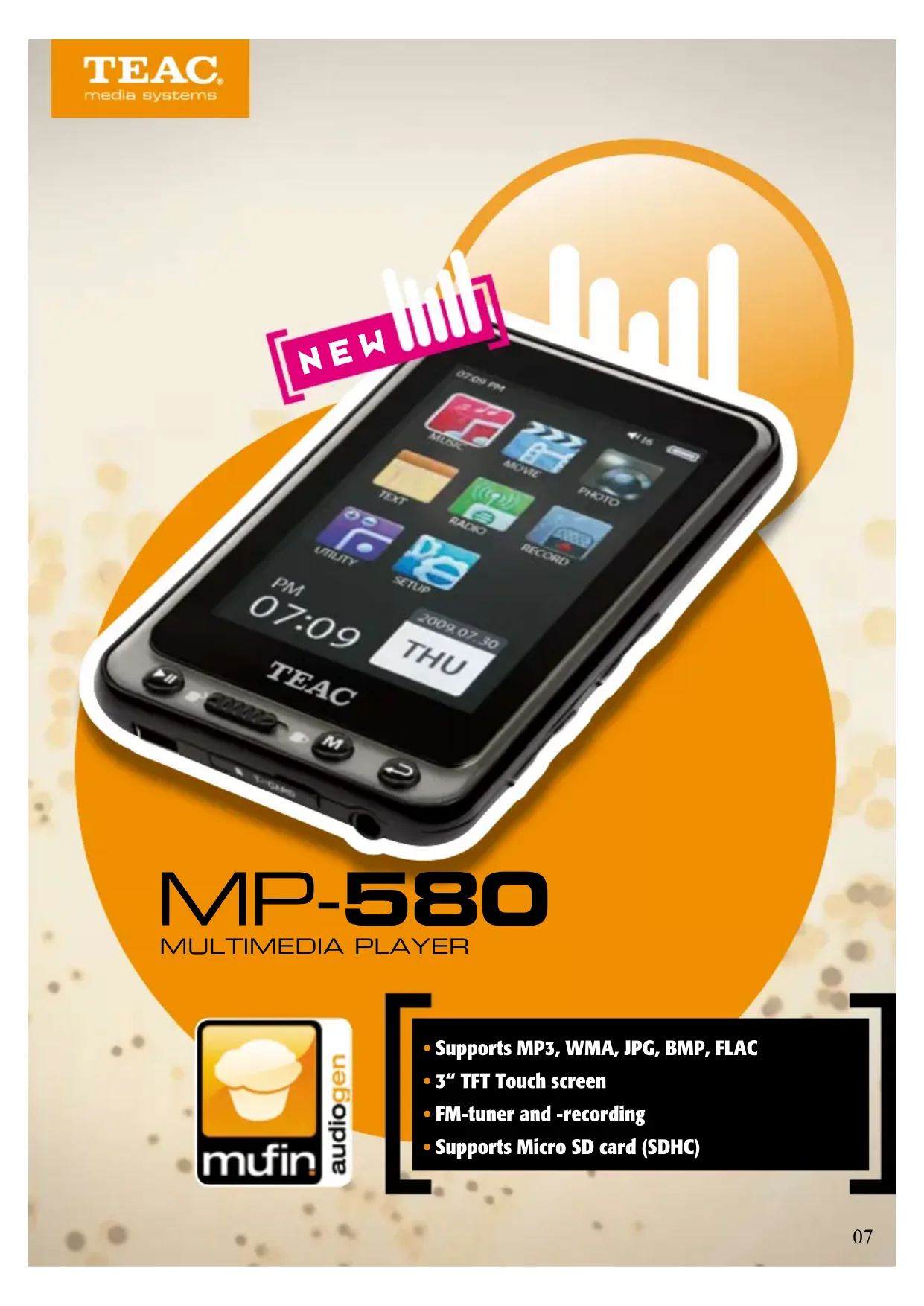

MP-580

MULTIMEDIA PLAYER

Supports MP3, WMA, JPG, BMP, FLAC
- 3" TFT Touch screen
FM-tuner and -recording
Supports Micro SD card (SDHC)

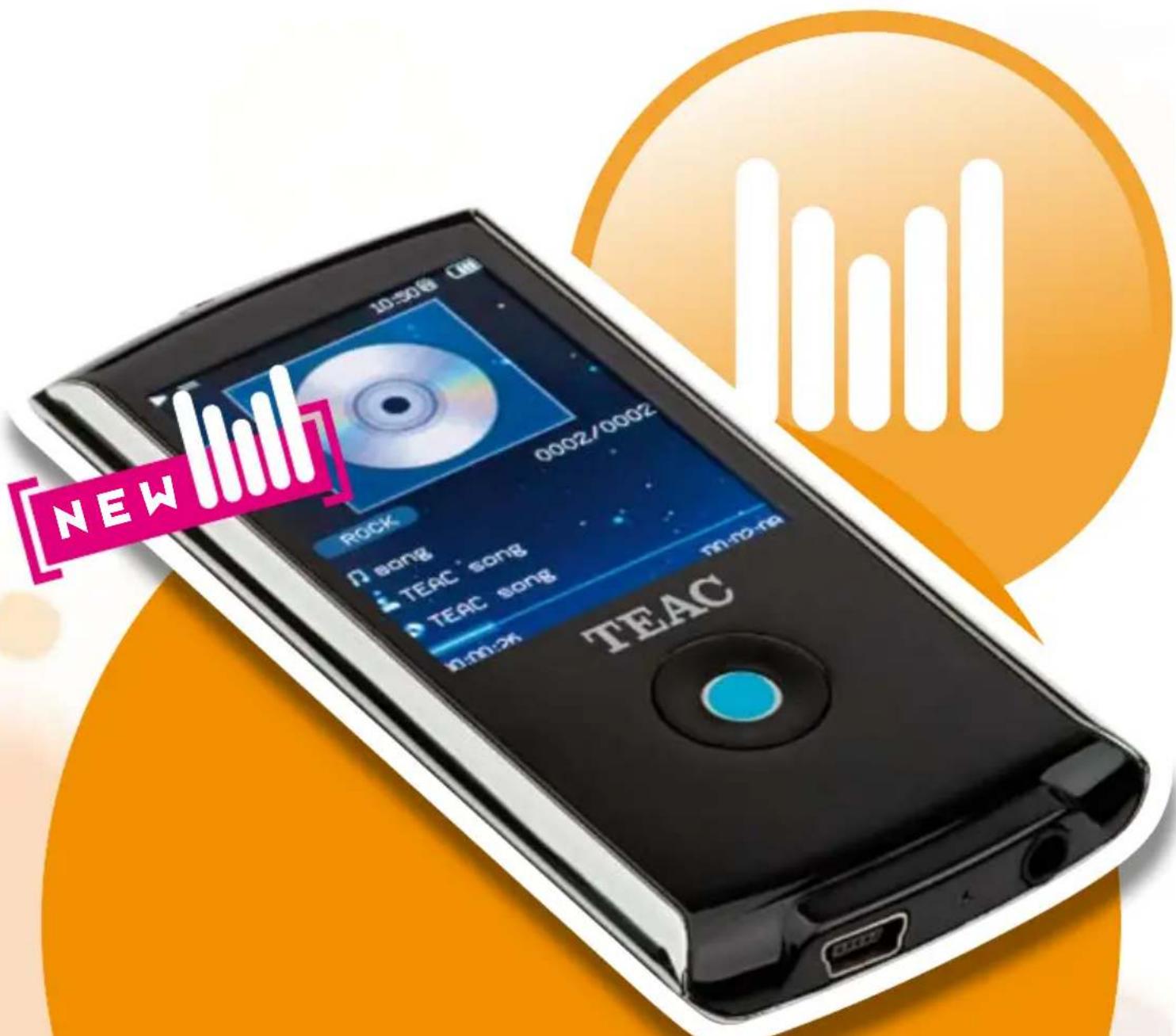

MP-540

MULTIMEDIA PLAYER

Supports MP3, WMA, DRM9, AVI
- 2.8" Touch screen
Built-in speaker
FM-tuner and -recording
Supports Micro SD card (SDHC)

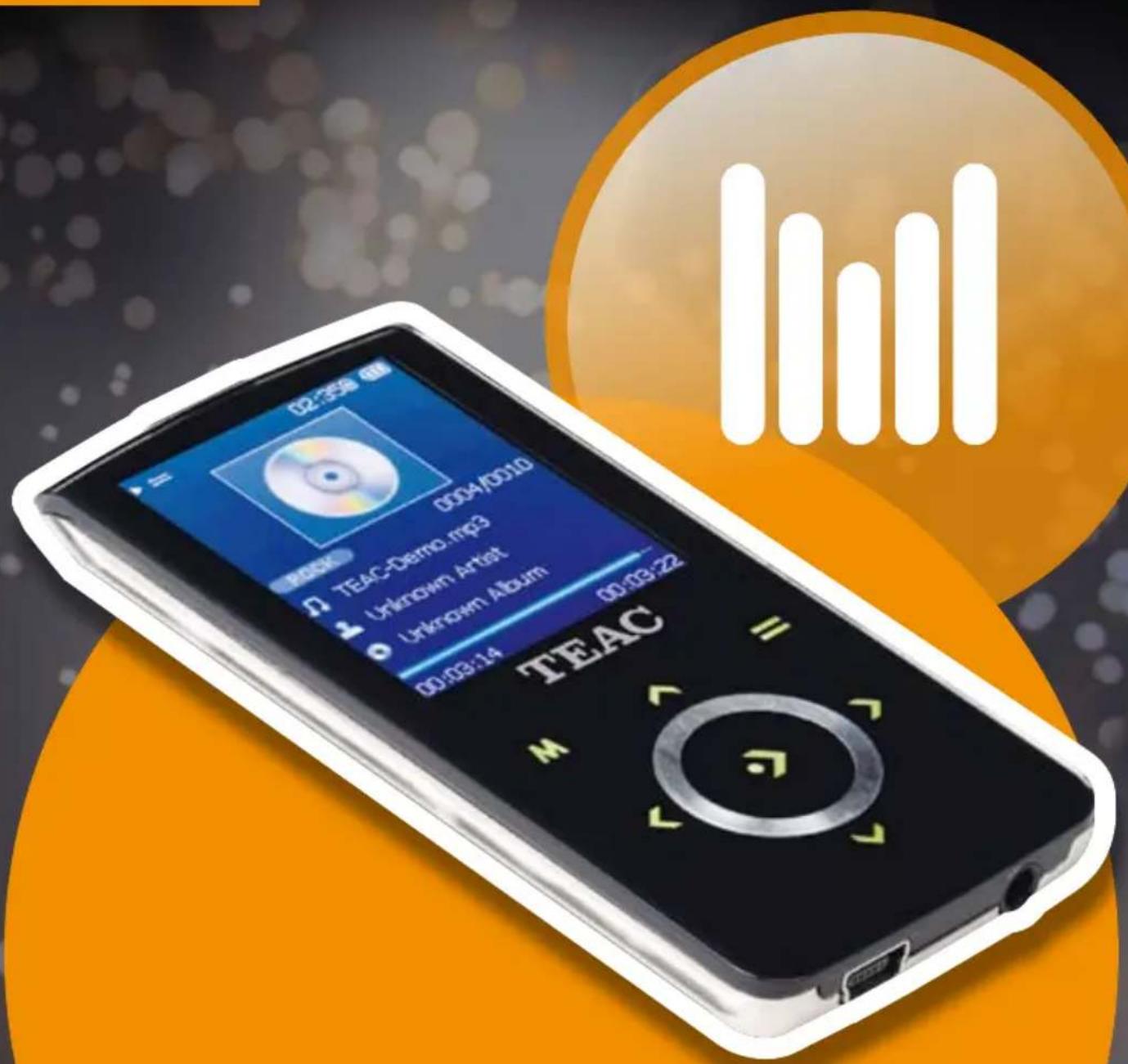

MP-490

MULTIMEDIA PLAYER

Supports MP3, WMA, DRM9, JPG, BMP, OGG, AVI
- 2.2" TFT Display with scroll ball
40 Stations Memory
FM-tuner and recording
- Carry case included

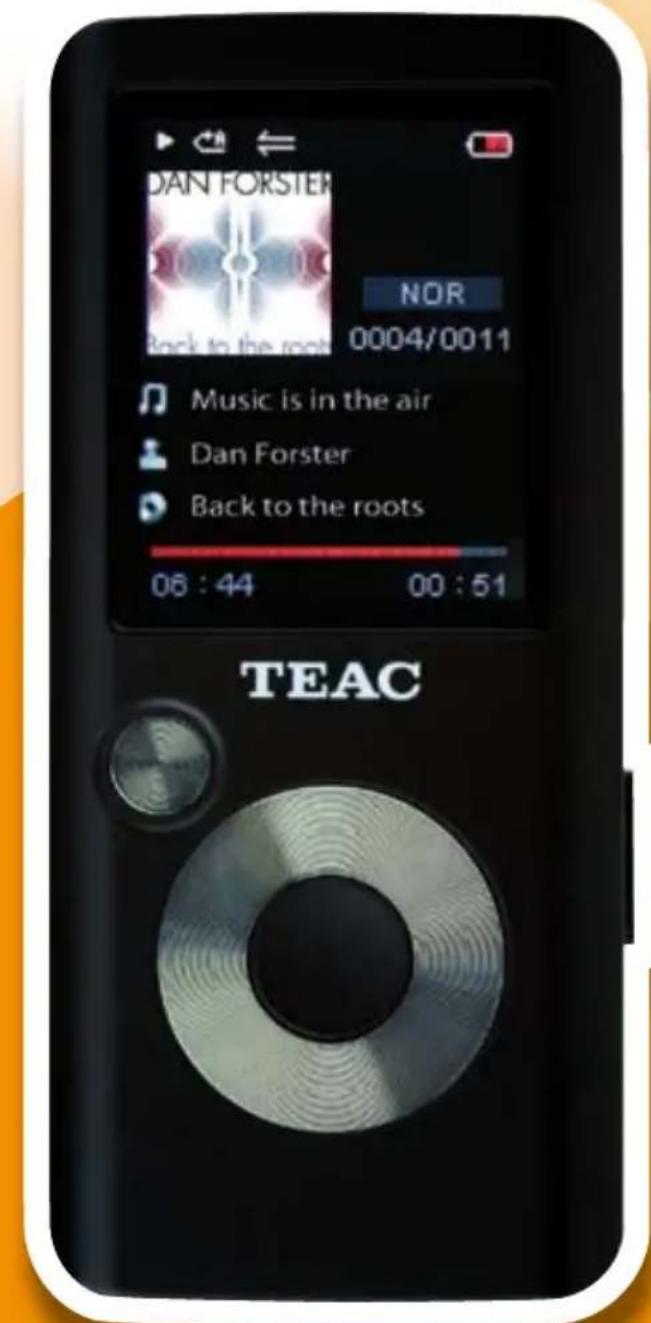

MP-470

MULTIMEDIA PLAYER

Supports MP3 WMA. OGG, AVI
- Touch Buttons
FM Tuner and 20 Stations Memory
- Lyrics Support

MP-299

MULTIMEDIA PLAYER

Supports MP3, WMA, MTV, JPG, BMP
- 1,8" Display
FM-tuner and -recording (WAV)
30 stations memory
- Picture browsing
High-level digital voice recording

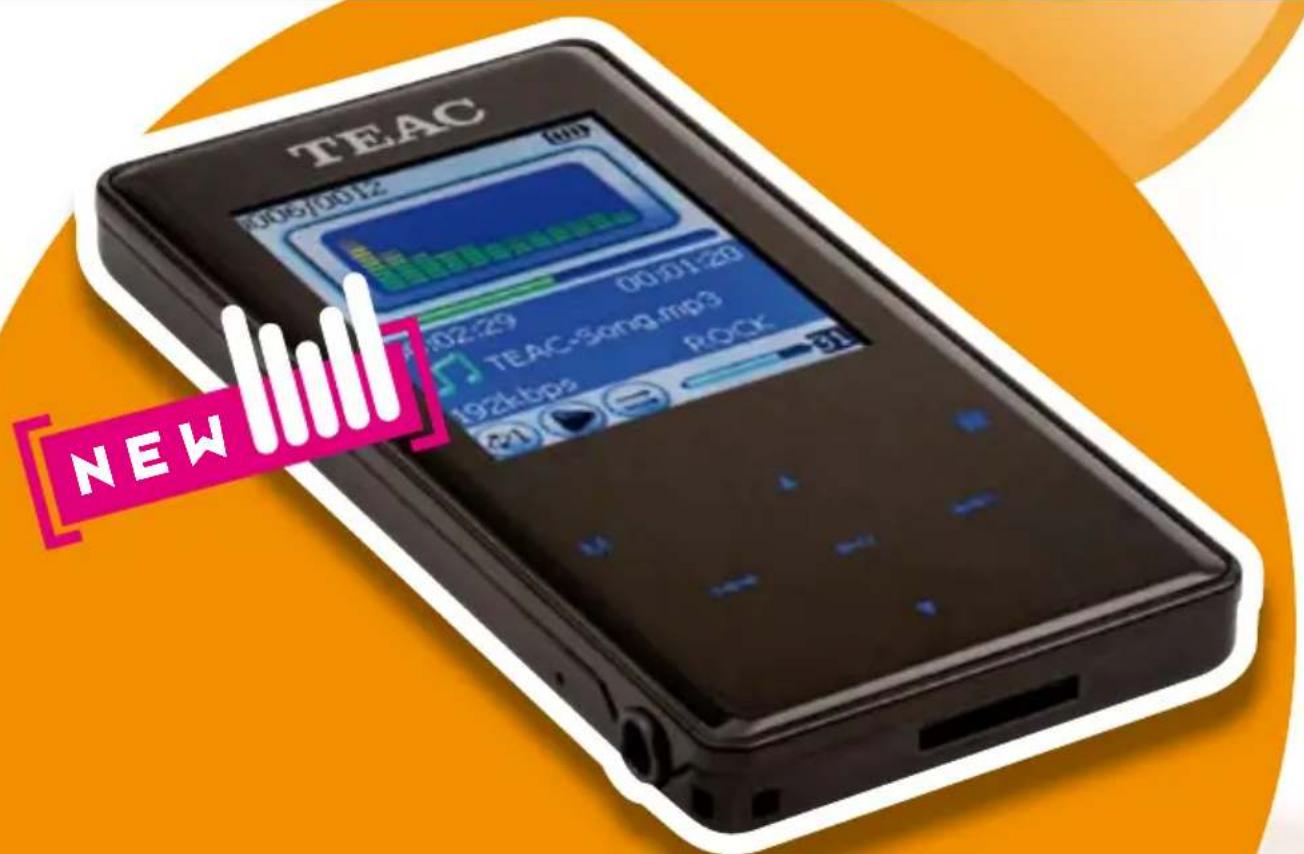

NEW MEDIAEXPERIENCE

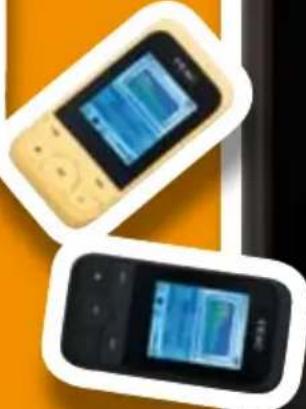

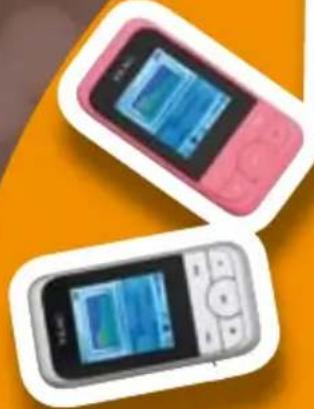

MP-290

MULTIMEDIA PLAYER

Supports MP3, WMA, DRM9, JPG, AVI
- 1,8" CSTN Display
FM-tuner and -recording
- Picture browsing an high-level digital recording
Supports Micro SD card (SDHC)

NEW

TEAC

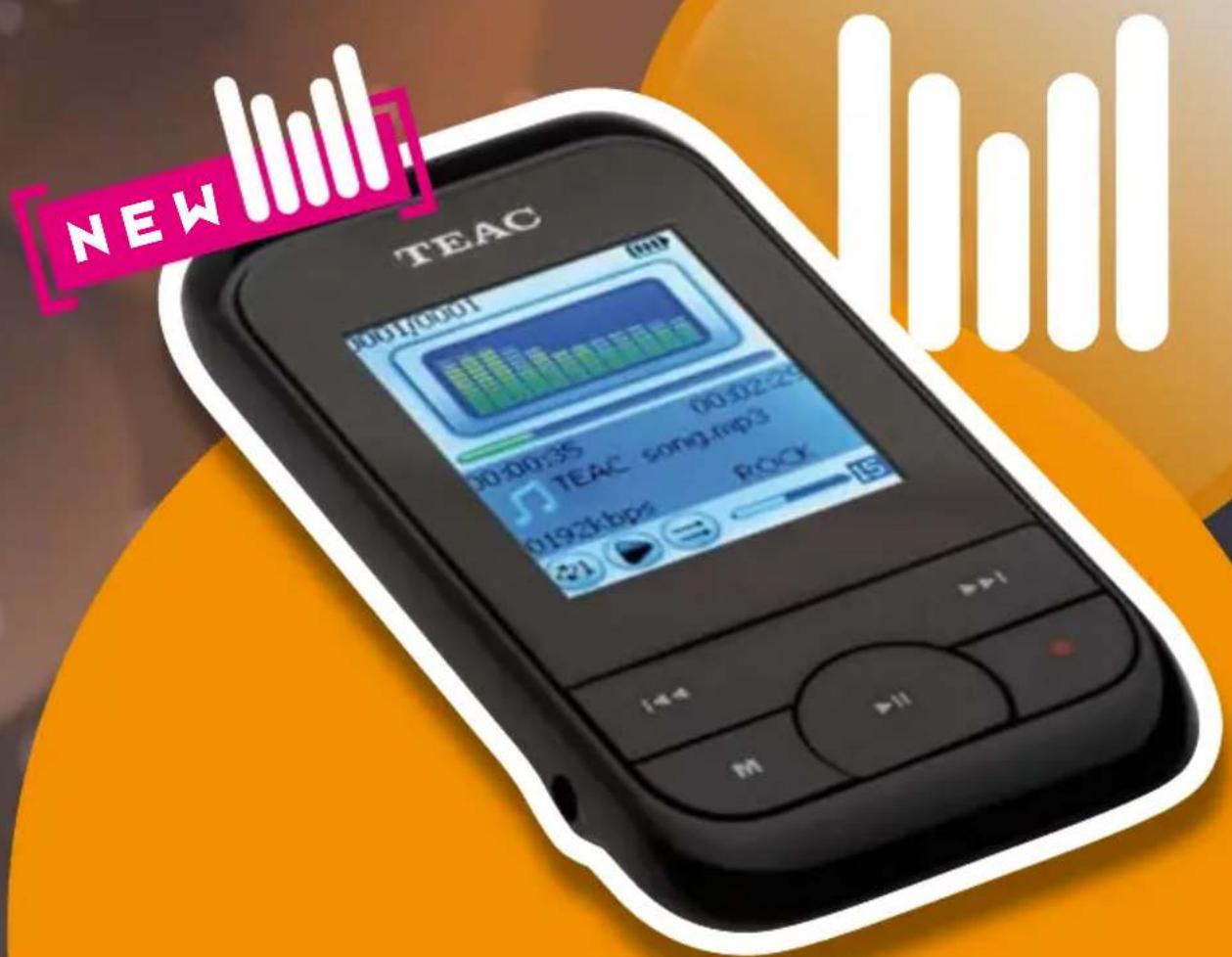

MP-280

MULTIMEDIA PLAYER

a aae

Supports MP3, WMA, DRM9, JPG, AVI, FLAC
1,8" CSTN Display
FM-tuner
- Picture browsing an high-level digital recording
Rubber coating

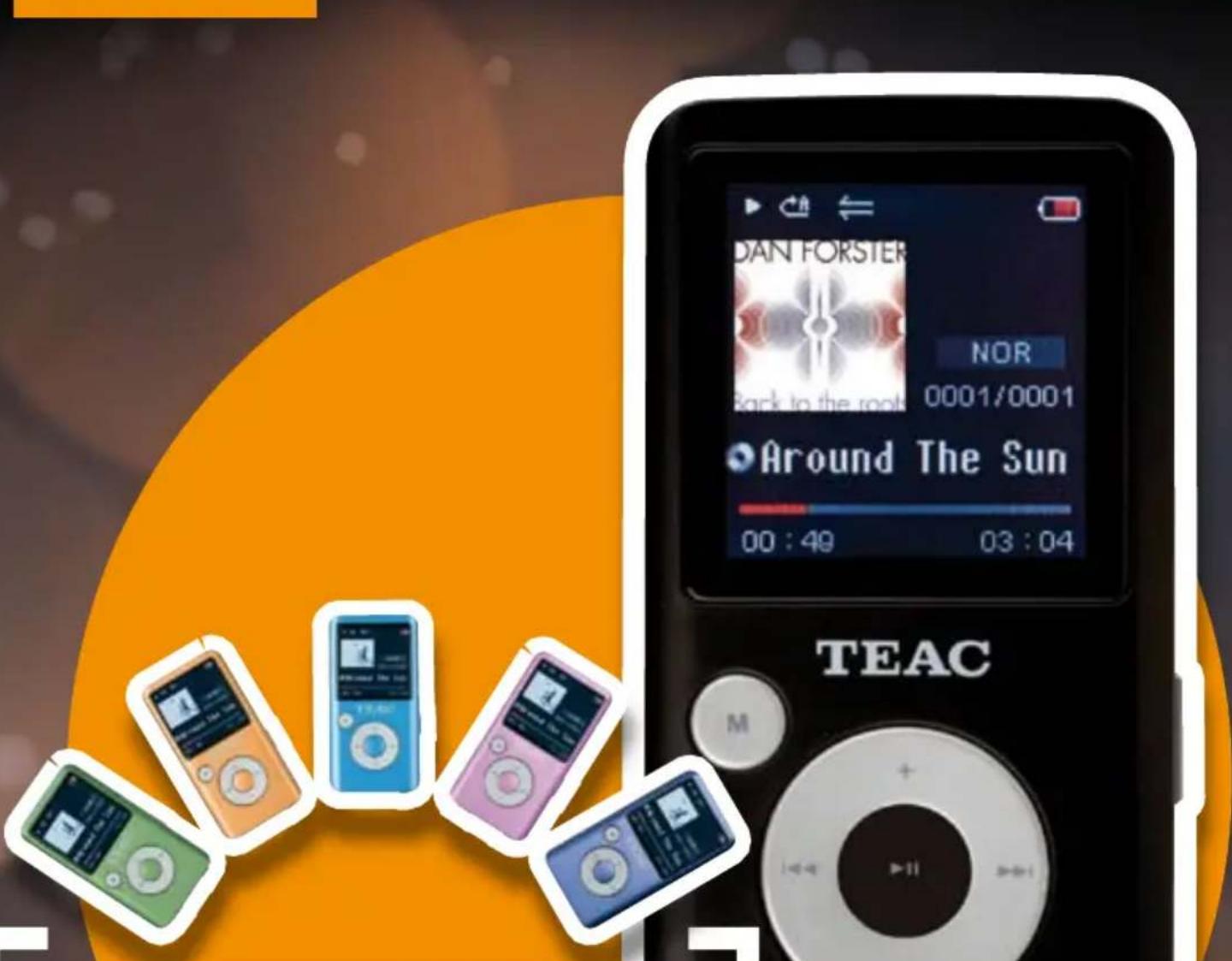

MP-275

MULTIMEDIA PLAYER

Supports MP3, WMA, DRM9, JPG, FLAC
1,8" CSTN Display
High level digital voice recording
- Picture browsing

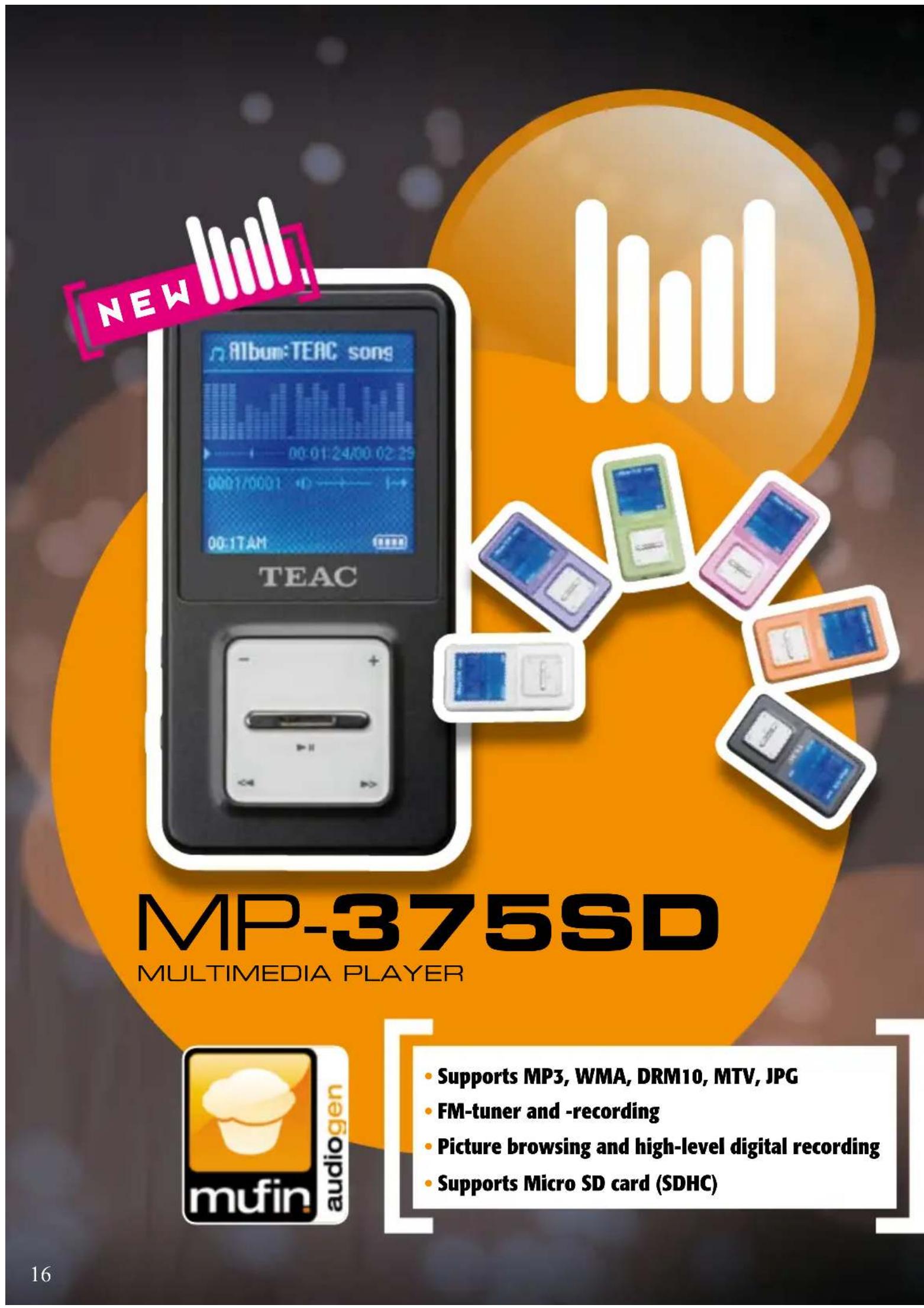

Supports MP3, WMA, MTV, JPG, BMP
1.5" Display
FM-tuner and -recording (WAV)
30 stations memory
- Picture browsing
High-level digital voice recording

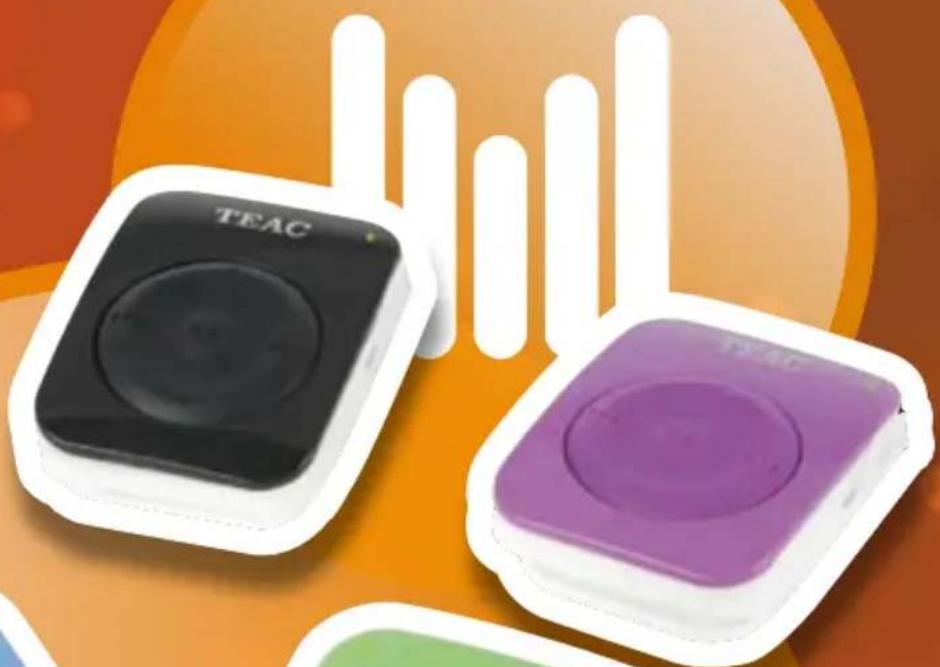

MP-211

MULTIMEDIA PLAYER

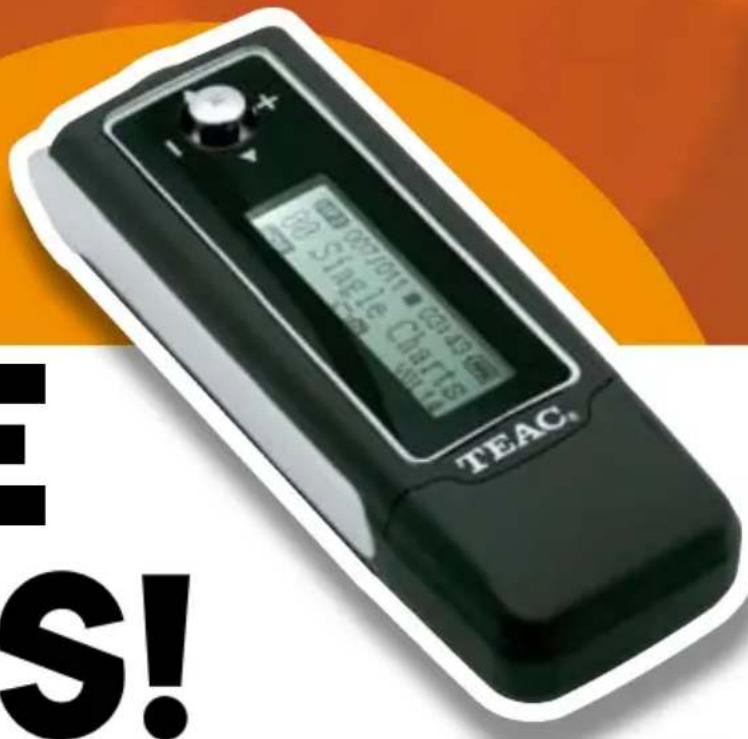

MP-11 3

FLASH MP3 PLAYER

FEATURES

Supports MP3, WMA
- LCD screen with blue backlight
Digital voice recording
- USB 2.0 - multilingual OSD

MP-14

FLASH MP3 PLAYER

LITTLE GIANTS!

FEATURES

Supports MP3, WMA
- LCD screen with backlight
Digital voice recording
- USB 2.0 - multilingual OSD

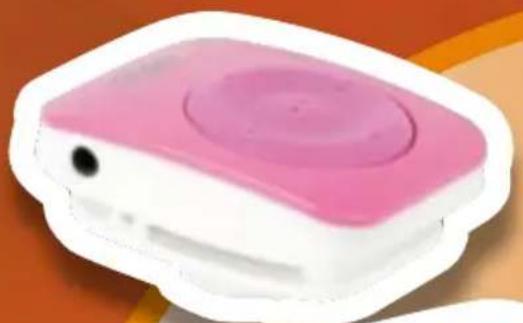

MP-60

CLIP DESIGN MP3 PLAYER

Supports MP3, WMA
Light indicator
USB 2.0 - high speed
Built-in Shuffle function

TIME TO PARTY

track_4>3:42

Sound_sensations

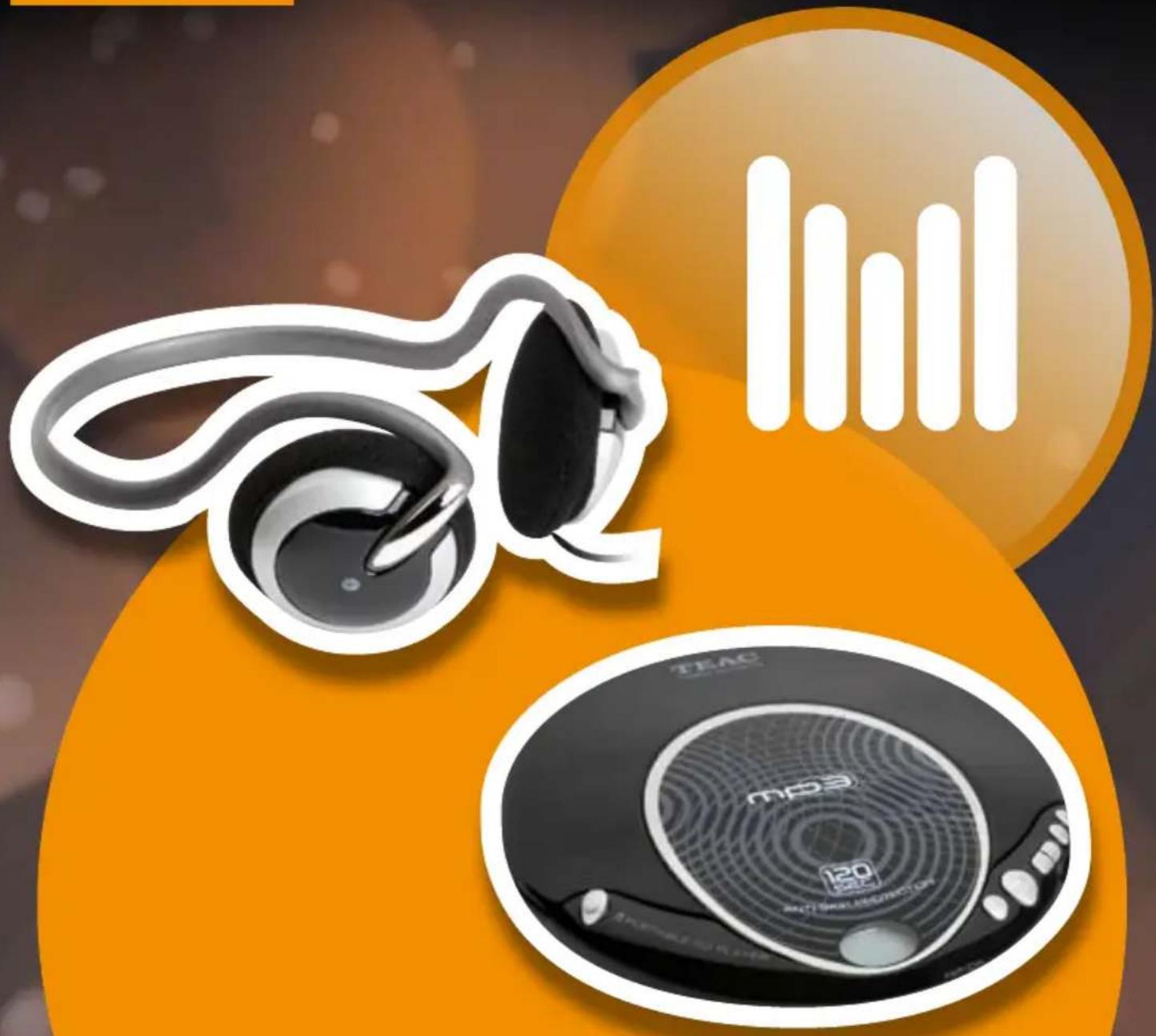

MP-20

CD/MP3-PLAYER

NEW

Supports MP3
40 sec CD, 120 MP3 anti-skip protection
20 program track memory
LCD Display
- LDynamic Bass Boost System (DBBS)

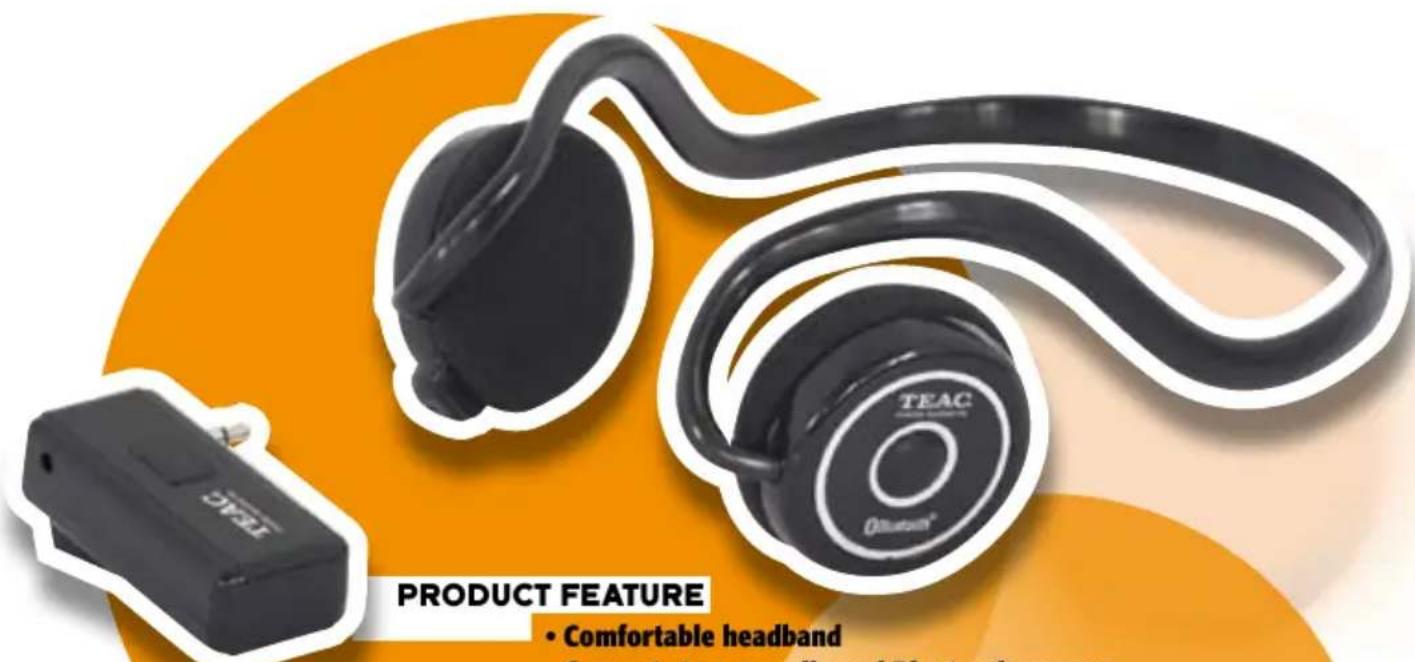

The New Listening Experience.

Comfortable headband
- Connects to any audio and Bluetooth sources
- Up to 15 metres cable free operation
- Call notification - accept calls directly via headset
- Echo and noise suppression
Including dongle

HP-8BT

BLUETOOTH STEREO HEADSET

MP-4HP

IN-EARPLUGS

PRODUCT FEATURE

Frequency range: 18 - 30,000 Hz
- 3.5 ~mm L-shaped mini phono plug
- Including ear buds in 3 sizes

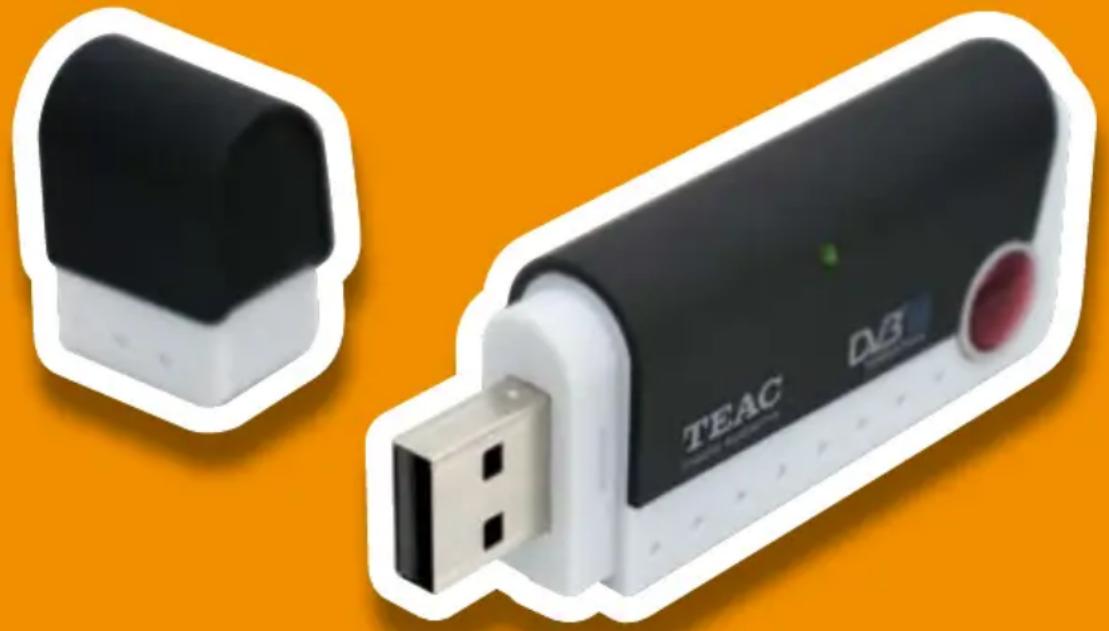

DVB-T101

COMPACT TV RECEIVER

• Digital reception of terrestrial TV channels
• Mobile reception of TV in all DVB-T-ranges
  Electronic program-guide
• Channel auto scan
  RGB video output

• Car charger
• Travel charger

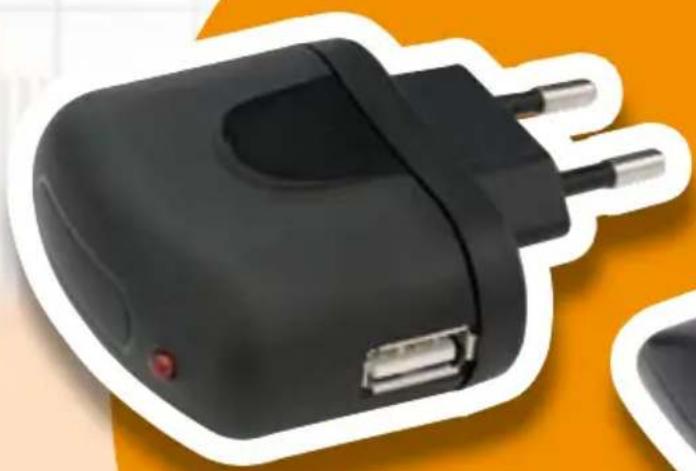

MP-AC102

CAR CHARGER / TRAVEL CHARGER

MP3-PLAYER

Specifications

Characteristic	MP-4500 2 GB / 4 GB / 8 GB Multimedia Player DVB-T reciever	MP-580 2 GB / 4 GB / 8 GB / 16 GB Multimedia Player MuFin Musicfinder	MP-540 1GB / 2 GB / 4 GB / 8 GB Multimedia Player Built-in speaker Supports MP4-Movie	MP-490 2 GB / 4 GB / 8 GB Multimedia Player MuFin Musicfinder
Interface	USB 2.0	USB 2.0	USB 2.0	USB 2.0
Supports
MP3	●	●	●	●
WMA	●	●	●	●
DRM			DRM9	DRM9
MTV	●
JPG	●	●		●
BMP	●	●		●
OGG				●
AVI			●	●
WMV	●
E-Book TXT	●		●	●
FLAC	●	●
Firmware upgrade	●	●	●	●
Cardslot	Micro SD (SDHC)	Micro SD (SDHC)	Micro SD (SDHC)
Display	3,5" TFT	3,0" TFT	2,8" Touchscreen	2,2" TFT
FM-tuner	●	●	●	●
FM-tuner recording	●	●	●	●
Stations memory	30	30	20	40
High-level digital voice recording	●	●	●	●
Folder navigation	●	●		●
Picture browsing	●	●	●	●
User equalizer	8 modes	8 modes	8 modes	7 modes
ID3 tag	●	●	●	●
Lyrics support	●	●	●	●
Built-in rechargeable battery	Lithium-ion	Lithium-ion	Lithium-ion	Lithium-polymer
Playing time MP3/Video	20 hrs (5 hrs video)	20 hrs (6 hrs video)	10 hrs	10 hrs
Dimensions (W x H x D mm)	104 x 70,5 x 18	99 x 57 x 13	92 x 53 x 11	45 x 95 x 10
Weight	134 g	76 g	84,2 g	52 g
Includes
User's manual	●	●	●	●
USB cable	●	●	●	●
Earphones	●	●	●	●
Carry case				●
Neck strap			●
Installation CD	●	●	●	●
Converting Software		●		●
MP3-PLAYER Specifications
Characteristic	MP-470 2 GB / 4 GB / 8 GB Multimedia Player MuFin Musicfinder	MP-299 E-Book Multimedia Player	MP-290 2 GB / 4 GB / 8 GB Multimedia Player MuFin Musicfinder	MP-280 2 GB / 4 GB / 8 GB Multimedia Player MuFin Musicfinder
Interface	USB 2.0	USB 2.0	USB 2.0	USB 2.0
Supports
MP3	●	●	●	●
WMA	●	●	●	●
DRM			DRM9	DRM9
MTV		●
JPG		●	●	●
BMP		●
OGG	●
AVI	●		●	●
WMV
E-Book TXT	●	●	●	●
FLAC				●
Firmware upgrade	●	●	●	●
Cardslot			Micro SD (SDHC)
Display	2,0" TFT	1,8" TFT	1,8" CSTN	1,8" CSTN
FM-tuner	●	●	●	●
FM-tuner recording		●	●
Stations memory	20	30	30	20
High-level digital voice recording		●	●	●
Folder navigation			●	●
Picture browsing	●	●	●	●
User equalizer	7 modes	6 modes	6 modes	7 modes
ID3 tag	●	●	●
Lyrics support	●	●	●	●
Built-in rechargeable battery	Lithium-polymer	●	Lithium-polymer	Lithium-polymer
Playing time MP3/Video	11 hrs	10 hrs	10 hrs (4 hrs video)	16 hrs (5,5 hrs video)
Dimensions (W x H x D mm)	42 x 95 x 9	94 x 42 x 10	83,3 x 41 x 8,5	84 x 44 x 8,5
Weight	57 g	37 g	33,8 g	31,6 g
Includes
User's manual	●	●	●	●
USB cable	●	●	●	●
Earphones	●	●	●	●
Carry case
Neck strap
Installation CD	●	●	●	●
Converting Software			●	●
Characteristic	MP-275 2 GB / 4 GB / 8 GB Multimedia Player MuFin Musicfinder	MP-375SD 2 GB / 4 GB / 8 GB Multimedia Player MuFin Musicfinder	MP-211 E-Book Multimedia Player	MP-114 1 GB / 2 GB Multimedia Player Multilanguage OSD
Interface	USB 2.0	USB 2.0	USB 2.0	USB 2.0
Supports
MP3	●	●	●	●
WMA	●	●	●	●
DRM	DRM9	DRM10
MTV		●	●
JPG	●	●	●
BMP			●
OGG
AVI
WMV
E-Book TXT	●	●	●
FLAC	●
Firmware upgrade	●	●	●	●
Cardslot		Micro SD (SDHC)
Display	1,8" CSTN	1,5" CSTN	1,5"	LCD / backlight
FM-tuner		●	●	available
FM-tuner recording		●	●	available
Stations memory		20	30
High-level digital voice recording	●	●	●	●
Folder navigation	●	●
Picture browsing	●	●	●
User equalizer	7 modes	7 modes	6 modes	6 modes
ID3 tag		●	●	●
Lyrics support	●	●	●	●
Built-in rechargeable battery	Lithium-polymer	Lithium-ion	●	1 x AAA battery
Playing time MP3/Video	16	10 hrs (3 hrs video)	10 hrs	11 hrs
Dimensions (W x H x D mm)	84 x 44 x 8,5	70 x 36 x 8,7	79 x 40 x 10	84 x 29 x 19
Weight	31,6 g	23,4 g	30 g	26 g
Includes
User's manual	●	●	●
USB cable	●	●	●
Earphones	●	●	●
Carry case
Neck strap
Installation CD	●	●	●
Converting Software	●	●

MP3-PLAYER

Specifications

Characteristic	MP-113 1 GB / 2 GB Multimedia Player Multilanguage OSD	MP-60 2 GB Clip design MP3 Player Built-in Shuffle function	MP-20 CD/MP3 Player 40 sec CD, 120 sec MP3 anti-skip protection; Dynamic Bass Boost system LCD display
Interface	USB 2.0	USB 2.0 high speed
Supports
MP3	●	●	●
WMA	●	●
DRM
MTV
JPG
BMP
OGG
AVI
WMV
E-Book TXT
FLAC
Firmware upgrade	●
Cardslot
Display	LCD / blue backlight	light indicator	●
FM-tuner	available
FM-tuner recording	available
Stations memory
High-level digital voice recording	●
Folder navigation
Picture browsing
User equalizer	5 modes
ID3 tag	●
Lyrics support	●
Built-in rechargeable battery	1 x AAA battery	Lithium-polymer	2 x AA battery (not incl.)
Playing time MP3/Video	10 hrs	10 hrs	2 hrs (with 2 x AA battery)
Dimensions (W x H x D mm)	86 x 50 x 9	45 x 30 x 17	129 x 27,9 x 150
Weight	60 g	25 g	192 g
Includes
User's manual		●	●
USB cable
Earphones		●	●
Carry case
Neck strap
Installation CD
Converting Software

MP3-SPEAKER

Specifications

MP3-HEADSETS

	MP-5XS	MP-2XS
Characteristics	2.1 Channel Subwoofer	2.0 Digital mobilepower speaker
	stereo sound system	Aluminium case with black leather
Built-in amplifier	3 channels	●
Infrared remote control	●
Control buttons on unit	●
MP3 / MP4 audio input / line-in connection	●
USB charging port	●
Connection mobile operation	12 V car
Connection	Cable	Cable
Frequency range	40 - 20.000 Hz	100 - 12.500 Hz
Output power:
Subwoofer	30 W
Speaker	2 x 10 W	2 x 1,2 W
Voltage	230 V AC - 50 W; 12 DC	USB 5 V or 1 x AA battery
Dimensions (W x H x D mm)	400 x 160 x 246	99 x 37 x 37
System requirements	Analog stereo source with 3,5 mm stereo jack	3,5 mm stereo jack

Specifications

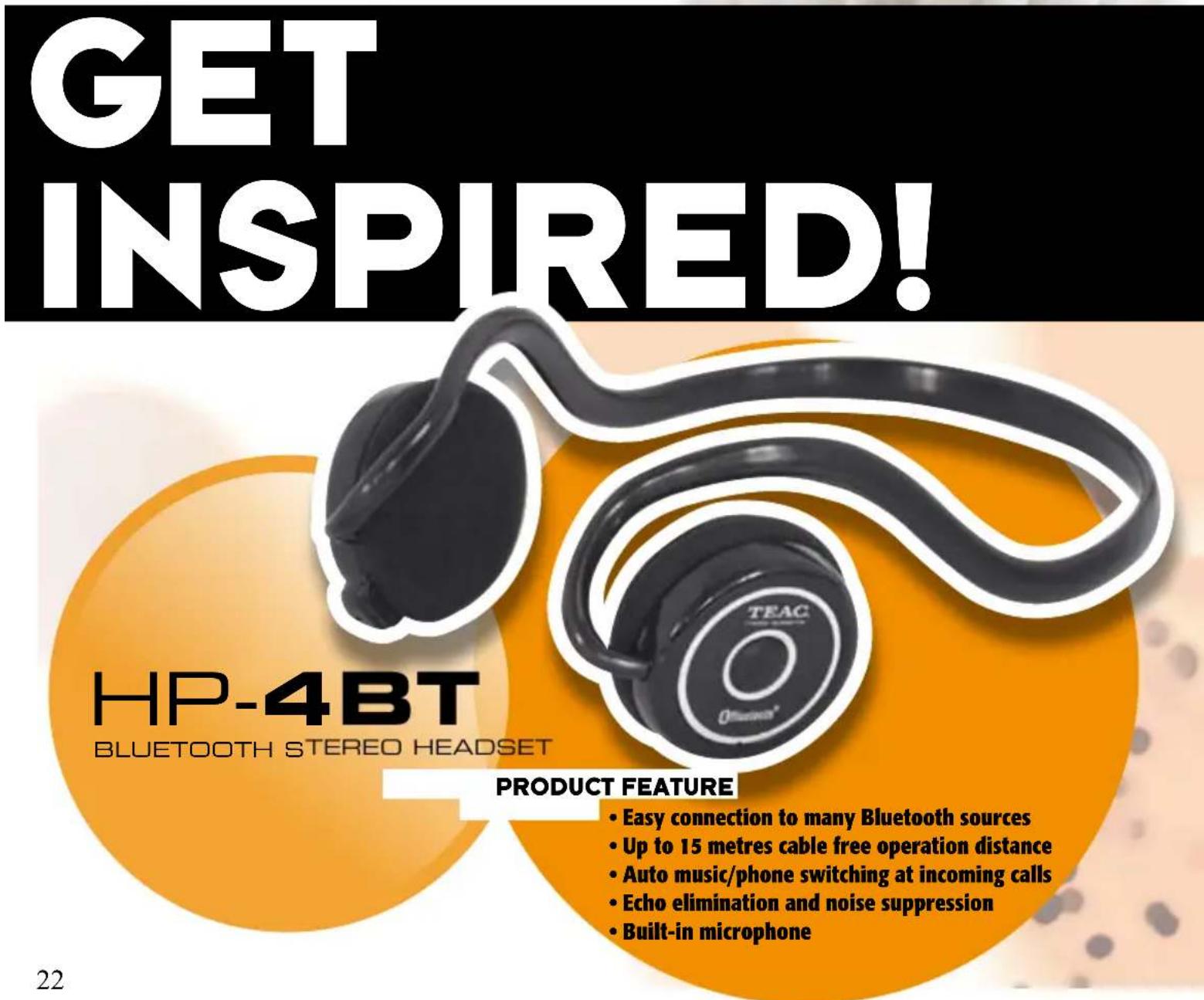

	HP-4BT	HP-8BT	MP-4HP
Characteristics	Bluetooth stereo headset with microphone; Black	Bluetooth stereo headset with microphone; Black; Accepts calls directly via headset	In-Earphones for MP3-Player & other divices
Supports	VoIP, MSN, Skype, Yahoo, & other messengers	VoIP, MSN, Skype, Yahoo, & other messengers
Cablefree operation distance	15 m	15 m
Cablefree operation time	6,5 hrs	6,5 hrs
Echo elimination / Noise suppression	●	●
Volume control	●	●
Automatic music / Phone switching	●	●
Impedance			32 Ohm
Connectivity	Bluetooth interface V 1,2; A2DP/AVRCP-Profile	Bluetooth interface V 1,2; A2DP/ AVRCP-Profile, 3,5 mm stereo jack	3,5 mm stereo jack
Power supply	Rechargeable Lithium-polymer battery	Rechargeable Lithium-polymer battery
Weight	50 g	50 g	15g
Extras		Bluetooth adapter; Dongle	Earbuds in 3 sizes; Neck strap

DVB-T

Specifications

DVB-T101

Characteristics

Bus powered - no power

adaptor required

ETS 300 744 DVB-T compliance

Remote control

Automatic bandwidth control

6/7/8MHz

Channel search

Increments 6/7/8MHz

47-860MHzVHF/UHF

Frequency range

Real-time DVR

Timer-controlled recording

Single image recording

Time-shift

EPG

Teletext

Still frame capture

Favorites list

Compatibility

Video and audio decoding

Supports

Power supply

Connectivity

System requirements

DVB-T/ Nordig II

MPEG2 DVD quality

SDTV & HDTV; QPSK, 16 and 64 Quam

USB

USB 2.0 highspeed

Intel PIII/IV/Celeron or AMD; Athlon/Duron CPU, at least 256 MB of RAM; MS Windows XP SP 1/2; Windows 2000 SP4 or XP MCE 2005; MS Direct X 9.0 or more; VGA card with at least 8 MB of RAM; AC97 compatible PCI sound card; available USB 1.1/2.0 port

CHARGER

Specifications

MP-AC-102

Car/travel charger

Characteristics

12-24V

Input voltage

DC 5.0V± 5%

Output voltage

1000mA± 100mA

Output current

AV 100 - 240 V ± 20%

Travel charger input voltage

Technical specifications are subject to change without notice.

No responsibility is assumed for printing errors.

HAVE A LOOK AT OUR

OTHER HIGHLIGHT

PRODUCTS

FOR FURTHER INFORMATION

PLEASE CONTACT US AT:

www.teac.de
