USER MANUAL KG39FPI30 SIEMENS

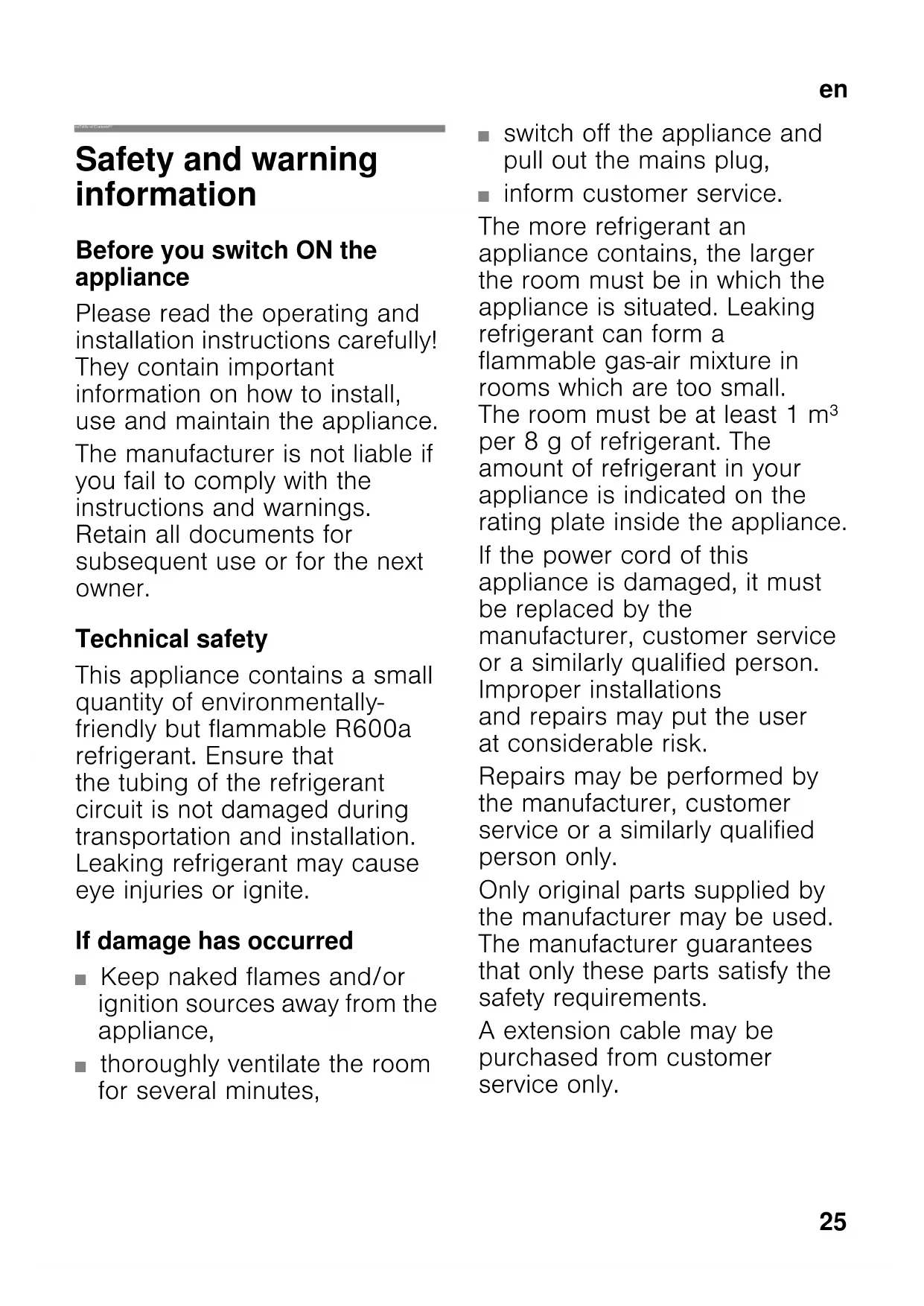

enTable of Contents enInstruction for Use Safety and warning information Before you switch ON the appliance Please read the operating and installation instructions carefully! They contain important information on how to install, use and maintain the appliance. The manufacturer is not liable if you fail to comply with the instructions and warnings. Retain all documents for subsequent use or for the next owner. Technical safety This appliance contains a small quantity of environmentally- friendly but flammable R600a refrigerant. Ensure that the tubing of the refrigerant circuit is not damaged during transportation and installation. Leaking refrigerant may cause eye injuries or ignite. If damage has occurred ■ Keep naked flames and/or ignition sources away from the appliance, ■ thoroughly ventilate the room for several minutes, ■ switch off the appliance and pull out the mains plug, ■ inform customer service. The more refrigerant an appliance contains, the larger the room must be in which the appliance is situated. Leaking refrigerant can form a flammable gas-air mixture in rooms which are too small. The room must be at least 1 m³ per 8 g of refrigerant. The amount of refrigerant in your appliance is indicated on the rating plate inside the appliance. If the power cord of this appliance is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person. Improper installations and repairs may put the user at considerable risk. Repairs may be performed by the manufacturer, customer service or a similarly qualified person only. Only original parts supplied by the manufacturer may be used. The manufacturer guarantees that only these parts satisfy the safety requirements. A extension cable may be purchased from customer service only.en

Important information when using the appliance ■ Never use electrical appliances inside the appliance (e.g. heater, electric ice maker, etc.). Explosion hazard! ■ Never defrost or clean the appliance with a steam cleaner! The steam may penetrate electrical parts and cause a short-circuit. Risk of electric shock! ■ Do not use pointed or sharp- edged implements to remove frost or layers of ice. You could damage the refrigerant tubes. Leaking refrigerant may cause eye injuries or ignite. ■ Do not store products which contain flammable propellants (e.g. spray cans) or explosive substances in the appliance. Explosion hazard! ■ Do not stand on or lean heavily against base of appliance, drawers or doors, etc ■ For defrosting and cleaning, pull the mains plug out or switch off the fuse. Do not pull out the mains plug by tugging on the power cord. ■ Store high-percentage alcohol tightly closed and standing up. ■ Keep plastic parts and the door seal free of oil and grease. Otherwise, parts and door seal will become porous. ■ Never cover or block the ventilation openings of the appliance! ■ Avoiding placing children and vulnerable people at risk: At risk are children, people who have limited physical, mental or sensory abilities, as well as people who have inadequate knowledge concerning safe operation of the appliance. Ensure that children and vulnerable people have understood the hazards. A person responsible for safety must supervise or instruct children and vulnerable people who are using the appliance. Only children from 8 years and above may use the appliance. Supervise children who are cleaning and maintaining the appliance. Never allow children to play with the appliance.en

■ Do not store bottled or canned drinks (especially carbonated drinks) in the freezer compartment. Bottles and cans may burst! ■ Never put frozen food straight from the freezer compartment into your mouth. Risk of low-temperature burns! ■ Avoid prolonged touching of frozen food, ice or the evaporator pipes, etc. Risk of low-temperature burns! Children in the household ■ Keep children away from packaging and its parts. Danger of suffocation from folding cartons and plastic film! ■ Do not allow children to play with the appliance! ■ If the appliance features a lock: keep the key out of the reach of children! General regulations The appliance is suitable ■ for refrigerating and freezing food, ■ for making ice. This appliance is intended for use in the home and the home environment. The appliance is suppressed according to EU Directive 2004/108/EC. The refrigeration circuit has been checked for leaks. This product complies with the relevant safety regulations for electrical appliances (EN 60335-2-24). This appliance is intended for use up to a maximum height of 2000 metres above sea level.en

Information concerning disposal

• Disposal of packaging The packaging protects your appliance from damage during transit. All utilised materials are environmentally safe and recyclable. Please help us by disposing of the packaging in an environmentally friendly manner. Please ask your dealer or inquire at your local authority about current means of disposal.

• Disposal of your old appliance Old appliances are not worthless rubbish! Valuable raw materials can be reclaimed by recycling old appliances. m Warning Redundant appliances

1. Pull out the mains plug.

2. Cut off the power cord and discard

with the mains plug.

3. Do not take out the trays

and receptacles: children are therefore prevented from climbing in!

4. Do not allow children to play with

the appliance once it has spent its useful life. Danger of suffocation! Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally. Ensure that tubing of the refrigerant circuit is not damaged prior to proper disposal. Scope of delivery After unpacking all parts, check for any damage in transit. If you have any complaints, please contact the dealer from whom you purchased the appliance or our customer service. The delivery consists of the following parts: ■ Free-standing appliance■ Interior fittings (depending on model)■ Operating instructions■ Installation manual■ Customer service booklet■ Warranty enclosure■ Information on the energy consumption and noises ■ Bag containing installation materials (see overview of installation instructions) This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Observe ambient temperature and ventilation Ambient temperature The appliance is designed for a specific climate class. Depending on the climate class, the appliance can be operated at the following temperatures. The climate class can be found on the rating plate. Fig. 0 Note The appliance is fully functional within the room temperature limits of the indicated climatic class. If an appliance of climatic class SN is operated at colder room temperatures, the appliance will not be damaged up to a temperature of +5 °C. Ventilation Fig. # The air on the rear panel and on the side panels of the appliance heats up. Conduction of the heated air must not be obstructed. Otherwise, the refrigerating unit must work harder. This increases power consumption. Therefore: Never cover or block the ventilation openings! Connecting the appliance After installing the appliance, wait at least 1 hour until the appliance is switched on. During transportation the oil in the compressor may have flowed into the refrigeration system. Before switching on the appliance for the first time, clean the interior of the appliance (see chapter “Cleaning the appliance”). Electrical connection The socket must be near the appliance and also freely accessible following installation of the appliance. The appliance complies with the protection class I. Connect the appliance to 220–240 V/50 Hz alternating current via a correctly installed socket with protective conductor. The socket must be fused with a 10 to 16 A fuse. For appliances operated in non- European countries, check whether the stated voltage and current type match the values of your mains supply. This information can be found on the rating plate. Fig. 0 m Warning Never connect the appliance to electronic energy saver plugs. Our appliances can be used with mains and sine-controlled inverters. Mains- controlled inverters are used for photovoltaic systems which are connected directly to the national grid. Sine-controlled inverters must be used for isolated applications (e.g. on ships or in mountain lodges) which are not connected directly to the national grid. Climate class Permitted ambient temperature SN +10 °C to 32 °C N +16 °C to 32 °C ST +16 °C to 38 °C T +16 °C to 43 °Cen

Getting to know your appliance Please fold out the illustrated last page. These operating instructions refer to several models. The features of the models may vary. The diagrams may differ. Fig. !

• Not all models. Controls Fig. " A Refrigerator compartment B Cool-fresh compartment C Freezer compartment 1-9 Controls 10 Light switch 11 Light (LED) 12 Shelf in the refrigerator compartment 13 Air outlet opening 14 Egg rack 15 “Cool-fresh” container 16 Humidity filter 17 Humidity container 18 Frozen food container 19 Shelf for tubes and small tins 20 Butter and cheese compartment 21 Shelf for large bottles 22 Ice pack 23 Freezer calendar 1 On/Off button Serves to switch the whole appliance on and off. 2 Alarm button Used to switch off the warning signal, see chapter “Alarm function”. 3 “Super” button (freezer compartment) Switches super freezing on and off. 4 Temperature selection button freezer compartment The button sets the temperature in the freezer compartment. 5 Temperature display freezer compartment The numbers correspond to the set freezer compartment temperatures in °C. 6 “Super” button refrigerator compartment Switches super cooling on and off. 7 Selection button for refrigerator compartment Is used to set the temperature in the refrigerator compartment. 8 Temperature display refrigerator compartment The numbers correspond to the set refrigerator compartment temperatures in °C. 9 ON/OFF display The ON/OFF display is lit when the appliance is in operation.en

Switching on the appliance Switch on the appliance with the On/Off button, Fig. "/1. The temperature warning signal is switched off by pressing the alarm button, Fig. "/2. The temperature displays flash and the alarm button display is lit up, until the appliance has reached the set temperatures. The light in the refrigerator compartment is lit when the door is open. The factory has recommended the following temperatures: ■ Refrigerator compartment: +4 °C ■ Cool-fresh compartment: at almost 0 °C ■ Freezer compartment: –18 °C Note If the light switch, Fig. !/10, is pressed when the door is open, the light and the displays on the controls go out. Operating tips ■ When the appliance has been switched on, it may take several hours until the set temperatures have been reached. ■ The fully automatic NoFrost system ensures that the freezer compartment remains free of ice. Defrosting is no longer required. ■ The sides of the housing are sometimes heated slightly. This prevents condensation in the area of the door seal. ■ If the freezer compartment door cannot be immediately re-opened after it has been closed, wait until the resulting low pressure has equalised. Setting the temperature Fig. " Refrigerator compartment The temperature can be set from +3 °C to +8 °C. Keep pressing temperature setting button 7 until the required refrigerator compartment temperature is set. The value last selected is saved. The set temperature is indicated on temperature display 8. We recommend a setting of +4 °C. Perishable food should not be stored above +4 °C. Cool-fresh compartment The temperature in the “cool-fresh” compartment has been set to almost 0 °C at the factory and should not be changed if at all possible. If frost forms on the refrigerated food, the temperature can be increased. (See chapter “Eliminating minor faults yourself”.) Freezer The temperature can be set from -16 °C to -24 °C. Keep pressing temperature setting button 4 until the required freezer compartment temperature is set. The value last selected is saved. The set temperature is indicated on temperature display 5. We recommend a factory setting of -18 °C in the freezer compartment.en

Alarm function Switching off the warning signal Fig. " Press the alarm button 2 to switch off the warning signal. Door opening alarm If the appliance is left open for longer than one minute, the door alarm (continuous sound) switches on. Close the door or press the Alarm button 2 to switch the warning signal off again. Temperature alarm The temperature alam switches on if the freezer compartment is too warm. Temperature warning The alarm may switch on without any risk to the frozen food: ■ when the appliance is switched on, ■ when large quantities of fresh food are placed in the appliance, ■ if the freezer compartment door is open too long. Thaw warning If taste, odour and appearance remain unchanged, the food can be boiled or fried and then refrozen. No longer store the frozen produce for the max. storage period. Note Do not refreeze thawing or thawed food. Only ready meals (boiled or fried) may be refrozen. No longer store the frozen produce for the max. storage period. Usable capacity Information on the usable capacity can be found inside your appliance on the rating plate. Fig. 0 Fully utilising the freezer volume The maximum amount of food can be placed in the freezer by removing all fittings. The food can be stacked directly on the shelves and in the bottom of the freezer compartment. Removing the fittings Pull out the frozen food container all the way, lift at the front and remove. Fig. $ Alarm button Temperature display Explanation illuminate

flashes Temperature alarm: Frozen food is not at risk of thawing. flashes flashes Thaw alarm: Frozen food is at risk of thawing. flashes illuminates Thaw alarm: At some time the freezer compartment was too warm. Frozen food is at risk of thawing.en

Refrigerator compartment The refrigerator compartment is the ideal storage location for ready meals, cakes and pastries, preserved food, condensed milk and hard cheese. Storing food ■ Store fresh, undamaged food. The quality and freshness will then be retained for longer. ■ In the case of ready-made products and bottled goods, observe the best- before date or use-by date specified by the manufacturer. ■ To retain aroma, colour and freshness, pack or cover food well before placing in the appliance. This will prevent the transfer of flavours and the discolouration of plastic parts in the refrigerator compartment. ■ Allow warm food and drinks to cool down before placing in the appliance. Note Avoid contact between food and rear panel. Otherwise the air circulation will be impaired. Food or packaging could freeze to the rear panel. Super cooling Super cooling sets the refrigerator temperature to the coldest temperature setting for approx. 6 hours. Then the appliance automatically switches to the temperature set prior to super cooling mode. Switch on super cooling mode, e.g. ■ before placing large quantities of food in the refrigerator compartment. ■ for the fast cooling of drinks. Switching on and off Fig. " Press “super” button 6. The button is lit when super cooling is switched on. The “cool-fresh” compartment The temperature in the fridge is about 0 °C. The low temperature and the optimum moisture provide ideal storage conditions for fresh food. Food can be kept fresh up to three times longer in the “cool-fresh” compartment than in the normal cooling zone – for even longer freshness, nutrient retention and flavour.en

Humidity container Fig. !/17 The humidity container is covered with a special filter which optimises retention of the air humidity in the storage compartment. As a result, there is up to 95 % air humidity in the humidity container, depending on the amount of products put in. This storage climate offers ideal conditions for fresh fruit, salad greens, vegetables, herbs or mushrooms. Notes ■ Fruit sensitive to cold (e.g. pineapple, banana, papaya and citrus fruit) and vegetables sensitive to cold (e.g. aubergines, cucumbers, zucchini, peppers, tomatoes and potatoes) should be stored outside the refrigerator at temperatures of approx. +8 °C to +12 °C for optimum preservation of quality and flavour. ■ Condensation may form in the humidity container depending on the type and quantity of products stored. Remove condensation with a dry cloth. Foods suitable for “cool-fresh” container: In the “cool-fresh” container: Fig. !/15 ■ Fish, seafood, meat, sausage, dairy products, ready meals. In the humidity container: Fig. !/17 ■ Vegetables (e.g. carrots, asparagus, celery, leeks, beetroot, mushrooms, brassicas such as broccoli, cauliflower, Brussels sprouts, kohlrabi) ■ Salad greens (e.g. lamb’s lettuce, iceberg lettuce, chicory, lettuce) ■ Herbs (e.g. dill, parsley, chives, basil) ■ Fruit (types insensitive to cold, e.g. apples, peaches, berries, grapes) Storage times (at 0 °C) Freezer compartment Use the freezer compartment ■ To store deep-frozen food. ■ To make ice cubes. ■ To freeze food. Note Ensure that the freezer compartment door has been closed properly. If the door is open, the frozen food will thaw. The freezer compartment will become covered in thick ice. Also: waste of energy due to high power consumption! Depending on the initial quality Fresh fish, seafood up to 3 days Poultry, meat (boiled/fried) up to 5 days Beef, pork, lamb, sausage (cold meat) up to 7 days Smoked fish, broccoli up to 14 days Salad greens, fennel, apricots, plums up to 21 days Soft cheese, yoghurt, quark, buttermilk, cauliflower up to 30 daysen

Max. freezing capacity Information about the max. freezing capacity within 24 hours can be found on the rating plate. Fig. 0 Freezing and storing food Purchasing frozen food ■ Packaging must not be damaged. ■ Use by the “use by” date. ■ Temperature in the supermarket freezer must be -18 °C or lower. ■ If possible, transport deep-frozen food in an insulated bag and place quickly in the freezer compartment. Storing frozen food Insert freezer drawers all the way to ensure unrestricted air circulation. If a large quantity of food is to be placed in the freezer compartment, the food can be stacked directly on the wire shelves and on the floor of the freezer compartment.

2. Pull out the freezer drawers all

the way, lift at the front and remove. Fig. $ Freezing fresh food Freeze fresh and undamaged food only. To retain the best possible nutritional value, flavour and colour, vegetables should be blanched before freezing. Aubergines, peppers, zucchini and asparagus do not require blanching. Literature on freezing and blanching can be found in bookshops. Note Keep food which is to be frozen away from food which is already frozen. ■ The following foods are suitable for freezing: Cakes and pastries, fish and seafood, meat, game, poultry, vegetables, fruit, herbs, eggs without shells, dairy products such as cheese, butter and quark, ready meals and leftovers such as soups, stews, cooked meat and fish, potato dishes, soufflés and desserts. ■ The following foods are not suitable for freezing: Types of vegetables, which are usually consumed raw, such as lettuce or radishes, eggs in shells, grapes, whole apples, pears and peaches, hard-boiled eggs, yoghurt, soured milk, sour cream, crème fraîche and mayonnaise.en

Packing frozen food To prevent food from losing its flavour or drying out, place in airtight containers.

1. Place food in packaging.

4. Label packaging with contents

and date of freezing. Suitable packaging: Plastic film, tubular film made of polyethylene, aluminium foil, freezer containers. These products are available from specialist outlets. Unsuitable packaging: Wrapping paper, greaseproof paper, cellophane, bin liners and used shopping bags. Items suitable for sealing packaged food: Rubber bands, plastic clips, string, cold- resistant adhesive tape, etc. Bags and tubular film made of polyethylene can be sealed with a film heat sealer. Shelf life of frozen food Storage duration depends on the type of food. At a temperature of -18 °C: ■ Fish, sausage, ready meals and cakes and pastries: up to 6 months ■ Cheese, poultry and meat: up to 8 months ■ Vegetables and fruit: up to 12 months Super freezing Food should be frozen solid as quickly as possible in order to retain vitamins, nutritional value, appearance and flavour. Several hours before placing fresh food in the freezer compartment, switch on super freezing to prevent an unwanted temperature rise. As a rule, 4–6 hours is adequate. This appliance runs constantly and the freezer compartment drops to a very low temperature. If the max. freezing capacity is to be used, super freezing must be switched on for 24 hours before the fresh produce is placed in the freezer compartment. Smaller quantities of food (up to 2 kg) can be frozen without “super freezing”. Note When super freezing is switched on, increased operating noises may occur. Switching on and off Fig. " Press “super” button 3. If the super freezing has been switched on the button is lit. Super freezing automatically switches off after approx. 2½ days.en

Thawing frozen food Depending on the type and application, select one of the following options: ■ at room temperature ■ in the refrigerator ■ in an electric oven, with/without fan assisted hot-air ■ in the microwave m Caution Do not refreeze thawing or thawed food. Only ready meals (boiled or fried) may be refrozen. No longer store the frozen produce for the max. storage period. Interior fittings (not all models) You can reposition the shelves inside the appliance and the door shelves as required: ■ Pull shelf forwards, lower and swing out to the side. Fig. % ■ Raise the door shelf and remove. Fig. & Butter and cheese compartment Fig. ' Bottle shelf Fig. ( Bottles can be stored securely on the bottle shelf. The holder can be adjusted. Bottle holder Fig. ) The bottle holder prevents bottles from falling over when the door is opened and closed. Ice cube tray Fig. *

1. Fill the ice cube tray ¾ full of drinking

water and place in the freezer compartment.

2. If the ice tray is stuck to the freezer

compartment, loosen with a blunt implement only (spoon-handle).

3. To loosen the ice cubes, twist the ice

tray slightly or hold briefly under flowing water. Freezer calendar Fig. +/A To prevent the quality of the frozen food from deteriorating, do not exceed the storage duration. The figures next to the symbols indicate the permitted storage period of the produce in months. In the case of commercially available frozen food observe the date of manufacture or use-by date.en

Ice block Fig. +/B If a power failure or malfunction occurs, the ice blocks can be used to slow down the thawing process. The longest storage time is obtained by placing the ice pack on the food in the top compartment. To save space, the ice block can be stored in the door compartment. The ice blocks can also be used to cool food temporarily , e. g. in a cold bag. Switching off and disconnecting the appliance Turn off appliance Fig. " Press the On/Off button 1. Temperature display 8 goes out, refrigeration unit switches off. Disconnecting the appliance If you do not use the appliance for a prolonged period:

1. Switch off the appliance.

2. Pull out mains plug or switch off fuse.

3. Clean the appliance.

4. Leave the appliance door open.

Defrosting Refrigerator and “cool-fresh” compartments Defrosting is actuated automatically. While the refrigeration unit is running, water droplets or hoarfrost form at the rear panel of the refrigerator compartment. This is nothing unusual. It is not necessary to wipe off the water droplets or hoarfrost. The rear panel defrosts automatically. The condensation drains off into the condensation channel, Fig. ,. From there the condensation drains off down the condensation channels to the refrigeration unit where it evaporates. Note Keep the condensation channel and drainage hole clean, so the condensation can drain off. Fig. , Freezer compartment The fully automatic NoFrost system ensures that the freezer compartment remains free of ice. Defrosting is no longer required.en

Cleaning the appliance m Caution ■ Do not use abrasive, chloride or acidic cleaning agents or solvents. ■ Do not use scouring or abrasive sponges. The metallic surfaces could corrode. ■ Never clean shelves and containers in the dishwasher. The parts may become deformed! Proceed as follows:

1. Before cleaning: Switch off

3. Take out the food and store in a cool

4. Wait until the layer of frost has thawed.

5. Clean the appliance with a soft cloth,

lukewarm water and a little pH neutral washing-up liquid. The rinsing water must not run into the light.

6. Wipe the door seal with clear water

only and then wipe dry thoroughly.

7. Rinsing water must not run through

the drainage hole into the evaporation area.

8. After cleaning reconnect and switch

the appliance back on.

9. Put the food back into the appliance.

Notes ■ Regularly clean the condensation channel and drainage hole, Fig. ,, with a cotton bud or similar implement to ensure that the condensation can drain. ■ After cleaning, the stopper must be re- inserted into the drainage hole of the refrigerator compartment for functional reasons. Interior fittings All variable parts of the appliance can be taken out for cleaning. Take out glass shelves Fig. % Lift the glass shelves, pull forwards, lower and swivel out to the side. Removing the container Fig. - Pull out the container all the way and lift to detach it. To insert the container, place on the telescopic rails and push into the appliance. Attach the container by pressing it down. Taking out the humidity filter Fig. !/16 The humidity filter over the humidity container can be taken out for cleaning. To do this, first take out the humidity container and pull out the humidity filter. Lift off the filter cover, Fig. ., and take out the filter. Clean in lukewarm water, leave to dry and re-assemble. Taking out the frozen food container Fig. $ Pull out the frozen food container all the way, lift at the front and remove. General information for looking after the surfaces Clean surfaces with luke warm water and a little washing-up liquid. After cleaning, rub thoroughly dry.en

Light (LED) Your appliance features a maintenance- free LED light. These lights may be repaired by customer service or authorised technicians only. Tips for saving energy ■ Install the appliance in a dry, well ventilated room! The appliance should not be installed in direct sunlight or near a heat source (e.g. radiator, cooker). If required, use an insulating plate. ■ Allow warm food and drinks to cool down before placing in the appliance. ■ Thaw frozen food in the refrigerator compartment and use the low temperature of the frozen food to cool refrigerated food. ■ Open the appliance as briefly as possible. ■ To avoid increased power consumption, occasionally clean the back of the appliance. ■ If available: Fit wall spacers to obtain the indicated energy rating of the appliance (see Installation instructions). A reduced wall gap will not restrict the function of the appliance. The energy rating may then increase slightly. The gap of 75 mm must not be exceeded. ■ The arrangement of the fittings does not affect the energy rating of the appliance. Operating noises Quite normal noises Droning Motors are running (e.g. refrigerating units, fan). Bubbling, humming or gurgling noises Refrigerant is flowing through the tubing. Clicking Motor, switches or solenoid valves are switching on/off. Preventing noises The appliance is not level Please align the appliance with a spirit level. Use the height-adjustable feet or place packing underneath them. The appliance is not free-standing Please move the appliance away from adjacent units or appliances. Containers or storage areas wobble or stick Please check the removable parts and re-insert them correctly if required. Bottles or receptacles are touching each other Move the bottles or receptacles slightly away from each other.en

Eliminating minor faults yourself Before you call customer service: Please check whether you can eliminate the fault yourself based on the following information. Customer service will charge you for advice – even if the appliance is still under guarantee! Fault Possible cause Remedial action Temperature differs greatly from the set value. In some cases it is adequate to switch off the appliance for 5 minutes. If the temperature is too high wait a few hours and check whether the temperature has approached the set value. If the temperature is too low check the temperature again the next day. The light does not work. The LED light is defective. See chapter “Light (LED)” section. Light switch is jammed. Check whether the light switch can move. Displays do not illuminate. Power failure; the fuse has been switched off; the mains plug has not been inserted properly. Connect mains plug. Check whether the power is on, check the fuses. Floor of the refrigerator compartment is wet. The condensation channels or condensation drainage pipe are blocked. Clean the condensation channels and the outlet (see “Cleaning the appliance”). Fig. , Stopper is missing from the condensation drainage pipe. Insert stopper.en

Fault Possible cause Remedial action The “cool-fresh” compartment is too warm or too cold. The standard setting has been set too high or too low (e.g. if there is frost in the “cool-fresh” compartment). Press super button on refrigerator compartment, Fig. "/6, for 3 seconds until a beep sounds. Temperature display on refrigerator compartment 8 flickers. The temperature in the “cool-fresh” compartment can be set to be 2 steps warmer and/or colder. If the bargraph is set to 5, the “cool-fresh” compartment has a temperature of almost 0 °C. Setting 3 – coldest setting Setting 8 – warmest setting Change the setting using the temperature setting button on refrigerator compartment 7. The set temperature is saved after one minute. The temperature in the freezer compartment is too warm. Appliance opened frequently. Do not open the appliance unnecessarily. The ventilation openings have been covered. Remove obstacles. Large quantities of fresh food are being frozen. Do not exceed max. freezing capacity. The freezer compartment is too warm. Temperature displays, Fig. "/5 or 8, flash. Appliance opened frequently. Do not open the appliance unnecessarily. Too much food was placed in the compartment. Switch on super freezing before inserting the food. Warning signal sounds. The alarm button, Fig. "/2, and the freezer compartment temperature display, Fig. "/ 5, flash. Fault – the freezer compartment is too warm! Frozen food is at risk! See chapter entitled “Alarm function”. Note Frozen food which has started thawing or which has thawed can be refrozen if meat and fish were above +3 °C for not more than one day or other frozen food for not more than three days. If taste, odour and appearance have not changed, the food can be boiled or fried and then refrozen. No longer store the frozen produce for the max. storage period.en

Customer service Your local customer service can be found in the telephone directory or in the customer-service index. Please provide customer service with the appliance product number (E-Nr.) and production number (FD). These specifications can be found on the rating plate. Fig. 0 To prevent unnecessary call-outs, please assist customer service by quoting the product and production numbers. This will save you additional costs. Repair order and advice on faults Contact information for all countries can be found on the enclosed customer service list. Fault Possible cause Remedial action Freezer compartment door was open for a long time; temperature is no longer reached. The evaporator (refrigeration generator) in the NoFrost system is covered in thick ice and can no longer be defrosted fully automatically. To defrost the evaporator, remove the frozen food with the compartments, insulate well and store in a cool location. Switch off the appliance and move it away from the wall. Leave the appliance door open. After approx. 20 min. the condensation begins to run into the evaporation pan, at the rear of the appliance. Fig. / To prevent the evaporation pan from overflowing in this case, mop up the condensation with a sponge. The evaporator is defrosted when the water stops running into the evaporation pan. Clean the interior. Switch the appliance back on again. GB 0344 892 8999 Calls charged at local or mobile rate. IE 01450 2655 0.03 € per minute at peak. Off peak 0.0088 € per minute. US 866 447 4363 toll-freefr
