USER MANUAL TT86105 SIEMENS

SIEMENS SIEMENS

TT 86...

siemens-home.bsh-group.com/welcome

Register your product online

de	Deutsch	2
en	English	6
fr	Français	10
it	Italiano	15
nl	Nederlands	20
da	Dansk	25
no	Norsk	29
sv	Svenska	33
fi	Suomi	37
es	Español	41
pt	Português	46
el	Ελληνικά 51
tr	Türkçe	56
pl	Polski	63
hu	Magyar	68
bg	Български 73
ru	Русский		78
ar	العربية		87

Sicherheitshinweise

Please read and follow the operating instructions carefully and keep them for later reference. Enclose these instructions when you give this appliance to someone else.

This appliance is intended for domestic use only.

Danger of electric shock!

Only use the appliance indoors at room temperature and up to 2000 m above sea level. The appliance may only be connected to a power supply with alternating current via a correctly installed socket with earthing. Ensure that the protective conductor system of the domestic supply has been correctly installed.

Connect and operate the appliance only according to the type plate specifications. Do not use if the power cord or appliance show any signs of damage. Unplug after every use or if defective.

To avoid potential hazards, repairs such as replacing a damaged cable must only be carried out by our customer service personnel. Keep children under 8 years of age away from the appliance and connecting cable and do not allow them to use the appliance.

This appliance may be used by children aged 8 years and older and by persons with reduced physical, sensory or mental capabilities or who lack experience and / or knowledge if they are supervised or have been given instruction in the safe use of the appliance and have understood the dangers involved. Children may not play with the appliance.

Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.

en

⚠️ Risc of burns and fire!

Do not place the appliance on or near hot surfaces, e.g. hobs. Avoid spatters of grease as the plastic may be damaged.

A misuse of the appliance can potentially lead to injury.

The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Do not insert any objects into the toast slot.

Bread can burn. Never operate the toaster near or underneath curtains or other fl ammable materials. Never cover the toast slot.

Do not touch parts other than the operating controls as the toaster can become hot during toasting.

Press down the push-down lever only for toasting; never block it.

Do not use food that may drip as it is toasted or warmed, since this is a fire hazard.

Unplug the toaster and allow it to cool down before cleaning it.

Never immerse the appliance in water or place it in the dishwasher!

Do not steam-clean the appliance.

Do not use oven or grill spray for cleaning.

Use a firm brush to remove crumbs that may have accumulated under the warming rack.

Remove the crumb tray and wipe it clean.

Only operate the toaster when it is upright. Never leave the toaster unattended while it is in use!

Do not use near water contained in bath tubs, sinks or other containers.

Risk of suff ocation!

Do not allow children to play with packaging material.

Congratulations on purchasing this Siemens appliance. You have acquired a high-quality product that will bring you a lot of enjoyment.

Please use this toaster solely for toasting or heating sliced bread or for reheating bread rolls on the warming rack.

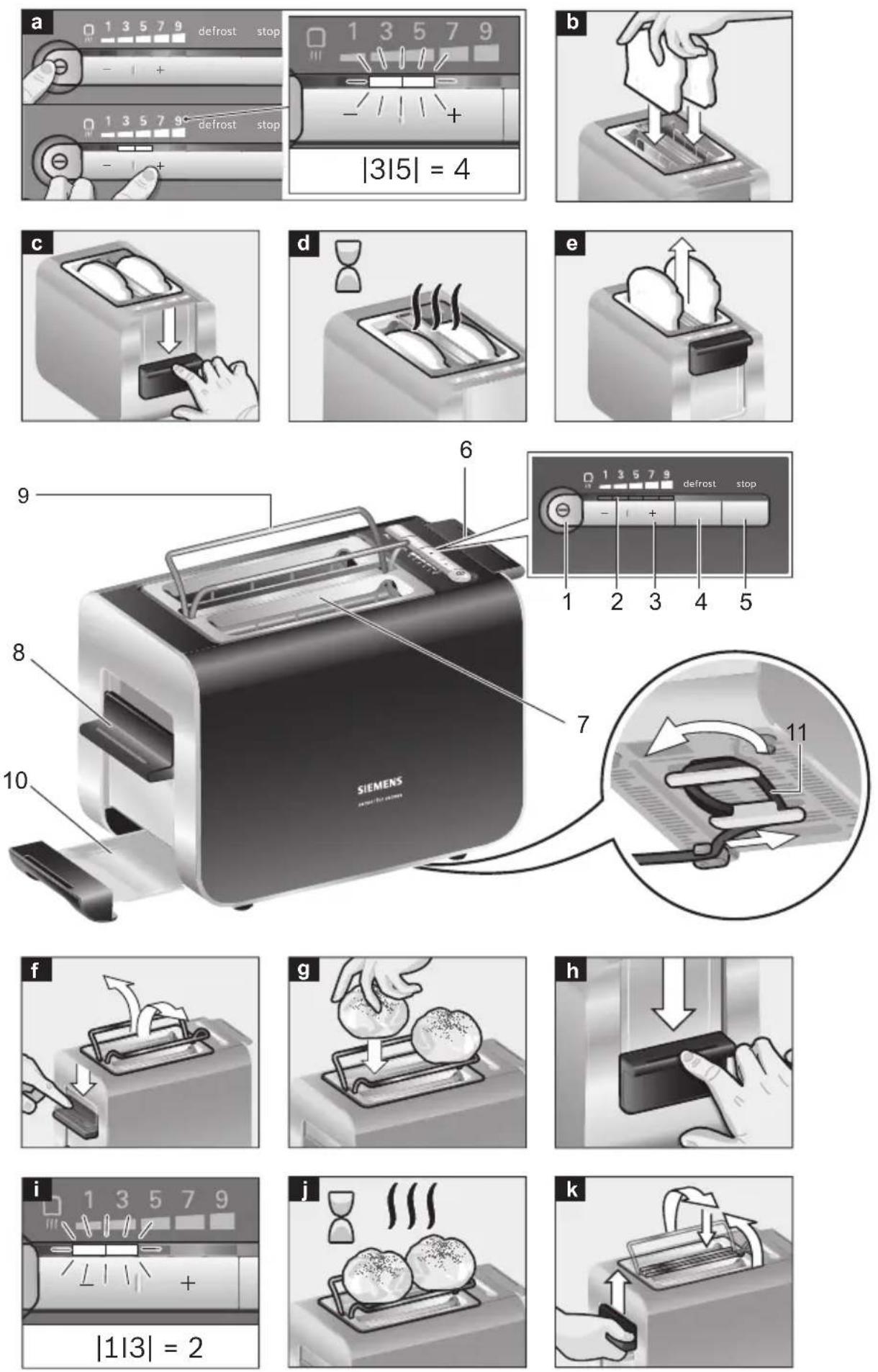

Parts and operating controls

1 ① ON/OFF button
2 Toasting level indicator e.g., level |3| Average browning
3 Button (for 9 toasting settings) □ = Warming - = Shorter toasting time + = Longer toasting time
4 defrost button
5 stop button
6 Push-down/start lever
7 Toast slot
8 Switch (for integrated warming rack)
9 Warming rack
10 Crumb tray
11 Cable tidy

Before using for the first time

■ Remove any stickers or film.
■ With the window open, operate the toaster without bread in it at least three times at the highest toasting level setting and let it cool down.

Operation

(Figures a - k on the fold-out pages)

Important: Do not operate the toaster without the crumb tray 10!

Toasting

■ Unwind the power cable to the required length and plug it in.
■ Press the ① ON/OFF button; the set toasting level lights up on the toasting level indicator 2, for example |3| or an intermediate level like |3|5| (=4).
→ Figure a.

■ Use button 3 to set the desired toasting level.

Degree of toasting Level
Warming	☐
Low→ dry sorts of bread,e.g. sliced white bread	|1|
	|1|3| (=2)
	|3|
	|3|5| (=4)
	|5|
Medium→ more moist sorts ofbread, e.g. mixed-grainbread, wholemeal	|5|7| (=6)
	|7|
High→ e.g. thick-slicedblack bread	|7|9| (=8)
	|9|

Note: The toaster will remember the selected toasting level (memory function), even if it is turned off, unplugged, or in case of a power failure.

■ Place the food to be toasted in the toast slot 7.
■ Press the push-down lever 6 down until it engages. The numbers for the selected toasting level flash. The toaster indicates the elapsed time by illuminating the numbers in the toasting level indicator 2.
■ Toasting ends when the food being toasted is raised up.

Note: Push the push-down lever 6 up to remove toasted items more easily.

To end the toasting process prematurely, press the stop button 5.

Tip: If you toast only one slice, set the toasting level lower than for two slices.

Warming cold bread or toast

Use button 3 to set the desired toasting level ☐ (warming).

Insert the food being toasted and press the push-down lever 6 down until it engages.

Preparing frozen bread or toast

■ Use button 3 to set the desired toasting level.
■ Press button 4 defrost.
■ Insert the frozen food to be toasted and press the push-down lever 6 down until it engages.

Using the warming rack

Never place aluminium foil on the warming rack 9!

Only use the warming function when the warming rack 9 is extended.

Never warm and toast at the same time!

■ Press switch 8 down until it engages. The warming rack 9 extends.
■ Use button 2 to set the desired toasting level, but no higher than level |1|3| (=2).
■ Press the push-down lever 6 down until it engages.

General

Toast items only until they are golden brown and not dark or brown. Remove any burnt edges. Do not over-toast foods containing starch, especially grain and potato products (to reduce the production of acryl amides).

N.B.: If a slice gets stuck, the toaster turns itself off automatically. Pull the power plug and carefully remove the bread after the toaster has cooled down.

Saving energy

Turn the toaster off after use by pressing the ① button in order to conserve energy.

Cleaning and maintenance

⚠️ Risk of electric shock!

Never immerse the device in water or place it in the dishwasher!

Don't steam-clean the appliance.

Do not use oven or grill spray for cleaning.

■ Pull the power plug and let the toaster cool down. Use a firm brush to remove crumbs that may have accumulated under the warming rack.

■ Remove the crumb tray 10 and wipe it clean.
- Clean the toaster's exterior with a damp cloth; do not use strong or abrasive cleaning agents.

Tip: Clean the stainless steel surface with a commercial stainless steel care product.

Technical specifications

Electrical connection (voltage–frequency)

220-240V\~ 50-60Hz

Output 860 W

Disposal

Dispose of packaging in an environmentally-friendly manner. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment – WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU. Please ask your specialist retailer about current disposals facilities.

Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Changes reserved.
